Z + F

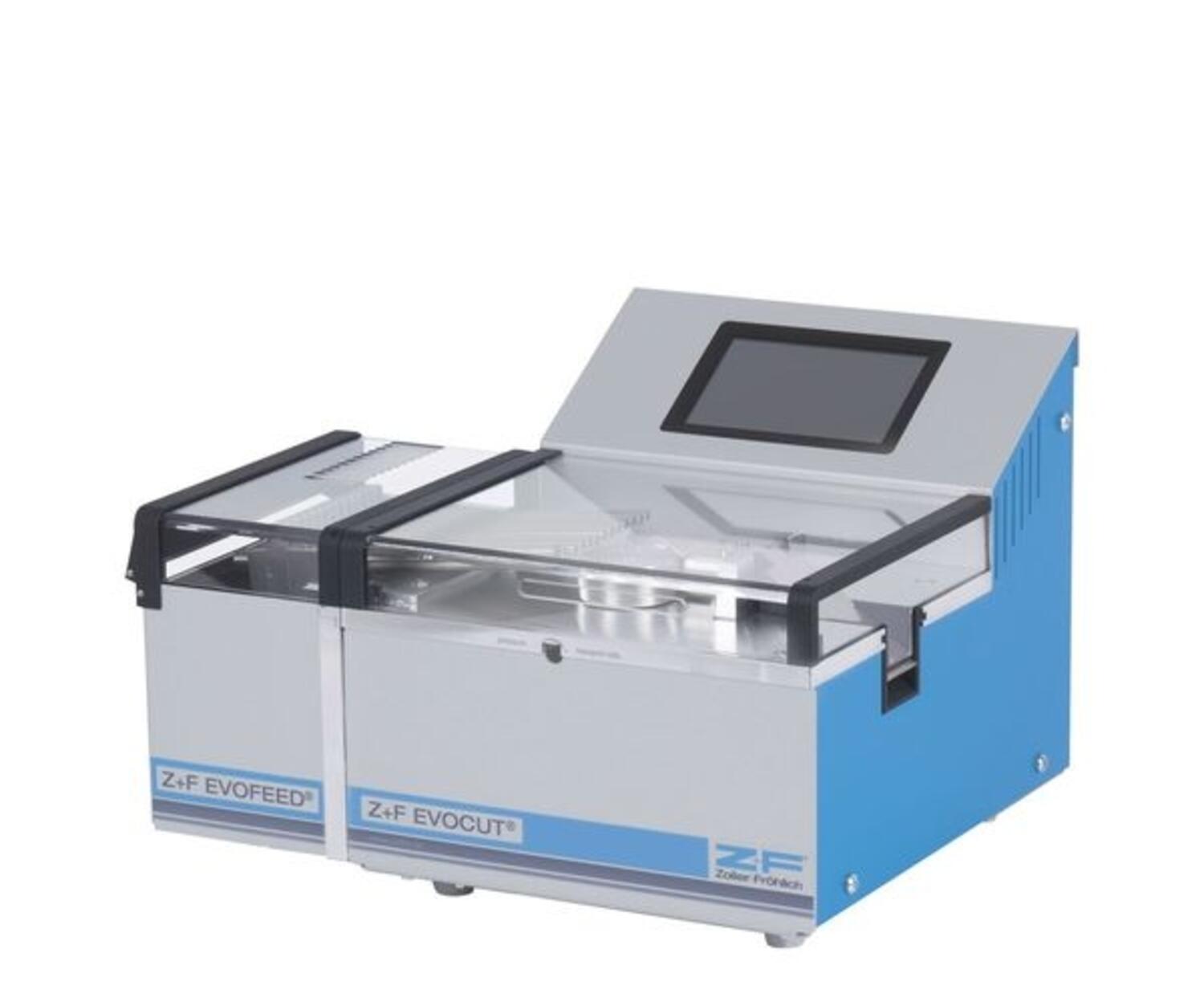

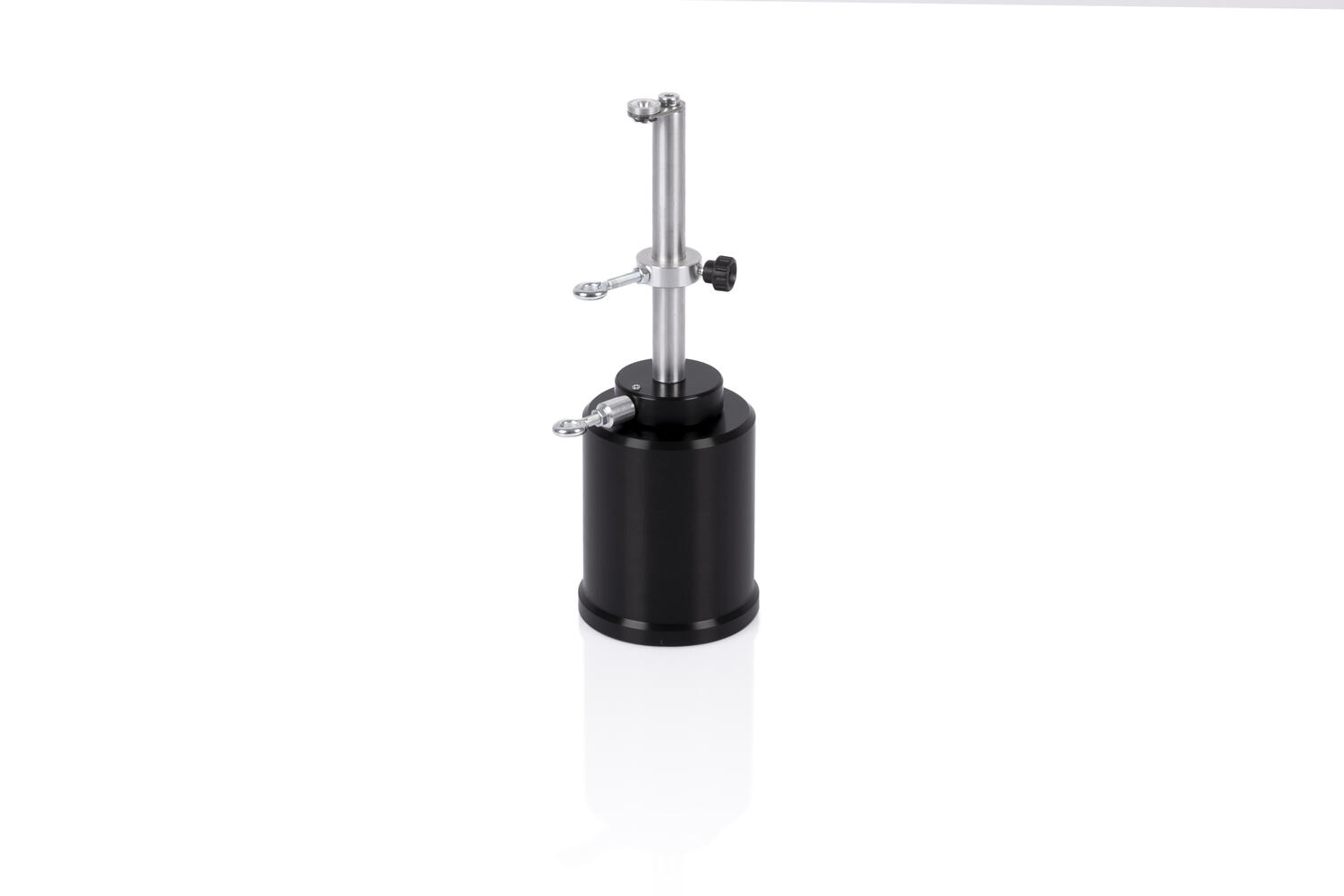

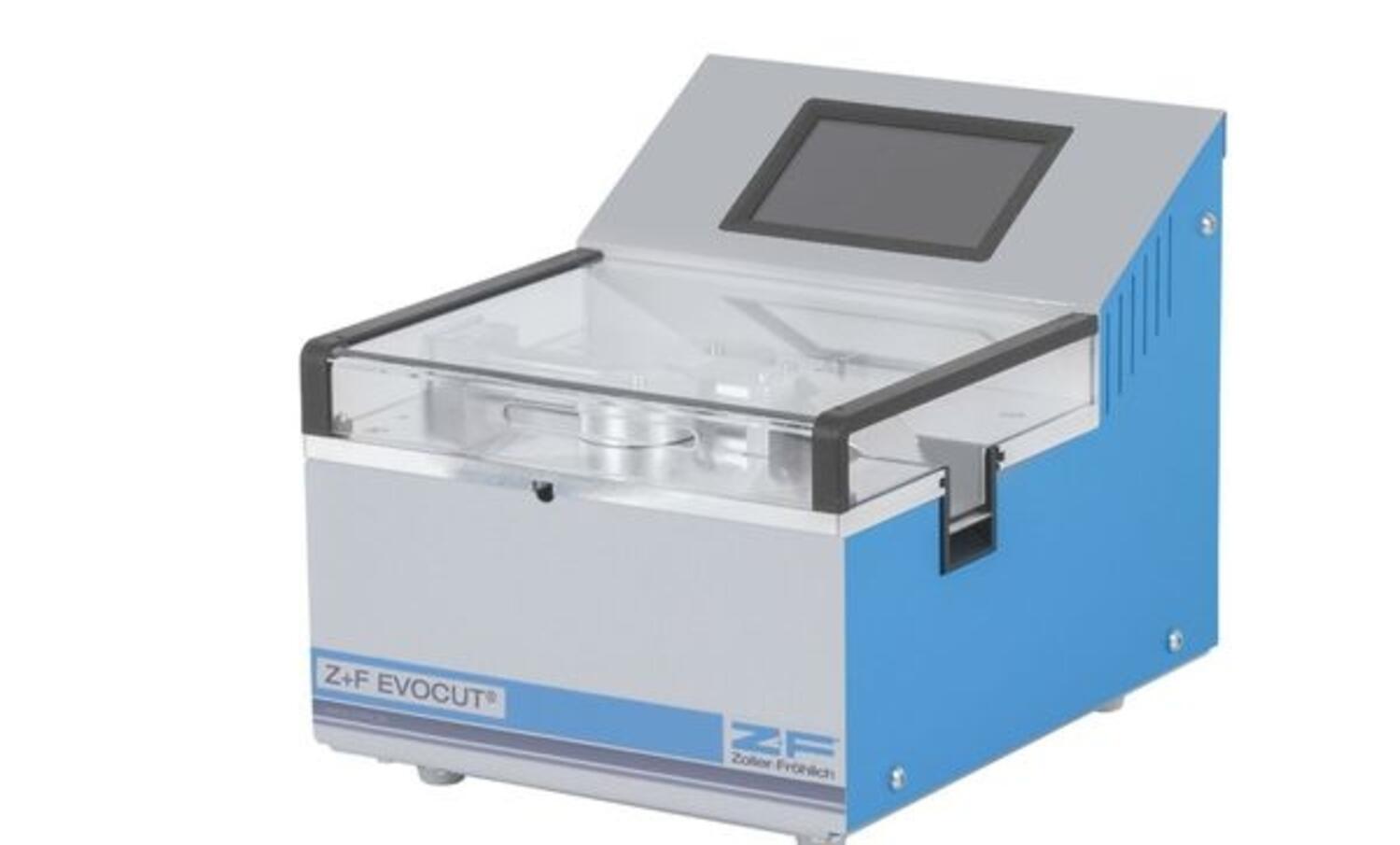

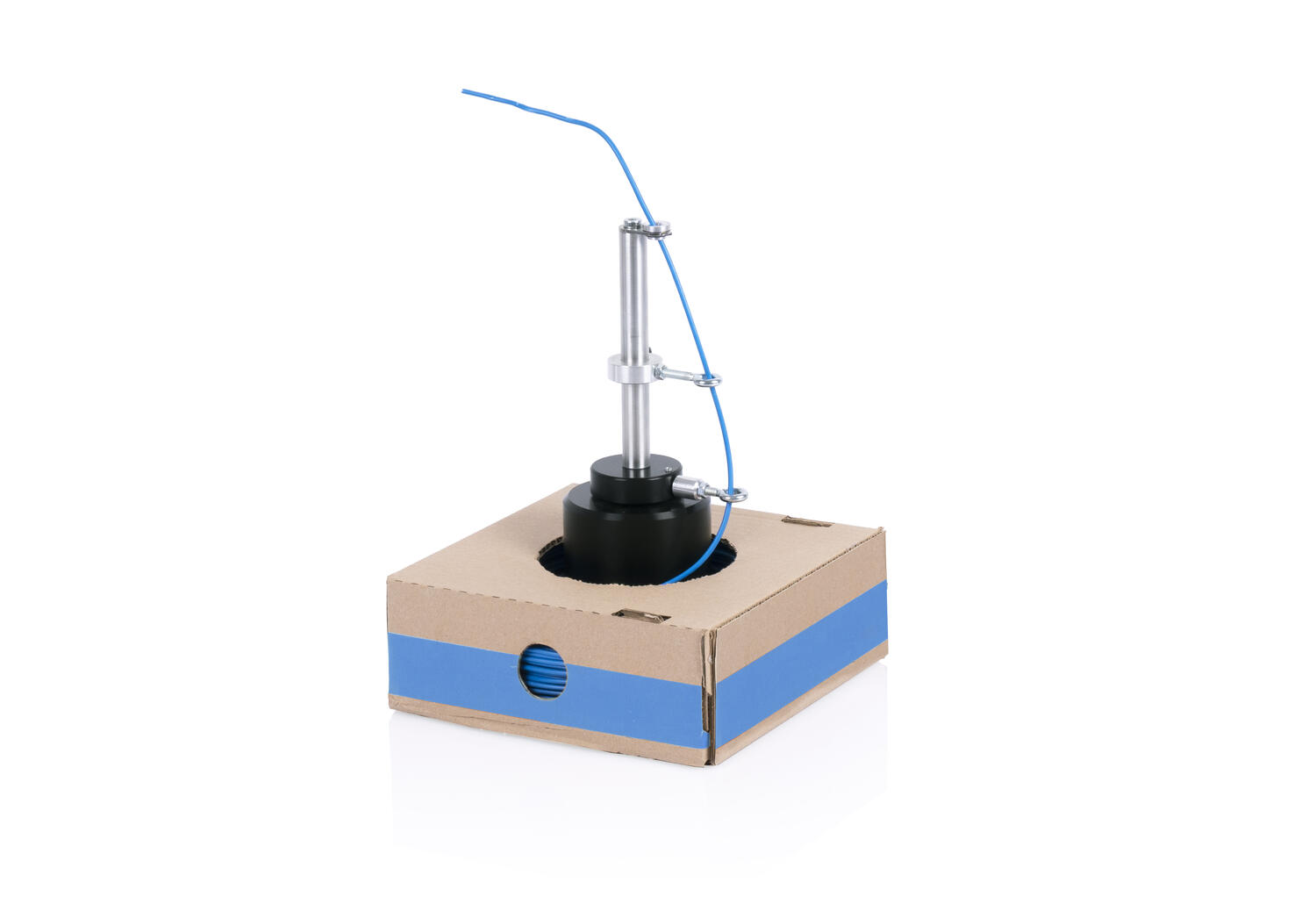

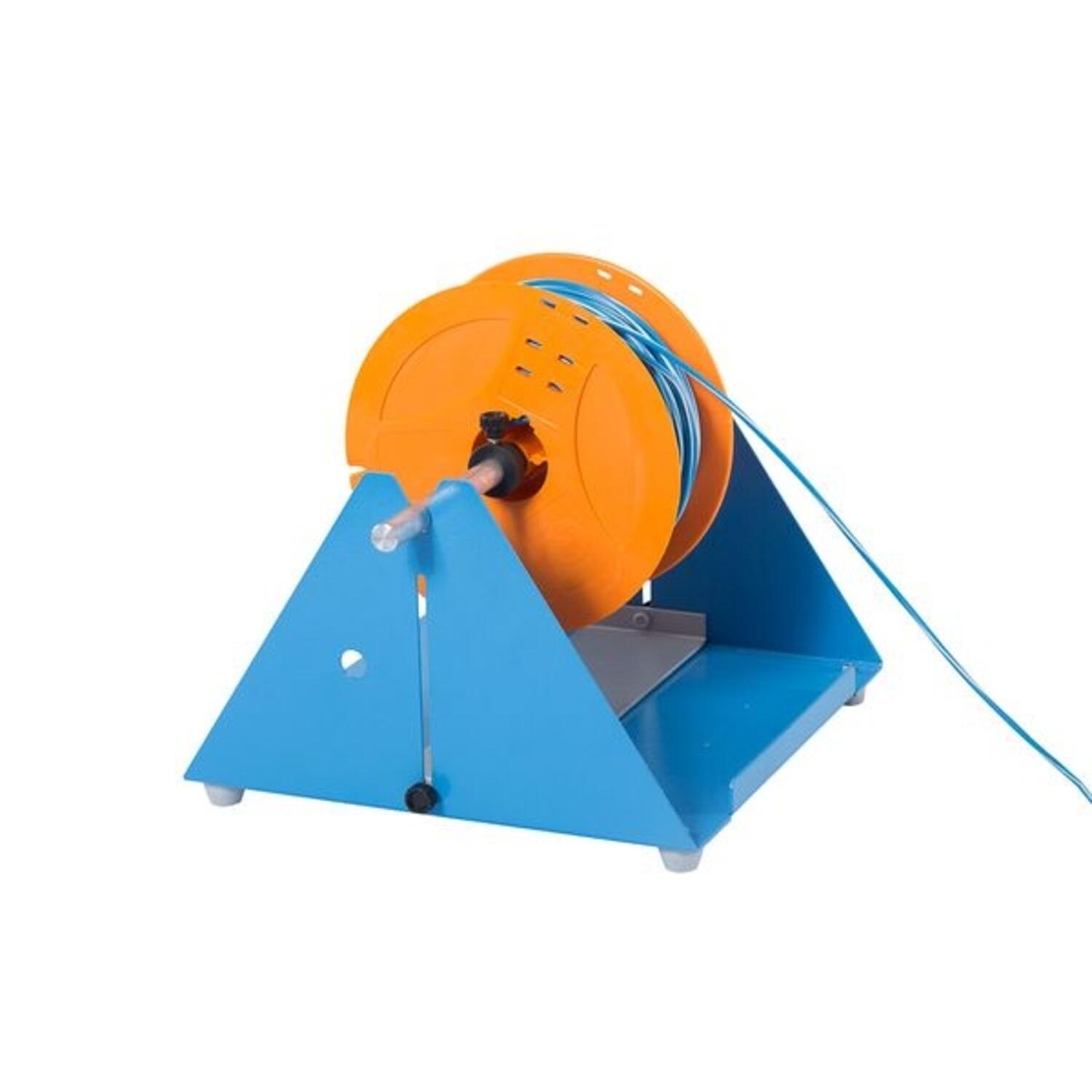

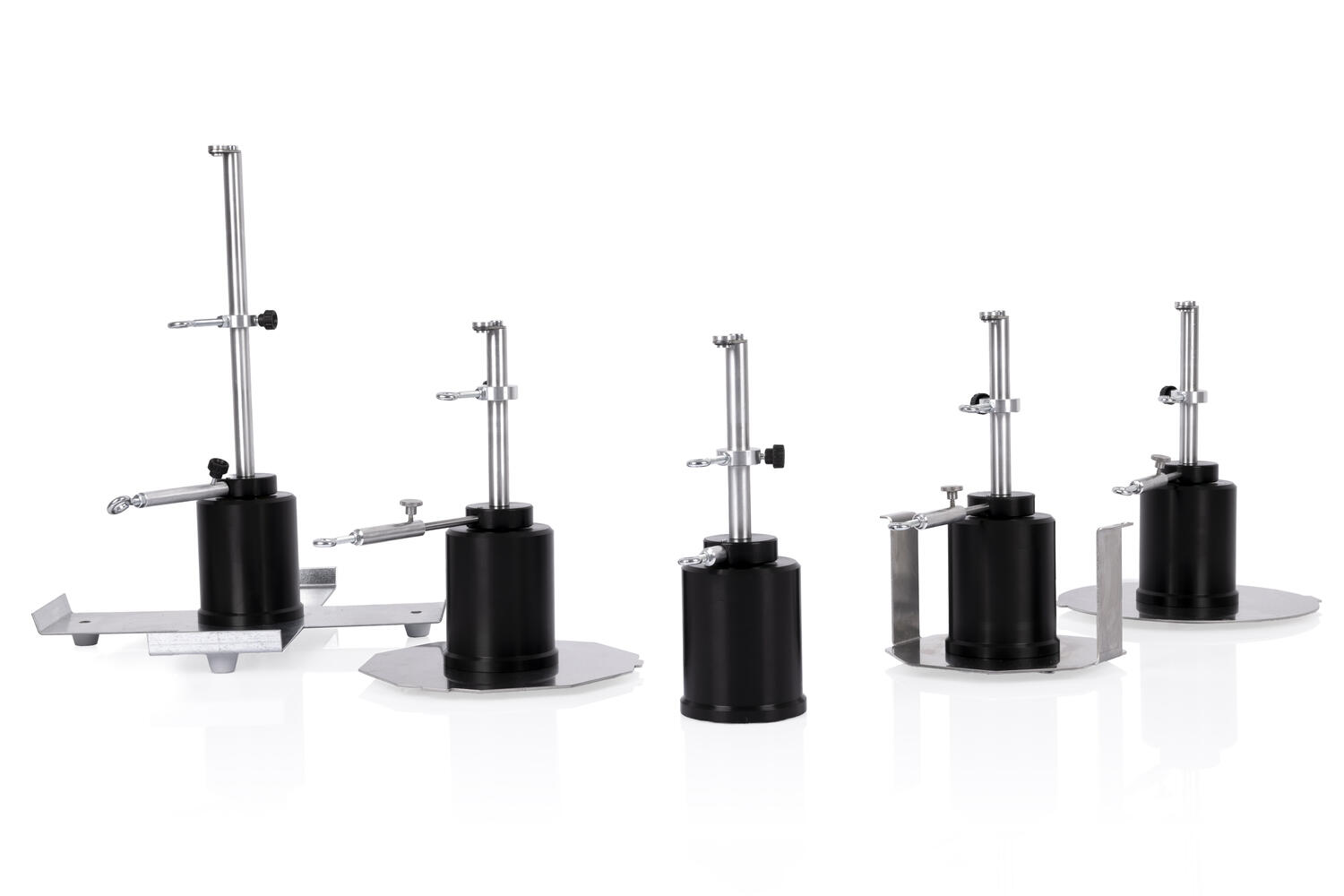

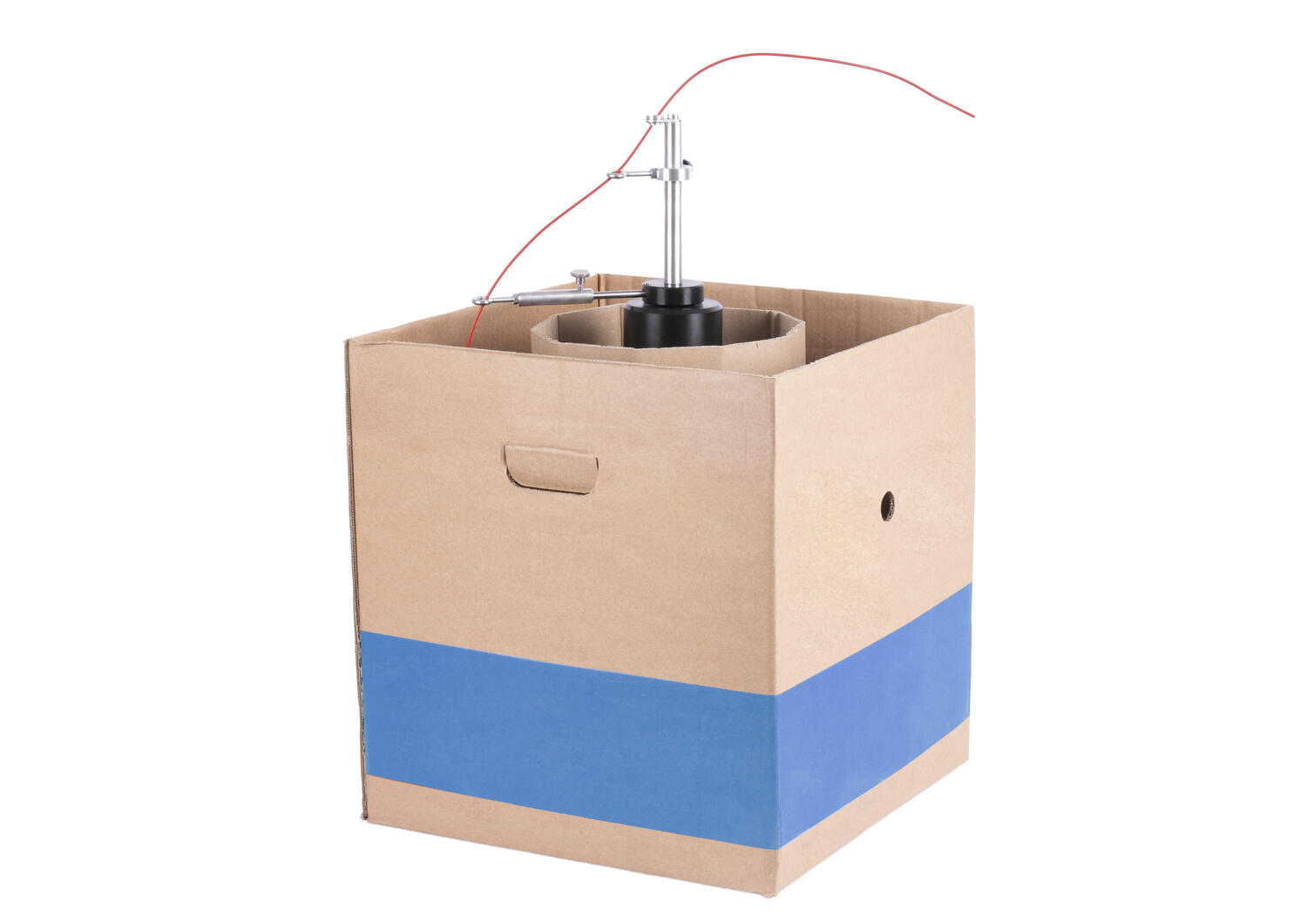

Cable Cutting Machines and Dereelers
- Easy operation with simple insertion of wires
- Horizontal working level for improved insight into the operating area
- Central output of the wires
- Connecting to any processing devices (manual, semi-automatic or fully automatic processing)
Selected variant
Technical data
| Dimension (mm) | 250x300x250 |
|---|---|
| Forward feed | 1 m/s |
| Max conductor diameter | 8 mm |
| Multicore conductor | 0.08 - 10mm² |
| Preselection of length (mm) | 1 - 999.999 |
| Single core conductor | 0.08 - 2.5mm² |
| Weight | 10 kg |
Downloads
