CONTA-CLIP

Sleeved Cable Tied cable markers

KSH, KKM

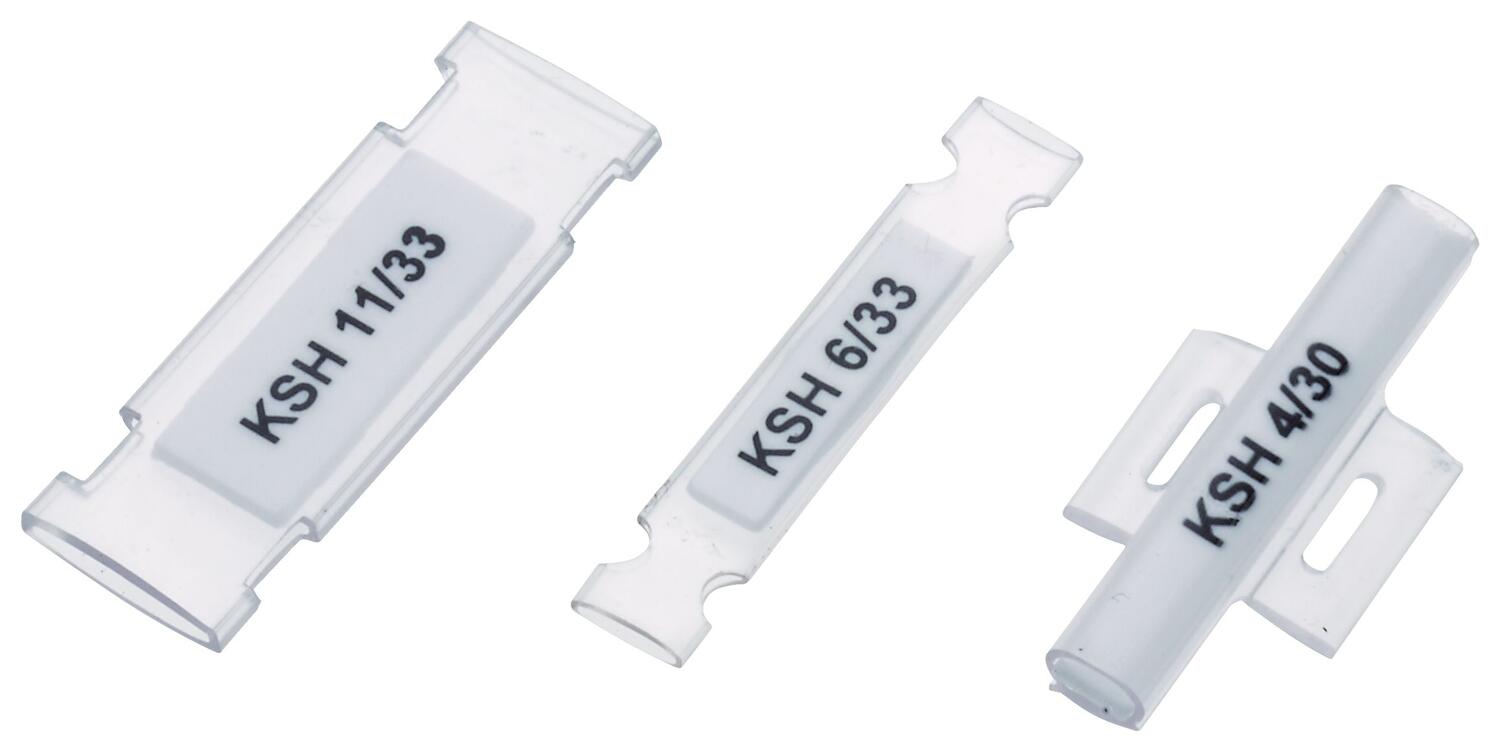

The KSH cable marker sleeves, used in combination with the ESS Maxicard and GS marker inserts allow cables to be labelled quickly and conveniently.

The KSH is simply attached to the cable using cable ties. This makes them particularly suitable for cables, pipes or hoses with large cross-sections. When used together, the Maxicard and the KSH cable marker sleeves ensure that your labels are protected from environment.

Available in three different sizes.

Material: Soft PVC, no cadmium or silicone – Resistant to Oils, benzene, gamma and UV radiation.

The KKM cable markers are mainly used indoors. They are attached to the cable using cable ties. They can be labelled with GKE self-adhesive labels or MC GST Maxicards.

They are available in two sizes.

Material: Polypropylene/nylon 6.6, transparent, halogen-free and silicone-free.

Quick assembly
Plottable inserts
Self adhesive options

Selected variant

Save page as PDF

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

Additional information	for MC ESS 18/64
Cable ties per sleeve max	2
Cable ties width max	3.6
Cadmium free	Yes
Chemical resistant	Yes
Country of origin	SE
Flammability class	UL94-V0
Height	1.5 mm
Length	33 mm
Material	PVC

Operating temperature from	-30 °C
Operating temperature to	60 °C
Pack size	100
Pocket width	6 mm
Silicone-free	Yes
Tariff code	39269097
UV-resistant	Yes
Weight	0.2 g
Width	6 mm

Downloads

Product description

The KSH cable marker sleeves, used in combination with the ESS Maxicard and GS marker inserts allow cables to be labelled quickly and conveniently.

Available in three different sizes.

Material: Soft PVC, no cadmium or silicone – Resistant to Oils, benzene, gamma and UV radiation.

The KKM cable markers are mainly used indoors. They are attached to the cable using cable ties. They can be labelled with GKE self-adhesive labels or MC GST Maxicards.

They are available in two sizes.

Material: Polypropylene/nylon 6.6, transparent, halogen-free and silicone-free.

Accessories

Parts	Additional information	Cable ties per holder max	Cable ties per sleeve max	Cable ties width max	Cadmium free	Chemical resistant	Country of origin	Flammability class	Halogen-free	Height	Length	Length of labeling field	Marker material	Material	Operating temperature from	Operating temperature to	Pack size	Pocket width	UV-resistant	Weight	Width	Width of labelling field
KSH 6/33 Cable marker ferrule Art: 2383.0 Copied	for MC ESS 18/64		2	3.6	Yes	Yes	SE	UL94-V0		1.5 mm	33 mm			PVC	-30 °C	60 °C	100	6 mm	Yes	0.2 g	6 mm
KSH 11/33 Cable marker ferrule Art: 2384.0 Copied	for MC GS 7/20		2	3.6	Yes	Yes	SE	UL94-V0		2.2 mm	33 mm			PVC	-30 °C	60 °C	100	11 mm	Yes	0.8 g	11.3 mm
KSH 4/30 Cable marker ferrule Art: 3896.0 Copied	for MC ESS 30/60		1	5.4	Yes	Yes	SE	UL94-V0		4 mm	30 mm			PVC	-30 °C	60 °C	500	4.6 mm	Yes	0.4 g	14.4 mm
KSH 4/23 Cable marker ferrule Art: 9394.0 Copied	for MC ESS 20/80				Yes	Yes	SE	UL94-V0			23 mm			PVC	-30 °C	60 °C	500	4.6 mm	Yes	3 g	4.6 mm

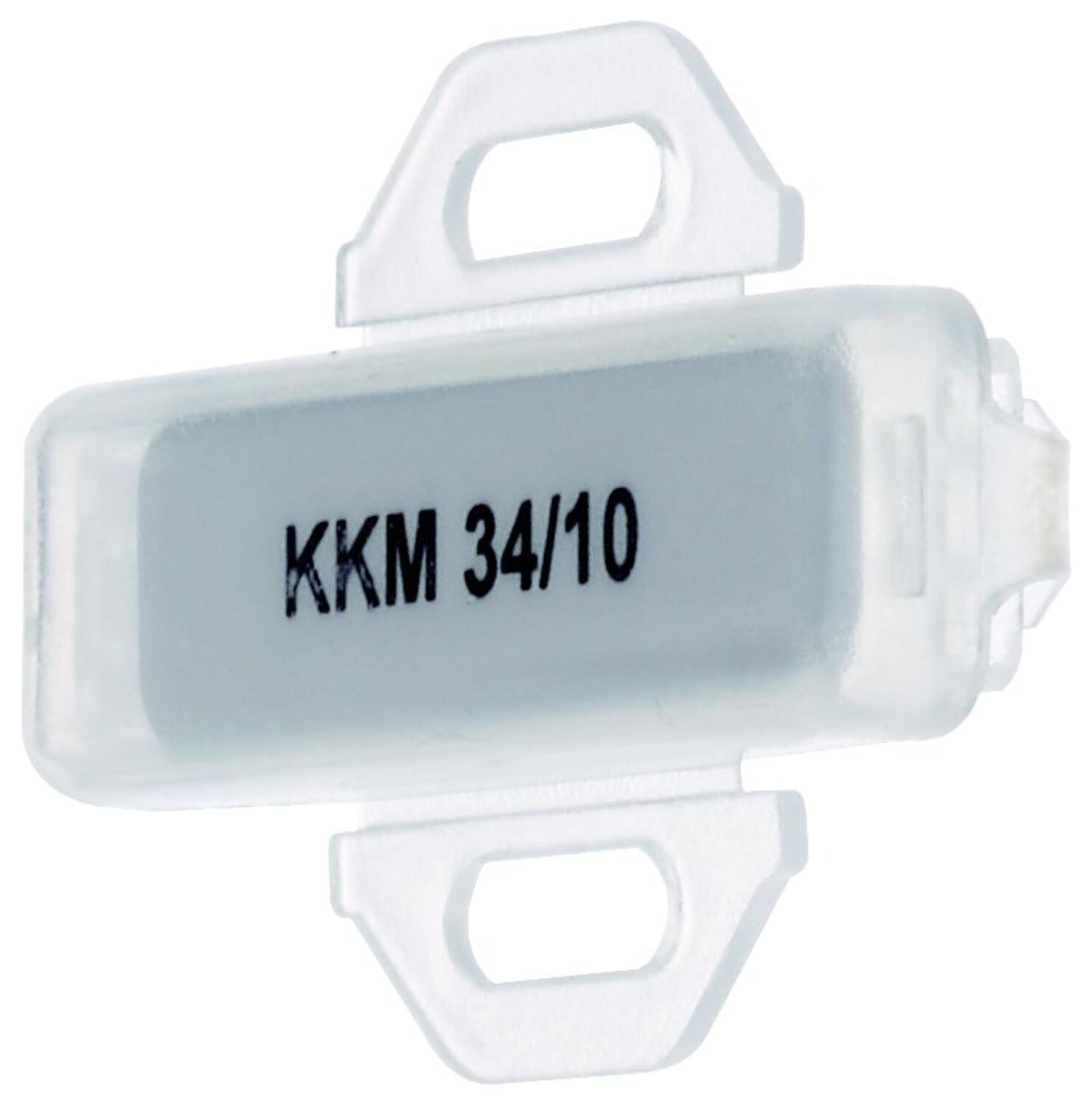

KKM 34x10 Cable marker ferrule Art: 3192.0 Copied		1		8.5			TR	UL94-V2	Yes		34 mm	31 mm	Polypropylene		-40 °C	105 °C	100			0.81 g	10 mm	7 mm

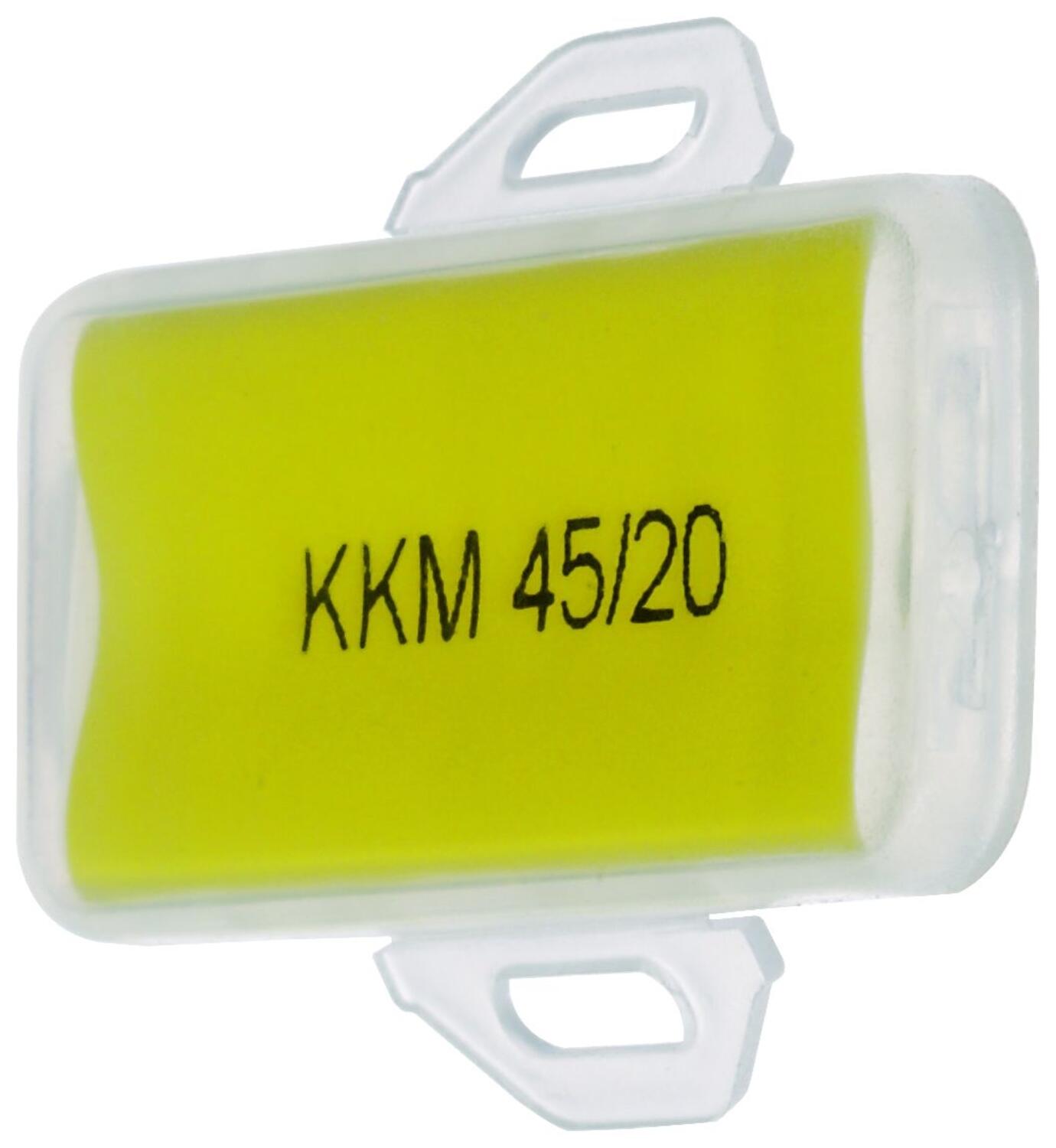

KKM 45x20 Cable marker ferrule Art: 3193.0 Copied		1		8.5			TR	UL94-V2	Yes		45 mm	40 mm	Polypropylene		-40 °C	105 °C	100			2.13 g	20 mm	19 mm
