| Parts | Nominal cross section | Dimension D1 | Dimension D4 | Dimension L | Weight | Price | ||
|---|---|---|---|---|---|---|---|---|

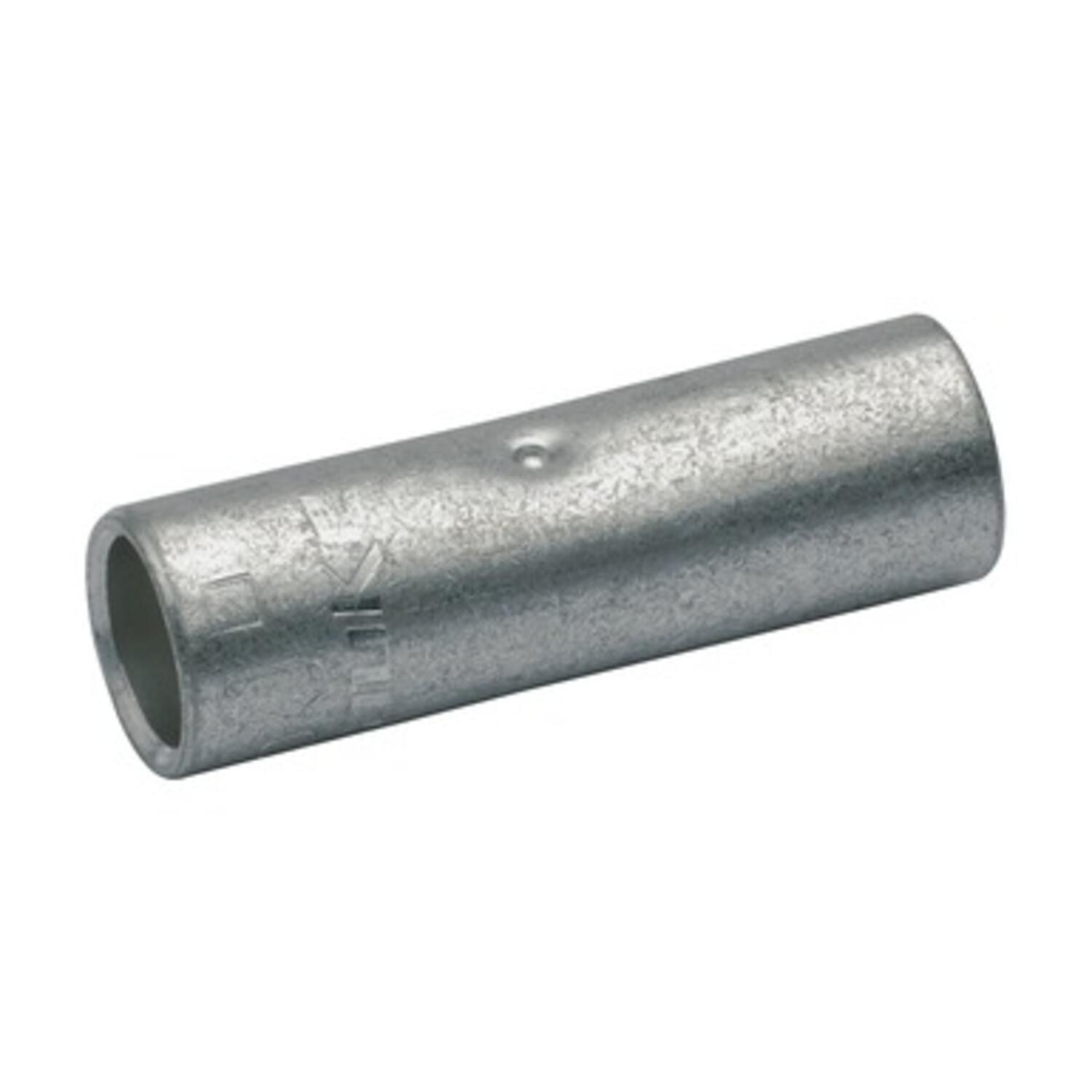

6mm² Uninsulated Butt Connector
Art:
LV6
Copied
|
6 mm²
|
4 mm
|
6 mm
|
20 mm
|
0.307 kg
|
|
||
|
10mm² Uninsulated Butt Connector
Art:
LV10
Copied
|
10 mm²
|
4.4 mm
|
6 mm
|
21 mm
|
0.433 kg
|
|
||
|
16mm² Uninsulated Butt Connector
Art:
LV16
Copied
|
16 mm²
|
5.5 mm
|
8 mm
|
26 mm
|
0.647 kg
|
|
||
|
25mm² Uninsulated Butt Connector
Art:
LV25
Copied
|
25 mm²
|
6.8 mm
|
9 mm
|
29 mm
|
0.761 kg
|
|
||
|
35mm² Uninsulated Butt Connector
Art:
LV35
Copied
|
35 mm²
|
8.2 mm
|
11 mm
|
32 mm
|
1.26 kg
|
|
||
|
50mm² Uninsulated Butt Connector
Art:
LV50
Copied
|
50 mm²
|
9.5 mm
|
12 mm
|
38 mm
|
1.49 kg
|
|
||
|
70mm² Uninsulated Butt Connector
Art:
LV70
Copied
|
70 mm²
|
11.2 mm
|
14.5 mm
|
42 mm
|
2.6 kg
|
|
||
|
95mm² Uninsulated Butt Connector
Art:
LV95
Copied
|
95 mm²
|
13.4 mm
|
17 mm
|
48 mm
|
3.9 kg
|
|
||
|
120mm² Uninsulated Butt Connector
Art:
LV120
Copied
|
120 mm²
|
15 mm
|
19.5 mm
|
52 mm
|
5.9 kg
|
|
||
|
150mm² Uninsulated Butt Connector
Art:
LV150
Copied
|
150 mm²
|
16.5 mm
|
21 mm
|
56 mm
|
6.9 kg
|
|
||
|
185mm² Uninsulated Butt Connector
Art:
LV185
Copied
|
185 mm²
|
19 mm
|
24 mm
|
65 mm
|
10.2 kg
|
|
||
|
240mm² Uninsulated Butt Connector
Art:
LV240
Copied
|
240 mm²
|
21 mm
|
26 mm
|
75 mm
|
12.8 kg
|
|
||
|
300mm² Uninsulated Butt Connector
Art:
LV300
Copied
|
300 mm²
|
23.5 mm
|
29.5 mm
|
75 mm
|
17.3 kg
|
|
||
|
400mm² Uninsulated Butt Connector
Art:
LV400
Copied
|
400 mm²
|
27 mm
|
34 mm
|
75 mm
|
23.1 kg
|
|
||
|
500mm² Uninsulated Butt Connector
Art:
LV500
Copied
|
500 mm²
|
31 mm
|
38 mm
|
140 mm
|
49 kg
|
|
||
|
630mm² Uninsulated Butt Connector
Art:
LV630
Copied
|
630 mm²
|
34 mm
|
40 mm
|
160 mm
|
52 kg
|
|
Select a variant in the list
