Klauke Lugs – High-Quality Cable Lugs for Secure Connections

General Data
Connection bolts Ø	M6
Nominal cross section	70 mm²
Dimensions
Dimension A	20 mm
Dimension B	21 mm
Dimension D2	6.5 mm
Dimension C1	10 mm
Dimension C2	6.5 mm

Invisible Heading
Dimension D1	11.2 mm
Dimension D4	14.5 mm
Dimension L	39 mm
Additional Data
Pack size	100
Weight	3 kg

Parts	Connection bolts Ø	Nominal cross section	Dimension A	Dimension B	Dimension D2	Dimension C1	Dimension C2	Dimension D1	Dimension D4	Dimension L	Weight
70mm² Cable Lug M6 Flared Art: L706FMS Copied	M6	70 mm²	20 mm	21 mm	6.5 mm	10 mm	6.5 mm	11.2 mm	14.5 mm	39 mm	3 kg
70mm² Cable Lug M8, Flared Art: L708FMS Copied	M8	70 mm²	20 mm	21 mm	8.5 mm	10 mm	8.5 mm	11.2 mm	14.5 mm	39 mm	3 kg
70mm² Cable Lug M10, Flared Art: L7010FMS Copied	M10	70 mm²	20 mm	21 mm	10.5 mm	12 mm	10.5 mm	11.2 mm	14.5 mm	41 mm	3 kg
70mm² Cable Lug M12, Flared Art: L7012FMS Copied	M12	70 mm²	20 mm	22 mm	13 mm	13 mm	13 mm	11.2 mm	14.5 mm	42 mm	3 kg
70mm² Cable Lug M14 Flared Art: L7014FMS Copied	M14	70 mm²	20 mm	23 mm	15 mm	14.5 mm	15 mm	11.2 mm	14.5 mm	45 mm	3 kg
70mm² Cable Lug M16 Flared Art: L7016FMS Copied	M16	70 mm²	20 mm	26 mm	17 mm	16 mm	17 mm	11.2 mm	14.5 mm	46 mm	3 kg
95mm² Cable Lug M6 Flared Art: L956FMS Copied	M6	95 mm²	22 mm	25 mm	6.5 mm	10 mm	6.5 mm	13.4 mm	17 mm	45 mm	4.4 kg
95mm² Cable Lug M8 Flared Art: L958FMS Copied	M8	95 mm²	22 mm	25 mm	8.5 mm	10 mm	8.5 mm	13.4 mm	17 mm	45 mm	4.4 kg
95mm² Cable Lug M10, Flared Art: L9510FMS Copied	M10	95 mm²	22 mm	25 mm	10.5 mm	12 mm	10.5 mm	13.4 mm	17 mm	45 mm	4.4 kg
95mm² Cable Lug M12, Flared Art: L9512FMS Copied	M12	95 mm²	22 mm	25 mm	13 mm	13 mm	13 mm	13.4 mm	17 mm	47 mm	4.4 kg
95mm² Cable Lug M14 Flared Art: L9514FMS Copied	M14	95 mm²	22 mm	27 mm	15 mm	14.5 mm	15 mm	13.4 mm	17 mm	49 mm	4.4 kg
95mm² Cable Lug M16 Flared Art: L9516FMS Copied	M16	95 mm²	22 mm	27 mm	17 mm	16 mm	17 mm	13.4 mm	17 mm	51 mm	4.4 kg
95mm² Cable Lug M20 Flared Art: L9520FMS Copied	M20	95 mm²	22 mm	30 mm	21 mm	16 mm	21 mm	13.4 mm	17 mm	57 mm	4.4 kg
120mm² Cable Lug M8 Flared Art: L1208FMS Copied	M8	120 mm²	26 mm	28 mm	8.4 mm	14 mm	8.4 mm	15 mm	19.5 mm	51 mm	6.6 kg
120mm² Cable Lug M10, Flared Art: L12010FMS Copied	M10	120 mm²	26 mm	28 mm	10.5 mm	14 mm	10.5 mm	15 mm	19.5 mm	51 mm	6.6 kg
120mm² Cable Lug M12, Flared Art: L12012FMS Copied	M12	120 mm²	26 mm	28 mm	13 mm	14 mm	13 mm	15 mm	19.5 mm	51 mm	6.6 kg
120mm² Cable Lug M14 Flared Art: L12014FMS Copied	M14	120 mm²	26 mm	28 mm	15 mm	15 mm	15 mm	15 mm	19.5 mm	52 mm	6.6 kg
120mm² Cable Lug M16 Flared Art: L12016FMS Copied	M16	120 mm²	26 mm	30 mm	17 mm	16 mm	17 mm	15 mm	19.5 mm	54 mm	6.6 kg
120mm² Cable Lug M20 Flared Art: L12020FMS Copied	M20	120 mm²	26 mm	36 mm	21 mm	22 mm	21 mm	15 mm	19.5 mm	63 mm	6.6 kg
150mm² Cable Lug M8 Flared Art: L1508FMS Copied	M8	150 mm²	30 mm	31 mm	8.4 mm	14 mm	8.4 mm	16.5 mm	21 mm	56 mm	8.1 kg
150mm² Cable Lug M10 Flared Art: L15010FMS Copied	M10	150 mm²	30 mm	31 mm	10.5 mm	14 mm	10.5 mm	16.5 mm	21 mm	56 mm	8.1 kg
150mm² Cable Lug M12, Flared Art: L15012FMS Copied	M12	150 mm²	30 mm	31 mm	13 mm	15 mm	13 mm	16.5 mm	21 mm	57 mm	8.1 kg
150mm² Cable Lug M14 Flared Art: L15014FMS Copied	M14	150 mm²	30 mm	31 mm	15 mm	15 mm	15 mm	16.5 mm	21 mm	57 mm	8.1 kg
150mm² Cable Lug M16 Flared Art: L15016FMS Copied	M16	150 mm²	30 mm	31 mm	17 mm	16 mm	17 mm	16.5 mm	21 mm	58 mm	8.1 kg
150mm² Cable Lug M20 Flared Art: L15020FMS Copied	M20	150 mm²	30 mm	36 mm	21 mm	22 mm	21 mm	16.5 mm	21 mm	66 mm	8.1 kg
185mm² Cable Lug M10 Flared Art: L18510FMS Copied	M16	150 mm²	30 mm	31 mm	17 mm	16 mm	17 mm	16.5 mm	21 mm	58 mm	8.1 kg
185mm² Cable Lug M12 Flared Art: L18512FMS Copied	M12	185 mm²	30 mm	35 mm	13 mm	18 mm	13 mm	19 mm	24 mm	65 mm	12 kg
185mm² Cable Lug M14 Flared Art: L18514FMS Copied	M14	185 mm²	30 mm	35 mm	15 mm	18 mm	15 mm	19 mm	24 mm	65 mm	12 kg
185mm² Cable Lug M16 Flared Art: L18516FMS Copied	M16	185 mm²	30 mm	35 mm	17 mm	18 mm	17 mm	19 mm	24 mm	65 mm	12 kg
185mm² Cable Lug M20 Flared Art: L18520FMS Copied	M20	185 mm²	30 mm	39 mm	21 mm	20 mm	21 mm	19 mm	24 mm	69 mm	12 kg
240mm² Cable Lug M10 Flared Art: L24010FMS Copied	M10	240 mm²	35 mm	39 mm	10.5 mm	21.5 mm	10.5 mm	21 mm	26 mm	72 mm	15 kg
240mm² Cable Lug M12 Flared Art: L24012FMS Copied	M12	240 mm²	35 mm	39 mm	13 mm	21.5 mm	13 mm	21 mm	26 mm	72 mm	15 kg
240mm² Cable Lug M14 Flared Art: L24014FMS Copied	M14	240 mm²	35 mm	39 mm	15 mm	21.5 mm	15 mm	21 mm	26 mm	72 mm	15 kg
240mm² Cable Lug M16 Flared Art: L24016FMS Copied	M16	240 mm²	35 mm	39 mm	17 mm	21.5 mm	17 mm	21 mm	26 mm	72 mm	15 kg
240mm² Cable Lug M20 Flared Art: L24020FMS Copied	M20	240 mm²	35 mm	39 mm	21 mm	22 mm	21 mm	21 mm	26 mm	72 mm	15 kg
300mm² Cable Lug M12 Flared Art: L30012FMS Copied	M12	300 mm²	44 mm	43 mm	13 mm	24 mm	13 mm	23.5 mm	29.5 mm	87 mm	24 kg
300mm² Cable Lug M14 Flared Art: L30014FMS Copied	M14	300 mm²	44 mm	43 mm	15 mm	24 mm	15 mm	23.5 mm	29.5 mm	87 mm	24 kg
300mm² Cable Lug M16 Flared Art: L30016FMS Copied	M16	300 mm²	44 mm	43 mm	17 mm	24 mm	17 mm	23.5 mm	29.5 mm	87 mm	24 kg
300mm² Cable Lug M20 Flared Art: L30020FMS Copied	M20	300 mm²	44 mm	43 mm	21 mm	24 mm	21 mm	23.5 mm	29.5 mm	87 mm	24 kg
400mm² Cable Lug M12 Flared Art: L40012FMS Copied	M12	400 mm²	44 mm	49 mm	13 mm	24 mm	13 mm	27 mm	34 mm	90 mm	34 kg
400mm² Cable Lug M14 Flared Art: L40014FMS Copied	M14	400 mm²	44 mm	49 mm	15 mm	24 mm	15 mm	27 mm	34 mm	90 mm	34 kg
400mm² Cable Lug M16 Flared Art: L40016FMS Copied	M16	400 mm²	44 mm	49 mm	17 mm	24 mm	17 mm	27 mm	34 mm	90 mm	34 kg
400mm² Cable Lug M20 Flared Art: L40020FMS Copied	M20	400 mm²	44 mm	49 mm	21 mm	24 mm	21 mm	27 mm	34 mm	90 mm	34 kg
500mm² Cable Lug M14 Flared Art: L50014FMS Copied	M14	500 mm²	68 mm	56 mm	15 mm	24 mm	15 mm	31 mm	38 mm	120 mm	50 kg
500mm² Cable Lug M16 Flared Art: L50016FMS Copied	M16	500 mm²	68 mm	56 mm	17 mm	24 mm	17 mm	31 mm	38 mm	120 mm	50 kg
500mm² Cable Lug M20 Flared Art: L50020FMS Copied	M20	500 mm²	68 mm	56 mm	21 mm	24 mm	21 mm	31 mm	38 mm	120 mm	50 kg
630mm² Cable Lug M16 Flared Art: L63016FMS Copied	M16	630 mm²	68 mm	59 mm	17 mm	24 mm	17 mm	34 mm	40 mm	120 mm	66 kg

Selected variant

Select a variant in the list

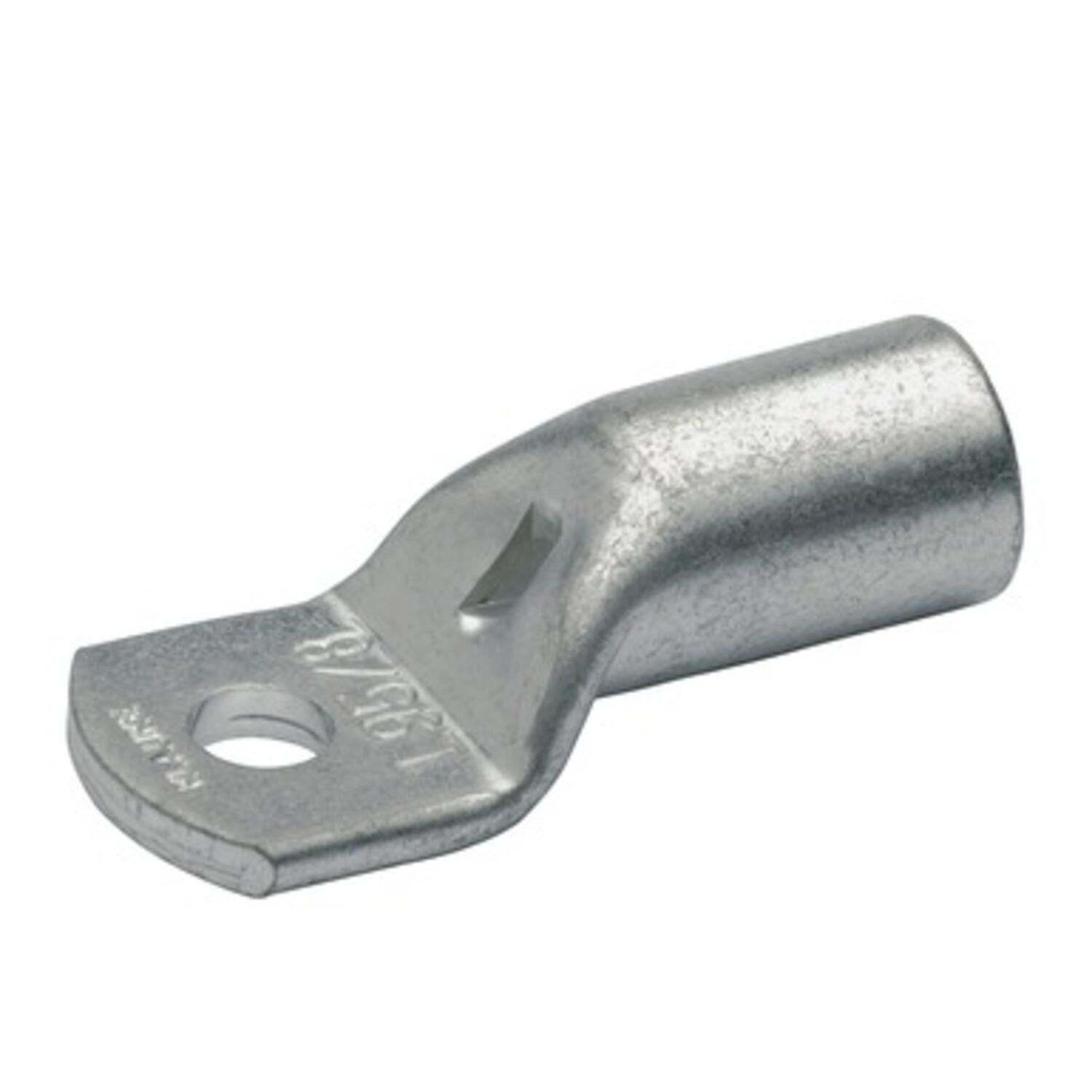

Tubular cable lugs L series 70mm² - 630mm²

Selected variant

Technical data / Documents

Accessories & Related products

Selected variant

Technical data

General Data

Dimensions

Invisible Heading

Additional Data

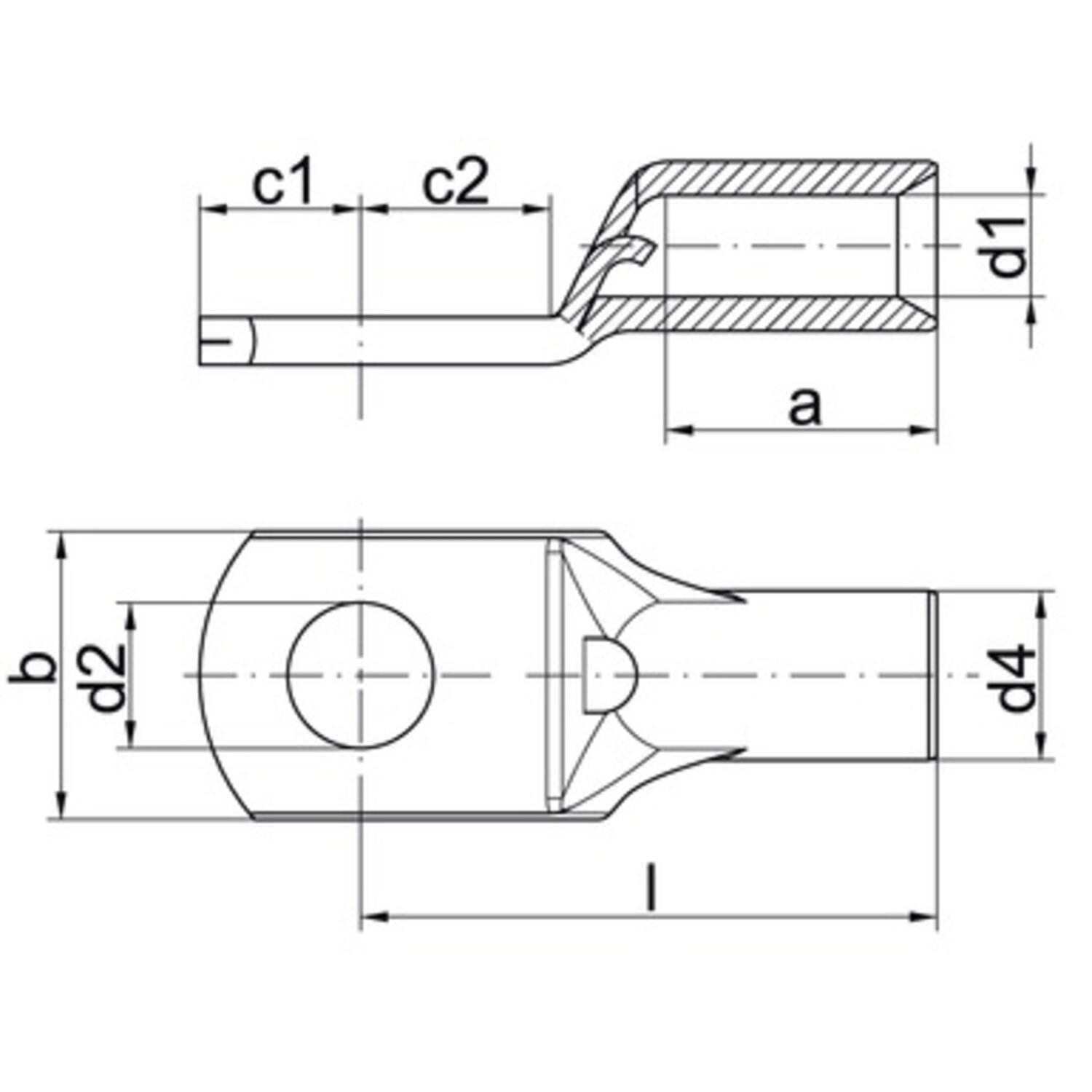

Measurements and connections
