CONTA-CLIP

Insulated butt terminals

STV, STV HS

Conta-Clip offer a range of standard automotive type insulated joining/butt crimp terminals to suit many applications.



These terminals are usually identified by the coloured collars for the various cable sizes.



The standard range covers from 0.5mm² to 6mm² cable sizes.



All types within the range have a widened cable entry, making for an easy installation.



The HS versions have a double layer of insulation and combined adhesive heat shrink to give a waterproof joint for the harshest applications.





Read more
  • Cu-ETP acc. to DIN EN13600, galv, Sn
  • Wide easy entry collars PVC insulation
  • Continuous-use temperature range -10°C…75°C
  • Heat shrink waterproof versions
Conta-Clip Insulated butt terminals STV, STV HS

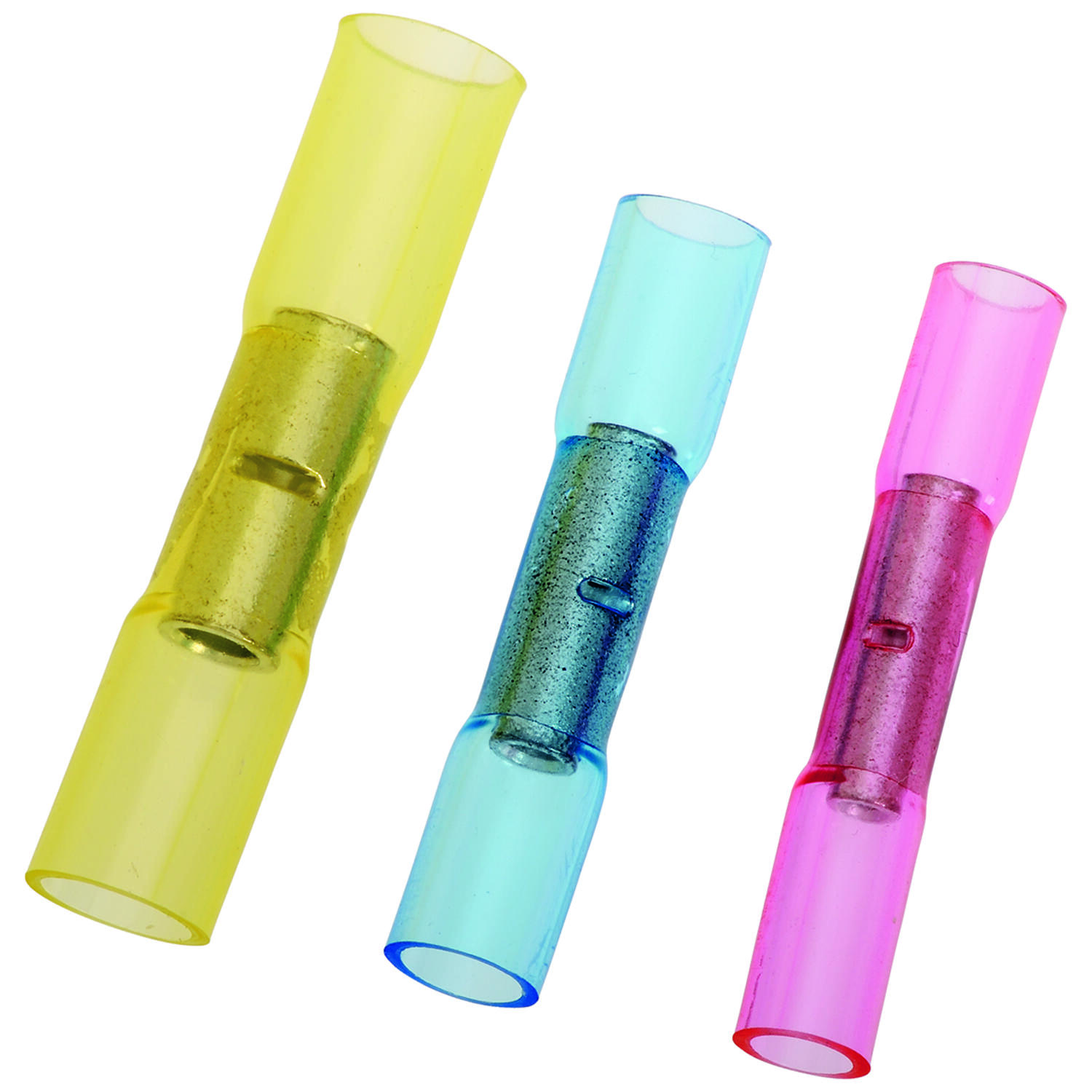

STV 30800.0.tif

HS version

RED.eps

Blue.eps

Yellow.eps

White.eps

Selected variant

Available in several variants

Selected variant

Technical data

General Data

Colour Red
Cross section min 0,5 mm²
Cross section max 1,5 mm²
Rated wire cross section from (AWG) 20
Rated wire cross section to (AWG) 16

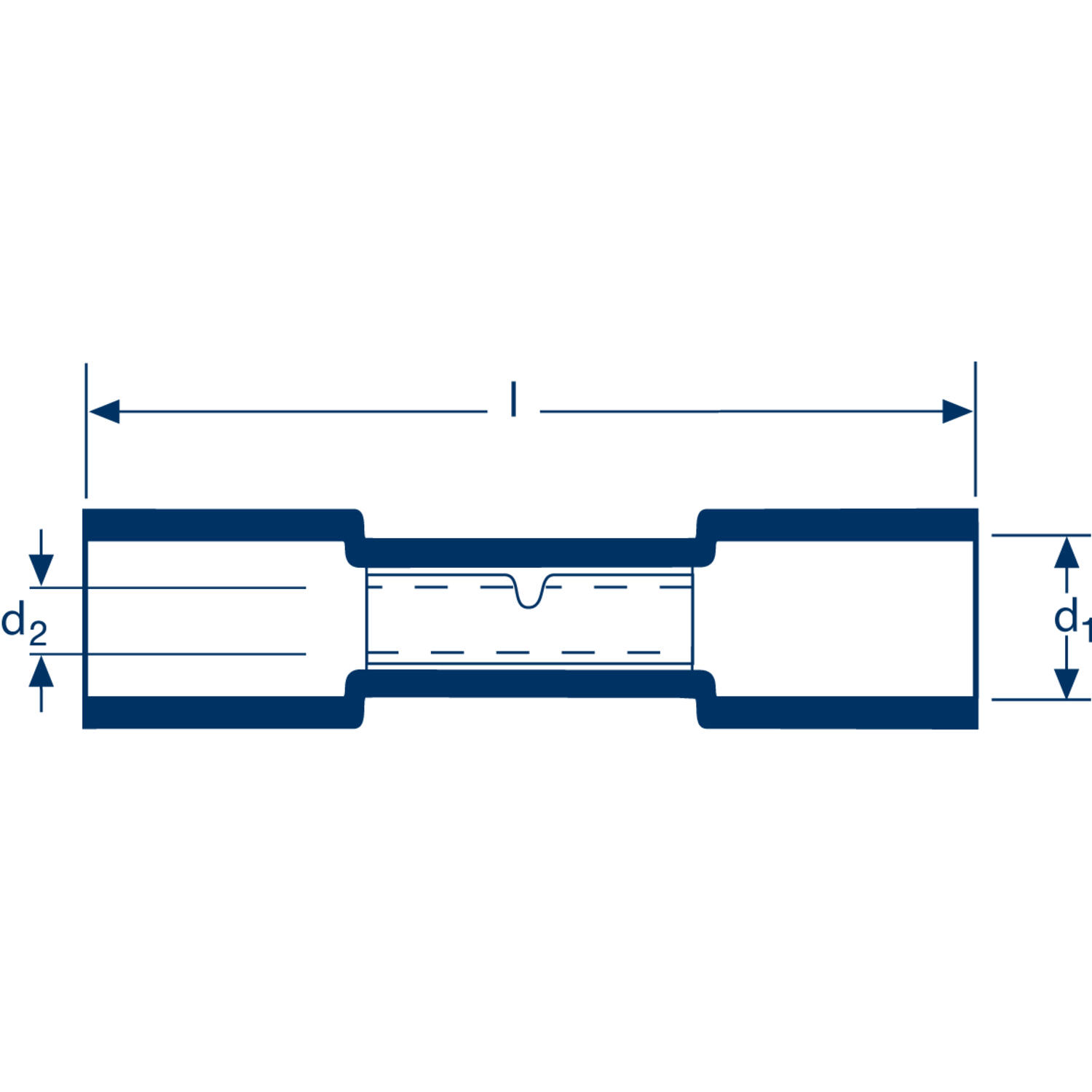

Dimensions

Length 26 mm
Diameter of feed-in funnel 4,1 mm
DIN size 1

Materials

Conductor material Copper
Contact surface Tinned

*Invisible Heading*

Soldered No
Operating temperature from -10 °C
Operating temperature to 75 °C

Approvals

DIN approvals EN 13600

Additional Data

Tariff code 85369010
Country of origin TW
Weight 1,17 g
Pack size 100
Insulation material Expanded PVC

Product description

Conta-Clip offer a range of standard automotive type insulated joining/butt crimp terminals to suit many applications.



These terminals are usually identified by the coloured collars for the various cable sizes.



The standard range covers from 0.5mm² to 6mm² cable sizes.



All types within the range have a widened cable entry, making for an easy installation.



The HS versions have a double layer of insulation and combined adhesive heat shrink to give a waterproof joint for the harshest applications.





Accessories

Related products

Related

Kubler slip rings encoders
Blog Product news

Optimise your production line with sensors

Optimise your production line with encoders, inclinometers, displays and slip rings

contaclip kds sr90
Product news

Every angle covered with 90 degree cable entry system

Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.

crouzet millenium slim on limited time discount
Product news

The smallest logic controller ever on limited time discount

The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.

11 questions to get the right signalling device with Auer Signal & OEM Automatic
Blog

11 questions to get the right signalling device – a whitepaper

Do you require signalling devices and beacons in your production process? Download our latest whitepaper!

bespoke solutions electricity meter control boxes
Case studies

Control Box Assembly for Industrial Electricity Metering - A case study

Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.

DC circuit protection PISA M and circuit breakers
Blog

Safeguard systems with DC circuit protection

This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.

Parts Colour Cross section min Cross section max Rated wire cross section from (AWG) Rated wire cross section to (AWG) Length Diameter of feed-in funnel DIN size Operating temperature from Operating temperature to Weight Insulation material Price
Red
0,5 mm²
1,5 mm²
20
16
26 mm
4,1 mm
1
-10 °C
75 °C
1,17 g
Expanded PVC
Blue
1,5 mm²
2,5 mm²
16
14
26 mm
4,5 mm
2.5
-10 °C
75 °C
1,4 g
Expanded PVC
Yellow
4 mm²
6 mm²
12
10
27 mm
6,5 mm
6
-10 °C
75 °C
2,34 g
Expanded PVC
White
0,1 mm²
0,5 mm²
36
20
35 mm
4,3 mm
1,31 g
thermoplastic
Red
0,5 mm²
1,5 mm²
20
16
35 mm
4,3 mm
1,31 g
thermoplastic
Blue
1,5 mm²
2,5 mm²
16
14
35 mm
5 mm
1,58 g
thermoplastic
Yellow
4 mm²
6 mm²
12
10
40 mm
6,5 mm
2,58 g
thermoplastic
