AGRO

Syntec Nickel plated brass

Syntec®

  • Trapezoidal strain relief
  • Lamellar technology
  • -40°C…+100°C
  • Polyamide PA 6 insert
  • IP68
1045.12.070.tif


To view Agro cable glands via ePlan see the link under 'downloadable resources' further down the page.

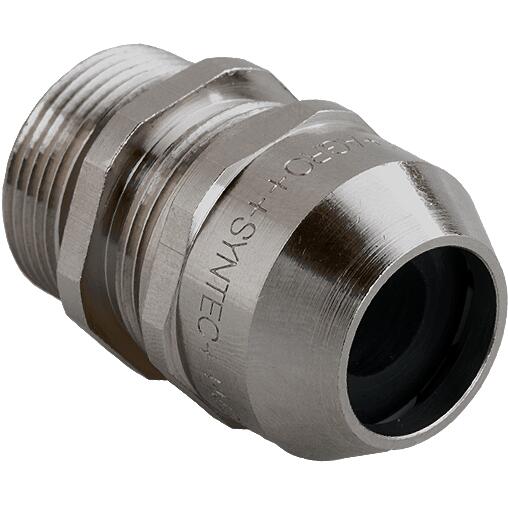

1145.12.070.tif

Selected variant

Available in several variants
AGRO memer of Kaiser group logo

Save page as PDF

Technical data / Documents

Accessories & Related products

Selected variant

Technical data

General Data
Thread Size (G) M12
Insert Type One-Piece
Cable diameter min 1 mm
Cable diameter max 5 mm
IP class IP 68

Dimensions
Thread pitch 1.5
Thread length 5 mm
Height (H) 17 mm
Spanner width (AF) 15 mm

Materials
Materials O-ring NBR

*Invisible Heading*
Lamellar insert material Polyamide
sealing ring material TPE
Temperature range -40°C ... +100°C

Approvals
Approvals CE, cRUus, DNV, EAC, VDE
Strain relief Version A acc. to EN 62444

Additional Data
Pack size 50
Country of origin CH
Tariff code 74199949
Weight 12.96 g

Downloads

Measurements and connections

Technical illustrations

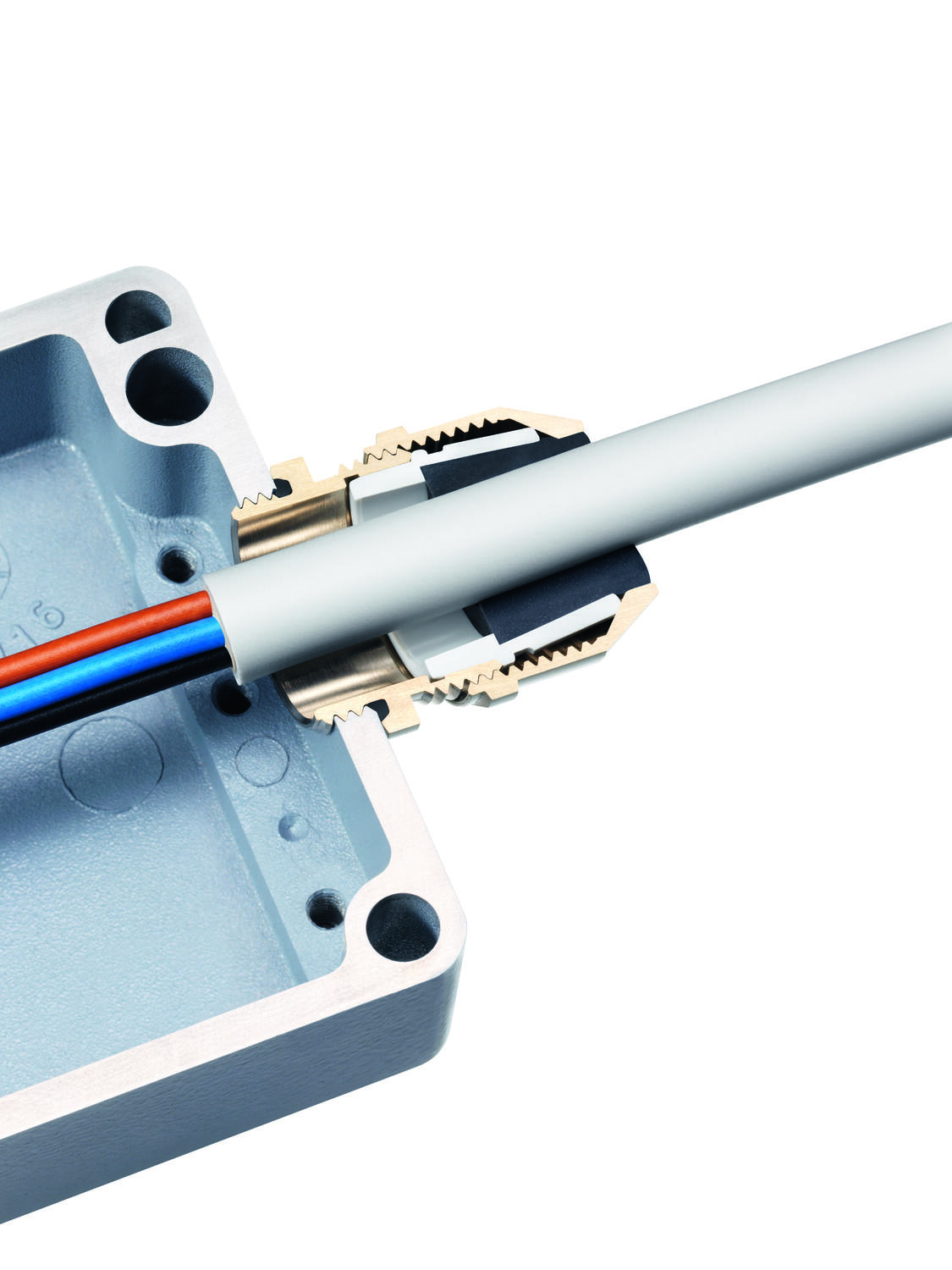

Syntec Messing.tif

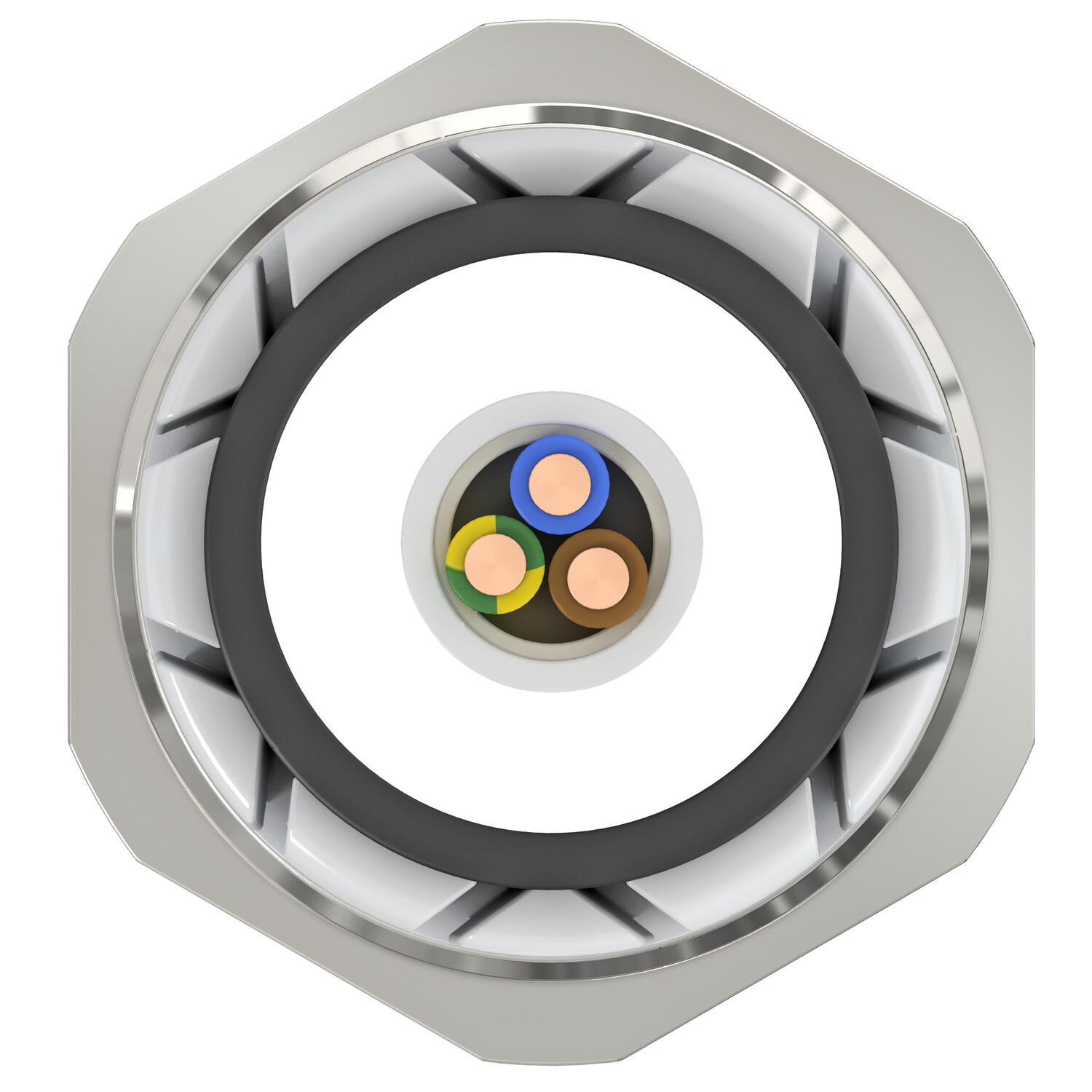

Trapezoidal Lamellars

Lamellar technology for excellent strain relief

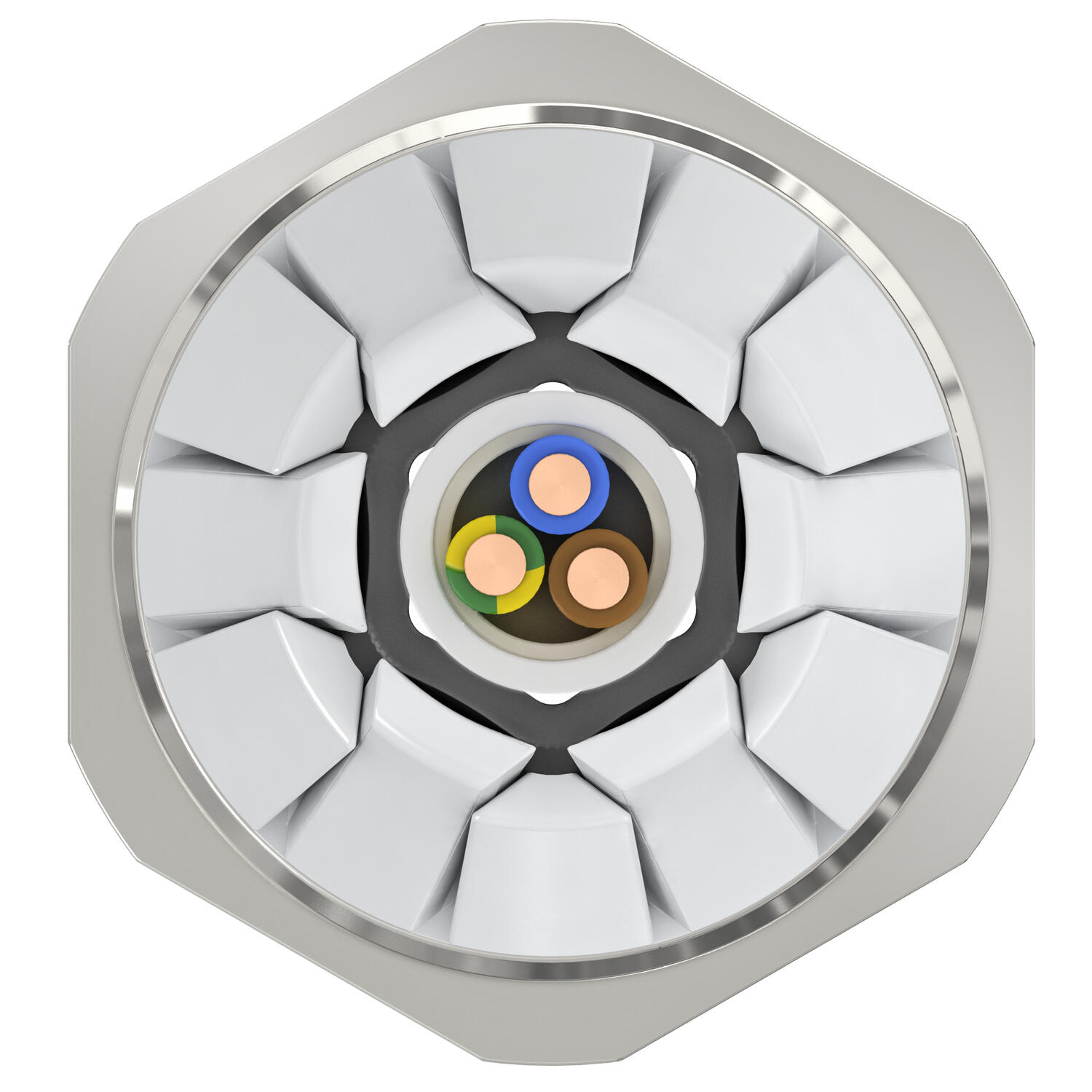

Lamellar Technology

When compressed, the lamellas contract into a hexagon and thus gripping the cable.

Accessories

Related products

Related

Contaclip PRK terminal blocks
Product news

Terminal Blocks For Push In Connection Systems

This innovative push-in connection system enables time savings of up to 50%, whether you're wiring control panels or managing complex installations

Electrical Protection in the Solar Era: How to Choose Fuses for Modern Photovoltaic Installations
Learning hub

Electrical Protection in the Solar Era: How to Choose Fuses for Modern Photovoltaic Installations

Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.

Fuse links semiconductor DF electric
Product news

Fuse links for semiconductor protection

Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.

Dehn yellowline
Product news

Lightning and surge protection for DC and control signals

Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems

Legrand MCB and PULS ECB - MCBs vs ECBs - which is best for securing a DC circuit?
Learning hub

MCBs vs ECBs: Which is best for securing DC circuits?

Choosing the right circuit breaker is important for protecting DC circuits. Two primary forms of protection are MCBs and ECBs. The experts at OEM Automatic breakdown the two circuit breakers for you!

Signal lights auer
Product news

Signal Lights For You

New signal lights from Auer Signal are now available! The first products to be launched in this series are the Smart Dot 50 in the Basic and Standard versions, as well as the Smart Indicator 50 in the Basic version.

Parts Thread Size (G) Insert Type Cable diameter min Cable diameter max IP class Thread pitch Thread length Height (H) Spanner width (AF) Materials O-ring Lamellar insert material sealing ring material Temperature range Approvals Strain relief Pack size Country of origin Tariff code Weight Price
1045.12.070.tif
Gland Syntec NPB, M12, ø1…5mm
Art:
1045.12.050 Copied
M12
One-Piece
1 mm
5 mm
IP 68
1.5
5 mm
17 mm
15 mm
NBR
Polyamide
TPE
-40°C ... +100°C
CE, cRUus, DNV, EAC, VDE
Version A acc. to EN 62444
50
CH
74199949
12.96 g
1045.12.070.tif
Gland Syntec NPB, M12, ø3…7mm
Art:
1045.12.070 Copied
M12
One-Piece
3 mm
7 mm
IP 68
1.5
5 mm
17 mm
15 mm
NBR
Polyamide
TPE
-40°C ... +100°C
CE, cRUus, DNV, EAC, VDE
Version A acc. to EN 62444
50
CH
74199949
10.92 g
1045.12.070.tif
Gland Syntec NPB, M16, ø2…6mm
Art:
1045.17.060 Copied
M16
One-Piece
2 mm
6 mm
IP 68
1.5
5 mm
20 mm
18 mm
NBR
Polyamide
TPE
-40°C ... +100°C
CE, cRUus, DNV, EAC, VDE
Version A acc. to EN 62444
50
CH
74199949
18.08 g
1045.12.070.tif
Gland Syntec NPB, M16, ø4.5…10mm
Art:
1045.17.100 Copied
M16
One-Piece
4.5 mm
10 mm
IP 68
1.5
5 mm
20 mm
18 mm
NBR
Polyamide
TPE
-40°C ... +100°C
CE, cRUus, DNV, EAC, VDE
Version A acc. to EN 62444
50
CH
74199949
16.14 g
1045.12.070.tif
Gland Syntec NPB, M20, ø3.5…8mm
Art:
1045.20.080 Copied
M20
One-Piece
3.5 mm
8 mm
IP 68
1.5
6 mm
25 mm
22 mm
NBR
Polyamide
TPE
-40°C ... +100°C
CE, cRUus, DNV, EAC, VDE
Version A acc. to EN 62444
50
CH
74199949
28.7 g
1045.12.070.tif
Gland Syntec NPB, M20, ø7…13mm
Art:
1045.20.130 Copied
M20
One-Piece
7 mm
13 mm
IP 68
1.5
6 mm
25 mm
22 mm
NBR
Polyamide
TPE
-40°C ... +100°C
CE, cRUus, DNV, EAC, VDE
Version A acc. to EN 62444
50
CH
74199949
27.26 g
1045.12.070.tif
Gland Syntec NPB, M25, ø5…11mm
Art:
1045.25.110 Copied
M25
One-Piece
5 mm
11 mm
IP 68
1.5
7 mm
31 mm
28 mm
NBR
Polyamide
TPE
-40°C ... +100°C
CE, cRUus, DNV, EAC, VDE
Version A acc. to EN 62444
25
CH
74199949
49.78 g
1045.12.070.tif
Gland Syntec NPB, M25, ø10…17mm
Art:
1045.25.170 Copied
M25
One-Piece
10 mm
17 mm
IP 68
1.5
7 mm
31 mm
28 mm
NBR
Polyamide
TPE
-40°C ... +100°C
CE, cRUus, DNV, EAC, VDE
Version A acc. to EN 62444
25
CH
74199949
48.48 g
1045.12.070.tif
Gland Syntec NPB, M32, ø7…15mm
Art:
1045.32.150 Copied
M32
One-Piece
7 mm
15 mm
IP 68
1.5
8 mm
33 mm
36 mm
NBR
Polyamide
TPE
-40°C ... +100°C
CE, cRUus, DNV, EAC, VDE
Version A acc. to EN 62444
25
CH
74199949
83.64 g
1045.12.070.tif
Gland Syntec NPB, M32, ø13…21mm
Art:
1045.32.210 Copied
M32
One-Piece
13 mm
21 mm
IP 68
1.5
8 mm
33 mm
36 mm
NBR
Polyamide
TPE
-40°C ... +100°C
CE, cRUus, DNV, EAC, VDE
Version A acc. to EN 62444
25
CH
74199949
82.6 g
1045.12.070.tif
Gland Syntec NPB, M40, ø15…23mm
Art:
1045.40.230 Copied
M40
One-Piece
15 mm
23 mm
IP 68
1.5
8 mm
40 mm
46 mm
NBR
Polyamide
TPE
-40°C ... +100°C
CE, cRUus, DNV, EAC, VDE
Version A acc. to EN 62444
10
CH
74199949
148.5 g
1045.12.070.tif
Gland Syntec NPB, M40, ø19…28mm
Art:
1045.40.280 Copied
M40
One-Piece
19 mm
28 mm
IP 68
1.5
8 mm
40 mm
46 mm
NBR
Polyamide
TPE
-40°C ... +100°C
CE, cRUus, DNV, EAC, VDE
Version A acc. to EN 62444
10
CH
74199949
143.8 g
1045.12.070.tif
Gland Syntec NPB, M50, ø25…35mm
Art:
1045.50.350 Copied
M50
One-Piece
25 mm
35 mm
IP 68
1.5
9 mm
40 mm
55 mm
NBR
Polyamide
TPE
-40°C ... +100°C
CE, cRUus, DNV, EAC, VDE
Version A acc. to EN 62444
5
CH
74199949
186 g
1045.12.070.tif
Gland Syntec NPB, M50, ø20…29mm
Art:
1045.50.290 Copied
M50
One-Piece
20 mm
29 mm
IP 68
1.5
9 mm
40 mm
55 mm
NBR
Polyamide
TPE
-40°C ... +100°C
CE, cRUus, DNV, EAC, VDE
Version A acc. to EN 62444
5
CH
74199949
206.6 g
1045.12.070.tif
Gland Syntec NPB, M63, ø35…48mm
Art:
1045.63.390 Copied
M63
One-Piece
28 mm
39 mm
IP 68
1.5
10 mm
43 mm
70 mm
NBR
Polyamide
TPE
-40°C ... +100°C
CE, cRUus, DNV, EAC, VDE
Version A acc. to EN 62444
5
CH
74199949
351.6 g
1045.12.070.tif
Gland Syntec NPB, M63, ø35…48mm
Art:
1045.63.480 Copied
M63
One-Piece
35 mm
48 mm
IP 68
1.5
10 mm
43 mm
70 mm
NBR
Polyamide
TPE
-40°C ... +100°C
CE, cRUus, DNV, EAC, VDE
Version A acc. to EN 62444
5
CH
74199949
336.4 g
1145.12.070.tif
Gland Syntec NPB, M12, long, ø1…5mm
Art:
1145.12.050 Copied
M12
One-Piece
1 mm
5 mm
IP 68
1.5
12 mm
17 mm
15 mm
NBR
Polyamide
TPE
-40°C ... +100°C
CE, cRUus, DNV, EAC, VDE
Version A acc. to EN 62444
50
CH
74199949
13.42 g
1145.12.070.tif
Gland Syntec NPB, M12, long, ø3…7mm
Art:
1145.12.070 Copied
M12
One-Piece
3 mm
7 mm
IP 68
1.5
12 mm
17 mm
15 mm
NBR
Polyamide
TPE
-40°C ... +100°C
CE, cRUus, DNV, EAC, VDE
Version A acc. to EN 62444
50
CH
74199949
13.02 g
1145.12.070.tif
Gland Syntec NPB, M16, long, ø2…6mm
Art:
1145.17.060 Copied
M16
One-Piece
2 mm
6 mm
IP 68
1.5
12 mm
20 mm
18 mm
NBR
Polyamide
TPE
-40°C ... +100°C
CE, cRUus, DNV, EAC, VDE
Version A acc. to EN 62444
50
CH
74199949
19.53 g
1145.12.070.tif
Gland Syntec NPB, M16, long, ø4.5…10mm
Art:
1145.17.100 Copied
M16
One-Piece
4.5 mm
10 mm
IP 68
1.5
12 mm
20 mm
18 mm
NBR
Polyamide
TPE
-40°C ... +100°C
CE, cRUus, DNV, EAC, VDE
Version A acc. to EN 62444
50
CH
74199949
18.86 g
1145.12.070.tif
Gland Syntec NPB, M20, long, ø3.5…8mm
Art:
1145.20.080 Copied
M20
One-Piece
3.5 mm
8 mm
IP 68
1.5
12 mm
25 mm
22 mm
NBR
Polyamide
TPE
-40°C ... +100°C
CE, cRUus, DNV, EAC, VDE
Version A acc. to EN 62444
50
CH
74199949
32.6 g
1145.12.070.tif
Gland Syntec NPB, M20, long, ø7…13mm
Art:
1145.20.130 Copied
M20
One-Piece
7 mm
13 mm
IP 68
1.5
12 mm
25 mm
22 mm
NBR
Polyamide
TPE
-40°C ... +100°C
CE, cRUus, DNV, EAC, VDE
Version A acc. to EN 62444
50
CH
74199949
31.26 g
1145.12.070.tif
Gland Syntec NPB, M25, long, ø5…11mm
Art:
1145.25.110 Copied
M25
One-Piece
5 mm
11 mm
IP 68
1.5
12 mm
31 mm
28 mm
NBR
Polyamide
TPE
-40°C ... +100°C
CE, cRUus, DNV, EAC, VDE
Version A acc. to EN 62444
25
CH
74199949
54.1 g
1145.12.070.tif
Gland Syntec NPB, M25, long, ø10…17mm
Art:
1145.25.170 Copied
M25
One-Piece
10 mm
17 mm
IP 68
1.5
12 mm
31 mm
28 mm
NBR
Polyamide
TPE
-40°C ... +100°C
CE, cRUus, DNV, EAC, VDE
Version A acc. to EN 62444
25
CH
74199949
52.6 g
1145.12.070.tif
Gland Syntec NPB, M32, long, ø7…15mm
Art:
1145.32.150 Copied
M32
One-Piece
7 mm
15 mm
IP 68
1.5
15 mm
33 mm
36 mm
NBR
Polyamide
TPE
-40°C ... +100°C
CE, cRUus, DNV, EAC, VDE
Version A acc. to EN 62444
25
CH
74199949
95.16 g
1145.12.070.tif
Gland Syntec NPB, M32, long, ø13…21mm
Art:
1145.32.210 Copied
M32
One-Piece
13 mm
21 mm
IP 68
1.5
15 mm
33 mm
36 mm
NBR
Polyamide
TPE
-40°C ... +100°C
CE, cRUus, DNV, EAC, VDE
Version A acc. to EN 62444
25
CH
74199949
92.08 g
1145.12.070.tif
Gland Syntec NPB, M40, long, ø15…23mm
Art:
1145.40.230 Copied
M40
One-Piece
15 mm
23 mm
IP 68
1.5
15 mm
40 mm
46 mm
NBR
Polyamide
TPE
-40°C ... +100°C
CE, cRUus, DNV, EAC, VDE
Version A acc. to EN 62444
10
CH
74199949
166.5 g
1145.12.070.tif
Gland Syntec NPB, M40, long, ø19…28mm
Art:
1145.40.280 Copied
M40
One-Piece
19 mm
28 mm
IP 68
1.5
15 mm
40 mm
46 mm
NBR
Polyamide
TPE
-40°C ... +100°C
CE, cRUus, DNV, EAC, VDE
Version A acc. to EN 62444
10
CH
74199949
154.8 g
1145.12.070.tif
Gland Syntec NPB, M50, long, ø20…29mm
Art:
1145.50.290 Copied
M50
One-Piece
20 mm
29 mm
IP 68
1.5
15 mm
40 mm
55 mm
NBR
Polyamide
TPE
-40°C ... +100°C
CE, cRUus, DNV, EAC, VDE
Version A acc. to EN 62444
5
CH
74199949
212.9 g
1145.12.070.tif
Gland Syntec NPB, M50, long, ø25…35mm
Art:
1145.50.350 Copied
M50
One-Piece
25 mm
35 mm
IP 68
1.5
15 mm
40 mm
55 mm
NBR
Polyamide
TPE
-40°C ... +100°C
CE, cRUus, DNV, EAC, VDE
Version A acc. to EN 62444
5
CH
74199949
210 g
1145.12.070.tif
Gland Syntec NPB, M63, long, ø35…48mm
Art:
1145.63.390 Copied
M63
One-Piece
28 mm
39 mm
IP 68
1.5
15 mm
43 mm
70 mm
NBR
Polyamide
TPE
-40°C ... +100°C
CE, cRUus, DNV, EAC, VDE
Version A acc. to EN 62444
5
CH
74199949
370.4 g
1145.12.070.tif
Gland Syntec NPB, M63, long, ø35…48mm
Art:
1145.63.480 Copied
M63
One-Piece
35 mm
48 mm
IP 68
1.5
15 mm
43 mm
70 mm
NBR
Polyamide
TPE
-40°C ... +100°C
CE, cRUus, DNV, EAC, VDE
Version A acc. to EN 62444
5
CH
74199949
366.2 g
1145.12.070.tif
Gland Syntec NPB, M63, long, ø44…55mm
Art:
1145.63.550 Copied
M63
One-Piece
44 mm
55 mm
IP 68
1.5
15 mm
43 mm
80 mm
NBR
Polyamide
TPE
-40°C ... +100°C
CE, cRUus, DNV, EAC, VDE
Version A acc. to EN 62444
5
CH
74199949
465.2 g
1045.12.070.tif
Gland Syntec NPB, Pg 7, ø1…5mm
Art:
1045.07.050 Copied
1045.12.070.tif
Gland Syntec NPB, Pg 7, ø3…7mm
Art:
1045.07.070 Copied
1045.12.070.tif
Gland Syntec NPB, Pg 9, ø2…6mm
Art:
1045.09.060 Copied
1045.12.070.tif
Gland Syntec NPB, Pg 9, ø4.5…10mm
Art:
1045.09.100 Copied
1045.12.070.tif
Gland Syntec NPB, Pg 11, ø3.5…8mm
Art:
1045.11.080 Copied
1045.12.070.tif
Gland Syntec NPB, Pg 11, ø7…13mm
Art:
1045.11.130 Copied
1045.12.070.tif
Gland Syntec NPB, Pg 13, ø3.5…8mm
Art:
1045.13.080 Copied
1045.12.070.tif
Gland Syntec NPB, Pg 13, ø7…13mm
Art:
1045.13.130 Copied
1045.12.070.tif
Gland Syntec NPB, Pg 16, ø3.5…8mm
Art:
1045.16.080 Copied
1045.12.070.tif
Gland Syntec NPB, Pg 16, ø5…11mm
Art:
1045.16.110 Copied
1045.12.070.tif
Gland Syntec NPB, Pg 16, ø7…13mm
Art:
1045.16.130 Copied
1045.12.070.tif
Gland Syntec NPB, Pg 16, ø10…17mm
Art:
1045.16.170 Copied
1045.12.070.tif
Gland Syntec NPB, Pg 21, ø7…15mm
Art:
1045.21.150 Copied
1045.12.070.tif
Gland Syntec NPB, Pg 21, ø13…21mm
Art:
1045.21.210 Copied
1045.12.070.tif
Gland Syntec NPB, Pg 29, ø15…23mm
Art:
1045.29.230 Copied
1045.12.070.tif
Gland Syntec NPB, Pg 29, ø19…28mm
Art:
1045.29.280 Copied
1045.12.070.tif
Gland Syntec NPB, Pg 36, ø20…29mm
Art:
1045.36.290 Copied
1045.12.070.tif
Gland Syntec NPB, Pg 36, ø25…35mm
Art:
1045.36.350 Copied
1045.12.070.tif
Gland Syntec NPB, Pg 42, ø20…29mm
Art:
1045.42.290 Copied
1045.12.070.tif
Gland Syntec NPB, Pg 42, ø25…35mm
Art:
1045.42.350 Copied
1045.12.070.tif
Gland Syntec NPB, Pg 48, ø35…48mm
Art:
1045.48.390 Copied
1045.12.070.tif
Gland Syntec NPB, Pg 48, ø35…48mm
Art:
1045.48.480 Copied

Selected variant

Select a variant in the list

Contact us
If you need any help, you can contact us in one of the following ways:
0116 284 9900
Send e-mail
Use live chat
Do you need help?
Logo

Cookie settings for OEM.CO.UK

Cookies help us improve your experience with us, so in order to be able to handle login information, offer you personalised content and for basic functionality of this website, we use some cookies.

We will never sell on any information about you.

You can accept all cookies or personalise your cookies preferences, you can also change your cookie preferences at any time by visiting our contact page.

Necessary Cookies

These cookies are necessary for the website to work and can not be turned off in our systems. They are usually used only in response to actions you have taken in connection with a service request, for example when setting personal preferences, logging in or filling out a form.

Analysis and measurement cookies

These cookies allow us to count the number of visits and traffic sources so that we can measure and improve our website performance. They help us know which pages are more or less popular and how visitors navigate around the site. The information that these cookies collect is aggregated and therefore completely anonymous. If you do not allow these cookies, we do not know when you have visited our website.

Marketing cookies

These cookies can be added by our partners. They can use them to create a profile of you, based on your interests, to show you more relevant information. They do not store any personal information - only information about your browser and device. If you do not accept these cookies, you will have a more general and less customized user experience.
