AGRO

Syntec Anti-kink protection

Syntec®

  • Polyamide PA 6
  • -30°C…+100°C
  • IP68

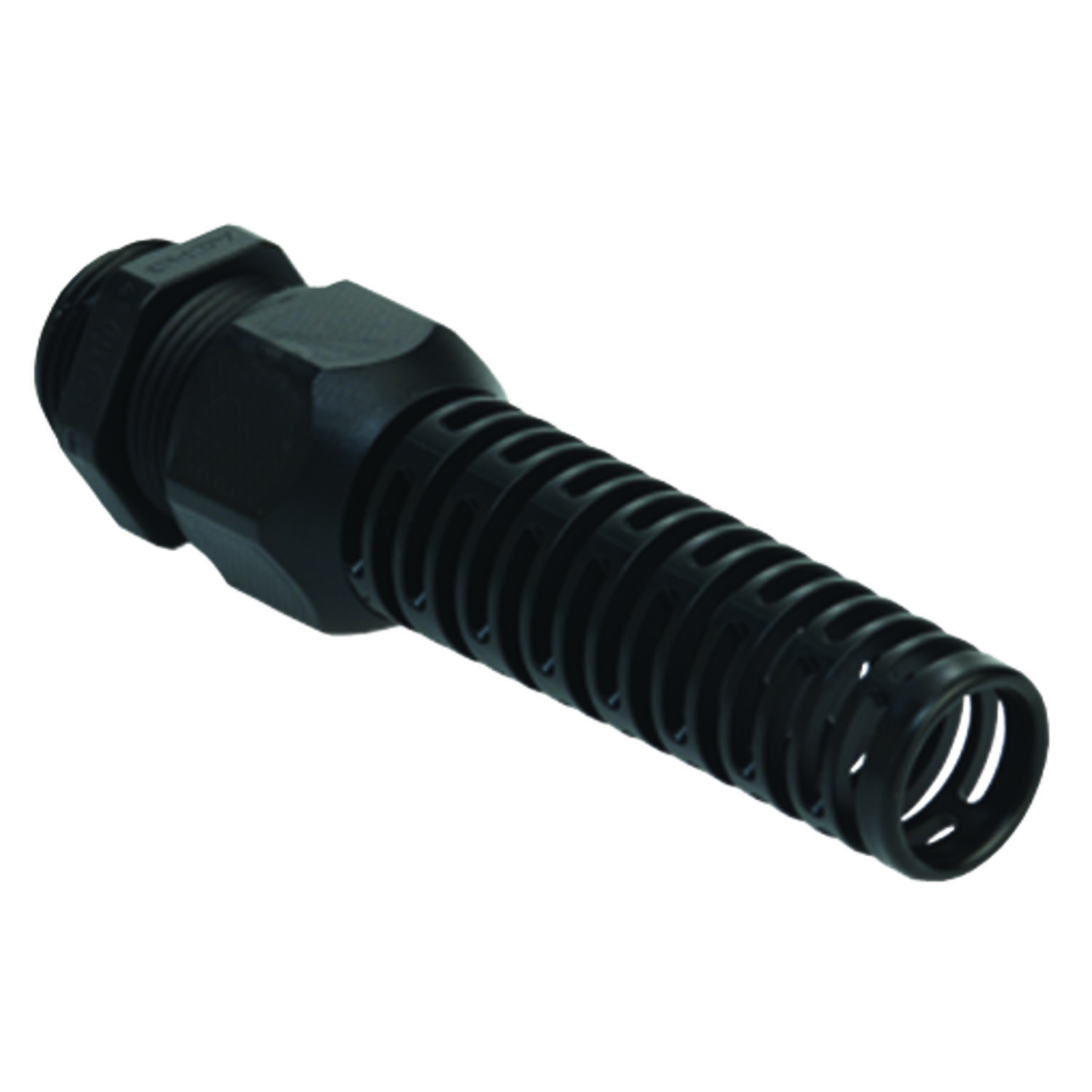

1546.20.07.tif

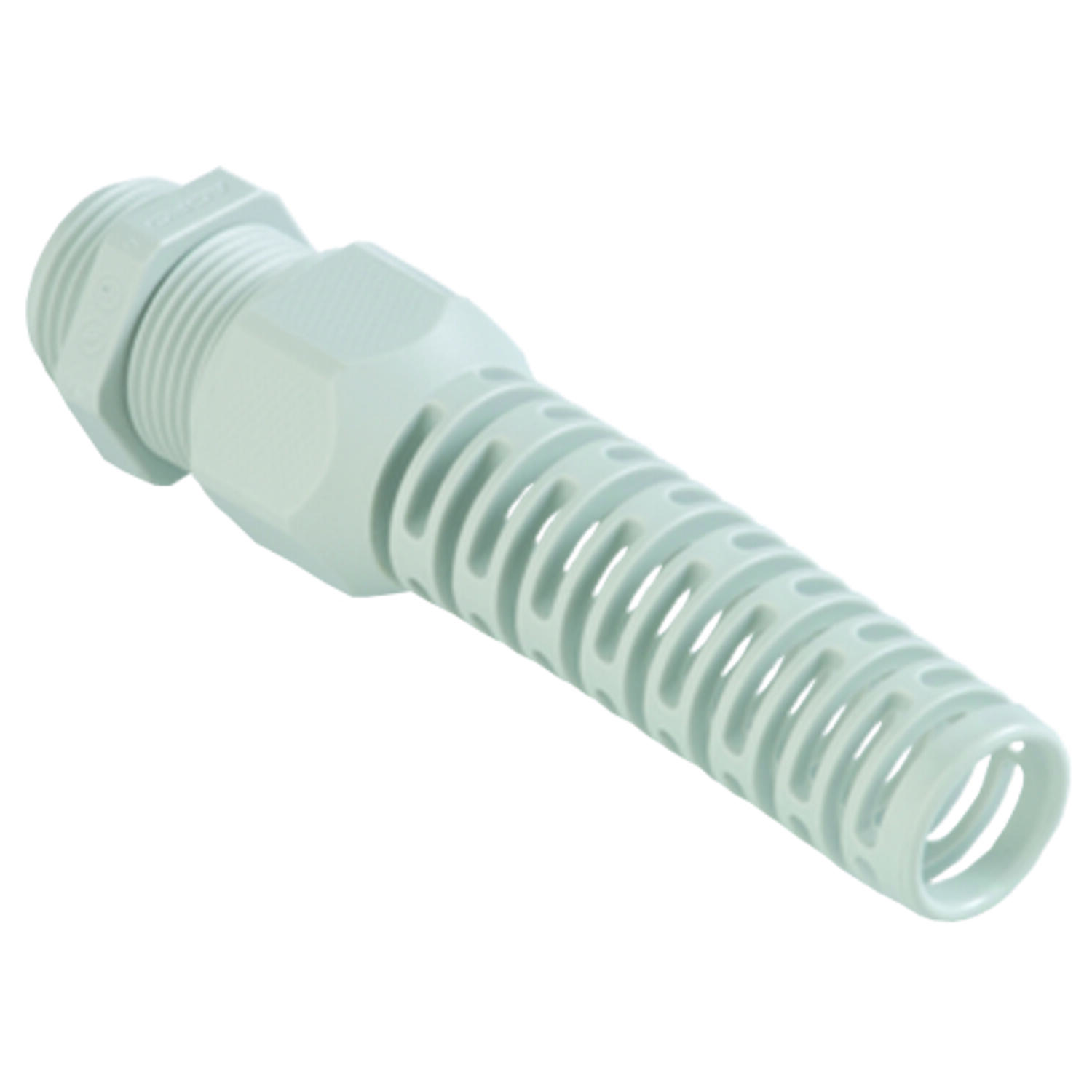

1576.20.07.tif


To view Agro cable glands via ePlan see the link under 'downloadable resources' further down the page.

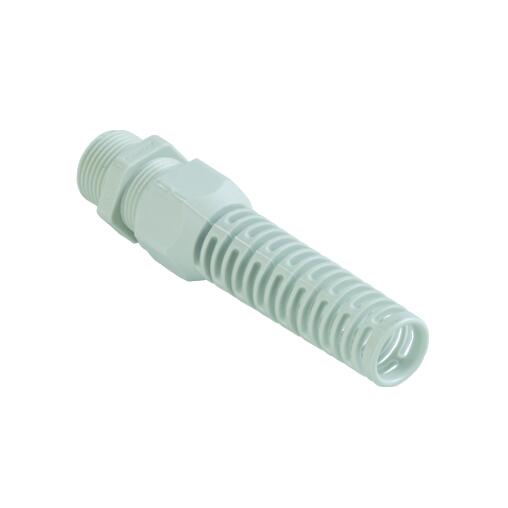

1576.20.1.07.tif

Selected variant

Available in several variants
AGRO memer of Kaiser group logo

Save page as PDF

Technical data / Documents

Accessories & Related products

Selected variant

Technical data

General Data
Thread Size (G) M12
Insert Type One-Piece
Cable diameter min 2,5 mm
Cable diameter max 6,5 mm
IP class IP 68
Colour Grey RAL 7035

Dimensions
Thread pitch 1,5
Thread length 6 mm
Height (H) 54 mm
Spanner width (AF) 15 mm

Materials
Material Polyamide
sealing ring material Neoprene
Temperature range -30°C ... +100°C

Approvals
Approvals SEV, CE, cRUus, cULus, DNV, EAC, VDE
Strain relief Version A acc. to EN 62444

Additional Data
Pack size 50
Country of origin DE
Tariff code 39269000
Weight 4,86 g

Downloads

Measurements and connections

Accessories

Related products

Related

Kubler slip rings encoders
Blog Product news

Optimise your production line with sensors

Optimise your production line with encoders, inclinometers, displays and slip rings

contaclip kds sr90
Product news

Every angle covered with 90 degree cable entry system

Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.

crouzet millenium slim on limited time discount
Product news

The smallest logic controller ever on limited time discount

The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.

11 questions to get the right signalling device with Auer Signal & OEM Automatic
Blog

11 questions to get the right signalling device – a whitepaper

Do you require signalling devices and beacons in your production process? Download our latest whitepaper!

bespoke solutions electricity meter control boxes
Case studies

Control Box Assembly for Industrial Electricity Metering - A case study

Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.

DC circuit protection PISA M and circuit breakers
Blog

Safeguard systems with DC circuit protection

This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.

Parts Thread Size (G) Cable diameter min Cable diameter max IP class Colour Thread pitch Thread length Height (H) Spanner width (AF) Approvals Strain relief Weight Price
1576.20.07.tif
Gland Syntec synthetic, nozzle, M12, ø2.5…6.5mm
Art:
1576.12.06 Copied
M12
2,5 mm
6,5 mm
IP 68
Grey RAL 7035
1,5
6 mm
54 mm
15 mm
SEV, CE, cRUus, cULus, DNV, EAC, VDE
Version A acc. to EN 62444
4,86 g
1576.20.07.tif
Gland Syntec synthetic, nozzle, M16, ø3.5…8mm
Art:
1576.17.08 Copied
M16
4 mm
8 mm
IP 68
Grey RAL 7035
1,5
6 mm
64 mm
19 mm
SEV, CE, cRUus, cULus, DNV, EAC, VDE
Version A acc. to EN 62444
9,62 g
1576.20.07.tif
Gland Syntec synthetic, nozzle, M20, ø3…7mm
Art:
1576.20.07 Copied
M20
3 mm
7 mm
IP 68
Grey RAL 7035
1,5
8 mm
88 mm
24 mm
SEV, CE, cRUus, cULus, DNV, EAC, VDE
Version A acc. to EN 62444
17,88 g
1576.20.07.tif
Gland Syntec synthetic, nozzle, M20, ø5.5…12mm
Art:
1576.20.12 Copied
M20
5,5 mm
12 mm
IP 68
Grey RAL 7035
1,5
8 mm
88 mm
24 mm
SEV, CE, cRUus, cULus, DNV, EAC, VDE
Version A acc. to EN 62444
16,96 g
1576.20.1.07.tif
Gland Syntec synthetic, nozzle, M12, long, ø2.5…6.5mm
Art:
1576.12.1.06 Copied
M12
2,5 mm
6,5 mm
IP 68
Grey RAL 7035
1,5
12 mm
54 mm
15 mm
SEV, CE, cRUus, cULus, DNV, EAC, VDE
Version A acc. to EN 62444
5,32 g
1576.20.1.07.tif
Gland Syntec synthetic, nozzle, M20, long, ø5.5…12mm
Art:
1576.20.1.12 Copied
M20
5,5 mm
12 mm
IP 68
Grey RAL 7035
1,5
13 mm
88 mm
24 mm
SEV, CE, cRUus, cULus, DNV, EAC, VDE
Version A acc. to EN 62444
17,7 g
1576.20.1.07.tif
Gland Syntec synthetic, nozzle, M16, long, ø3.5…8mm
Art:
1576.17.1.08 Copied
M16
4 mm
8 mm
IP 68
Grey RAL 7035
1,5
12 mm
64 mm
19 mm
SEV, CE, cRUus, cULus, DNV, EAC, VDE
Version A acc. to EN 62444
11,6 g
1576.20.1.07.tif
Gland Syntec synthetic, nozzle, M20, long, ø3…7mm
Art:
1576.20.1.07 Copied
M20
3 mm
7 mm
IP 68
Grey RAL 7035
1,5
13 mm
88 mm
24 mm
SEV, CE, cRUus, cULus, DNV, EAC, VDE
Version A acc. to EN 62444
18,88 g
1546.20.07.tif
Gland Syntec synthetic, nozzle, black (RAL7035), M12, ø2.5…6.5mm
Art:
1546.12.06 Copied
M12
2,5 mm
6,5 mm
IP 68
Black RAL 9005
1,5
6 mm
54 mm
15 mm
SEV, CE, cRUus, cULus, DNV, EAC, VDE
Version A acc. to EN 62444
4,96 g
1546.20.07.tif
Gland Syntec synthetic, nozzle, black (RAL7035), M16, ø4…8mm
Art:
1546.17.08 Copied
M16
4 mm
8 mm
IP 68
Black RAL 9005
1,5
6 mm
64 mm
19 mm
SEV, CE, cRUus, cULus, DNV, EAC, VDE
Version A acc. to EN 62444
9,8 g
1546.20.07.tif
Gland Syntec synthetic, nozzle, black (RAL7035), M20, ø3…7mm
Art:
1546.20.07 Copied
M20
3 mm
7 mm
IP 68
Black RAL 9005
1,5
8 mm
88 mm
24 mm
SEV, CE, cRUus, cULus, DNV, EAC, VDE
Version A acc. to EN 62444
18,36 g
1546.20.07.tif
Gland Syntec synthetic, nozzle, black (RAL7035), M20, ø5.5…12mm
Art:
1546.20.12 Copied
M20
5,5 mm
12 mm
IP 68
Black RAL 9005
1,5
8 mm
88 mm
24 mm
SEV, CE, cRUus, cULus, DNV, EAC, VDE
Version A acc. to EN 62444
17,4 g
1546.20.07.tif
Gland Syntec synthetic, nozzle, black (RAL7035), M12, long, ø2.5…6.5mm
Art:
1546.12.1.06 Copied
M12
2,5 mm
6,5 mm
IP 68
Black RAL 9005
1,5
12 mm
54 mm
15 mm
SEV, CE, cRUus, cULus, DNV, EAC, VDE
Version A acc. to EN 62444
5,46 g
1546.20.07.tif
Gland Syntec synthetic, nozzle, black (RAL7035), M16, long, ø4…8mm
Art:
1546.17.1.08 Copied
M16
4 mm
8 mm
IP 68
Black RAL 9005
1,5
12 mm
64 mm
19 mm
SEV, CE, cRUus, cULus, DNV, EAC, VDE
Version A acc. to EN 62444
10,52 g
1546.20.07.tif
Gland Syntec synthetic, nozzle, black (RAL7035), M20, long, ø3…7mm
Art:
1546.20.1.07 Copied
M20
3 mm
7 mm
IP 68
Black RAL 9005
1,5
13 mm
88 mm
24 mm
SEV, CE, cRUus, cULus, DNV, EAC, VDE
Version A acc. to EN 62444
19,28 g
1546.20.07.tif
Gland Syntec synthetic, nozzle, black (RAL7035), M20, long, ø5.5…12mm
Art:
1546.20.1.12 Copied
M20
5,5 mm
12 mm
IP 68
Black RAL 9005
1,5
13 mm
88 mm
24 mm
SEV, CE, cRUus, cULus, DNV, EAC, VDE
Version A acc. to EN 62444
18,3 g
1576.20.07.tif
Gland Syntec synthetic, nozzle, Pg 7, ø2.5…6.5mm
Art:
1576.07.06 Copied
PG 7
2,5 mm
6,5 mm
IP 68
Grey RAL 7035
8 mm
54 mm
15 mm
cRUus, cULus, EAC
5 g
1576.20.07.tif
Gland Syntec synthetic, nozzle, Pg 9, ø3…8mm
Art:
1576.09.08 Copied
PG 9
3 mm
8 mm
IP 68
Grey RAL 7035
8 mm
64 mm
19 mm
cRUus, cULus, EAC
9,34 g
1576.20.07.tif
Gland Syntec synthetic, nozzle, Pg 11, ø2…7mm
Art:
1576.11.07 Copied
PG 11
2 mm
7 mm
IP 68
Grey RAL 7035
8 mm
77 mm
22 mm
cRUus, cULus, EAC
13,64 g
1576.20.07.tif
Gland Syntec synthetic, nozzle, Pg 11, ø4…10mm
Art:
1576.11.10 Copied
PG 11
4 mm
10 mm
IP 68
Grey RAL 7035
8 mm
77 mm
22 mm
cRUus, cULus, EAC
12,94 g
1576.20.07.tif
Gland Syntec synthetic, nozzle, Pg 13, ø3…7mm
Art:
1576.13.07 Copied
PG 13
3 mm
7 mm
IP 68
Grey RAL 7035
9 mm
88 mm
24 mm
cRUus, cULus, EAC
17,93 g
1576.20.07.tif
Gland Syntec synthetic, nozzle, Pg 13, ø5.5…12mm
Art:
1576.13.12 Copied
PG 13
5,5 mm
12 mm
IP 68
Grey RAL 7035
9 mm
88 mm
24 mm
cRUus, cULus, EAC
16,28 g
1576.20.07.tif
Gland Syntec synthetic, nozzle, Pg 16, ø5…11mm
Art:
1576.16.11 Copied
PG 16
5 mm
11 mm
IP 68
Grey RAL 7035
10 mm
102 mm
27 mm
cRUus, cULus, EAC
26,3 g
1576.20.07.tif
Gland Syntec synthetic, nozzle, Pg 16, ø8.5…14mm
Art:
1576.16.14 Copied
PG 16
8,5 mm
14 mm
IP 68
Grey RAL 7035
10 mm
102 mm
27 mm
cRUus, cULus, EAC
25,4 g
1546.20.07.tif
Gland Syntec synthetic, nozzle, black (RAL7035), Pg 7, ø2.5…6.5mm
Art:
1546.07.06 Copied
PG 7
2,5 mm
6,5 mm
IP 68
Black RAL 9005
8 mm
54 mm
15 mm
cRUus, cULus, EAC
5,16 g
1546.20.07.tif
Gland Syntec synthetic, nozzle, black (RAL7035), Pg 9, ø4…8mm
Art:
1546.09.08 Copied
PG 9
3 mm
8 mm
IP 68
Black RAL 9005
8 mm
64 mm
19 mm
cRUus, cULus, EAC
9,6 g
1546.20.07.tif
Gland Syntec synthetic, nozzle, black (RAL7035), Pg 11, ø3…7mm
Art:
1546.11.07 Copied
PG 11
2 mm
7 mm
IP 68
Black RAL 9005
8 mm
77 mm
22 mm
cRUus, cULus, EAC
13,78 g
1546.20.07.tif
Gland Syntec synthetic, nozzle, black (RAL7035), Pg 11, ø4…10mm
Art:
1546.11.10 Copied
PG 11
4 mm
10 mm
IP 68
Black RAL 9005
8 mm
77 mm
22 mm
cRUus, cULus, EAC
13,14 g
1546.20.07.tif
Gland Syntec synthetic, nozzle, black (RAL7035), Pg 13, ø3…7mm
Art:
1546.13.07 Copied
PG 13
3 mm
7 mm
IP 68
Black RAL 9005
9 mm
88 mm
24 mm
cRUus, cULus, EAC
18 g
1546.20.07.tif
Gland Syntec synthetic, nozzle, black (RAL7035), Pg 13, ø5.5…12mm
Art:
1546.13.12 Copied
PG 13
5,5 mm
12 mm
IP 68
Black RAL 9005
9 mm
88 mm
24 mm
cRUus, cULus, EAC
17 g
1546.20.07.tif
Gland Syntec synthetic, nozzle, black (RAL7035), Pg 16, ø5…11mm
Art:
1546.16.11 Copied
PG 16
5 mm
11 mm
IP 68
Black RAL 9005
10 mm
102 mm
27 mm
cRUus, cULus, EAC
26,4 g
1546.20.07.tif
Gland Syntec synthetic, nozzle, black (RAL7035), Pg 16, ø8.5…14mm
Art:
1546.16.14 Copied
PG 16
8,5 mm
14 mm
IP 68
Black RAL 9005
10 mm
102 mm
27 mm
cRUus, cULus, EAC
25,7 g
1576.20.07.tif
Gland Syntec synthetic, nozzle, NPT 3/8, ø3…8mm
Art:
1576.N0375.08 Copied
NPT 3/8"
3 mm
8 mm
IP 54, IP 68 further protection if entry thread is sealed
Grey RAL 7035
15 mm
64 mm
22 mm
cRUus, cULus, EAC
9 g
1576.20.07.tif
Gland Syntec synthetic, nozzle, NPT 1/2, ø3…7mm
Art:
1576.N0500.07 Copied
NPT 1/2"
3 mm
7 mm
IP 54, IP 68 further protection if entry thread is sealed
Grey RAL 7035
15 mm
88 mm
24 mm
cRUus, cULus, EAC
20 g
1576.20.07.tif
Gland Syntec synthetic, nozzle, NPT 1/2, ø5.5…12mm
Art:
1576.N0500.12 Copied
NPT 1/2"
5,5 mm
12 mm
IP 54, IP 68 further protection if entry thread is sealed
Grey RAL 7035
15 mm
88 mm
24 mm
cRUus, cULus, EAC
19 g
1546.20.07.tif
Gland Syntec synthetic, nozzle, black (RAL7035), NPT 3/8'', ø4…8mm
Art:
1546.N0375.08 Copied
NPT 3/8"
3 mm
8 mm
IP 54, IP 68 further protection if entry thread is sealed
Black RAL 9005
15 mm
64 mm
22 mm
cRUus, cULus, EAC
11,58 g
1546.20.07.tif
Gland Syntec synthetic, nozzle, black (RAL7035), NPT 1/2'', ø3…7mm
Art:
1546.N0500.07 Copied
NPT 1/2"
3 mm
7 mm
IP 54, IP 68 further protection if entry thread is sealed
Black RAL 9005
15 mm
88 mm
24 mm
cRUus, cULus, EAC
19,88 g
1546.20.07.tif
Gland Syntec synthetic, nozzle, black (RAL7035), NPT 1/2'', ø5.5…12mm
Art:
1546.N0500.12 Copied
NPT 1/2"
5,5 mm
12 mm
IP 54, IP 68 further protection if entry thread is sealed
Black RAL 9005
15 mm
88 mm
24 mm
cRUus, cULus, EAC
18,78 g

Selected variant

Select a variant in the list

Contact us
If you need any help, you can contact us in one of the following ways:
0116 284 9900
Send e-mail
Use live chat
Do you need help?
Logo

Cookie settings for OEM.CO.UK

Cookies help us improve your experience with us, so in order to be able to handle login information, offer you personalised content and for basic functionality of this website, we use some cookies.

We will never sell on any information about you.

You can accept all cookies or personalise your cookies preferences, you can also change your cookie preferences at any time by visiting our contact page.

Necessary Cookies

These cookies are necessary for the website to work and can not be turned off in our systems. They are usually used only in response to actions you have taken in connection with a service request, for example when setting personal preferences, logging in or filling out a form.

Analysis and measurement cookies

These cookies allow us to count the number of visits and traffic sources so that we can measure and improve our website performance. They help us know which pages are more or less popular and how visitors navigate around the site. The information that these cookies collect is aggregated and therefore completely anonymous. If you do not allow these cookies, we do not know when you have visited our website.

Marketing cookies

These cookies can be added by our partners. They can use them to create a profile of you, based on your interests, to show you more relevant information. They do not store any personal information - only information about your browser and device. If you do not accept these cookies, you will have a more general and less customized user experience.
