AGRO
General Data |
|
---|---|
Thread Size (G) | M12 |
IP class | IP 66 / IP 68 / IP 69 |
Water intrusion pressure | > 12.0 psi / 0.83 bar |
Air flow | > 90ml/min/cm² at 10mbar |

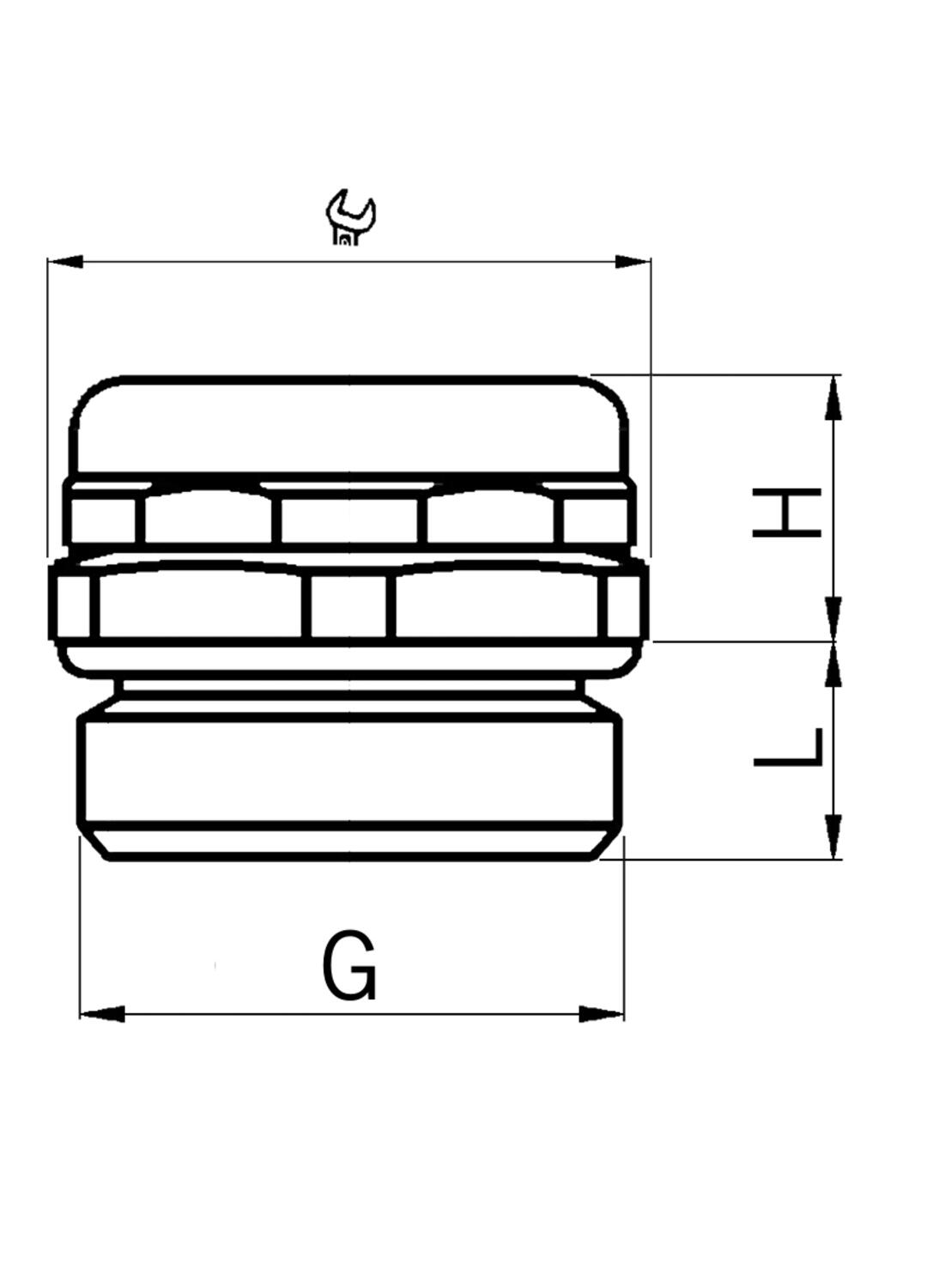

Dimensions |
|
Thread pitch | 1,5 |
Thread length | 8 mm |
Height (H) | 9,5 mm |
*Invisible Heading* |
|
---|---|
Spanner width (AF) | 18 mm |
Materials |
|
Material | Nickel-plated brass |
Materials O-ring | NBR |
Material membrane | Polyethersulfone (PES) |
Temperature range | -60°C ... +100°C |
Additional Data |
|
Pack size | 25 Â |
Optimise your production line with encoders, inclinometers, displays and slip rings
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Parts | Thread Size (G) | IP class | Water intrusion pressure | Degree of filter | Air flow | Thread pitch | Thread length | Height (H) | Spanner width (AF) | Material of filter disc | Material of mesh | Material membrane | Temperature range | Pack size | Price | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]()
Pressure balance element, membrane, M12
Art:
2450.12.34
Copied
|
M12
|
IP 66 / IP 68 / IP 69
|
> 12.0 psi / 0.83 bar
|
|
> 90ml/min/cm² at 10mbar
|
1,5
|
8 mm
|
9,5 mm
|
18 mm
|
|
|
Polyethersulfone (PES)
|
-60°C ... +100°C
|
25
|
| ||
![]()
Pressure balance element, membrane, M16
Art:
2450.17.34
Copied
|
M16
|
IP 66 / IP 68 / IP 69
|
> 12.0 psi / 0.83 bar
|
|
> 90ml/min/cm² at 10mbar
|
1,5
|
8 mm
|
9,5 mm
|
18 mm
|
|
|
Polyethersulfone (PES)
|
-60°C ... +100°C
|
20
|
| ||
![]()
Pressure balance element, membrane, M20
Art:
2450.20.34
Copied
|
M20
|
IP 66 / IP 68 / IP 69
|
> 12.0 psi / 0.83 bar
|
|
> 90ml/min/cm² at 10mbar
|
1,5
|
8 mm
|
10 mm
|
22 mm
|
|
|
Polyethersulfone (PES)
|
-60°C ... +100°C
|
20
|
| ||
![]()
Pressure balance element, sintered filter, M12
Art:
2450.12.32
Copied
|
M12
|
IP 54 / IP x9
|
|
40 µm
|
|
1,5
|
8 mm
|
9,5 mm
|
18 mm
|
Sintered bronze
|
|
|
-50°C ... +110°C
|
25
|
| ||
![]()
Pressure balance element, sintered filter, M16
Art:
2450.17.32
Copied
|
M16
|
IP 54 / IP x9
|
|
40 µm
|
|
1,5
|
8 mm
|
9,5 mm
|
18 mm
|
Sintered bronze
|
|
|
-50°C ... +110°C
|
20
|
| ||
![]()

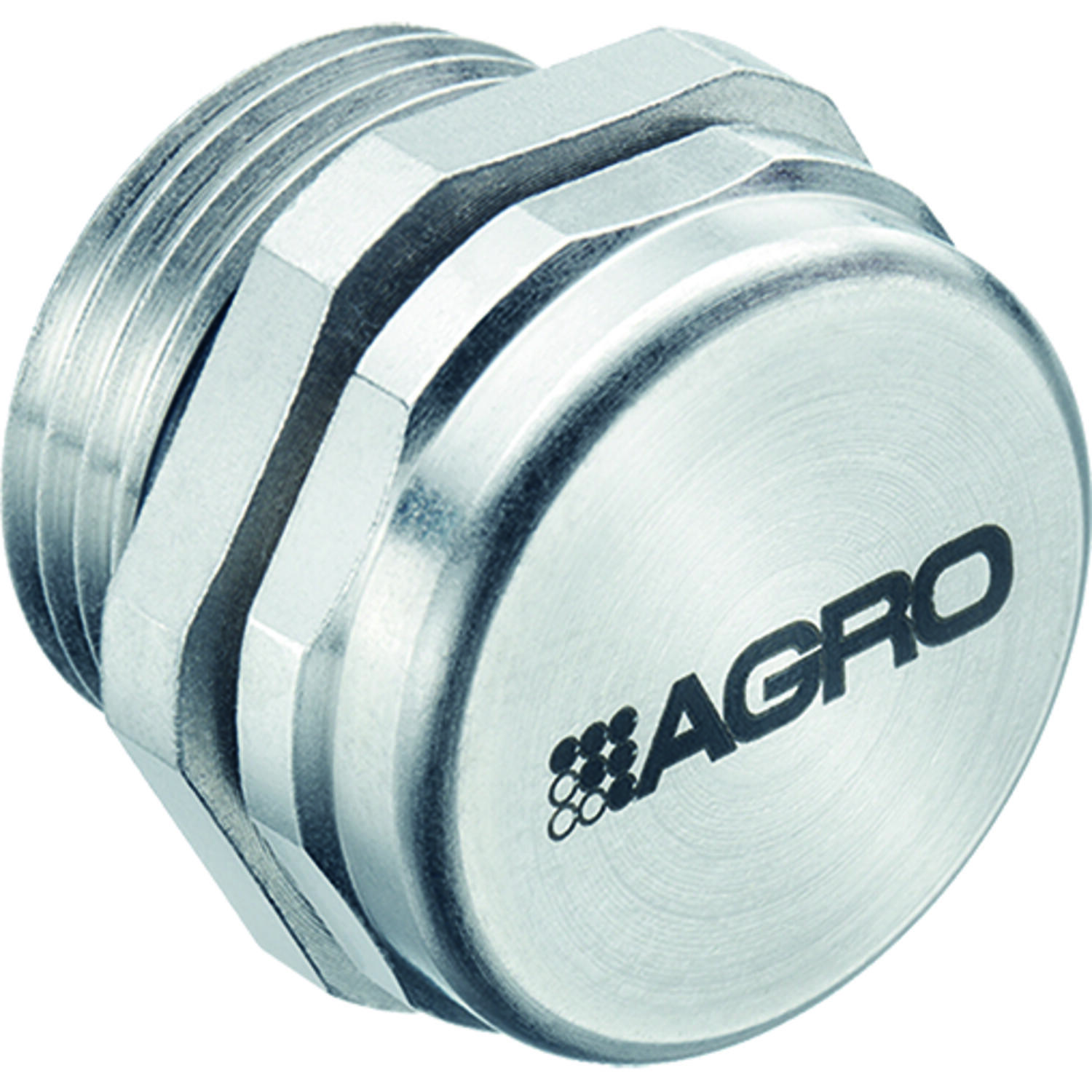

Pressure balance element, sintered filter, M20
Art:
2450.20.32
Copied
|
M20
|
IP 54 / IP x9
|
|
40 µm
|
|
1,5
|
8 mm
|
10 mm
|
22 mm
|
Sintered bronze
|
|
|
-50°C ... +110°C
|
20
|
| ||
![]()
Drainage element with mesh, M12
Art:
2450.12.36
Copied
|
M12
|
IP 4x
|
|
|
|
1,5
|
10 mm
|
9,5 mm
|
18 mm
|
|
Stainless steel A2
|
|
-50°C ... +110°C
|
25
|
| ||
![]()
Drainage element with mesh, M16
Art:
2450.17.36
Copied
|
M16
|
IP 4x
|
|
|
|
1,5
|
10 mm
|
9,5 mm
|
18 mm
|
|
Stainless steel A2
|
|
-50°C ... +110°C
|
20
|
| ||
![]()

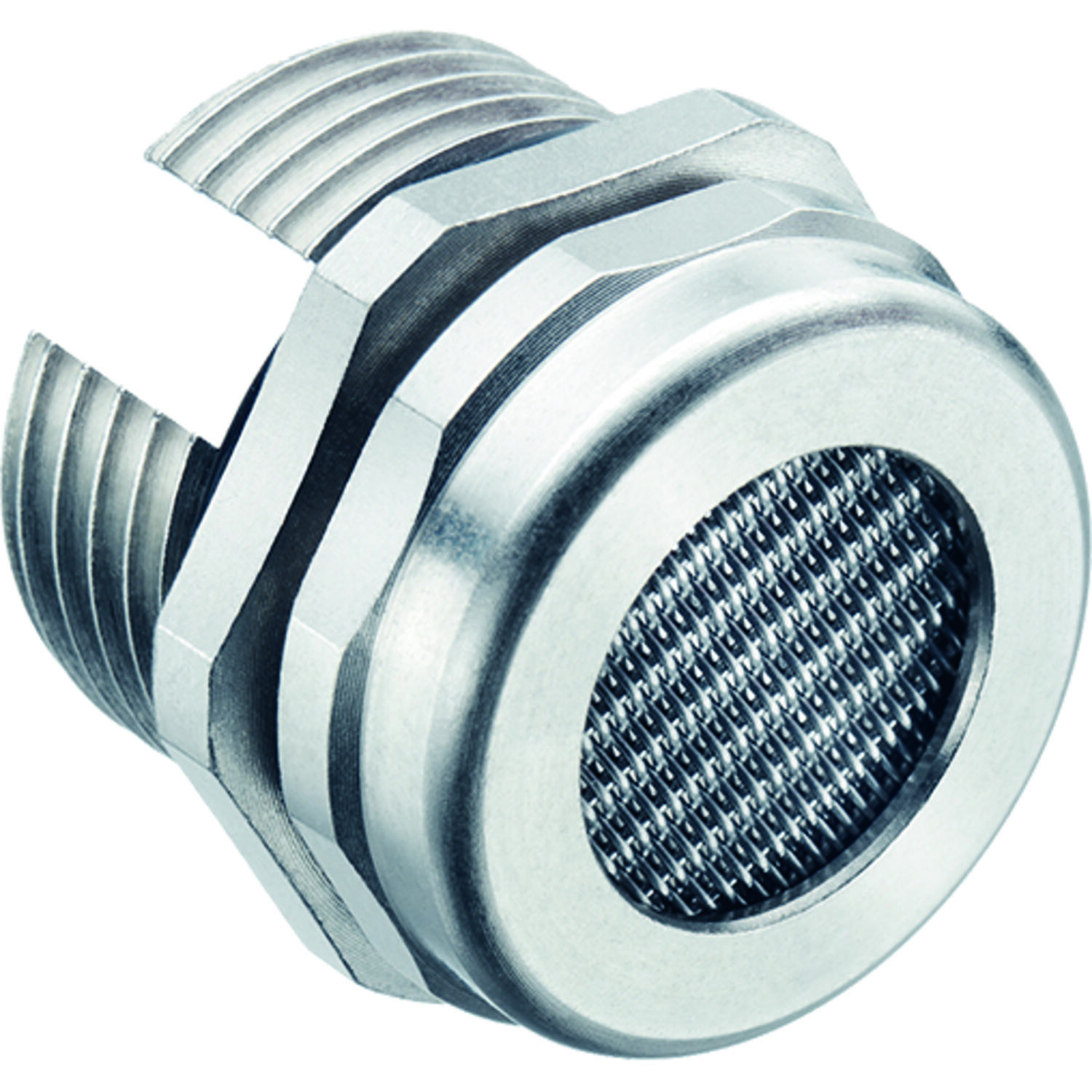

Drainage element with mesh, M20
Art:
2450.20.36
Copied
|
M20
|
IP 4x
|
|
|
|
1,5
|
10 mm
|
10 mm
|
22 mm
|
|
Stainless steel A2
|
|
-50°C ... +110°C
|
20
|
| ||
![]()
Pressure balance element, sintered filter, Pg 7
Art:
2450.07.32
Copied
|
PG 7
|
IP 54 / IP x9
|
|
40 µm
|
|
|
8 mm
|
9,5 mm
|
18 mm
|
Sintered bronze
|
|
|
-50°C ... +110°C
|
25
|
| ||
![]()
Pressure balance element, membrane, Pg 7
Art:
2450.07.34
Copied
|
PG 7
|
IP 66 / IP 68 / IP 69
|
> 12.0 psi / 0.83 bar
|
|
> 90ml/min/cm² at 10mbar
|
|
8 mm
|
9,5 mm
|
18 mm
|
|
|
Polyethersulfone (PES)
|
-60°C ... +100°C
|
25
|
| ||
![]()
Pressure balance element, NPB, Pg 11
Art:
2450.11.32
Copied
|
PG 11
|
IP 54 / IP x9
|
|
40 µm
|
|
|
8 mm
|
10 mm
|
22 mm
|
Sintered bronze
|
|
|
-50°C ... +110°C
|
20
|
| ||
![]()
Pressure balance element, membrane, Pg 11
Art:
2450.11.34
Copied
|
PG 11
|
IP 66 / IP 68 / IP 69
|
> 12.0 psi / 0.83 bar
|
|
> 90ml/min/cm² at 10mbar
|
|
8 mm
|
10 mm
|
22 mm
|
|
|
Polyethersulfone (PES)
|
-60°C ... +100°C
|
20
|
|
