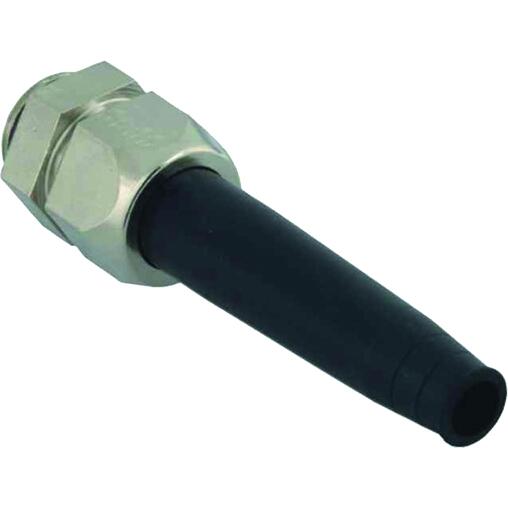

Progress Anti-kink protection Progress® FKN 1008.52

General Data
Thread Size (G)	M8
Insert Type	One-Piece
Cable diameter min	3.8 mm
Cable diameter max	4.8 mm
IP class	IP 68, IP 69 further protection
Dimensions
Thread pitch	1.25
Thread length	6 mm
Height (H)	12 mm
Spanner width (AF)	11 mm
Nozzle length (T)	25 mm
Materials
Material	Nickel-plated brass
Materials O-ring	NBR

Invisible Heading
Material of seals	NBR
Nozzle material	EPDM
Temperature range	-40°C ... +100°C
Approvals
Approvals	SEV, CE, DNV, EAC, VDE
Strain relief	Version A acc. to EN 62444
Additional Data
Pack size	50
Country of origin	CH
Tariff code	74199949
Weight	6.96 g
Additional features	Metric coarse-pitch thread (with VDE test report)

Parts	Thread Size (G)	Insert Type	Cable diameter inner min	Cable diameter inner max	Cable diameter min	Cable diameter max	IP class	Thread pitch	Thread length	Height (H)	Spanner width (AF)	Nozzle length (T)	Material of seals	Nozzle material	Approvals	Strain relief	Pack size	Weight	Additional features
Gland NPB, M8, EPDM sleeve, ø3.8…4.8mm Art: 1008.52 Copied	M8	One-Piece			3.8 mm	4.8 mm	IP 68, IP 69 further protection	1.25	6 mm	12 mm	11 mm	25 mm	NBR	EPDM	SEV, CE, DNV, EAC, VDE	Version A acc. to EN 62444	50	6.96 g	Metric coarse-pitch thread (with VDE test report)
Gland NPB, M10, EPDM sleeve, ø4…6mm Art: 1010.52 Copied	M10	One-Piece			4 mm	6 mm	IP 68, IP 69 further protection	1.5	6 mm	20 mm	16 mm	35 mm	NBR	EPDM	SEV, CE, DNV, EAC, VDE	Version A acc. to EN 62444	50	19.92 g	Metric coarse-pitch thread (with VDE test report)
Gland NPB, M12, EPDM sleeve, ø4…6mm Art: 1012.52 Copied	M12	One-Piece			4 mm	6 mm	IP 68, IP 69 further protection	1.5	6 mm	20 mm	16 mm	35 mm	NBR	EPDM	SEV, CE, DNV, EAC, VDE	Version A acc. to EN 62444	50	21.68 g
Gland NPB, M16, EPDM sleeve, ø6…8.8mm Art: 1017.52 Copied	M16	One-Piece			6 mm	8.8 mm	IP 68, IP 69 further protection	1.5	6 mm	24 mm	20 mm	45 mm	NBR	EPDM	SEV, CE, DNV, EAC, VDE	Version A acc. to EN 62444	50	36.48 g
Gland NPB, M20, EPDM Sleeve, ø10.5…13mm Art: 1020.52 Copied	M20	One-Piece			10.5 mm	13 mm	IP 68, IP 69 further protection	1.5	6 mm	28 mm	24 mm	73 mm	NBR	EPDM	SEV, CE, DNV, EAC, VDE	Version A acc. to EN 62444	25	66.28 g
Gland NPB, M25, EPDM sleeve, ø13…16.5mm Art: 1025.52 Copied	M25	One-Piece			13 mm	16.5 mm	IP 68, IP 69 further protection	1.5	7 mm	33 mm	32 mm	92 mm	NBR	EPDM	SEV, CE, DNV, EAC, VDE	Version A acc. to EN 62444	10	127.1 g
Gland NPB, M16, spring sleeve, ø6…10.5mm Art: 1060.17.52 Copied	M16	Two-Piece	6 mm	8 mm	8 mm	10.5 mm	IP 68 (up to 10 bar), IP 69 further protection	1.5	5 mm	66 mm	18 mm		TPE	Stainless steel A2	CE, SEV, VDE, EAC, DNV	Version A acc. to EN 62444	10	49.8 g
Gland NPB, M20, spring sleeve, ø8…14.5mm Art: 1060.20.52 Copied	M20	Two-Piece	8 mm	11 mm	11 mm	14.5 mm	IP 68 (up to 10 bar), IP 69 further protection	1.5	6 mm	86 mm	24 mm		TPE	Stainless steel A2	CE, SEV, VDE, EAC, DNV	Version A acc. to EN 62444	10	101.9 g
Gland NPB, M25, spring sleeve, ø12.5…19mm Art: 1060.25.52 Copied	M25	Two-Piece	12.5 mm	16 mm	16 mm	19 mm	IP 68 (up to 10 bar), IP 69 further protection	1.5	7 mm	99 mm	30 mm		TPE	Stainless steel A2	CE, SEV, VDE, EAC, DNV	Version A acc. to EN 62444	10	175.6 g
Gland NPB, M32, spring sleeve, ø17…24.5mm Art: 1060.32.52 Copied	M32	Two-Piece	17 mm	20 mm	20 mm	24.5 mm	IP 68 (up to 10 bar), IP 69 further protection	1.5	8 mm	109 mm	36 mm		TPE	Stainless steel A2	CE, SEV, VDE, EAC, DNV	Version A acc. to EN 62444	5	273 g
Gland NPB, M8, spring sleeve, ø2.5…3mm Art: 1060.08.52.030 Copied	M8	One-Piece			2.5 mm	3 mm	IP 68 (up to 10 bar), IP 69 further protection	1.25	5 mm	49 mm	11 mm		TPE	Stainless steel A2	CE, SEV, VDE, EAC, DNV	Version A acc. to EN 62444	10	15.2 g	Metric coarse-pitch thread (with VDE test report)
Gland NPB, M8, spring sleeve, ø3.5…5mm Art: 1060.08.52.040 Copied	M8	One-Piece			3.5 mm	4 mm	IP 68 (up to 10 bar), IP 69 further protection	1.25	5 mm	49 mm	11 mm		TPE	Stainless steel A2	CE, SEV, VDE, EAC, DNV	Version A acc. to EN 62444	10	15.2 g	Metric coarse-pitch thread (with VDE test report)
Gland NPB, M10, spring sleeve, ø3…4mm Art: 1060.10.52.040 Copied	M10	One-Piece			3 mm	4 mm	IP 68 (up to 10 bar), IP 69 further protection	1.5	5 mm	52 mm	13 mm		TPE	Stainless steel A2	CE, SEV, VDE, EAC, DNV	Version A acc. to EN 62444	10	23.8 g	Metric coarse-pitch thread (with VDE test report)
Gland NPB, M10, spring sleeve, ø4…6mm Art: 1060.10.52.060 Copied	M10	One-Piece			4 mm	6 mm	IP 68 (up to 10 bar), IP 69 further protection	1.5	5 mm	52 mm	13 mm		TPE	Stainless steel A2	CE, SEV, VDE, EAC, DNV	Version A acc. to EN 62444	10	23.8 g	Metric coarse-pitch thread (with VDE test report)
Gland NPB, M12, spring sleeve, ø3.5…5mm Art: 1060.12.52.050 Copied	M12	One-Piece			3.5 mm	5 mm	IP 68 (up to 10 bar), IP 69 further protection	1.5	5 mm	57 mm	15 mm		TPE	Stainless steel A2	CE, SEV, VDE, EAC, DNV	Version A acc. to EN 62444	10	33 g
Gland NPB, M12, spring sleeve, ø5…6.5mm Art: 1060.12.52.065 Copied	M12	One-Piece			5 mm	6.5 mm	IP 68 (up to 10 bar), IP 69 further protection	1.5	5 mm	57 mm	15 mm		TPE	Stainless steel A2	CE, SEV, VDE, EAC, DNV	Version A acc. to EN 62444	10	31.5 g
Gland NPB, M12, spring sleeve, ø6.5…7.5mm Art: 1060.12.52.075 Copied	M12	One-Piece			6.5 mm	7.5 mm	IP 68 (up to 10 bar), IP 69 further protection	1.5	5 mm	57 mm	15 mm		TPE	Stainless steel A2	CE, SEV, VDE, EAC, DNV	Version A acc. to EN 62444	10	30.3 g
Gland NPB, M16, spring sleeve, ø4.5…6mm Art: 1060.17.52.060 Copied	M16	One-Piece			4.5 mm	6 mm	IP 68 (up to 10 bar), IP 69 further protection	1.5	5 mm	66 mm	18 mm		TPE	Stainless steel A2	CE, SEV, VDE, EAC, DNV	Version A acc. to EN 62444	10	50.8 g
Gland NPB, M16, spring sleeve, ø6…8mm Art: 1060.17.52.080 Copied	M16	One-Piece			6 mm	8 mm	IP 68 (up to 10 bar), IP 69 further protection	1.5	5 mm	66 mm	18 mm		TPE	Stainless steel A2	CE, SEV, VDE, EAC, DNV	Version A acc. to EN 62444	10	49.8 g
Gland NPB, M16, spring sleeve, ø8…10.5mm Art: 1060.17.52.105 Copied	M16	One-Piece			8 mm	10.5 mm	IP 68 (up to 10 bar), IP 69 further protection	1.5	5 mm	66 mm	18 mm		TPE	Stainless steel A2	CE, SEV, VDE, EAC, DNV	Version A acc. to EN 62444	10	48.8 g
Gland NPB, M20, spring sleeve, ø6…8mm Art: 1060.20.52.080 Copied	M20	One-Piece			6 mm	8 mm	IP 68 (up to 10 bar), IP 69 further protection	1.5	6 mm	86 mm	24 mm		TPE	Stainless steel A2	CE, SEV, VDE, EAC, DNV	Version A acc. to EN 62444	10	97.9 g
Gland NPB, M20, spring sleeve, ø8…11mm Art: 1060.20.52.110 Copied	M20	One-Piece			8 mm	11 mm	IP 68 (up to 10 bar), IP 69 further protection	1.5	6 mm	86 mm	24 mm		TPE	Stainless steel A2	CE, SEV, VDE, EAC, DNV	Version A acc. to EN 62444	10	97.9 g
Gland NPB, M20, spring sleeve, ø11…14.5mm Art: 1060.20.52.145 Copied	M20	One-Piece			11 mm	14.5 mm	IP 68 (up to 10 bar), IP 69 further protection	1.5	6 mm	86 mm	24 mm		TPE	Stainless steel A2	CE, SEV, VDE, EAC, DNV	Version A acc. to EN 62444	10	95.9 g
Gland NPB, M25, spring sleeve, ø9.5…12.5mm Art: 1060.25.52.125 Copied	M25	One-Piece			9.5 mm	12.5 mm	IP 68 (up to 10 bar), IP 69 further protection	1.5	7 mm	99 mm	30 mm		TPE	Stainless steel A2	CE, SEV, VDE, EAC, DNV	Version A acc. to EN 62444	10	179.9 g
Gland NPB, M25, spring sleeve, ø12.5…16mm Art: 1060.25.52.160 Copied	M25	One-Piece			12.5 mm	16 mm	IP 68 (up to 10 bar), IP 69 further protection	1.5	7 mm	99 mm	30 mm		TPE	Stainless steel A2	CE, SEV, VDE, EAC, DNV	Version A acc. to EN 62444	10	177.9 g
Gland NPB, M25, spring sleeve, ø16…19mm Art: 1060.25.52.190 Copied	M25	One-Piece			16 mm	19 mm	IP 68 (up to 10 bar), IP 69 further protection	1.5	7 mm	99 mm	30 mm		TPE	Stainless steel A2	CE, SEV, VDE, EAC, DNV	Version A acc. to EN 62444	10	176.9 g
Gland NPB, M32, spring sleeve, ø17…21mm Art: 1060.32.52.210 Copied	M32	One-Piece			17 mm	21 mm	IP 68 (up to 10 bar), IP 69 further protection	1.5	8 mm	109 mm	36 mm		TPE	Stainless steel A2	CE, SEV, VDE, EAC, DNV	Version A acc. to EN 62444	5	280.6 g
Gland NPB, Pg 7, EPDM sleeve, ø4…6mm Art: 1007.52 Copied	PG 7	One-Piece			4 mm	6 mm	IP 68, IP 69 further protection		6 mm	20 mm	16 mm	35 mm	NBR	EPDM	EAC		50	22.7 g
Gland NPB, Pg 9, EPDM sleeve, ø6…8.8mm Art: 1009.52 Copied	PG 9	One-Piece			6 mm	8.8 mm	IP 68, IP 69 further protection		6 mm	24 mm	20 mm	45 mm	NBR	EPDM	EAC		50	36.4 g
Gland NPB, Pg 11, EPDM sleeve, ø6…8.8mm Art: 1011.52 Copied	PG 11	One-Piece			6 mm	8.8 mm	IP 68, IP 69 further protection		6 mm	24 mm	20 mm	45 mm	NBR	EPDM	EAC		50	38.3 g
Gland NPB, Pg 13, EPDM sleeve, ø9…11mm Art: 1013.51 Copied	PG 13	One-Piece			9 mm	11 mm	IP 68, IP 69 further protection		6 mm	28 mm	24 mm	65 mm	NBR	EPDM	EAC		25	70.24 g
Gland NPB, Pg 13, EPDM sleeve, ø10.5…13mm Art: 1013.52 Copied	PG 13	One-Piece			10.5 mm	13 mm	IP 68, IP 69 further protection		6 mm	28 mm	24 mm	73 mm	NBR	EPDM	EAC		25	68 g
Gland NPB, Pg 16, EPDM sleeve, ø9…11mm Art: 1016.51 Copied	PG 16	One-Piece			9 mm	11 mm	IP 68, IP 69 further protection		6 mm	28 mm	24 mm	65 mm	NBR	EPDM	EAC		25	71.24 g
Gland NPB, Pg 16, EPDM sleeve, ø6…8.8mm Art: 1016.52 Copied	PG 16	One-Piece			10.5 mm	13 mm	IP 68, IP 69 further protection		6 mm	28 mm	24 mm	73 mm	NBR	EPDM	EAC		25	68.84 g
Gland NPB, Pg 21, EPDM sleeve, ø13…16.5mm Art: 1021.51 Copied	PG 21	One-Piece			13 mm	16.5 mm	IP 68, IP 69 further protection		7.5 mm	33 mm	32 mm	92 mm	NBR	EPDM	EAC		10	135.9 g
Gland NPB, Pg 9, spring sleeve, ø6…10.5mm Art: 1060.09.52 Copied	PG 9	Two-Piece	6 mm	8 mm	8 mm	10.5 mm	IP 68 (up to 10 bar), IP 69 further protection		6 mm	66 mm	18 mm		TPE	Stainless steel A2	EAC		10	48.8 g
Gland NPB, Pg 11, spring sleeve, ø6…10.5mm Art: 1060.11.52 Copied	PG 11	Two-Piece	6 mm	8 mm	8 mm	10.5 mm	IP 68 (up to 10 bar), IP 69 further protection		6 mm	66 mm	21 mm		TPE	Stainless steel A2	EAC		10	62.8 g
Gland NPB, Pg 13, spring sleeve, ø8…11mm Art: 1060.13.52 Copied	PG 13	Two-Piece	8 mm	11 mm	11 mm	14.5 mm	IP 68 (up to 10 bar), IP 69 further protection		6 mm	86 mm	24 mm		TPE	Stainless steel A2	EAC		10	92.9 g
Gland NPB, Pg 16, spring sleeve, ø8…14.5mm Art: 1060.16.52 Copied	PG 16	Two-Piece	8 mm	11 mm	11 mm	14.5 mm	IP 68 (up to 10 bar), IP 69 further protection		6 mm	86 mm	24 mm		TPE	Stainless steel A2	EAC		10	107.9 g
Gland NPB, Pg 21, spring sleeve, ø12.5…19mm Art: 1060.21.52 Copied	PG 21	Two-Piece	12.5 mm	16 mm	16 mm	19 mm	IP 68 (up to 10 bar), IP 69 further protection		7.5 mm	99 mm	30 mm		TPE	Stainless steel A2	EAC		5	202 g
Gland NPB, Pg 7, spring sleeve, ø3.5…5mm Art: 1060.07.52.050 Copied	PG 7	One-Piece			3.5 mm	5 mm	IP 68 (up to 10 bar), IP 69 further protection		6 mm	57 mm	16 mm		TPE	Stainless steel A2	EAC		10	33.7 g
Gland NPB, Pg 7, spring sleeve, ø5…6.5mm Art: 1060.07.52.065 Copied	PG 7	One-Piece			5 mm	6.5 mm	IP 68 (up to 10 bar), IP 69 further protection		6 mm	57 mm	15 mm		TPE	Stainless steel A2	EAC		10	33.65 g
Gland NPB, Pg 7, spring sleeve, ø6.5…7.5mm Art: 1060.07.52.075 Copied	PG 7	One-Piece			6.5 mm	7.5 mm	IP 68 (up to 10 bar), IP 69 further protection		6 mm	57 mm	15 mm		TPE	Stainless steel A2	EAC		10	33.6 g
Gland NPB, Pg 9, spring sleeve, ø4.5…6mm Art: 1060.09.52.060 Copied	PG 9	One-Piece			4.5 mm	6 mm	IP 68 (up to 10 bar), IP 69 further protection		6 mm	66 mm	18 mm		TPE	Stainless steel A2	EAC		10	48.8 g
Gland NPB, Pg 9, spring sleeve, ø6…8mm Art: 1060.09.52.080 Copied	PG 9	One-Piece			6 mm	8 mm	IP 68 (up to 10 bar), IP 69 further protection		6 mm	66 mm	18 mm		TPE	Stainless steel A2	EAC		10	48.8 g
Gland NPB, Pg 9, spring sleeve, ø8…10.5mm Art: 1060.09.52.105 Copied	PG 9	One-Piece			8 mm	10.5 mm	IP 68 (up to 10 bar), IP 69 further protection		6 mm	66 mm	18 mm		TPE	Stainless steel A2	EAC		10	47.8 g
Gland NPB, Pg 11, spring sleeve, ø4.5…6mm Art: 1060.11.52.060 Copied	PG 11	One-Piece			4.5 mm	6 mm	IP 68 (up to 10 bar), IP 69 further protection		6 mm	66 mm	21 mm		TPE	Stainless steel A2	EAC		10	56.8 g
Gland NPB, Pg 11, spring sleeve, ø6…8mm Art: 1060.11.52.080 Copied	PG 11	One-Piece			6 mm	8 mm	IP 68 (up to 10 bar), IP 69 further protection		6 mm	66 mm	21 mm		TPE	Stainless steel A2	EAC		10	55.8 g
Gland NPB, Pg 11, spring sleeve, ø8…10.5mm Art: 1060.11.52.105 Copied	PG 11	One-Piece			8 mm	10.5 mm	IP 68 (up to 10 bar), IP 69 further protection		6 mm	66 mm	21 mm		TPE	Stainless steel A2	EAC		10	54.8 g
Gland NPB, Pg 13, spring sleeve, ø6…8mm Art: 1060.13.52.080 Copied	PG 13	One-Piece			6 mm	8 mm	IP 68 (up to 10 bar), IP 69 further protection		6 mm	86 mm	24 mm		TPE	Stainless steel A2	EAC		10	97 g
Gland NPB, Pg 13, spring sleeve, ø8…11mm Art: 1060.13.52.110 Copied	PG 13	One-Piece			8 mm	11 mm	IP 68 (up to 10 bar), IP 69 further protection		6 mm	86 mm	24 mm		TPE	Stainless steel A2	EAC		10	95.9 g
Gland NPB, Pg 13, spring sleeve, ø11…14.5mm Art: 1060.13.52.145 Copied	PG 13	One-Piece			11 mm	14.5 mm	IP 68 (up to 10 bar), IP 69 further protection		6 mm	86 mm	24 mm		TPE	Stainless steel A2	EAC		10	93 g
Gland NPB, Pg 16, spring sleeve, ø6…8mm Art: 1060.16.52.080 Copied	PG 16	One-Piece			6 mm	8 mm	IP 68 (up to 10 bar), IP 69 further protection		6 mm	86 mm	24 mm		TPE	Stainless steel A2	EAC		10	102.9 g
Gland NPB, Pg 16, spring sleeve, ø8…11mm Art: 1060.16.52.110 Copied	PG 16	One-Piece			8 mm	11 mm	IP 68 (up to 10 bar), IP 69 further protection		6 mm	86 mm	24 mm		TPE	Stainless steel A2	EAC		10	99.9 g
Gland NPB, Pg 16, spring sleeve, ø11…14.5mm Art: 1060.16.52.145 Copied	PG 16	One-Piece			11 mm	14.5 mm	IP 68 (up to 10 bar), IP 69 further protection		6 mm	86 mm	24 mm		TPE	Stainless steel A2	EAC		10	97.9 g
Gland NPB, Pg 21, spring sleeve, ø9.5…12.5mm Art: 1060.21.52.125 Copied	PG 21	One-Piece			9.5 mm	12.5 mm	IP 68 (up to 10 bar), IP 69 further protection		7.5 mm	99 mm	30 mm		TPE	Stainless steel A2	EAC		5	187 g
Gland NPB, Pg 21, spring sleeve, ø12.5…16mm Art: 1060.21.52.160 Copied	PG 21	One-Piece			12.5 mm	16 mm	IP 68 (up to 10 bar), IP 69 further protection		7.5 mm	99 mm	30 mm		TPE	Stainless steel A2	EAC		5	190 g
Gland NPB, Pg 21, spring sleeve, ø16…19mm Art: 1060.21.52.190 Copied	PG 21	One-Piece			16 mm	19 mm	IP 68 (up to 10 bar), IP 69 further protection		7.5 mm	99 mm	30 mm		TPE	Stainless steel A2	EAC		5	187 g
