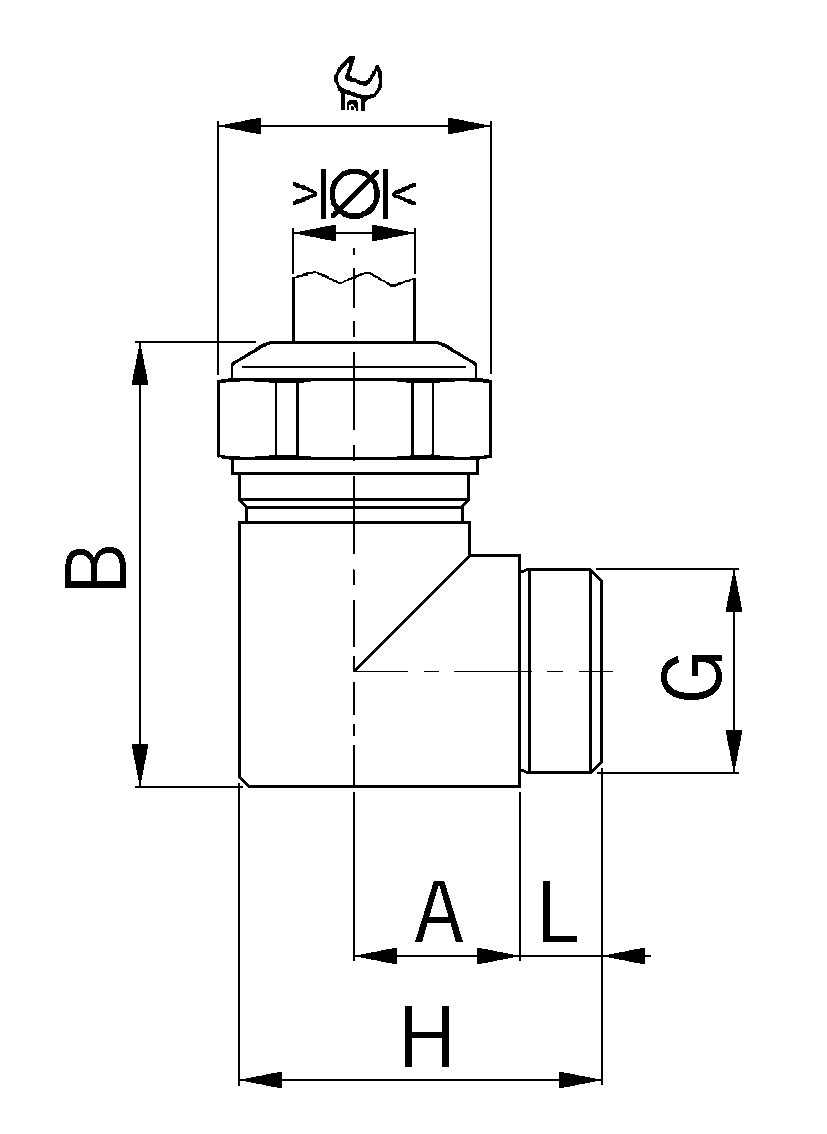

90° Elbow glands and 45°/90° elbows Progress® Elbow 5200.12

General Data
Thread Size (G)	M12
Insert Type	One-Piece
Cable diameter min	5 mm
Cable diameter max	6.5 mm
IP class	IP 68
Dimensions
Thread pitch	1.5
Thread length	8 mm
Height (H)	27 mm
Spanner width (AF)	15 mm
Width (B)	32 mm
Centres (A)	11 mm

Materials
Material	Nickel-plated brass
Material of seals	TPE
Temperature range	-40°C ... +100°C
Approvals
Approvals	SEV, CE, DNV, EAC, VDE
Strain relief	Version A acc. to EN 62444
Entry thread IP class	IP 68, if entry thread is sealed
Additional Data
Pack size	50
Country of origin	CH
Tariff code	74199949
Weight	24.08 g

Parts	Thread Size (G)	Inner thread size	Insert Type	Cable diameter inner min	Cable diameter inner max	Cable diameter min	Cable diameter max	IP class	Thread pitch	Inner thread pitch	Thread length	Height (H)	Spanner width (AF)	Overall diameter (D)	Width (B)	Centres (A)	Inner thread length (L1)	Materials O-ring	Material of seals	Temperature range	Approvals	Strain relief	Entry thread IP class	Pack size	Weight
Gland NPB, 90° elbow, M12, ø5…6.5mm Art: 5200.12 Copied	M12		One-Piece			5 mm	6.5 mm	IP 68	1.5		8 mm	27 mm	15 mm		32 mm	11 mm			TPE	-40°C ... +100°C	SEV, CE, DNV, EAC, VDE	Version A acc. to EN 62444	IP 68, if entry thread is sealed	50	24.08 g
Gland NPB, 90° elbow, M16, ø6…10.5mm Art: 5200.17 Copied	M16		Two-Piece	6 mm	8 mm	8 mm	10.5 mm	IP 68	1.5		8 mm	30 mm	18 mm		36 mm	13 mm			TPE	-40°C ... +100°C	SEV, CE, DNV, EAC, VDE	Version A acc. to EN 62444	IP 68, if entry thread is sealed	50	32.5 g
Gland NPB, 90° elbow, M20, ø8…15mm Art: 5200.20 Copied	M20		Two-Piece	8 mm	11 mm	11 mm	15 mm	IP 68	1.5		8 mm	35 mm	24 mm		44 mm	16 mm			TPE	-40°C ... +100°C	SEV, CE, DNV, EAC, VDE	Version A acc. to EN 62444	IP 68, if entry thread is sealed	50	60.3 g
Gland NPB, 90° elbow, M25, ø12.5…20.5mm Art: 5200.25 Copied	M25		Two-Piece	16 mm	12.5 mm	16 mm	20.5 mm	IP 68	1.5		10 mm	44 mm	30 mm		52 mm	20 mm			TPE	-40°C ... +100°C	SEV, CE, DNV, EAC, VDE	Version A acc. to EN 62444	IP 68, if entry thread is sealed	25	118.58 g
Gland NPB, 90° elbow, M32, ø17…25.5mm Art: 5200.32 Copied	M32		Two-Piece	17 mm	21 mm	21 mm	25.5 mm	IP 68	1.5		10 mm	50 mm	36 mm		60 mm	23 mm			TPE	-40°C ... +100°C	SEV, CE, DNV, EAC, VDE	Version A acc. to EN 62444	IP 68, if entry thread is sealed	25	169.08 g
Gland NPB, 90° elbow, M40, ø24…33mm Art: 5200.40 Copied	M40		Two-Piece	24 mm	28.5 mm	28.5 mm	33 mm	IP 68	1.5		10 mm	60 mm	46 mm		72 mm	28 mm			TPE	-40°C ... +100°C	SEV, CE, DNV, EAC, VDE	Version A acc. to EN 62444	IP 68, if entry thread is sealed	10	312.2 g
Gland NPB, 90° elbow, M12, long, ø5…6.5mm Art: 5210.12 Copied	M12		One-Piece			5 mm	6.5 mm	IP 68	1.5		12 mm	30 mm	15 mm		32 mm	11 mm			TPE	-40°C ... +100°C	SEV, CE, DNV, EAC, VDE	Version A acc. to EN 62444	IP 68, if entry thread is sealed	50	24.42 g
Gland NPB, 90° elbow, M16, long, ø6…10.5mm Art: 5210.17 Copied	M16		Two-Piece	6 mm	8 mm	8 mm	10.5 mm	IP 68	1.5		12 mm	34 mm	18 mm		36 mm	13 mm			TPE	-40°C ... +100°C	SEV, CE, DNV, EAC, VDE	Version A acc. to EN 62444	IP 68, if entry thread is sealed	50	35.6 g

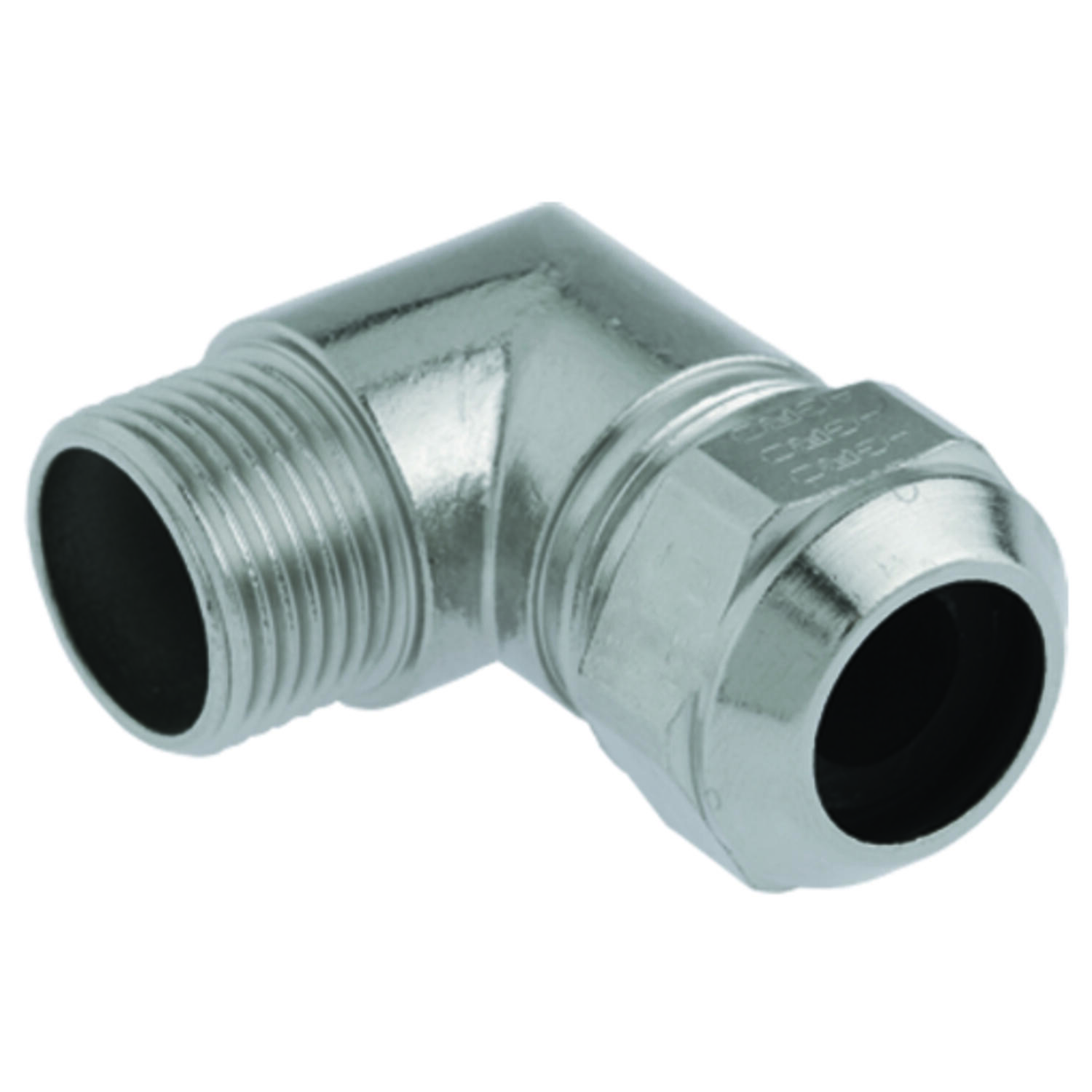

Gland NPB, 90° elbow, M20, long, ø8…15mm Art: 5210.20 Copied	M20		Two-Piece	8 mm	11 mm	11 mm	15 mm	IP 68	1.5		12 mm	39 mm	24 mm		44 mm	16 mm			TPE	-40°C ... +100°C	SEV, CE, DNV, EAC, VDE	Version A acc. to EN 62444	IP 68, if entry thread is sealed	50	62.5 g
Gland NPB, 90° elbow, M25, long, ø12.5…20.5mm Art: 5210.25 Copied	M25		Two-Piece	12.5 mm	16 mm	16 mm	20.5 mm	IP 68	1.5		14 mm	48 mm	30 mm		52 mm	20 mm			TPE	-40°C ... +100°C	SEV, CE, DNV, EAC, VDE	Version A acc. to EN 62444	IP 68, if entry thread is sealed	25	121.12 g
Gland NPB, 90° elbow, M32, long, ø17…25.5mm Art: 5210.32 Copied	M32		Two-Piece	17 mm	21 mm	21 mm	25.5 mm	IP 68	1.5		16 mm	56 mm	36 mm		60 mm	23 mm			TPE	-40°C ... +100°C	SEV, CE, DNV, EAC, VDE	Version A acc. to EN 62444	IP 68, if entry thread is sealed	25	169.68 g
Gland NPB, 90° elbow, M40, long, M40, ø24…33mm Art: 5210.40 Copied	M40		Two-Piece	24 mm	28.5 mm	28.5 mm	33 mm	IP 68	1.5		16 mm	66 mm	46 mm		72 mm	28 mm			TPE	-40°C ... +100°C	SEV, CE, DNV, EAC, VDE	Version A acc. to EN 62444	IP 68, if entry thread is sealed	10	327.5 g
Gland NPB, 90° elbow, M12, long,locknut, ø5…6.5mm Art: 5215.12 Copied	M12		One-Piece			5 mm	6.5 mm	IP 68	1.5		12 mm	30 mm	15 mm		32 mm	11 mm		NBR	TPE	-40°C ... +100°C	SEV, CE, DNV, EAC, VDE	Version A acc. to EN 62444		50	27.96 g
Gland NPB, 90° elbow, M16, long,locknut, ø6…10.5mm Art: 5215.17 Copied	M16		Two-Piece	6 mm	8 mm	8 mm	10.5 mm	IP 68	1.5		12 mm	34 mm	18 mm		36 mm	13 mm		NBR	TPE	-40°C ... +100°C	SEV, CE, DNV, EAC, VDE	Version A acc. to EN 62444		50	75.96 g

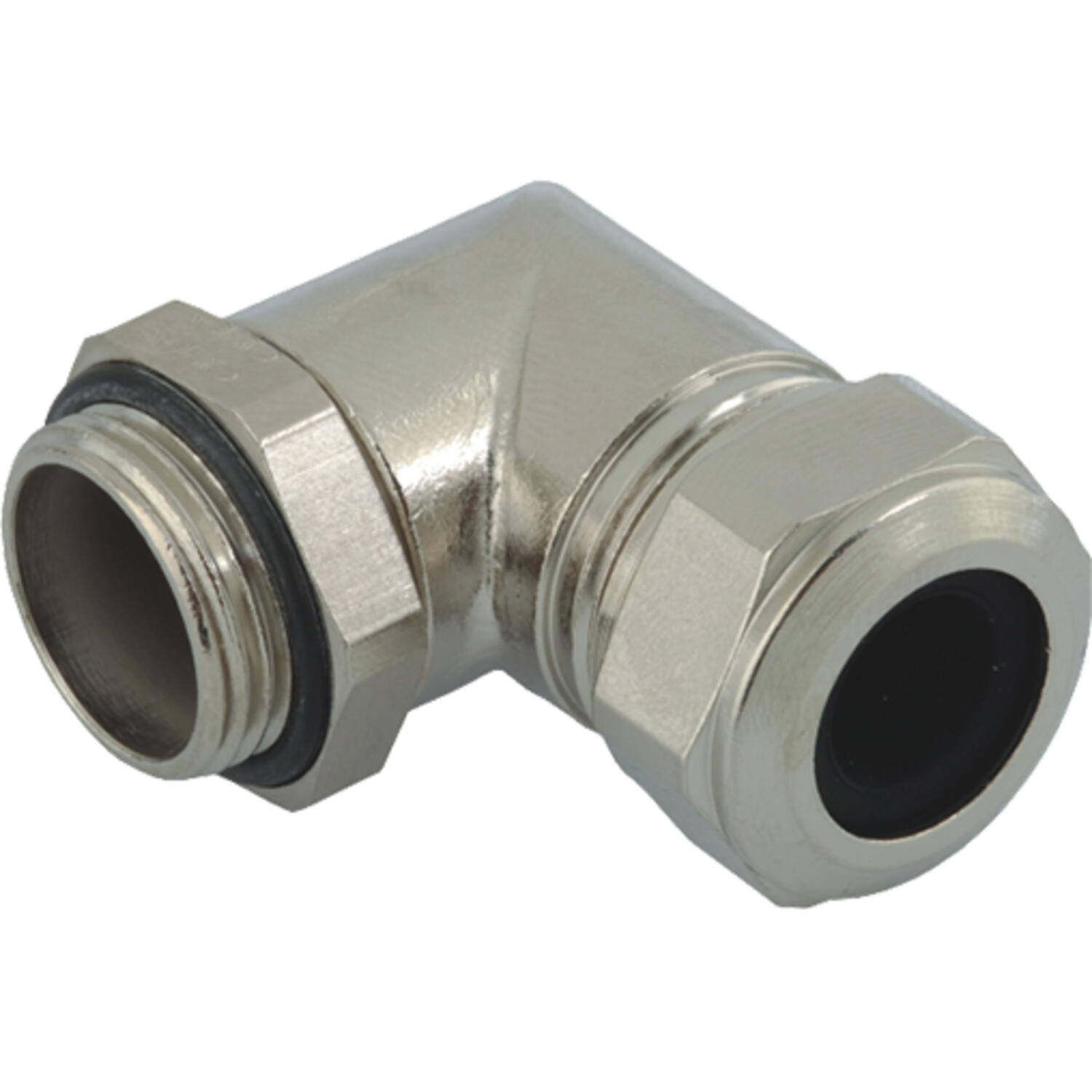

Gland NPB, 90° elbow, M20, long,locknut, ø8…15mm Art: 5215.20 Copied	M20		Two-Piece	8 mm	11 mm	11 mm	15 mm	IP 68	1.5		12 mm	39 mm	24 mm		44 mm	16 mm		NBR	TPE	-40°C ... +100°C	SEV, CE, DNV, EAC, VDE	Version A acc. to EN 62444		50	71.76 g
Gland NPB, 90° elbow, M25, long,locknut, ø12.5…20.5mm Art: 5215.25 Copied	M25		Two-Piece	16 mm	12.5 mm	16 mm	20.5 mm	IP 68	1.5		14 mm	48 mm	30 mm		52 mm	20 mm		NBR	TPE	-40°C ... +100°C	SEV, CE, DNV, EAC, VDE	Version A acc. to EN 62444		25	138.76 g
Gland NPB, 90° elbow, M32, long,locknut, ø17…25.5mm Art: 5215.32 Copied	M32		Two-Piece	17 mm	21 mm	21 mm	25.5 mm	IP 68	1.5		16 mm	56 mm	36 mm		60 mm	23 mm		NBR	TPE	-40°C ... +100°C	SEV, CE, DNV, EAC, VDE	Version A acc. to EN 62444		25	195.84 g
Gland NPB, 90° elbow, M40, long,locknut, ø24…33mm Art: 5215.40 Copied	M40		Two-Piece	24 mm	28.5 mm	28.5 mm	33 mm	IP 68	1.5		16 mm	66 mm	46 mm		72 mm	28 mm		NBR	TPE	-40°C ... +100°C	SEV, CE, DNV, EAC, VDE	Version A acc. to EN 62444	IP 68, if entry thread is sealed	10	351.2 g
Gland NPB, 90° elbow, Pg 7, ø5…6.5mm Art: 5200.07 Copied	PG 7		One-Piece			5 mm	6.5 mm	IP 68			8 mm	27 mm	15 mm		32 mm	11 mm			TPE	-40°C ... +100°C	EAC		IP 68, if entry thread is sealed	50	23.79 g
Gland NPB, 90° elbow, Pg 9, ø6…10.5mm Art: 5200.09 Copied	PG 9		Two-Piece	6 mm	8 mm	8 mm	10.5 mm	IP 68			8 mm	30 mm	18 mm		36 mm	13 mm			TPE	-40°C ... +100°C	EAC		IP 68, if entry thread is sealed	50	31.6 g
Gland NPB, 90° elbow, Pg 11, ø5.5…12mm Art: 5200.11 Copied	PG 11		Two-Piece	5.5 mm	8.5 mm	8.5 mm	12 mm	IP 68			8 mm	35 mm	21 mm		40 mm	14 mm			TPE	-40°C ... +100°C	EAC		IP 68, if entry thread is sealed	50	50.98 g
Gland NPB, 90° elbow, Pg 13, ø8…15mm Art: 5200.13 Copied	PG 13		Two-Piece	8 mm	11 mm	11 mm	15 mm	IP 68			10 mm	41 mm	24 mm		44 mm	16 mm			TPE	-40°C ... +100°C	EAC		IP 68, if entry thread is sealed	50	63.6 g
Gland NPB, 90° elbow, Pg 16, ø8…15mm Art: 5200.16 Copied	PG 16		Two-Piece	8 mm	11 mm	11 mm	15 mm	IP 68			10 mm	41 mm	24 mm		44 mm	16 mm			TPE	-40°C ... +100°C	EAC		IP 68, if entry thread is sealed	50	63.06 g
Gland NPB, 90° elbow, Pg 21, ø12.5…20.5mm Art: 5200.21 Copied	PG 21		Two-Piece	12.5 mm	16 mm	16 mm	20.5 mm	IP 68			10 mm	44 mm	30 mm		52 mm	20 mm			TPE	-40°C ... +100°C	EAC		IP 68, if entry thread is sealed	25	118 g
Gland NPB, 90° elbow, Pg 29, ø19…27.5mm Art: 5200.29 Copied	PG 29		Two-Piece	19 mm	23 mm	23 mm	27.5 mm	IP 68			10 mm	56 mm	38 mm		65 mm	24 mm			TPE	-40°C ... +100°C	EAC		IP 68, if entry thread is sealed	10	246.1 g
Gland NPB, 90° elbow, Pg 7, long, ø5…6.5mm Art: 5210.07 Copied	PG 7		One-Piece			5 mm	6.5 mm	IP 68			11 mm	30 mm	15 mm		32 mm	11 mm			TPE	-40°C ... +100°C	EAC		IP 68, if entry thread is sealed	50	24.31 g
Gland NPB, 90° elbow, Pg 9, long, ø6…10.5mm Art: 5210.09 Copied	PG 9		Two-Piece	6 mm	8 mm	8 mm	10.5 mm	IP 68			11 mm	34 mm	18 mm		36 mm	13 mm			TPE	-40°C ... +100°C	EAC		IP 68, if entry thread is sealed	50	33 g
Gland NPB, 90° elbow, Pg 11, long, ø5.5…12mm Art: 5210.11 Copied	PG 11		Two-Piece	5.5 mm	8.5 mm	8.5 mm	12 mm	IP 68			11 mm	38 mm	21 mm		40 mm	14 mm			TPE	-40°C ... +100°C	EAC		IP 68, if entry thread is sealed	50	53.68 g
Gland NPB, 90° elbow, Pg 13, long, ø8…15mm Art: 5210.13 Copied	PG 13		Two-Piece	8 mm	11 mm	11 mm	15 mm	IP 68			13 mm	44 mm	24 mm		44 mm	16 mm			TPE	-40°C ... +100°C	EAC		IP 68, if entry thread is sealed	50	66.16 g
Gland NPB, 90° elbow, Pg 16, long, ø8…15mm Art: 5210.16 Copied	PG 16		Two-Piece	8 mm	11 mm	11 mm	15 mm	IP 68			13 mm	44 mm	24 mm		44 mm	16 mm			TPE	-40°C ... +100°C	EAC		IP 68, if entry thread is sealed	50	62.76 g
Gland NPB, 90° elbow, Pg 21, long, ø12.5…20.5mm Art: 5210.21 Copied	PG 21		Two-Piece	12.5 mm	16 mm	16 mm	20.5 mm	IP 68			14 mm	48 mm	30 mm		52 mm	20 mm			TPE	-40°C ... +100°C	EAC		IP 68, if entry thread is sealed	25	125.52 g
Gland NPB, 90° elbow, Pg 29, long, ø19…27.5mm Art: 5210.29 Copied	PG 29		Two-Piece	19 mm	23 mm	23 mm	27.5 mm	IP 68			14 mm	60 mm	38 mm		65 mm	24 mm			TPE	-40°C ... +100°C	EAC		IP 68, if entry thread is sealed	10	145 g
Gland NPB, 90° elbow, Pg 7, long,locknut, ø5…6.5mm Art: 5215.07 Copied	PG 7		One-Piece			5 mm	6.5 mm	IP 68			11 mm	30 mm	15 mm		32 mm	11 mm		NBR	TPE	-40°C ... +100°C	EAC			50	27.48 g
Gland NPB, 90° elbow, Pg 9, long,locknut, long, ø6…10.5mm Art: 5215.09 Copied	PG 9		Two-Piece	6 mm	8 mm	8 mm	10.5 mm	IP 68			11 mm	34 mm	18 mm		36 mm	13 mm		NBR	TPE	-40°C ... +100°C	EAC			50	39.1 g
Gland NPB, 90° elbow, Pg 11, long, locknut, ø5.5…12mm Art: 5215.11 Copied	PG 11		Two-Piece	5.5 mm	8.5 mm	8.5 mm	12 mm	IP 68			11 mm	38 mm	21 mm		40 mm	14 mm		NBR	TPE	-40°C ... +100°C	EAC			50	62.7 g
Gland NPB, 90° elbow, Pg 13, long,locknut, ø8…15mm Art: 5215.13 Copied	PG 13		Two-Piece	8 mm	11 mm	11 mm	15 mm	IP 68			13 mm	44 mm	24 mm		44 mm	16 mm		NBR	TPE	-40°C ... +100°C	EAC			50	73.56 g
Gland NPB, 90° elbow, Pg 16, long,locknut, ø8…15mm Art: 5215.16 Copied	PG 16		Two-Piece	8 mm	11 mm	11 mm	15 mm	IP 68			13 mm	44 mm	24 mm		44 mm	16 mm		NBR	TPE	-40°C ... +100°C	EAC			50	75.96 g
Gland NPB, 90° elbow, Pg 21, long,locknut, ø12.5…20.5mm Art: 5215.21 Copied	PG 21		Two-Piece	12.5 mm	16 mm	16 mm	20.5 mm	IP 68			14 mm	48 mm	30 mm		52 mm	20 mm		NBR	TPE	-40°C ... +100°C	EAC			25	137.62 g
Gland NPB, 90° elbow, Pg 29, long,locknut, ø19…27.5mm Art: 5215.29 Copied	PG 29		Two-Piece	19 mm	23 mm	23 mm	27.5 mm	IP 68			14 mm	60 mm	38 mm		65 mm	24 mm		NBR	TPE	-40°C ... +100°C	EAC			10	272.8 g

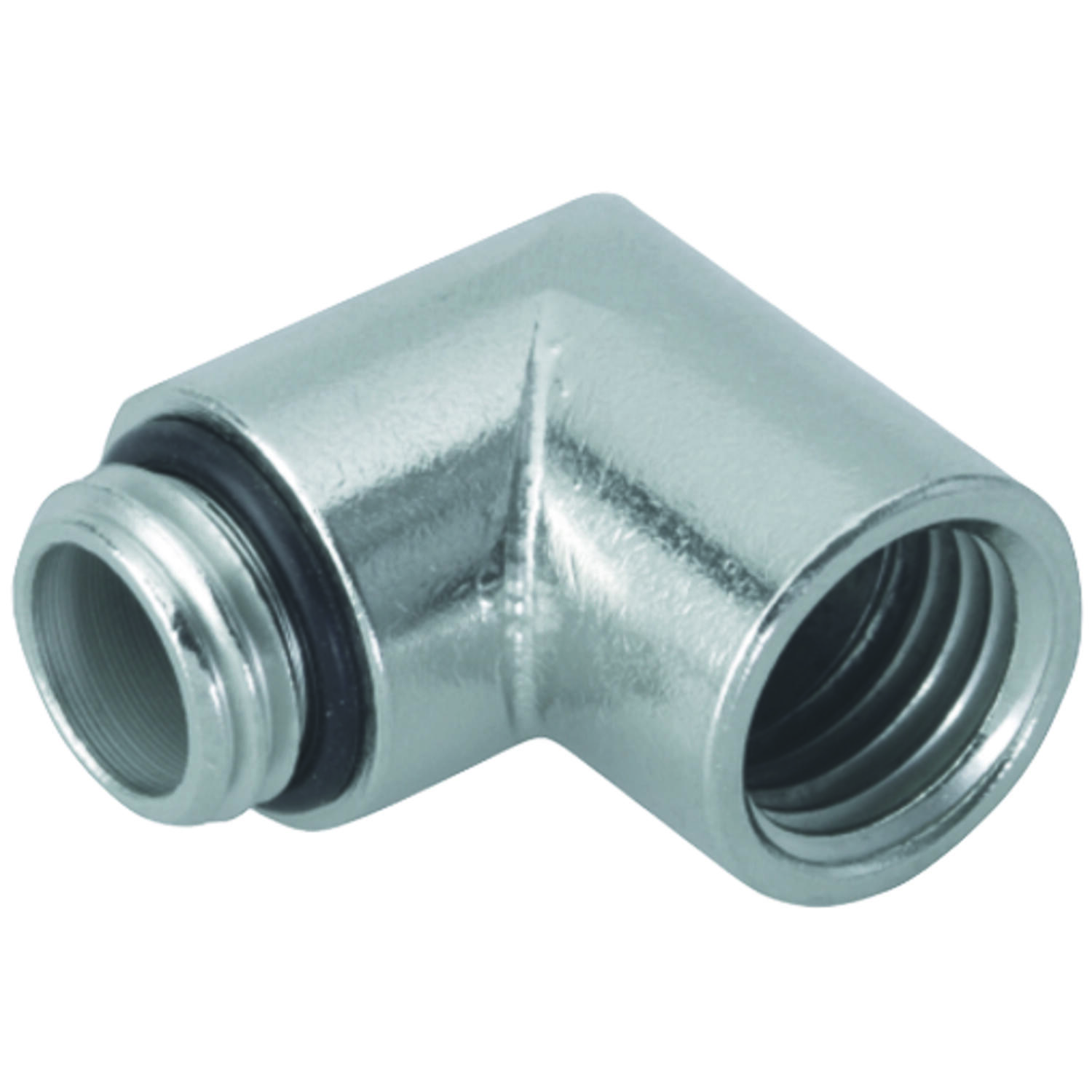

90° elbow NPB, with internal & external thread Art: 5612 Copied	M12	M12						IP 54, IP 68 further protection if entry thread is sealed	1.5	1.5 mm	5 mm	20 mm		15 mm	25 mm	13 mm	7 mm	NBR		-40°C ...+100°C				50	20.7 g
90° elbow NPB, with internal & external thread Art: 5617 Copied	M16	M16						IP 54, IP 68 further protection if entry thread is sealed	1.5	1.5 mm	6.5 mm	26 mm		19 mm	29 mm	16 mm	7 mm	NBR		-40°C ...+100°C				50	32.4 g
90° elbow NPB, with internal & external thread Art: 5620 Copied	M20	M20						IP 54, IP 68 further protection if entry thread is sealed	1.5	1.5 mm	6 mm	31 mm		24 mm	37 mm	19 mm	10 mm	NBR		-40°C ...+100°C				50	62.2 g
90° elbow NPB, with internal & external thread Art: 5625 Copied	M25	M25						IP 54, IP 68 further protection if entry thread is sealed	1.5	1.5 mm	7.5 mm	37 mm		29 mm	42 mm	23 mm	10 mm	NBR		-40°C ...+100°C				25	90.4 g
90° elbow NPB, with internal & external thread Art: 5632 Copied	M32	M32						IP 54, IP 68 further protection if entry thread is sealed	1.5	1.5 mm	8.5 mm	44 mm		36 mm	50 mm	26 mm	11 mm	NBR		-40°C ...+100°C				25	137 g
90° elbow NPB, with internal & external thread Art: 5640 Copied	M40	M40						IP 54, IP 68 further protection if entry thread is sealed	1.5	1.5 mm	9.5 mm	57 mm		46 mm	67 mm	34 mm	17 mm	NBR		-40°C ...+100°C				10	312.2 g
90° elbow NPB, with internal & external thread Art: 5650 Copied	M50	M50						IP 54, IP 68 further protection if entry thread is sealed	1.5	1.5 mm	9 mm	69 mm		56 mm	77 mm	41 mm	17 mm	NBR		-40°C ...+100°C				10	442.2 g
90° elbow NPB, with internal & external thread Art: 5607 Copied	PG 7	PG 7						IP 54, IP 68 further protection if entry thread is sealed			7 mm	21 mm		16 mm	23 mm	13 mm	7 mm	NBR		-40°C ...+100°C				50	25.96 g
90° elbow NPB, with internal & external thread Art: 5609 Copied	PG 9	PG 9						IP 54, IP 68 further protection if entry thread is sealed			7 mm	24 mm		18 mm	26 mm	15 mm	7 mm	NBR		-40°C ...+100°C				50	32 g
90° elbow brass, with internal & external thread Art: 5611 Copied	PG 11	PG 11						IP 54, IP 68 further protection if entry thread is sealed			8 mm	29 mm		22 mm	31 mm	18 mm	8 mm	NBR		-40°C ...+100°C				50	52.9 g
90° elbow NPB, with internal & external thread Art: 5613 Copied	PG 13	PG 13						IP 54, IP 68 further protection if entry thread is sealed			10 mm	31 mm		24 mm	34 mm	19 mm	10 mm	NBR		-40°C ...+100°C				50	61.2 g
90° elbow NPB, with internal & external thread Art: 5616 Copied	PG 16	PG 16						IP 54, IP 68 further protection if entry thread is sealed			10 mm	33 mm		26 mm	36 mm	20 mm	10 mm	NBR		-40°C ...+100°C				50	67.92 g
90° elbow NPB, with internal & external thread Art: 5621 Copied	PG 21	PG 21						IP 54, IP 68 further protection if entry thread is sealed			11 mm	41 mm		34 mm	46 mm	24 mm	11 mm	NBR		-40°C ...+100°C				25	139.36 g
90° elbow NPB, with internal & external thread Art: 5629 Copied	PG 29	PG 29						IP 54, IP 68 further protection if entry thread is sealed			11 mm	49 mm		41 mm	52 mm	28 mm	11 mm	NBR		-40°C ...+100°C				20	178.55 g
90° elbow NPB, with internal & external thread Art: 5636 Copied	PG 36	PG 36						IP 54, IP 68 further protection if entry thread is sealed			12 mm	64 mm		52 mm	82 mm	38 mm	17 mm	NBR		-40°C ...+100°C				10	406 g
