Synthetic Adaptors

General Data
Thread Size (G)	M16
Inner thread size	M12
IP class	IP 54, IP 68 further protection if entry thread is sealed
Colour	Grey RAL 7035
Dimensions
Thread pitch	1.5
Inner thread pitch	1.5 mm
Thread length	8 mm

Invisible Heading
Height (H)	4 mm
Spanner width (AF)	22 mm
Materials
Material	Polyamide
Temperature range	-30°C ... +100°C
Additional Data
Pack size	100

Parts	Thread Size (G)	Inner thread size	Colour	Thread pitch	Inner thread pitch	Thread length	Height (H)	Spanner width (AF)	Material	Inner-nut material	Temperature range	Pack size
Reduction synthetic, hexagonal, M16-M12 Art: 3455.17.12 Copied	M16	M12	Grey RAL 7035	1.5	1.5 mm	8 mm	4 mm	22 mm	Polyamide		-30°C ... +100°C	100
Reduction synthetic, hexagonal, M20-M12 Art: 3455.20.12 Copied	M20	M12	Grey RAL 7035	1.5	1.5 mm	8 mm	4 mm	24 mm	Polyamide		-30°C ... +100°C	100
Reduction synthetic, hexagonal, M20-M16 Art: 3455.20.17 Copied	M20	M16	Grey RAL 7035	1.5	1.5 mm	8 mm	4 mm	24 mm	Polyamide		-30°C ... +100°C	100
Reduction synthetic, hexagonal, M25-M12 Art: 3455.25.12 Copied	M25	M12	Grey RAL 7035	1.5	1.5 mm	8 mm	6 mm	29 mm	Polyamide		-30°C ... +100°C	100
Reduction synthetic, hexagonal, M25-M16 Art: 3455.25.17 Copied	M25	M16	Grey RAL 7035	1.5	1.5 mm	8 mm	6 mm	29 mm	Polyamide		-30°C ... +100°C	100

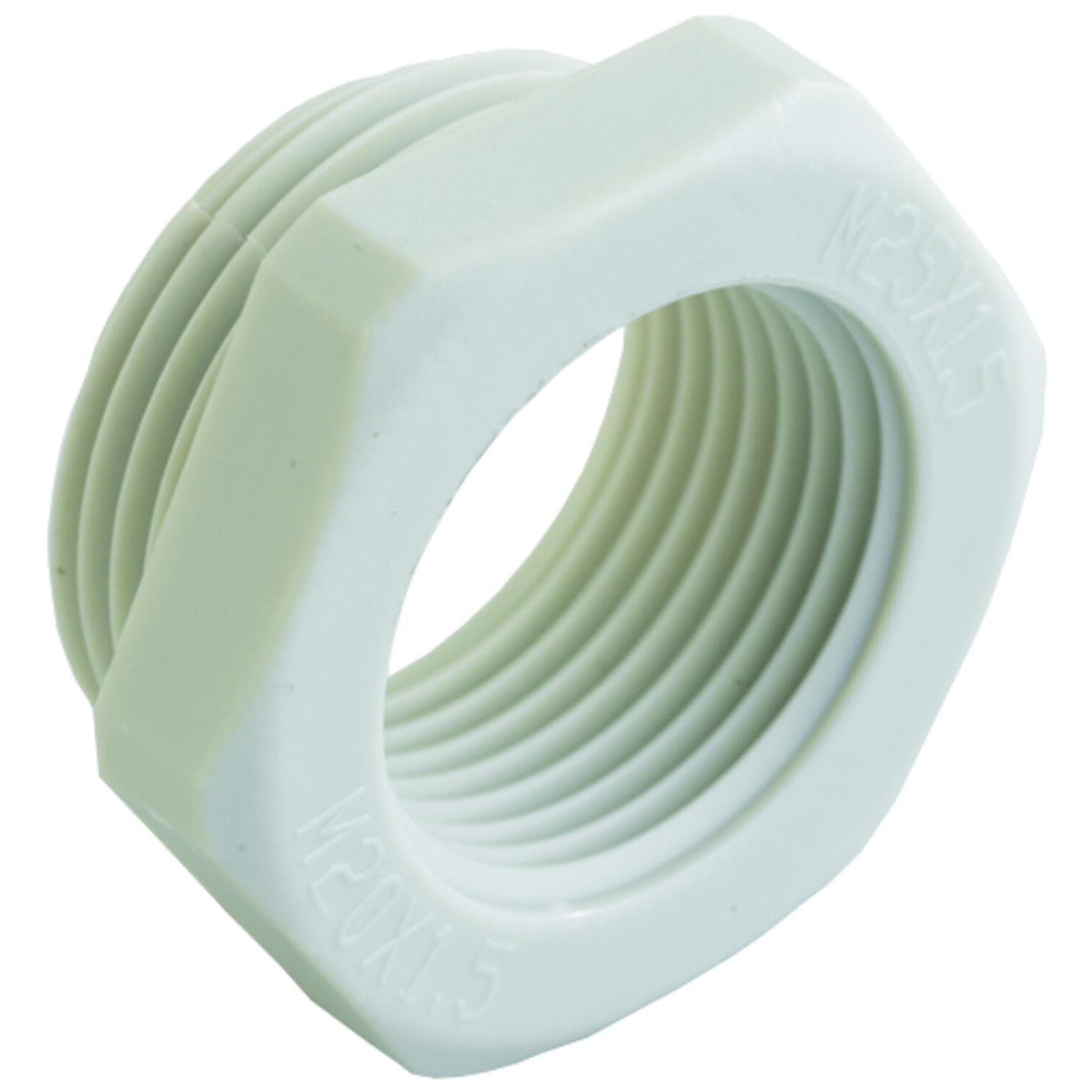

Reduction synthetic, hexagonal, M25-M20 Art: 3455.25.20 Copied	M25	M20	Grey RAL 7035	1.5	1.5 mm	8 mm	6 mm	29 mm	Polyamide		-30°C ... +100°C	100
Reduction synthetic, hexagonal, M32-M12 Art: 3455.32.12 Copied	M32	M12	Grey RAL 7035	1.5	1.5 mm	10 mm	6 mm	36 mm	Polyamide		-30°C ... +100°C	50
Reduction synthetic, hexagonal, M32-M16 Art: 3455.32.17 Copied	M32	M16	Grey RAL 7035	1.5	1.5 mm	10 mm	6 mm	36 mm	Polyamide		-30°C ... +100°C	50
Reduction synthetic, hexagonal, M32-M20 Art: 3455.32.20 Copied	M32	M20	Grey RAL 7035	1.5	1.5 mm	10 mm	6 mm	36 mm	Polyamide		-30°C ... +100°C	50
Reduction synthetic, hexagonal, M32-M25 Art: 3455.32.25 Copied	M32	M25	Grey RAL 7035	1.5	1.5 mm	10 mm	6 mm	36 mm	Polyamide		-30°C ... +100°C	50
Reduction synthetic, hexagonal, M40-M16 Art: 3455.40.17 Copied	M40	M16	Grey RAL 7035	1.5	1.5 mm	10 mm	6 mm	46 mm	Polyamide		-30°C ... +100°C	50
Reduction synthetic, hexagonal, M40-M20 Art: 3455.40.20 Copied	M40	M20	Grey RAL 7035	1.5	1.5 mm	10 mm	6 mm	46 mm	Polyamide		-30°C ... +100°C	50
Reduction synthetic, hexagonal, M40-M25 Art: 3455.40.25 Copied	M40	M25	Grey RAL 7035	1.5	1.5 mm	10 mm	6 mm	46 mm	Polyamide		-30°C ... +100°C	25
Reduction synthetic, hexagonal, M40-M32 Art: 3455.40.32 Copied	M40	M32	Grey RAL 7035	1.5	1.5 mm	10 mm	6 mm	46 mm	Polyamide		-30°C ... +100°C	25
Reduction synthetic, hexagonal, M50-M20 Art: 3455.50.20 Copied	M50	M20	Grey RAL 7035	1.5	1.5 mm	12 mm	6 mm	55 mm	Polyamide		-30°C ... +100°C	5
Reduction synthetic, hexagonal, M50-M25 Art: 3455.50.25 Copied	M50	M25	Grey RAL 7035	1.5	1.5 mm	12 mm	6 mm	55 mm	Polyamide		-30°C ... +100°C	5
Reduction synthetic, hexagonal, M50-M32 Art: 3455.50.32 Copied	M50	M32	Grey RAL 7035	1.5	1.5 mm	12 mm	6 mm	55 mm	Polyamide		-30°C ... +100°C	5
Reduction synthetic, hexagonal, M50-M40 Art: 3455.50.40 Copied	M50	M40	Grey RAL 7035	1.5	1.5 mm	12 mm	6 mm	55 mm	Polyamide		-30°C ... +100°C	5
Reduction synthetic, hexagonal, M63-M25 Art: 3455.63.25 Copied	M63	M25	Grey RAL 7035	1.5	1.5 mm	12 mm	6 mm	68 mm	Polyamide		-30°C ... +100°C	5
Reduction synthetic, hexagonal, M63-M32 Art: 3455.63.32 Copied	M63	M32	Grey RAL 7035	1.5	1.5 mm	12 mm	6 mm	68 mm	Polyamide		-30°C ... +100°C	5
Reduction synthetic, hexagonal, M63-M40 Art: 3455.63.40 Copied	M63	M40	Grey RAL 7035	1.5	1.5 mm	12 mm	6 mm	68 mm	Polyamide		-30°C ... +100°C	5
Reduction synthetic, hexagonal, M63-M50 Art: 3455.63.50 Copied	M63	M50	Grey RAL 7035	1.5	1.5 mm	12 mm	6 mm	68 mm	Polyamide		-30°C ... +100°C	5
Reduction synthetic, hexagonal, Pg 9 - M12 Art: 3455.09.12 Copied	PG 9	M12	Grey RAL 7035		1.5 mm	8 mm	12 mm	19 mm	Polyamide		-30°C ... +100°C	100
Reduction synthetic, hexagonal, Pg 11 - M16 Art: 3455.11.17 Copied	PG 11	M16	Grey RAL 7035		1.5 mm	8 mm	12 mm	22 mm	Polyamide		-30°C ... +100°C	100
Reduction synthetic, hexagonal, Pg 13-M16 Art: 3455.13.17 Copied	PG 13	M16	Grey RAL 7035		1.5 mm	9 mm	13 mm	24 mm	Polyamide		-30°C ... +100°C	100
Reduction synthetic, hexagonal, Pg 13-M20 Art: 3455.13.20 Copied	PG 13	M20	Grey RAL 7035		1.5 mm	9 mm	13 mm	24 mm	Polyamide		-30°C ... +100°C	100
Reduction synthetic, hexagonal, Pg 16-M20 Art: 3455.16.20 Copied	PG 16	M20	Grey RAL 7035		1.5 mm	10 mm	13 mm	27 mm	Polyamide		-30°C ... +100°C	50
Reduction synthetic, hexagonal, Pg 21-M25 Art: 3455.21.25 Copied	PG 21	M25	Grey RAL 7035		1.5 mm	11 mm	14 mm	33 mm	Polyamide	Inconel X-750	-30°C ... +100°C	50
Reduction synthetic, hexagonal, Pg 29-M32 Art: 3455.29.32 Copied	PG 29	M32	Grey RAL 7035		1.5 mm	11 mm	14 mm	42 mm	Polyamide	Inconel X-750	-30°C ... +100°C	50
Reduction synthetic, hexagonal, Pg 36-M40 Art: 3455.36.40 Copied	PG 36	M40	Grey RAL 7035		1.5 mm	11 mm	14 mm	55 mm	Polyamide	Inconel X-750	-30°C ... +100°C	25
Enlarging extension polyamide, M12 - M16 Art: 3755.12.17 Copied	M12	M16	Grey RAL 7035	1.5	1.5 mm	8 mm	13 mm	20 mm	Polyamide		-30°C ... +100°C	100
Enlarging extension polyamide, M16 - M20 Art: 3755.17.20 Copied	M17	M20	Grey RAL 7035	1.5	1.5 mm	8 mm	13 mm	24 mm	Polyamide		-30°C ... +100°C	100

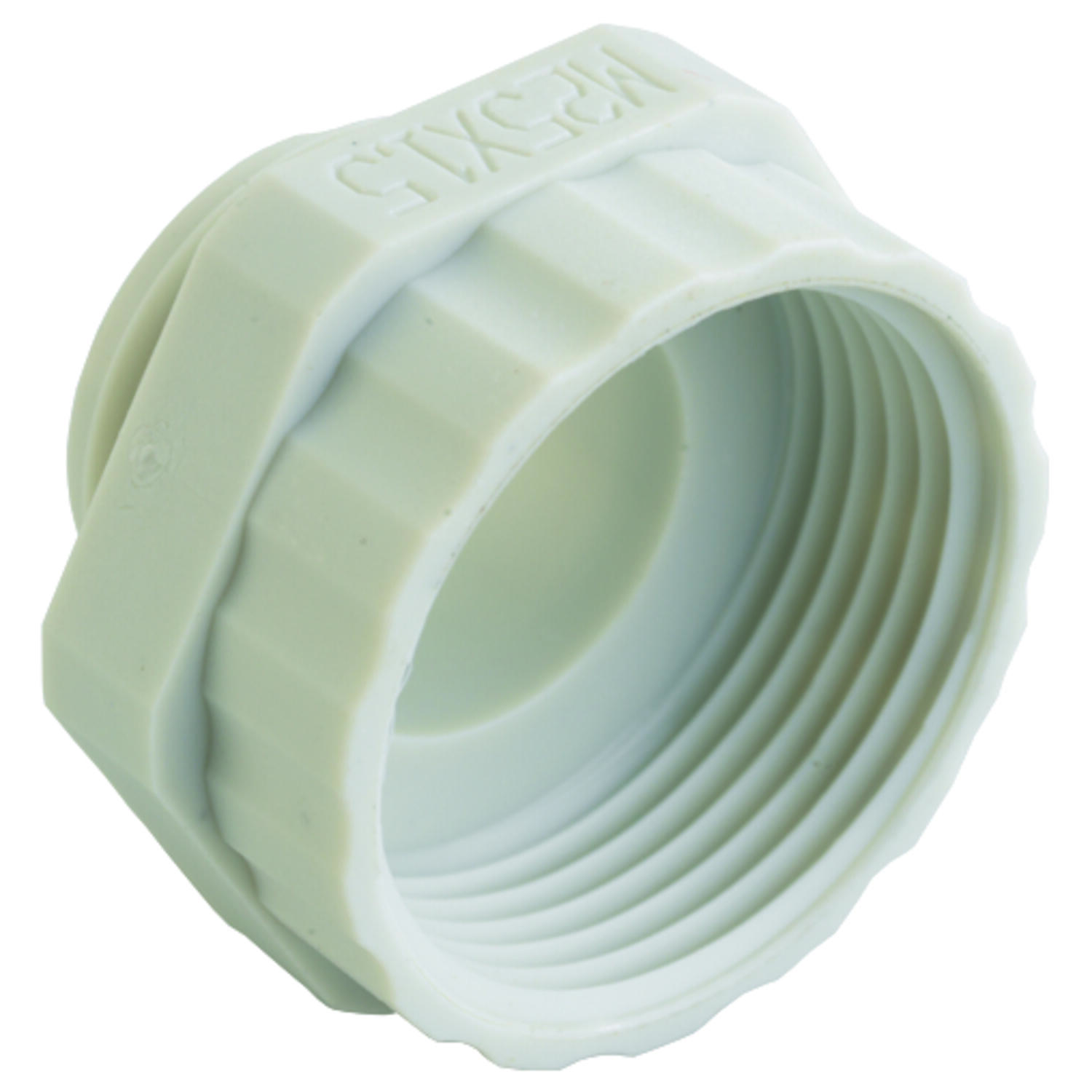

Enlarging extension polyamide, M20 - M25 Art: 3755.20.25 Copied	M20	M25	Grey RAL 7035	1.5	1.5 mm	8 mm	13 mm	29 mm	Polyamide		-30°C ... +100°C	100
Enlarging extension polyamide, M25 - M32 Art: 3755.25.32 Copied	M25	M32	Grey RAL 7035	1.5	1.5 mm	8 mm	15 mm	36 mm	Polyamide		-30°C ... +100°C	50
Enlarging extension polyamide, M32 - M40 Art: 3755.32.40 Copied	M32	M40	Grey RAL 7035	1.5	1.5 mm	10 mm	15 mm	46 mm	Polyamide		-30°C ... +100°C	25
Enlarging extension polyamide, M40 - M50 Art: 3755.40.50 Copied	M40	M50	Grey RAL 7035	1.5	1.5 mm	10 mm	15 mm	55 mm	Polyamide		-30°C ... +100°C	10
Enlarging extension polyamide, M50 - M63 Art: 3755.50.63 Copied	M50	M63	Grey RAL 7035	1.5	1.5 mm	10 mm	15 mm	68 mm	Polyamide		-30°C ... +100°C	10
Extension adaptor polyamide, Pg 7 - M12 Art: 3755.07.12 Copied	PG 7	M12	Grey RAL 7035		1.5 mm	8 mm	12 mm	15 mm	Polyamide		-30°C ... +100°C	100
Extension adaptor polyamide, Pg 7 - M16 Art: 3755.07.17 Copied	PG 7	M16	Grey RAL 7035		1.5 mm	8 mm	12 mm	20 mm	Polyamide		-30°C ... +100°C	100
Extension adaptor polyamide, Pg 9- M16 Art: 3755.09.17 Copied	PG 9	M16	Grey RAL 7035		1.5 mm	8 mm	12 mm	20 mm	Polyamide		-30°C ... +100°C	100
Extension adaptor polyamide, Pg 9 - M20 Art: 3755.09.20 Copied	PG 9	M20	Grey RAL 7035		1.5 mm	8 mm	12 mm	24 mm	Polyamide		-30°C ... +100°C	100
Extension adaptor polyamide, Pg 11 - M20 Art: 3755.11.20 Copied	PG 11	M20	Grey RAL 7035		1.5 mm	8 mm	12 mm	24 mm	Polyamide		-30°C ... +100°C	100
Extension adaptor polyamide, Pg 13 - M25 Art: 3755.13.25 Copied	PG 13	M25	Grey RAL 7035		1.5 mm	9 mm	13 mm	30 mm	Polyamide		-30°C ... +100°C	100
Extension adaptor polyamide, Pg 16 - M25 Art: 3755.16.25 Copied	PG 16	M25	Grey RAL 7035		1.5 mm	10 mm	13 mm	30 mm	Polyamide		-30°C ... +100°C	50
Extension adaptor polyamide, Pg 21 - M32 Art: 3755.21.32 Copied	PG 21	M32	Grey RAL 7035		1.5 mm	11 mm	14 mm	37 mm	Polyamide		-30°C ... +100°C	50
Extension adaptor polyamide, Pg 29 - M40 Art: 3755.29.40 Copied	PG 29	M40	Grey RAL 7035		1.5 mm	11 mm	14 mm	45 mm	Polyamide		-30°C ... +100°C	50
Extension adaptor polyamide, Pg 42 - M50 Art: 3755.42.50 Copied	PG 42	M50	Grey RAL 7035		1.5 mm	11 mm	17 mm	55 mm	Polyamide		-30°C ... +100°C	10
Extension adaptor polyamide, Pg 48 - M63 Art: 3755.48.63 Copied	PG 48	M63	Grey RAL 7035		1.5 mm	11 mm	17 mm	68 mm	Polyamide		-30°C ... +100°C	5
Enlarging extension polyamide, M12 - Pg 9 Art: 3712.09 Copied	M12	PG 9	Light grey	1.5		11 mm	13 mm	19 mm	Fiberglass reinforced polyamide		-20°C ... +100°C	50
Enlarging extension polyamide, M20 - Pg 13 Art: 3720.13 Copied	M20	PG 13	Light grey	1.5		11 mm	15 mm	24 mm	Fiberglass reinforced polyamide		-20°C ... +100°C	50
Enlarging extension polyamide, M20 - Pg 16 Art: 3720.16 Copied	M20	PG 16	Light grey	1.5		11 mm	17 mm	27 mm	Fiberglass reinforced polyamide		-20°C ... +100°C	50
Enlarging extension polyamide, M25 - Pg 21 Art: 3725.21 Copied	M25	PG 21	Light grey	1.5		11 mm	20 mm	33 mm	Fiberglass reinforced polyamide		-20°C ... +100°C	25
Enlarging extension polyamide, M32 - Pg 29 Art: 3732.29 Copied	M32	PG 29	Light grey	1.5		11 mm	22 mm	42 mm	Fiberglass reinforced polyamide		-20°C ... +100°C	25
Enlarging extension polyamide, M50 - Pg 42 Art: 3750.42 Copied	M50	PG 42	Light grey	1.5		11 mm	28 mm	60 mm	Fiberglass reinforced polyamide		-20°C ... +100°C	10
Reduction synthetic, M16 - Pg 9 Art: 3417.09 Copied	M16	PG 9	Light grey	1.5		11 mm	14 mm	19 mm	Fiberglass reinforced polyamide		-20°C ... +100°C	50
Reduction synthetic, M20 - Pg 11 Art: 3420.11 Copied	M20	PG 11	Light grey	1.5		11 mm	16 mm	22 mm	Fiberglass reinforced polyamide		-20°C ... +100°C	50
Reduction synthetic, M25 - Pg 16 Art: 3425.16 Copied	M25	PG 16	Light grey	1.5		11 mm	18 mm	27 mm	Fiberglass reinforced polyamide		-20°C ... +100°C	50
Reduction synthetic, M40 - Pg 29 Art: 3440.29 Copied	M40	PG 29	Light grey	1.5		11 mm	23 mm	42 mm	Fiberglass reinforced polyamide		-20°C ... +100°C	25
Reduction synthetic, M50 - Pg 36 Art: 3450.36 Copied	M50	PG 36	Light grey	1.5		11 mm	26 mm	53 mm	Fiberglass reinforced polyamide		-20°C ... +100°C	10
Reduction synthetic, M63 - Pg 48 Art: 3463.48 Copied	M63	PG 48	Light grey	1.5		11 mm	29 mm	65 mm	Fiberglass reinforced polyamide		-20°C ... +100°C	5
Reduction flange synthetic, Pg 9 - Pg 7 Art: 3409.07 Copied	PG 9	PG 7	Light grey			8 mm	12 mm	19 mm	Fiberglass reinforced polyamide		-20°C ... +100°C	50
Reduction flange synthetic, Pg 11 - Pg 7 Art: 3411.07 Copied	PG 11	PG 7	Light grey			8 mm	3 mm	22 mm	Fiberglass reinforced polyamide		-20°C ... +100°C	50
Reduction flange synthetic, Pg 11 - Pg 9 Art: 3411.09 Copied	PG 11	PG 9	Light grey			8 mm	15 mm	22 mm	Fiberglass reinforced polyamide		-20°C ... +100°C	50
Reduction flange synthetic, Pg 13 - Pg 9 Art: 3413.09 Copied	PG 13	PG 9	Light grey			9 mm	3 mm	24 mm	Fiberglass reinforced polyamide		-20°C ... +100°C	50
Reduction flange synthetic, Pg 13 - Pg 11 Art: 3413.11 Copied	PG 13	PG 11	Light grey			9 mm	15 mm	24 mm	Fiberglass reinforced polyamide		-20°C ... +100°C	50
Reduction flange synthetic, Pg 16 - Pg 9 Art: 3416.09 Copied	PG 16	PG 9	Light grey			9 mm	5 mm	27 mm	Fiberglass reinforced polyamide		-20°C ... +100°C	50
Reduction flange synthetic, Pg 16 - Pg 11 Art: 3416.11 Copied	PG 16	PG 11	Light grey			9 mm	5 mm	27 mm	Fiberglass reinforced polyamide		-20°C ... +100°C	50
Reduction flange synthetic, Pg 16 - Pg 13 Art: 3416.13 Copied	PG 16	PG 13	Light grey			10 mm	17 mm	27 mm	Fiberglass reinforced polyamide		-20°C ... +100°C	50
Reduction flange synthetic, Pg 21 - Pg 13 Art: 3421.13 Copied	PG 21	PG 13	Light grey			11 mm	5 mm	32 mm	Fiberglass reinforced polyamide		-20°C ... +100°C	25
Reduction flange synthetic, Pg 21 - Pg 16 Art: 3421.16 Copied	PG 21	PG 16	Light grey			11 mm	5 mm	32 mm	Fiberglass reinforced polyamide		-20°C ... +100°C	25
Reduction flange synthetic, Pg 29 - Pg 21 Art: 3429.21 Copied	PG 29	PG 21	Light grey			12 mm	6 mm	41 mm	Fiberglass reinforced polyamide		-20°C ... +100°C	10
Reduction flange synthetic, Pg 36 - Pg 29 Art: 3436.29 Copied	PG 36	PG 29	Light grey			14 mm	6 mm	50 mm	Fiberglass reinforced polyamide		-20°C ... +100°C	10
Extension polyamide, Pg 7 - Pg 9 Art: 3707.09 Copied	PG 7	PG 9	Light grey			7 mm	18 mm	19 mm	Fiberglass reinforced polyamide		-20°C ... +100°C	50
Extension polyamide, Pg 9 - Pg 11 Art: 3709.11 Copied	PG 9	PG 11	Light grey			7 mm	19 mm	22 mm	Fiberglass reinforced polyamide		-20°C ... +100°C	50

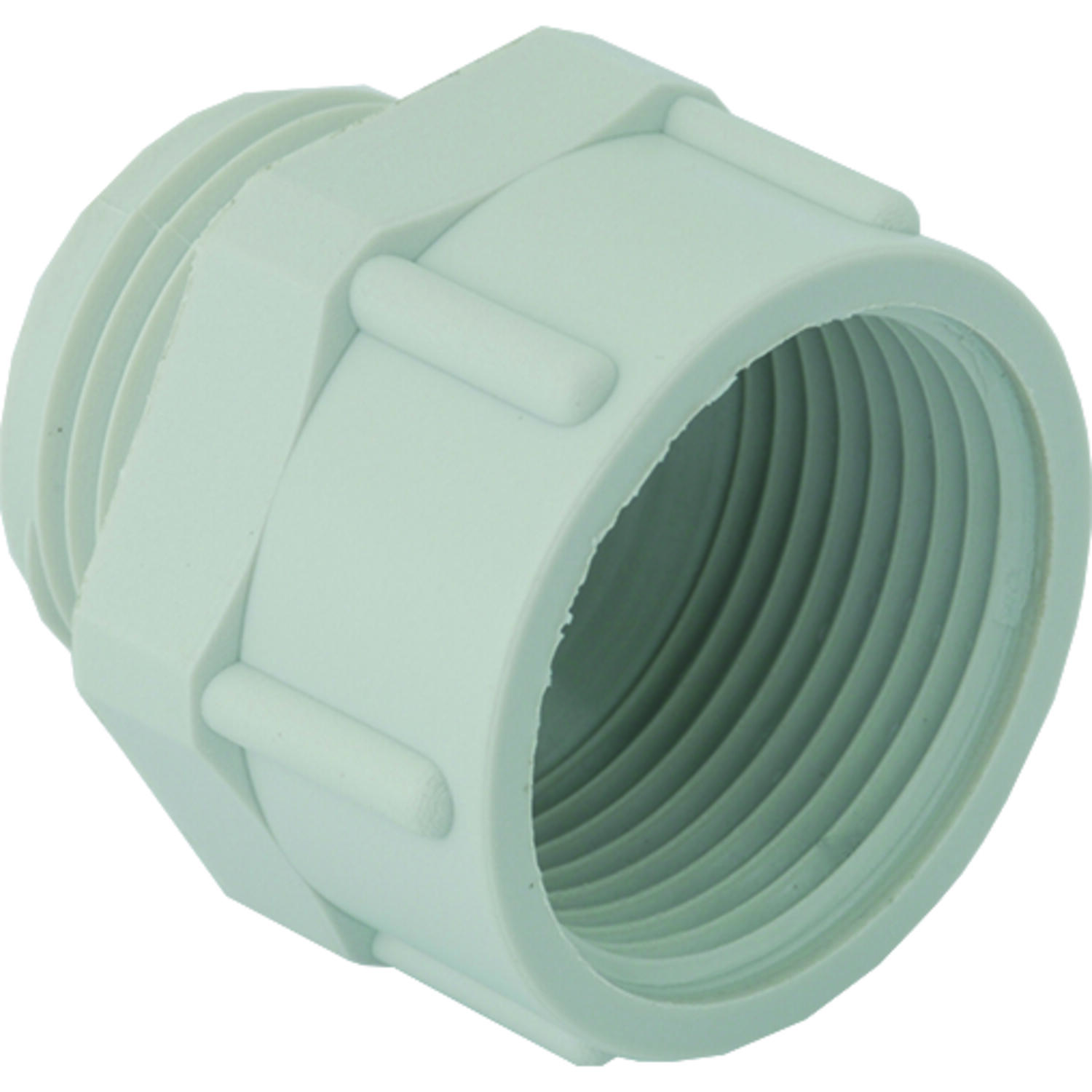

Extension polyamide, Pg 11 - Pg 13 Art: 3711.13 Copied	PG 11	PG 13	Light grey			8 mm	21 mm	24 mm	Fiberglass reinforced polyamide		-20°C ... +100°C	50
Extension polyamide, Pg 13 - Pg 16 Art: 3713.16 Copied	PG 13	PG 16	Light grey			9 mm	23 mm	27 mm	Fiberglass reinforced polyamide		-20°C ... +100°C	50
Extension polyamide, Pg 16 - Pg 21 Art: 3716.21 Copied	PG 16	PG 21	Light grey			9 mm	26 mm	32 mm	Fiberglass reinforced polyamide		-20°C ... +100°C	25
Extension polyamide, Pg 21 - Pg 29 Art: 3721.29 Copied	PG 21	PG 29	Light grey			10 mm	33 mm	41 mm	Fiberglass reinforced polyamide		-20°C ... +100°C	25
Extension polyamide, Pg 29 - Pg 36 Art: 3729.36 Copied	PG 29	PG 36	Light grey			12 mm	39 mm	55 mm	Fiberglass reinforced polyamide		-20°C ... +100°C	10
Extension polyamide, Pg 36 - Pg 42 Art: 3736.42 Copied	PG 36	PG 42	Light grey			14 mm	46 mm	60 mm	Fiberglass reinforced polyamide		-20°C ... +100°C	10
Extension polyamide, Pg 42 - Pg 48 Art: 3742.48 Copied	PG 42	PG 48	Light grey			16 mm	39 mm	65 mm	Fiberglass reinforced polyamide		-20°C ... +100°C	10
