AGRO
Maximum installation flexibility thanks to maximum clamping range
The production of cable harnesses is increasingly outsourced and external cable assemblers manage the cabling of drive systems and converters.
Since different cables are often used, greater flexibility is required in day-to-day work.
With the new Progress® multiLAYER, only one type of cable gland needs to be managed per entry thread.
The new multiLAYER sealing insert offers an extremely wide clamping range and features integrated dust protection for the cable gland. The slotted version allows quick assembly of pre-assembled cables.
It uses Progress® compression technology and clamps cables gently and without causing necking. Furthermore, this new sealing insert can be easily combined with other components of the outstanding modular Progress® product range.
General Data |
|
---|---|
Thread Size (G) | M20 |
Insert Type | Four-Piece |
Cable diameter min | 4 mm |
Cable diameter max | 15 mm |
IP class | IP 68 |
Colour | Grey RAL 7035 |
Dimensions |
|
Thread pitch | 1.5 |
Thread length | 13 mm |
Height (H) | 28 mm |
*Invisible Heading* |
|
---|---|
Spanner width (AF) | 27 mm |
Materials |
|
Material | Glass fibre reinforced agromid |
Materials O-ring | NBR |
Material of seals | TPE |
Temperature range | -20°C .. +100°C |
Approvals |
|
Approvals | EN45545-2, EN45545-3 |
Strain relief | Version A acc. to EN 62444 |
Additional Data |
|
Pack size | 50 |
Maximum installation flexibility thanks to maximum clamping range
The production of cable harnesses is increasingly outsourced and external cable assemblers manage the cabling of drive systems and converters.
Since different cables are often used, greater flexibility is required in day-to-day work.
With the new Progress® multiLAYER, only one type of cable gland needs to be managed per entry thread.
The new multiLAYER sealing insert offers an extremely wide clamping range and features integrated dust protection for the cable gland. The slotted version allows quick assembly of pre-assembled cables.
It uses Progress® compression technology and clamps cables gently and without causing necking. Furthermore, this new sealing insert can be easily combined with other components of the outstanding modular Progress® product range.
This innovative push-in connection system enables time savings of up to 50%, whether you're wiring control panels or managing complex installations
Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.
Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.
Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems
Choosing the right circuit breaker is important for protecting DC circuits. Two primary forms of protection are MCBs and ECBs. The experts at OEM Automatic breakdown the two circuit breakers for you!
New signal lights from Auer Signal are now available! The first products to be launched in this series are the Smart Dot 50 in the Basic and Standard versions, as well as the Smart Indicator 50 in the Basic version.
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Parts | Thread Size (G) | Cable diameter min | Cable diameter max | Colour | Thread length | Height (H) | Spanner width (AF) | Pack size | Price | ||
---|---|---|---|---|---|---|---|---|---|---|---|
![]()
Gland synthetic GFK, multiLAYER, grey, M20, ø4…15mm
Art:
1571.4.20
Copied
|
M20
|
4 mm
|
15 mm
|
Grey RAL 7035
|
13 mm
|
28 mm
|
27 mm
|
50
|
| ||
![]()
Gland synthetic GFK,multiLAYER, grey, M25, ø6…20mm
Art:
1571.4.25
Copied
|
M25
|
6 mm
|
20.5 mm
|
Grey RAL 7035
|
13 mm
|
33 mm
|
34 mm
|
25
|
| ||
![]()
Gland synthetic GFK, multiLAYER, grey, M32, ø10…25.5mm
Art:
1571.4.32
Copied
|
M32
|
10 mm
|
25.5 mm
|
Grey RAL 7035
|
15 mm
|
35 mm
|
41 mm
|
25
|
| ||
![]()

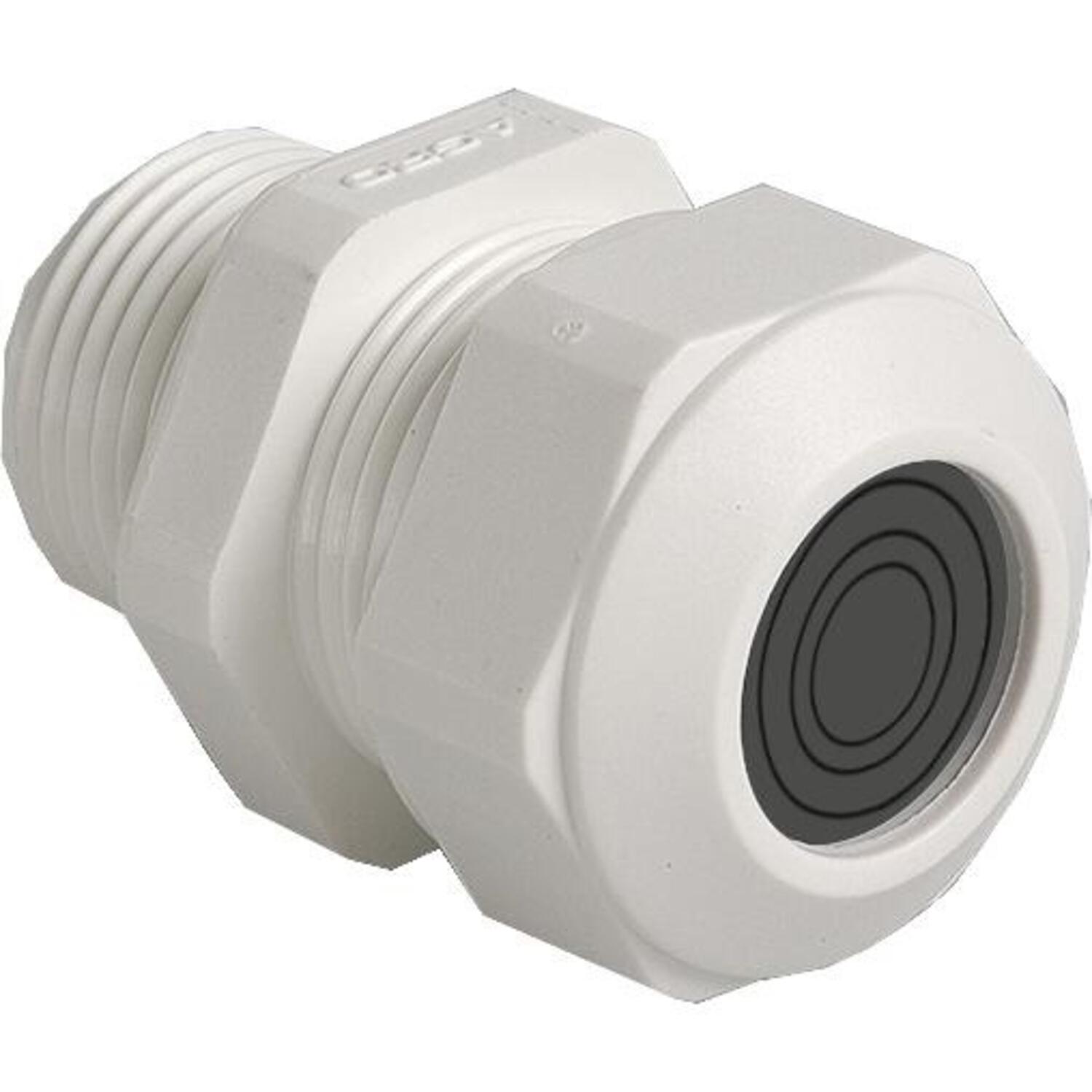

Gland synthetic GFK, multiLAYER, white, M20, ø4…15mm
Art:
1520.4.20
Copied
|
M20
|
4 mm
|
15 mm
|
Pure white RAL 9010
|
13 mm
|
28 mm
|
27 mm
|
50
|
| ||
![]()
Gland synthetic GFK, multiLAYER, white, M25, ø6…20mm
Art:
1520.4.25
Copied
|
M25
|
6 mm
|
20.5 mm
|
White
|
13 mm
|
33 mm
|
34 mm
|
25
|
| ||
![]()
Gland synthetic GFK, multiLAYER, black, M20, ø4...15mm
Art:
1540.4.20
Copied
|
M20
|
4 mm
|
15 mm
|
Black RAL 9005
|
13 mm
|
28 mm
|
27 mm
|
50
|
| ||
![]()
Gland synthetic GFK, multiLAYER, black, M25, ø6…20mm
Art:
1540.4.25
Copied
|
M25
|
6 mm
|
20.5 mm
|
Black RAL 9005
|
13 mm
|
33 mm
|
34 mm
|
25
|
| ||
![]()

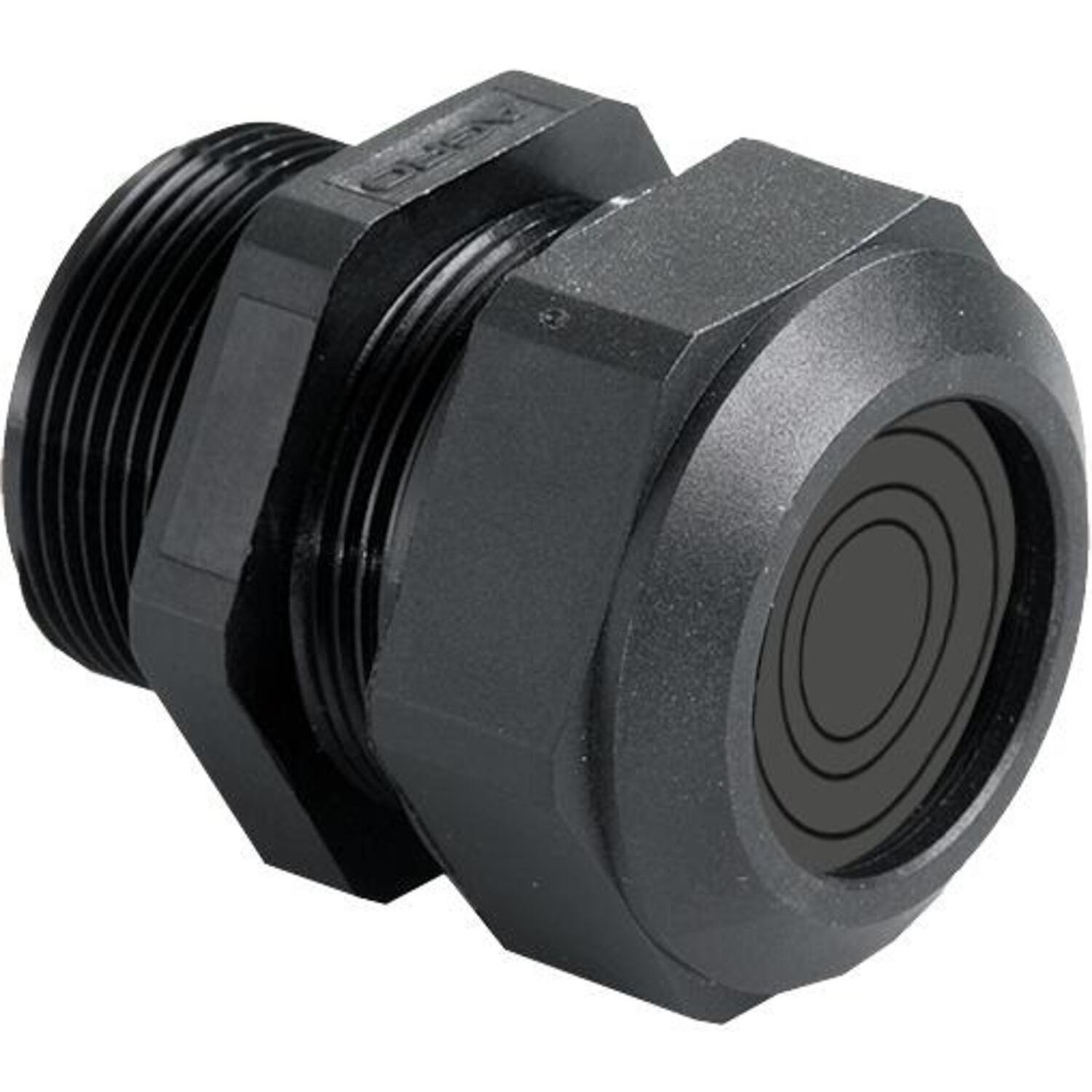

Gland synthetic GFK, multiLAYER, black, M32, ø10…25.5mm
Art:
1540.4.32
Copied
|
M32
|
10 mm
|
25.5 mm
|
Black RAL 9005
|
15 mm
|
35 mm
|
41 mm
|
25
|
|
Select a variant in the list
