EMC EasyCONNECT Ex e II Progress® MS EMC easyCONNECT Ex e ii EX1803.83.12.065 | OEM Automatic Ltd

Technical data / Documents

Accessories & Related products

Selected variant

Technical data

General Data
Thread Size (G)	M12
Insert Type	One-Piece
Cable diameter min	5 mm
Cable diameter max	6,5 mm
IP class	IP 66 / IP 68
Dimensions
Thread pitch	1,5
Thread length	5 mm
Height (H)	31 mm
Spanner width (AF)	16 mm
Materials
Material	Nickel-plated brass
Materials O-ring	FPM
Material screw	Stainless steel A2
Material insert	TPE

Invisible Heading
Temperature range	-60°C ... +100°C
Approvals
Approvals	CE, EX, IECEx
Test standard	IEC 60079-0 / IEC 60079-7 / IEC 60079-31
Ex zones	Gas 1 and 2 / dust 21 and 22
Ex-Zone gas	II 2G Ex eb IIC Gb
EX-zone dust	II 2D Ex tb IIIC Db
IECEx certificate	IECEx SEV 15.0018
Certificate	SEV 15 ATEX 0151
Additional Data
Pack size	50
Country of origin	CH
Tariff code	74199949
Weight	27,7 g

Downloads

Accessories

Related

Kubler slip rings encoders

Blog Product news

Optimise your production line with sensors

Optimise your production line with encoders, inclinometers, displays and slip rings

contaclip kds sr90

Every angle covered with 90 degree cable entry system

Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.

crouzet millenium slim on limited time discount

The smallest logic controller ever on limited time discount

The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.

11 questions to get the right signalling device with Auer Signal & OEM Automatic

11 questions to get the right signalling device – a whitepaper

Do you require signalling devices and beacons in your production process? Download our latest whitepaper!

bespoke solutions electricity meter control boxes

Control Box Assembly for Industrial Electricity Metering - A case study

Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.

DC circuit protection PISA M and circuit breakers

Safeguard systems with DC circuit protection

This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.

	Parts	Thread Size (G)	Cable diameter inner min	Cable diameter inner max	Cable diameter min	Cable diameter max	Thread length	Height (H)	Spanner width (AF)	Pack size	Weight	Price
	Gland Ex EMC easyCONNECT NPB, Ex e II, clamped, M12, ø5…6.5m Art: EX1803.83.12.065 Copied	M12			5 mm	6,5 mm	5 mm	31 mm	16 mm	50	27,7 g

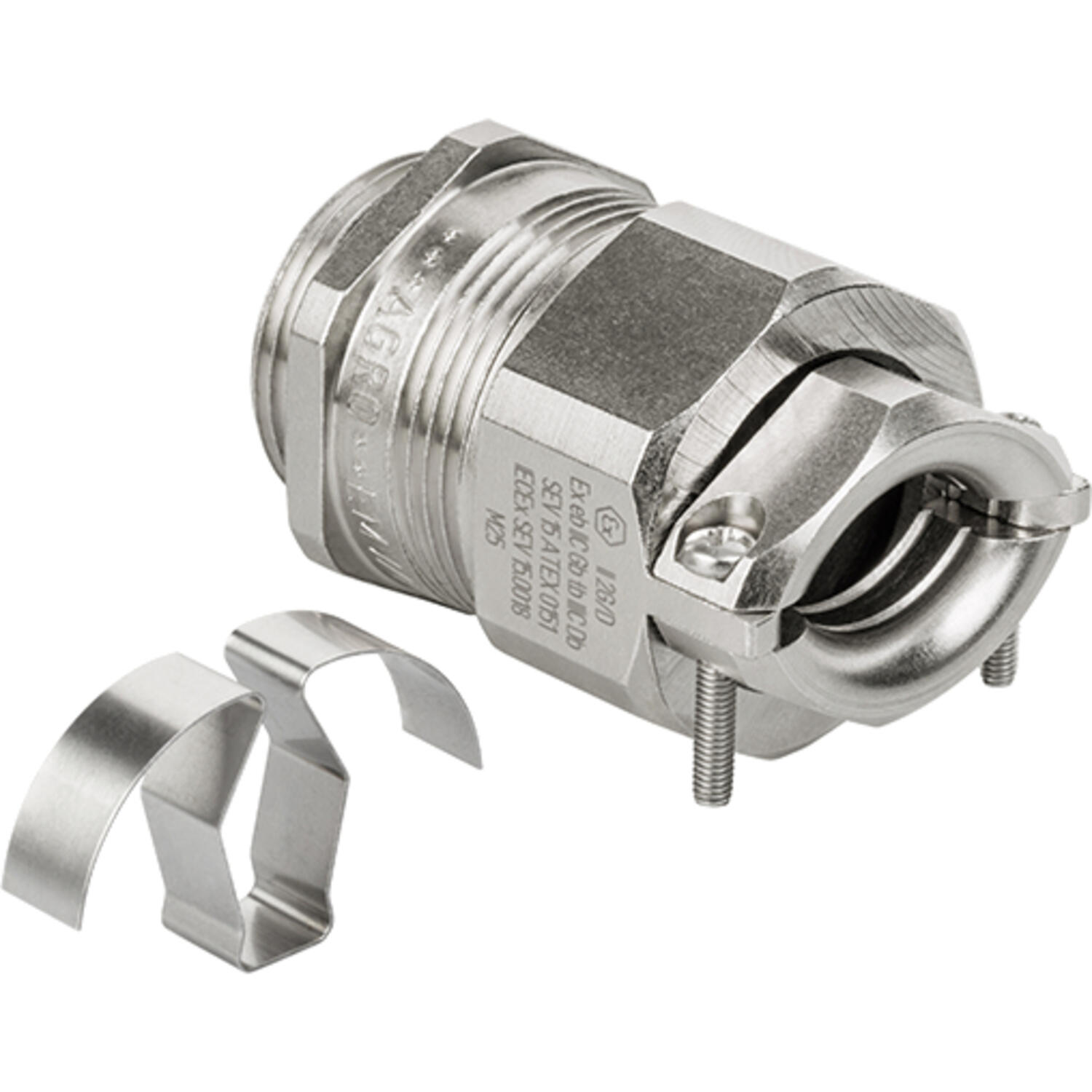

	Gland Ex EMC easyCONNECT NPB, Ex e II, clamped, M16, ø6…10.5mm Art: EX1803.83.17 Copied	M16	6 mm	8 mm	8 mm	10,5 mm	5 mm	33 mm	19 mm	50	39,9 g
	Gland Ex EMC easyCONNECT NPB, Ex e II, clamped, M20, ø8…15mm Art: EX1803.83.20 Copied	M20	8 mm	11 mm	11,5 mm	15 mm	6 mm	35 mm	24 mm	50	58,01 g
	Gland Ex EMC easyCONNECT NPB, Ex e II, clamped, M25, ø12.5…20.5mm Art: EX1803.83.25 Copied	M25	12,5 mm	16 mm	16 mm	20,5 mm	7 mm	40 mm	30 mm	25	92,8 g
	Gland Ex EMC easyCONNECT NPB, Ex e II, clamped, M32, ø17…25.5mm Art: EX1803.83.32 Copied	M32	17 mm	21 mm	21 mm	25,5 mm	8 mm	45 mm	36 mm	25	150,92 g
	Gland Ex EMC easyCONNECT NPB, Ex e II, clamped, M40, ø24…33mm Art: EX1803.83.40 Copied	M40	24 mm	28,5 mm	28,5 mm	33 mm	8 mm	51 mm	46 mm	10	256,8 g
	Gland Ex EMC easyCONNECT NPB, Ex e II, clamped, M50, ø33…42mm Art: EX1803.83.50 Copied	M50	33 mm	37 mm	33 mm	37 mm	9 mm	57 mm	55 mm	10	371,8 g
	Gland Ex EMC easyCONNECT NPB, Ex e II, clamped, M63, ø40…52mm Art: EX1803.83.63 Copied	M63	40 mm	46 mm	46 mm	52 mm	10 mm	60 mm	70 mm	5	694,4 g
	Ex EMC easyCONNECT NPB, clamped, M12 Art: EX1813.83.12.065 Copied	M12			5 mm	6,5 mm	10 mm	31 mm	16 mm	50	29,84 g

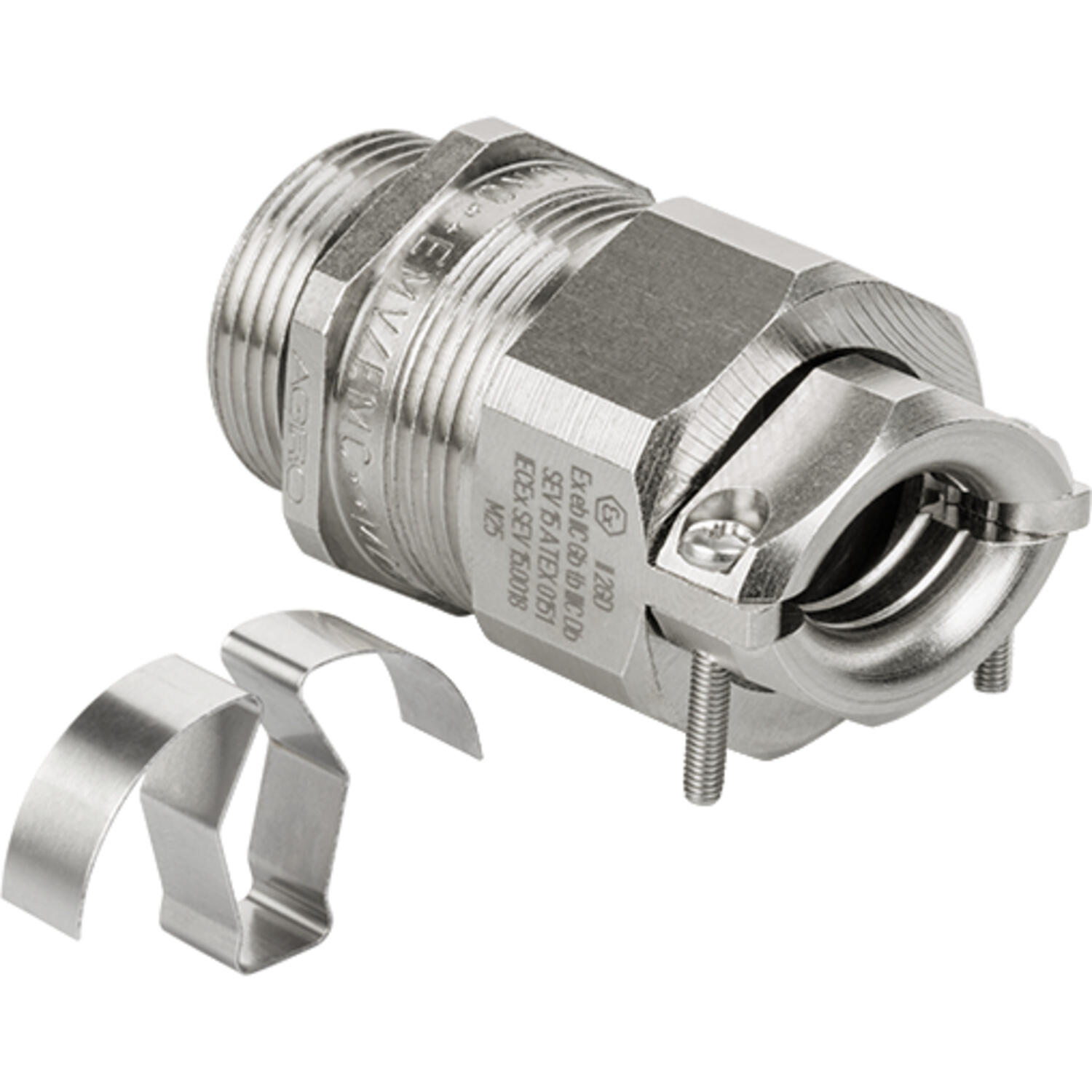

	Ex EMC easyCONNECT NPB, clamped, M16 Art: EX1813.83.17 Copied	M16	6 mm	8 mm	8 mm	10,5 mm	10 mm	33 mm	19 mm	50	43,5 g
	Ex EMC easyCONNECT NPB, clamped, M20 Art: EX1813.83.20 Copied	M20	8 mm	11 mm	11,5 mm	15 mm	10 mm	35 mm	24 mm	50	61,24 g
	Ex EMC easyCONNECT NPB, clamped, M25 Art: EX1813.83.25 Copied	M25	12,5 mm	16 mm	16 mm	20,5 mm	11 mm	40 mm	30 mm	25	95,8 g
	Ex EMC easyCONNECT NPB, clamped, M32 Art: EX1813.83.32 Copied	M32	17 mm	21 mm	21 mm	25,5 mm	13 mm	45 mm	36 mm	25	160,96 g
	Ex EMC easyCONNECT NPB, clamped, M40 Art: EX1813.83.40 Copied	M40	24 mm	28,5 mm	28,5 mm	33 mm	13 mm	51 mm	46 mm	10	266,8 g
	Ex EMC easyCONNECT NPB, clamped, M50 Art: EX1813.83.50 Copied	M50	33 mm	37 mm	33 mm	37 mm	14 mm	57 mm	55 mm	10	386,8 g
	Ex EMC easyCONNECT NPB, clamped, M63 Art: EX1813.83.63 Copied	M63	40 mm	46 mm	46 mm	52 mm	14 mm	60 mm	70 mm	5	726,8 g
