Insulated bootlace ferrules for dual cables

These insulated bootlace ferrules for dual cables are expertly engineered to terminate two separate conductors in a single ferrule, thanks to a specially shaped polypropylene collar that allows funnel-style wire entry. Designed to accommodate twin conductors ranging from 0.5 mm² up to 16 mm², these connectors provide a tin‑plated copper alloy tube that is heat resistant up to 120 °C. The ferrule's construction incorporates E‑Cu/A‑Cu conductors and galvanic tin plating for excellent corrosion resistance and electrical conductivity. Colour‑coding and compliance with multiple standards, ensure correct wire sizing and global applicability. Available tube lengths span 8 to 25 mm, with full dimensions and strip lengths specified for precise, reliable installation.

In practical use, these ferrules greatly improve electrical installation quality within industrial control panels, sensor systems, safety interlocks, and motor drives. They prevent stray copper strands from causing shorts, promote secure and repeatable screw-terminal connections, and protect conductors during maintenance or component swaps. Their twin‑wire capability is especially useful in applications involving paired conductors like sensor feedback lines or dual‑phase power feeds, reducing connector count and improving terminal organisation. The polypropylene collar not only aids in wire insertion but also delivers mechanical strain relief and vibration resistance, critical in machinery and automation environments. In summary, these ferrules offer a compact, code‑compliant, and reliable solution for terminating dual conductors efficiently and safely.

Read more
  • Funnel feed-in made of polypropylene
  • Heat resistant up to 120 °C
  • For wires from 0.5…150 mm²
  • Material: E-Cu/A-Cu, galvanically tin-plated

Selected variant

Available in several variants

Save page as PDF

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

General Data
Colour Orange
Cross section max 0.5 mm²
Rated wire cross section to (AWG) 20

Dimensions
Length 14 mm
Stripping length 11 mm

Materials
Contact surface Galvanic tin-plated, shiny
Operating temperature from -5 °C
Operating temperature to 105 °C

Additional Data
Tariff code 85369010
Country of origin DE
Weight 0.14 g
Pack size 500
Plastic collar Polypropylene-homopolymer
Thickness of collar 0.3 mm
Thickness of tube 0.15 mm
Standard German Standard
Conductor tube Copper alloy
Diameter of tube 1.4 mm
DIN 46228-1:1992 No
DIN 46228-4:1990 Yes
Length of tube 8 mm

Downloads

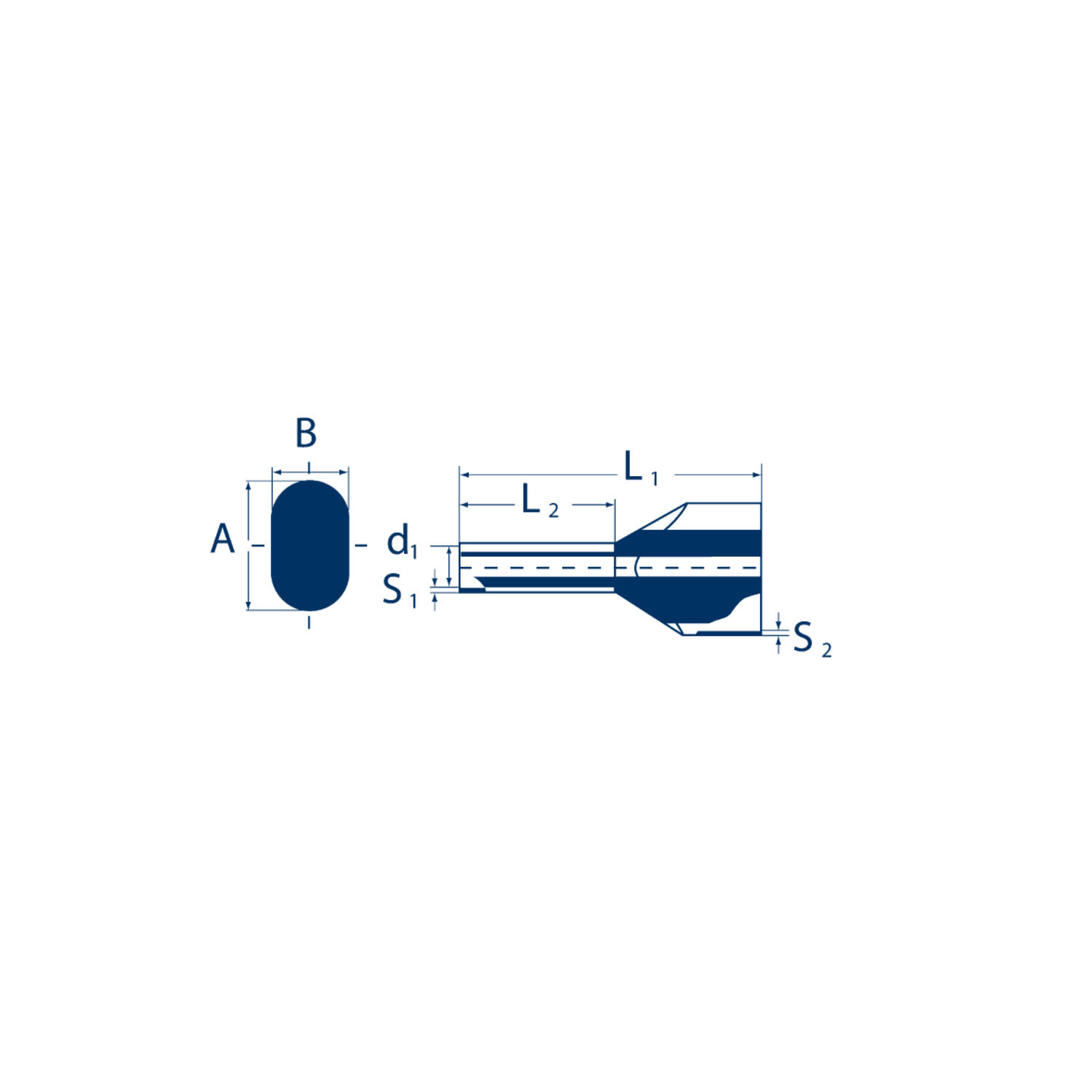

Measurements and connections

Product description

These insulated bootlace ferrules for dual cables are expertly engineered to terminate two separate conductors in a single ferrule, thanks to a specially shaped polypropylene collar that allows funnel-style wire entry. Designed to accommodate twin conductors ranging from 0.5 mm² up to 16 mm², these connectors provide a tin‑plated copper alloy tube that is heat resistant up to 120 °C. The ferrule's construction incorporates E‑Cu/A‑Cu conductors and galvanic tin plating for excellent corrosion resistance and electrical conductivity. Colour‑coding and compliance with multiple standards, ensure correct wire sizing and global applicability. Available tube lengths span 8 to 25 mm, with full dimensions and strip lengths specified for precise, reliable installation.

In practical use, these ferrules greatly improve electrical installation quality within industrial control panels, sensor systems, safety interlocks, and motor drives. They prevent stray copper strands from causing shorts, promote secure and repeatable screw-terminal connections, and protect conductors during maintenance or component swaps. Their twin‑wire capability is especially useful in applications involving paired conductors like sensor feedback lines or dual‑phase power feeds, reducing connector count and improving terminal organisation. The polypropylene collar not only aids in wire insertion but also delivers mechanical strain relief and vibration resistance, critical in machinery and automation environments. In summary, these ferrules offer a compact, code‑compliant, and reliable solution for terminating dual conductors efficiently and safely.

Accessories

Related products

Related

Contaclip PRK terminal blocks
Product news

Terminal Blocks For Push In Connection Systems

This innovative push-in connection system enables time savings of up to 50%, whether you're wiring control panels or managing complex installations

Electrical Protection in the Solar Era: How to Choose Fuses for Modern Photovoltaic Installations
Learning hub

Electrical Protection in the Solar Era: How to Choose Fuses for Modern Photovoltaic Installations

Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.

Fuse links semiconductor DF electric
Product news

Fuse links for semiconductor protection

Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.

Dehn yellowline
Product news

Lightning and surge protection for DC and control signals

Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems

Legrand MCB and PULS ECB - MCBs vs ECBs - which is best for securing a DC circuit?
Learning hub

MCBs vs ECBs: Which is best for securing DC circuits?

Choosing the right circuit breaker is important for protecting DC circuits. Two primary forms of protection are MCBs and ECBs. The experts at OEM Automatic breakdown the two circuit breakers for you!

Signal lights auer
Product news

Signal Lights For You

New signal lights from Auer Signal are now available! The first products to be launched in this series are the Smart Dot 50 in the Basic and Standard versions, as well as the Smart Indicator 50 in the Basic version.

Parts Colour Cross section max Rated wire cross section to (AWG) Length Stripping length Country of origin Weight Pack size Thickness of collar Thickness of tube Standard Diameter of tube Length of tube Price
Orange.eps
HZL 0.5, 0.5 x 8mm, Dual Ferrule, Orange
Art:
3003.0 Copied
Orange
0.5 mm²
20
14 mm
11 mm
DE
0.14 g
500
0.3 mm
0.15 mm
German Standard
1.4 mm
8 mm
White.eps
HZL 0.5-D 0.5 x 14mm, Dual Ferrule, White
Art:
2794.0 Copied
White
0.5 mm²
20
14 mm
11 mm
DE
0.12 g
500
0.3 mm
0.15 mm
UL (DIN)/French Standard
1.4 mm
8 mm
Orange.eps
HZL 0.5 HL, 0.5 x 12mm, Dual Ferrule, Orange
Art:
3004.0 Copied
Orange
0.5 mm²
20
16 mm
13 mm
DE
0.13 g
500
0.3 mm
0.15 mm
German Standard
1.4 mm
10 mm
White.eps
HZL 0.5 HL-D, 0.5 x 12mm, Dual Ferrule, White
Art:
2993.0 Copied
White
0.5 mm²
20
16 mm
13 mm
DE
0.14 g
500
0.3 mm
0.15 mm
UL (DIN)/French Standard
1.4 mm
10 mm
Orange.eps
HZL 0.5 L, 0.5 x 16mm, Dual Ferrule, Orange
Art:
3005.0 Copied
Orange
0.5 mm²
20
18 mm
15 mm
DE
0.22 g
500
0.3 mm
0.15 mm
German Standard
1.4 mm
12 mm
White.eps
HZL 0.5 L-D, 0.5 x 16mm, Dual Ferrule, White
Art:
2994.0 Copied
White
0.5 mm²
20
18 mm
15 mm
DE
0.22 g
500
0.3 mm
0.15 mm
UL (DIN)/French Standard
1.4 mm
12 mm
White.eps
HZL 0.75, 0.75 x 14mm, Dual Ferrule, White
Art:
3006.0 Copied
White
0.75 mm²
18
14 mm
11 mm
DE
0.14 g
500
0.3 mm
0.15 mm
German Standard
1.7 mm
8 mm
Grey.eps
HZL 0.75-D, 0.75 x 14mm, Dual Ferrule, Grey
Art:
2775.0 Copied
Grey
0.75 mm²
18
14 mm
11 mm
DE
0.14 g
500
0.3 mm
0.15 mm
UL (DIN) Standard
1.7 mm
8 mm
LtBlue.eps
HZL 0.75-T, 0.75 x 14mm, Dual Ferrule, Light Blue
Art:
3029.0 Copied
Light blue
0.75 mm²
18
14 mm
11 mm
EEC
0.14 g
500
0.3 mm
0.15 mm
French Standard
1.7 mm
8 mm
White.eps
HZL 0.75 HL, 0.75 x 10 , Dual Ferrule, White
Art:
3007.0 Copied
White
0.75 mm²
18
16 mm
13 mm
DE
0.22 g
500
0.3 mm
0.15 mm
German Standard
1.7 mm
10 mm
Grey.eps
HZL 0.75-HL-D, 0.75 x 16mm, Dual Ferrule, Grey
Art:
2795.0 Copied
Grey
0.75 mm²
18
16 mm
13 mm
DE
0.16 g
500
0.3 mm
0.15 mm
UL (DIN) Standard
1.7 mm
10 mm
LtBlue.eps
HZL 0.75 HL-T, 0.75 x 16mm, Dual Ferrule, Light Blue LB
Art:
3030.0 Copied
Light blue
0.75 mm²
18
16 mm
13 mm
EEC
0.22 g
500
0.3 mm
0.15 mm
French Standard
1.7 mm
10 mm
White.eps
HZL 0.75 L, 0.75 x 18mm, Dual Ferrule, White
Art:
3008.0 Copied
White
0.75 mm²
18
24 mm
21 mm
DE
0.22 g
500
0.3 mm
0.15 mm
German Standard
1.7 mm
18 mm
Grey.eps
HZL 0.75 L-D, 0.75 x 18 FERRULE Grey
Art:
2995.0 Copied
Grey
0.75 mm²
18
24 mm
21 mm
DE
0.22 g
500
0.3 mm
0.15 mm
UL (DIN) Standard
1.7 mm
18 mm
LtBlue.eps
HZL 0.75 L-T, 0.75 x 24mm, Dual Ferrule, Light Blue
Art:
3031.0 Copied
Light blue
0.75 mm²
18
24 mm
21 mm
DE
0.22 g
500
0.3 mm
0.15 mm
French Standard
1.7 mm
18 mm
Yellow.eps
HZL 1.0, 1.0 x 8mm, Dual Ferrule, Yellow
Art:
3009.0 Copied
Yellow
1 mm²
17
15 mm
12 mm
DE
0.25 g
500
0.3 mm
0.15 mm
German Standard
2 mm
8 mm
RED.eps
HZL 1.0-D, 1.0 x 15mm, Dual Ferrule, Red
Art:
2776.0 Copied
Red
1 mm²
17
15 mm
12 mm
DE
0.16 g
500
0.3 mm
0.15 mm
UL (DIN)/French Standard
2 mm
8 mm
Yellow.eps
HZL 1.0 HL, 1.0 x 12mm, Dual Ferrule, Yellow
Art:
3010.0 Copied
Yellow
1 mm²
17
19 mm
16 mm
DE
0.21 g
500
0.3 mm
0.15 mm
German Standard
2 mm
12 mm
Yellow.eps
HZL 1.0 L, 1.0 x 18mm, Dual Ferrule, Yellow
Art:
3011.0 Copied
Yellow
1 mm²
17
25 mm
22 mm
DE
0.25 g
500
0.3 mm
0.15 mm
German Standard
2 mm
18 mm
RED.eps
HZL 1.0-HL-D, 1.0 x 15mm, Dual Ferrule, Red
Art:
2796.0X Copied
Red
1 mm²
17
19 mm
16 mm
DE
0.18 g
500
0.3 mm
0.15 mm
UL (DIN)/French Standard
2 mm
12 mm
RED.eps
HZL 1.0 L-D, 1.0 x 18mm, Dual Ferrule, Red
Art:
2996.0 Copied
Red
1 mm²
17
25 mm
22 mm
DE
0.25 g
500
0.3 mm
0.15 mm
UL (DIN)/French Standard
2 mm
18 mm
RED.eps
HZL 1.5, 1.5 x 8mm, Dual Ferrule, Red
Art:
3012.0 Copied
Red
1.5 mm²
16
16 mm
11 mm
DE
0.18 g
500
0.3 mm
0.15 mm
German Standard
2.2 mm
8 mm
Black.eps
HZL 1.5-D, 1.5 x 16mm, Dual Ferrule, Black
Art:
2777.0 Copied
Black
1.5 mm²
16
16 mm
11 mm
DE
0.18 g
500
0.3 mm
0.15 mm
UL (DIN)/French Standard
2.2 mm
8 mm
RED.eps
HZL 1.5 HL, 1.5 x 12mm, Dual Ferrule, Red
Art:
3013.0 Copied
Red
1.5 mm²
16
20 mm
15 mm
DE
0.23 g
500
0.3 mm
0.15 mm
German Standard
2.2 mm
12 mm
Black.eps
HZL 1.5 HL-D, 1.5 x 12mm, Dual Ferrule, Black
Art:
2797.0X Copied
Black
1.5 mm²
16
20 mm
15 mm
DE
0.22 g
500
0.3 mm
0.15 mm
UL (DIN)/French Standard
2.2 mm
12 mm
RED.eps
HZL 1.5 L, 1.5 x 18mm, Dual Ferrule, Red
Art:
3014.0 Copied
Red
1.5 mm²
16
26 mm
21 mm
DE
0.3 g
100
0.3 mm
0.15 mm
German Standard
2.2 mm
18 mm
Black.eps
HZL 1.5 L-D, 1.5 x 18mm, Dual Ferrule, Black
Art:
2997.0 Copied
Black
1.5 mm²
16
26 mm
21 mm
DE
0.3 g
100
0.3 mm
0.15 mm
UL (DIN)/French Standard
2.2 mm
18 mm
Blue.eps
HZL 2.5-D, 2.5 x 19mm, Dual Ferrule, Blue
Art:
2778.0X Copied
Blue
2.5 mm²
14
19 mm
13 mm
DE
0.33 g
500
0.4 mm
0.15 mm
German/UL (DIN) Standard
2.8 mm
10 mm
Grey.eps
HZL 2.5-T, 2.5 x 19mm, Dual Ferrule, Grey
Art:
3038.0 Copied
Grey
2.5 mm²
14
19 mm
13 mm
EEC
0.34 g
500
0.4 mm
0.15 mm
French Standard
2.8 mm
10 mm
Blue.eps
HZL 2.5-HL-D, 2.5 x 21mm, Dual Ferrule, Blue
Art:
2798.0 Copied
Blue
2.5 mm²
14
21 mm
15 mm
DE
0.37 g
100
0.4 mm
0.15 mm
German/UL (DIN) Standard
2.8 mm
12 mm
Blue.eps
HZL 2.5 L-D, 2.5 x 18mm, Dual Ferrule, Blue
Art:
2998.0 Copied
Blue
2.5 mm²
14
27 mm
21 mm
DE
0.22 g
100
0.4 mm
0.15 mm
German/UL (DIN) Standard
2.8 mm
18 mm
Grey.eps
HZL 2.5 HL-T, 2.5 x 21mm, Dual Ferrule, Grey
Art:
3039.0 Copied
Grey
2.5 mm²
14
21 mm
15 mm
EEC
0.22 g
100
0.4 mm
0.15 mm
French Standard
2.8 mm
12 mm
Grey.eps
HZL 2.5 L-T, 2.5 x 27mm, Dual Ferrule, Grey
Art:
3040.0 Copied
Grey
2.5 mm²
14
27 mm
21 mm
EEC
0.22 g
100
0.4 mm
0.15 mm
French Standard
2.8 mm
18 mm
Grey.eps
HZL 4.0-D, 4.0 x 22mm, Dual Ferrule, Grey
Art:
2799.0 Copied
Grey
4 mm²
12
22 mm
15 mm
DE
0.51 g
100
0.5 mm
0.2 mm
German/UL (DIN) Standard
3.5 mm
12 mm
Orange.eps
HZL 4.0-T, 4.0 x 22mm, Dual Ferrule, Orange
Art:
3041.0 Copied
Orange
4 mm²
12
22 mm
15 mm
DE
0.48 g
100
0.5 mm
0.2 mm
French Standard
3.5 mm
12 mm
Grey.eps
HZL 4.0L-D, 4.0 x 18mm, Dual Ferrule, Grey
Art:
2999.0 Copied
Grey
4 mm²
12
28 mm
21 mm
DE
0.22 g
100
0.5 mm
0.2 mm
German/UL (DIN) Standard
3.5 mm
18 mm
Orange.eps
HZL 4.0 L-T, 4.0 x 28mm, Dual Ferrule, Orange
Art:
3042.0 Copied
Orange
4 mm²
12
28 mm
21 mm
EEC
0.23 g
100
0.5 mm
0.2 mm
French Standard
3.5 mm
18 mm
Black.eps
HZL 6.0, 6.0 x 23mm, Dual Ferrule, Black
Art:
3020.0 Copied
Black
6 mm²
10
23 mm
20 mm
DE
0.64 g
100
0.5 mm
0.2 mm
German Standard
4.5 mm
12 mm
Yellow.eps
HZL 6.0-D, 6.0 x 23mm, Dual Ferrule, Yellow
Art:
2800.0 Copied
Yellow
6 mm²
10
23 mm
20 mm
DE
0.66 g
100
0.5 mm
0.2 mm
UL (DIN) Standard
4.5 mm
12 mm
Green.eps
HZL 6.0-T, 6.0 x 23mm, Dual Ferrule, Green
Art:
3043.0 Copied
Green
6 mm²
10
23 mm
20 mm
DE
0.64 g
100
0.5 mm
0.2 mm
French Standard
4.5 mm
12 mm
Black.eps
HZL 6.0 L, 6.0 x 29mm, Dual Ferrule, Black
Art:
3021.0 Copied
Black
6 mm²
10
29 mm
24 mm
DE
0.22 g
100
0.5 mm
0.2 mm
German Standard
4.5 mm
18 mm
Yellow.eps
HZL 6.0 L-D, 6.0 x 18mm, Dual Ferrule, Yellow
Art:
3000.0 Copied
Yellow
6 mm²
10
29 mm
24 mm
DE
0.22 g
100
0.5 mm
0.2 mm
UL (DIN) Standard
4.5 mm
18 mm
Green.eps
HZL 6.0 L-T, 6.0 x 29mm, Dual Ferrule, Green
Art:
3044.0 Copied
Green
6 mm²
10
29 mm
24 mm
DE
0.22 g
100
0.5 mm
0.2 mm
French Standard
4.5 mm
18 mm
Ivory.eps
HZL 10.0, 10.0 x 24mm, Dual Ferrule, Ivory
Art:
3022.0 Copied
Ivory
10 mm²
8
24 mm
17 mm
DE
0.85 g
100
0.5 mm
0.2 mm
German Standard
5.8 mm
12 mm
RED.eps
HZL 10.0-D, 10 x 24mm, Dual Ferrule, Red
Art:
2801.0 Copied
Red
10 mm²
8
24 mm
17 mm
DE
1.02 g
100
0.5 mm
0.2 mm
UL (DIN) Standard
5.8 mm
12 mm
Brown.eps
HZL 10.0-T, 10.0 x 24mm, Dual Ferrule, Brown
Art:
3045.0 Copied
Brown
10 mm²
8
24 mm
17 mm
EEC
0.81 g
100
0.5 mm
0.2 mm
French Standard
5.8 mm
12 mm
Ivory.eps
HZL 10.0 L, 10.0 x 30mm, Dual Ferrule, Ivory
Art:
3023.0 Copied
Ivory
10 mm²
8
30 mm
23 mm
DE
0.22 g
100
0.5 mm
0.2 mm
German Standard
5.8 mm
18 mm
RED.eps
HZL 10.0 L-D, 10.0 x 18mm, Dual Ferrule, Red
Art:
3001.0 Copied
Red
10 mm²
8
30 mm
23 mm
DE
1.02 g
100
0.5 mm
0.2 mm
UL (DIN) Standard
5.8 mm
18 mm
Brown.eps
HZL 10.0 L-T, 10.0 x 30mm, Dual Ferrule, Brown
Art:
3046.0 Copied
Brown
10 mm²
8
30 mm
23 mm
EEC
0.22 g
100
0.5 mm
0.2 mm
French Standard
5.8 mm
18 mm
Green.eps
HZL 16.0, 16.0 x 24mm, Dual Ferrule, Green
Art:
3024.0 Copied
Green
16 mm²
6
29 mm
20 mm
DE
1.95 g
50
0.6 mm
0.3 mm
German Standard
8.3 mm
16 mm
Blue.eps
HZL 16.0-D, 16.0 x 29mm, Dual Ferrule, Blue
Art:
2802.0 Copied
Blue
16 mm²
6
29 mm
20 mm
DE
1.36 g
50
0.6 mm
0.3 mm
UL (DIN) Standard
8.3 mm
16 mm
White.eps
HZL 16.0-T, 16.0 x 29mm, Dual Ferrule, White
Art:
3047.0 Copied
White
16 mm²
6
29 mm
20 mm
EEC
1.95 g
50
0.6 mm
0.3 mm
French Standard
8.3 mm
16 mm
Green.eps
HZL 16.0 L, 16.0 x 38mm, Dual Ferrule, Green
Art:
3025.0 Copied
Green
16 mm²
6
38 mm
29 mm
DE
0.22 g
50
0.6 mm
0.3 mm
German Standard
8.3 mm
25 mm
Blue.eps
HZL 16.0 L-D, 10.0 x 38mm, Dual Ferrule, Blue
Art:
3002.0 Copied
Blue
16 mm²
6
38 mm
29 mm
EEC
0.22 g
50
0.6 mm
0.3 mm
UL (DIN) Standard
8.3 mm
25 mm
White.eps
HZL 16.0 L-T, 16.0 x38mm, Dual Ferrule, White
Art:
3048.0 Copied
White
16 mm²
6
38 mm
29 mm
EEC
0.22 g
50
0.6 mm
0.3 mm
French Standard
8.3 mm
25 mm

Selected variant

Select a variant in the list

Contact us
If you need any help, you can contact us in one of the following ways:
0116 284 9900
Send e-mail
Use live chat
Do you need help?
Logo

Cookie settings for OEM.CO.UK

Cookies help us improve your experience with us, so in order to be able to handle login information, offer you personalised content and for basic functionality of this website, we use some cookies.

We will never sell on any information about you.

You can accept all cookies or personalise your cookies preferences, you can also change your cookie preferences at any time by visiting our contact page.

Necessary Cookies

These cookies are necessary for the website to work and can not be turned off in our systems. They are usually used only in response to actions you have taken in connection with a service request, for example when setting personal preferences, logging in or filling out a form.

Analysis and measurement cookies

These cookies allow us to count the number of visits and traffic sources so that we can measure and improve our website performance. They help us know which pages are more or less popular and how visitors navigate around the site. The information that these cookies collect is aggregated and therefore completely anonymous. If you do not allow these cookies, we do not know when you have visited our website.

Marketing cookies

These cookies can be added by our partners. They can use them to create a profile of you, based on your interests, to show you more relevant information. They do not store any personal information - only information about your browser and device. If you do not accept these cookies, you will have a more general and less customized user experience.
