CONTA-CLIP

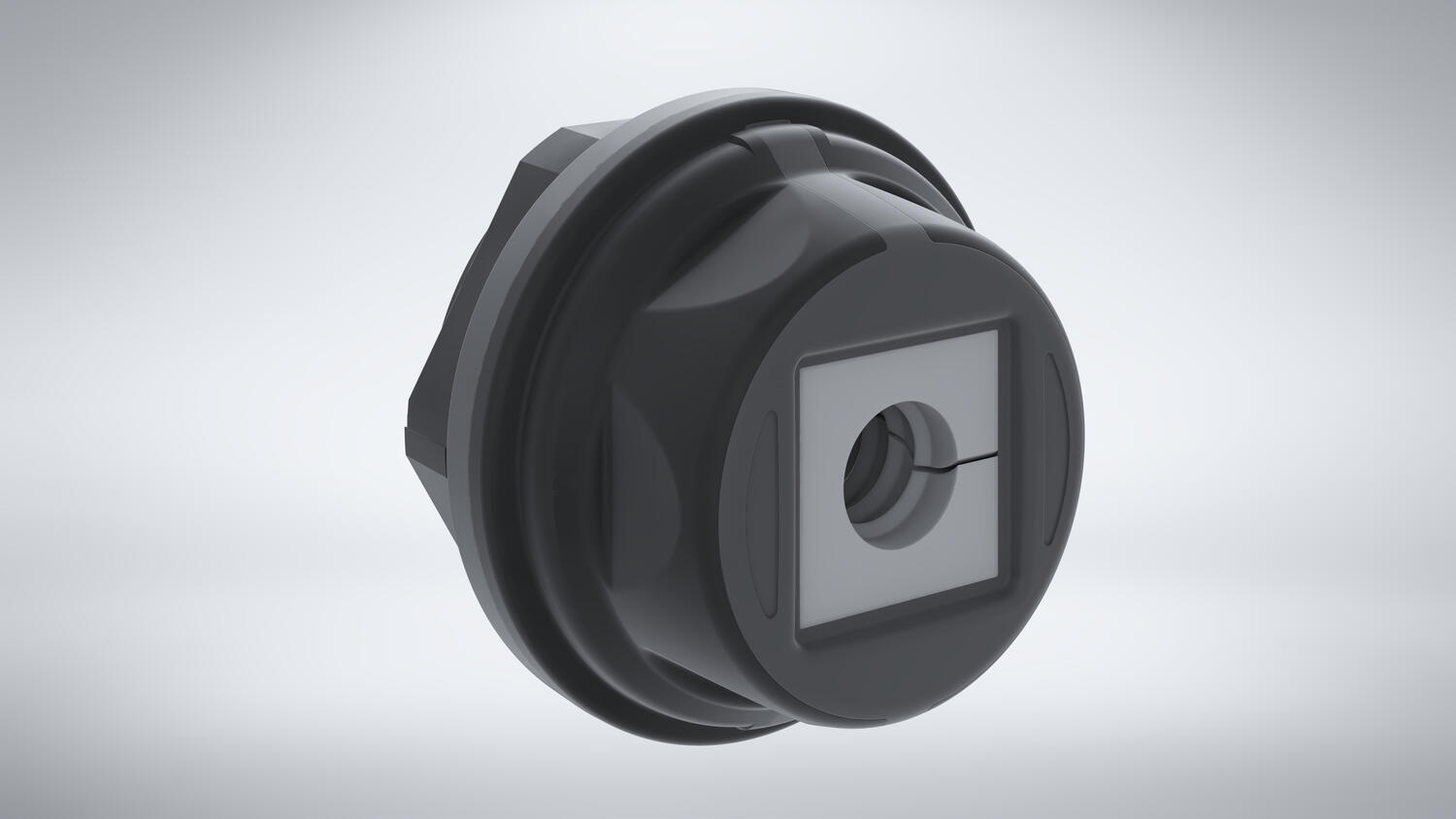

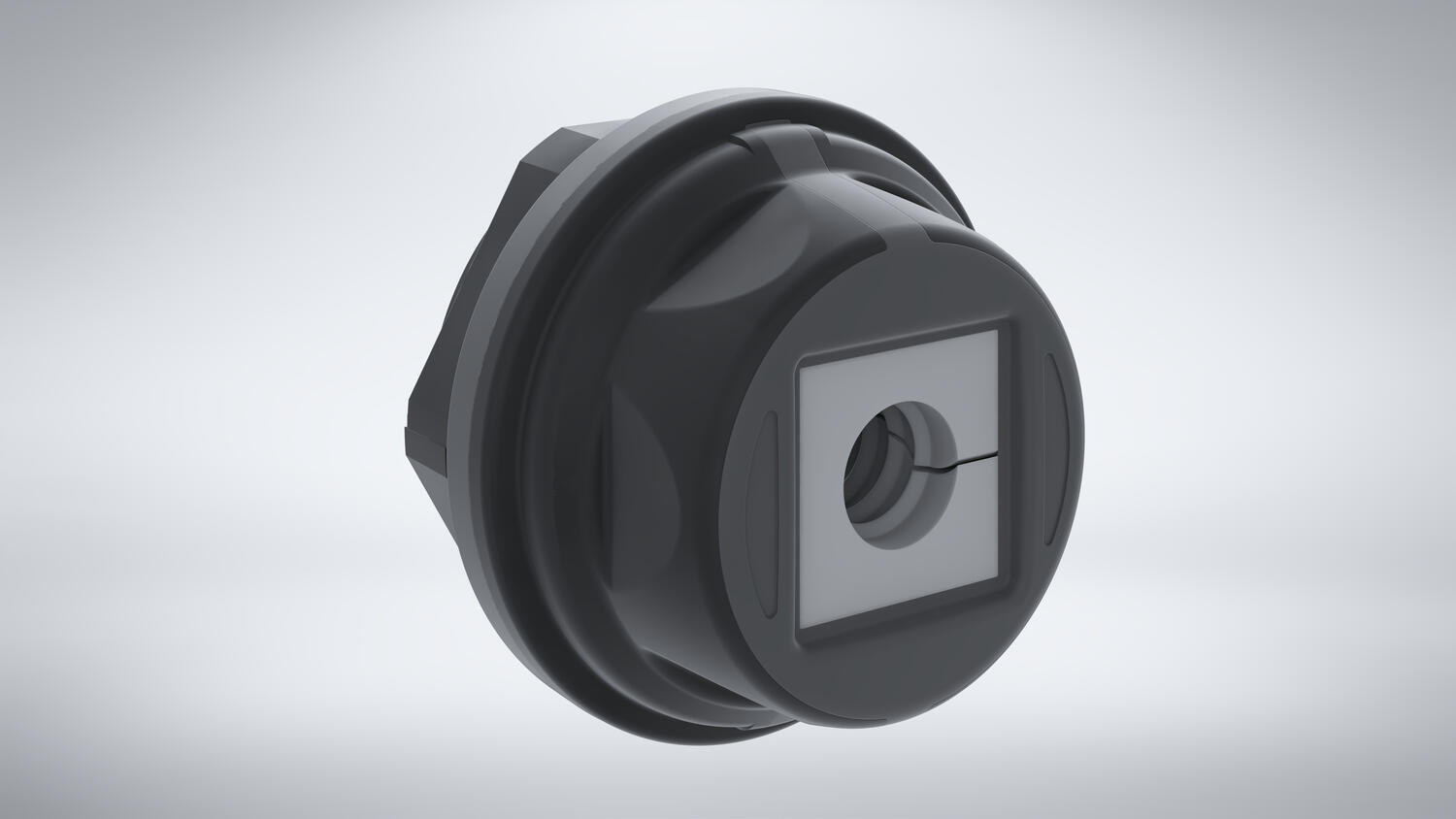

For metric break-outs from M20 to M63, Â CONTA-CLIP has added round cable entries for cables with or without attached plugs to its portfolio.
Â

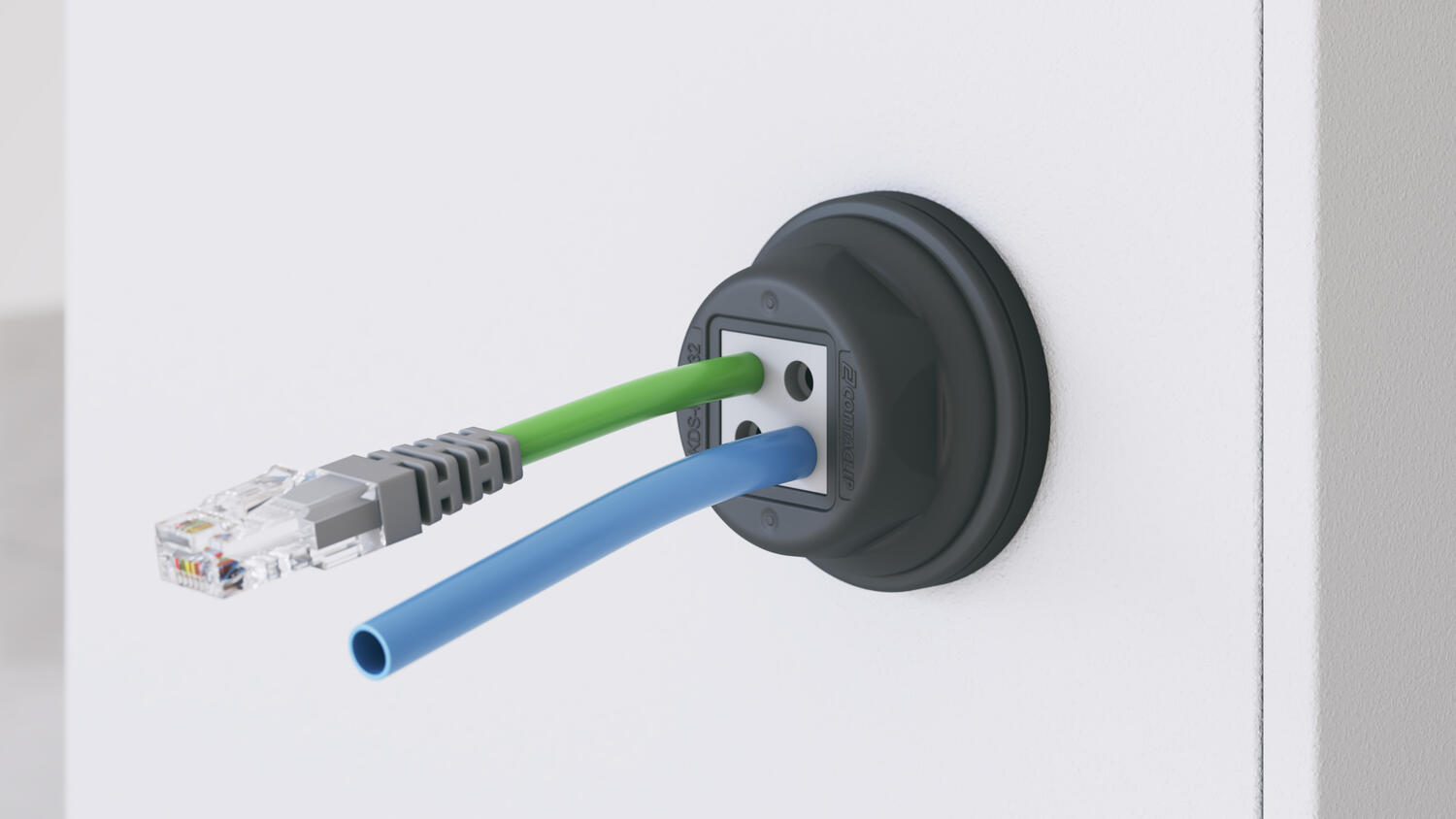

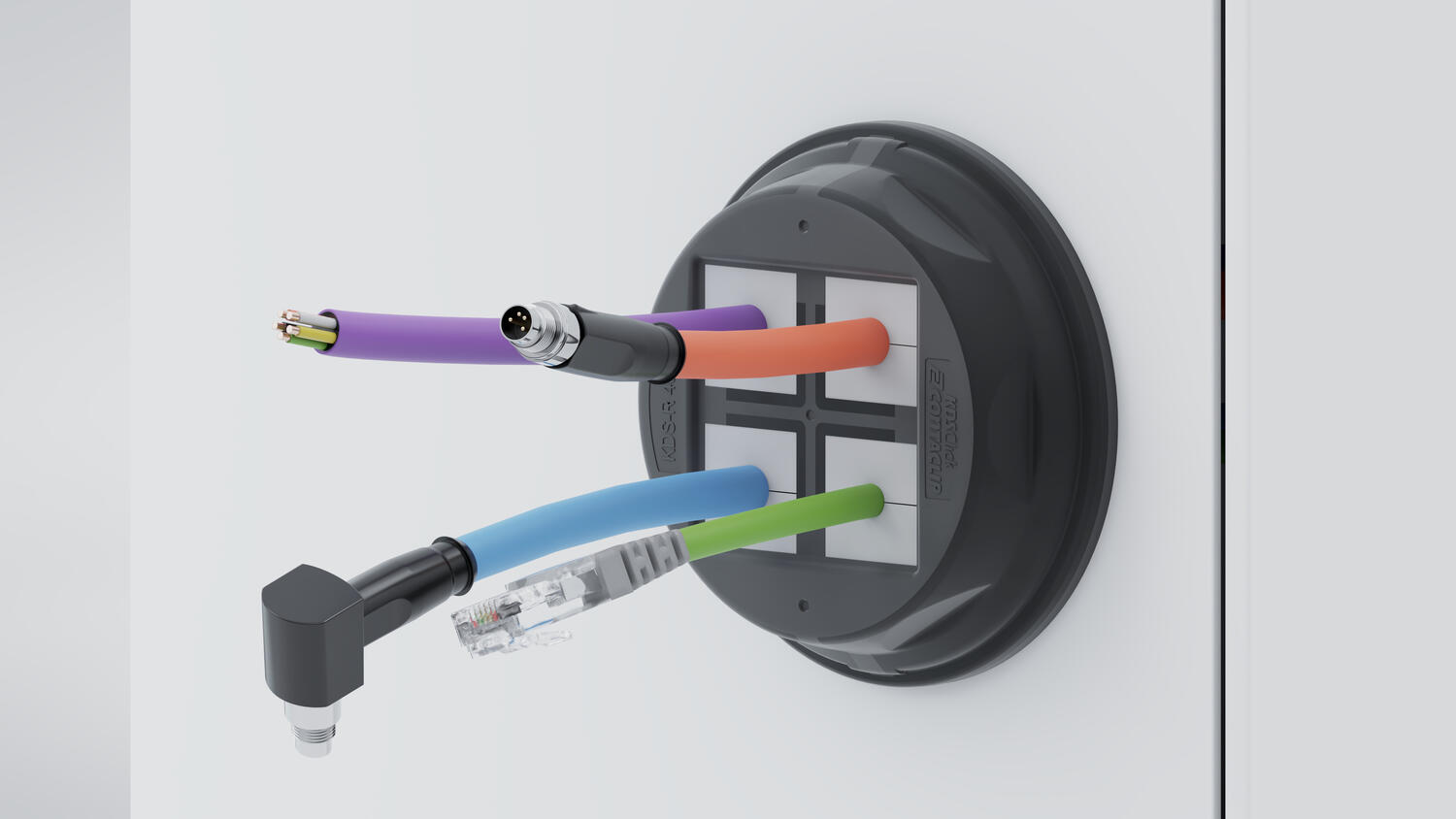

In case of maintenance or retrofitting with assembled cable harnesses, cables with diameters from 2 to 35Â mm can be quickly and safely inserted into the switchgear cabinets or housings. Sealed according to IP66. The modular system ensures quick and easy assembly in three steps. Â
Â

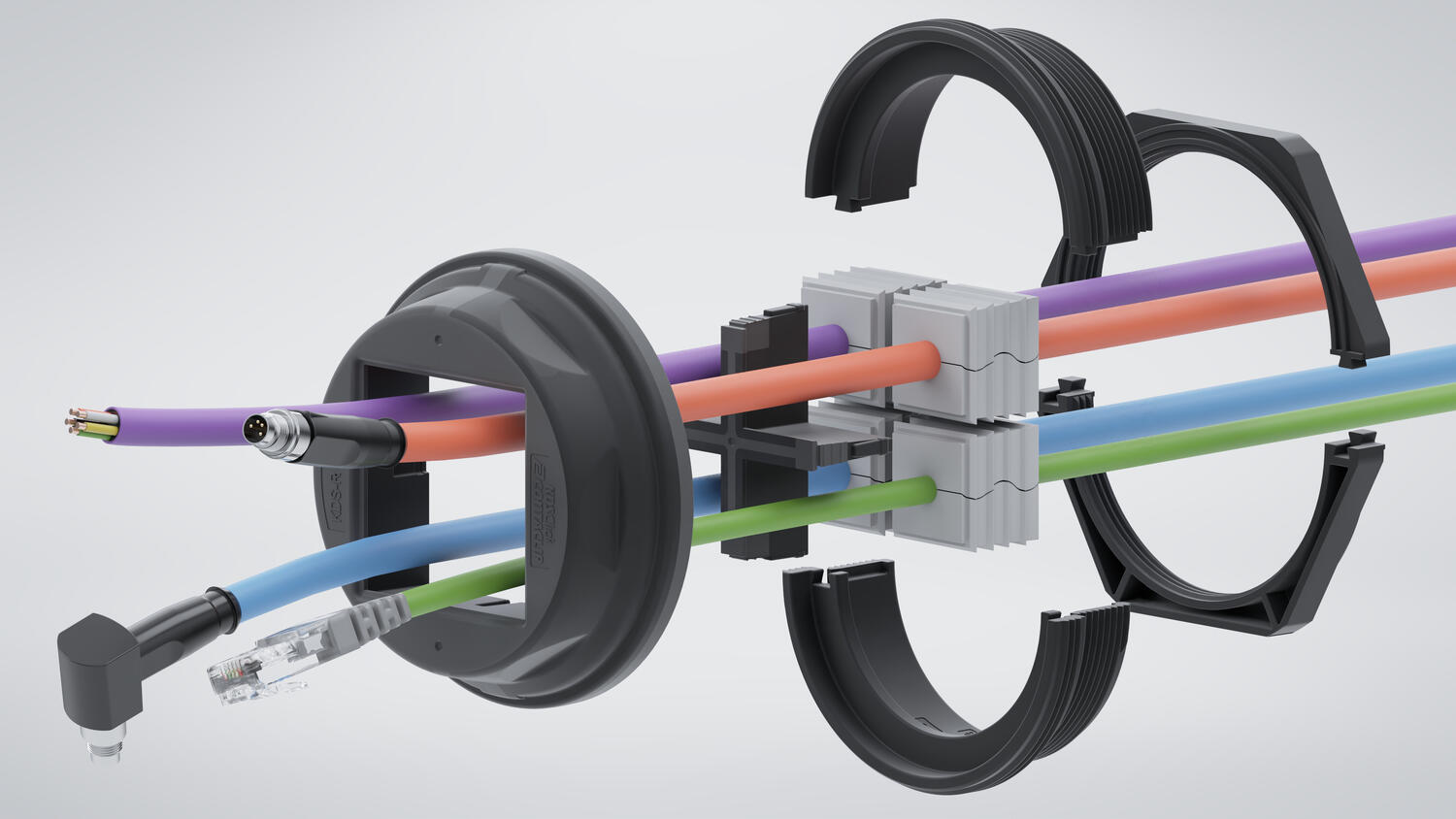

A reliable seal and absolute secure fit is also  provided by the slitted, tapered seals with a wave-cut profile, which, after the cables are routed through the cable entry, are placed around the cables and then pressed into the round cable entry.
Â
After that, the separable thread and locking adapter is easily screwed  together with the round frame outside the switchgear cabinet. The separable locknuts that are mounted on the inside of the locking  elements ensure safe and secure attachment.
Â
Â
This product requires 4 parts minimum - Outer Cable Entry (M20-M32 or M40-M63, Locking Adaptor M20 - M63, Lock Nut to suit and Seal insert(s). Â For M40-M63 and additional inlay is required if using 4 small seals.
Â
General data |
|
---|---|
Mounting | Screw |
Colour | Black |
IP class | IP66 |
Approvals | cUL, UL |
NEMA class | 12, 4X |
Length | 47.5 mm |
Width | 47.5 mm |
Height | 21.5 mm |
Installed height | 21.5 mm |
Mounting details |
|
Including nut | No |
Thread size | M20, M25, M32 |
Thread pitch | 1.5 mm |
Thread length | 7.5 mm |
Materials |
|
Material | Polyamide 6.6 |
*Invisible Heading* |
|
---|---|
Glass-fibre reinforced | Yes |
Flammability class | V-0 |
Sealing material | TPE |
Silicone-free | Yes |
Halogen-free | Yes |
Operating temperature from | -40 °C |
Operating temperature to | 120 °C |
Approvals | cUL, UL |
Approvals |
|
UL test standard | UL 508A |
cUL test standard | CSA C22.2 No.14-18 |
Additional data |
|
Tariff code | 39259020 |
Country of origin | DE |
Pack size | 5 Â |
For metric break-outs from M20 to M63, Â CONTA-CLIP has added round cable entries for cables with or without attached plugs to its portfolio.
Â
In case of maintenance or retrofitting with assembled cable harnesses, cables with diameters from 2 to 35Â mm can be quickly and safely inserted into the switchgear cabinets or housings. Sealed according to IP66. The modular system ensures quick and easy assembly in three steps. Â
Â
A reliable seal and absolute secure fit is also  provided by the slitted, tapered seals with a wave-cut profile, which, after the cables are routed through the cable entry, are placed around the cables and then pressed into the round cable entry.
Â
After that, the separable thread and locking adapter is easily screwed  together with the round frame outside the switchgear cabinet. The separable locknuts that are mounted on the inside of the locking  elements ensure safe and secure attachment.
Â
Â
This product requires 4 parts minimum - Outer Cable Entry (M20-M32 or M40-M63, Locking Adaptor M20 - M63, Lock Nut to suit and Seal insert(s). Â For M40-M63 and additional inlay is required if using 4 small seals.
Â
This product requires 4 parts minimum - Outer Cable Entry (M20-M32 or M40-M63, Locking Adaptor M20 - M63, Lock Nut to suit and Seal insert(s). Â For M40-M63 and additional inlay is required if using 4 small seals
Â
This innovative push-in connection system enables time savings of up to 50%, whether you're wiring control panels or managing complex installations
Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.
Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.
Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems
Choosing the right circuit breaker is important for protecting DC circuits. Two primary forms of protection are MCBs and ECBs. The experts at OEM Automatic breakdown the two circuit breakers for you!
New signal lights from Auer Signal are now available! The first products to be launched in this series are the Smart Dot 50 in the Basic and Standard versions, as well as the Smart Indicator 50 in the Basic version.Â
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Parts | Length | Width | Height | Installed height | Thickness of mounting plate, max. | Thread size | Thread pitch | Thread length | Sealing material | Approvals | cUL test standard | VDE test standard | Price | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]()

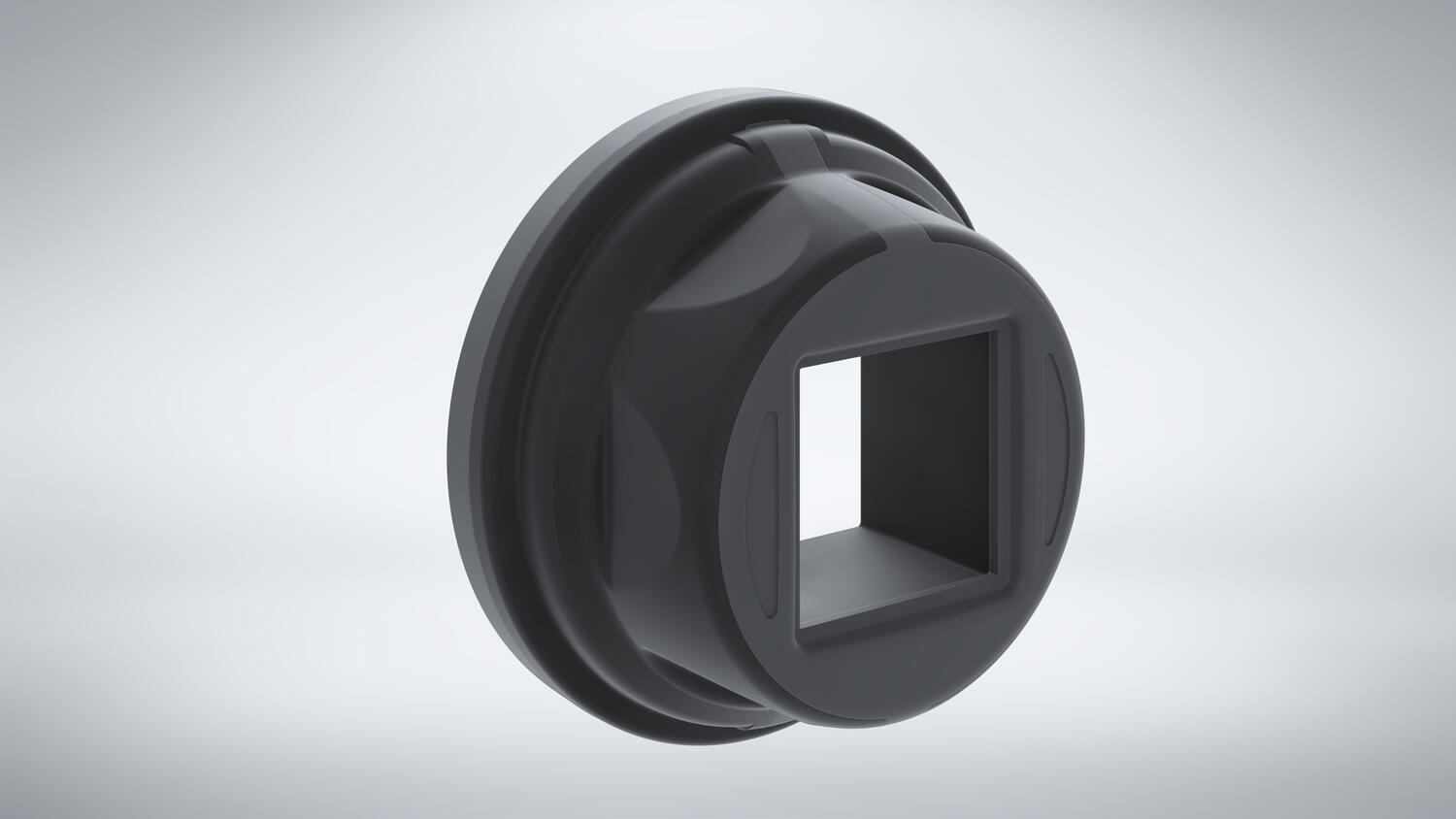

KDS-R 20-32, Round Cable Entry M20-M32, Cable Sizes 1 -13mm
Art:
28770.4
Copied
|
47.5 mm
|
47.5 mm
|
21.5 mm
|
21.5 mm
|
|
M20, M25, M32
|
1.5 mm
|
7.5 mm
|
TPE
|
cUL, UL
|
CSA C22.2 No.14-18
|
|
| ||
![]()
KDS-RGA-M20, KDS-R Locking Adaptor M20
Art:
28771.4
Copied
|
37.5 mm
|
37.5 mm
|
22.5 mm
|
14.5 mm
|
7 mm
|
M20
|
1.5 mm
|
7.5 mm
|
|
cUL, UL
|
CSA C22.2 No. 14-18
|
|
| ||
![]()
KDS-RGA-M25, KDS-R Locking Adaptor M25
Art:
28772.4
Copied
|
37.5 mm
|
37.5 mm
|
22.5 mm
|
14.5 mm
|
7 mm
|
M25
|
|
14.5 mm
|
|
cUL, UL
|
CSA C22.2 No. 14-18
|
|
| ||
![]()

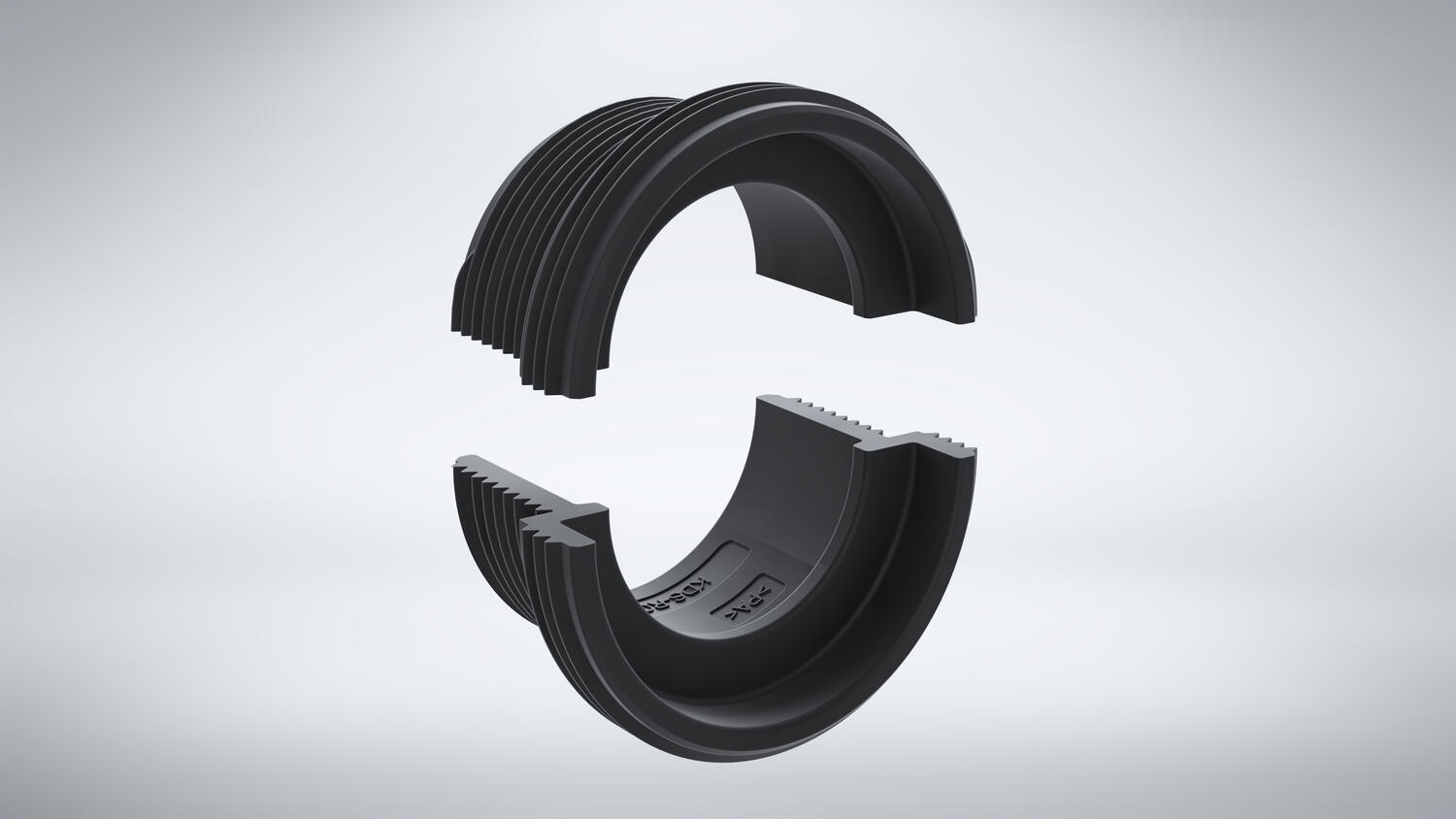

KDS-RGA-M32, KDS-R Locking Adaptor M32
Art:
28773.4
Copied
|
37.5 mm
|
37.5 mm
|
22.5 mm
|
14.5 mm
|
7 mm
|
M32
|
|
14.5 mm
|
|
cUL, UL
|
CSA C22.2 No.14-18
|
|
| ||
![]()

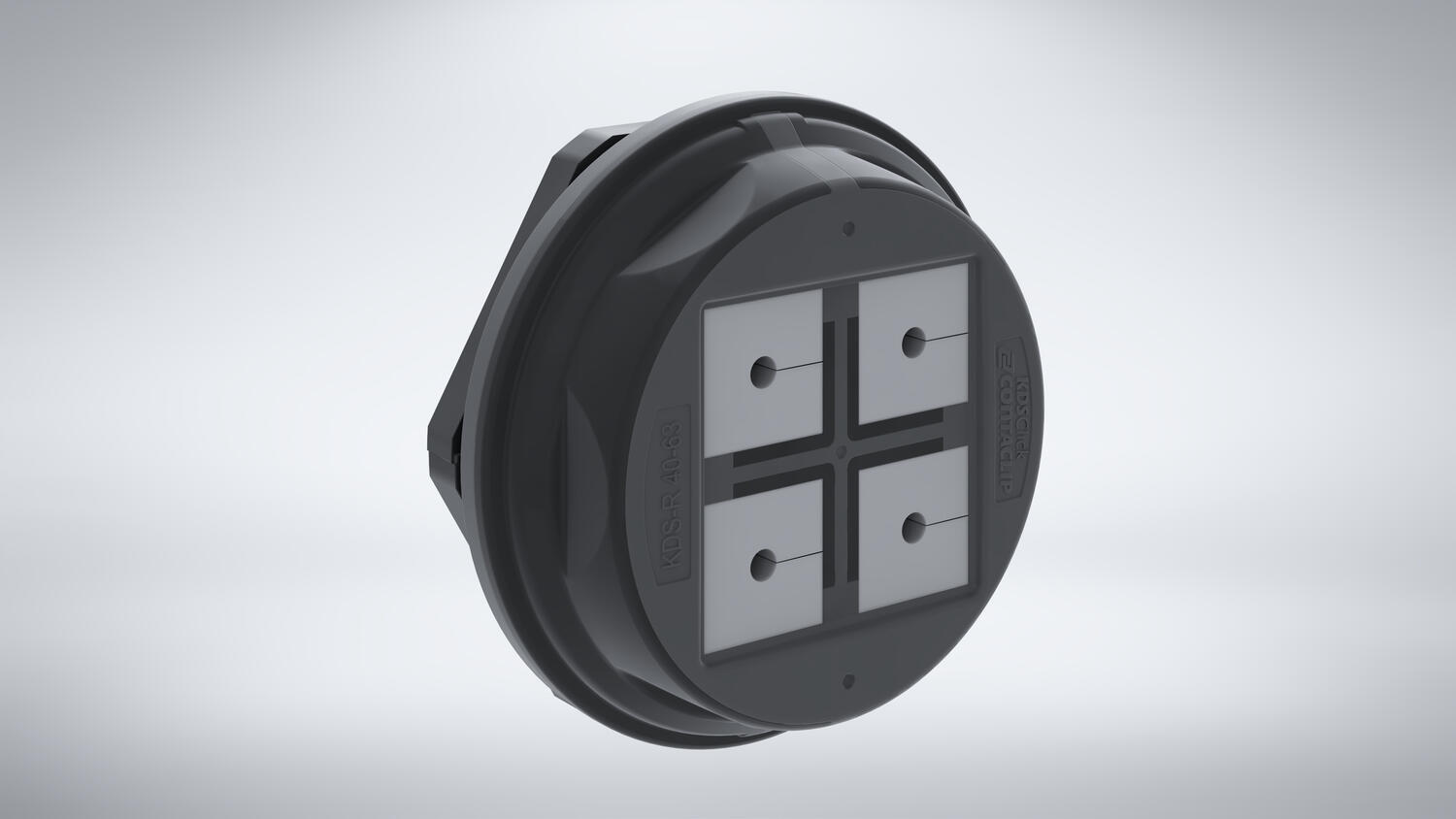

KDS-R 40-63, Round Cable Entry M40-M63, Cable Sizes 1 -35mm
Art:
28774.4
Copied
|
80 mm
|
80 mm
|
21.5 mm
|
21.5 mm
|
|
M40, M50, M63
|
|
7.5 mm
|
TPE
|
cUL, UL
|
CSA C22.2 No. 14-18
|
|
| ||
![]()
KDS-RGA-M40, KDS-R Locking Adaptor M40
Art:
28775.4
Copied
|
70 mm
|
70 mm
|
22.5 mm
|
14.5 mm
|
7 mm
|
M40
|
|
14.5 mm
|
|
|
CSA C22.2 No. 14-18
|
|
| ||
![]()
KDS-RGA-M50, KDS-R Locking Adaptor M50
Art:
28776.4
Copied
|
70 mm
|
70 mm
|
22.5 mm
|
14.5 mm
|
7 mm
|
M50
|
|
14.5 mm
|
|
cUL, UL
|
CSA C22.2 No. 14-18
|
|
| ||
![]()
KDS-RGA-M63, KDS-R Locking Adaptor M63
Art:
28777.4
Copied
|
70 mm
|
70 mm
|
22.5 mm
|
14.5 mm
|
7 mm
|
M63
|
|
14.5 mm
|
|
cUL, UL
|
|
CSA C22.2 No.14-18
|
|
Select a variant in the list
