The KDS-SR-FDA Compact Modular cable entry system by CONTA‑CLIP delivers a high-performance, hygienic solution for feeding pre‑assembled cables, hoses, pipes and tubes into enclosures without disassembly. This three-part modular system consists of an outer screw frame, inner locking frame, and foam‑in-seal inserts, all FDA‑certified, halogen‑ and silicone‑free, and built from glass‑fibre-reinforced polyamide V‑0. Frames are available in lengths from 73 mm up to 147 mm (plus custom sizing up to 153 mm), a typical height around 18.9 mm, and fitted to IP 66 / NEMA 4X standards, operating from –40 °C to 120 °C. UL and cUL certified to UL 508 and C22.2 No 14‑95, the system ensures reliable sealing and mechanical strength with just two M5 screws torqued to 3 Nm.
In practice, the compact frame is the ideal entry solution for food, beverage, pharmaceutical, and clean‑room control panels. Its modularity accommodates a wide range of pre‑terminated cable diameters—without cutting connectors—while maintaining IP66 protection in washdown environments. Its snap‑in seal inserts allow cables to be added, removed, or re-routed from the inside without dismantling the frame, saving installation and maintenance time. Angled variants support routing efficiency in tight panel layouts, and the FDA‑grade polyurethane foam seal ensures regulatory compliance in hygiene‑critical industries.Â
General data |
|
---|---|
Mounting | Screw |
Colour | Blue |
IP class | IP66 |
Approvals | cUL, UL |
NEMA class | 4x |
Length | 73 mm |
Width | 39 mm |
Height | 18.9 mm |
Mounting details |
|
Length of cutout | 46 mm |
Width of cutout | 24 mm |
Number of screw holes | 2 Â |
Diameter of the screw holes | 5.5 mm |
Fixing screws | M5 |
Torque of the fixing screws | 3 |
Materials |
|
Material | Polyamide |
*Invisible Heading* |
|
---|---|
Glass-fibre reinforced | Yes |
Flammability class | V-0 |
Sealing material | Polyurethane-based |
Silicone-free | Yes |
Halogen-free | Yes |
Operating temperature from | -40 °C |
Operating temperature to | 120 °C |
Approvals | cUL, UL |
Approvals |
|
UL test standard | UL 508 |
cUL test standard | C22.2 No. 14-95 |
Additional data |
|
Tariff code | 39259020 |
Country of origin | DE |
Weight | 31.7 g |
Pack size | 1 Â |
The KDS-SR-FDA Compact Modular cable entry system by CONTA‑CLIP delivers a high-performance, hygienic solution for feeding pre‑assembled cables, hoses, pipes and tubes into enclosures without disassembly. This three-part modular system consists of an outer screw frame, inner locking frame, and foam‑in-seal inserts, all FDA‑certified, halogen‑ and silicone‑free, and built from glass‑fibre-reinforced polyamide V‑0. Frames are available in lengths from 73 mm up to 147 mm (plus custom sizing up to 153 mm), a typical height around 18.9 mm, and fitted to IP 66 / NEMA 4X standards, operating from –40 °C to 120 °C. UL and cUL certified to UL 508 and C22.2 No 14‑95, the system ensures reliable sealing and mechanical strength with just two M5 screws torqued to 3 Nm.
In practice, the compact frame is the ideal entry solution for food, beverage, pharmaceutical, and clean‑room control panels. Its modularity accommodates a wide range of pre‑terminated cable diameters—without cutting connectors—while maintaining IP66 protection in washdown environments. Its snap‑in seal inserts allow cables to be added, removed, or re-routed from the inside without dismantling the frame, saving installation and maintenance time. Angled variants support routing efficiency in tight panel layouts, and the FDA‑grade polyurethane foam seal ensures regulatory compliance in hygiene‑critical industries.Â
This innovative push-in connection system enables time savings of up to 50%, whether you're wiring control panels or managing complex installations
Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.
Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.
Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems
Choosing the right circuit breaker is important for protecting DC circuits. Two primary forms of protection are MCBs and ECBs. The experts at OEM Automatic breakdown the two circuit breakers for you!
New signal lights from Auer Signal are now available! The first products to be launched in this series are the Smart Dot 50 in the Basic and Standard versions, as well as the Smart Indicator 50 in the Basic version.Â
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Parts | Length | Length of cutout | Weight | Price | ||
---|---|---|---|---|---|---|
![]()

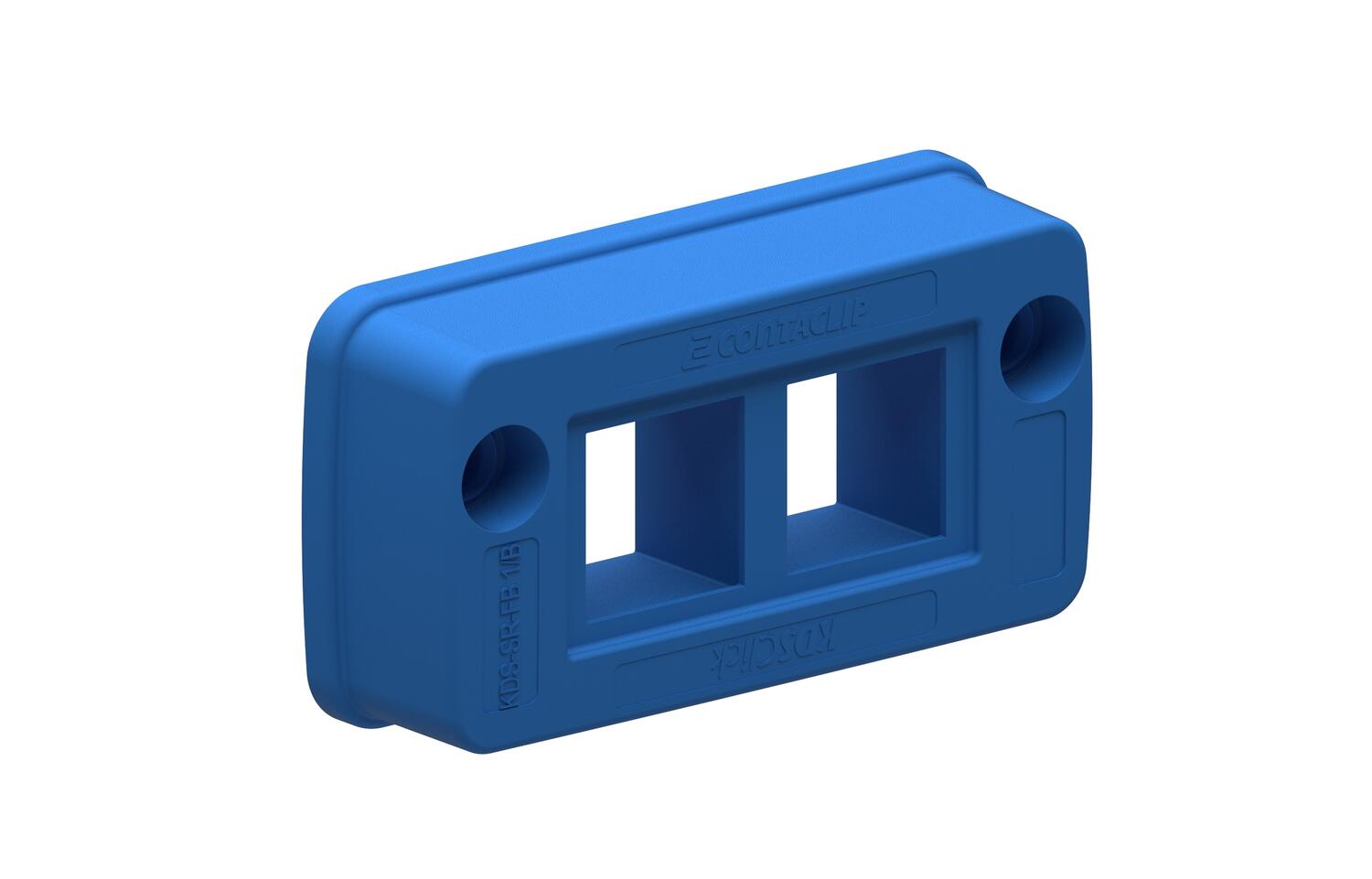

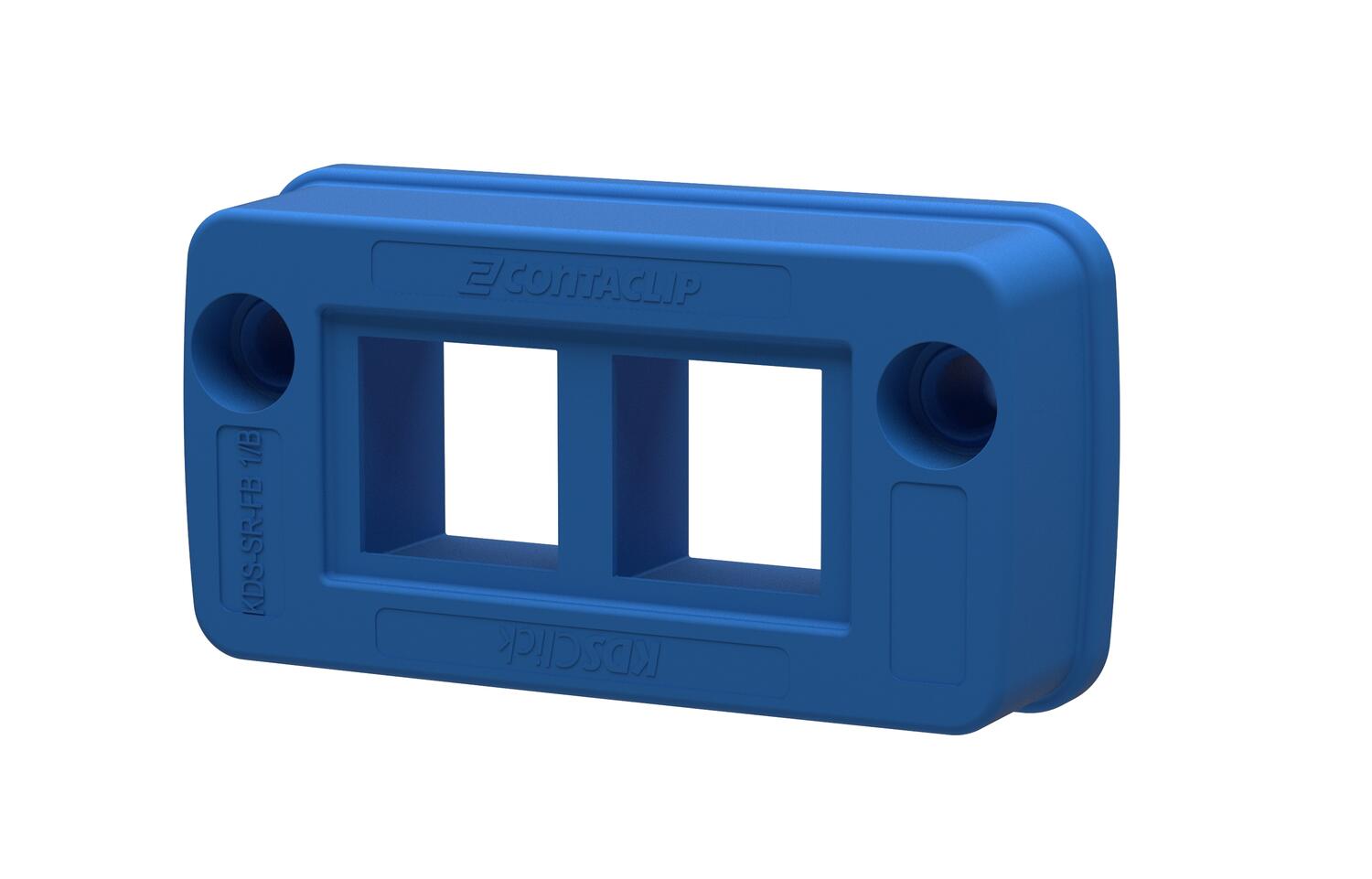

KDS-SR-FDA-FB1/B, FDA Certified Frame, Blue
Art:
29080.5
Copied
|
73 mm
|
46 mm
|
31.7 g
|
| ||
![]()

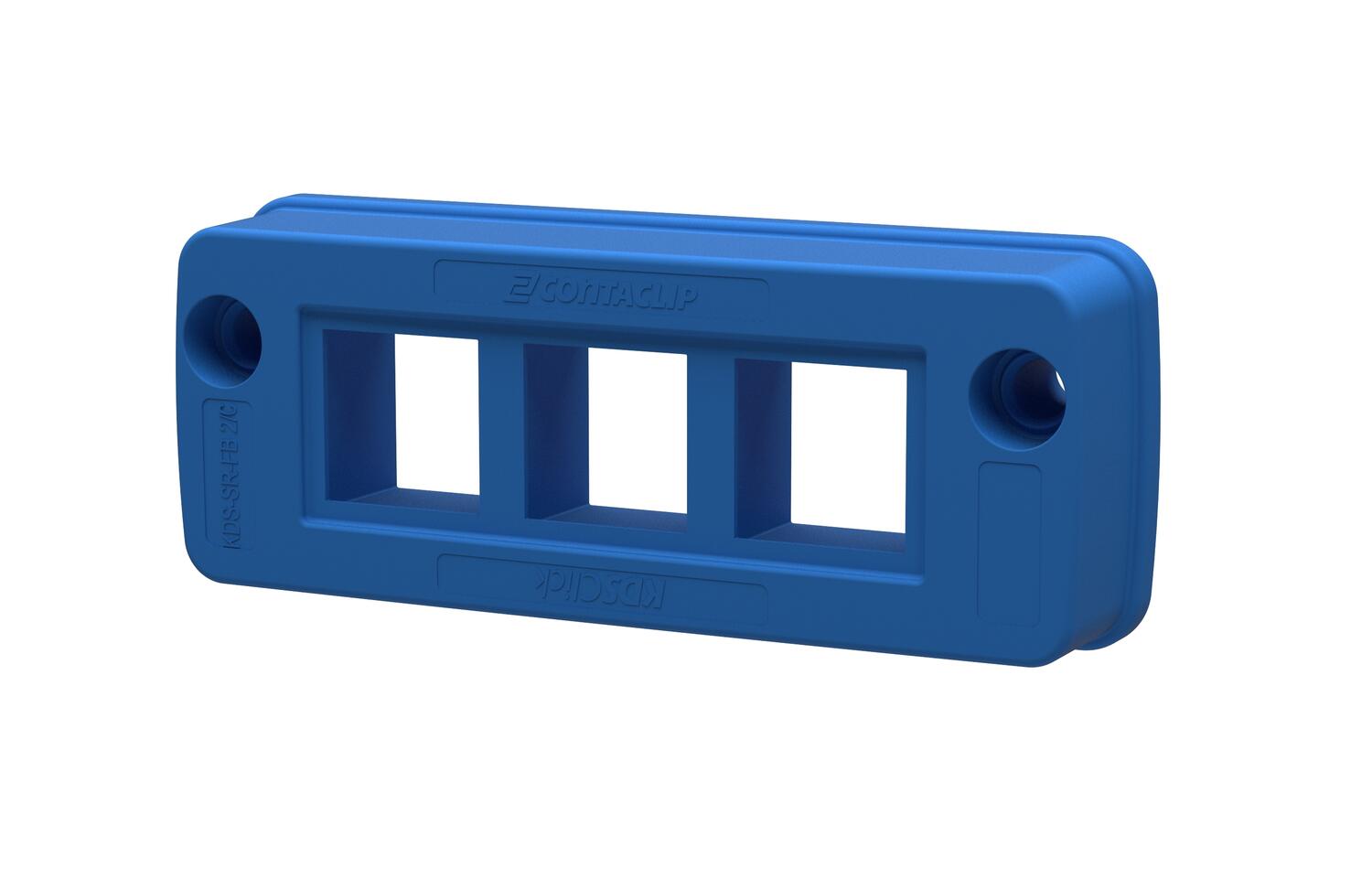

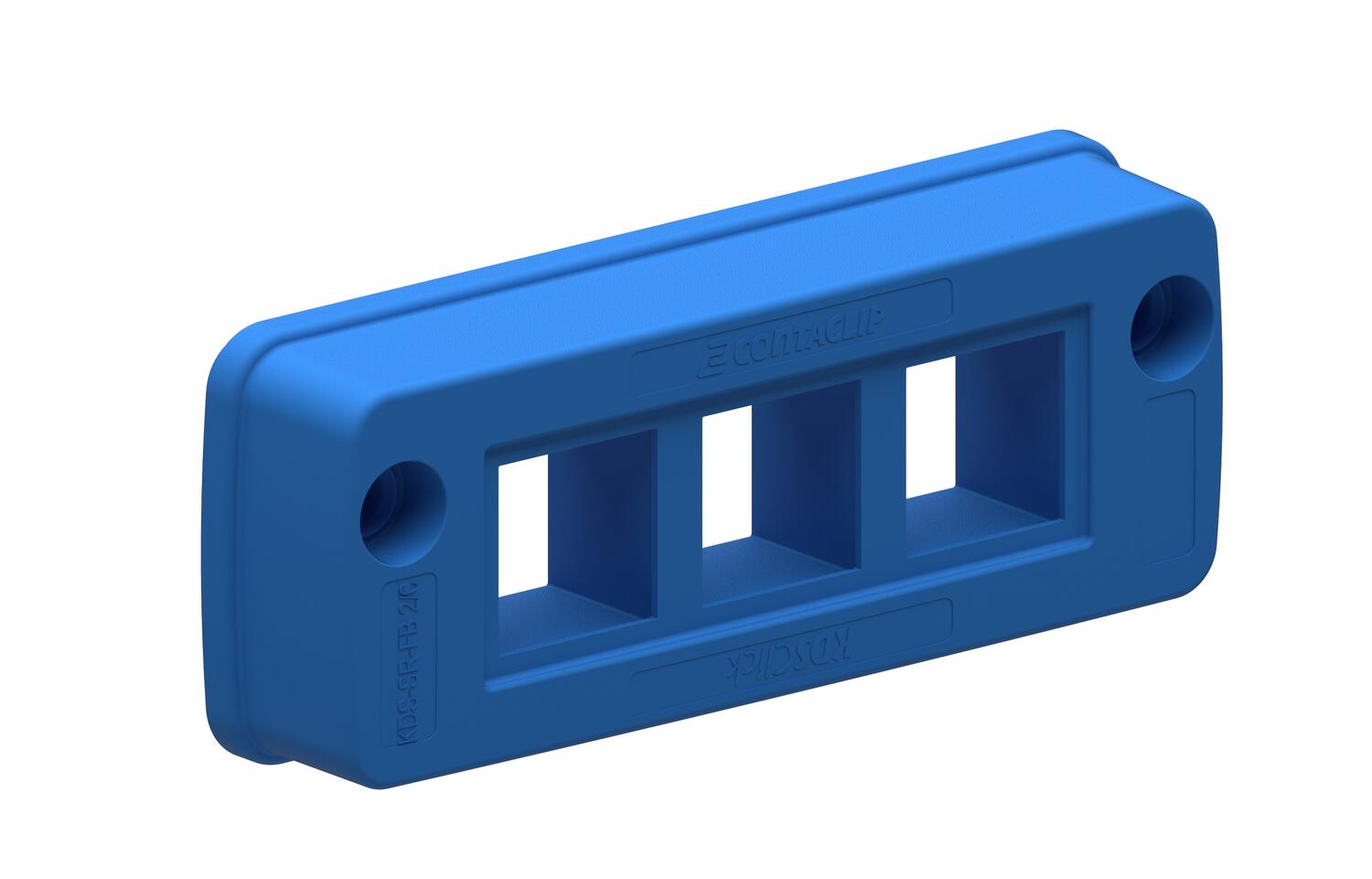

KDS-SR-FDA-FB2/C, FDA Certified Frame, Blue
Art:
29081.5
Copied
|
98 mm
|
68 mm
|
40.31 g
|
| ||
![]()

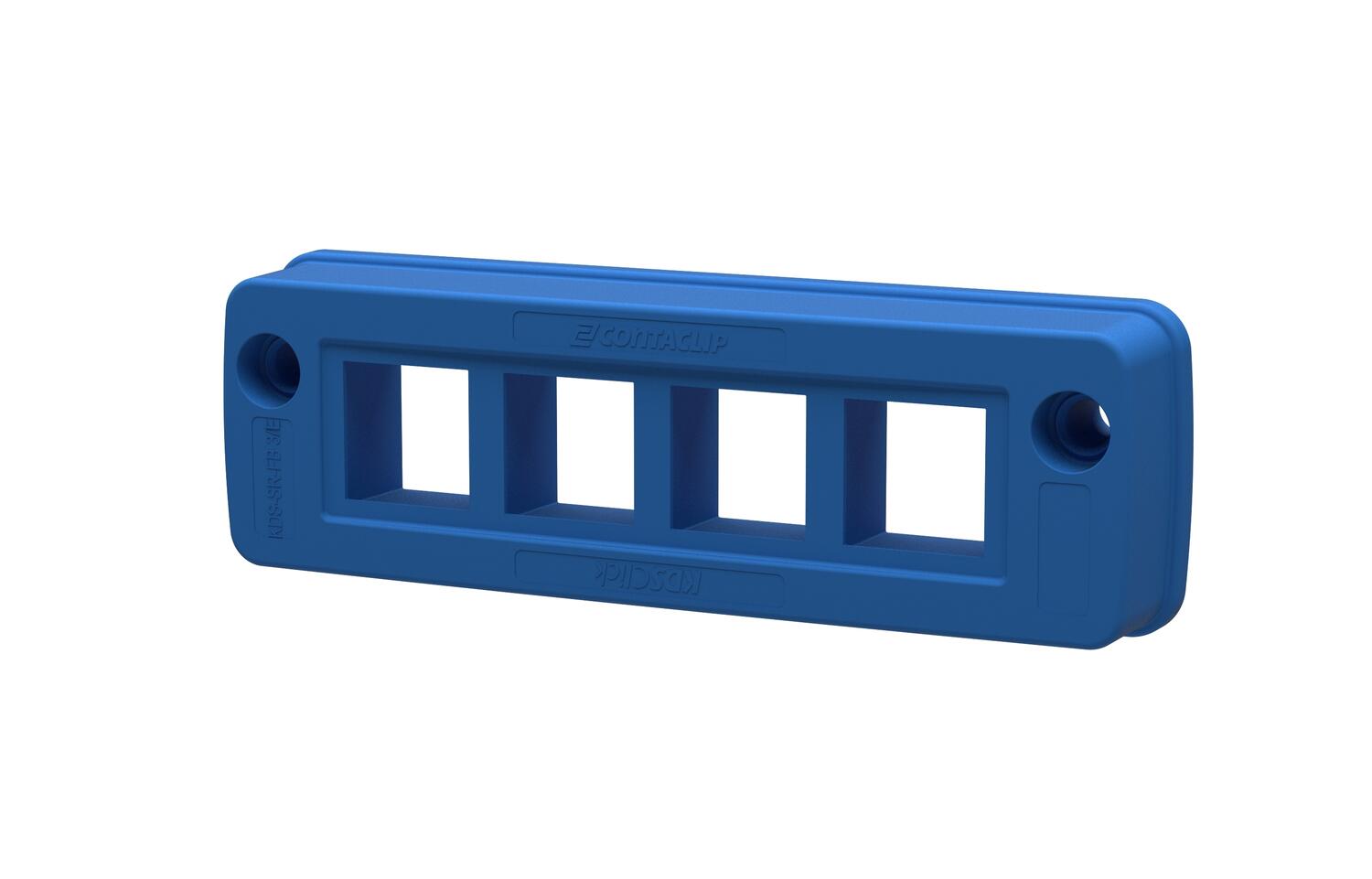

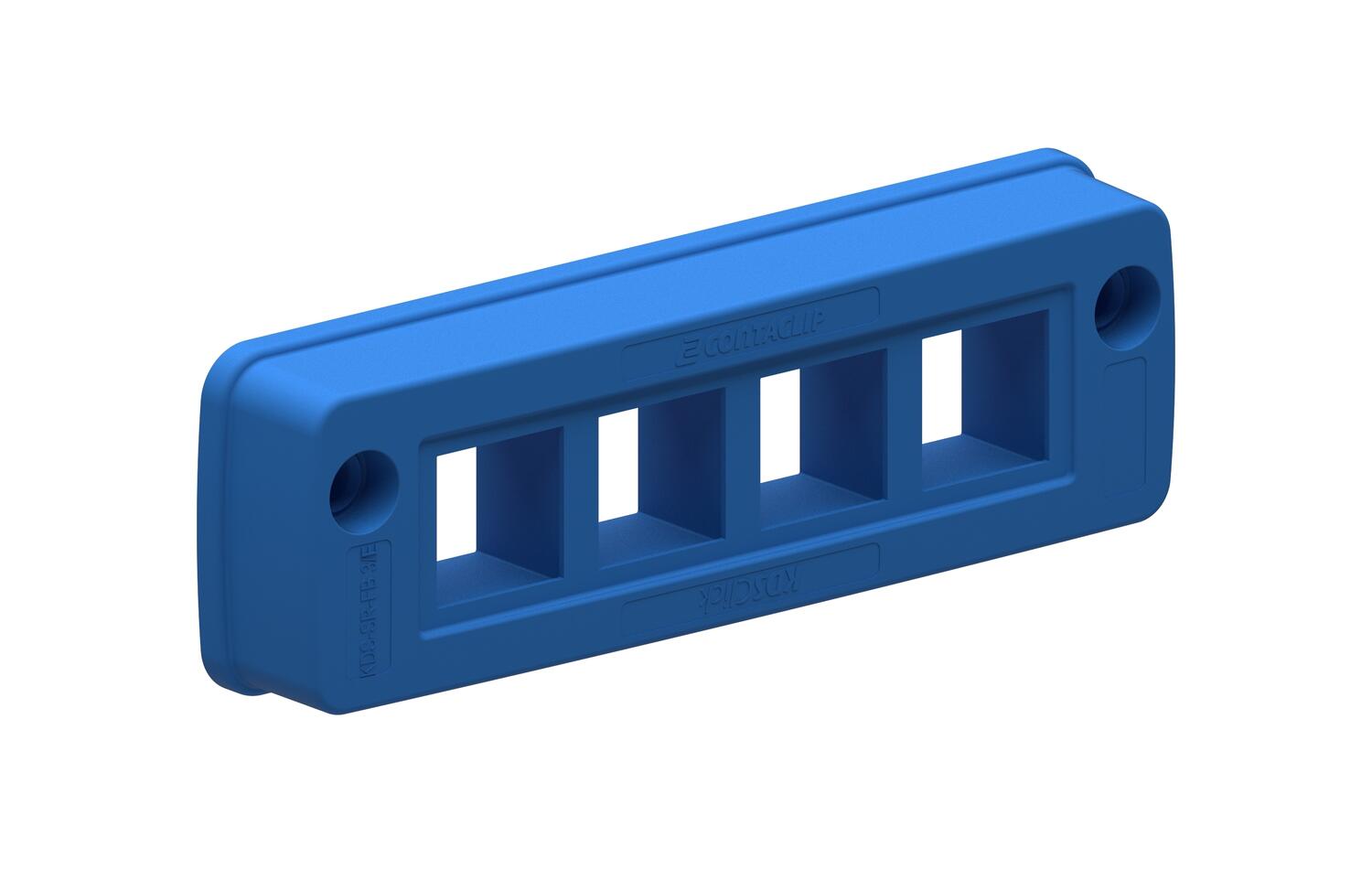

KDS-SR-FDA-FB3/E, FDA Certified Frame, Blue
Art:
29082.5
Copied
|
120 mm
|
89 mm
|
47.1 g
|
| ||
![]()

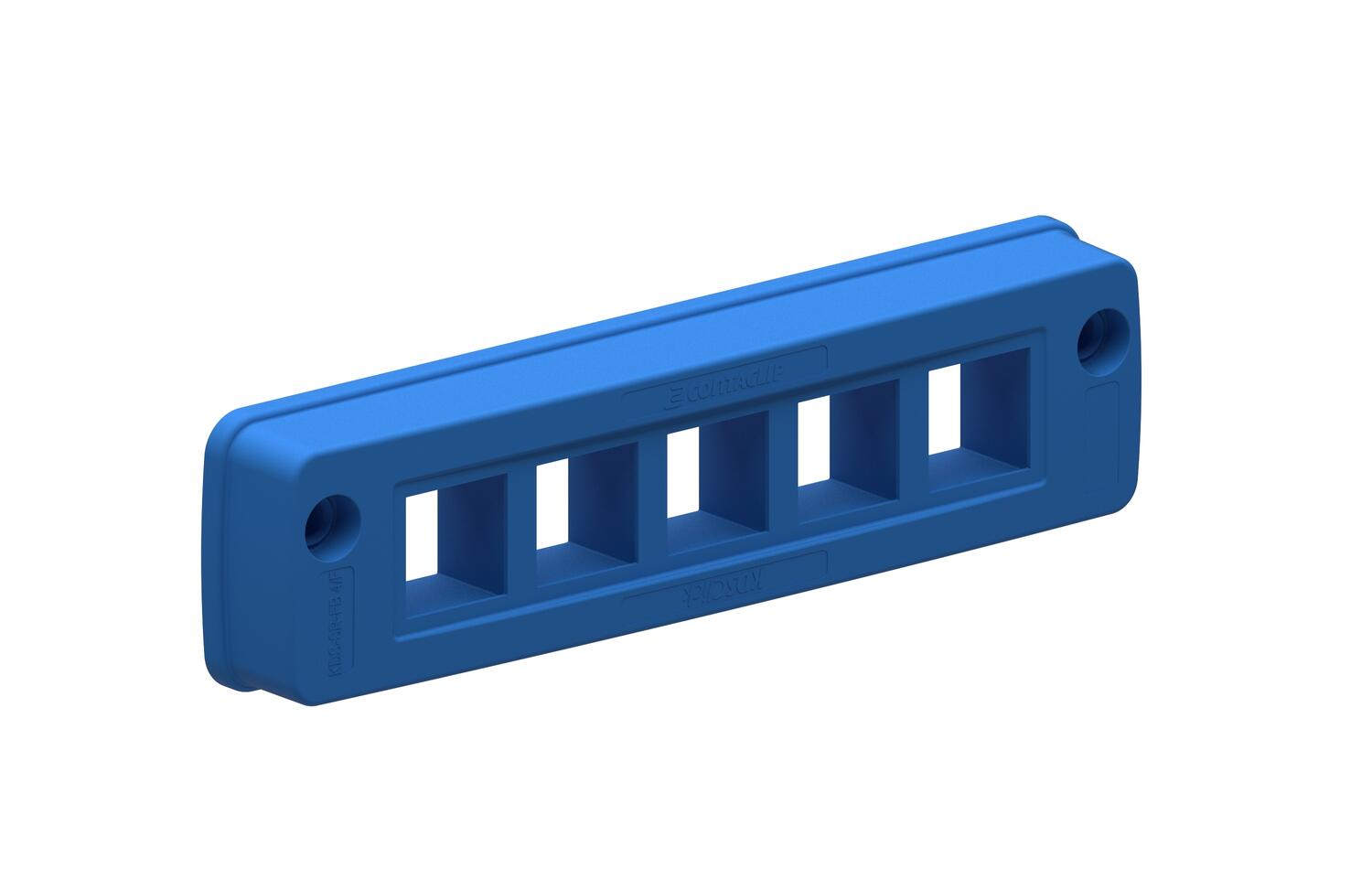

KDS-SR-FDA-FB4/F, FDA Certified Frame, Blue
Art:
29083.5
Copied
|
147 mm
|
111 mm
|
56.6 g
|
|
