CONTA-CLIP
General data |
|
|---|---|
| Mounting | Screw |
| Colour | Black |
| IP class | IP66 |
| Approvals | cUL, UL |
| NEMA class | 4x |

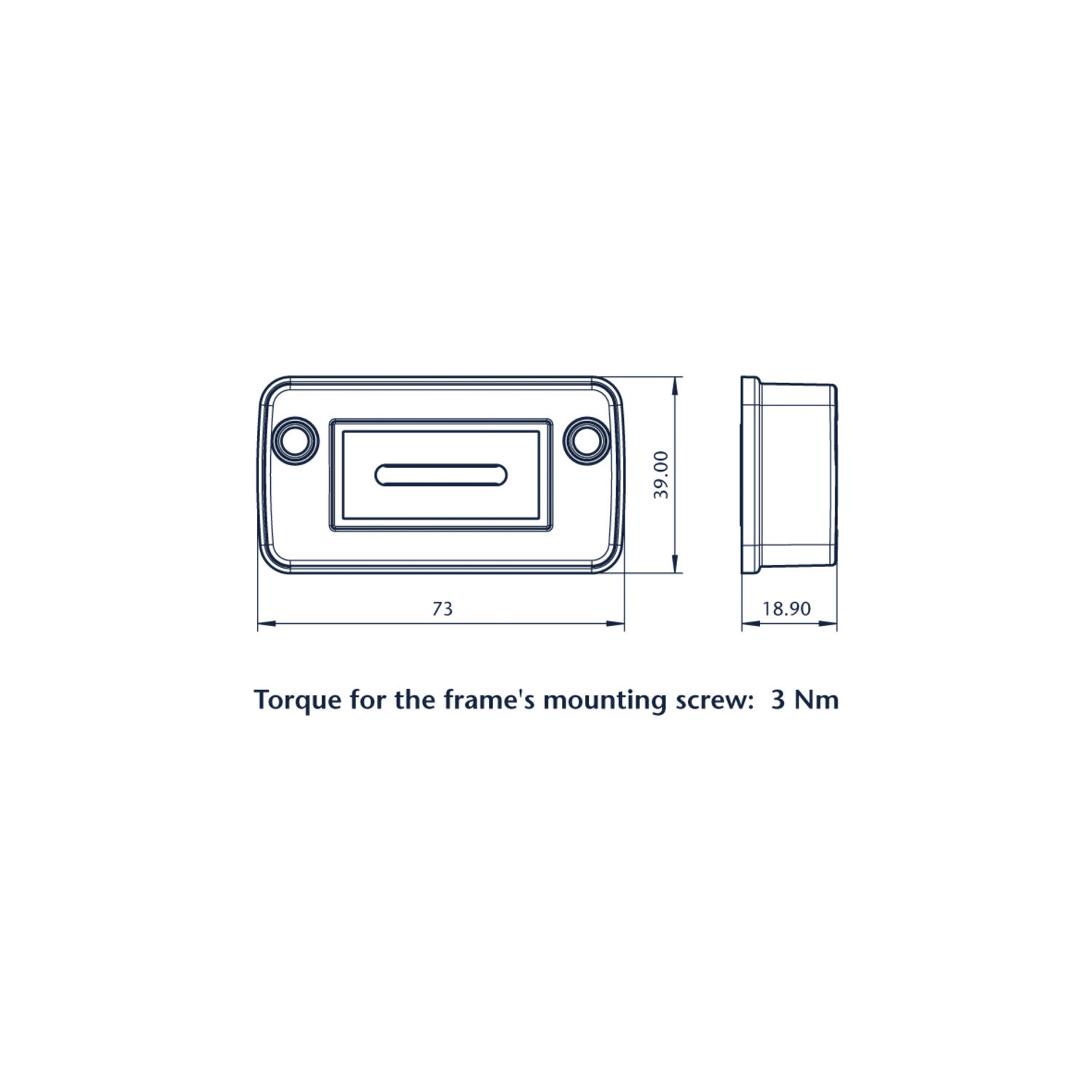

| Length | 73 mm |
| Width | 39 mm |
| Height | 18.9 mm |

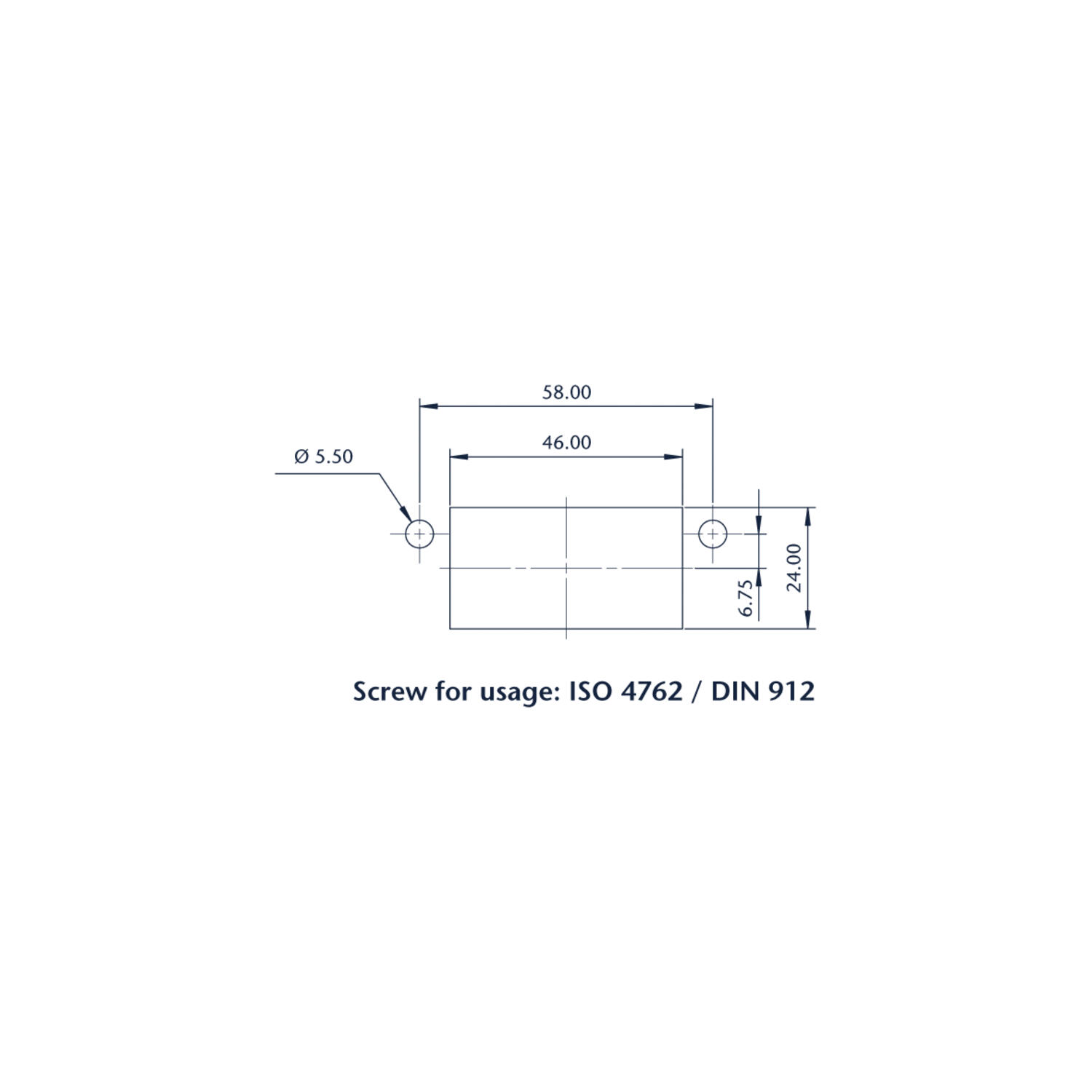

Mounting details |
|
| Length of cutout | 46 mm |
| Width of cutout | 24 mm |
| Number of screw holes | 2 Â |
| Diameter of the screw holes | 5.5 mm |
| Fixing screws | M5 |
| Torque of the fixing screws | 3 |
Materials |
|
| Material | Polyamide |
*Invisible Heading* |
|
|---|---|
| Glass-fibre reinforced | Yes |
| Flammability class | V-0 |
| Sealing material | Polyurethane-based |
| Silicone-free | Yes |
| Halogen-free | Yes |
| Operating temperature from | -40 °C |
| Operating temperature to | 120 °C |
| Approvals | cUL, UL |
Approvals |
|
| UL test standard | UL 508 |
| cUL test standard | C22.2 No. 14-95 |
Additional data |
|
| Tariff code | 39259020 |
| Country of origin | DE |
| Weight | 31.7 g |
| Pack size | 1 Â |
The KDS-FB Compact cable entry system is designed to be used with flat cables commonly used in the forklift, crane and elevator industry as well as round cables, pipes and tubes.
Â
The compact system provides a highly versatility and time saving solution for managing flat cables which can be tricky to handle.
Â
The "fish skin" on the seals mechanically surrounds the inserted flat cable and they ensure optimum tolerance compensation and IP66 protection.
Â
There is a wide selection of frames which can also take a number of round cables up to 16mm ø from the standard KDS range.
Â
Â
Â
Â
Have you ever wondered if there's any difference between cable coils and cable reels?
Our cable experts take you through the advantages of using cable coils.
What tri-rated cable are you currently using? Does the product or service you receive leave you wanting more? It’s time to ask the question. Because now, you’ve got options.
This innovative push-in connection system enables time savings of up to 50%, whether you're wiring control panels or managing complex installations
Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.
Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.
Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Length | Length of cutout | Weight | Price | ||
|---|---|---|---|---|---|---|

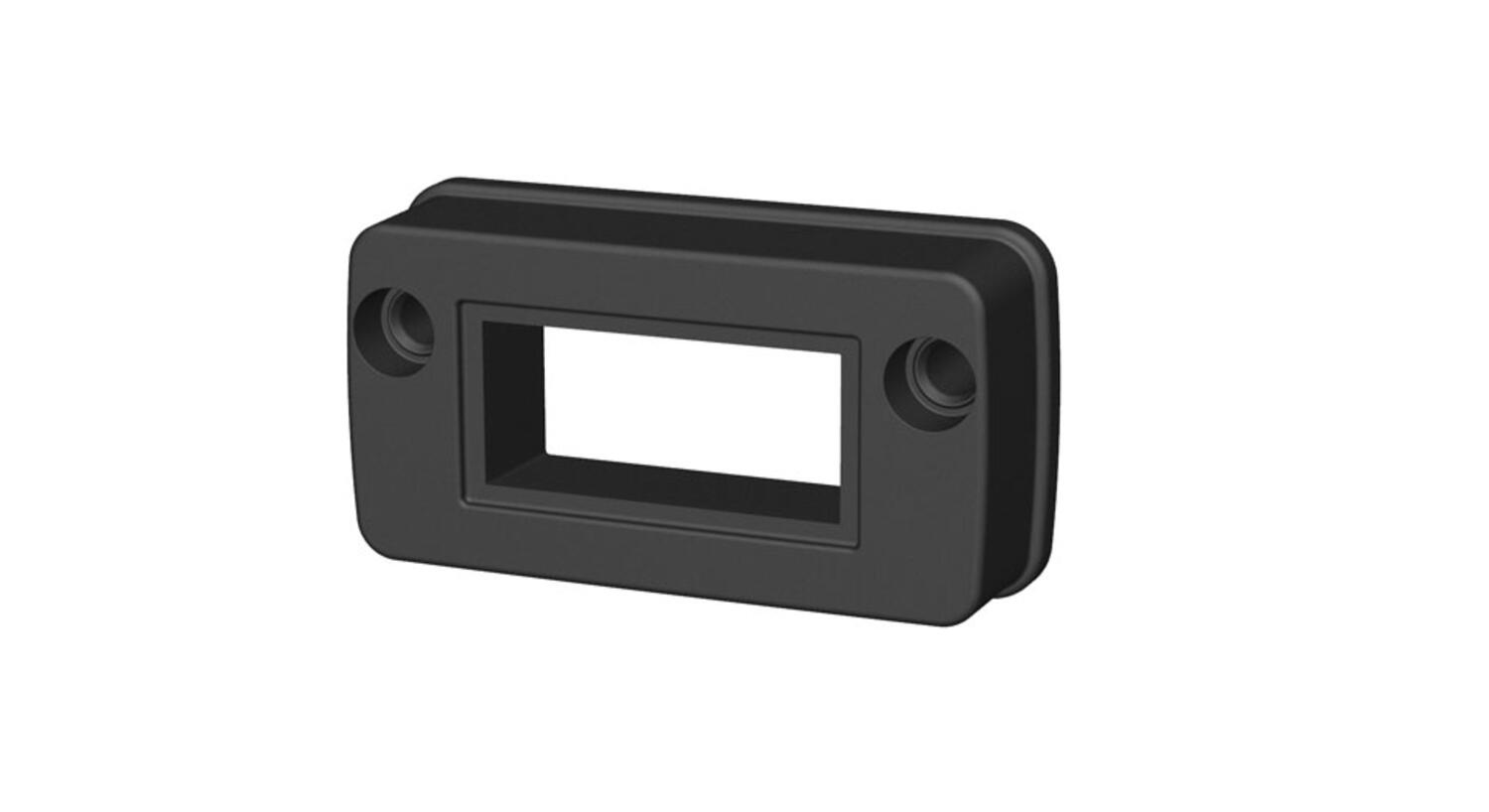

KDS-SR-FB1/A, Frame
Art:
28700.4
Copied
|
73 mm
|
46 mm
|
31.7 g
|
|
||

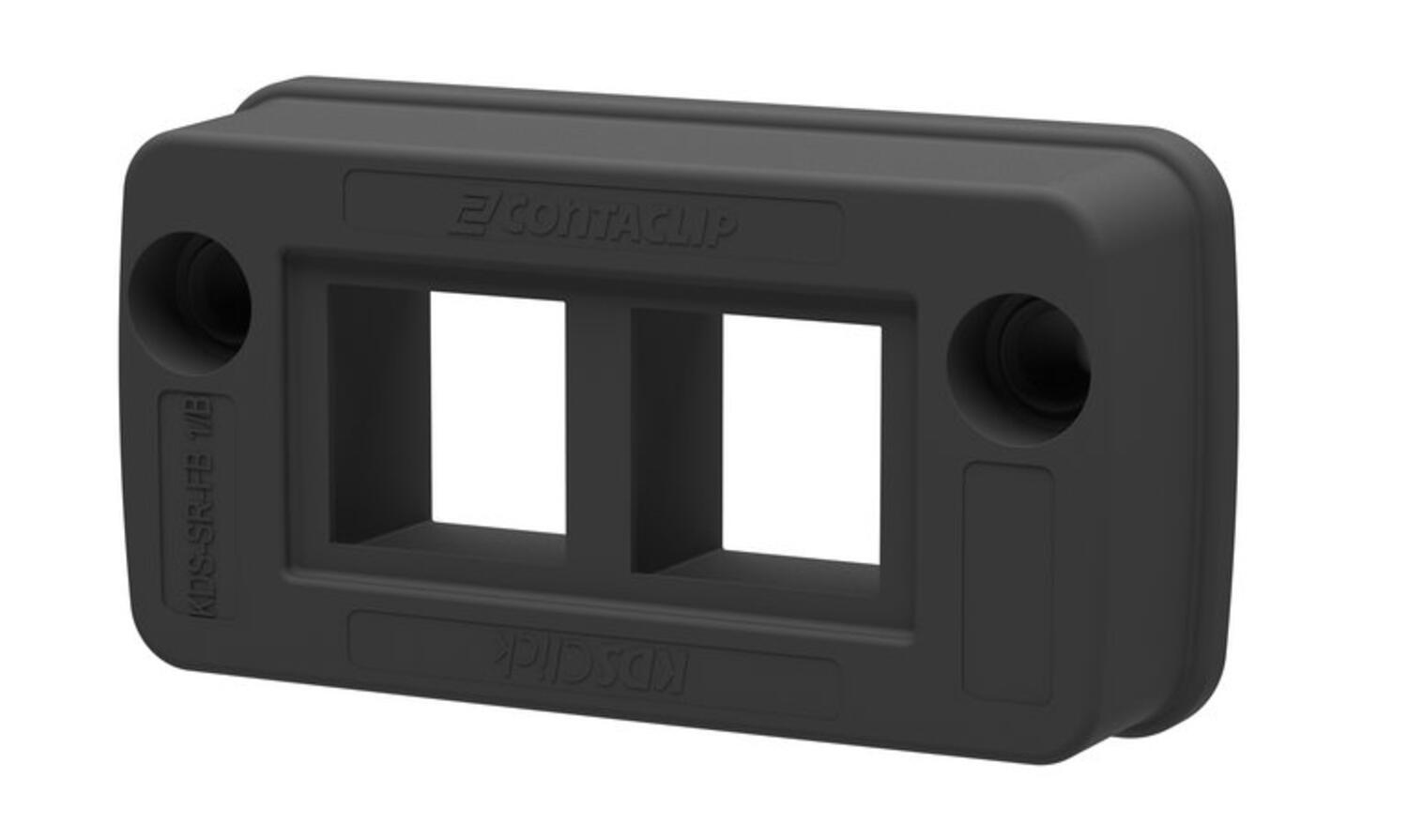

KDS-SR-FB1/B, Frame
Art:
29008.4
Copied
|
73 mm
|
46 mm
|
29.5 g
|
|
||

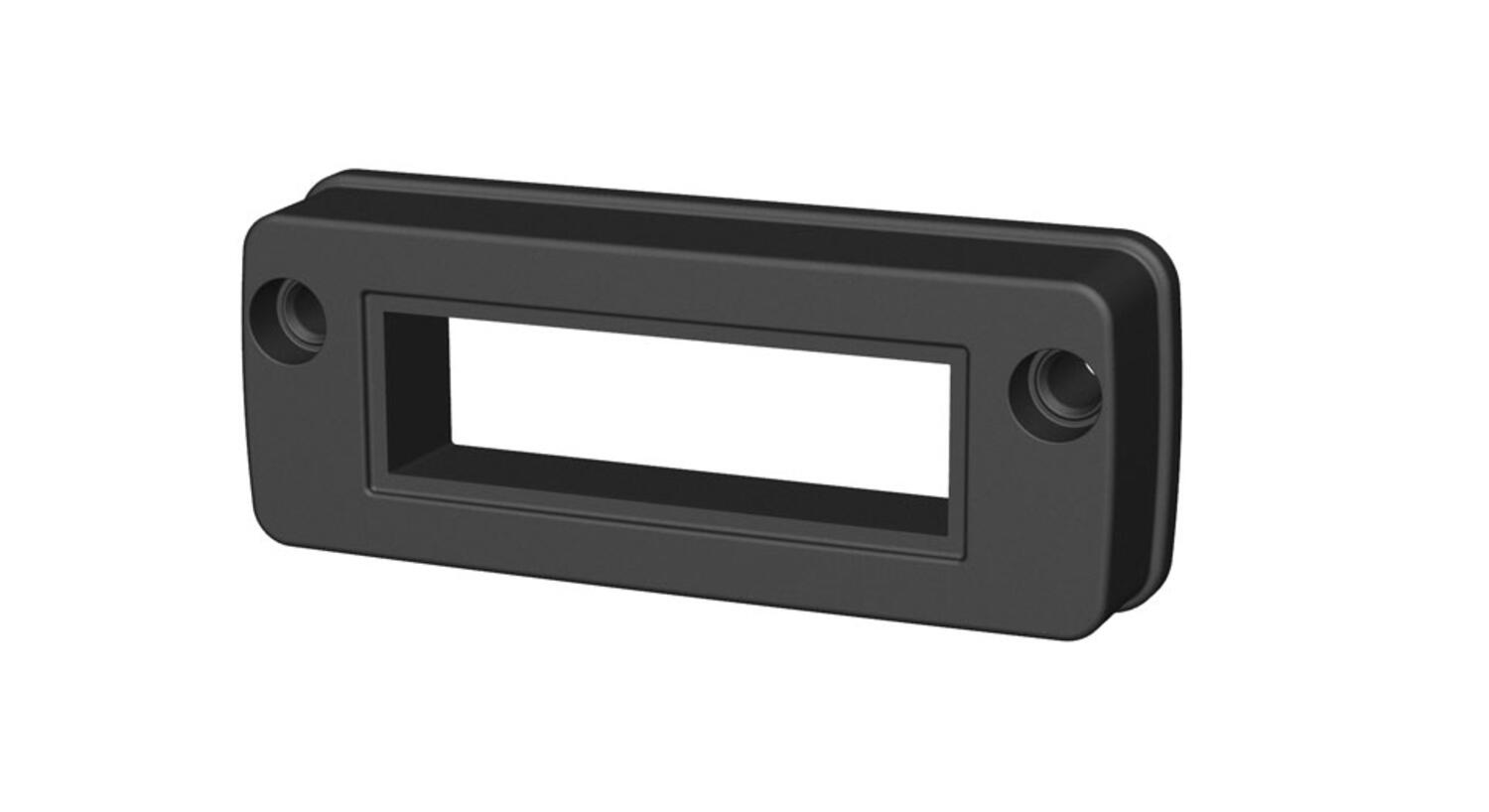

KDS-SR-FB2/A, Frame
Art:
28701.4
Copied
|
98 mm
|
68 mm
|
40.31 g
|
|
||
KDS-SR-FB2/B, Frame
Art:
28702.4
Copied
|
98 mm
|
68 mm
|
41.51 g
|
|
||

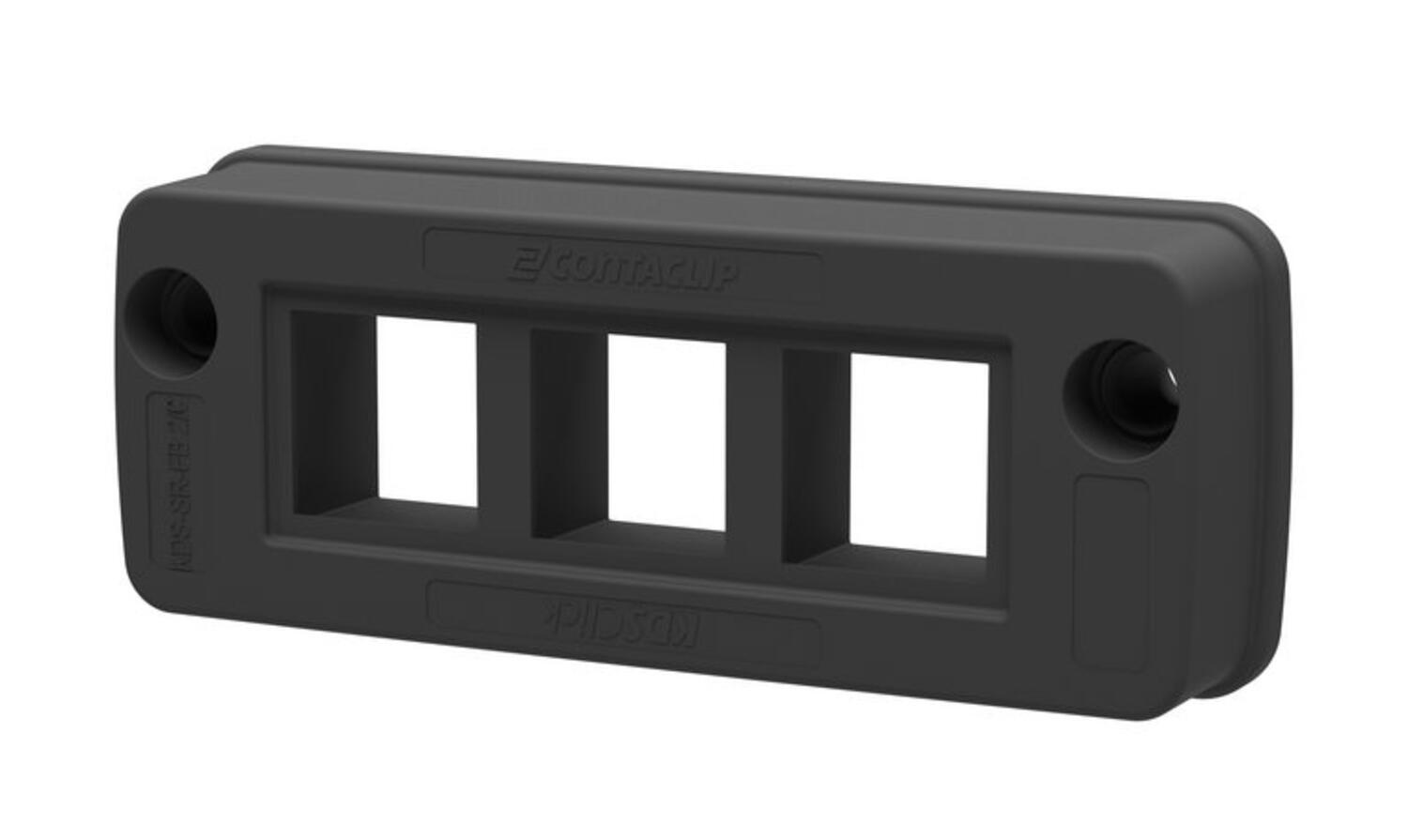

KDS-SR-FB2/C, Frame
Art:
28799.4
Copied
|
98 mm
|
68 mm
|
38.5 g
|
|
||

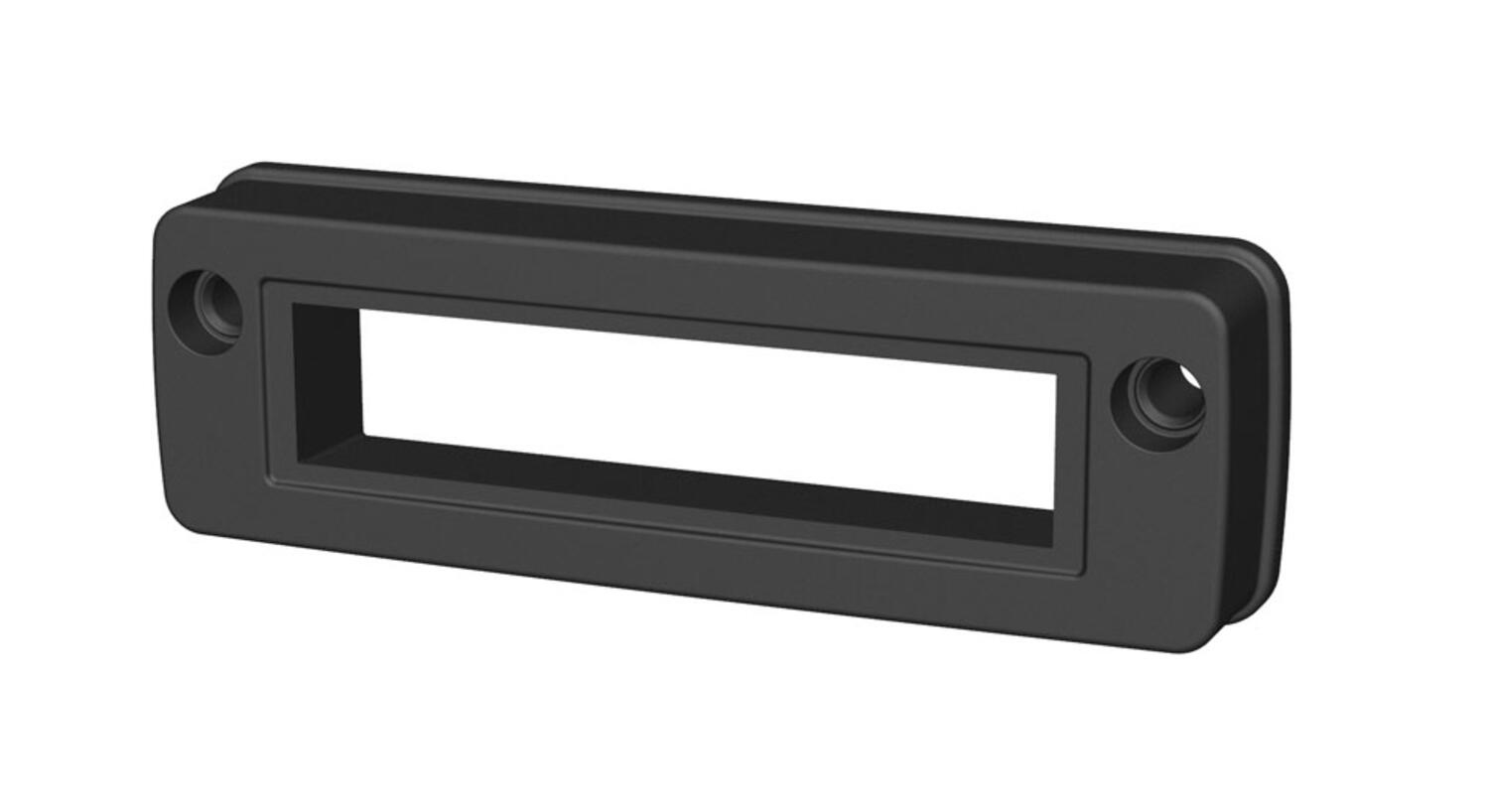

KDS-SR-FB3/A, Frame
Art:
28703.4
Copied
|
120 mm
|
89 mm
|
47.1 g
|
|
||

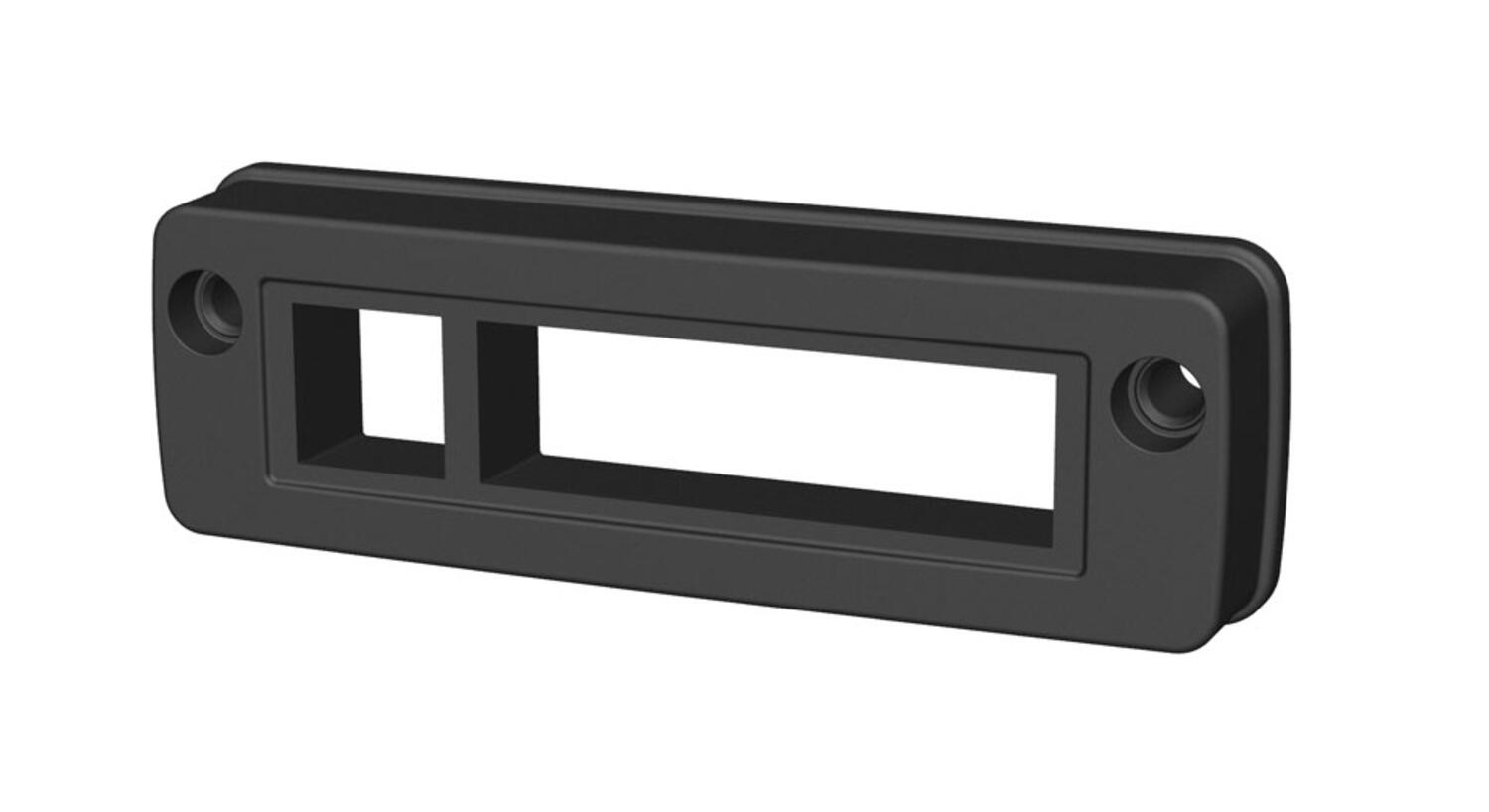

KDS-SR-FB3/B, Frame
Art:
28704.4
Copied
|
120 mm
|
89 mm
|
48.1 g
|
|
||

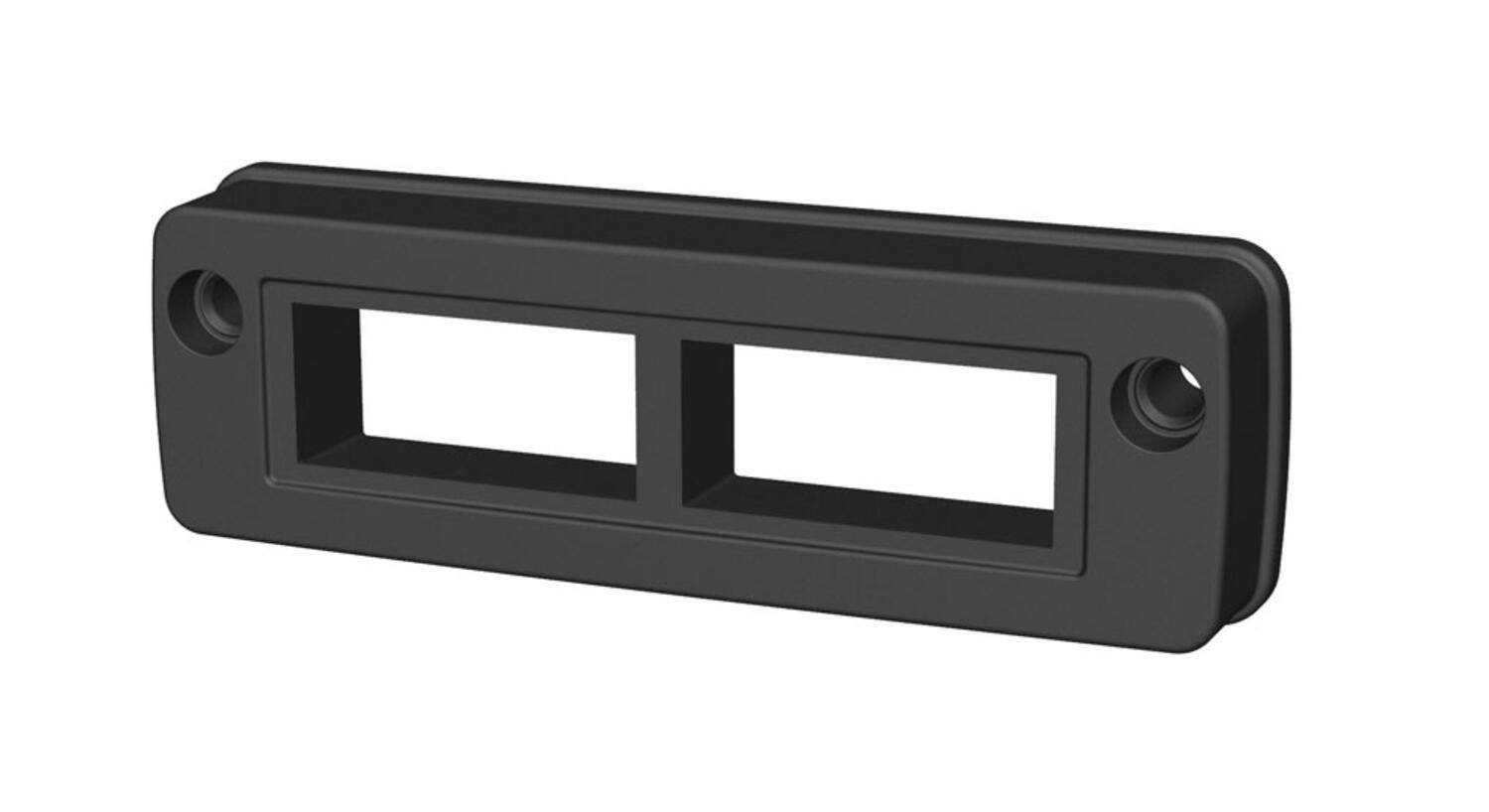

KDS-SR-FB3/C, Frame
Art:
28705.4
Copied
|
120 mm
|
89 mm
|
48.1 g
|
|
||

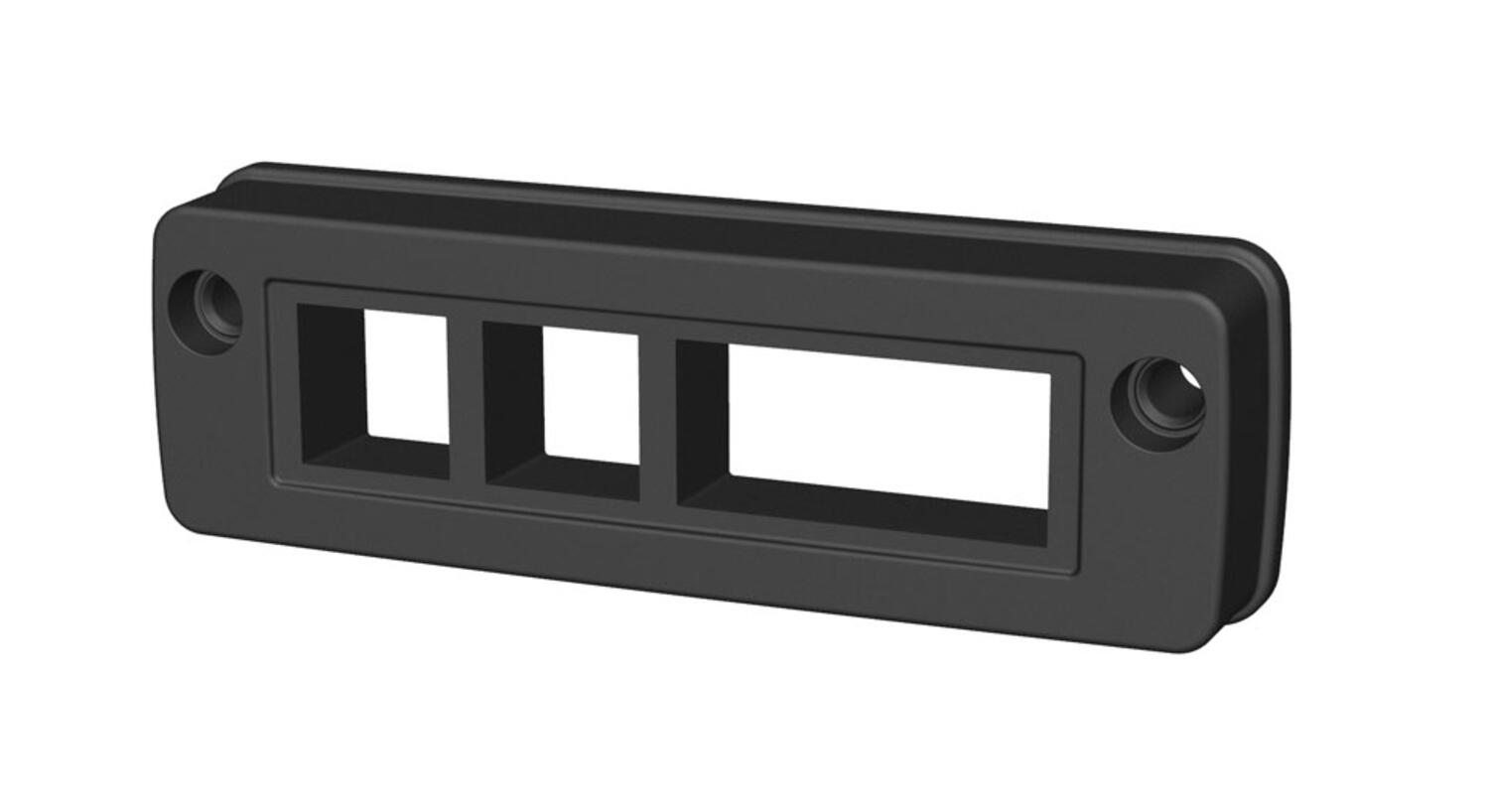

KDS-SR-FB3/D, Frame
Art:
28706.4
Copied
|
120 mm
|
89 mm
|
49.2 g
|
|
||

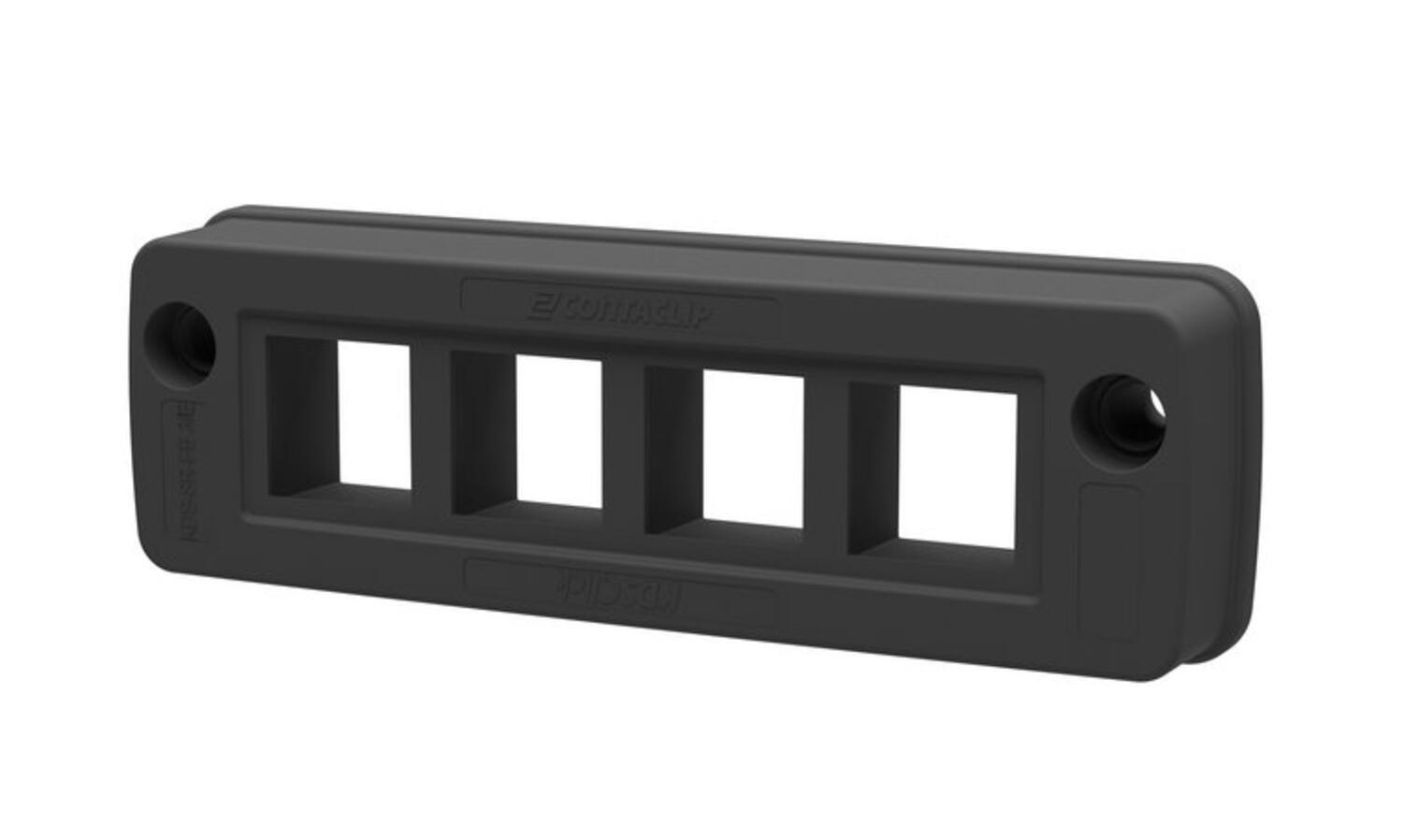

KDS-SR-FB3/E, Frame
Art:
29009.4
Copied
|
120 mm
|
89 mm
|
47.1 g
|
|
||

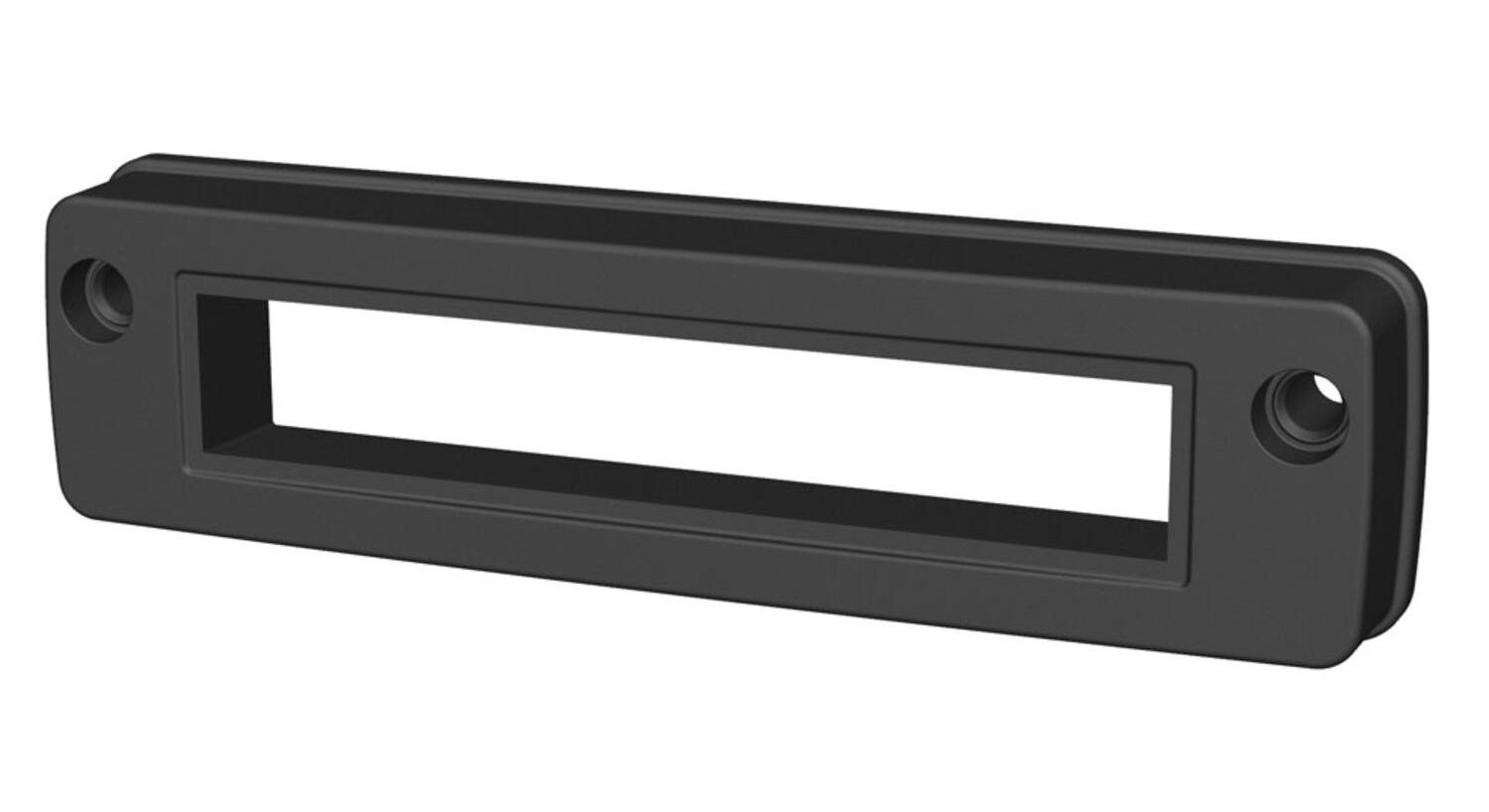

KDS-SR-FB4/A, Frame
Art:
28707.4
Copied
|
147 mm
|
111 mm
|
56.6 g
|
|
||

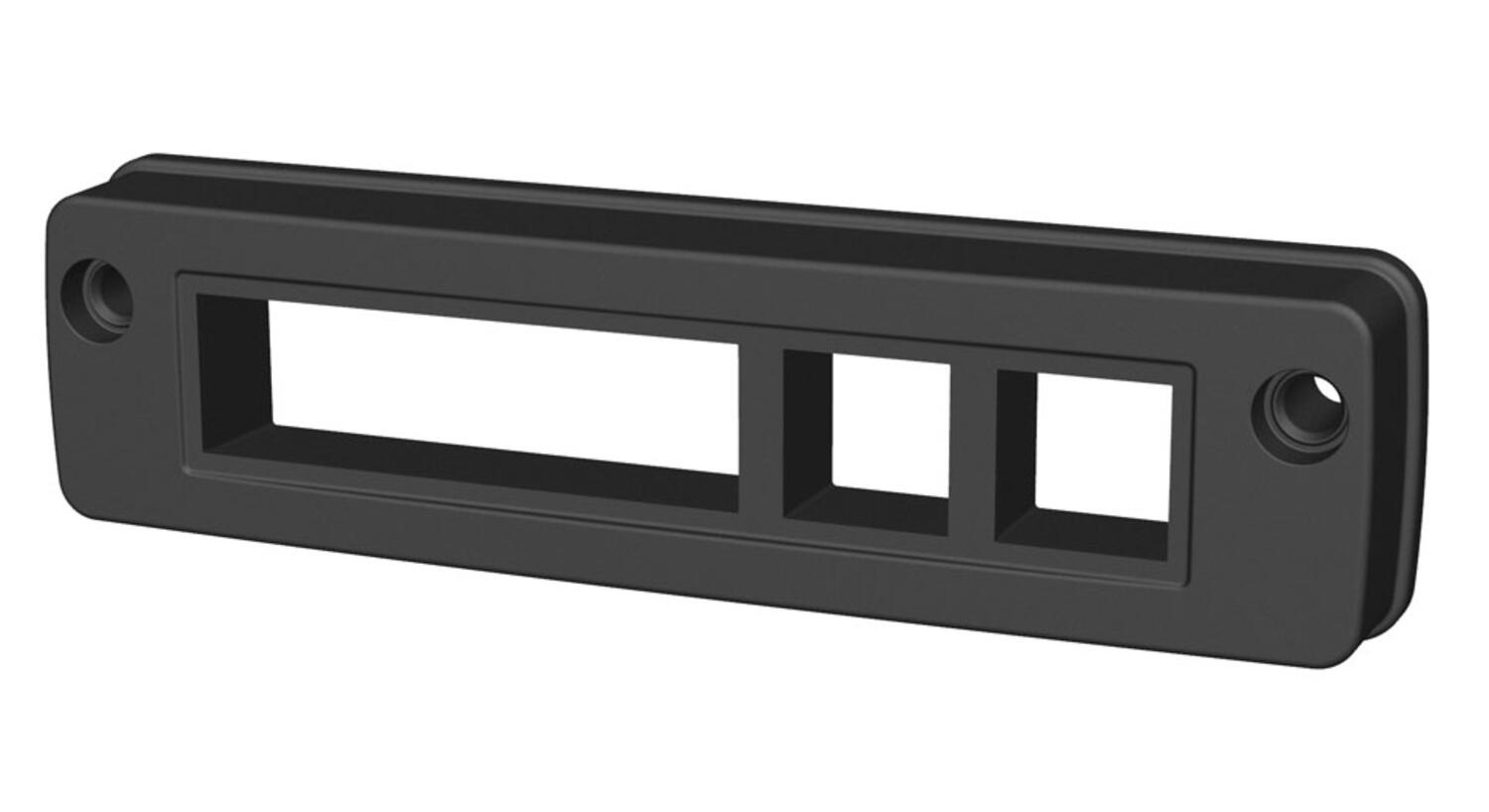

KDS-SR-FB4/B, Frame
Art:
28708.4
Copied
|
147 mm
|
111 mm
|
58 g
|
|
||

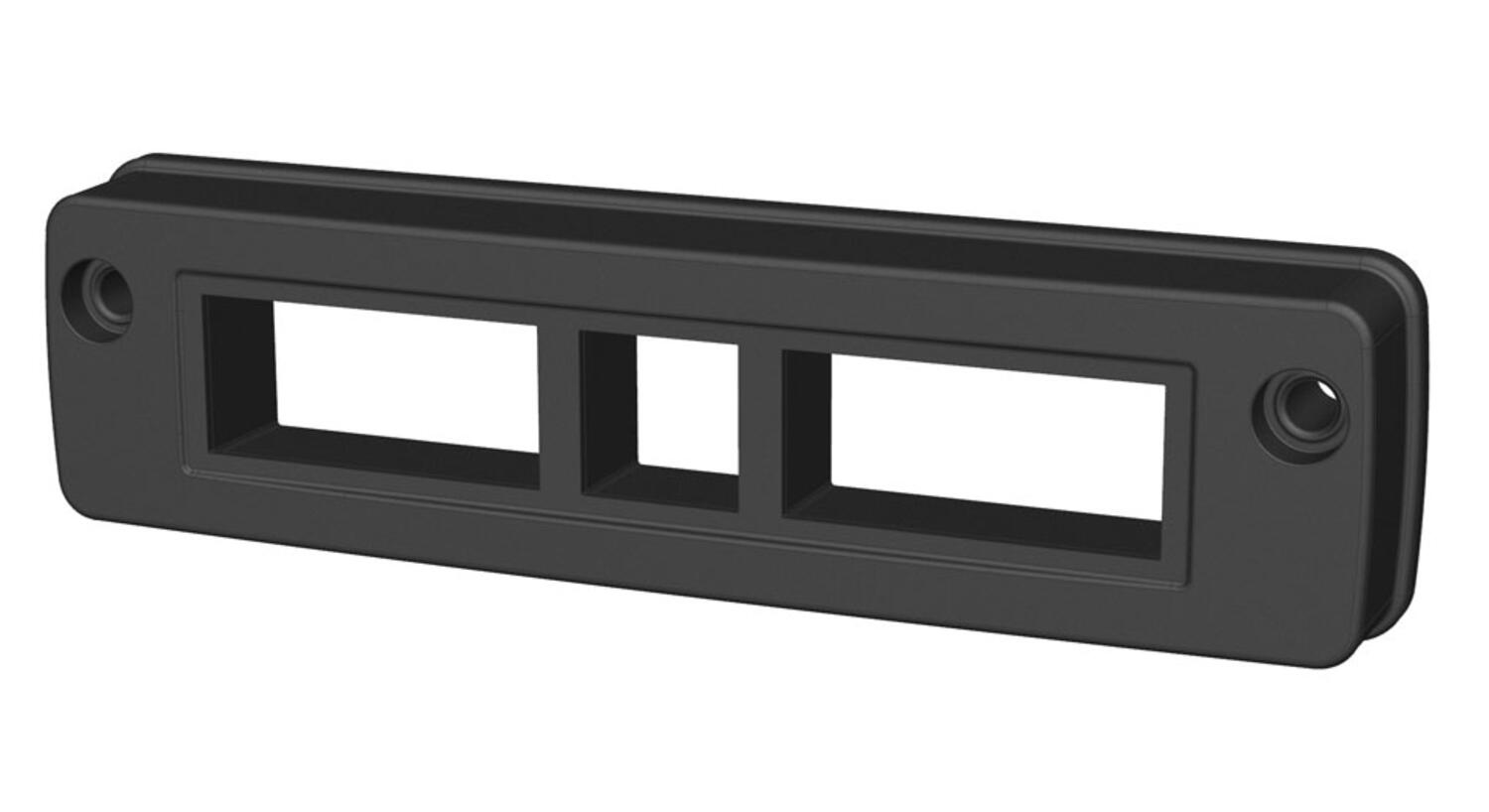

KDS-SR-FB4/C, Frame
Art:
28709.4
Copied
|
147 mm
|
111 mm
|
58.9 g
|
|
||

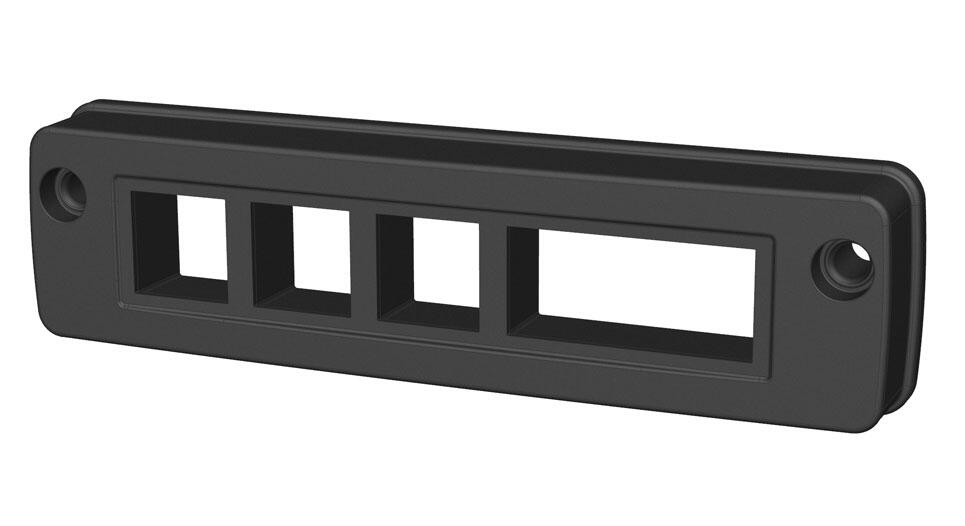

KDS-SR-FB4/D, Frame
Art:
28710.4
Copied
|
147 mm
|
111 mm
|
59.7 g
|
|
||

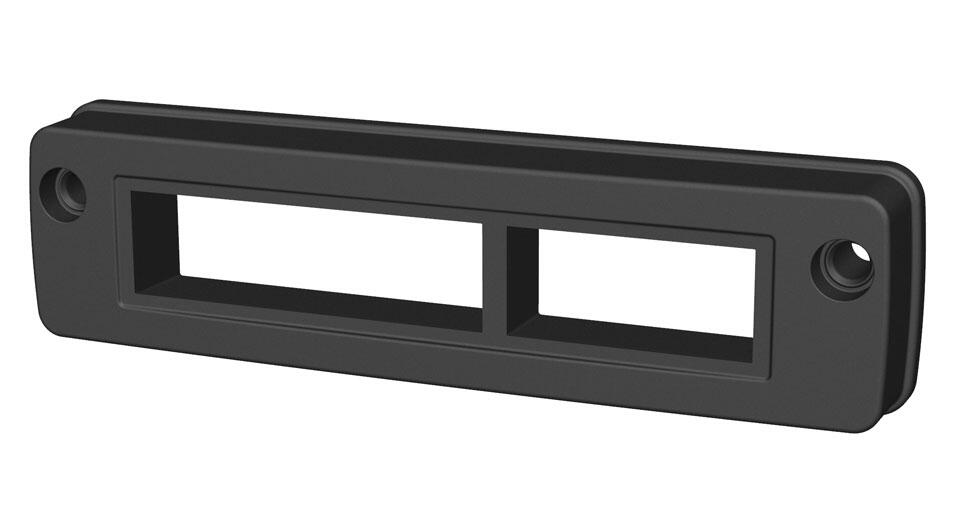

KDS-SR-FB4/E, Frame
Art:
28711.4
Copied
|
147 mm
|
111 mm
|
57.5 g
|
|
||

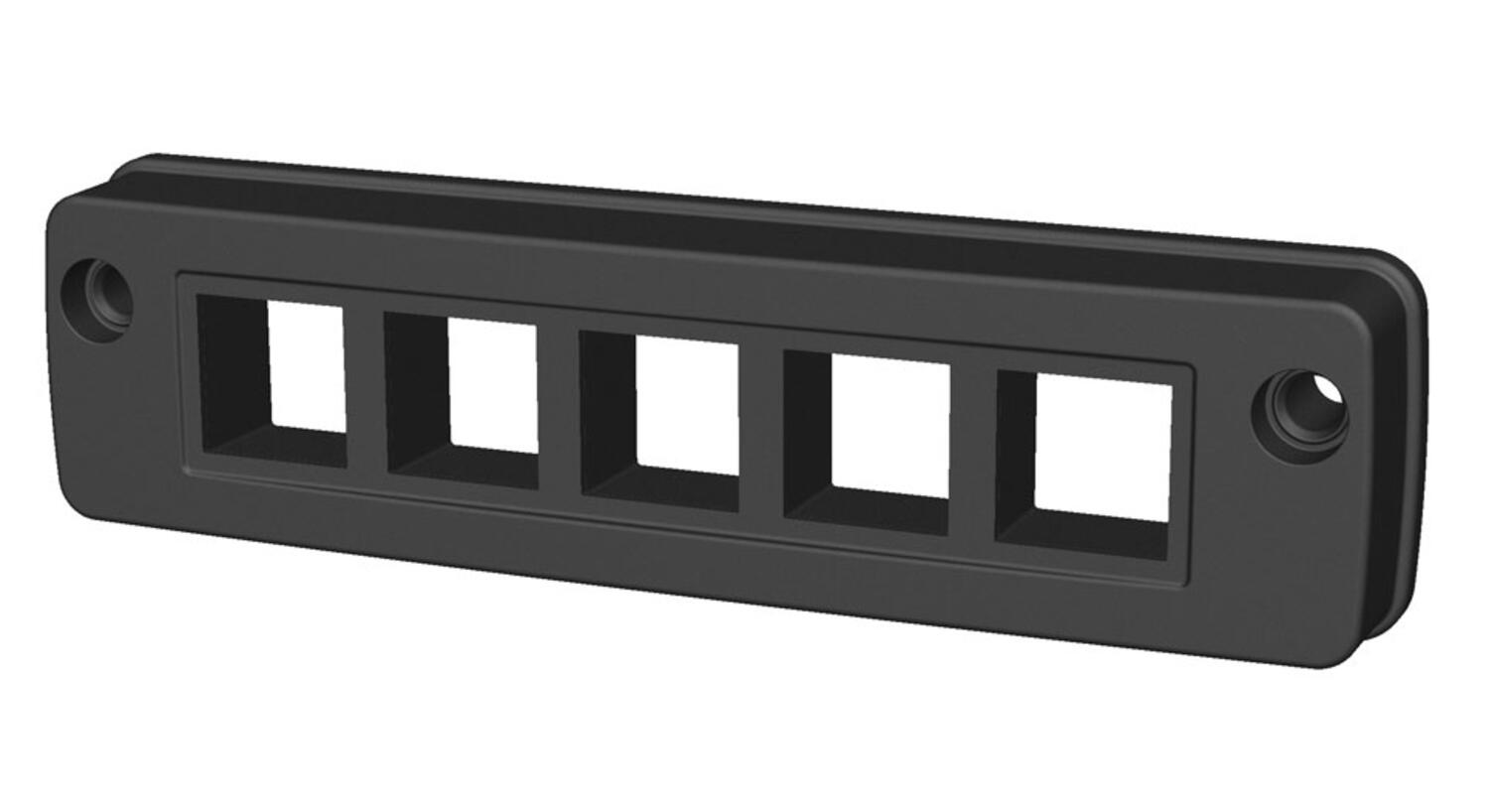

KDS-SR-FB4/F, Frame
Art:
28712.4
Copied
|
147 mm
|
111 mm
|
61.4 g
|
|
