General data |
|
---|---|
Mounting | Screw on, Split |
Colour | Black |
Length | 100 mm |
Width | 70 mm |
Height | 25.8 mm |
Installed height | 11 mm |
Mounting details |
|
Length of cutout | 68.5 mm |
Width of cutout | 36 mm |
Number of screw holes | 4 Â |
Diameter of the screw holes | 5.5 mm |
Fixing screws | M5 |
Torque of the fixing screws | 3 |
Materials |
|
---|---|
Material | Polyamide 6.6 |
Glass-fibre reinforced | Yes |
Flammability class | V-0 |
Sealing material | Polyurethane-based |
Silicone-free | Yes |
Halogen-free | Yes |
Operating temperature from | -40 °C |
Operating temperature to | 90 °C |
Additional data |
|
Tariff code | 39259020 |
Country of origin | DE |
Pack size | 1 Â |

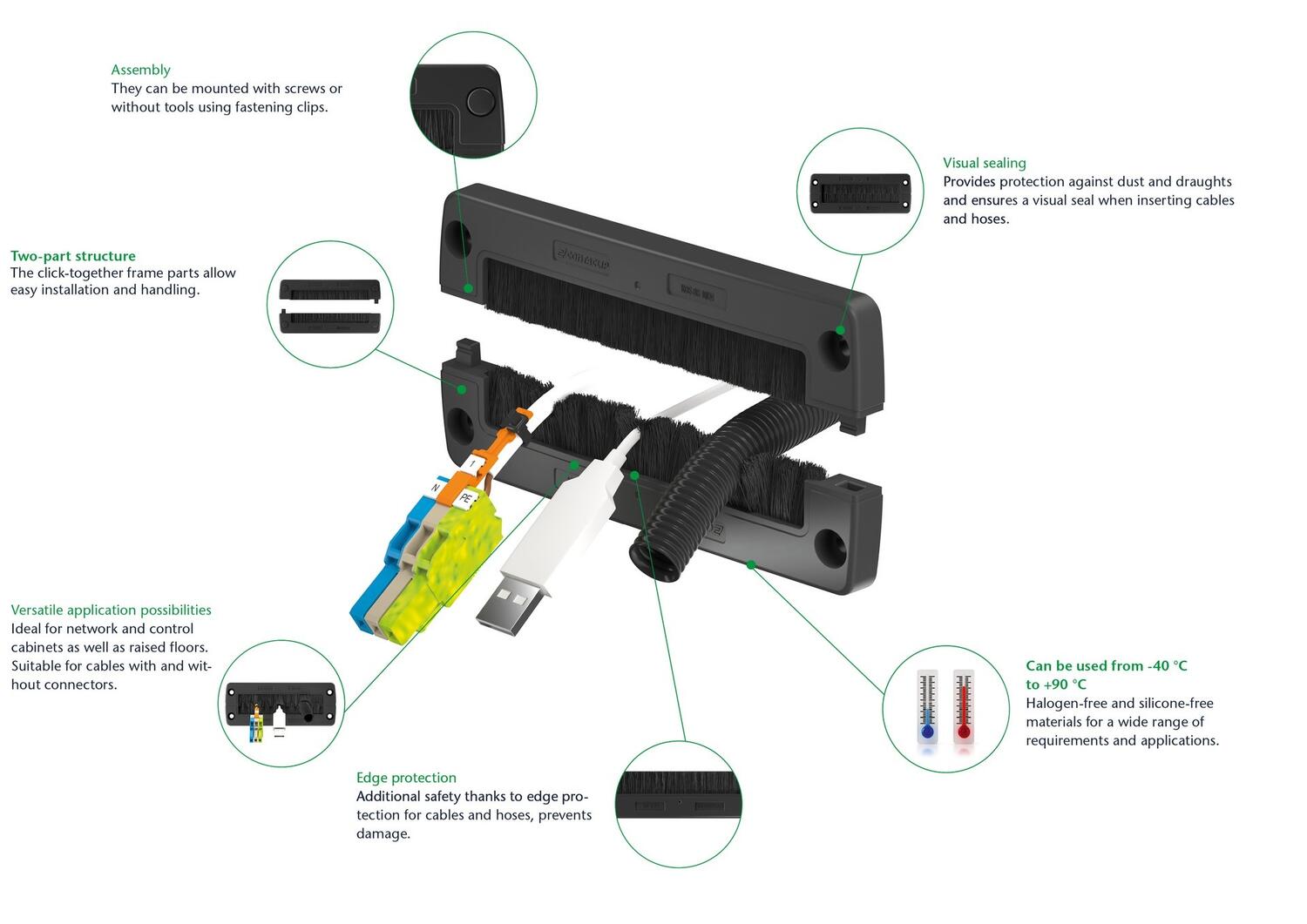

Conta-Clips KDS-BS & KDS -BC provides a quick and simple entry system for all types of cables, hoses and pipes, with or without connectors. The brush construction provides protection from dust and draughts getting into the the panels and enclosures. Â They can be screwed directly on to the surface or there is a plastic rivet version which is ideal for applications where access is restricted.
The split frame means these can be retro fitted on existing installations without un-terminating.
This innovative push-in connection system enables time savings of up to 50%, whether you're wiring control panels or managing complex installations
Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.
Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.
Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems
Choosing the right circuit breaker is important for protecting DC circuits. Two primary forms of protection are MCBs and ECBs. The experts at OEM Automatic breakdown the two circuit breakers for you!
New signal lights from Auer Signal are now available! The first products to be launched in this series are the Smart Dot 50 in the Basic and Standard versions, as well as the Smart Indicator 50 in the Basic version.Â
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Parts | Outer diameter | Mounting | Length | Width | Height | Installed height | Length of cutout | Width of cutout | Number of screw holes | Diameter of the screw holes | Fixing screws | Torque of the fixing screws | Material | Glass-fibre reinforced | Sealing material | Tariff code | Pack size | Rivet head diameter | Price | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]()

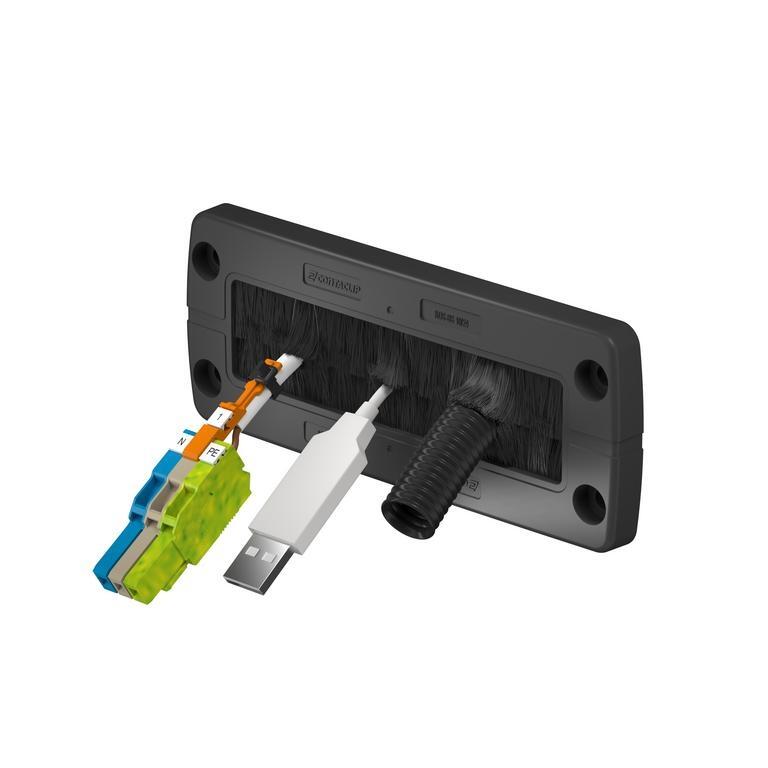

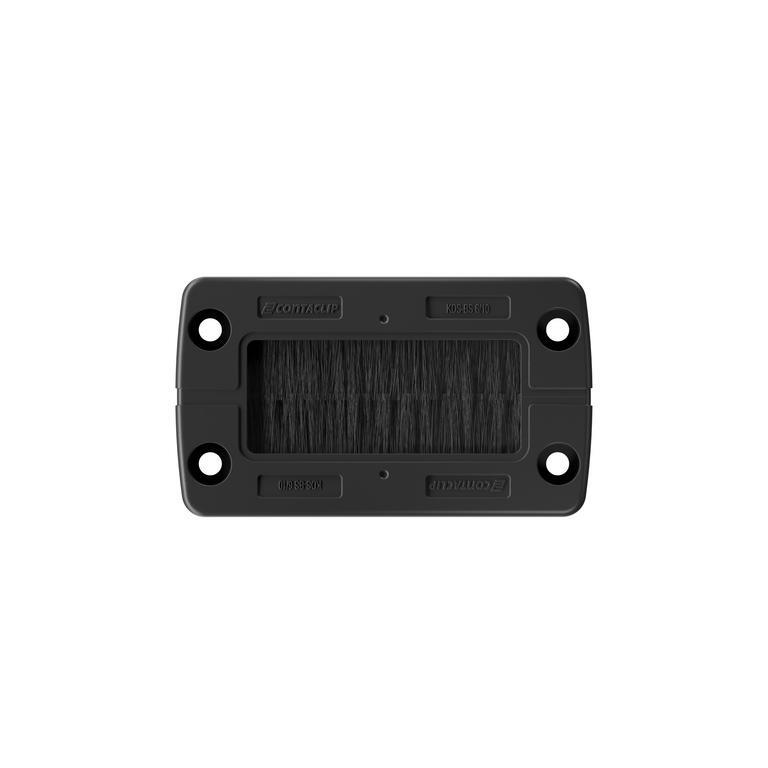

KDS-BS 6/10, Brush entry frame, screw fixing, Black
Art:
29000.4
Copied
|
|
Screw on, Split
|
100 mm
|
70 mm
|
25.8 mm
|
11 mm
|
68.5 mm
|
36 mm
|
4
|
5.5 mm
|
M5
|
3
|
Polyamide 6.6
|
Yes
|
Polyurethane-based
|
39259020
|
1
|
|
| ||
![]()

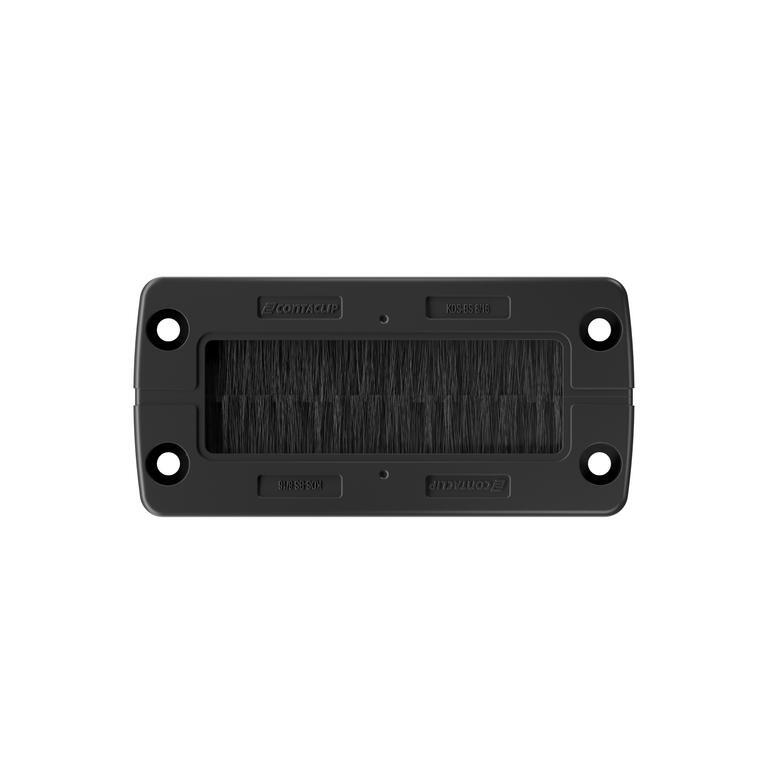

KDS-BS 8/16, Brush entry frame, screw fixing, Black
Art:
29001.4
Copied
|
|
Screw on, Split
|
120 mm
|
70 mm
|
11 mm
|
11 mm
|
91 mm
|
46 mm
|
4
|
5.5 mm
|
M5
|
3
|
Polyamide 6.6
|
Yes
|
Polyurethane-based
|
39259020
|
1
|
|
| ||
![]()

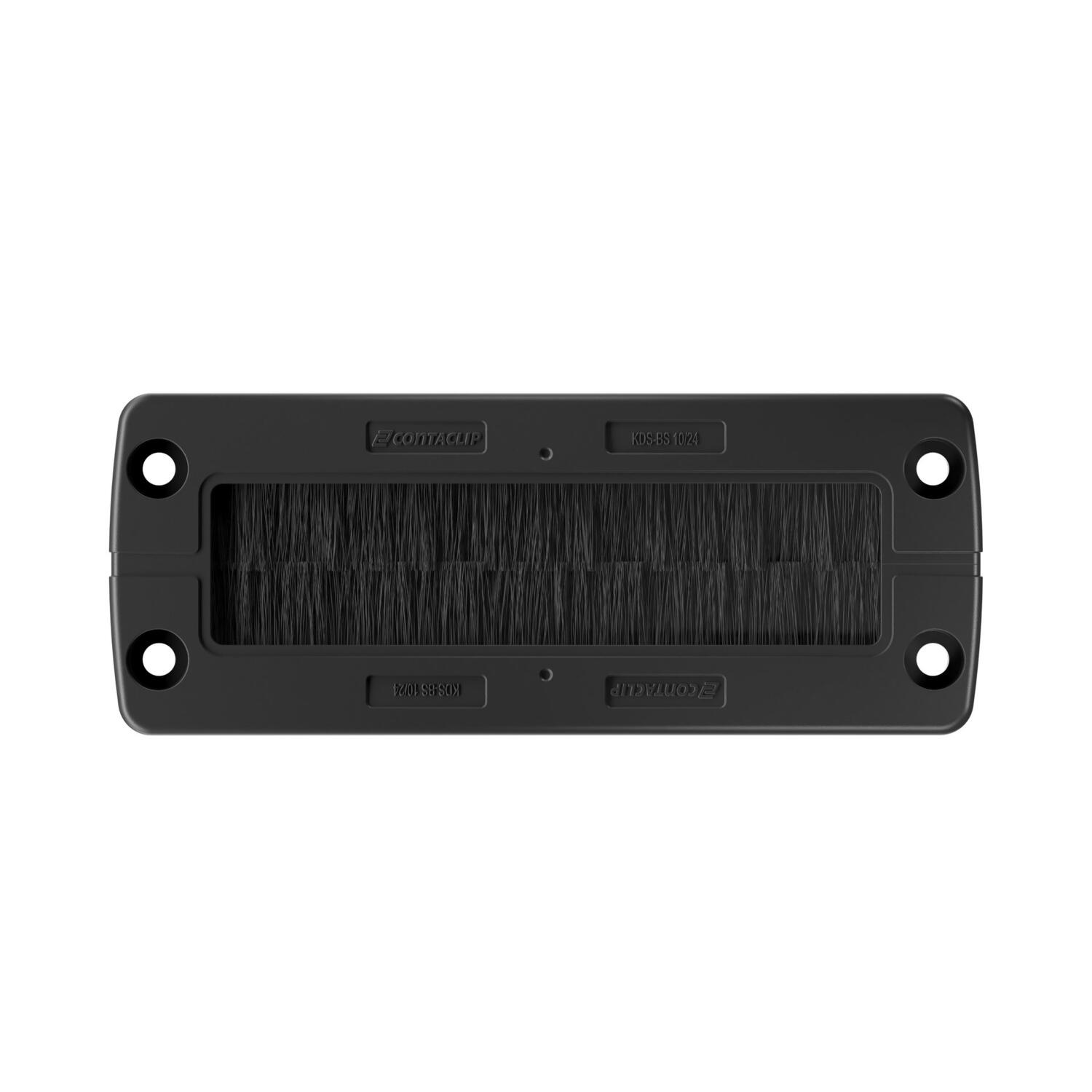

KDS-BS 10/24, Brush entry frame, screw fixing, Black
Art:
29002.4
Copied
|
|
Screw on, Split
|
147 mm
|
70 mm
|
11 mm
|
11 mm
|
113.5 mm
|
46 mm
|
4
|
5.5 mm
|
M5
|
3
|
Polyamide 6.6
|
Yes
|
Polyurethane-based
|
39259020
|
1
|
|
| ||
![]()

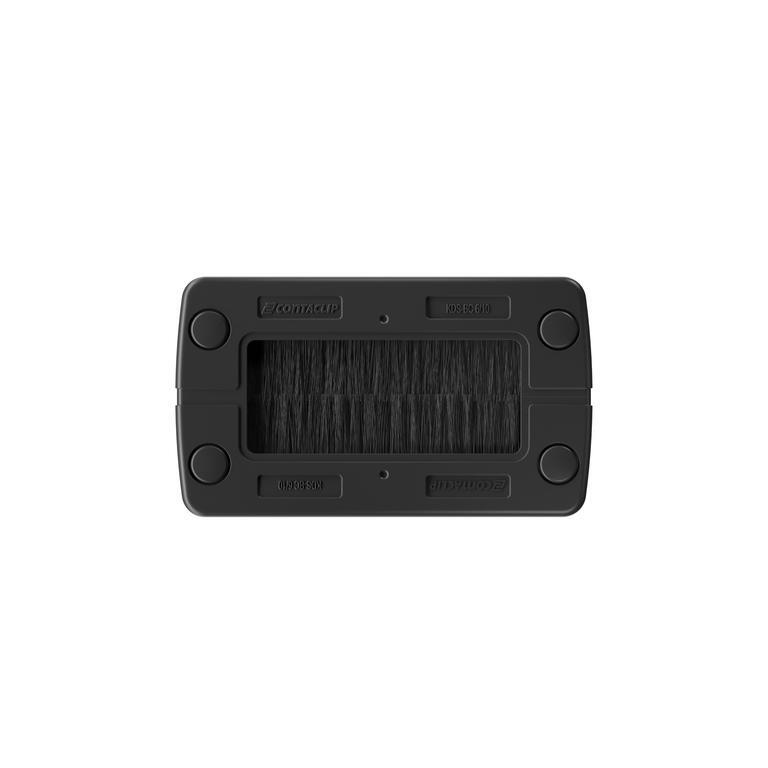

KDS-BC 6/10, Brush entry frame, expanding rivet fixing, Black
Art:
29003.4
Copied
|
|
Rivet, Split
|
100 mm
|
70 mm
|
11 mm
|
11 mm
|
91 mm
|
46 mm
|
|
5.5 mm
|
M5
|
|
Polyamide 6.6
|
Yes
|
Polyurethane-based
|
39259020
|
1
|
|
| ||
![]()

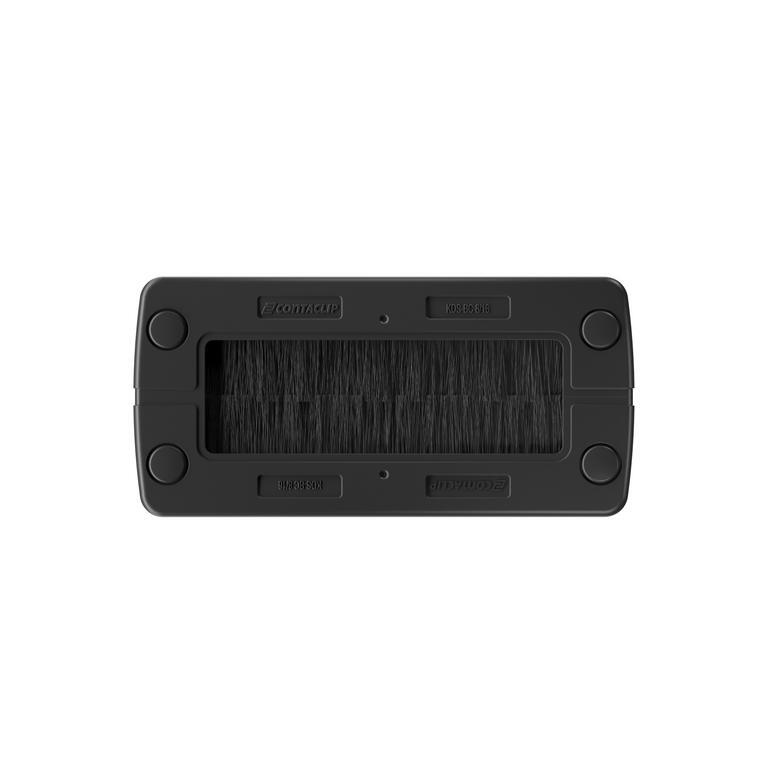

KDS-BC 8/16, Brush entry frame, expanding rivet fixing, Black
Art:
29004.4
Copied
|
|
Rivet, Split
|
120 mm
|
70 mm
|
11 mm
|
11 mm
|
91 mm
|
46 mm
|
|
5.5 mm
|
M5
|
|
Polyamide 6.6
|
Yes
|
Polyurethane-based
|
39259020
|
1
|
|
| ||
![]()

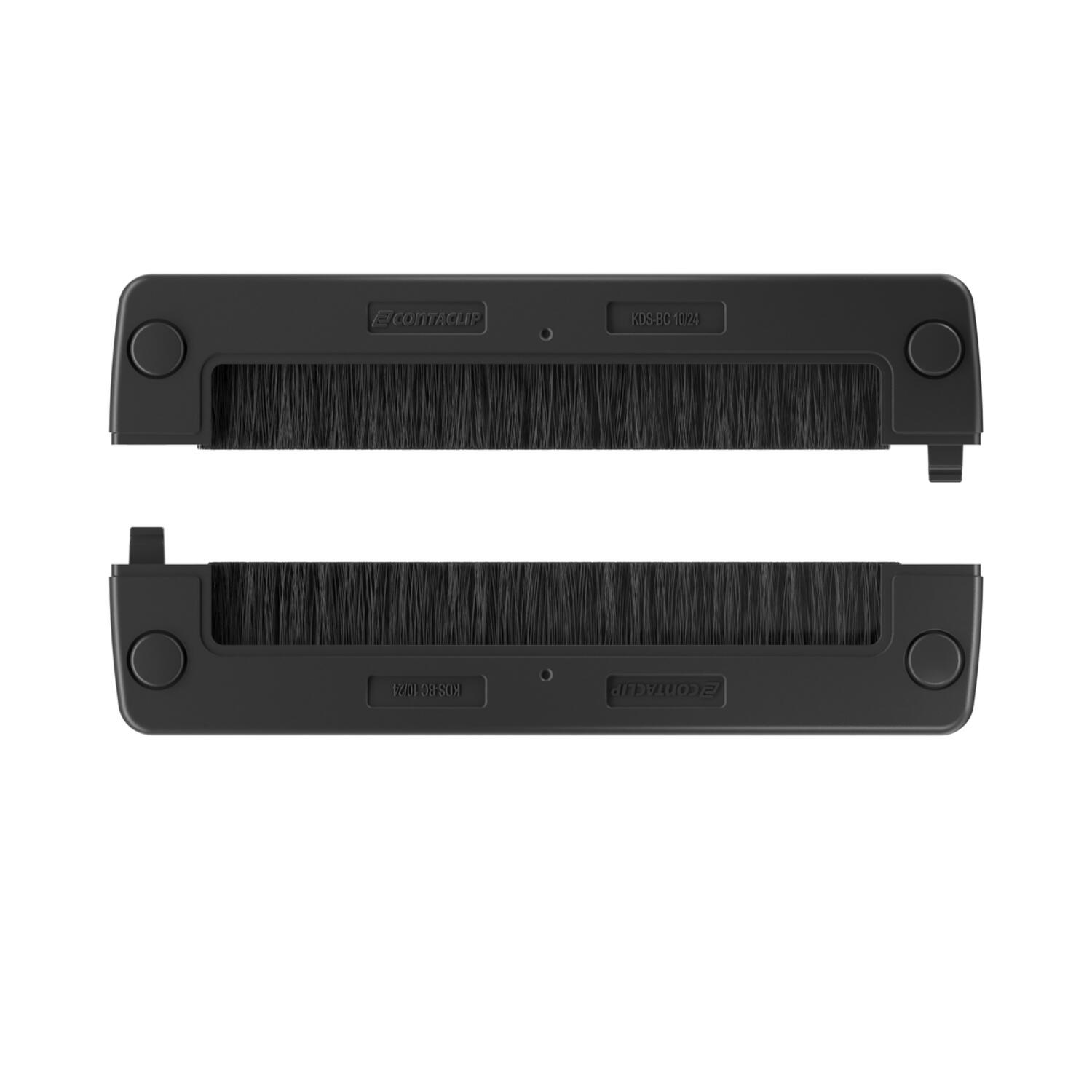

KDS-BC 10/24, Brush entry frame, expanding rivet fixing, Black
Art:
29005.4
Copied
|
|
Rivet, Split
|
147 mm
|
70 mm
|
11 mm
|
11 mm
|
113.5 mm
|
46 mm
|
|
5.5 mm
|
M5
|
|
Polyamide 6.6
|
Yes
|
Polyurethane-based
|
39259020
|
1
|
|
| ||
![]()

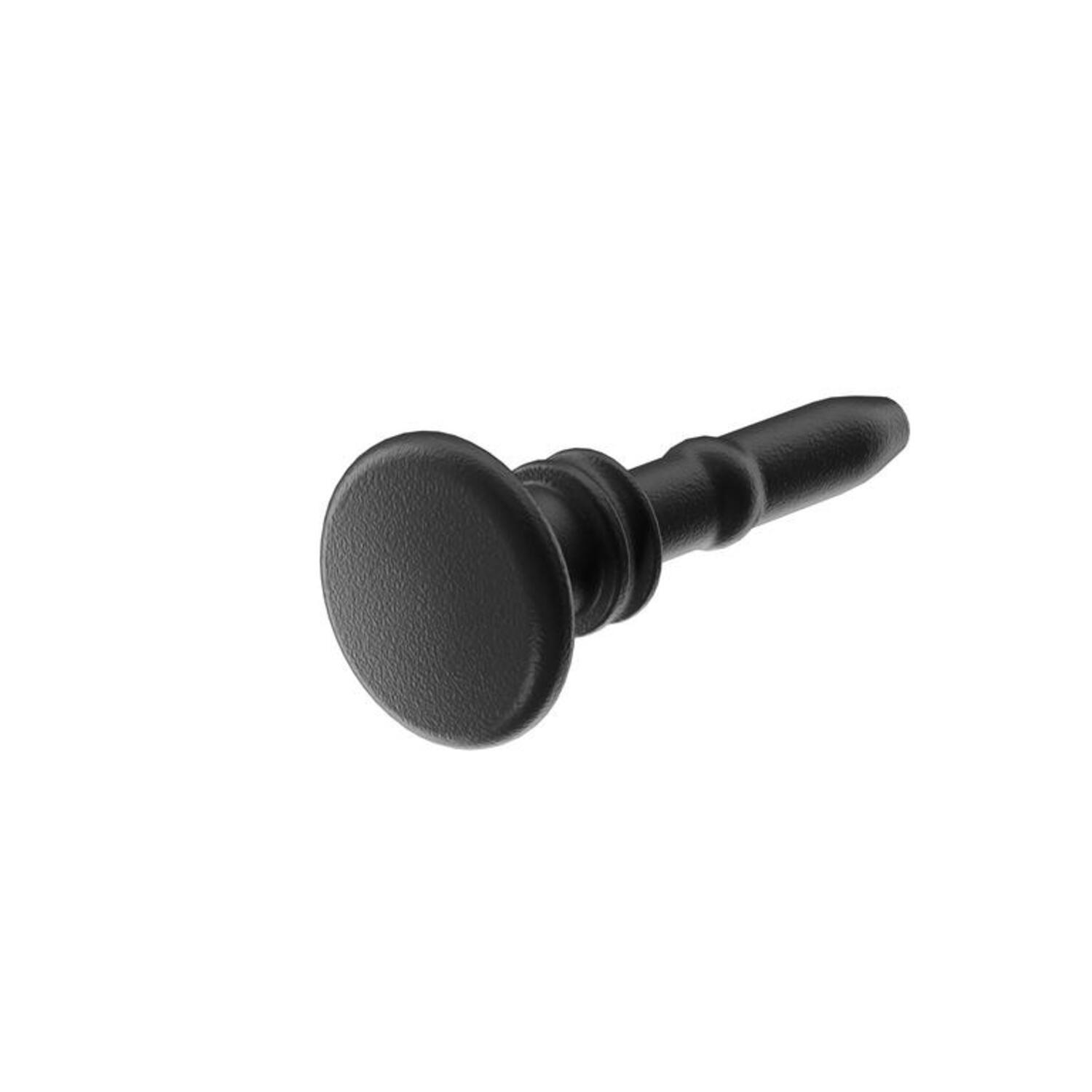

KDS-BC-Clip, BC brush entry frame rivets
Art:
29006.4
Copied
|
5 mm
|
|
6 mm
|
|
|
|
|
|
|
|
|
|
TPE
|
|
|
39269097
|
100
|
11 mm
|
|
Select a variant in the list
