WÖHNER

TERMINALS UP TO 70MM²

  • 1.5-16mm²
  • 4-35mm²
  • 16-70mm²
  • Fits 5mm or 10mm rails

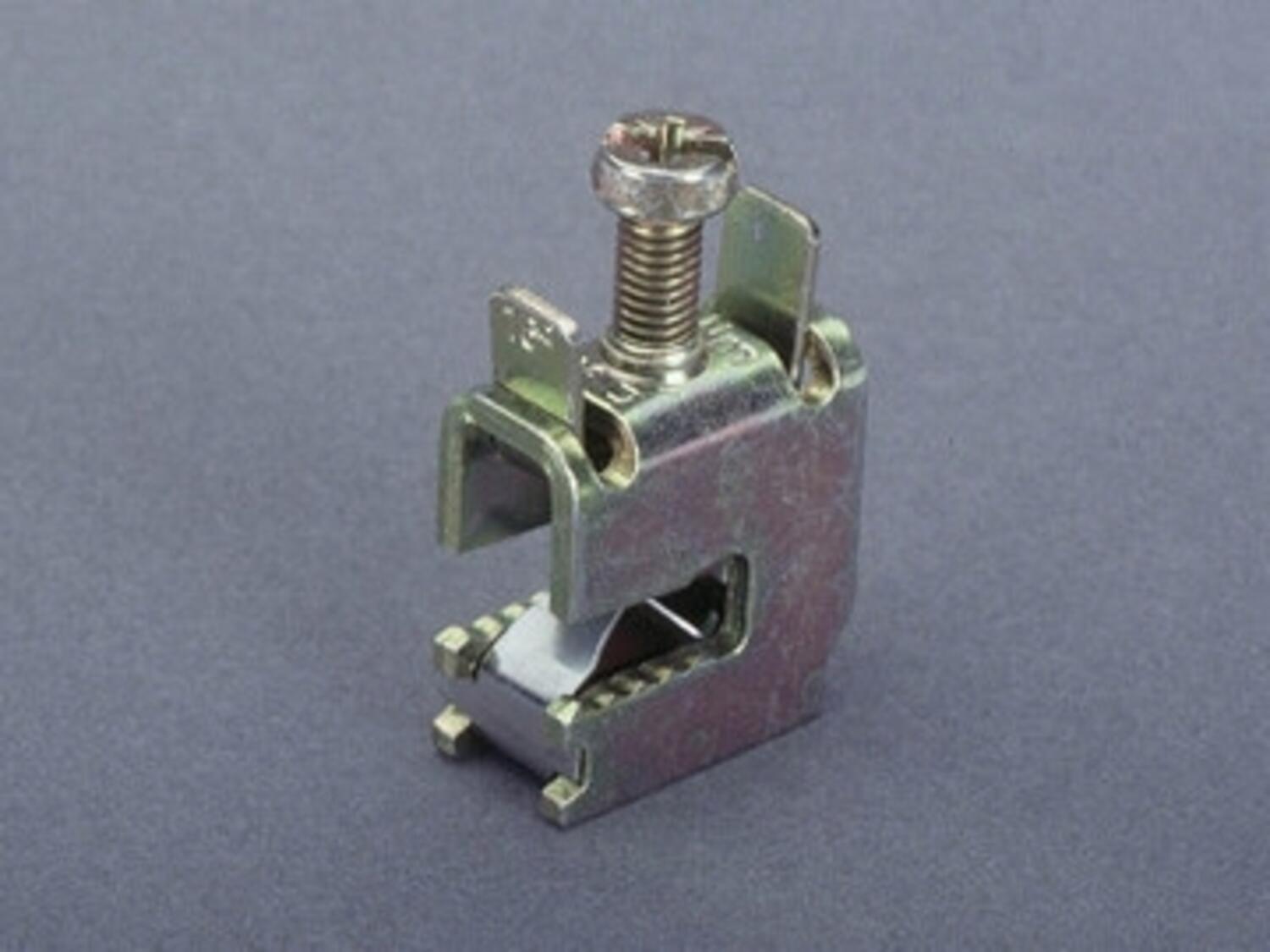

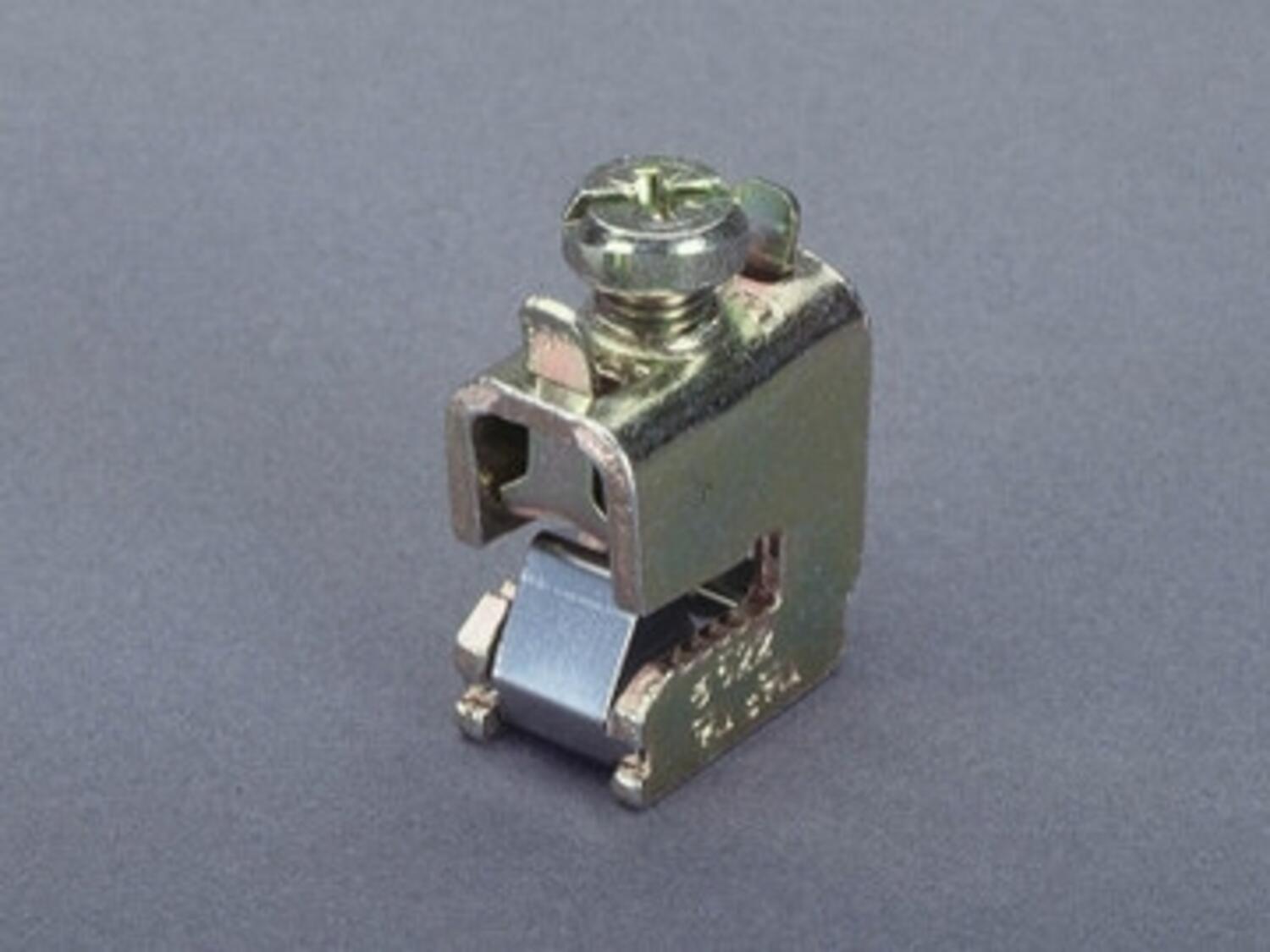

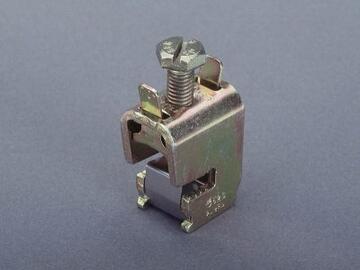

  • Terminal with integrated holding spring, captive clamping screw and opened terminal space.

Selected variant

Available in several variants

Save page as PDF

Technical data / Documents

Accessories & Related products

Selected variant

Technical data

Dimensions width x height x depth 12 x 23 x 25
Pack size 100
Weight 21 g

Downloads

Accessories

Parts Dimensions width x height x depth Pack size Weight Price
universal conductor term.1.5-16 mm²
Art:
01284000 Copied
12 x 23 x 25
100
21 g
universal conductor term.1.5-16 mm²
Art:
01289000 Copied
12 x 23 x 25
100
23 g
universal conductor term. 4-35 mm²
Art:
01285000 Copied
16 x 29 x 36
50
46 g
universal conductor term.16-70 mm²
Art:
01287000 Copied
21 x 32 x 42
25
71 g
universal conductor term.16-70 mm²
Art:
01292000 Copied
21 x 32 x 42
25
75 g

Selected variant

Select a variant in the list
