System 60Classic

Wöhner's innovative system boasts an extensive current range, made possible by the strategic implementation of diverse busbars. Designed with safety, space optimization, and clarity in mind, the System 60Classic offers a streamlined and easily navigable layout. With a wide array of components, which ensures versatility and adaptability to various needs. Moreover, a significant portion of Wöhner's components meet the stringent UL 508 requirements, affirming their commitment to both quality and compliance

This 60mm busbar system goes up to 2500A and includes a wide range of components to easily attach to the rail system, ensuring you save both installation time and space.

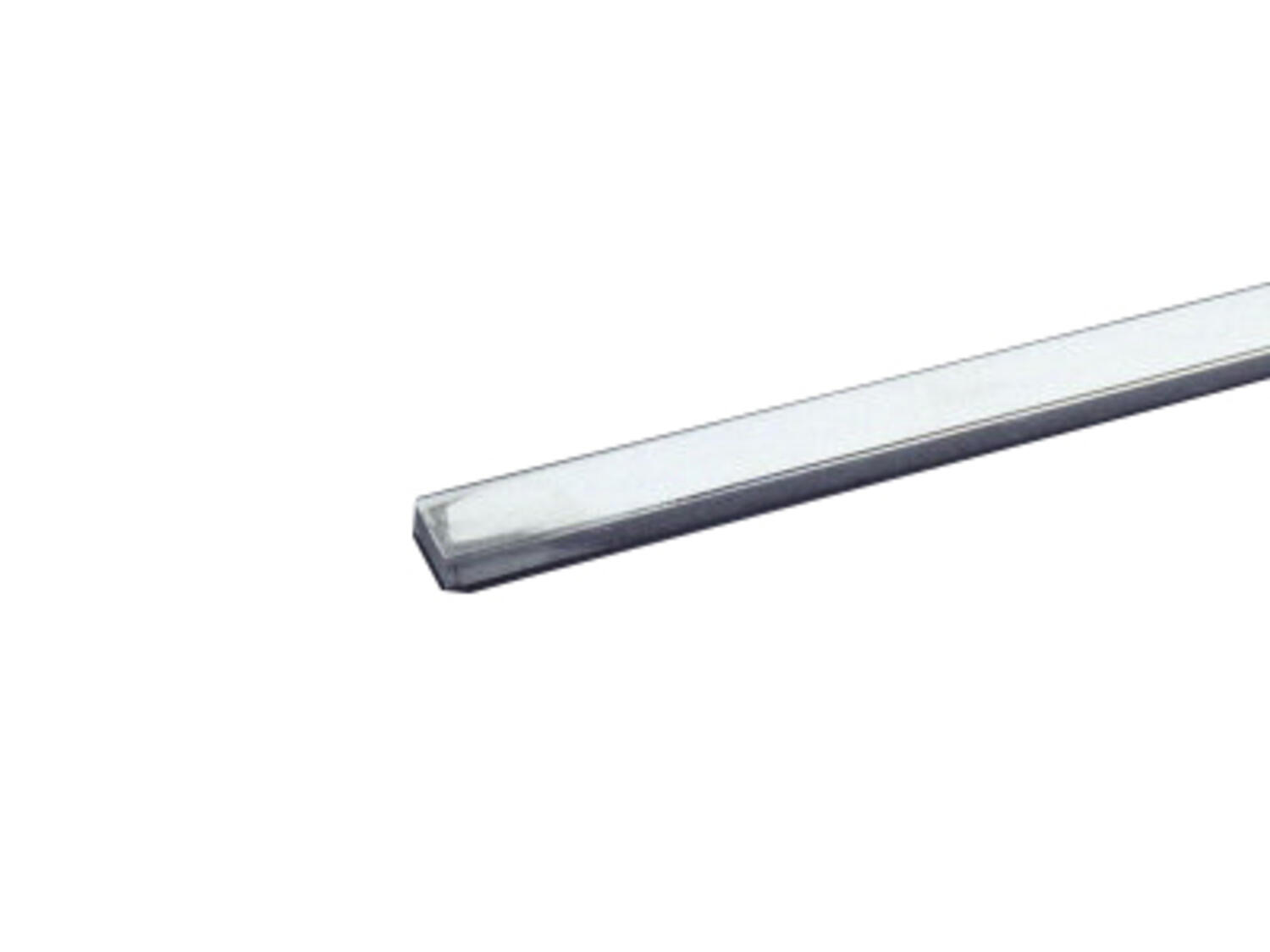

Busbars

Wöhner busbars are tinned to protect the rails from oxidation. The rails are available in sizes 12-30x5.10mm and in special profiles from 500mm²-1600mm², depending on the size of the currents to be used.

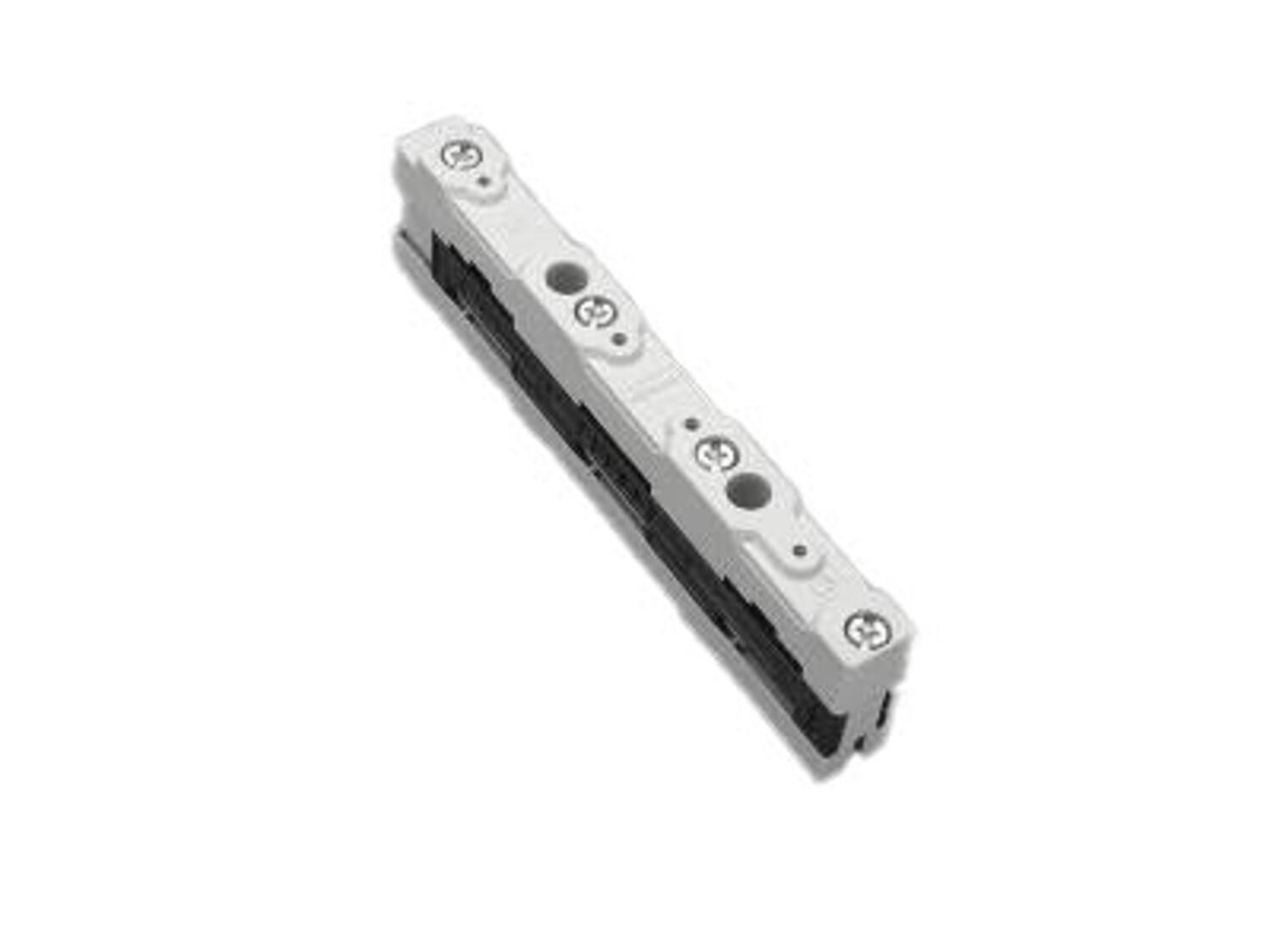

Busbar Supports & End Covers

Supports and covers for busbars in System 60 classic from Wöhner. UL approved supports and covers are available.

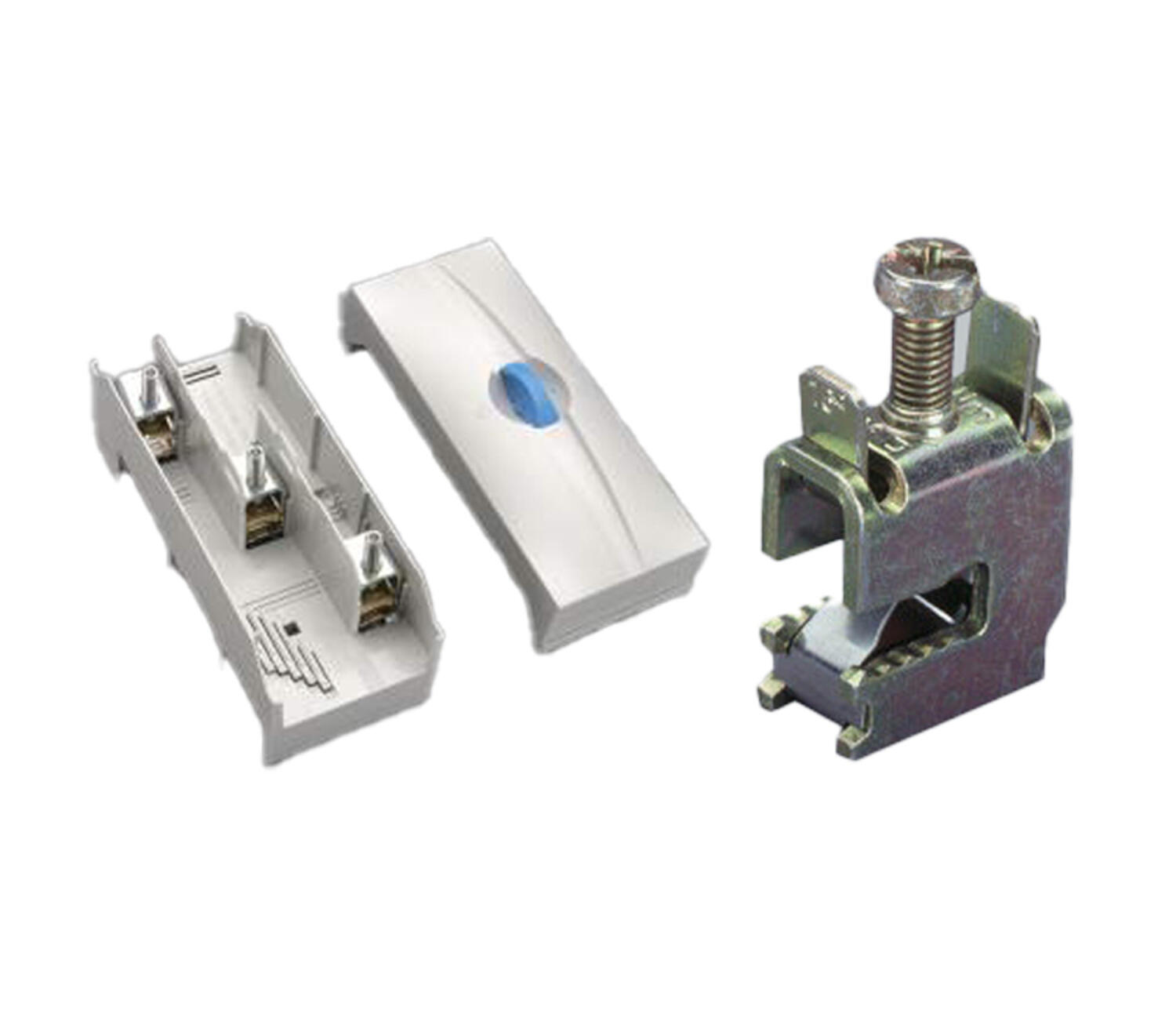

Connection Technology

For incoming or outgoing cables, the Wöhner CRITO series consists of screw clamps or 3-pin connection adapters that are touch-protected and space-saving.

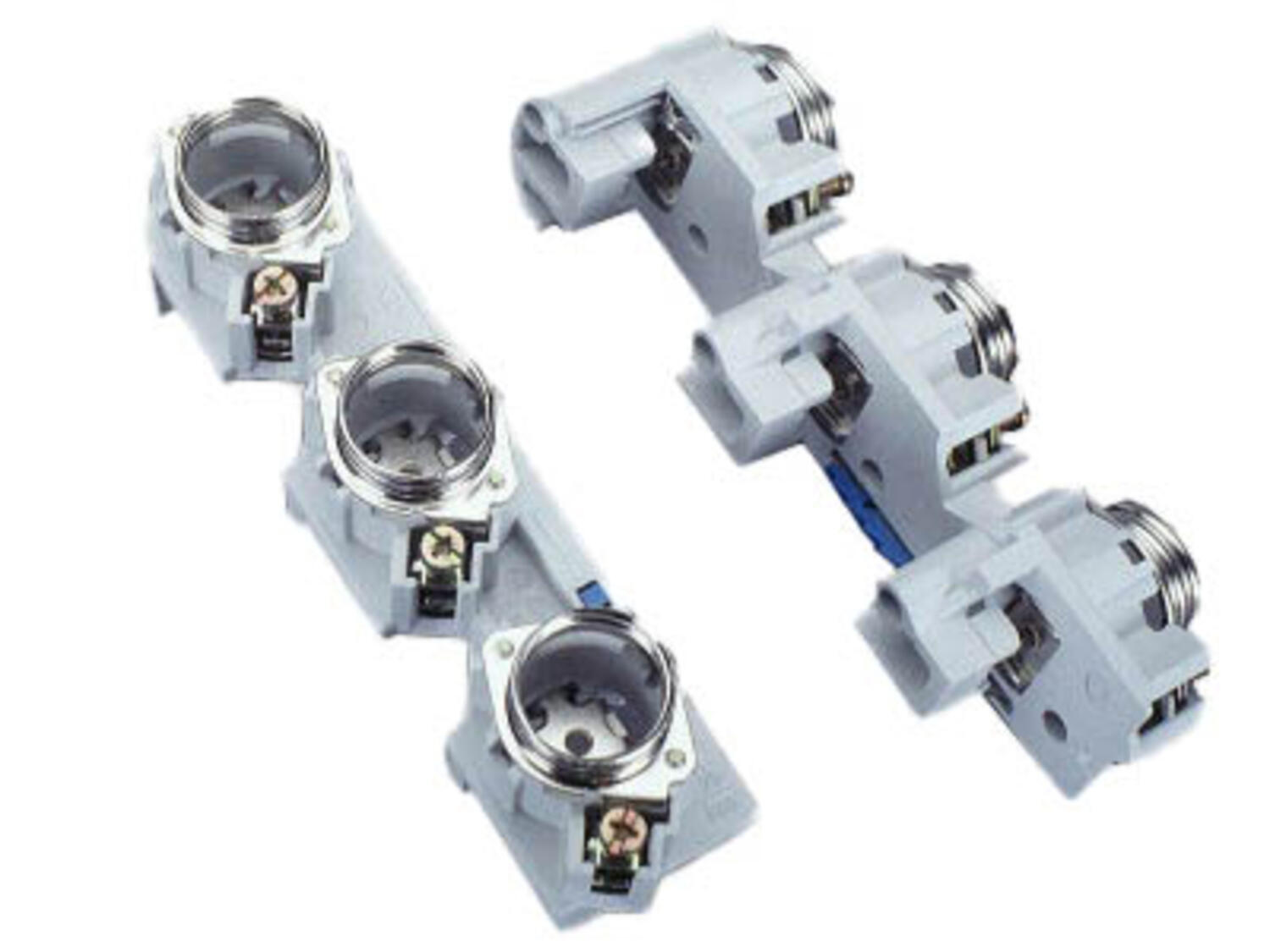

D0 & D Fuse Bases

3-pole fuse sockets to mount directly on the 60 classic.

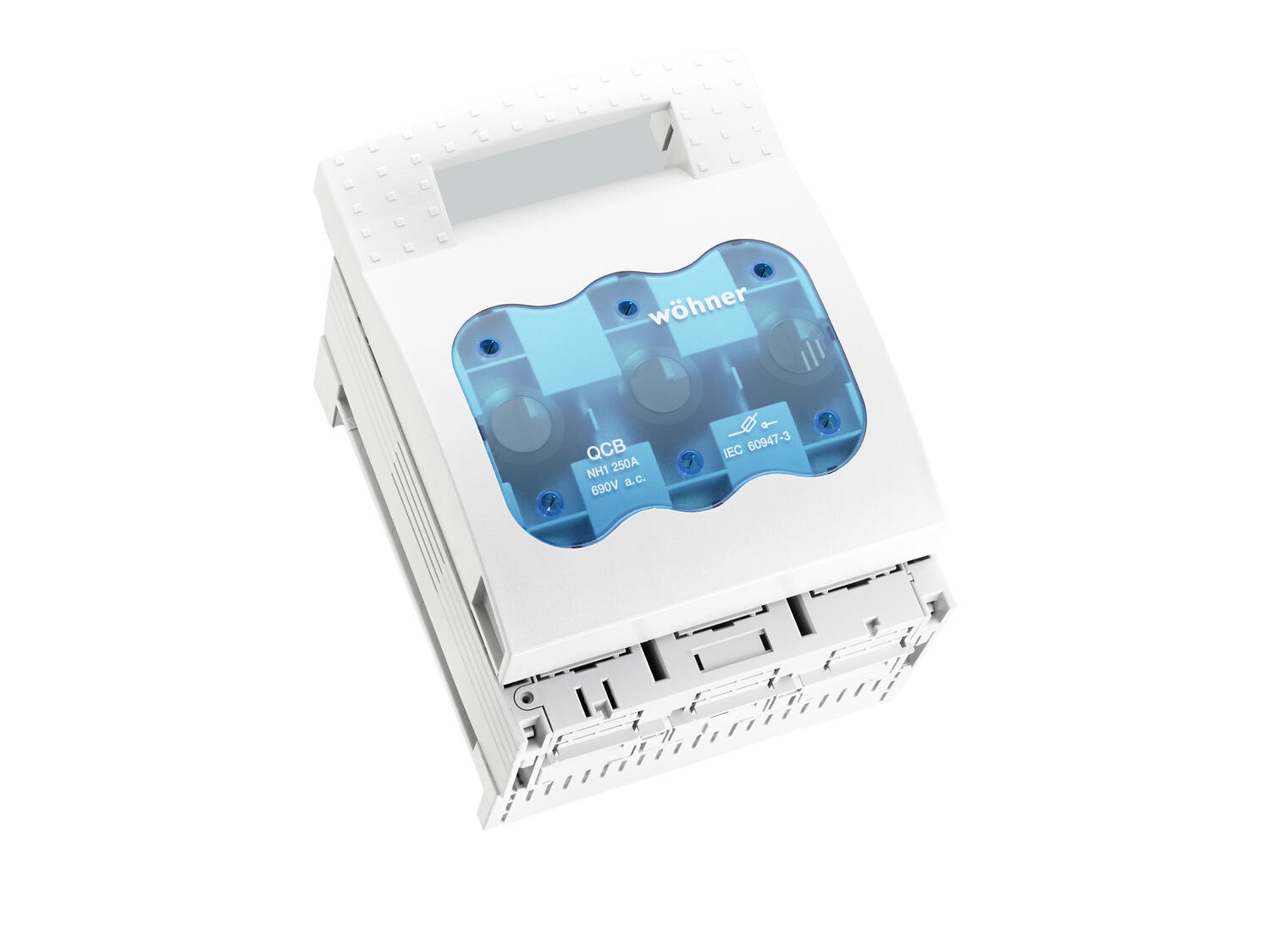

Fuse Holders & Switch Disconnectors

Introducing Wöhner's innovative power conversion solution featuring CrossLink® adapter technology for swift and secure connection conversion between top and bottom orientations. Ensuring safety with shock protection for all voltage-carrying components, it offers simple and safe clicking into place. Versatile and reliable, it accommodates various busbar sizes and sections, with a spring-controlled switch mechanism for frequent switching. With the option to lock the system in a neutral position using up to three padlocks and a FLAG indicator for clear visibility of the switch setting, Wöhner guarantees hassle-free operation and peace of mind.

Adapters

Wöhner's EQUES adapters for easy mounting of contactors and motor circuit breakers or circuit breakers. For circuit breakers, there are universal adapters and also adapted to the most common models of circuit breakers from selected brands.
