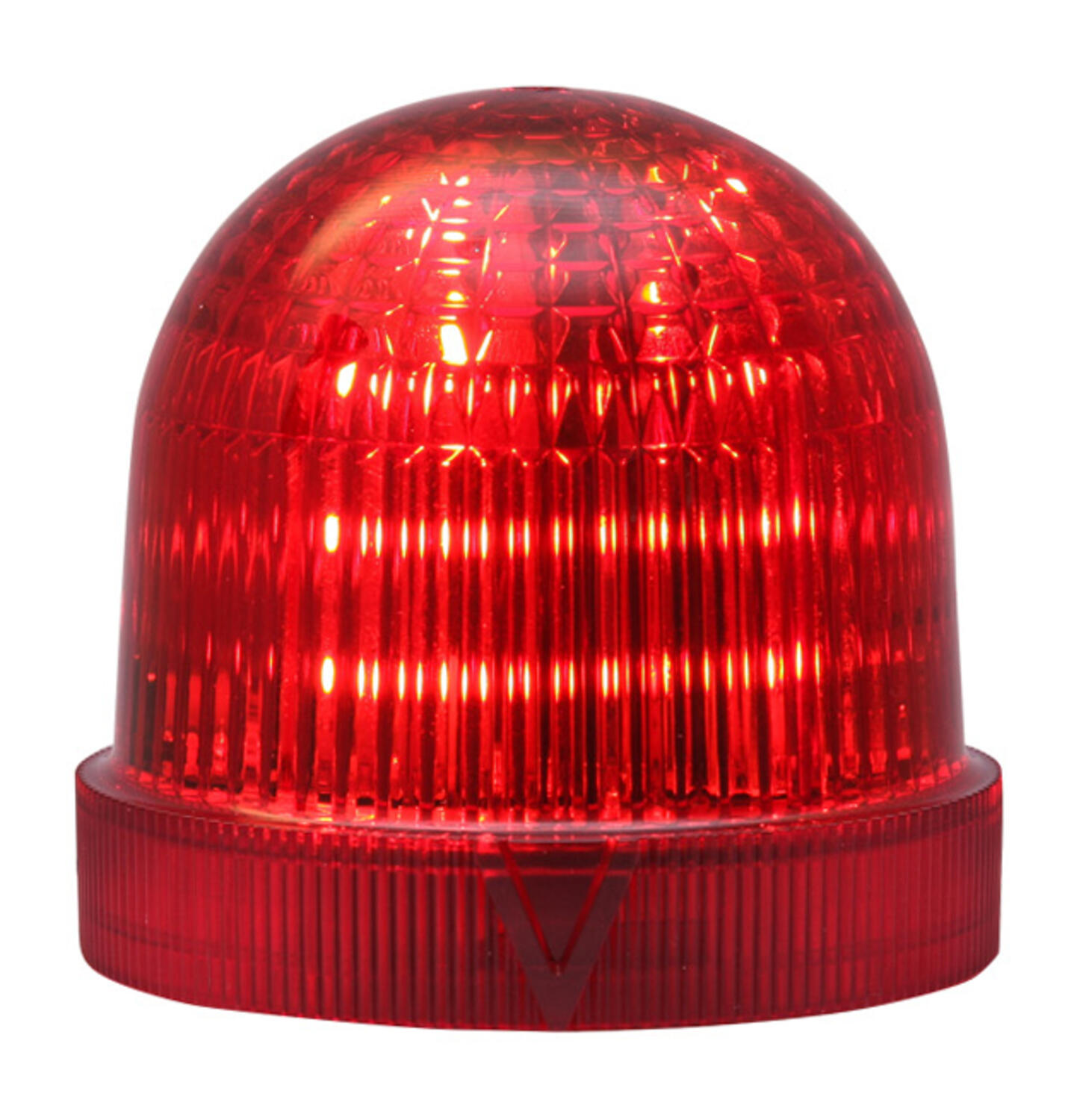

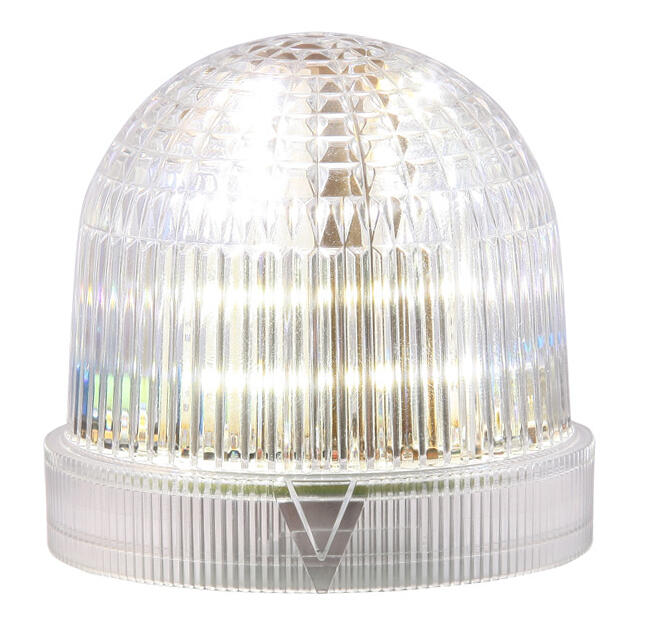

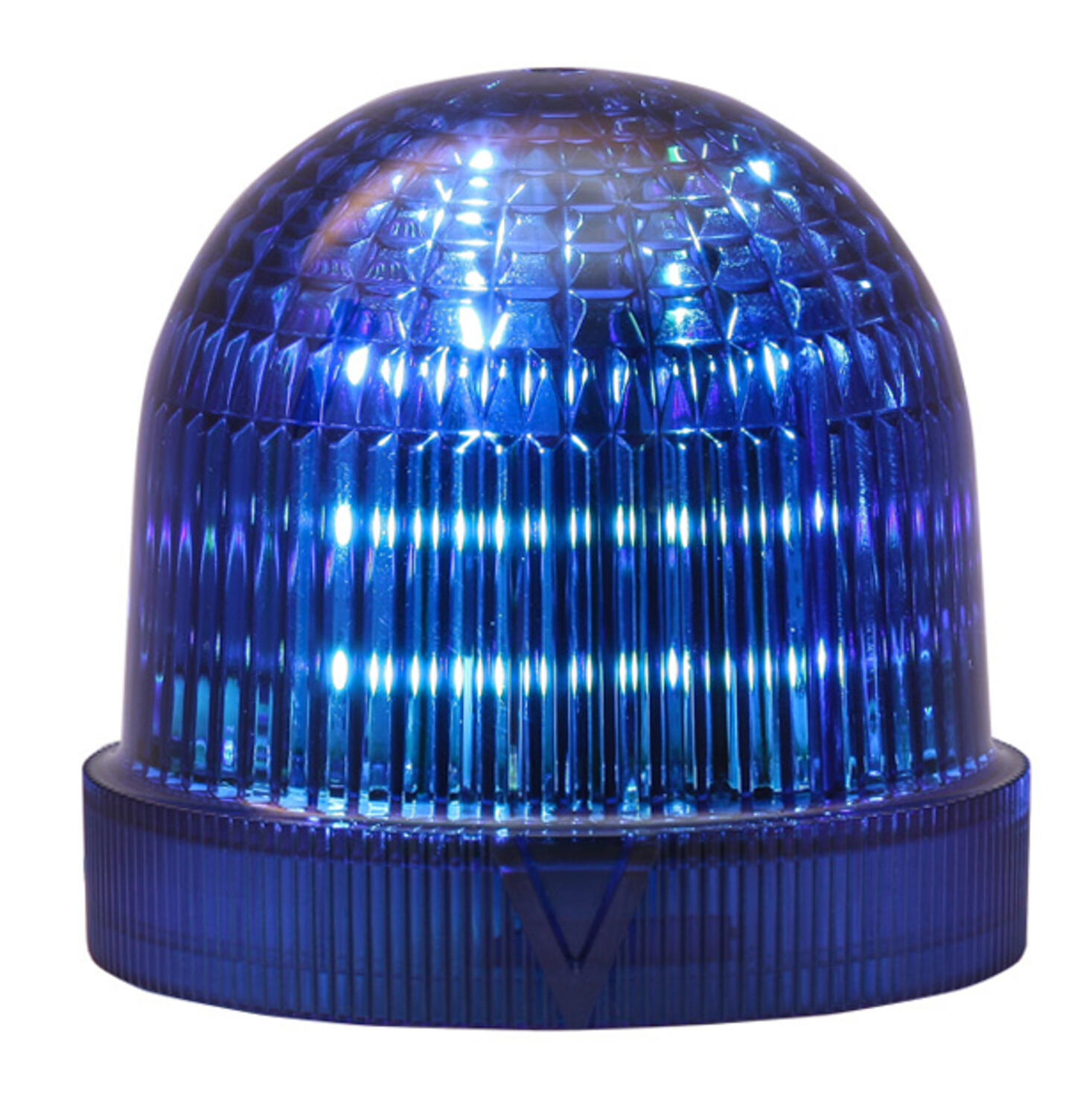

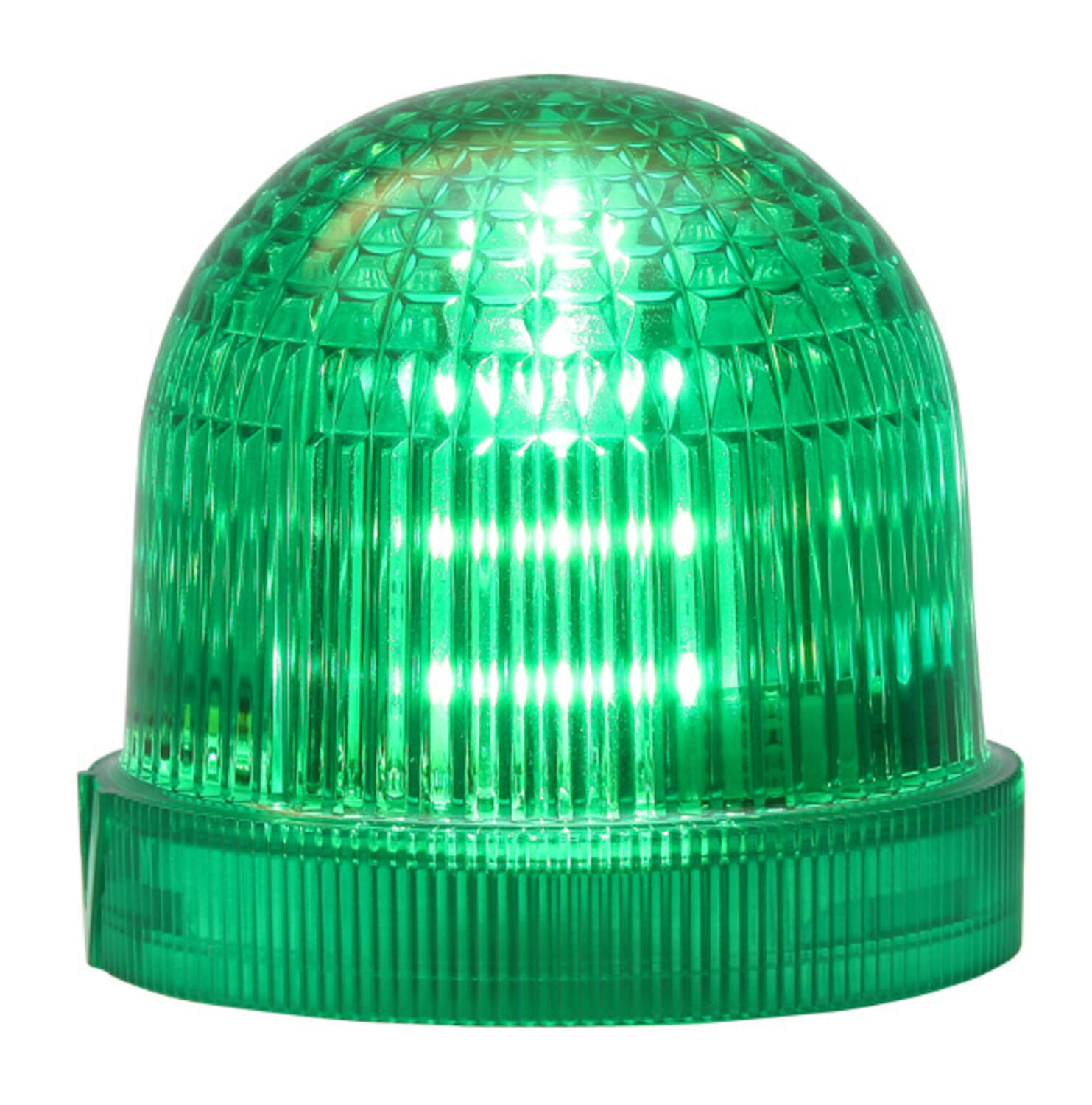

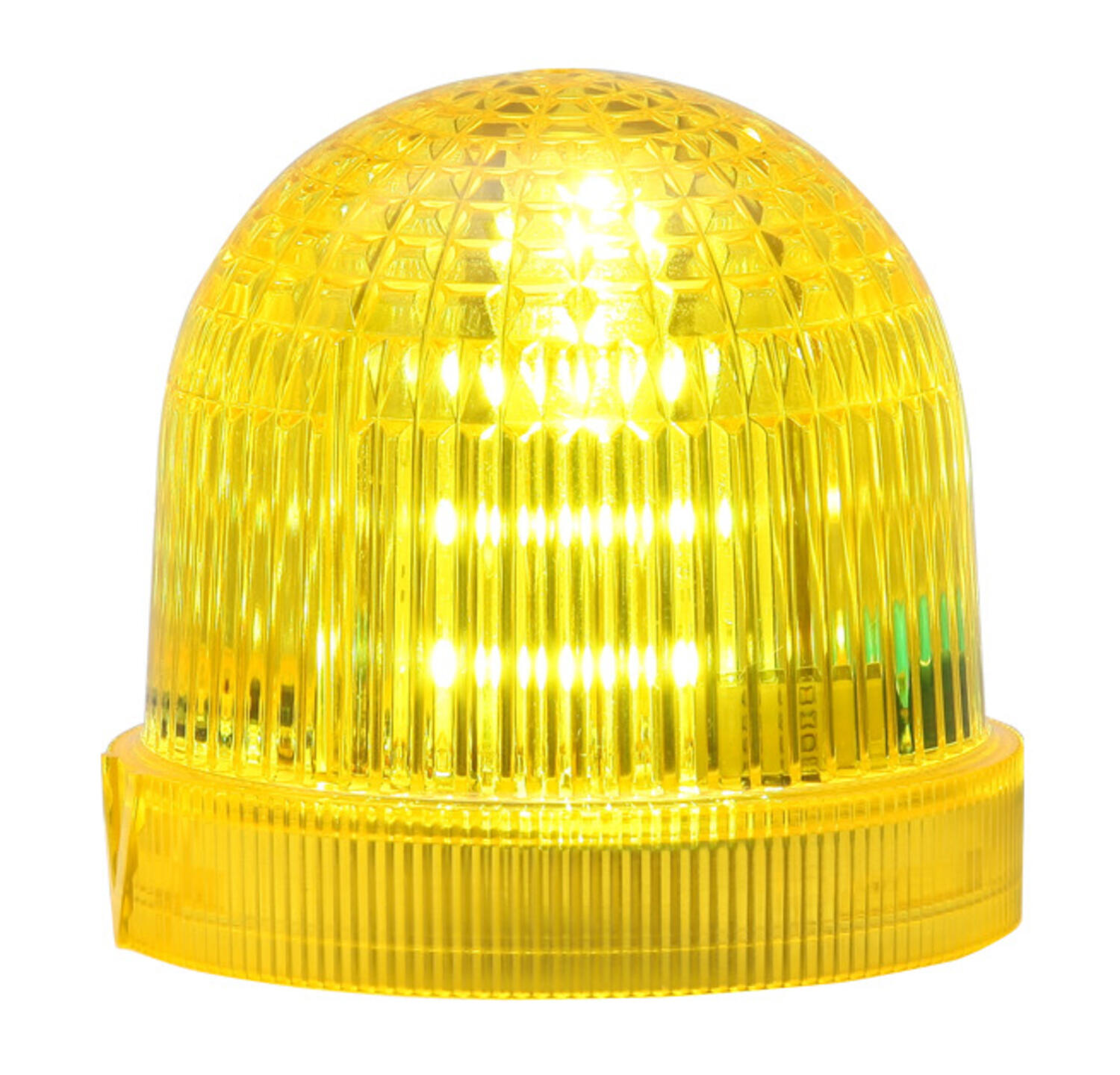

AUER SIGNAL
U Series, Modular Beacon, Ø60m
AUERs U Series range begins with a Ø 65 mm comprehensive modular beacon range, the design is modern, efficient with long-life LED beacons in functions. Settings include LED steady/flashing which are both externally addressable and LED multi strobe, both strobe patterns, which are 6 times fast strobe and multi strobe, are again externally addressable.
Â
Also including a Steady beacon option with base integrated BA15d socket for 4 W incandescent bulb, the U Series can be used for a range of applications involving industrial and general applications. It is fir for plc applications like leakage and inrush current. And has a UL type of 4/4X/13.
Â
Â
- Ø60mm, Modular beacon
- Steady, Flashing and Multi-strobe light options
- Wide control voltage range
Selected variant
Technical data
General data |
|
|---|---|

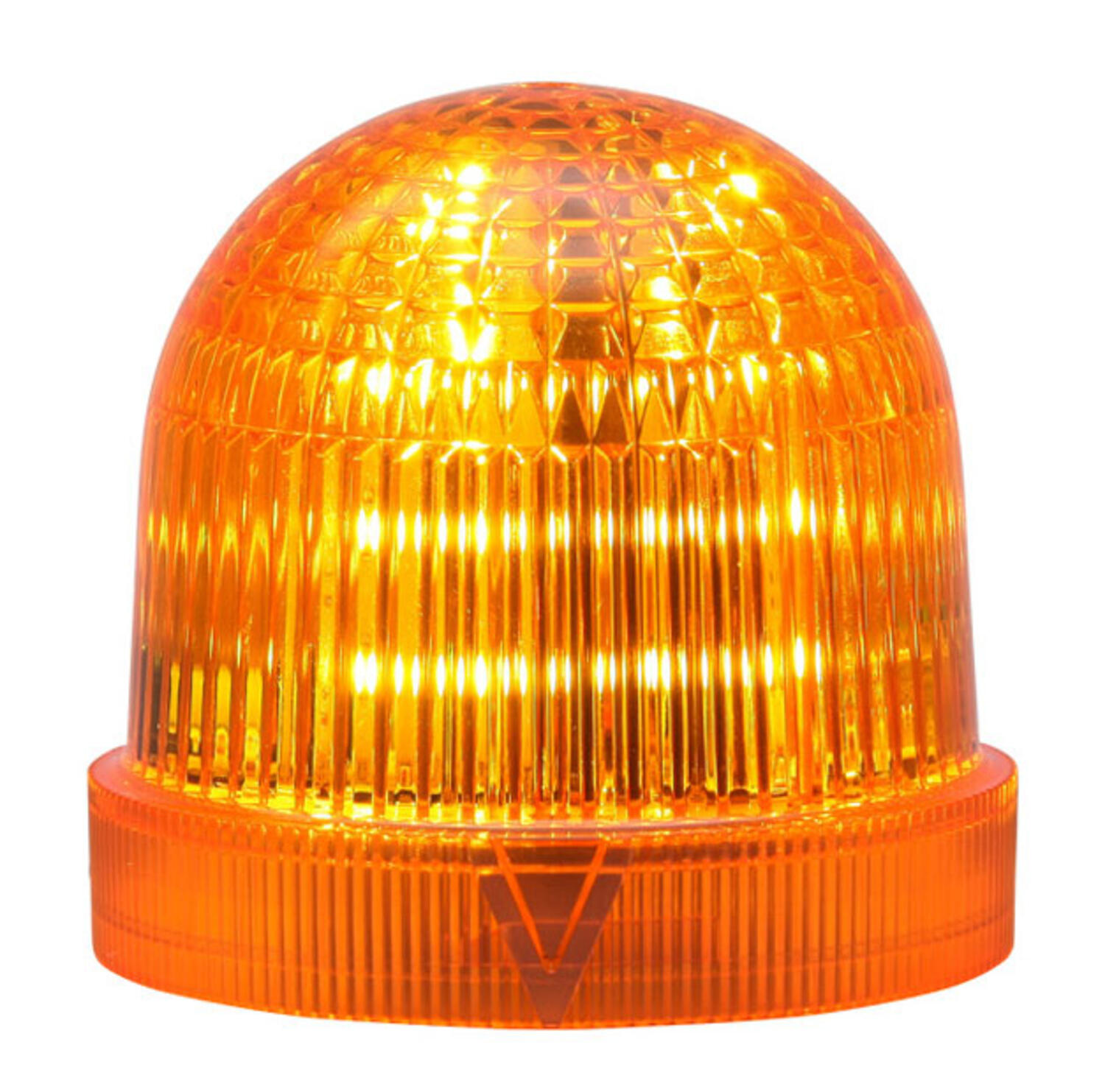

| Lens colour | Orange |
| Light type | Flashing, Steady |
| Light source | LED |
| Mounting | Bayonet |
| Number of optional modules | 1 Â |
Rated operating conditions |
|
| Nominal Supply Voltage | 230-240 V AC |
| Nominal current | 45 mA |
| Flash frequency | 2 Hz |
*Invisible Heading* |
|
|---|---|
| Operational temperature | -30°C ... 60°C |
| Terminal connection | 2.5 mm² |

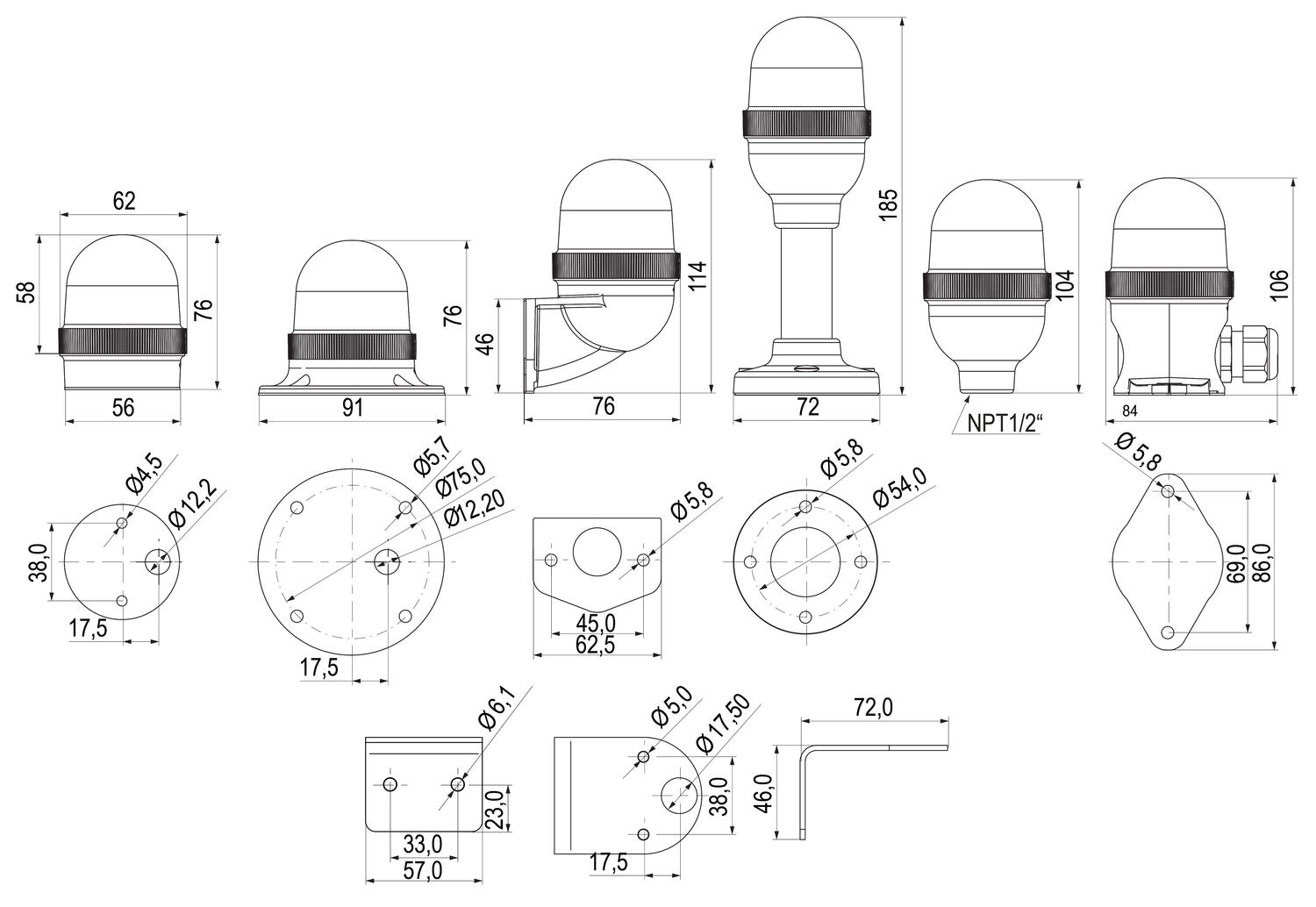

Dimensions |
|
| Height | 58 mm |
| Diameter | 60 mm |
| Weight | 52 g |
Additional data |
|
| IP class | IP66 |
| IK class | 8 |
Downloads
Product description
AUERs U Series range begins with a Ø 65 mm comprehensive modular beacon range, the design is modern, efficient with long-life LED beacons in functions. Settings include LED steady/flashing which are both externally addressable and LED multi strobe, both strobe patterns, which are 6 times fast strobe and multi strobe, are again externally addressable.
Â
Also including a Steady beacon option with base integrated BA15d socket for 4 W incandescent bulb, the U Series can be used for a range of applications involving industrial and general applications. It is fir for plc applications like leakage and inrush current. And has a UL type of 4/4X/13.
Â
Â
