AUER SIGNAL

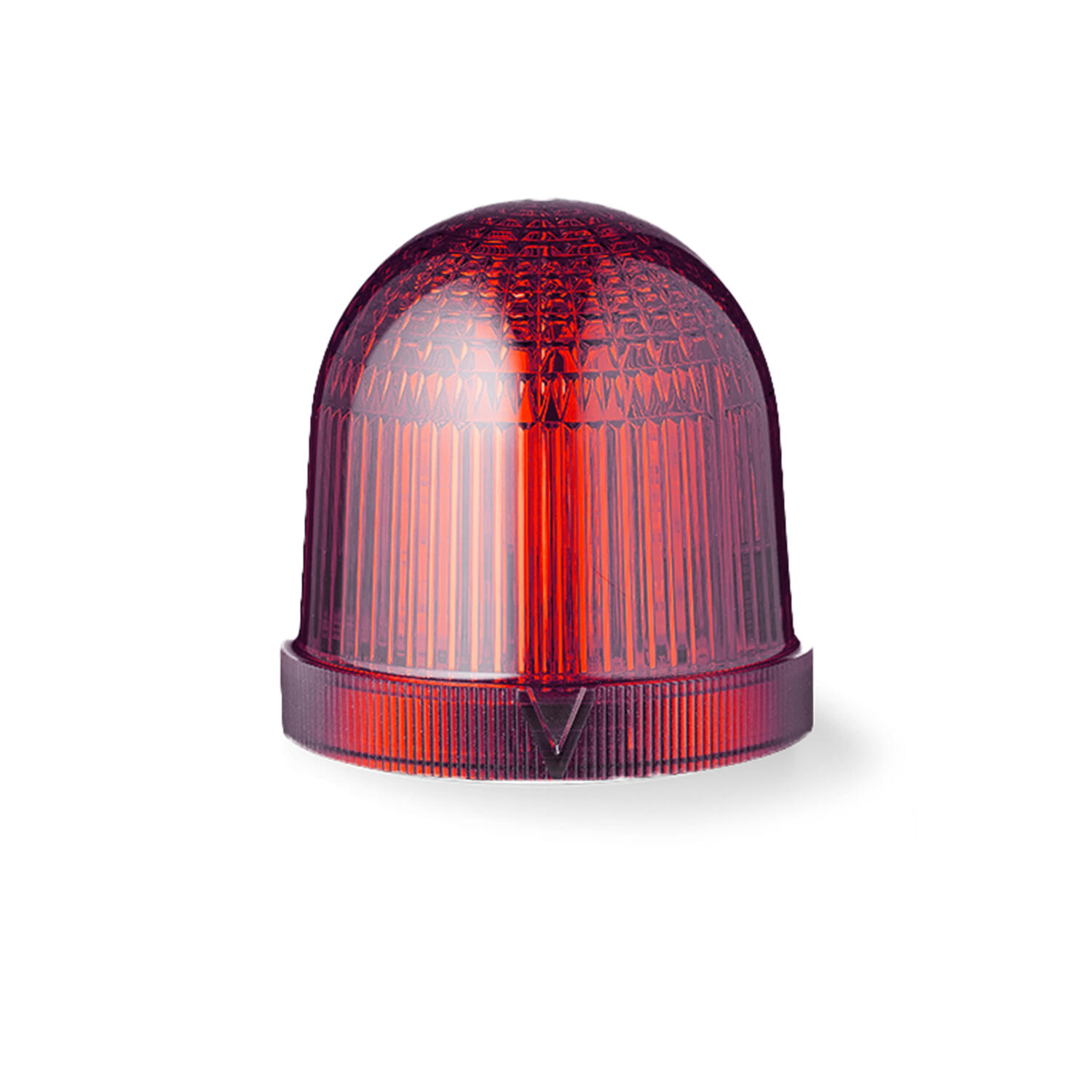

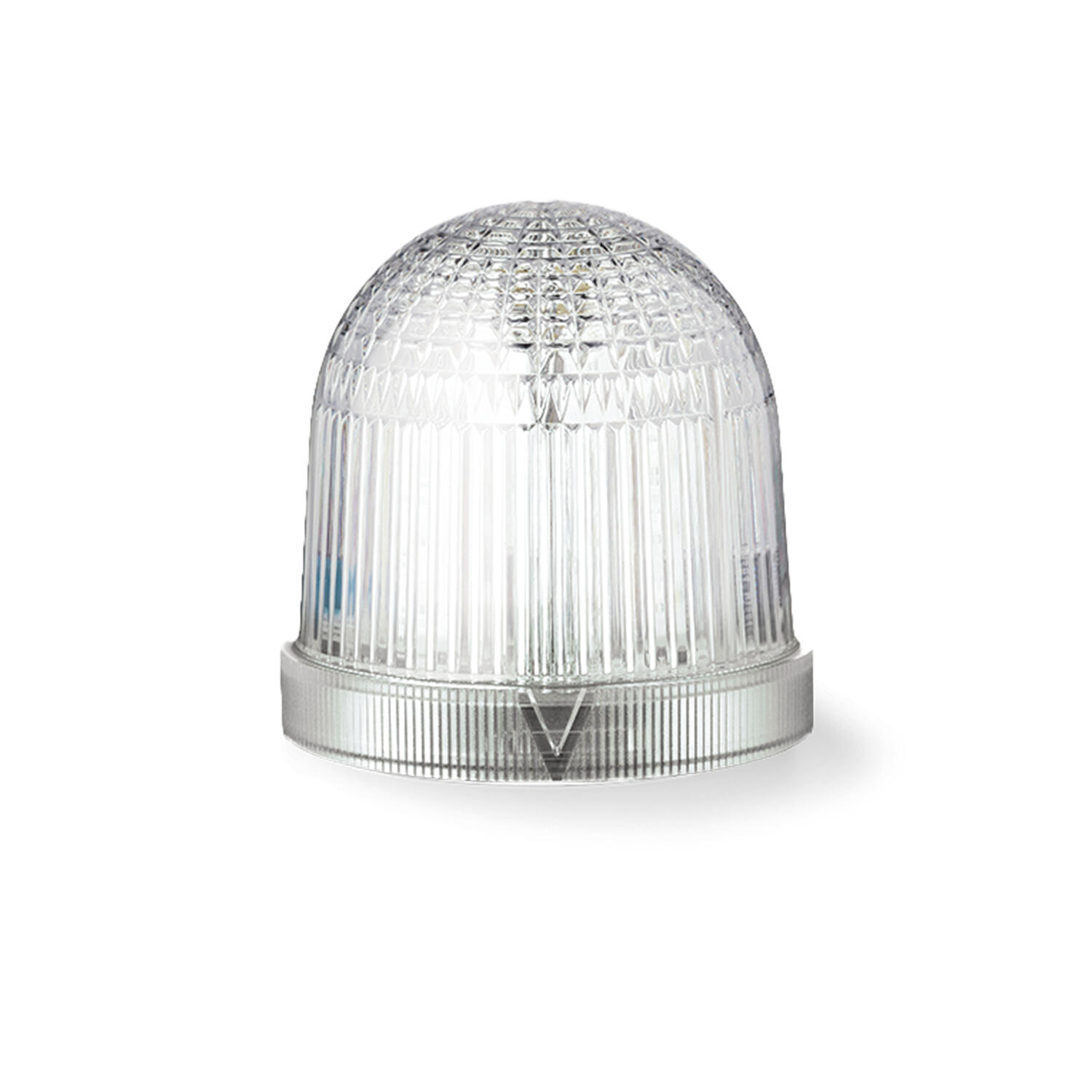

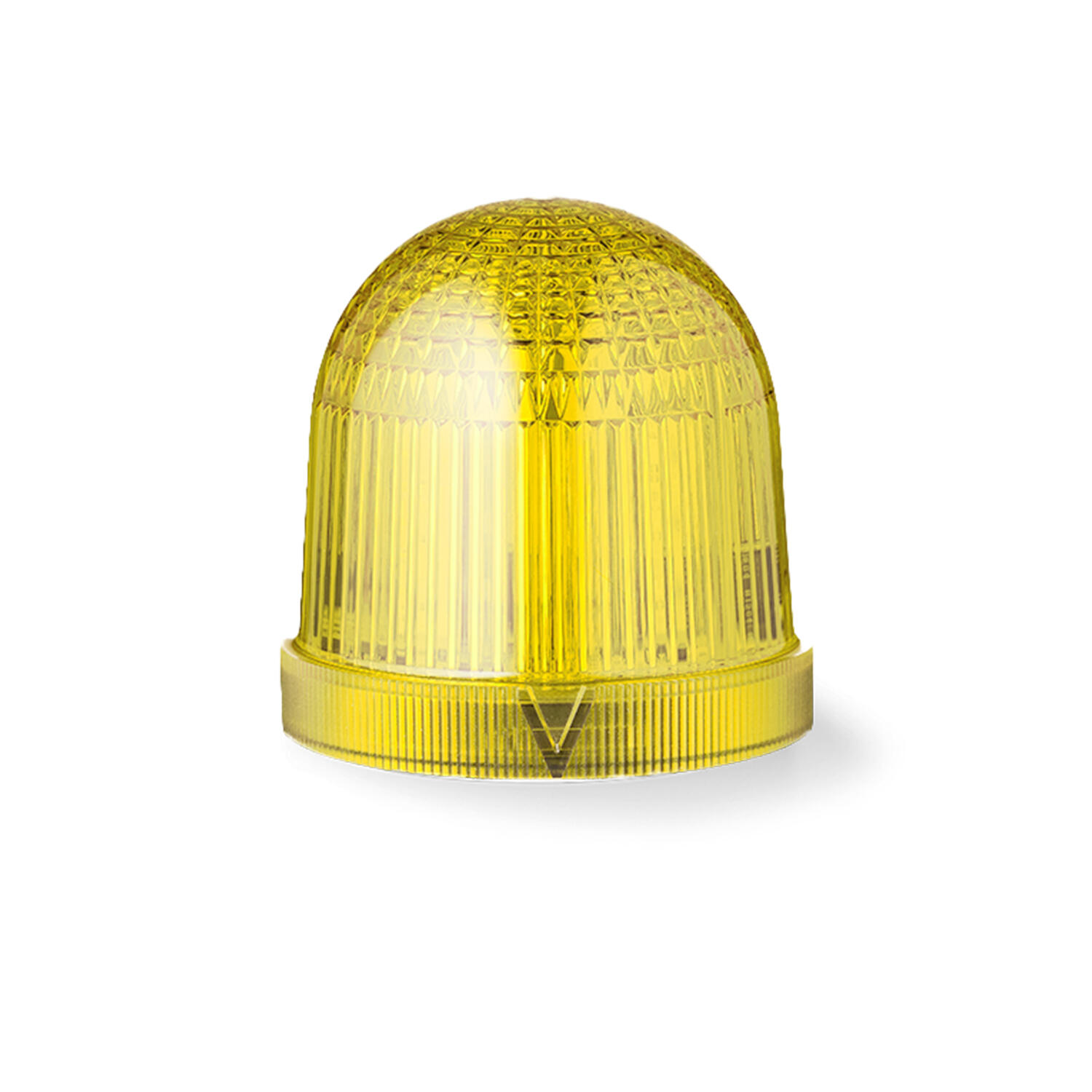

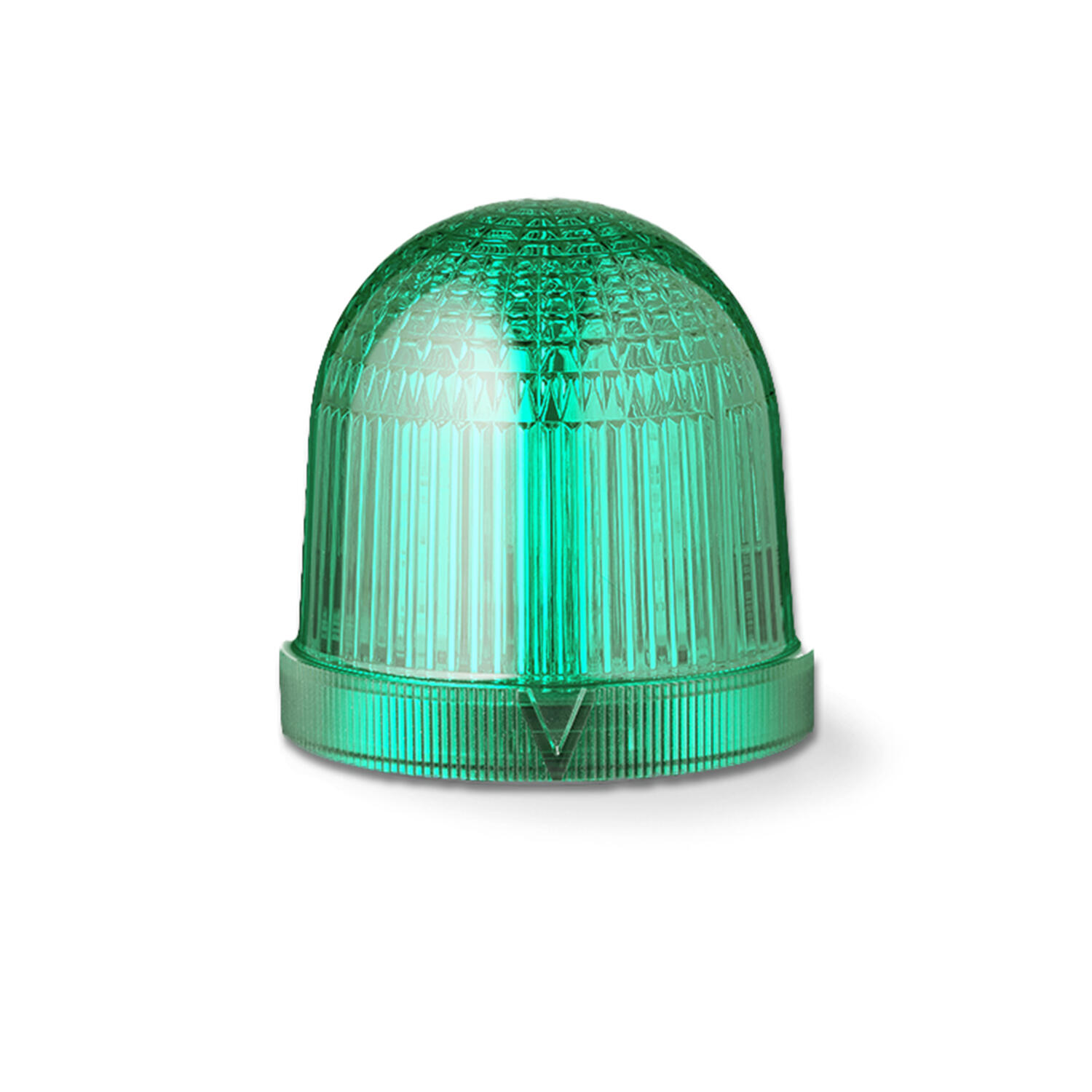

T Series, Modular Beacon, Ø75mm
AUERs T Series range begins with a Ø 75 mm large comprehensive modular beacon range, the design is modern, efficient with long-life LED beacons in functions. Settings include LED steady/flashing which are both externally addressable and LED multi strobe, both strobe patterns, which are 6 times fast strobe and multi strobe, are again externally addressable.
Â
Also including a steady beacon option with BA15d socket for 7 W incandescent bulb, the T Series can be used for a range of applications involving industrial and general applications. It is fir for plc applications like leakage and inrush current. And has a UL type of 4/4X/13 (excluding TNL and TMW+TVS).
Â
There are also optionally available protective vents for pressure balance in harsh weather conditions (humidity, high temperature fluctuations, etc.) for TMW, TMF, TNL. A comprehensive range of selectable mounting options, and an Ingress protection of IP66.
Â
- Ø75mm Modular beacon
- Steady, flashing and Multi-strobe light options
- Wide control voltage range
Selected variant
Technical data
General data |
|
|---|---|

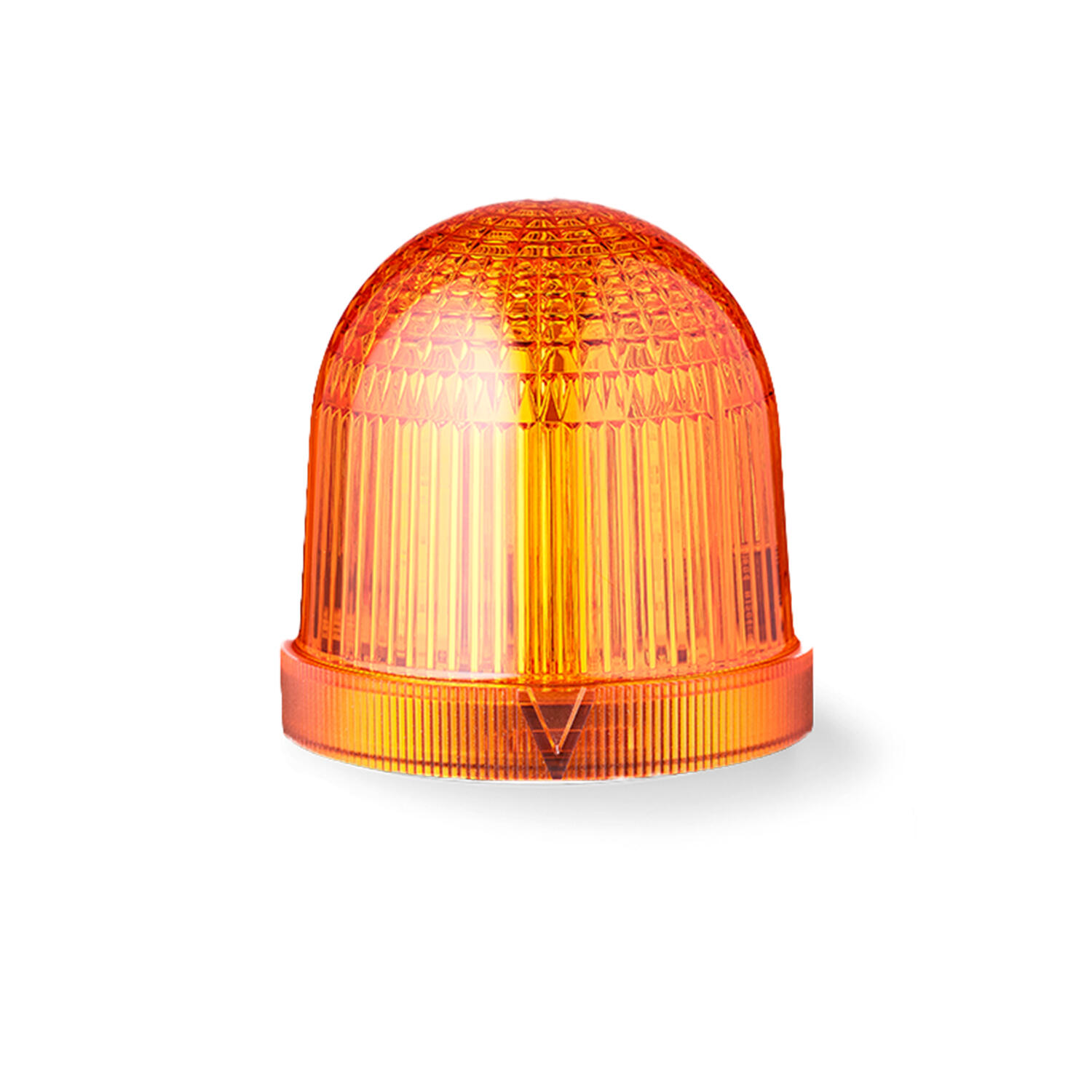

| Lens colour | Orange |
| Light type | Flashing, Steady |
| Light source | LED |
| Mounting | Bayonet |
Rated operating conditions |
|
| Nominal Supply Voltage | 230-240 V AC |
| Nominal current | 66 mA |
| Flash frequency | 2 Hz |
| Operational temperature | -30°C ... 60°C |
*Invisible Heading* |
|
|---|---|
| Terminal connection | 2.5 mm² |

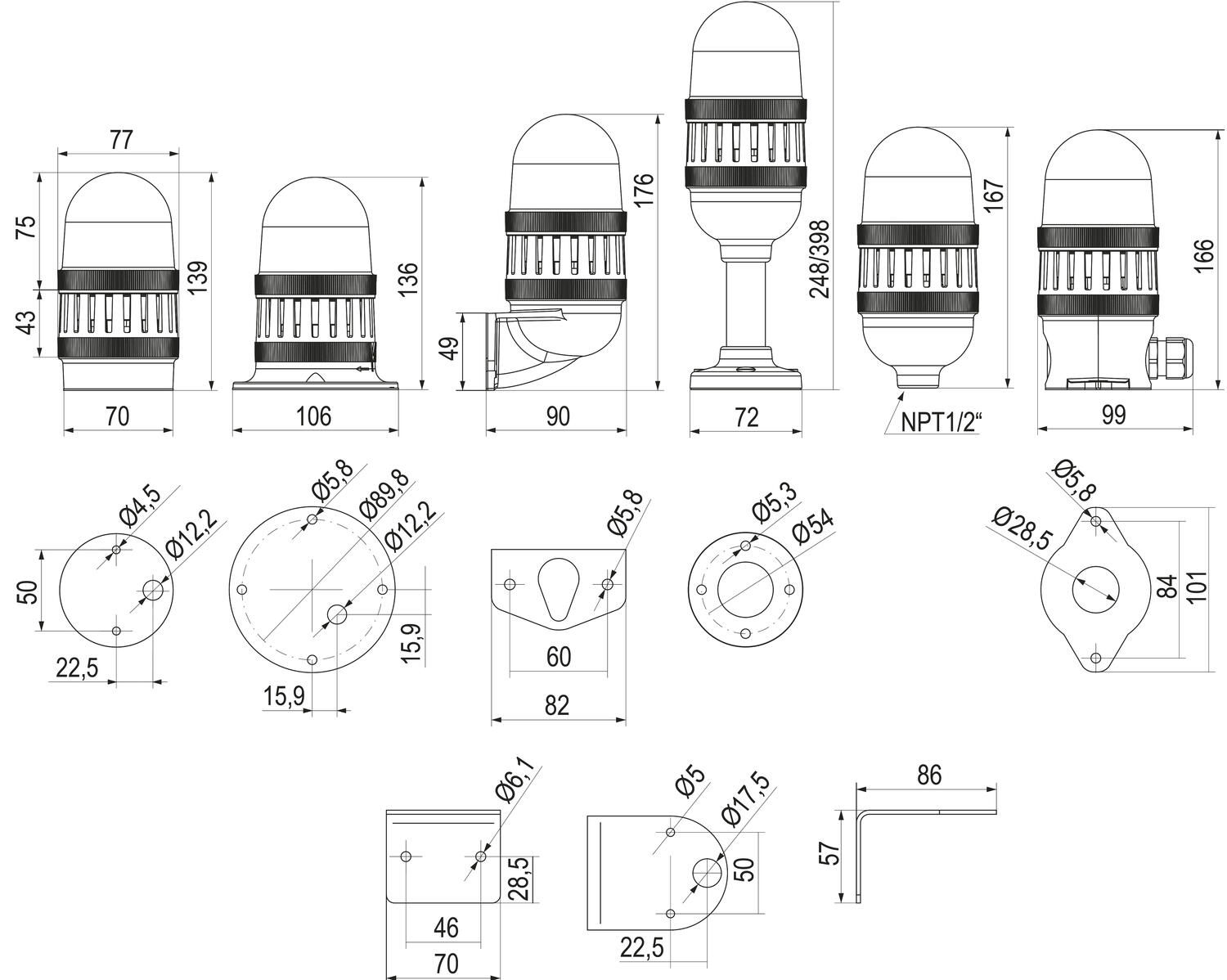

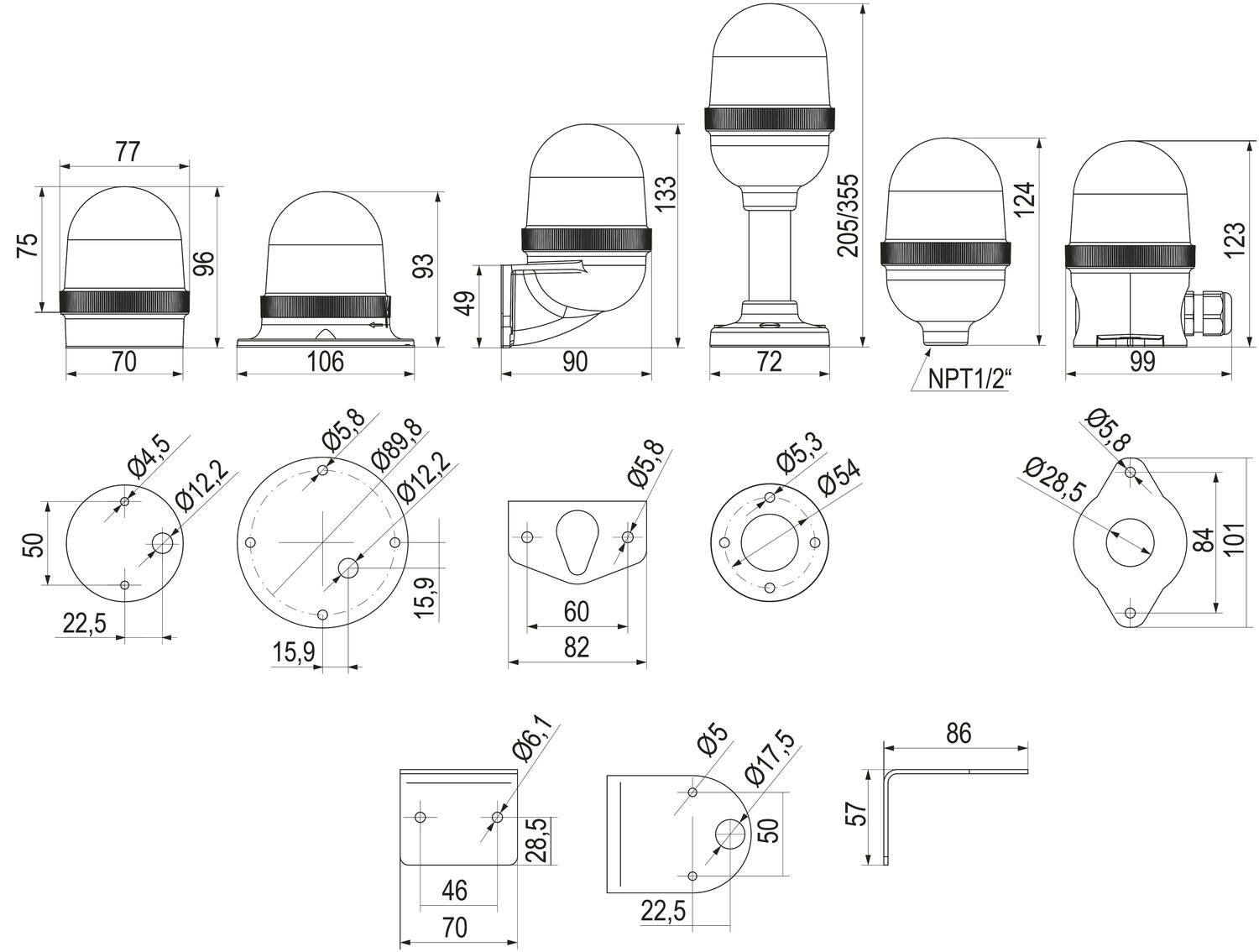

Dimensions |
|
| Height | 75 mm |
| Diameter | 75 mm |
| Weight | 86 g |
Additional data |
|
| IP class | IP66 |
| IK class | 8 |
Product description
AUERs T Series range begins with a Ø 75 mm large comprehensive modular beacon range, the design is modern, efficient with long-life LED beacons in functions. Settings include LED steady/flashing which are both externally addressable and LED multi strobe, both strobe patterns, which are 6 times fast strobe and multi strobe, are again externally addressable.
Â
Also including a steady beacon option with BA15d socket for 7 W incandescent bulb, the T Series can be used for a range of applications involving industrial and general applications. It is fir for plc applications like leakage and inrush current. And has a UL type of 4/4X/13 (excluding TNL and TMW+TVS).
Â
There are also optionally available protective vents for pressure balance in harsh weather conditions (humidity, high temperature fluctuations, etc.) for TMW, TMF, TNL. A comprehensive range of selectable mounting options, and an Ingress protection of IP66.
Â
