AUER SIGNAL

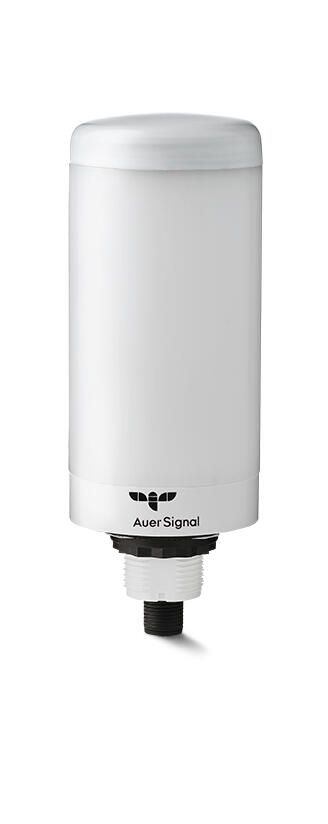

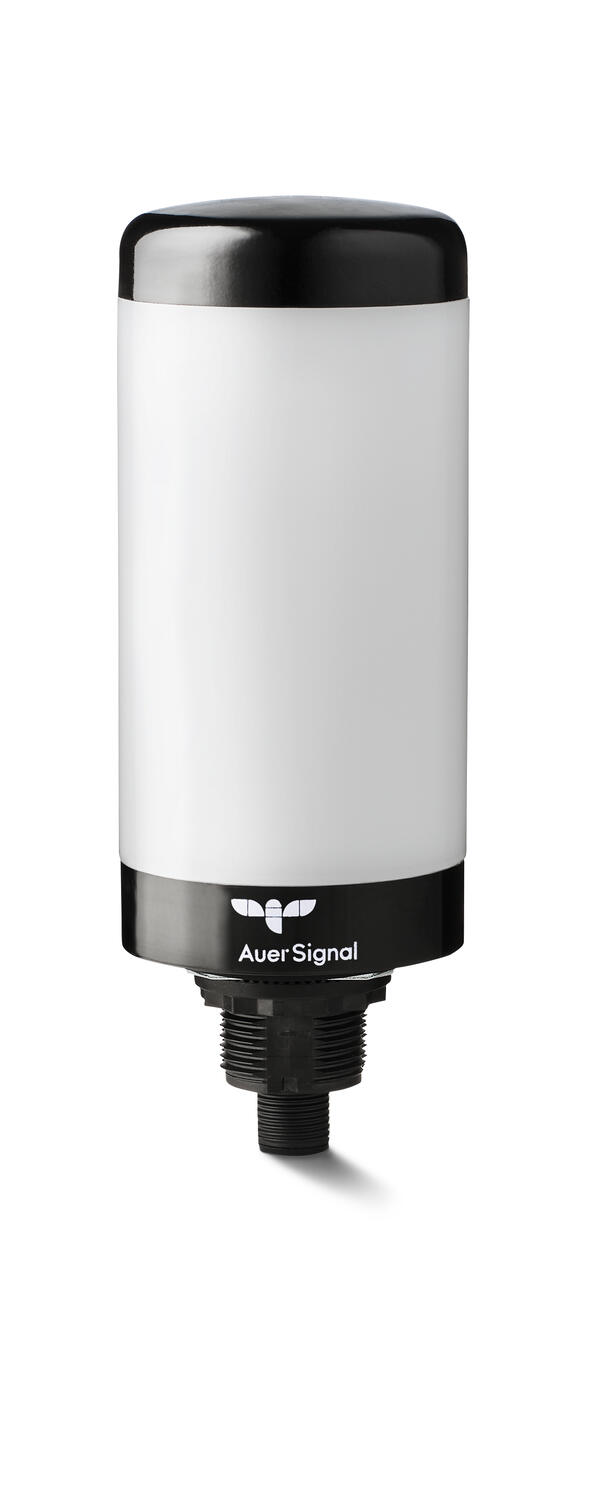

Auer Signal Series 50 Smart Indicator Beacon
SI50-GYR
- High brightness, colour brilliance and energy efficiency
- Excellent homogeneous and flexible colour signalling
- Multiple animation modes
- Smart Protection
Selected variant
Technical data
General data |
|
|---|---|
| Lens colour | White |
| Light type | Multi-function, Multi Colour |
| Light source | LED |
| Housing Colour | Black |
Rated operating conditions |
|
| Nominal Supply Voltage | 18-30 V DC |
| Lamp power | 1.45 W |
| Operational temperature | -40 °C - +70 °C |

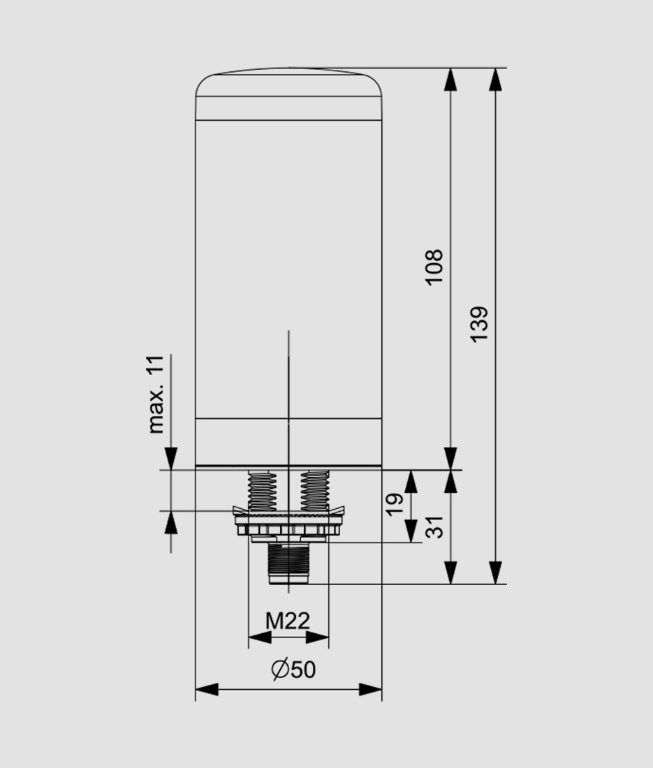

Dimensions |
|
| Height | 108 mm |
*Invisible Heading* |
|
|---|---|
| Diameter | 50 mm |
| Weight | 91 g |
Additional data |
|
| IP class | IP66, IP67, IP69K, IP6K9K |
| IK class | 8 |
| Supply voltage dc max | 30 V DC |
| Supply voltage dc min | 18 V DC |
| Life span | 60000 h |
Product description
The SI50-GYR is a tricolour beacon that merges the functionality of a traditional signal beacon with a compact tower light, providing a larger and more visible signaling surface while maintaining a small installation footprint. It has green, yellow, and red light options with multiple animation modes, including steady and flashing patterns, enabling flexible visual communication in industrial settings. Its Smart Protection features—such as inrush current limitation and thermal management—enhance operational reliability and device longevity.
Engineered for durability, the SI50-GYR carries high ingress protection ratings (IP66, IP67, IP69, IP69K), making it suitable for harsh environments where exposure to dust, moisture, and high-pressure cleaning is expected. It operates in extreme temperatures from -40°C to +70°C and weighs 91g. The beacon is designed to prevent false signaling from ambient light, ensuring accurate status display. This makes it particularly well-suited for applications in plant construction, automation systems, logistics, and control panels where a larger, clearly visible signal is required.
