AUER SIGNAL
General data |
|
|---|---|
| Lens colour | White |
| Light type | Amber LED |
| Light source | LED |
| Housing Colour | Black |
Rated operating conditions |
|
| Lamp power | 1.45 W |
| Operational temperature | -40 °C - +70 °C |
Dimensions |
|
| Height | 65 mm |
| Diameter | 50 mm |
| Width | 50 mm |
*Invisible Heading* |
|
|---|---|
| Weight | 47 g |
Additional data |
|
| IP class | IP66, IP67, IP69, IP6K9K |
| IK class | 8 |
| Supply voltage dc max | 30 V DC |
| Supply voltage dc min | 18 V DC |
| Temperature operational min | -40 °C |
| Temperature operational max | 70 °C |
| Life span | 60000 h |

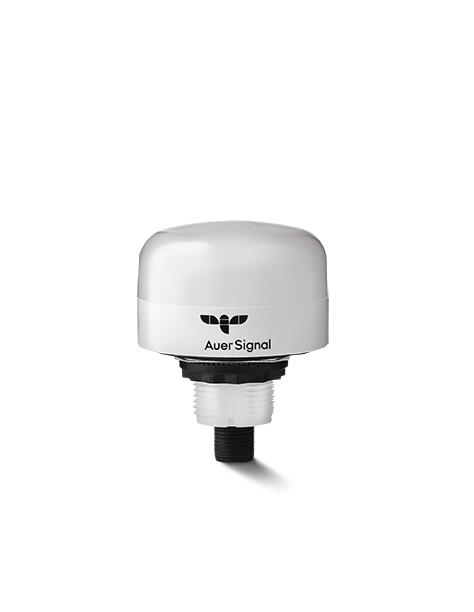

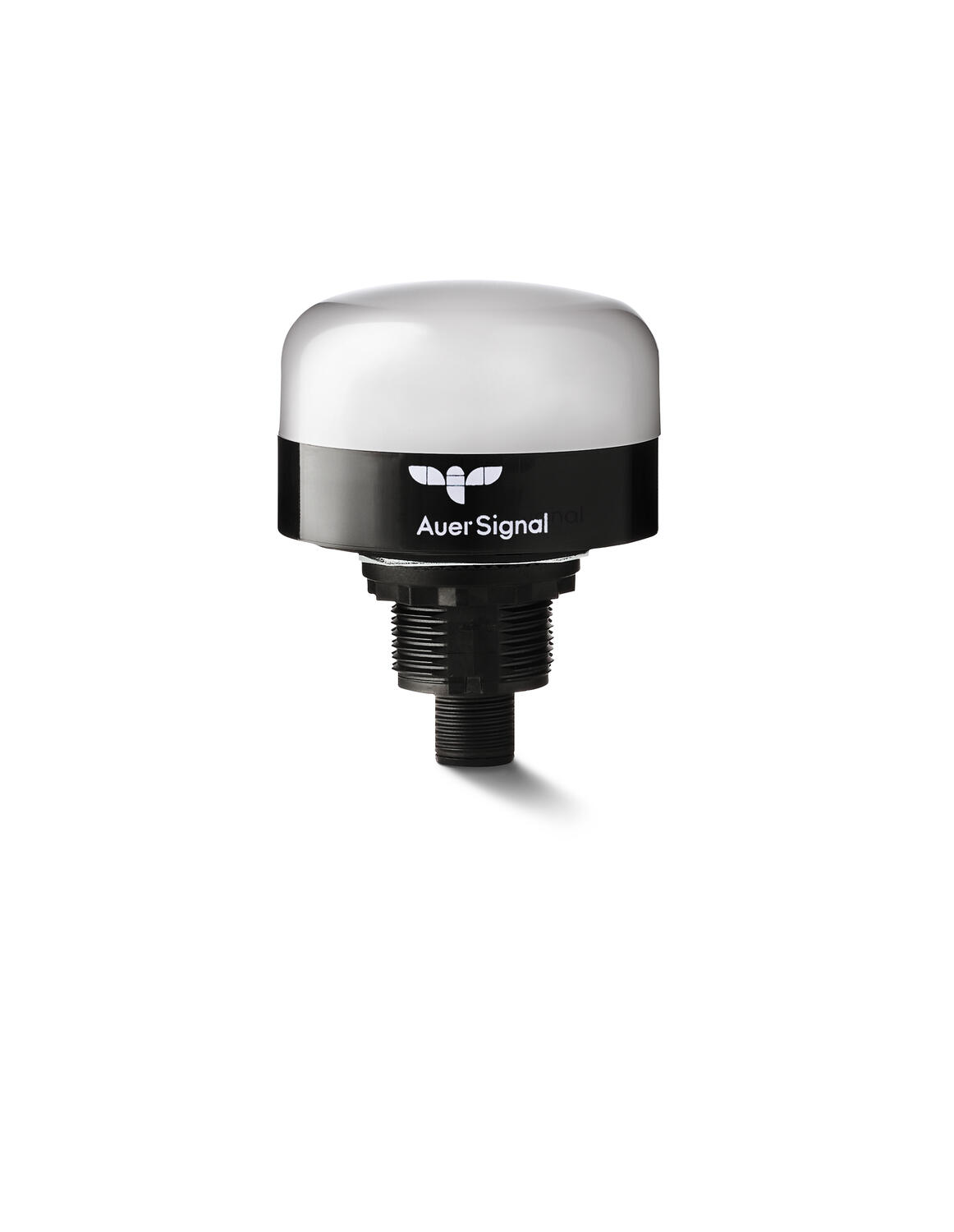

The Smart Dot 50 from Auer Signal is a high-performance signal light developed for machine panels, automation systems, and demanding industrial environments where clear, reliable status indication is essential.

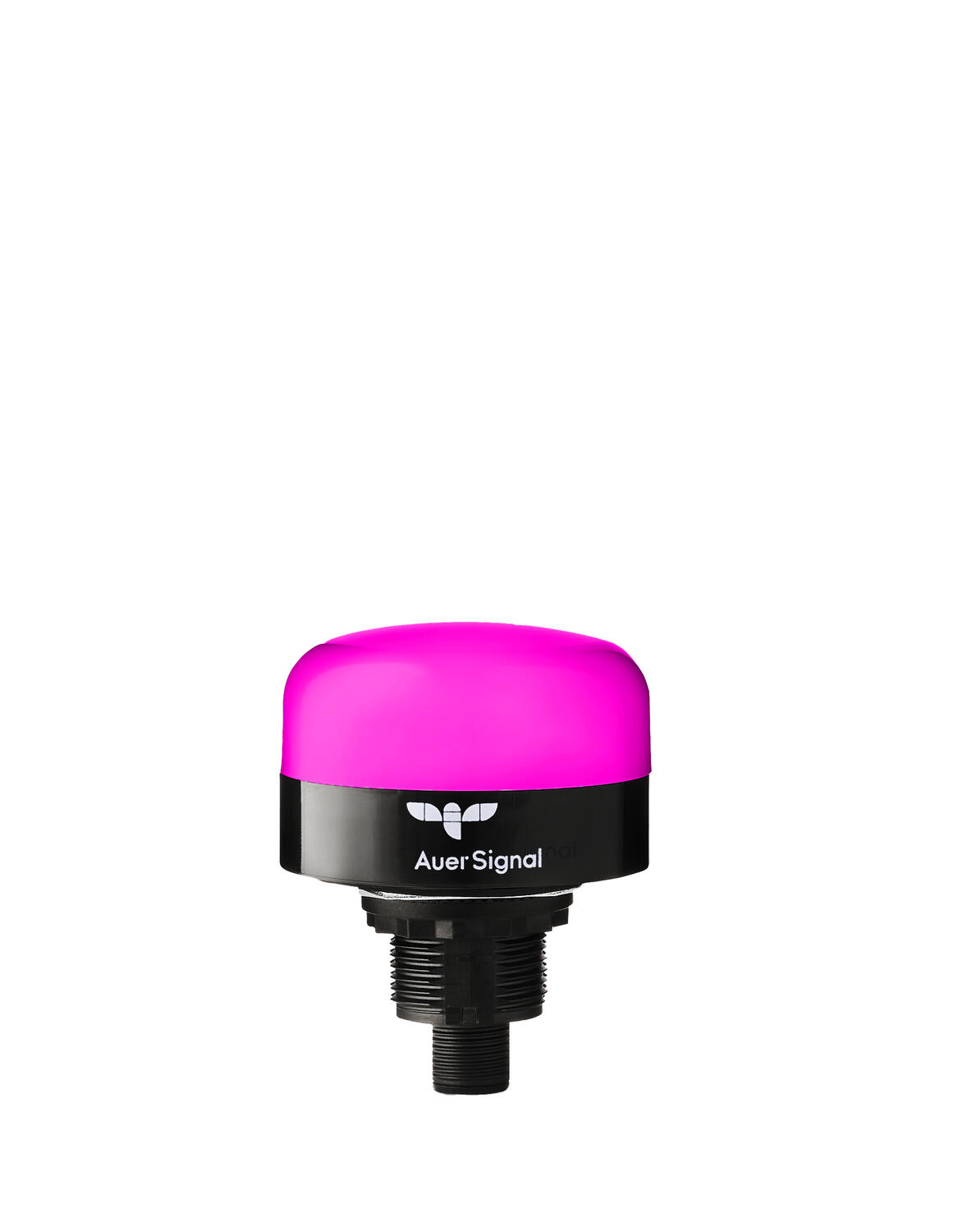

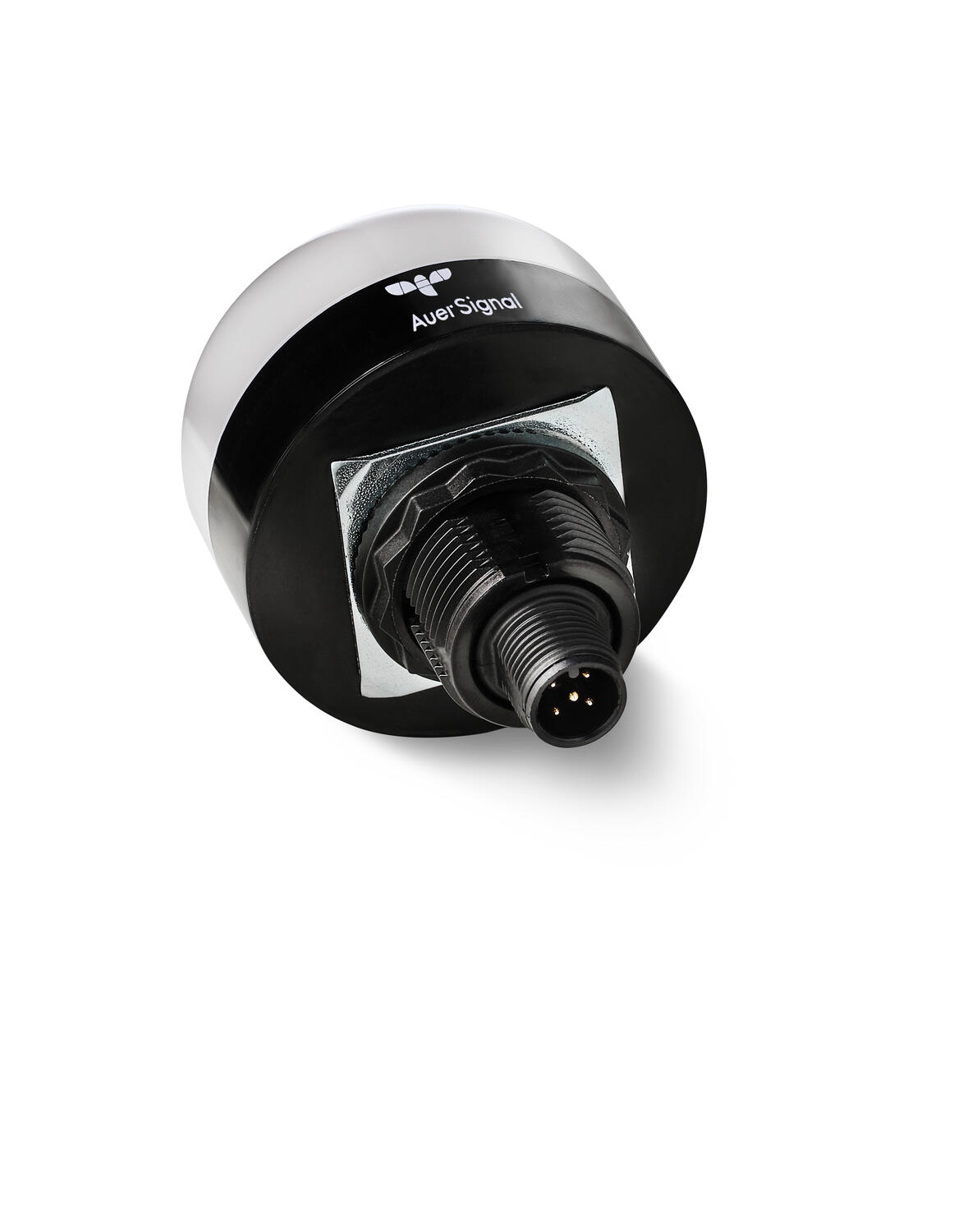

Available in three- or seven-colour versions, the Smart Dot 50 offers versatile lighting modes to suit a wide range of applications. The standardized M12 5-pin connector ensures fast, safe installation—reducing wiring time, minimizing downtime, and simplifying integration into existing systems.
Delivering up to four times the brightness of comparable products, the Smart Dot 50 guarantees excellent visibility even in bright ambient conditions. Its superior color rendering ensures clear signal recognition, while energy-efficient LED technology keeps power consumption low—making it ideal for applications where efficiency matters.
Intelligent power management actively controls and limits inrush current, protecting PLC outputs and sensitive electronics from unnecessary stress. Integrated temperature monitoring regulates operation to prevent overheating, extending service life and enhancing operational reliability. The unit is also designed to withstand high leakage currents, ensuring dependable performance in complex or interference-prone electrical systems.
With its compact footprint, robust construction, and advanced functionality, the Auer Smart Dot 50 is suitable for a broad range of industries—from machine building and intralogistics to automotive manufacturing and building automation. Engineered for durability and performance, it delivers reliable signaling even in the most demanding environments.
Have you ever wondered if there's any difference between cable coils and cable reels?
Our cable experts take you through the advantages of using cable coils.
What tri-rated cable are you currently using? Does the product or service you receive leave you wanting more? It’s time to ask the question. Because now, you’ve got options.
This innovative push-in connection system enables time savings of up to 50%, whether you're wiring control panels or managing complex installations
Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.
Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.
Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Light type | Housing Colour | Mounting | Nominal Supply Voltage | Lamp power | Weight | IP class | Supply voltage dc max | Supply voltage dc min | Life span | Nominal voltage | 12843_Touch output responsetime | 12841_Touch output | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

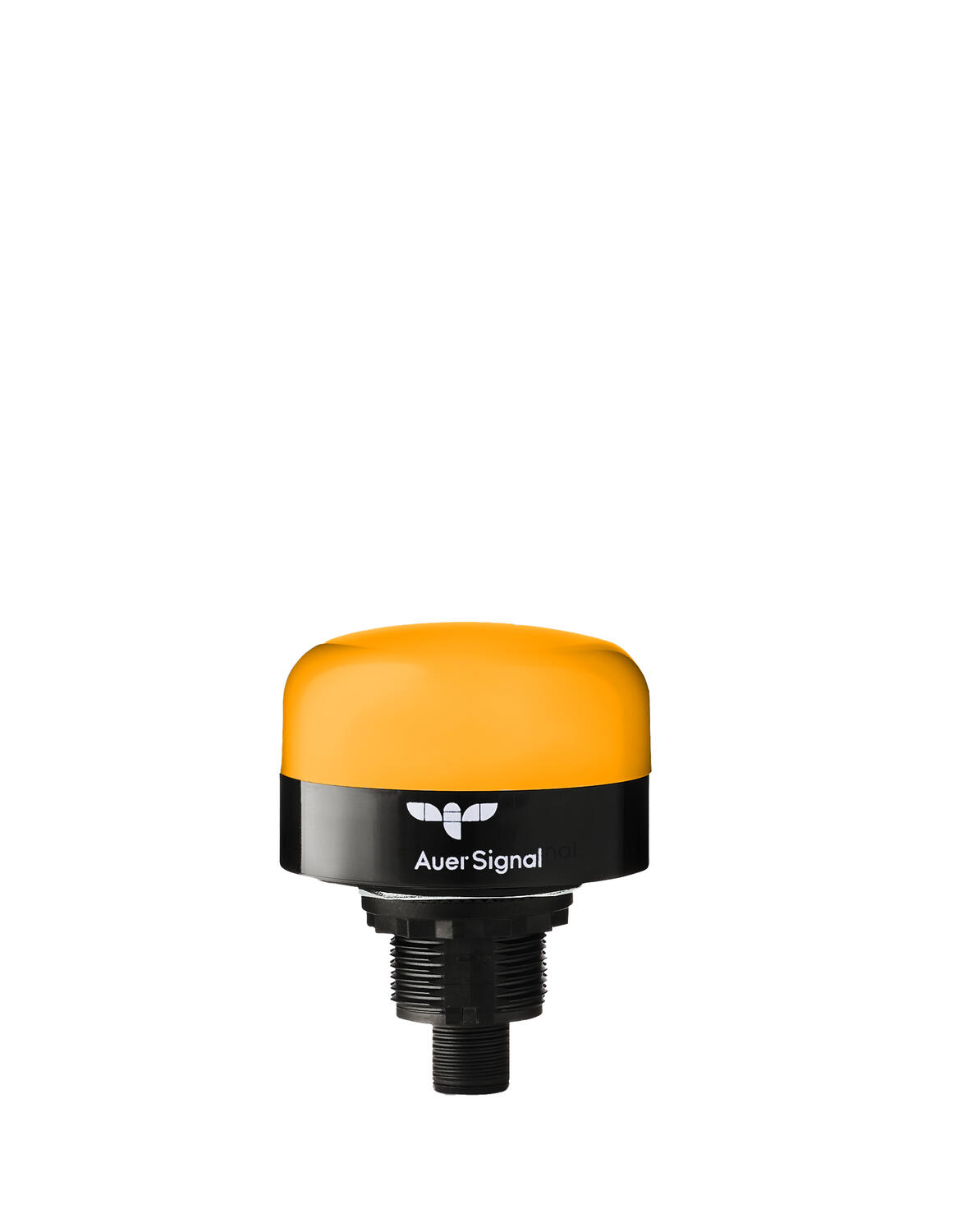

SD5B1 Smart Dot 50 Basic Beacon Amber
Art:
SD50-A
Copied
|
Amber LED
|
Black
|
|
|
1.45 W
|
47 g
|
IP66, IP67, IP69, IP6K9K
|
30 V DC
|
18 V DC
|
60000 h
|
|
|
|
|
||
SD5B1 Smart Dot 50 Basic Beacon Blue
Art:
SD50-B
Copied
|
Blue LED
|
Black
|
|
|
1.45 W
|
47 g
|
IP66, IP67, IP69, IP6K9K
|
30 V DC
|
18 V DC
|
60000 h
|
|
|
|
|
||
SD5B1 Smart Dot 50 Basic Beacon Red
Art:
SD50-R
Copied
|
Red LED
|
Black
|
|
|
1.45 W
|
47 g
|
IP66, IP67, IP69, IP6K9K
|
30 V DC
|
18 V DC
|
60000 h
|
|
|
|
|
||
SD5B1 Smart Dot 50 Basic Beacon Green
Art:
SD50-G
Copied
|
Green LED
|
Black
|
|
|
1.45 W
|
47 g
|
IP66, IP67, IP69, IP6K9K
|
30 V DC
|
18 V DC
|
60000 h
|
|
|
|
|
||
|
SD5B1 Smart Dot 50 Basic Beacon White
Art:
SD50-W
Copied
|
White LED
|
Black
|
|
|
1.45 W
|
47 g
|
IP66, IP67, IP69, IP6K9K
|
30 V DC
|
18 V DC
|
60000 h
|
|
|
|
|
||
|
SD5B2 Smart Dot 50 Basic Beacon Amber/White
Art:
SD50-AW
Copied
|
Amber LED, White LED
|
Black
|
|
|
1.45 W
|
47 g
|
IP66, IP67, IP69, IP6K9K
|
30 V DC
|
18 V DC
|
60000 h
|
|
|
|
|
||
|
SD5B2 Smart Dot 50 Basic Beacon Green/Yellow
Art:
SD50-GY
Copied
|
Green LED, Yellow LED
|
Black
|
|
|
1.45 W
|
47 g
|
IP66, IP67, IP69, IP6K9K
|
30 V DC
|
18 V DC
|
60000 h
|
|
|
|
|
||
|
SD5B2 Smart Dot 50 Basic Beacon Green/Red
Art:
SD50-GR
Copied
|
Green LED, Red LED
|
Black
|
|
18-30 V DC
|
1.45 W
|
47 g
|
IP66, IP67, IP69, IP6K9K
|
30 V DC
|
18 V DC
|
60000 h
|
|
|
|
|
||
|
SD5B2 Smart Dot 50 Basic Beacon Green/White
Art:
SD50-GW
Copied
|
Green LED, White LED
|
Black
|
|
|
1.45 W
|
47 g
|
IP66, IP67, IP69, IP6K9K
|
30 V DC
|
18 V DC
|
60000 h
|
|
|
|
|
||
|
SD5B3 Smart Dot 50 Basic Beacon Green/Blue/White
Art:
SD50-GBW
Copied
|
Green LED, Blue LED, White LED
|
Black
|
|
|
1.45 W
|
47 g
|
IP66, IP67, IP69, IP6K9K
|
30 V DC
|
18 V DC
|
60000 h
|
|
|
|
|
||
|
SD5B3 Smart Dot 50 Basic Beacon Green/Red/Blue
Art:
SD50-GRB
Copied
|
Green LED, Red LED, Blue LED
|
Black
|
|
|
1.45 W
|
47 g
|
IP66, IP67, IP69, IP6K9K
|
30 V DC
|
18 V DC
|
60000 h
|
|
|
|
|
||
|
SD5B3 Smart Dot 50 Basic Beacon Green/Red/White
Art:
SD50-GRW
Copied
|
Green LED, Red LED, White LED
|
Black
|
|
|
1.45 W
|
47 g
|
IP66, IP67, IP69, IP6K9K
|
30 V DC
|
18 V DC
|
60000 h
|
|
|
|
|
||
|
SD5B3 Smart Dot 50 Basic Beacon Green/Yellow/Blue
Art:
SD50-GYB
Copied
|
Green LED, Blue LED, Yellow LED
|
Black
|
|
|
|
47 g
|
IP66, IP67, IP69, IP6K9K
|
30 V DC
|
18 V DC
|
60000 h
|
|
|
|
|
||
|
SD5B3 Smart Dot 50 Basic Beacon Tricolor
Art:
SD50-GYR
Copied
|
Green LED, Yellow LED, Red LED
|
Black
|

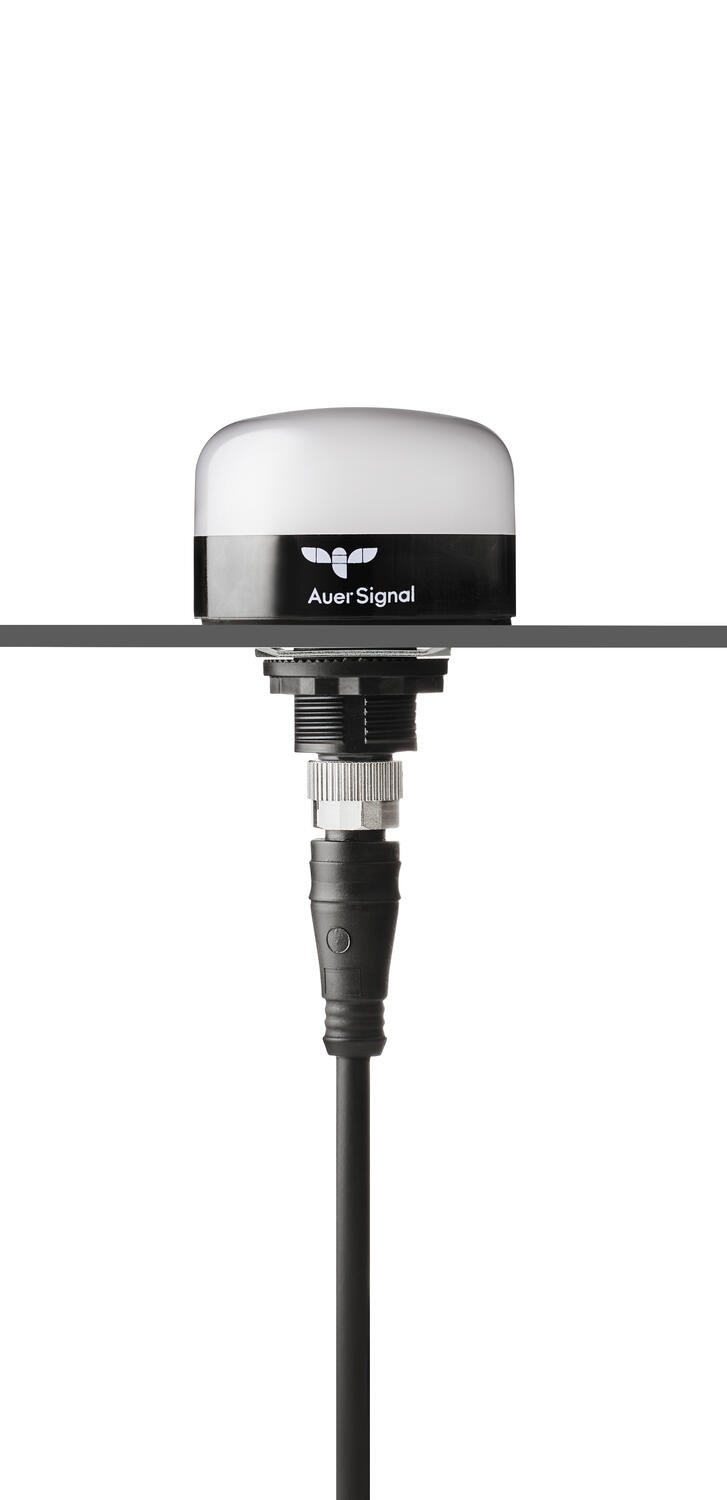

Panel mount, Panel mount Ø22 mm
|
18-30 V DC
|
1.45 W
|
47 g
|
IP66, IP67, IP69, IP6K9K
|
30 V DC
|
18 V DC
|
60000 h
|
|
|
|
|
||
|
SD5B3 Smart Dot 50 Basic Beacon Green/Yellow/White
Art:
SD50-GYW
Copied
|
Green LED, Yellow LED, White LED
|
Black
|
|
|
1.45 W
|
47 g
|
IP66, IP67, IP69, IP6K9K
|
30 V DC
|
18 V DC
|
60000 h
|
|
|
|
|
||
|
SD5S7 Smart Dot 50 Std Beacon Multicolor
Art:
SD50-MC7
Copied
|
Multi-function, Multi Colour
|
Black
|
Panel mount, Panel mount Ø22 mm
|
10-30 V DC
|
1.32 W
|
47 g
|
IP66, IP67, IP69, IP6K9K
|
30 V DC
|
10 V DC
|
50000 h
|
10-30 V DC
|
|
|
|
||
SD5B3 Smart Dot 50 Basic Tricolor White
Art:
SD50-GYR-W
Copied
|
Green LED, Yellow LED, Red LED
|
White
|
Panel mount, Panel mount Ø22 mm
|
18-30 V DC
|
1.45 W
|
47 g
|
IP66, IP67, IP69, IP6K9K
|
30 V DC
|
18 V DC
|
60000 h
|
|
|
|
|
||
|
SD5S7 Smart Dot 50 Std Multicolor White
Art:
SD50-MC7-W
Copied
|
Multi-function, Multi Colour
|
White
|
Panel mount, Panel mount Ø22 mm
|
10-30 V DC
|
1.32 W
|
47 g
|
IP66, IP67, IP69, IP6K9K
|
30 V DC
|
10 V DC
|
60000 h
|
|
|
|
|
||

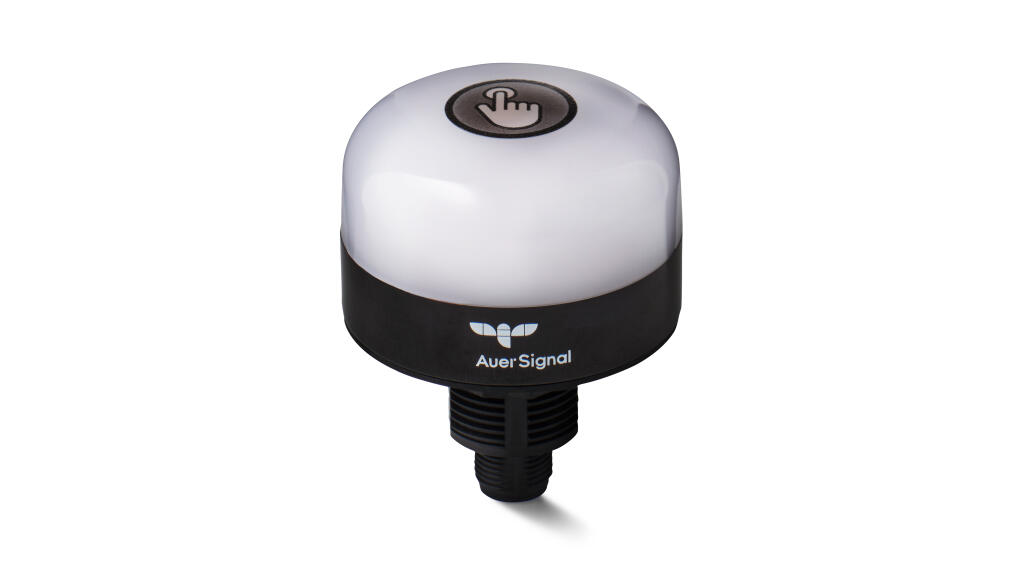

Smart Dot 50 Basic Beacon Touch Tricolor
Art:
SD50T-GYR
Copied
|
Green LED, Yellow LED, Red LED
|
Black
|
Panel mount Ø22 mm
|
18-30 V DC
|
1.1 W
|
49 g
|
IP66, IP67, IP69, IP6K9K, IP69K
|
30 V DC
|
18 V DC
|
60000 h
|
|
110 ms
|
Momentan
|
|
||
|
Smart Dot 50 Basic Beacon Touch MC7
Art:
SD50T-MC7
Copied
|
Multi-function, Multi Colour
|
Black
|
Panel mount Ø22 mm
|
10-30 V DC
|
1.32 W
|
48 g
|
IP66, IP67, IP69, IP69K, IP6K9K
|
30 V DC
|
10 V DC
|
50000 h
|
|
110 ms
|
Momentan
|
|
||
SD5B1 Smart Dot 50 Basic Beacon Amber
Art:
SD50T-MC7-W
Copied
|
Multi-function, Multi Colour
|
White
|
Panel mount Ø22 mm
|
10-30 V DC
|
1.32 W
|
48 g
|
IP66, IP67, IP69, IP69K, IP6K9K
|
30 V DC
|
10 V DC
|
50000 h
|
|
110 ms
|
Momentan
|
|
||
SD5S7 SmartDot50 Std Multicol Stainless
Art:
SD50-MC7-S
Copied
|
Multi Colour, Multi-function
|
Stainless
|
|
10-30 V DC
|
1.32 W
|
47 g
|
IP66, IP67, IP69, IP6K9K
|
|
|
60000 h
|
|
|
|
|
Select a variant in the list
