AUER SIGNAL

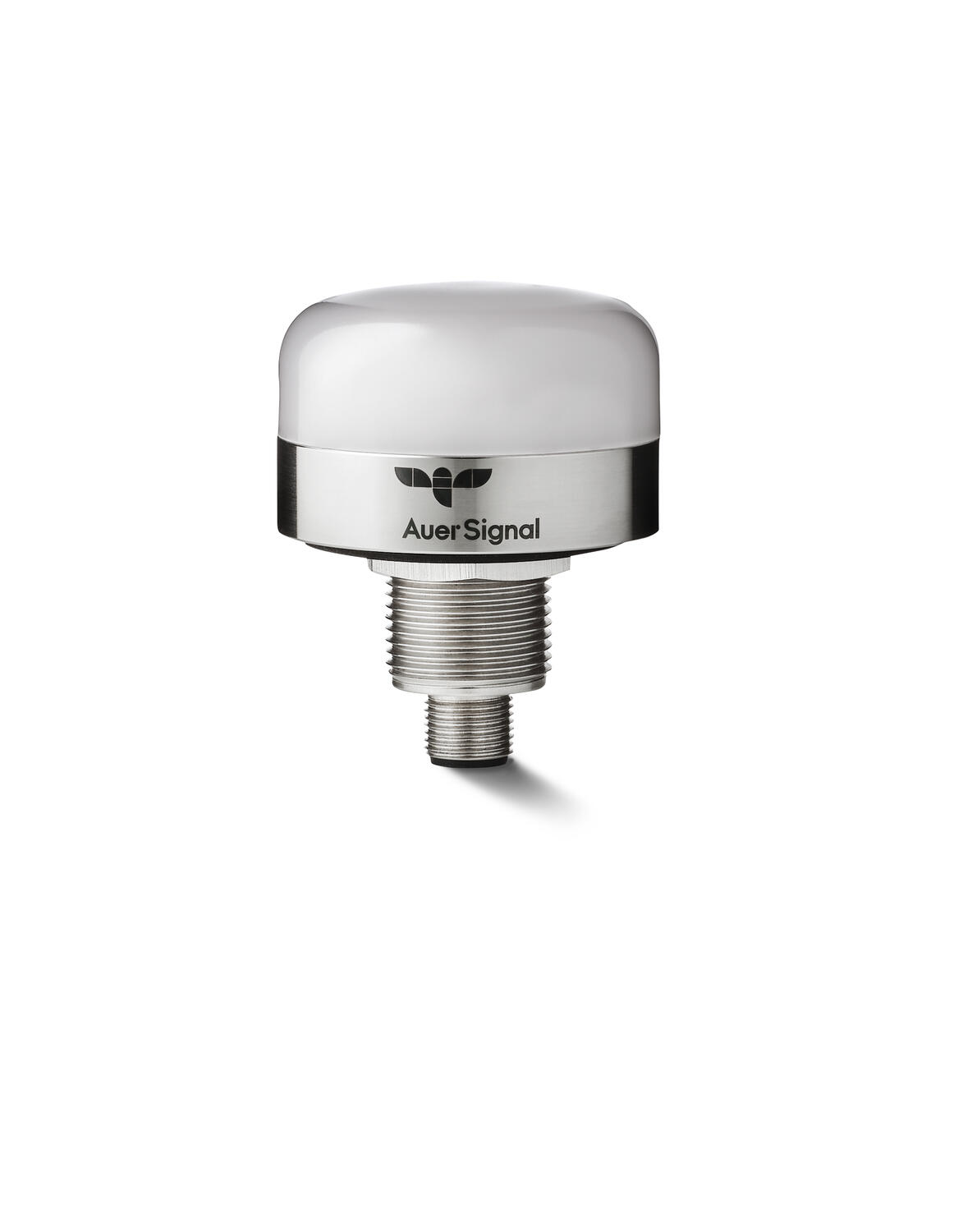

Auer Signal Series 50 Smart Dot Beacon
SD50-GYR and SD50-MC7
- High brightness, colour brilliance and energy efficiency
- Excellent homogeneous and flexible colour signalling
- Multiple animation modes
- Smart Protection
Selected variant
Technical data
General data |
|
|---|---|
| Lens colour | White |
| Light type | Multi-function |
| Light source | LED |
| Housing Colour | Black |
| Mounting | Panel mount, Panel mount Ø22 mm |
Rated operating conditions |
|
| Nominal Supply Voltage | 18-30 V DC |
| Operational temperature | -40 °C - +70 °C |

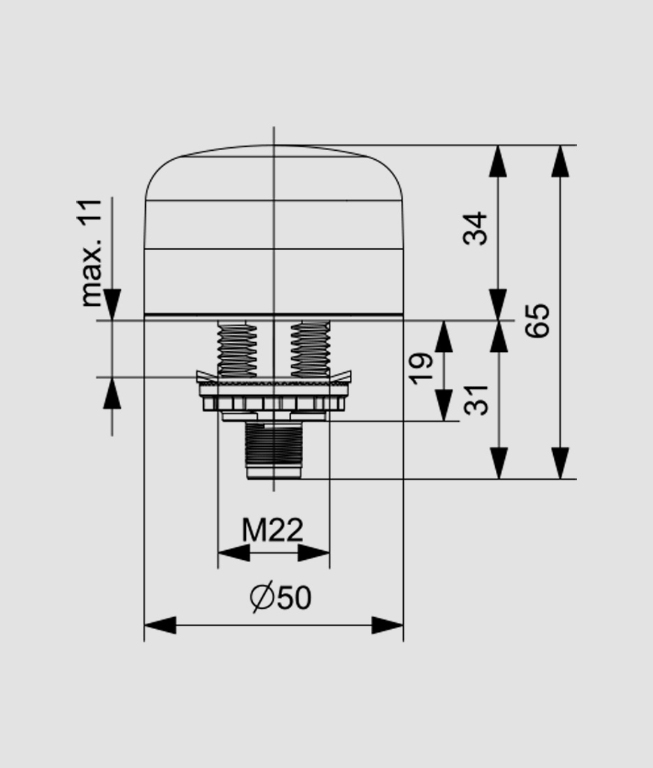

Dimensions |
|
| Height | 65 mm |
| Diameter | 50 mm |
| Width | 50 mm |
*Invisible Heading* |
|
|---|---|
| Weight | 48 g |
Additional data |
|
| IP class | IP66, IP67, IP69, IP6K9K |
| IK class | 8 |
| Supply voltage dc max | 30 V DC |
| Supply voltage dc min | 10 V DC |
| Temperature operational min | -40 °C |
| Temperature operational max | 70 °C |
| Nominal current max | 0.001 A |
Product description
The SD50-GYR is a compact tricolour beacon engineered for industrial environments requiring reliable and clear signaling. It delivers green, yellow, and red light outputs with five configurable animation modes: steady, flash, colour alternation, high intensity beat, and steady ECO. It features Smart Protection capabilities including active inrush current limitation and thermal control for increased durability and efficiency. With an IP66, IP67, IP69, and IP69K-rated enclosure, it resists water, dust, and high-pressure cleaning, and operates within a broad temperature range of -40°C to +70°C. The unit installs via an M22 threaded mount and M12 pin plug, weighs just 48g, and is optimised for seamless integration in tight spaces.
The SD50-MC7 builds on the same platform but offers seven colour options—red, yellow, green, blue, magenta, turquoise, and white—enabling more comprehensive and flexible status indication from a single device. It retains the same five animation modes and Smart Protection features, including thermal regulation and inrush current control. With the same IP-rated enclosure and temperature tolerance, it is equally suitable for harsh industrial settings. Its lightweight, compact form factor and plug-and-play connectivity make it ideal for complex automation systems where space efficiency and multi-status signaling are key.
