AUER SIGNAL

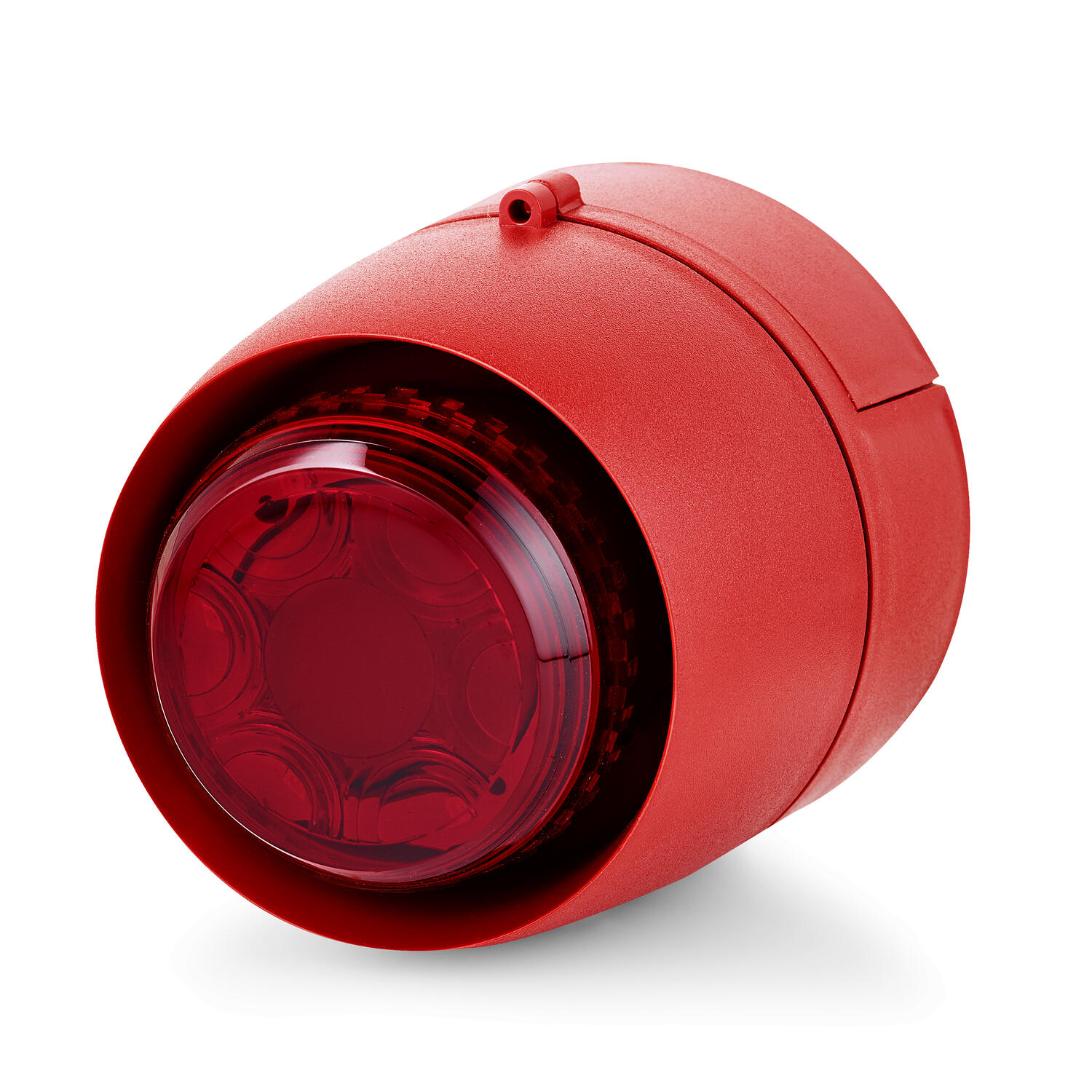

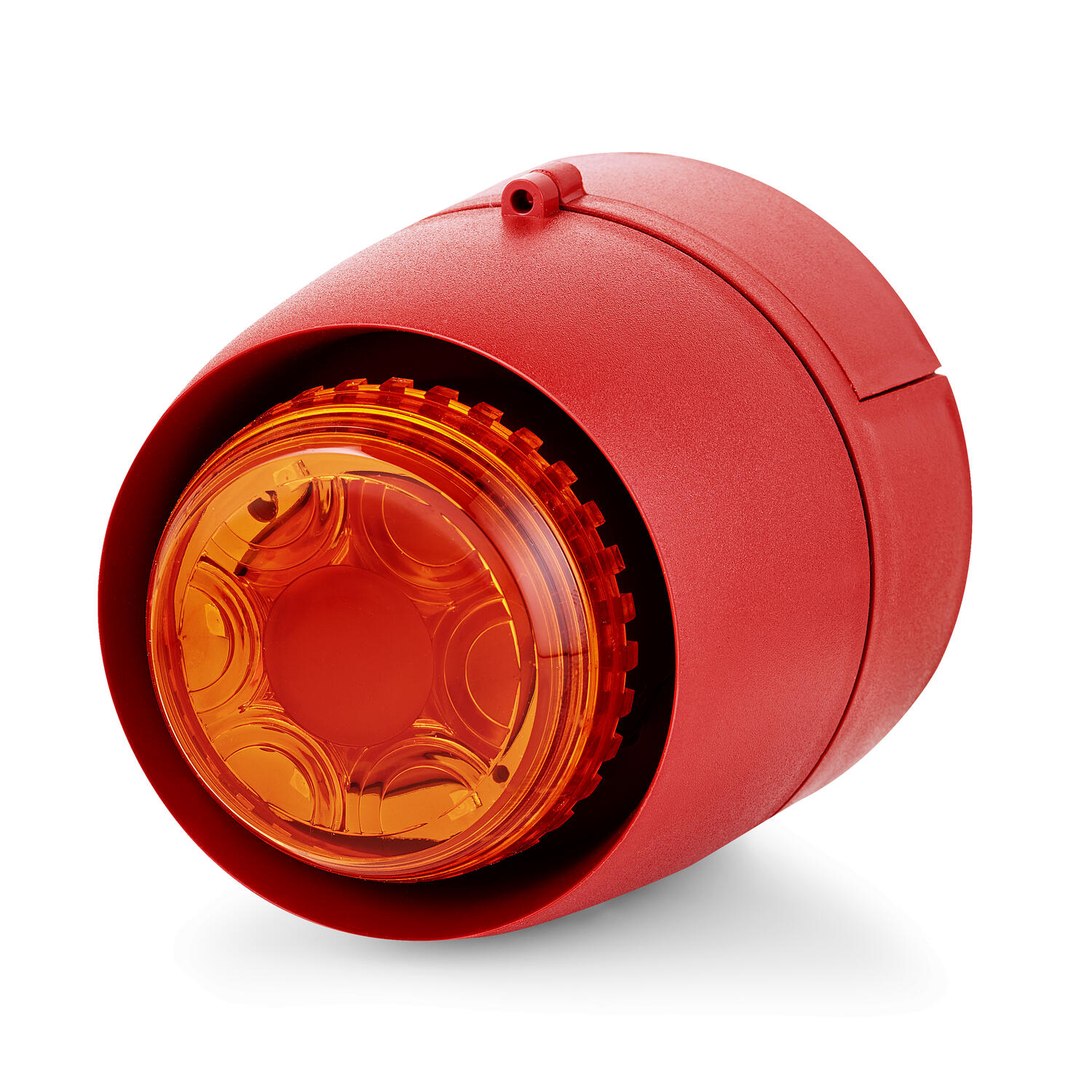

LED Flashing Beacon/Sounder, CS1
The CS1 is a cost effective combination-module with flashing LEDs. Tone selection and noise levels are set using internal dip-switches and the unit is IP65 for mounting both indoors and outdoors.
Â

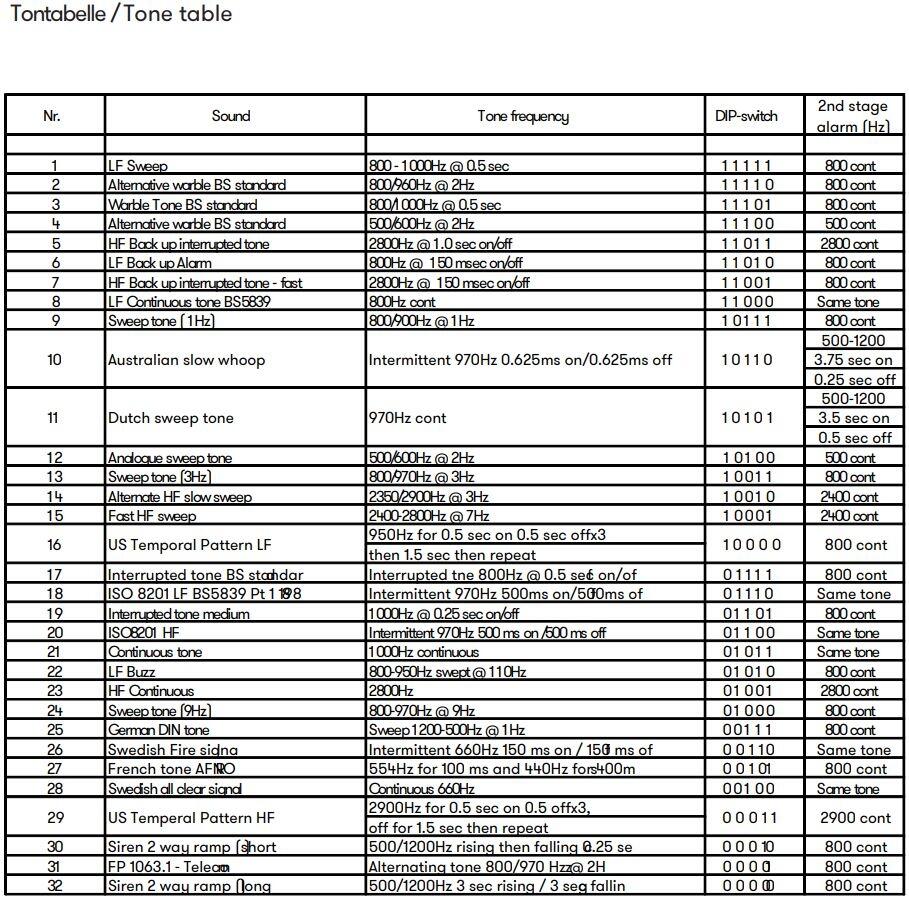

With 32 different tone settings available the CS1 is suitable for many signalling applications.
Â
- cost effective LES flashing beacon electronic multitone sirenÂ
- 32 tonesÂ
- tone type and volume selectable via DIP switchÂ
- low nominal current (11 - 37 mA)Â
- quick fit installation by bayonet fixingÂ

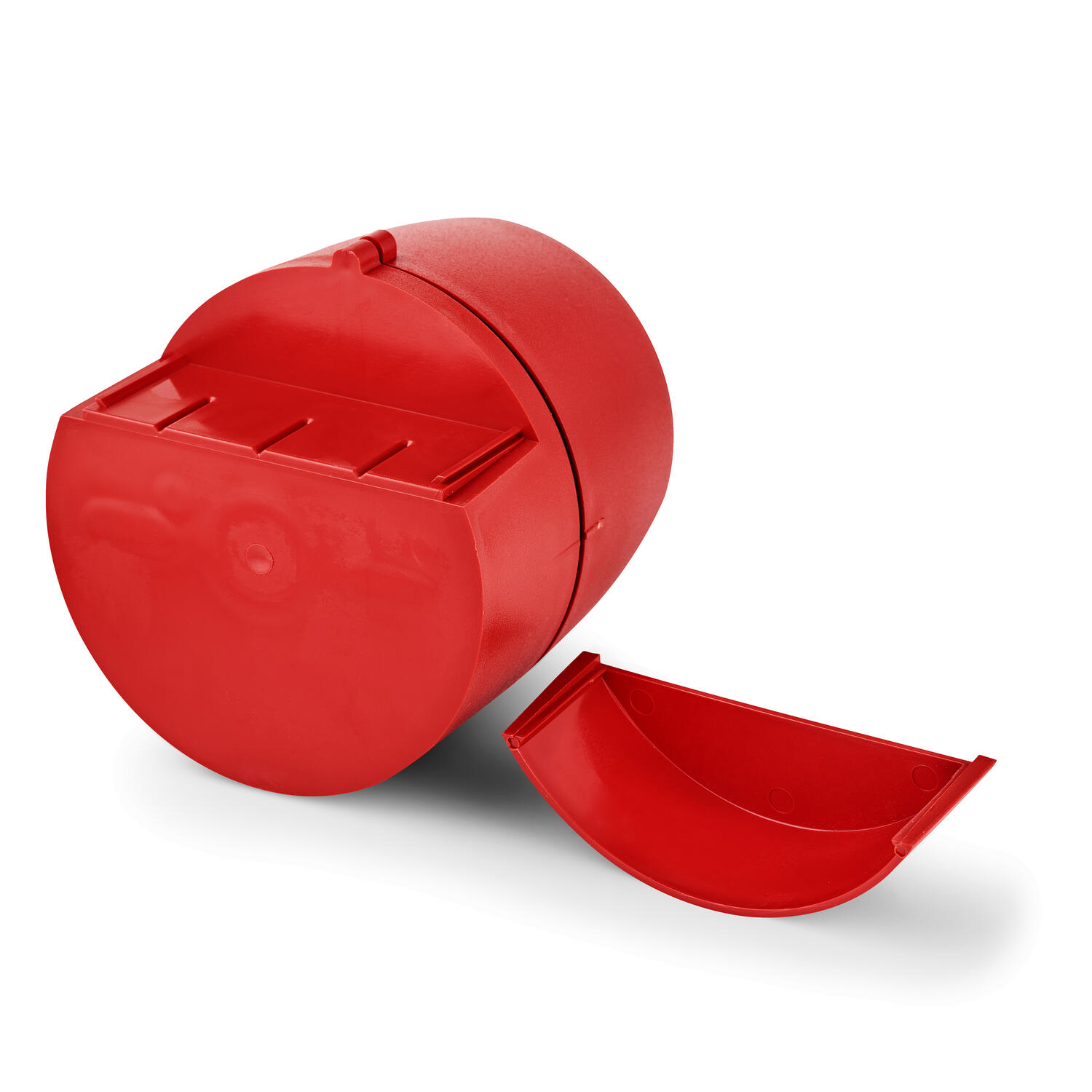

- lateral cable entry possibleÂ
- Vertical or horizontal mount, cost effective beacon with sounder
- 86-106 dB Range
- Flashing beacon with 32 tones
Selected variant
Technical data
| Flash frequency | 1 Hz |
|---|---|
| Housing Colour | White |
| IP class | IP65 |
| Lens colour | Orange |
| Light source | LED |
| Light type | Orange LED |
| Mounting | Horizontal, Vertical |
| Nominal current max | 0.041 A |
| Nominal current min | 0.014 A |
| Number of tones | 32 Â |
| Sound control | Yes |
| Sound level max | 109 dB |
|---|---|
| Sound level min | 88 dB |
| Supply voltage | 24 V |
| Supply voltage ac/dc max | 35 V |
| Supply voltage ac/dc min | 18 V |
| Temperature operational max | 70 °C |
| Temperature operational min | -20 °C |
| Tone frequency max | 2900 Hz |
| Tone frequency min | 440 Hz |
| Weight | 258 g |
Product description
The CS1 is a cost effective combination-module with flashing LEDs. Tone selection and noise levels are set using internal dip-switches and the unit is IP65 for mounting both indoors and outdoors.
Â
With 32 different tone settings available the CS1 is suitable for many signalling applications.
Â
- cost effective LES flashing beacon electronic multitone sirenÂ
- 32 tonesÂ
- tone type and volume selectable via DIP switchÂ
- low nominal current (11 - 37 mA)Â
- quick fit installation by bayonet fixingÂ
- lateral cable entry possibleÂ
