Cubic Warning Light LED Series A 875061313

Diameter	94mm
Flash frequency	1.4 Hz
Housing Colour	Red
IK class	9
IP class	IP66
Lens colour	Orange
Light source	LED
Light type	Orange LED
Mounting	Independent
Sound control	Yes

Sound level max	103 dB
Supply voltage ac max	240 V AC
Supply voltage ac min	230 V AC
Temperature operational max	60 °C
Temperature operational min	-30 °C
Terminal connection	2.5 mm²
Tone frequency max	4600 Hz
Tone frequency min	500 Hz

Parts	Diameter	Flash frequency	Housing Colour	IK class	IP class	Lens colour	Light source	Light type	Mounting	Sound control	Sound level max	Supply voltage ac max	Supply voltage ac min	Supply voltage ac/dc max	Supply voltage ac/dc min	Temperature operational max	Temperature operational min	Terminal connection	Tone frequency max	Tone frequency min

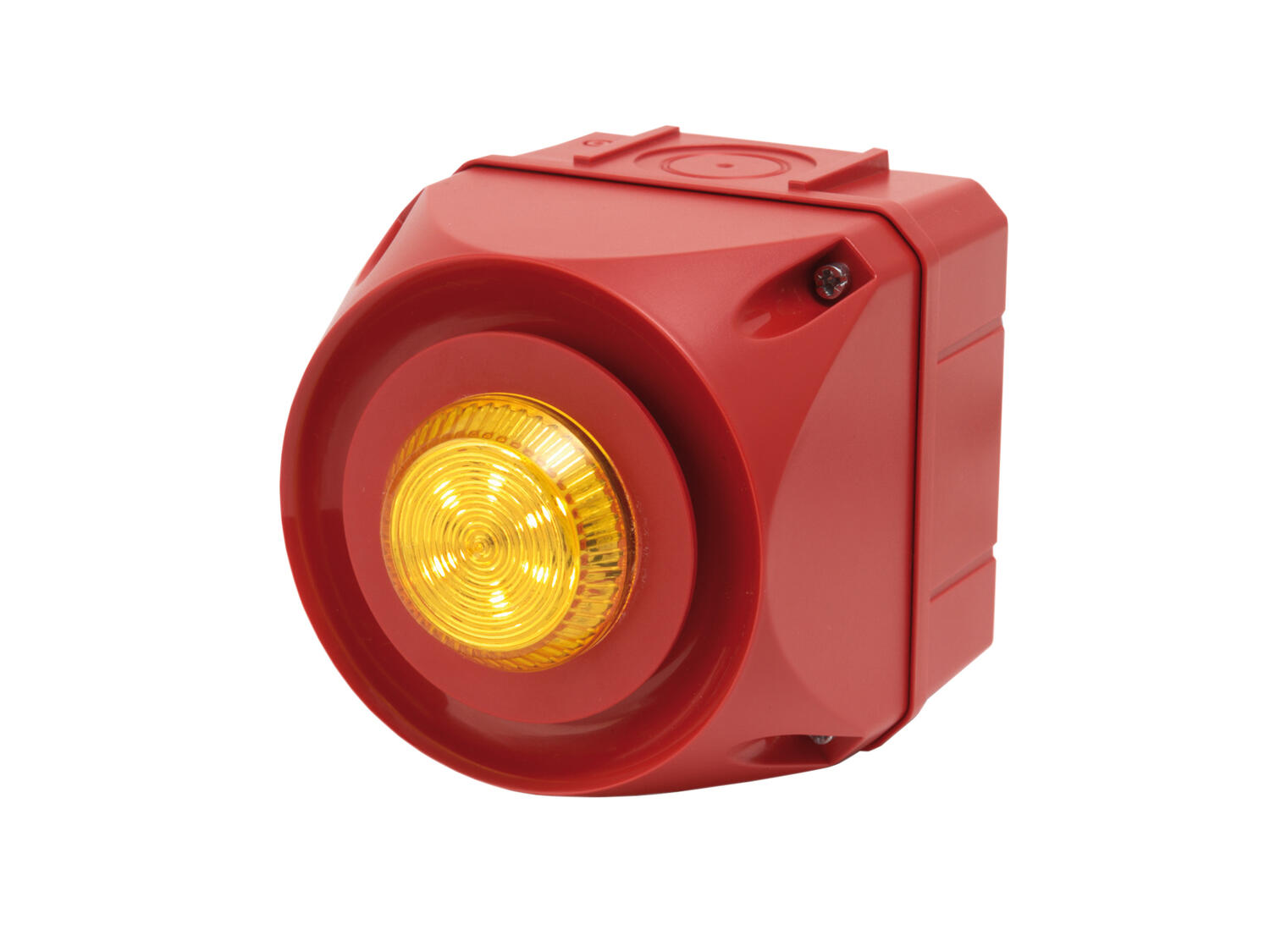

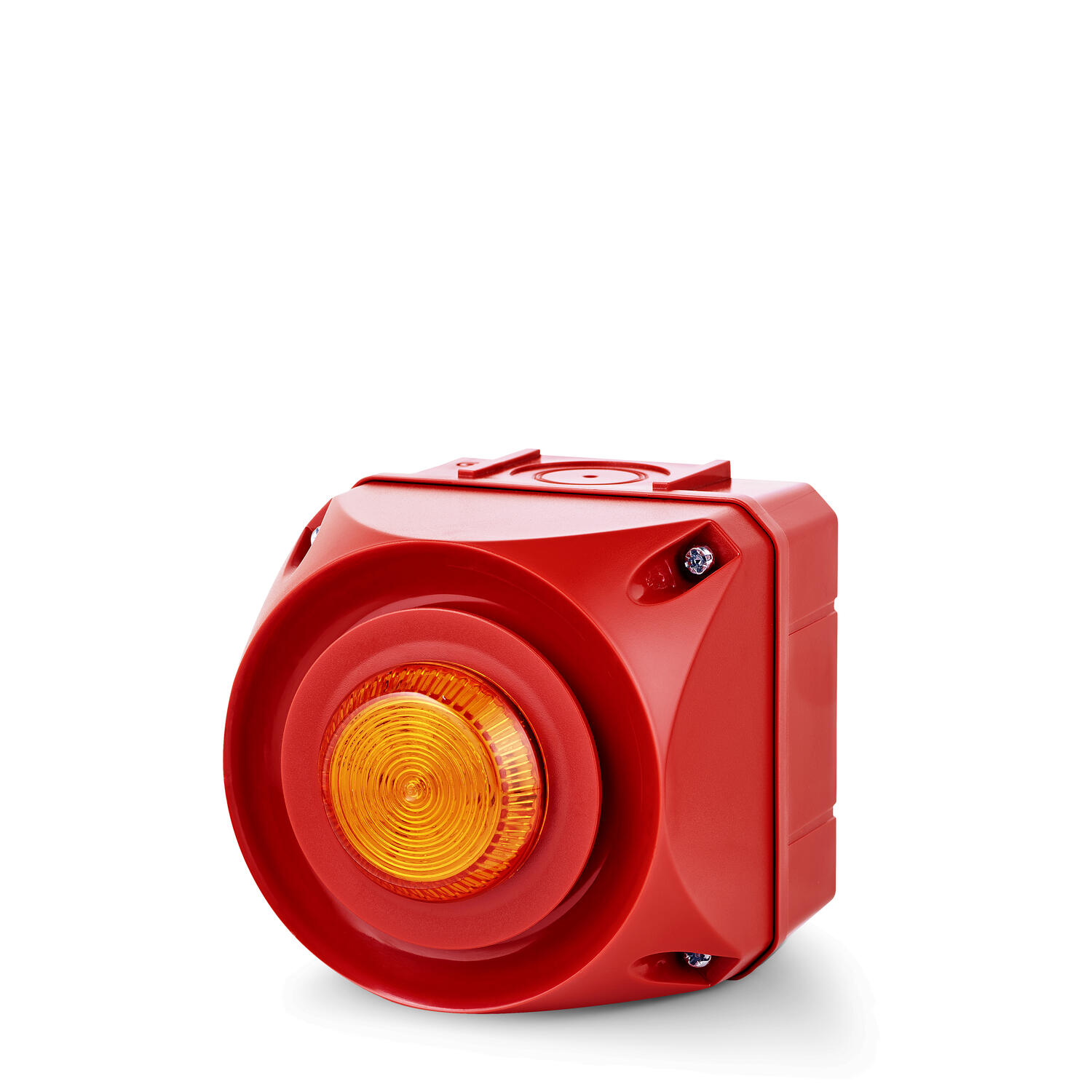

Multi-tone LED sounder, 94mm, Amber, 230-240 V ac, ADS-P Art: 875061313 Copied	94mm	1.4 Hz	Red	9	IP66	Orange	LED	Orange LED	Independent	Yes	103 dB	240 V AC	230 V AC			60 °C	-30 °C	2.5 mm²	4600 Hz	500 Hz

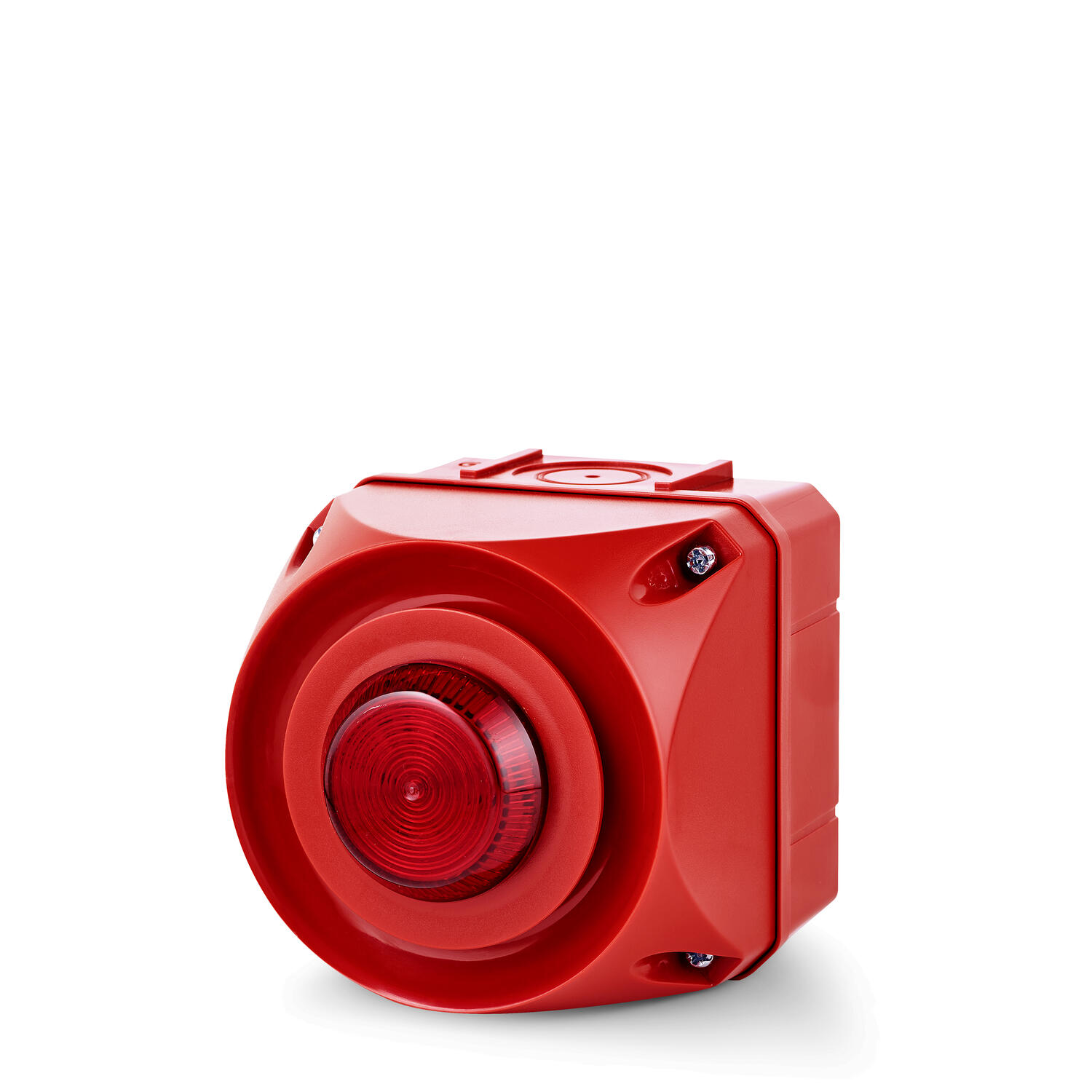

Multi-tone LED sounder, 94mm, Red, 230-240 V ac, ADS-P Art: 875062313 Copied	94mm	1.4 Hz	Red	9	IP66	Red	LED	Red LED	Independent	Yes	103 dB	240 V AC	230 V AC			60 °C	-30 °C	2.5 mm²	4600 Hz	500 Hz
Multi-tone LED sounder, 94mm, Red, 24 V ac/dc, ADS-P Art: 875062405 Copied	94mm	1.4 Hz	Red	9	IP66	Red	LED	Red LED	Independent	Yes	103 dB			24 V	24 V	60 °C	-30 °C	2.5 mm²	4600 Hz	500 Hz

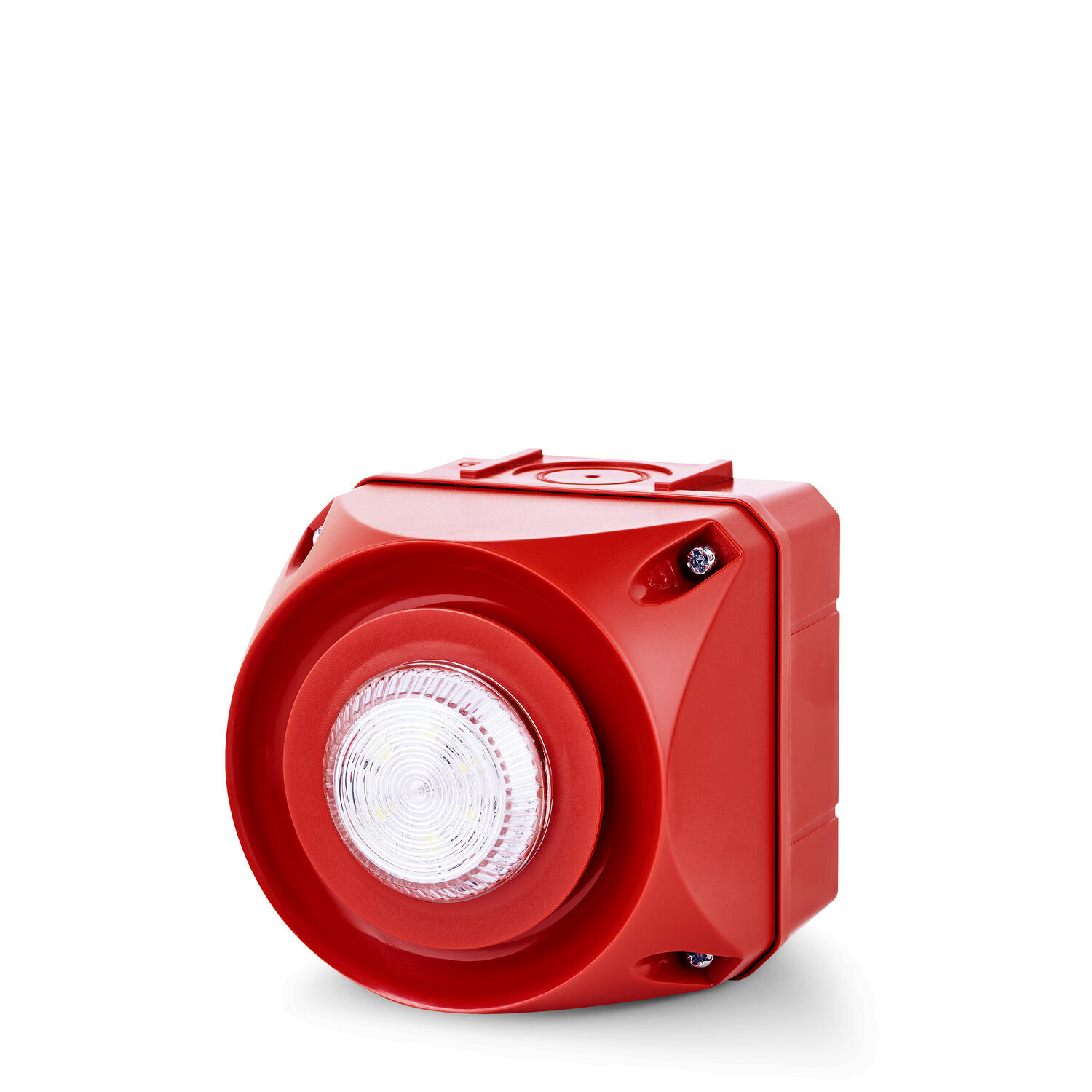

Multi-tone LED sounder, 94mm, Clear, 230-240 V ac, ADS-P Art: 875064313 Copied	94mm	1.4 Hz	Red	9	IP66	Clear	LED	White LED	Independent	Yes	103 dB	240 V AC	230 V AC			60 °C	-30 °C	2.5 mm²	4600 Hz	500 Hz
Multi-tone LED sounder, 94mm, Clear, 24 V ac/dc, ADS-P Art: 875064405 Copied	94mm	1.4 Hz	Red	9	IP66	Clear	LED	White LED	Independent	Yes	103 dB			24 V	24 V	60 °C	-30 °C	2.5 mm²	4600 Hz	500 Hz

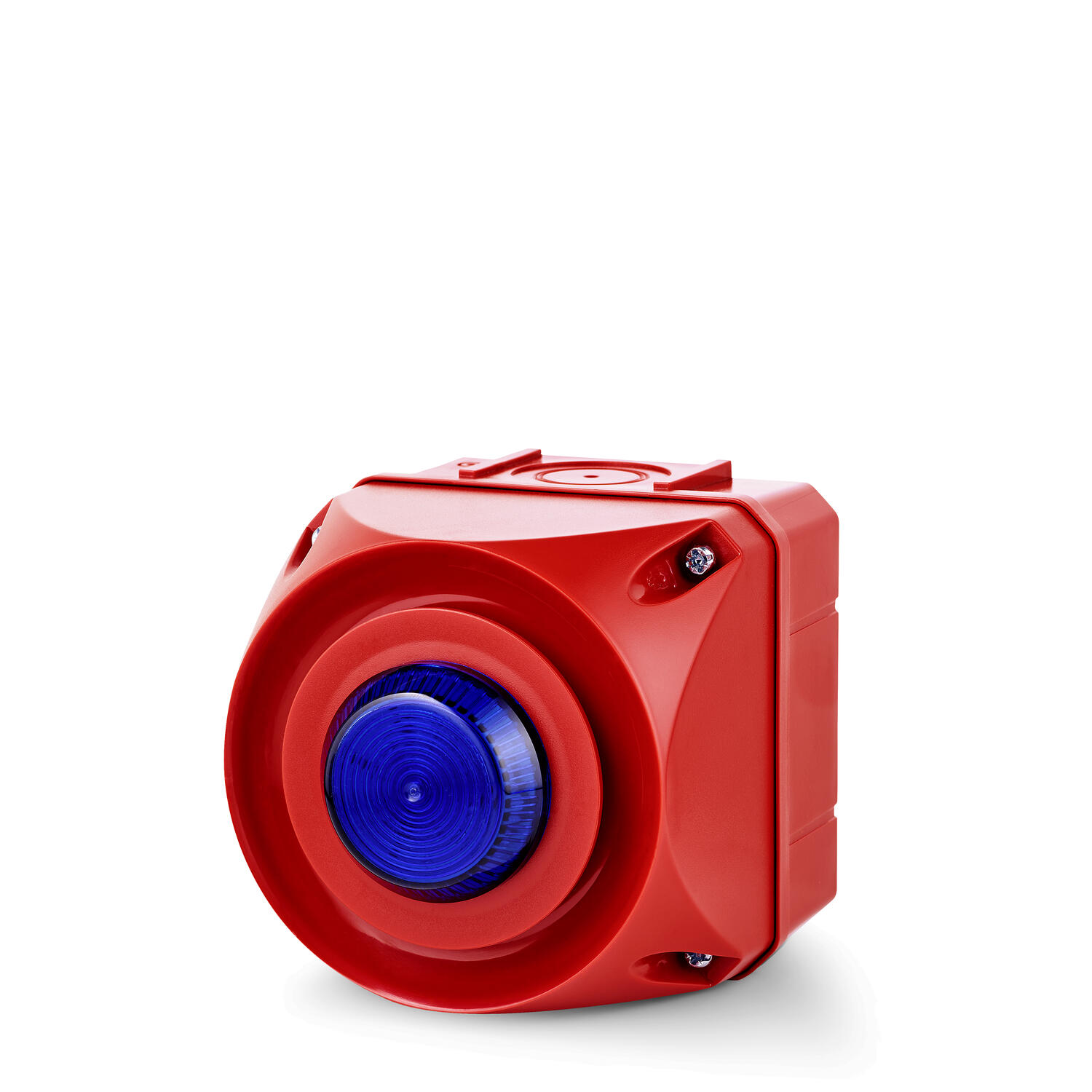

Multi-tone LED sounder, 94mm, Blue, 230-240 V ac, ADS-P Art: 875065313 Copied	94mm	1.4 Hz	Red	9	IP66	Blue	LED	Blue LED	Independent	Yes	103 dB	240 V AC	230 V AC			60 °C	-30 °C	2.5 mm²	4600 Hz	500 Hz
Multi-tone LED sounder, 94mm, Blue, 24 V ac/dc, ADS-P Art: 875065405 Copied	94mm	1.4 Hz	Red	9	IP66	Blue	LED	Blue LED	Independent	Yes	103 dB			24 V	24 V	60 °C	-30 °C	2.5 mm²	4600 Hz	500 Hz

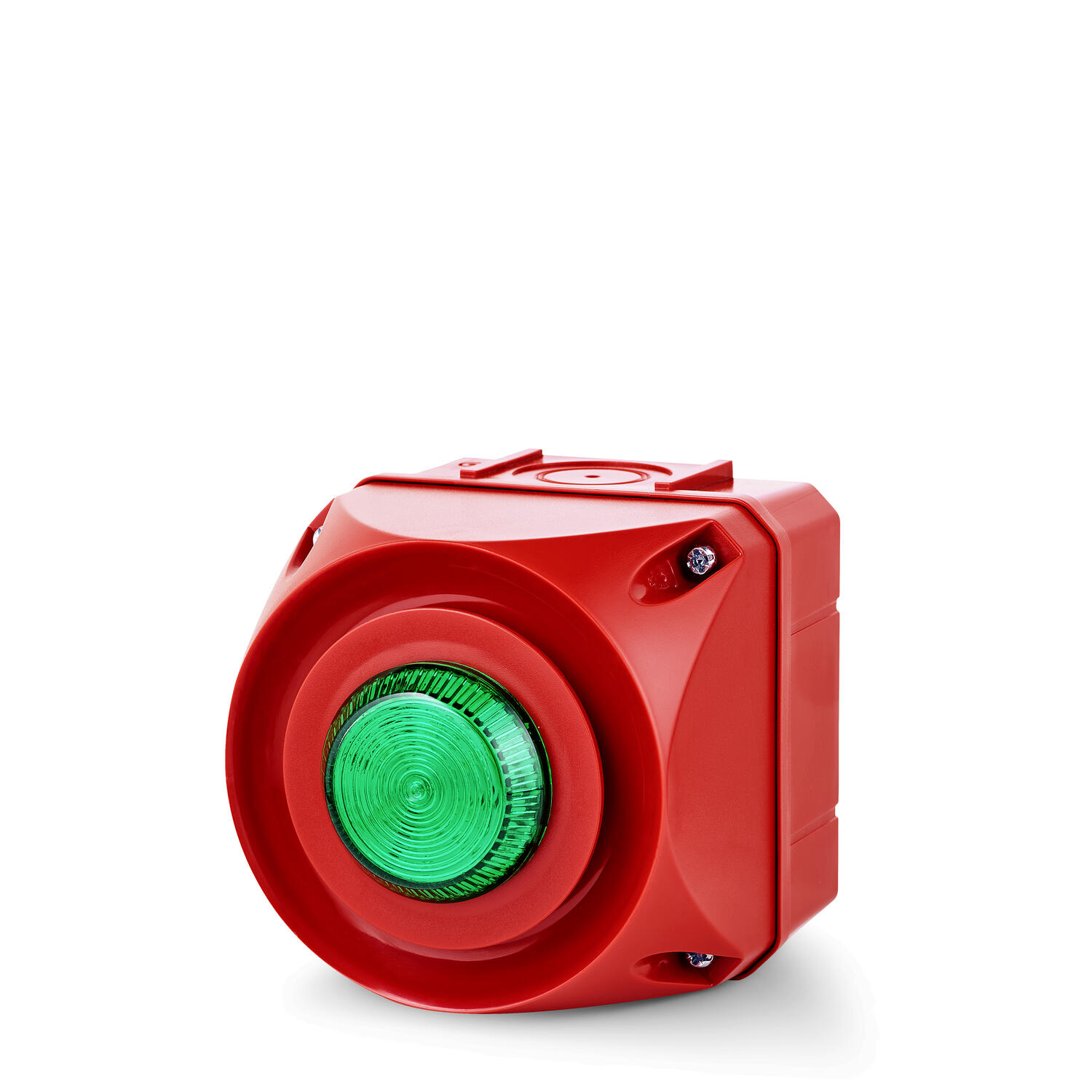

Multi-tone LED sounder, 94mm, Green, 230-240 V ac, ADS-P Art: 875066313 Copied	94mm	1.4 Hz	Red	9	IP66	Green	LED	Green LED	Independent	Yes	103 dB	240 V AC	230 V AC			60 °C	-30 °C	2.5 mm²	4600 Hz	500 Hz
Multi-tone LED sounder, 94mm, Green, 24 V ac/dc, ADS-P Art: 875066405 Copied	94mm	1.4 Hz	Red	9	IP66	Green	LED	Green LED	Independent	Yes	103 dB			24 V	24 V	60 °C	-30 °C	2.5 mm²	4600 Hz	500 Hz

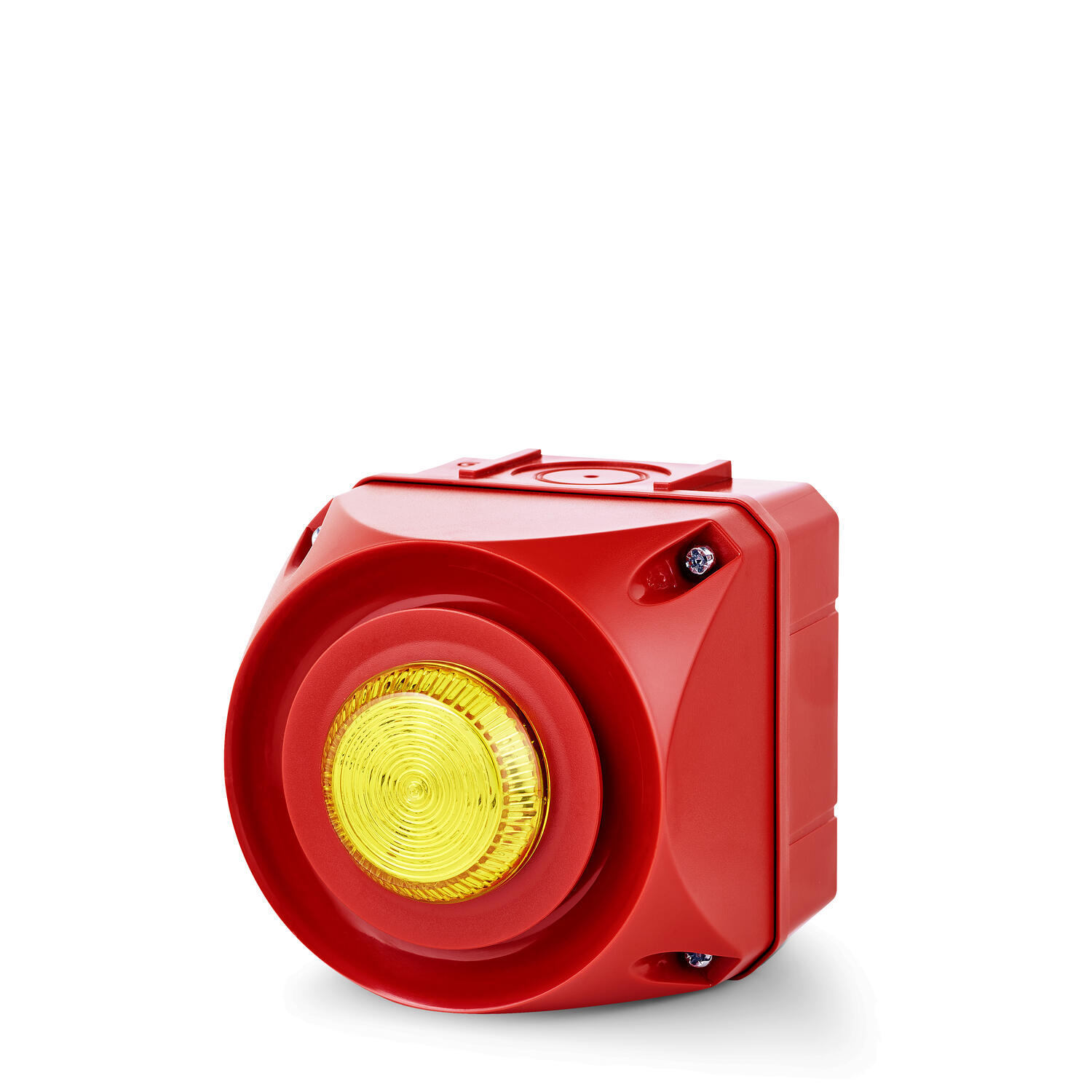

Multi-tone LED sounder, 94mm, Yellow, 230-240 V ac, ADS-P Art: 875067313 Copied	94mm	1.4 Hz	Red	9	IP66	Yellow	LED	Yellow LED	Independent	Yes	103 dB	240 V AC	230 V AC			60 °C	-30 °C	2.5 mm²	4600 Hz	500 Hz
Multi-tone LED sounder, 94mm, Yellow, 24 V ac/dc, ADS-P Art: 875067405 Copied	94mm	1.4 Hz	Red	9	IP66	Yellow	LED	Yellow LED	Independent	Yes	103 dB			24 V	24 V	60 °C	-30 °C	2.5 mm²	4600 Hz	500 Hz
ADS-T Yellow Sounder Beacon, 24 V ac/dc Art: 875177405 Copied
Art: 875271405 Copied
Art: 875272405 Copied
Art: 875275405 Copied
Multi-tone LED sounder, 132mm, Amber, 230-240 V ac, ADM Art: 875261313 Copied	132mm	1.4 Hz	Red	9	IP66	Orange	LED	Orange LED	Independent	Yes	113 dB	240 V AC	230 V AC			60 °C	-30 °C	2.5 mm²	2900 Hz	150 Hz
Multi-tone LED sounder, 132mm, Amber, 24 V ac/dc, ADM Art: 875261405 Copied	132mm	1.4 Hz	Red	9	IP66	Orange	LED	Orange LED	Independent	Yes	113 dB			24 V	24 V	60 °C	-30 °C	2.5 mm²	2900 Hz	150 Hz
Multi-tone LED sounder, 132mm, Red, 230-240 V ac, ADM Art: 875262313 Copied	132mm	1.4 Hz	Red	9	IP66	Red	LED	Red LED	Independent	Yes	113 dB	240 V AC	230 V AC			60 °C	-30 °C	2.5 mm²	2900 Hz	150 Hz
Multi-tone LED sounder, 132mm, Red, 24 V ac/dc, ADM Art: 875262405 Copied	132mm	1.4 Hz	Red	9	IP66	Red	LED	Red LED	Independent	Yes	113 dB			24 V	24 V	60 °C	-30 °C	2.5 mm²	2900 Hz	150 Hz

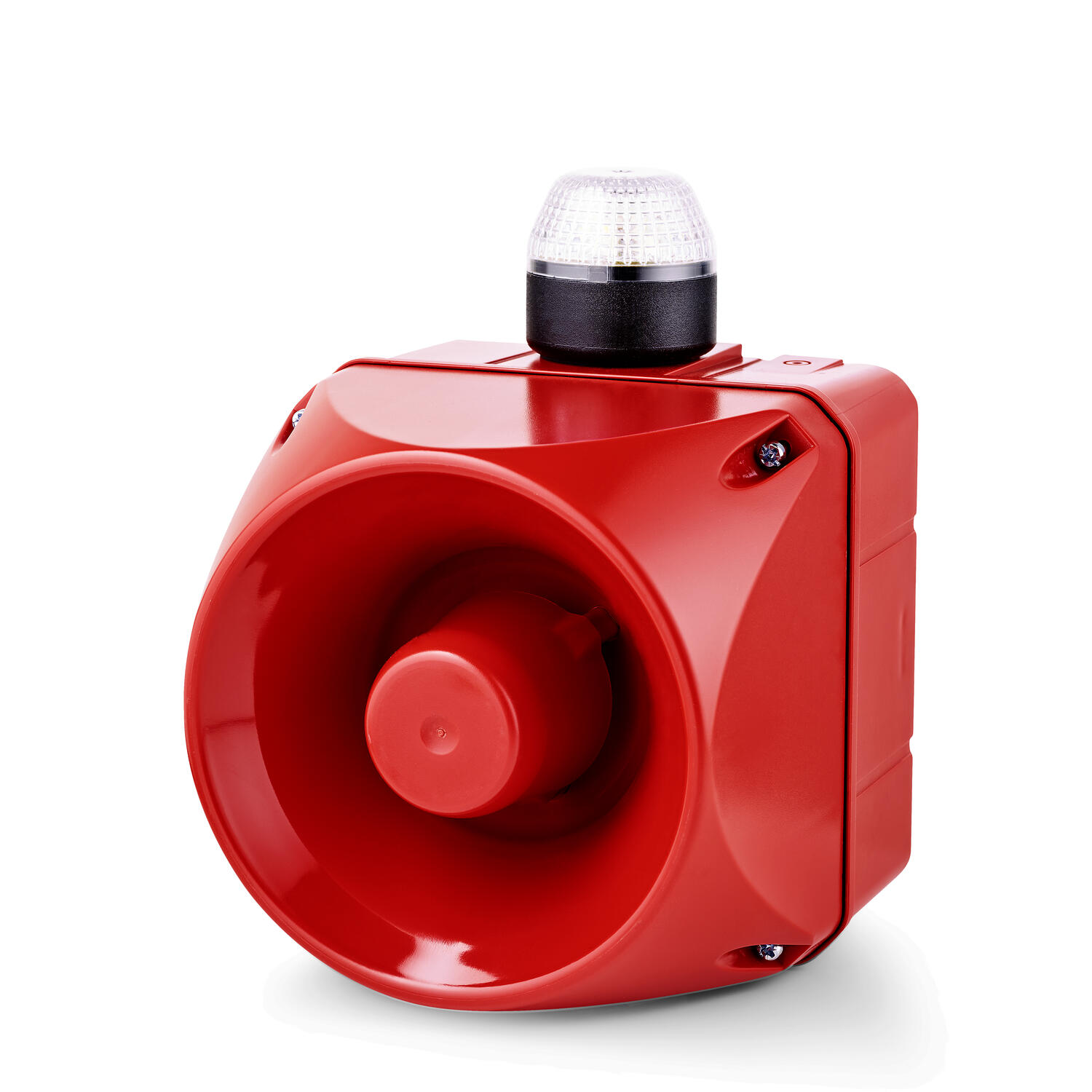

Multi-tone LED sounder, 132mm, Clear, 230-240 V ac, ADM Art: 875264313 Copied	132mm	1.4 Hz	Red	9	IP66	Clear	LED	White LED	Independent	Yes	113 dB	240 V AC	230 V AC			60 °C	-30 °C	2.5 mm²	2900 Hz	150 Hz
Multi-tone LED sounder, 132mm, Clear, 24 V ac/dc, ADM Art: 875264405 Copied	132mm	1.4 Hz	Red	9	IP66	Clear	LED	White LED	Independent	Yes	113 dB			24 V	24 V	60 °C	-30 °C	2.5 mm²	2900 Hz	150 Hz

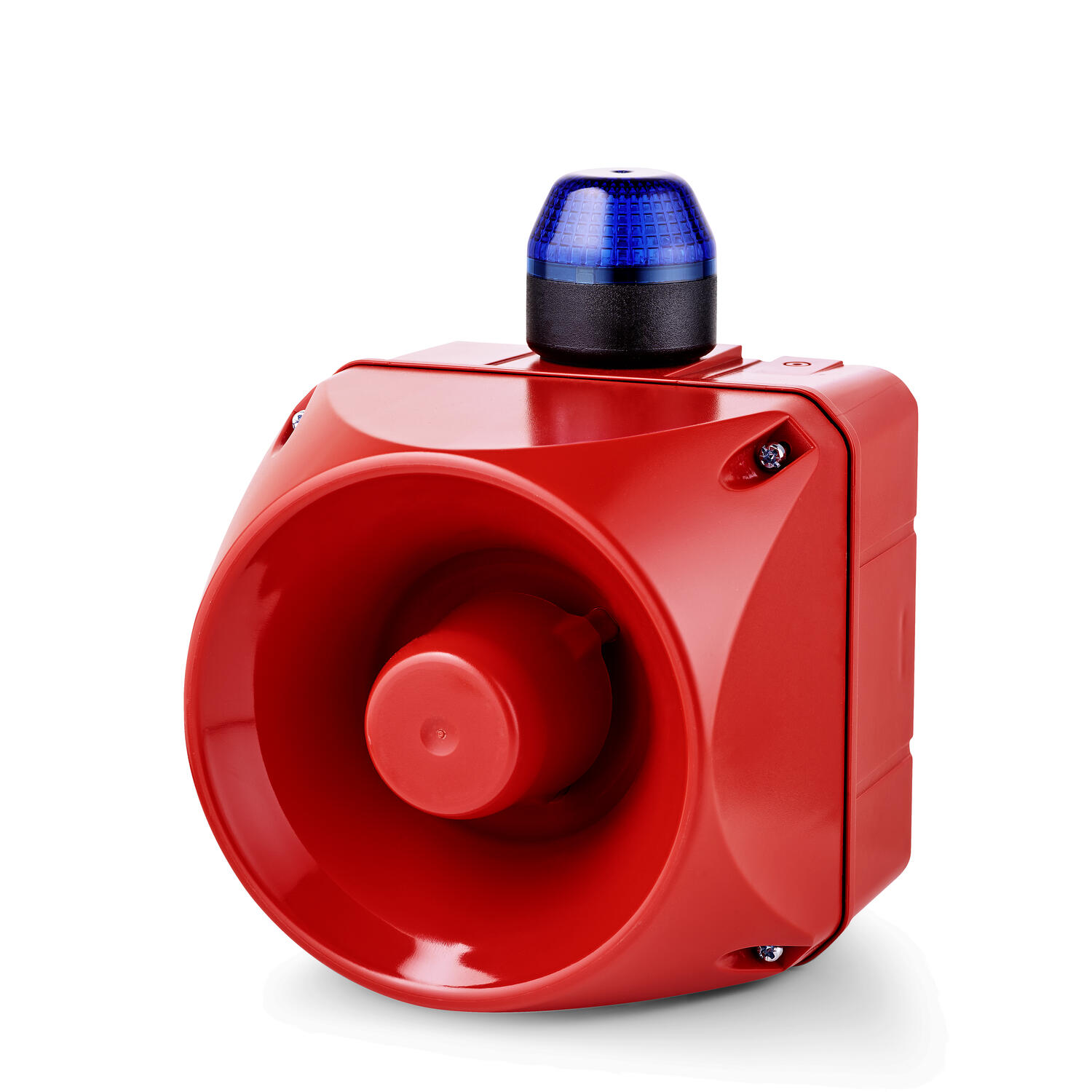

Multi-tone LED sounder, 132mm, Blue, 230-240 V ac, ADM Art: 875265313 Copied	132mm	1.4 Hz	Red	9	IP66	Blue	LED	Blue LED	Independent	Yes	113 dB	240 V AC	230 V AC			60 °C	-30 °C	2.5 mm²	2900 Hz	150 Hz
Multi-tone LED sounder, 132mm, Blue, 24 V ac/dc, ADM Art: 875265405 Copied	132mm	1.4 Hz	Red	9	IP66	Blue	LED	Blue LED	Independent	Yes	113 dB			24 V	24 V	60 °C	-30 °C	2.5 mm²	2900 Hz	150 Hz
Multi-tone LED sounder, 132mm, Green, 230-240 V ac, ADM Art: 875266313 Copied	132mm	1.4 Hz	Red	9	IP66	Green	LED	Green LED	Independent	Yes	113 dB	240 V AC	230 V AC			60 °C	-30 °C	2.5 mm²	2900 Hz	150 Hz
Multi-tone LED sounder, 132mm, Green, 24 V ac/dc, ADM Art: 875266405 Copied	132mm	1.4 Hz	Red	9	IP66	Green	LED	Green LED	Independent	Yes	113 dB			24 V	24 V	60 °C	-30 °C	2.5 mm²	2900 Hz	150 Hz
Multi-tone LED sounder, 132mm, Yellow, 230-240 V ac, ADM Art: 875267313 Copied	132mm	1.4 Hz	Red	9	IP66	Yellow	LED	Yellow LED	Independent	Yes	113 dB	240 V AC	230 V AC			60 °C	-30 °C	2.5 mm²	2900 Hz	150 Hz
Multi-tone LED sounder, 132mm, Yellow, 24 V ac/dc, ADM Art: 875267405 Copied	132mm	1.4 Hz	Red	9	IP66	Yellow	LED	Yellow LED	Independent	Yes	113 dB			24 V	24 V	60 °C	-30 °C	2.5 mm²	2900 Hz	150 Hz

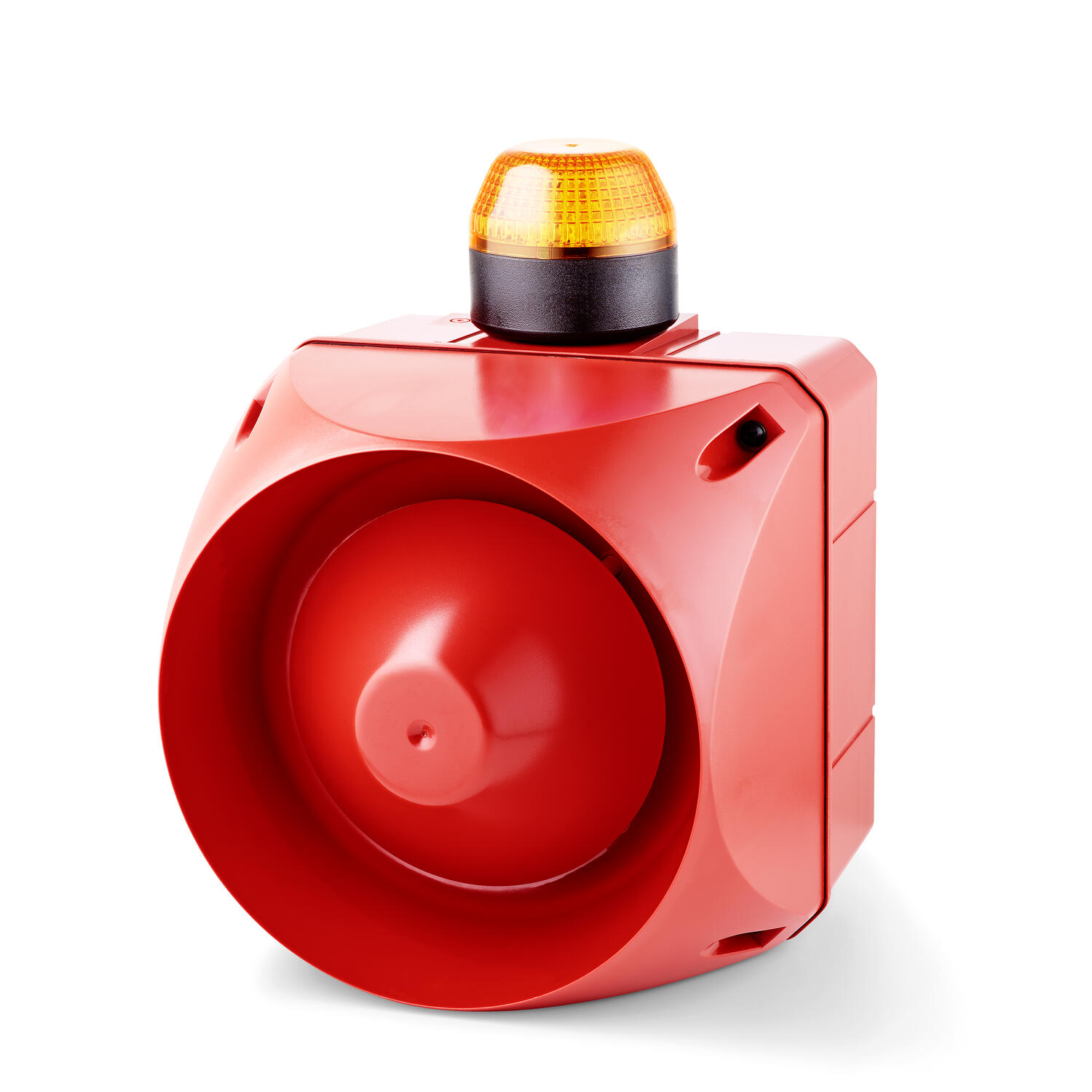

Multi-tone LED sounder, 184mm, Amber, 230-240 V ac, ADL Art: 875361313 Copied	184mm	1.4 Hz	Red	9	IP66	Orange	LED	Orange LED	Independent	Yes	120 dB	240 V AC	230 V AC			60 °C	-30 °C	2.5 mm²	3100 Hz	150 Hz
Multi-tone LED sounder, 184mm, Amber, 24 V ac/dc, ADL Art: 875361405 Copied	184mm	1.4 Hz	Red	9	IP66	Orange	LED	Orange LED	Independent	Yes	120 dB			24 V	24 V	60 °C	-30 °C	2.5 mm²	3100 Hz	150 Hz
Multi-tone LED sounder, 184mm, Red, 230-240 V ac, ADL Art: 875362313 Copied	184mm	1.4 Hz	Red	9	IP66	Red	LED	Red LED	Independent	Yes	120 dB	240 V AC	230 V AC			60 °C	-30 °C	2.5 mm²	3100 Hz	150 Hz
Multi-tone LED sounder, 184mm, Red, 24 V ac/dc, ADL Art: 875362405 Copied	184mm	1.4 Hz	Red	9	IP66	Red	LED	Red LED	Independent	Yes	120 dB			24 V	24 V	60 °C	-30 °C	2.5 mm²	3100 Hz	150 Hz
Multi-tone LED sounder, 184mm, Clear, 230-240 V ac, ADL Art: 875364313 Copied	184mm	1.4 Hz	Red	9	IP66	Clear	LED	White LED	Independent	Yes	120 dB	240 V AC	230 V AC			60 °C	-30 °C	2.5 mm²	3100 Hz	150 Hz
Multi-tone LED sounder, 184mm, Clear, 24 V ac/dc, ADL Art: 875364405 Copied	184mm	1.4 Hz	Red	9	IP66	Clear	LED	White LED	Independent	Yes	120 dB			24 V	24 V	60 °C	-30 °C	2.5 mm²	3100 Hz	150 Hz

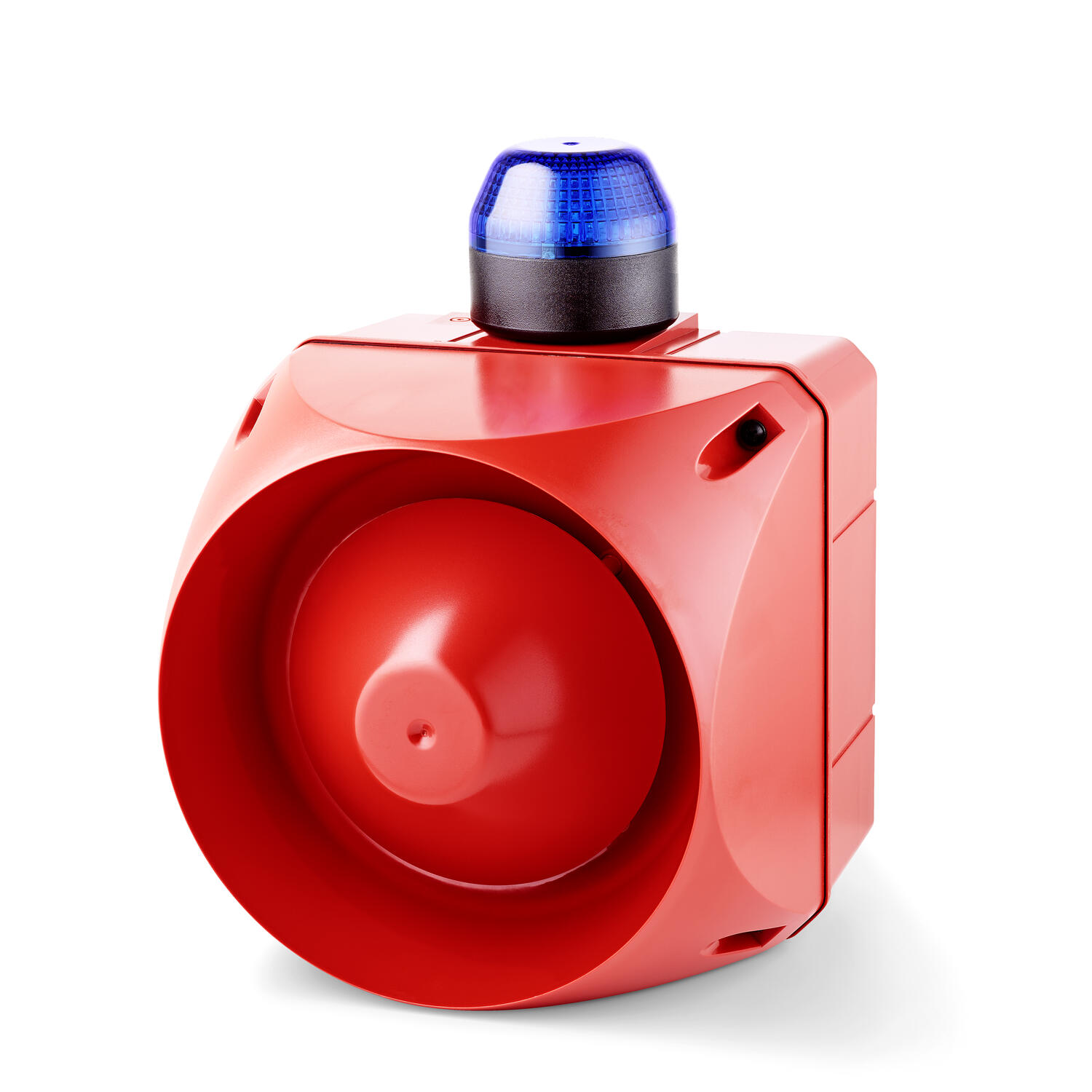

Multi-tone LED sounder, 184mm, Blue, 230-240 V ac, ADL Art: 875365313 Copied	184mm	1.4 Hz	Red	9	IP66	Blue	LED	Blue LED	Independent	Yes	120 dB	240 V AC	230 V AC			60 °C	-30 °C	2.5 mm²	3100 Hz	150 Hz
Multi-tone LED sounder, 184mm, Blue, 24 V ac/dc, ADL Art: 875365405 Copied	184mm	1.4 Hz	Red	9	IP66	Blue	LED	Blue LED	Independent	Yes	120 dB			24 V	24 V	60 °C	-30 °C	2.5 mm²	3100 Hz	150 Hz

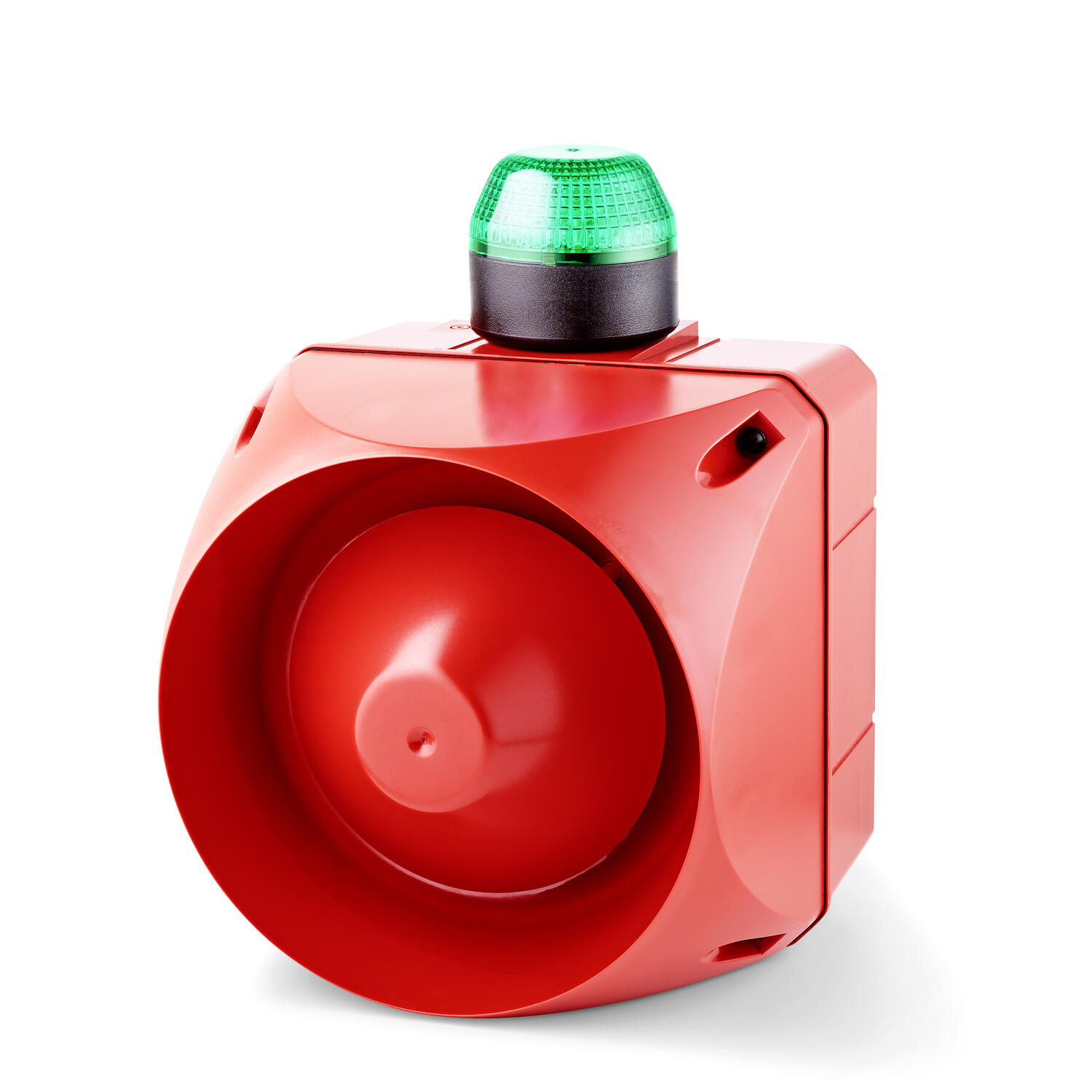

Multi-tone LED sounder, 184mm, Green, 230-240 V ac, ADL Art: 875366313 Copied	184mm	1.4 Hz	Red	9	IP66	Green	LED	Green LED	Independent	Yes	120 dB	240 V AC	230 V AC			60 °C	-30 °C	2.5 mm²	3100 Hz	150 Hz
Multi-tone LED sounder, 184mm, Green, 24 V ac/dc, ADL Art: 875366405 Copied	184mm	1.4 Hz	Red	9	IP66	Green	LED	Green LED	Independent	Yes	120 dB			24 V	24 V	60 °C	-30 °C	2.5 mm²	3100 Hz	150 Hz

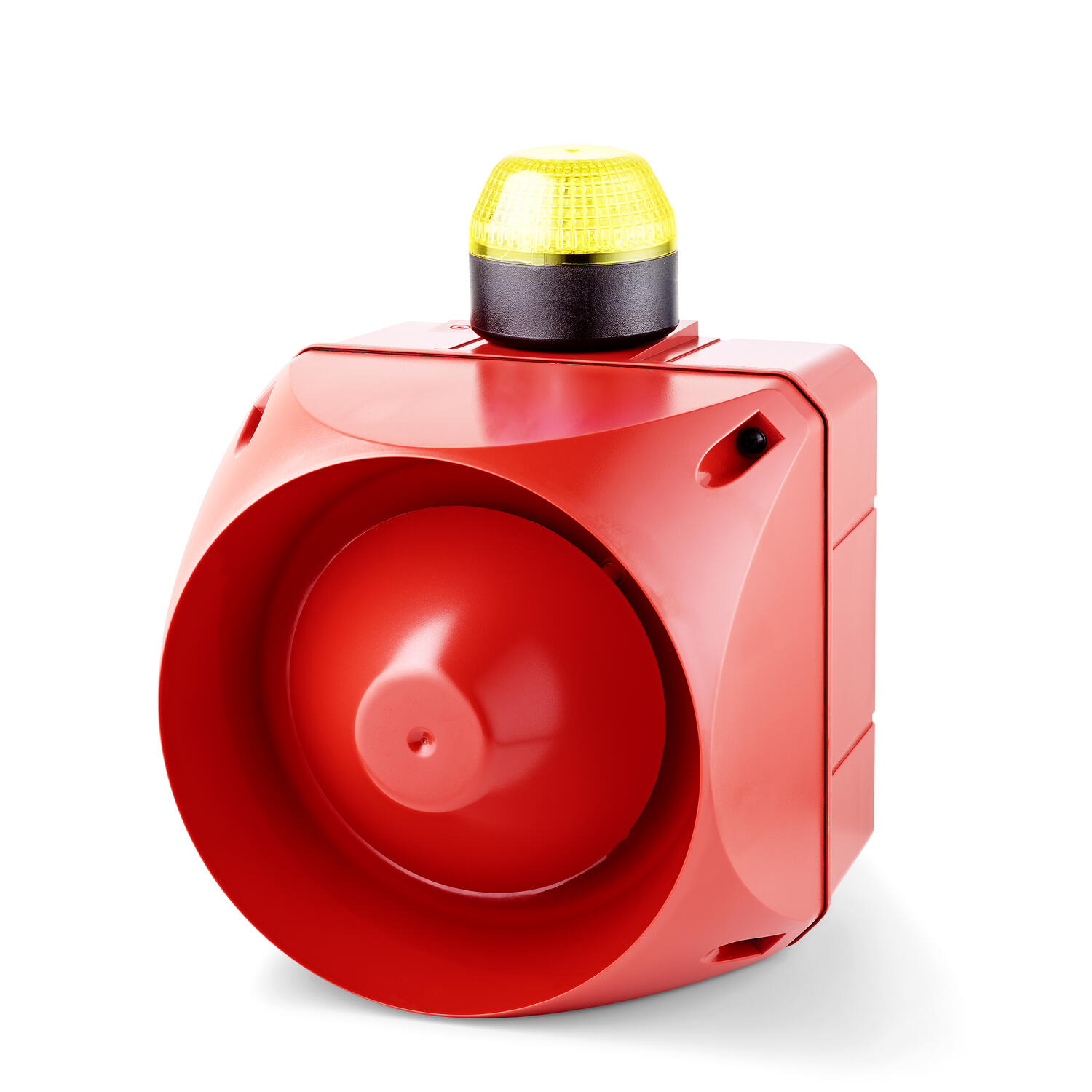

Multi-tone LED sounder, 184mm, Yellow, 230-240 V ac, ADL Art: 875367313 Copied	184mm	1.4 Hz	Red	9	IP66	Yellow	LED	Yellow LED	Independent	Yes	120 dB	240 V AC	230 V AC			60 °C	-30 °C	2.5 mm²	3100 Hz	150 Hz
Multi-tone LED sounder, 184mm, Yellow, 24 V ac/dc, ADL Art: 875367405 Copied	184mm	1.4 Hz	Red	9	IP66	Yellow	LED	Yellow LED	Independent	Yes	120 dB			24 V	24 V	60 °C	-30 °C	2.5 mm²	3100 Hz	150 Hz
Art: 875677405 Copied
Multi-tone LED sounder, 132mm, Amber, 230-240 V ac, ACM Art: 875661313 Copied	132mm	1 Hz	Red	9	IP66	Orange	LED	Orange LED	Independent	Yes	113 dB	240 V AC	230 V AC			60 °C	-30 °C	2.5 mm²	3100 Hz	150 Hz
Multi-tone LED sounder, 132mm, Amber, 24 V ac/dc, ACM Art: 875661405 Copied	132mm	1 Hz	Red	9	IP66	Orange	LED	Orange LED	Independent	Yes	113 dB			24 V	24 V	60 °C	-30 °C	2.5 mm²	3100 Hz	150 Hz
Multi-tone LED sounder, 132mm, Red, 230-240 V ac, ACM Art: 875662313 Copied	132mm	1 Hz	Red	9	IP66	Red	LED	Red LED	Independent	Yes	113 dB	240 V AC	230 V AC			60 °C	-30 °C	2.5 mm²	3100 Hz	150 Hz
Multi-tone LED sounder, 132mm, Red, 24 V ac/dc, ACM Art: 875662405 Copied	132mm	1 Hz	Red	9	IP66	Red	LED	Red LED	Independent	Yes	113 dB			24 V	24 V	60 °C	-30 °C	2.5 mm²	3100 Hz	150 Hz
Multi-tone LED sounder, 132mm, Clear, 230-240 V ac, ACM Art: 875664313 Copied	132mm	1 Hz	Red	9	IP66	Clear	LED	White LED	Independent	Yes	113 dB	240 V AC	230 V AC			60 °C	-30 °C	2.5 mm²	3100 Hz	150 Hz
Multi-tone LED sounder, 132mm, Clear, 24 V ac/dc, ACM Art: 875664405 Copied	132mm	1 Hz	Red	9	IP66	Clear	LED	White LED	Independent	Yes	113 dB			24 V	24 V	60 °C	-30 °C	2.5 mm²	3100 Hz	150 Hz
Multi-tone LED sounder, 132mm, Blue, 230-240 V ac, ACM Art: 875665313 Copied	132mm	1 Hz	Red	9	IP66	Blue	LED	Blue LED	Independent	Yes	113 dB	240 V AC	230 V AC			60 °C	-30 °C	2.5 mm²	3100 Hz	150 Hz
Multi-tone LED sounder, 132mm, Blue, 24 V ac/dc, ACM Art: 875665405 Copied	132mm	1 Hz	Red	9	IP66	Blue	LED	Blue LED	Independent	Yes	113 dB			24 V	24 V	60 °C	-30 °C	2.5 mm²	3100 Hz	150 Hz
Multi-tone LED sounder, 132mm, Green, 230-240 V ac, ACM Art: 875666313 Copied	132mm	1 Hz	Red	9	IP66	Green	LED	Green LED	Independent	Yes	113 dB	240 V AC	230 V AC			60 °C	-30 °C	2.5 mm²	3100 Hz	150 Hz
Multi-tone LED sounder, 132mm, Green, 24 V ac/dc, ACM Art: 875666405 Copied	132mm	1 Hz	Red	9	IP66	Green	LED	Green LED	Independent	Yes	113 dB			24 V	24 V	60 °C	-30 °C	2.5 mm²	3100 Hz	150 Hz
Multi-tone LED sounder, 132mm, Yellow, 230-240 V ac, ACM Art: 875667313 Copied	132mm	1 Hz	Red	9	IP66	Yellow	LED	Yellow LED	Independent	Yes	113 dB	240 V AC	230 V AC			60 °C	-30 °C	2.5 mm²	3100 Hz	150 Hz
Multi-tone LED sounder, 132mm, Yellow, 24 V ac/dc, ACM Art: 875667405 Copied	132mm	1 Hz	Red	9	IP66	Yellow	LED	Yellow LED	Independent	Yes	113 dB			24 V	24 V	60 °C	-30 °C	2.5 mm²	3100 Hz	150 Hz
Multi-tone LED sounder, 184mm, Amber, 230-240 V ac, ACL Art: 875761313 Copied	184mm	1 Hz	Red	9	IP66	Orange	LED	Orange LED	Independent	Yes	120 dB	240 V AC	230 V AC			60 °C	-30 °C	2.5 mm²	3100 Hz	150 Hz
Multi-tone LED sounder, 184mm, Amber, 24 V ac/dc, ACL Art: 875761405 Copied	184mm	1 Hz	Red	9	IP66	Orange	LED	Orange LED	Independent	Yes	120 dB			24 V	24 V	60 °C	-30 °C	2.5 mm²	3100 Hz	150 Hz
Multi-tone LED sounder, 184mm, Red, 230-240 V ac, ACL Art: 875762313 Copied	184mm	1 Hz	Red	9	IP66	Red	LED	Red LED	Independent	Yes	120 dB	240 V AC	230 V AC			60 °C	-30 °C	2.5 mm²	3100 Hz	150 Hz
Multi-tone LED sounder, 184mm, Red, 24 V ac/dc, ACL Art: 875762405 Copied	184mm	1 Hz	Red	9	IP66	Red	LED	Red LED	Independent	Yes	120 dB			24 V	24 V	60 °C	-30 °C	2.5 mm²	3100 Hz	150 Hz
Multi-tone LED sounder, 184mm, Clear, 230-240 V ac, ACL Art: 875764313 Copied	184mm	1 Hz	Red	9	IP66	Clear	LED	White LED	Independent	Yes	120 dB	240 V AC	230 V AC			60 °C	-30 °C	2.5 mm²	3100 Hz	150 Hz
Multi-tone LED sounder, 184mm, Clear, 24 V ac/dc, ACL Art: 875764405 Copied	184mm	1 Hz	Red	9	IP66	Clear	LED	White LED	Independent	Yes	120 dB			24 V	24 V	60 °C	-30 °C	2.5 mm²	3100 Hz	150 Hz
Multi-tone LED sounder, 184mm, Blue, 230-240 V ac, ACL Art: 875765313 Copied	184mm	1 Hz	Red	9	IP66	Blue	LED	Blue LED	Independent	Yes	120 dB	240 V AC	230 V AC			60 °C	-30 °C	2.5 mm²	3100 Hz	150 Hz
Multi-tone LED sounder, 184mm, Blue, 24 V ac/dc, ACL Art: 875765405 Copied	184mm	1 Hz	Red	9	IP66	Blue	LED	Blue LED	Independent	Yes	120 dB			24 V	24 V	60 °C	-30 °C	2.5 mm²	3100 Hz	150 Hz
Multi-tone LED sounder, 184mm, Green, 230-240 V ac, ACL Art: 875766313 Copied	184mm	1 Hz	Red	9	IP66	Green	LED	Green LED	Independent	Yes	120 dB	240 V AC	230 V AC			60 °C	-30 °C	2.5 mm²	3100 Hz	150 Hz
Multi-tone LED sounder, 184mm, Green, 24 V ac/dc, ACL Art: 875766405 Copied	184mm	1 Hz	Red	9	IP66	Green	LED	Green LED	Independent	Yes	120 dB			24 V	24 V	60 °C	-30 °C	2.5 mm²	3100 Hz	150 Hz
Multi-tone LED sounder, 184mm, Yellow, 230-240 V ac, ACL Art: 875767313 Copied	184mm	1 Hz	Red	9	IP66	Yellow	LED	Yellow LED	Independent	Yes	120 dB	240 V AC	230 V AC			60 °C	-30 °C	2.5 mm²	3100 Hz	150 Hz
Multi-tone LED sounder, 184mm, Yellow, 24 V ac/dc, ACL Art: 875767405 Copied	184mm	1 Hz	Red	9	IP66	Yellow	LED	Yellow LED	Independent	Yes	120 dB			24 V	24 V	60 °C	-30 °C	2.5 mm²	3100 Hz	150 Hz
Multi-tone LED sounder, 94mm, Amber, 24 V ac/dc, ADS-P Art: 875061405 Copied	94mm	1.4 Hz	Red	9	IP66	Orange	LED	Orange LED	Independent	Yes	103 dB			24 V	24 V	60 °C	-30 °C	2.5 mm²	4600 Hz	500 Hz
