INDUSTRILÅS

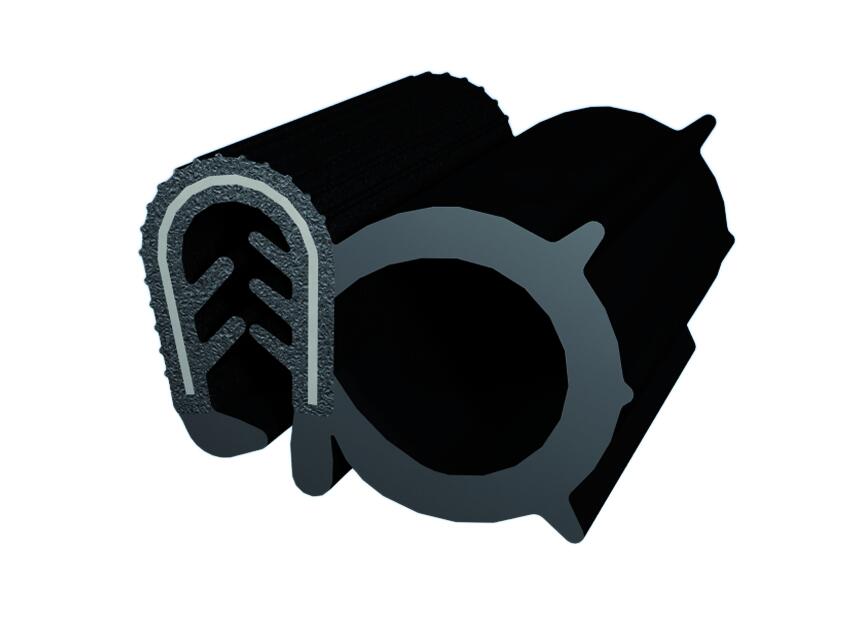

Sealing profiles made of black EPDM with integrated steel clamping band or steel wire clamping band and sealing channel/sealing lip made of EPDM cellular rubber.
NOTE: All the profiles below can be delivered according to DIN EN 45545-2.
Areas of use are interiors: R1/R22 - HL3; Exteriors: R7/23 - HL3.
Sealing profiles made of black EPDM with integrated steel clamping band or steel wire clamping band and sealing channel/sealing lip made of EPDM cellular rubber.
NOTE: All the profiles below can be delivered according to DIN EN 45545-2.
Areas of use are interiors: R1/R22 - HL3; Exteriors: R7/23 - HL3.
You already added this product. Choose whether to increase quantity on the existing row or add the product as a new row.
Robotics has revolutionised industry, enabling efficiency, higher production capacity and increased safety. For a robot solution to function optimally, the right components are required.
Discover why colour brilliance matters in industrial signalling. Improve safety, reduce misinterpretation and ensure clear machine status in any environment.
Have you ever wondered if there's any difference between cable coils and cable reels?
Our cable experts take you through the advantages of using cable coils.
What tri-rated cable are you currently using? Does the product or service you receive leave you wanting more? It’s time to ask the question. Because now, you’ve got options.
This innovative push-in connection system enables time savings of up to 50%, whether you're wiring control panels or managing complex installations
Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|

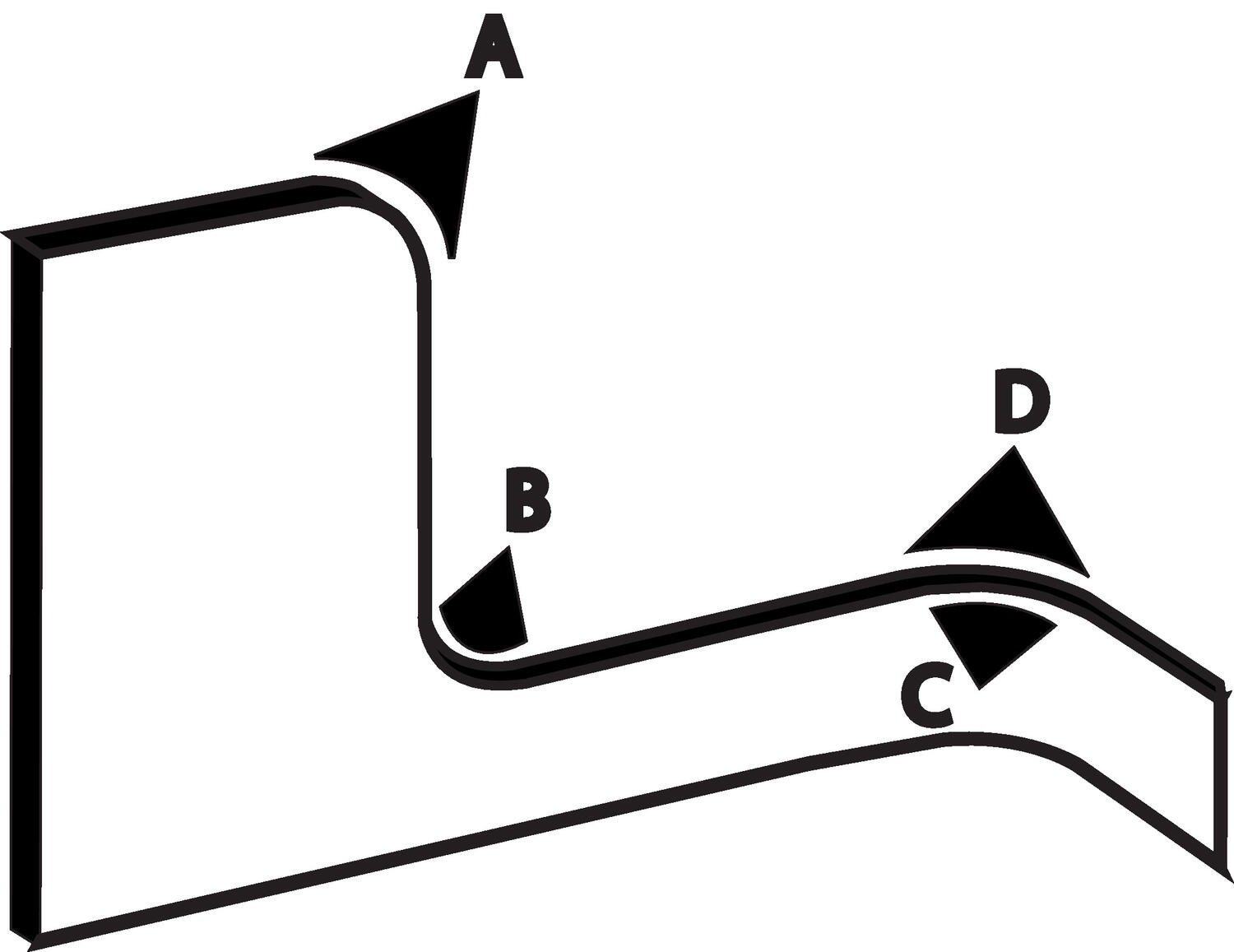

| Parts | Bending radius A | Bending radius B | Bending radius C | Bending radius D | Clamping range | Pack size | Price | ||
|---|---|---|---|---|---|---|---|---|---|
|
Sealing profile, Steel carrier- unbroken, 1-3.5mm, 50m coil size
Art:
427010
Copied
|
200 mm
|
80 mm
|
200 mm
|
200 mm
|
1,0-3,5
|
50 m
|
|
||
|
Sealing profile, steel carrier unbroken, 2-4mm, 75m coil size
Art:
427020-04
Copied
|
80 mm
|
80 mm
|
|
|
2,0-4,0
|
75 m
|
|
||
|
Sealing profile, steel carrier unbroken, 5-6mm, 75m coil size
Art:
427020-06
Copied
|
80 mm
|
80 mm
|
|
|
5,0-6,0
|
75 m
|
|
||
|
Sealing profile, wire carrier, 1-3mm, 3 x 50m coil size
Art:
427033
Copied
|
80 mm
|
40 mm
|
200 mm
|
180 mm
|
1,0-3,0
|
150 m
|
|
||
|
Sealing profile, steel carrier unbroken, 2-4mm, 3 x 25m coil size
Art:
427038-04
Copied
|
80 mm
|
120 mm
|
|
|
2,0-4,0
|
75 m
|
|
||
|
Sealing profile, steel carrier unbroken, 4-6mm, 3 x 25m coil size
Art:
427038-06
Copied
|
80 mm
|
120 mm
|
|
|
4,0-6,0
|
75 m
|
|
||
|
Sealing profile, wire carrier, 1.5-3mm, 4 x 25mm coil size
Art:
427042
Copied
|
80 mm
|
60 mm
|
200 mm
|
80 mm
|
1,5-3,0
|
100 m
|
|
||
|
Sealing profile, EPDM, steel carrier - broken, 3-5mm, 75m coil size
Art:
427068
Copied
|
|
|
|
|
3,0-5,0
|
75 m
|
|
Select a variant in the list
