INDUSTRILÅS

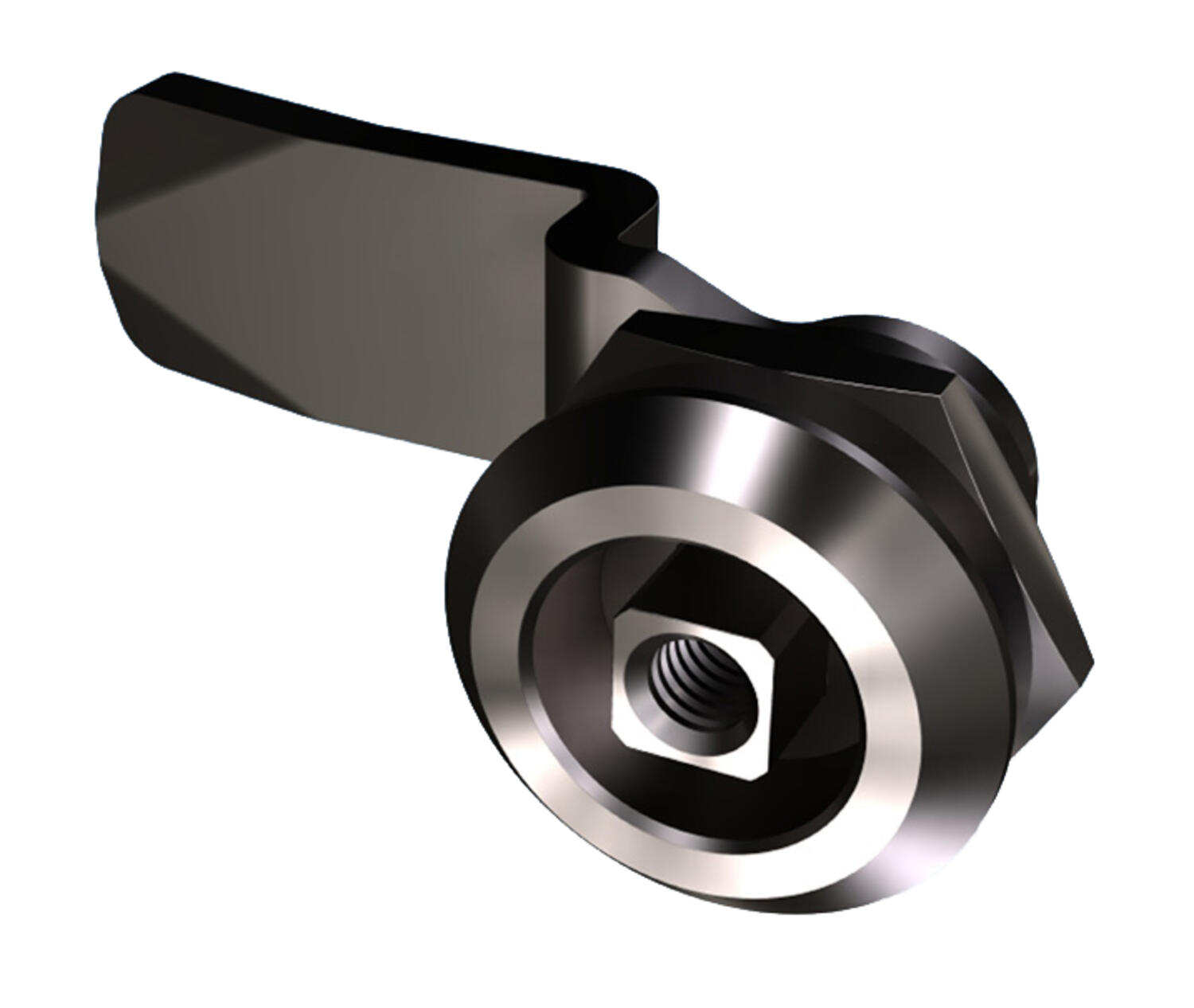

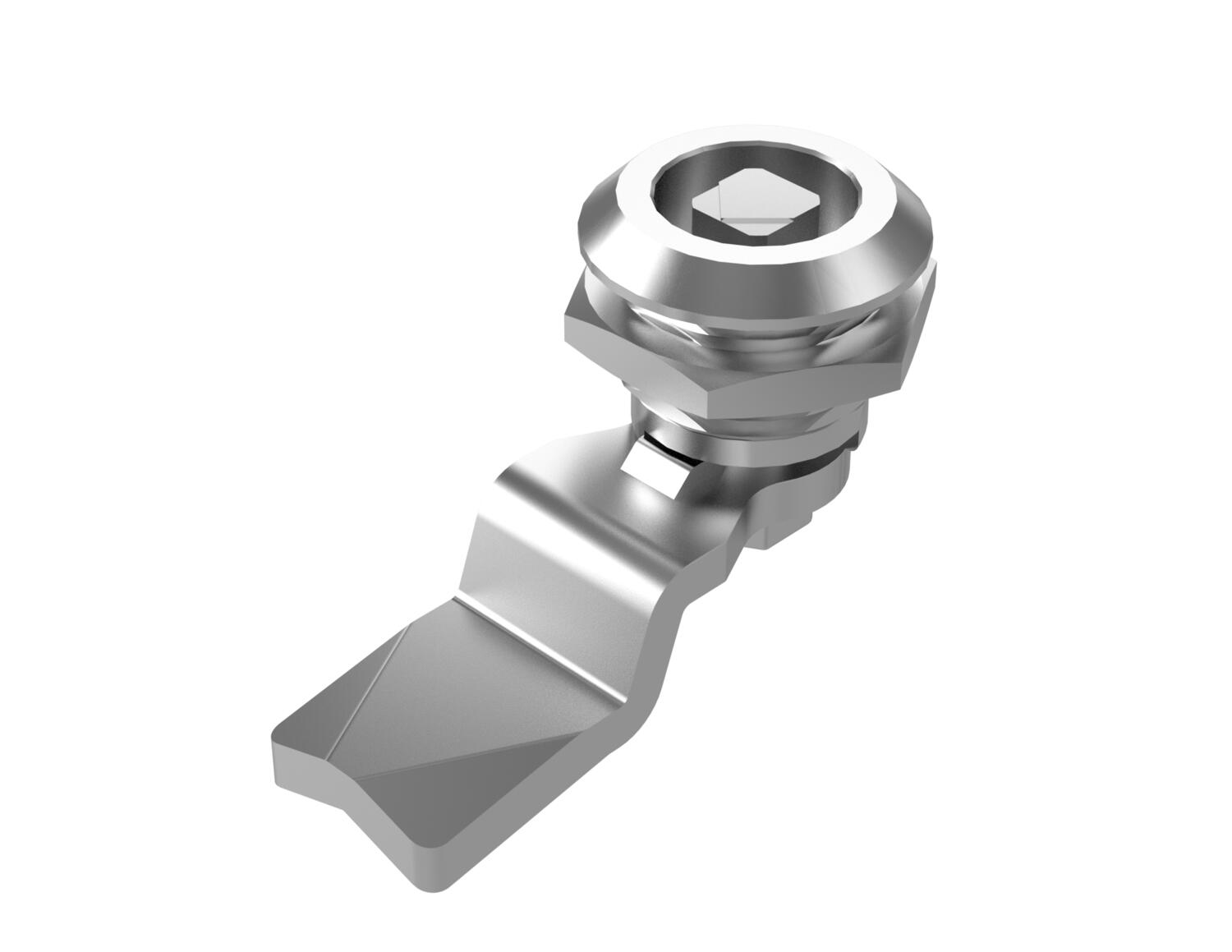

Quarter-turn stainless 18mm lock

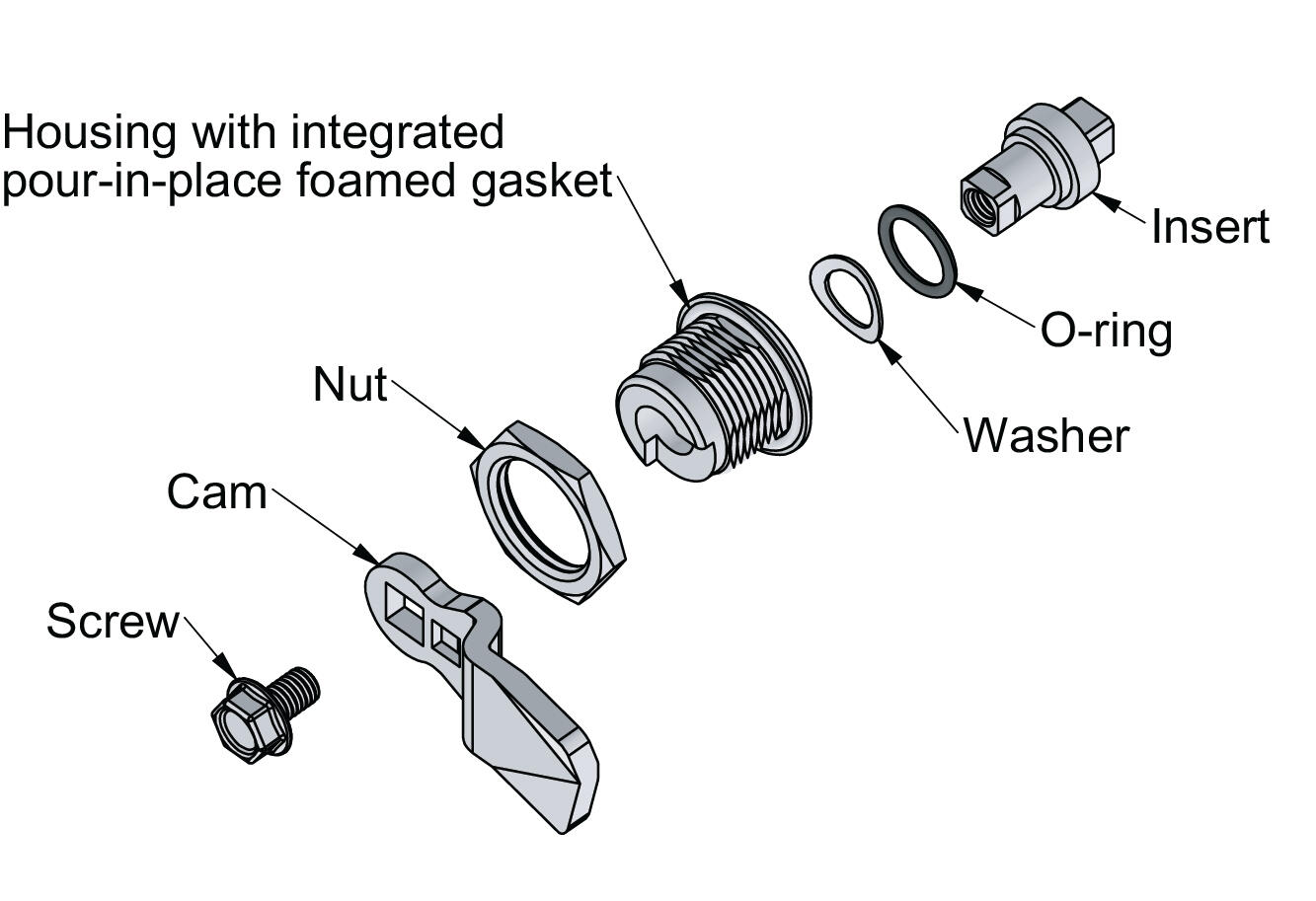

A complete lock consists of lock housing, nut, insert, washer, screw and rule.
This variant is structured with a product key, which is resolved together with the product manager.
Lock housing: Stainless steel.
Nut: Stainless steel
Lock housing variant: square with size 8
Material Lock housing: Stainless steel
Ip class: IP65 assembled
Rule: Stainless steel

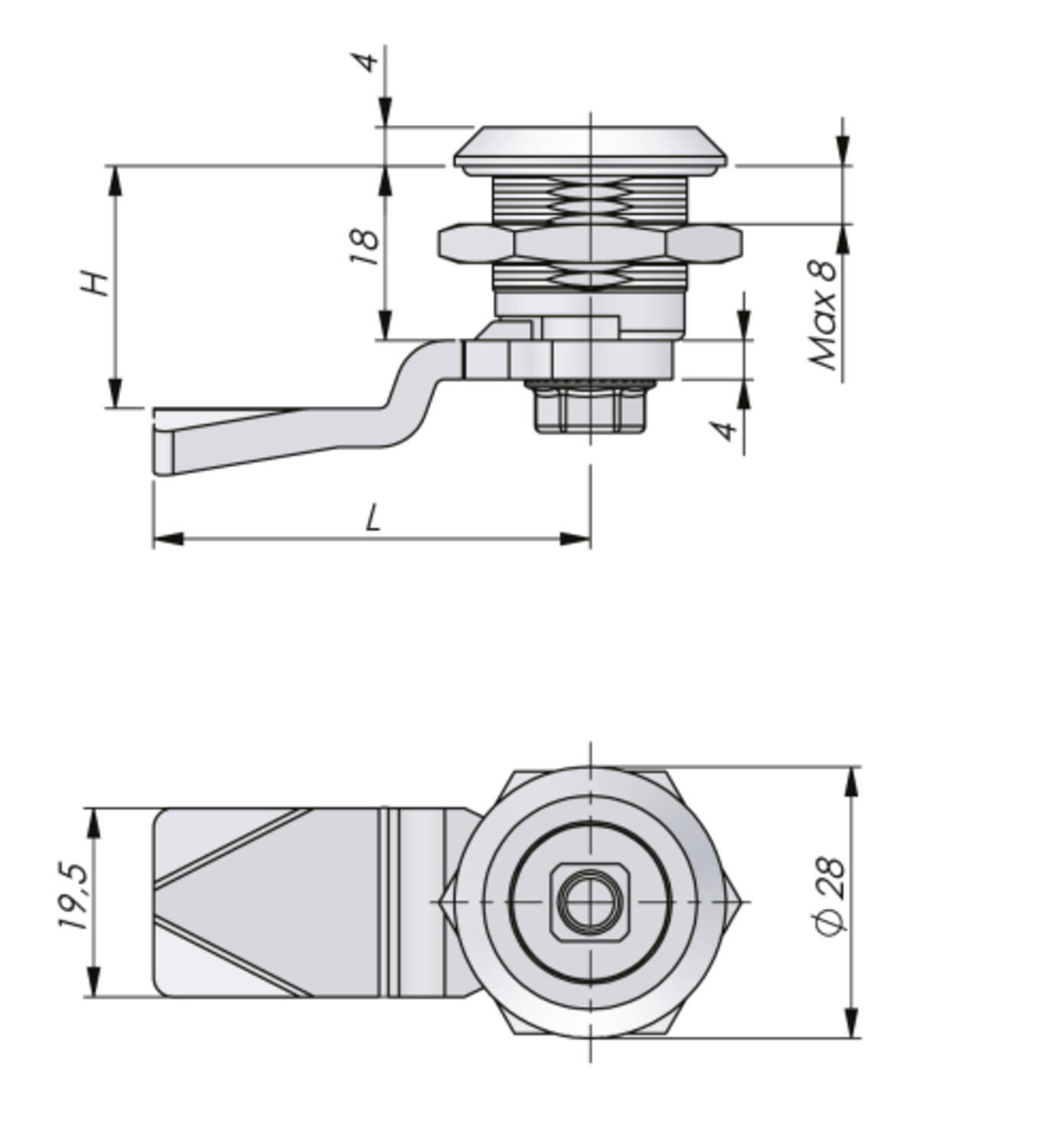

H/L measurements: 22/45 mm
To achieve a higher tightness class, IP65 *, you add an O-ring and flat gasket (included in option "IP65"). The locks can be delivered unassembled, preassembled with enclosed rule or in complete assembled condition.
*=also rated "Waterproof according to NEMA 4".

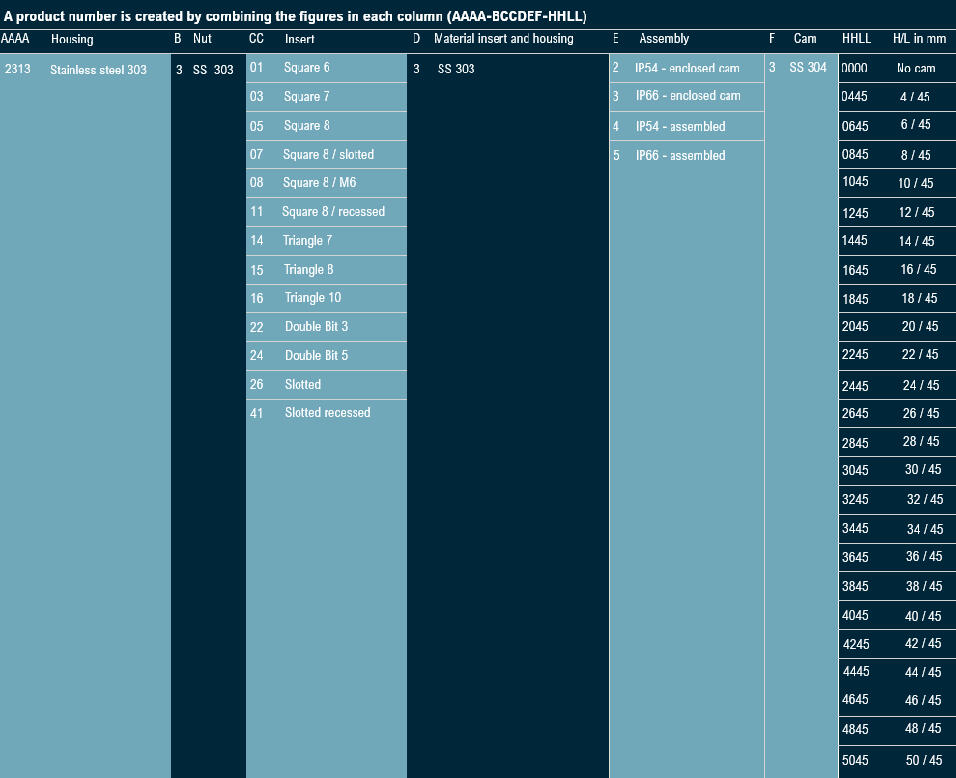

Example: Lock housing - stainless A=28 B=4, nut - stainless, insert Square 8 - RF, IP65 / NEMA 4 mounting and rule - stainless for H=22 gives the following article number: 2313-305353-2245.
Tightness class IP65/NEMA4 is obtained by mounting an O-ring on the insert and a seal on the lock housing.
- 18mm lock housing
- IP65
- 90°
- Stainless/acid resistant
- Configurable
Selected variant
Technical data
| Configurable | Yes |
|---|---|
| Dimension H | 22 mm |
| Dimension L | 45 mm |
| Material lock housing | Stainless steel 303 |
| Material rule | Stainless steel AISI 304 |
| Opening angle | 90 ° |
Product description
A complete lock consists of lock housing, nut, insert, washer, screw and rule.
This variant is structured with a product key, which is resolved together with the product manager.
Lock housing: Stainless steel.
Nut: Stainless steel
Lock housing variant: square with size 8
Material Lock housing: Stainless steel
Ip class: IP65 assembled
Rule: Stainless steel
H/L measurements: 22/45 mm
To achieve a higher tightness class, IP65 *, you add an O-ring and flat gasket (included in option "IP65"). The locks can be delivered unassembled, preassembled with enclosed rule or in complete assembled condition.
*=also rated "Waterproof according to NEMA 4".
Example: Lock housing - stainless A=28 B=4, nut - stainless, insert Square 8 - RF, IP65 / NEMA 4 mounting and rule - stainless for H=22 gives the following article number: 2313-305353-2245.
Tightness class IP65/NEMA4 is obtained by mounting an O-ring on the insert and a seal on the lock housing.
