INDUSTRILÅS
Quarter-turn classic 30mm lock
Complete 90° lock - 30, 40, 50 and 60 mm

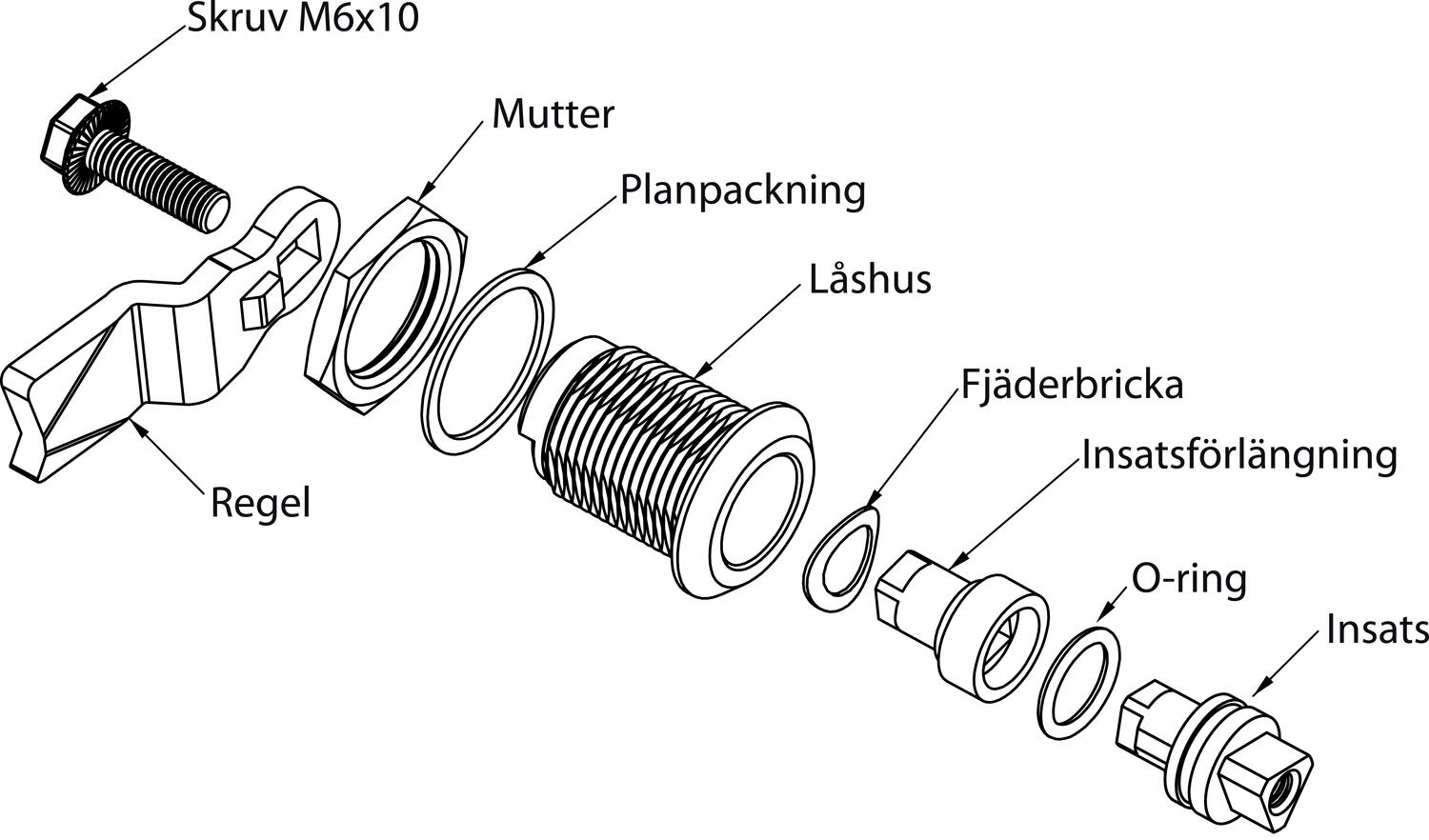

A complete lock consists of lock housing, nut, insert, washer, screw and rule. To achieve protection class IP65, an O-ring is placed on the insert and a flat gasket on the lock housing.
The lock can be delivered unassembled, pre-assembled with an enclosed rule or in fully assembled condition.

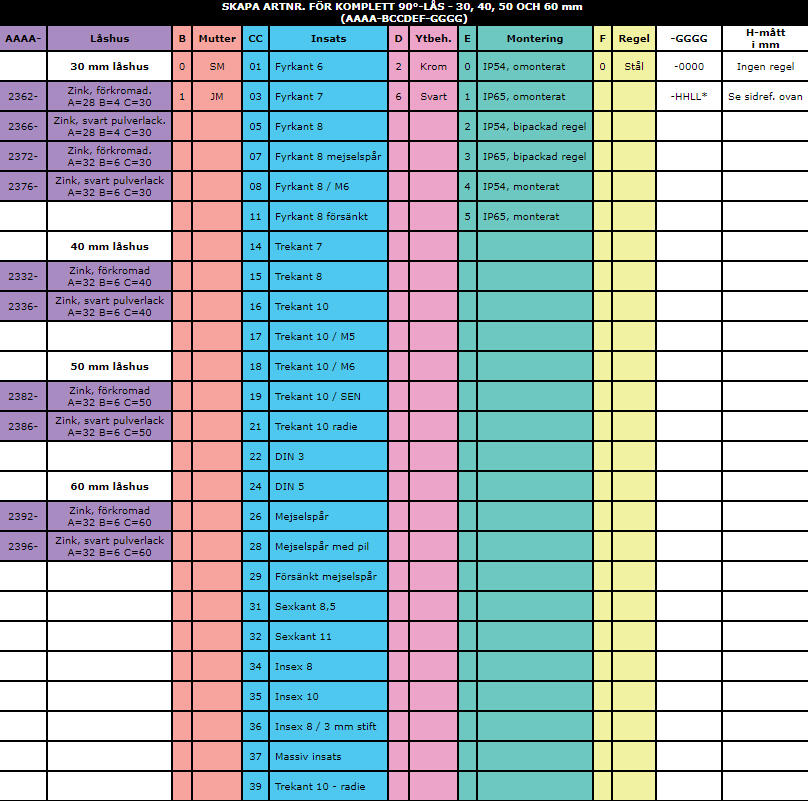

Example:
Lock housing - chrome A=28, B=4, brass nut, insert Square 8 - chrome, IP65 / NEMA 4 mounting and rule - standard for H=22 mm L=45 mm gives the following article number: 2362-005250-2245.
Tightness class IP65 / NEMA 4 is obtained by mounting an O-ring on the insert and a seal on the lock housing.
Rule: rule with notches, three-point rule or hook rule
- 30mm lock housing
- IP65
- 90°
- Configurable
Selected variant
Technical data
| Configurable | Yes |
|---|---|
| Dimension L | 45 mm |
| Material | Zinc, chrome |
| Material lock housing | Zinc, chrome |
| Material rule | Steel |
| Opening angle | 90 ° |
Product description
Complete 90° lock - 30, 40, 50 and 60 mm
A complete lock consists of lock housing, nut, insert, washer, screw and rule. To achieve protection class IP65, an O-ring is placed on the insert and a flat gasket on the lock housing.
The lock can be delivered unassembled, pre-assembled with an enclosed rule or in fully assembled condition.
Example:
Lock housing - chrome A=28, B=4, brass nut, insert Square 8 - chrome, IP65 / NEMA 4 mounting and rule - standard for H=22 mm L=45 mm gives the following article number: 2362-005250-2245.
Tightness class IP65 / NEMA 4 is obtained by mounting an O-ring on the insert and a seal on the lock housing.
Rule: rule with notches, three-point rule or hook rule
