INDUSTRILÅS

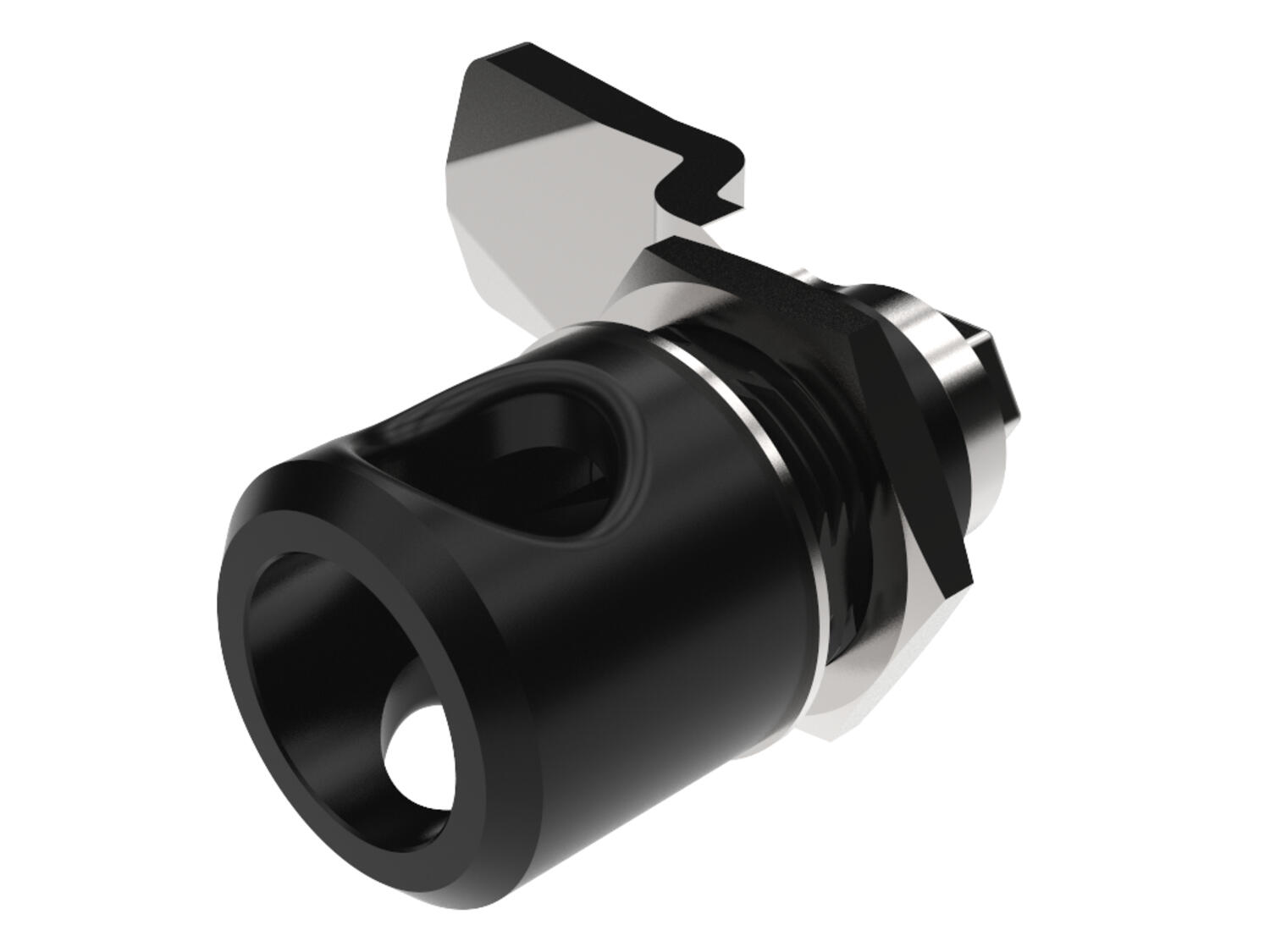

Quarter turn classic 18mm padlockable
A complete lock consists of lock housing, nut, insert, washer, screw and rule. Protection class IP65 * is obtained by placing an O-ring on the insert and a flat gasket on the lock housing.
The locks can be delivered unassembled, preassembled with enclosed rule or in complete assembled condition.
*=also rated "Waterproof according to NEMA 4".
90° lock with integrated padlock system for locking doors and panels etc. With the help of a padlock, operation of the lock can be blocked.
Please note that rule is ordered separately. Choose: rule with notches, three-point rule or hook rule
- 18mm lock housing
- IP65
- For padlocks
- Universal right/left

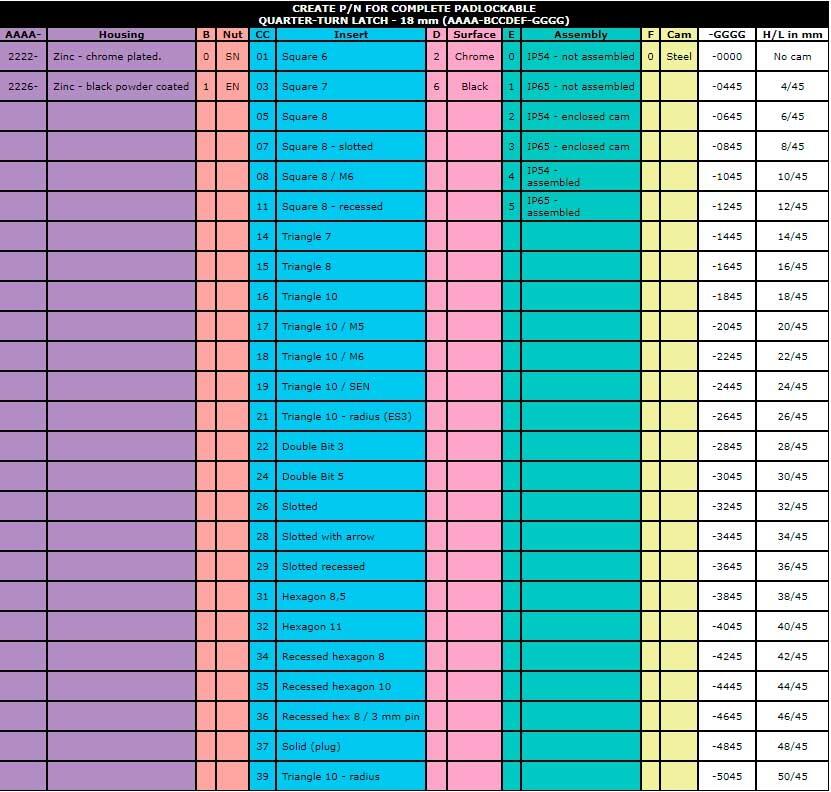

- Configurable
Selected variant
Quarter-turn 18mm padlockable zinc-chrome, square7, IP54, 22/45mm
Art:
Selected variant

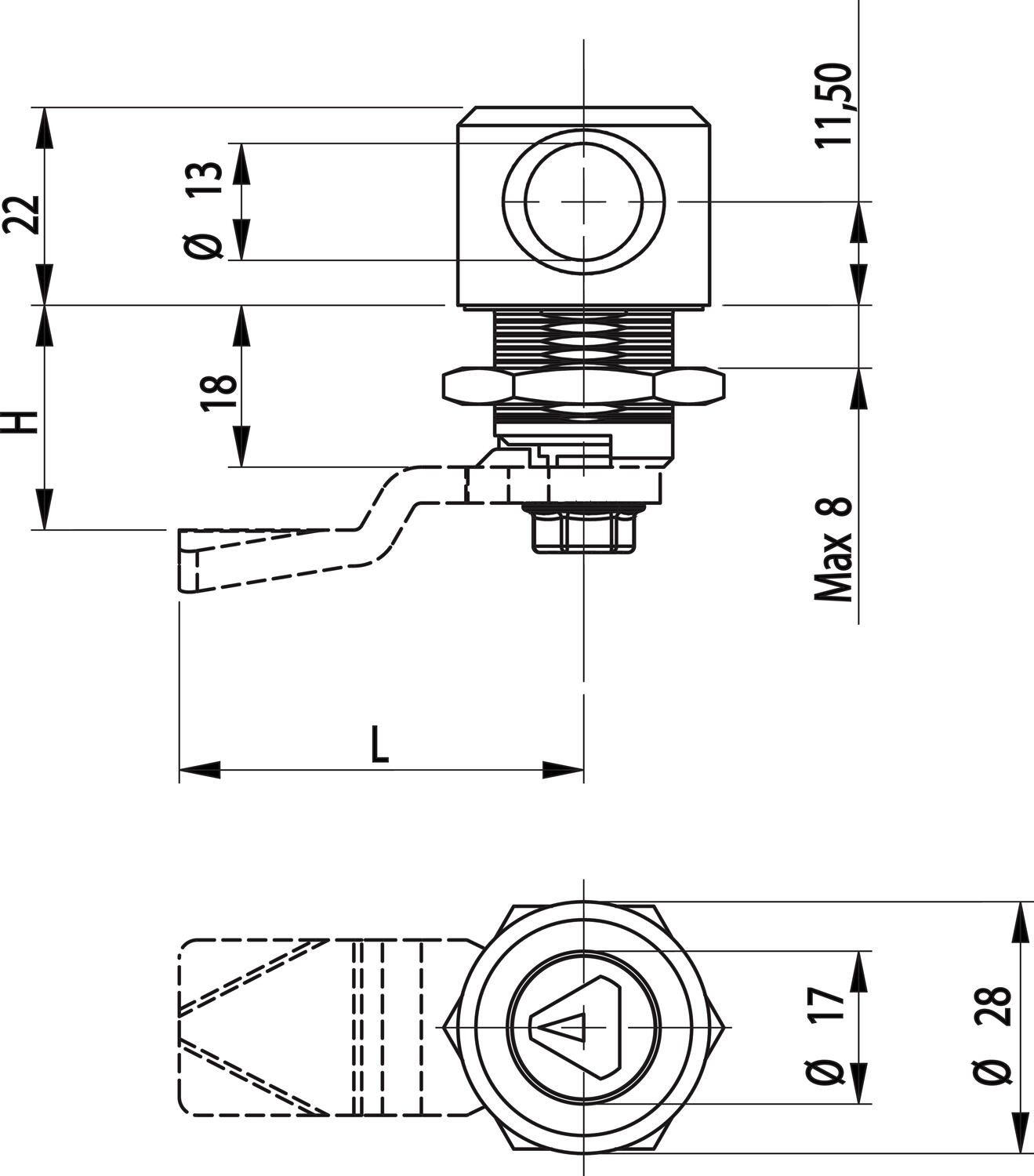

Technical data
| Configurable | Yes |
|---|---|
| Dimension H | 22 mm |
| Dimension L | 45 mm |
| Material | Zinc, chrome |
| Material rule | Zinc-plated steel |
| Opening angle | 90 ° |
Product description
A complete lock consists of lock housing, nut, insert, washer, screw and rule. Protection class IP65 * is obtained by placing an O-ring on the insert and a flat gasket on the lock housing.
The locks can be delivered unassembled, preassembled with enclosed rule or in complete assembled condition.
*=also rated "Waterproof according to NEMA 4".
90° lock with integrated padlock system for locking doors and panels etc. With the help of a padlock, operation of the lock can be blocked.
Please note that rule is ordered separately. Choose: rule with notches, three-point rule or hook rule
