INDUSTRILÅS
Quarter-turn 18mm lock

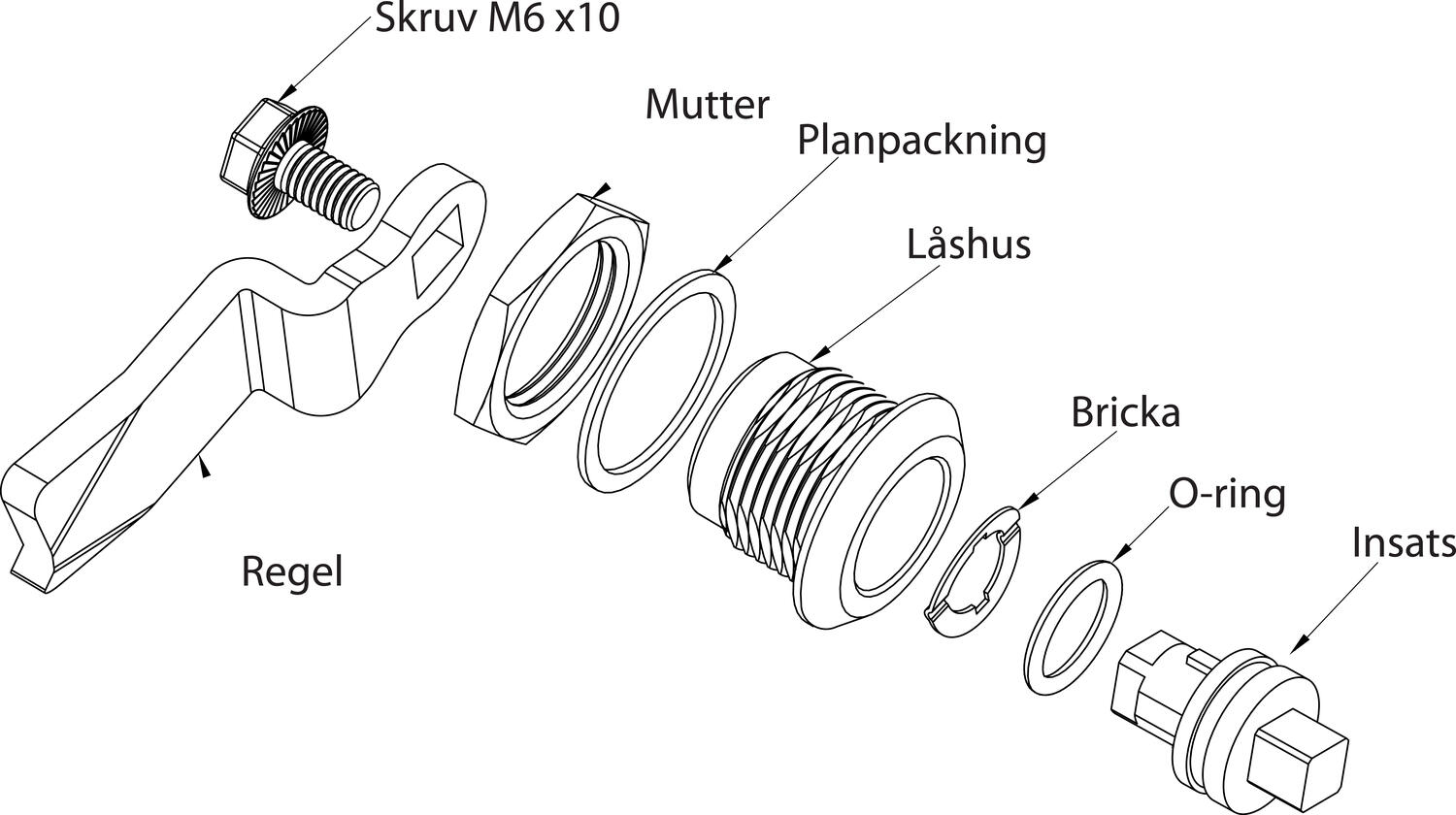

A complete lock consisting of lock housing, nut, insert, washer, screw and rule.
This variant is structured with a product key, which is resolved together with the product manager.
Lock housing: Zinc, chrome plated
Nut: standard
Lock housing variant: square with size 7
Surface coating: chrome
Ip class: IP65 assembled
Rule: steel
H/L measurements: 00/45 mm
To achieve protection class IP65 (also classified "Waterproof according to NEMA 4"), an O-ring is placed on the insert and a flat gasket on the lock housing. The locks can be delivered unassembled, preassembled with enclosed rule or in complete assembled condition.
NOTE: On request, we can deliver the lock housing with integrated, foamed PUR gasket to simplify assembly in your application.

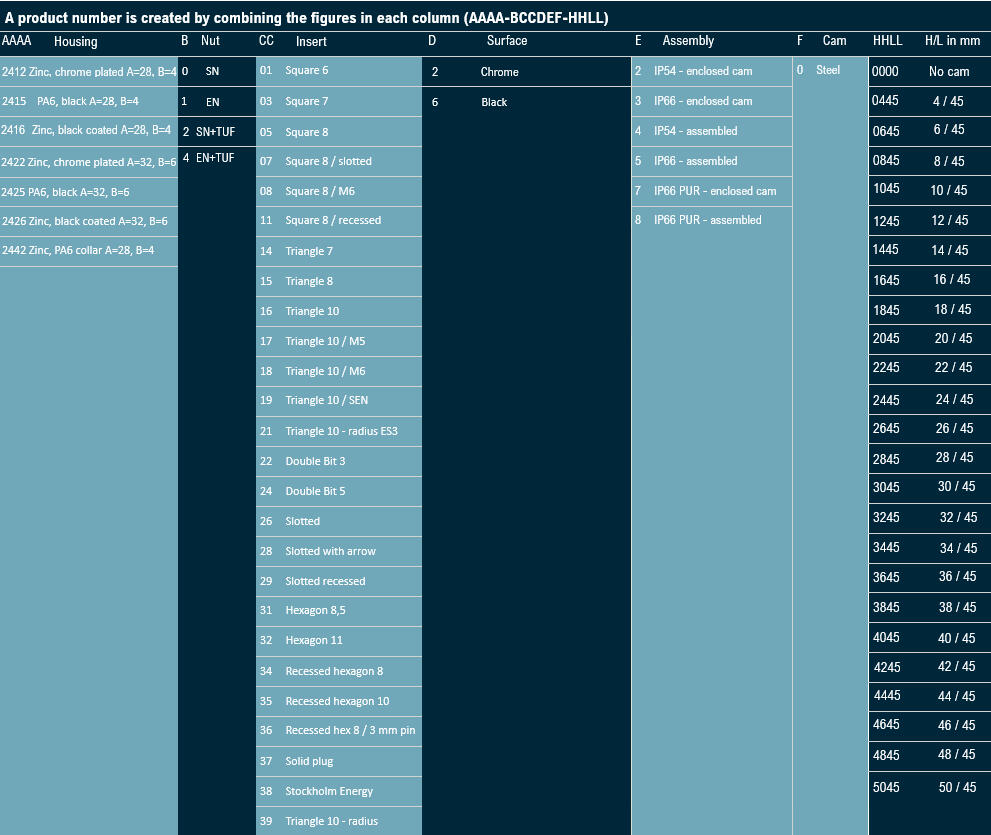

Example: Lock housing - chrome A=28, B=4, standard nut, insert Square 8 - chrome, IP65 / NEMA 4 mounting and rule - standard for H=22 mm L=45 mm gives the following article number: 2412-005250-2245. Tightness class IP65 / NEMA 4 is obtained through an O-ring on the insert and an integrated gasket on the lock housing.
Nuts:
SM = Standard nut.
JM = Earthing nut.
- 18mm lock housing
- IP65
- 90°
- Vibration resistant
- Configurable
Selected variant
Technical data
| Configurable | Yes |
|---|---|
| Dimension H | 38 mm |
| Dimension L | 45 mm |
| Material | Zinc, chrome |
| Material lock housing | Zinc, chrome |
| Material rule | Zinc plated steel |
| Opening angle | 90 ° |
Product description
A complete lock consisting of lock housing, nut, insert, washer, screw and rule.
This variant is structured with a product key, which is resolved together with the product manager.
Lock housing: Zinc, chrome plated
Nut: standard
Lock housing variant: square with size 7
Surface coating: chrome
Ip class: IP65 assembled
Rule: steel
H/L measurements: 00/45 mm
To achieve protection class IP65 (also classified "Waterproof according to NEMA 4"), an O-ring is placed on the insert and a flat gasket on the lock housing. The locks can be delivered unassembled, preassembled with enclosed rule or in complete assembled condition.
NOTE: On request, we can deliver the lock housing with integrated, foamed PUR gasket to simplify assembly in your application.
Example: Lock housing - chrome A=28, B=4, standard nut, insert Square 8 - chrome, IP65 / NEMA 4 mounting and rule - standard for H=22 mm L=45 mm gives the following article number: 2412-005250-2245. Tightness class IP65 / NEMA 4 is obtained through an O-ring on the insert and an integrated gasket on the lock housing.
Nuts:
SM = Standard nut.
JM = Earthing nut.
