INDUSTRILÅS

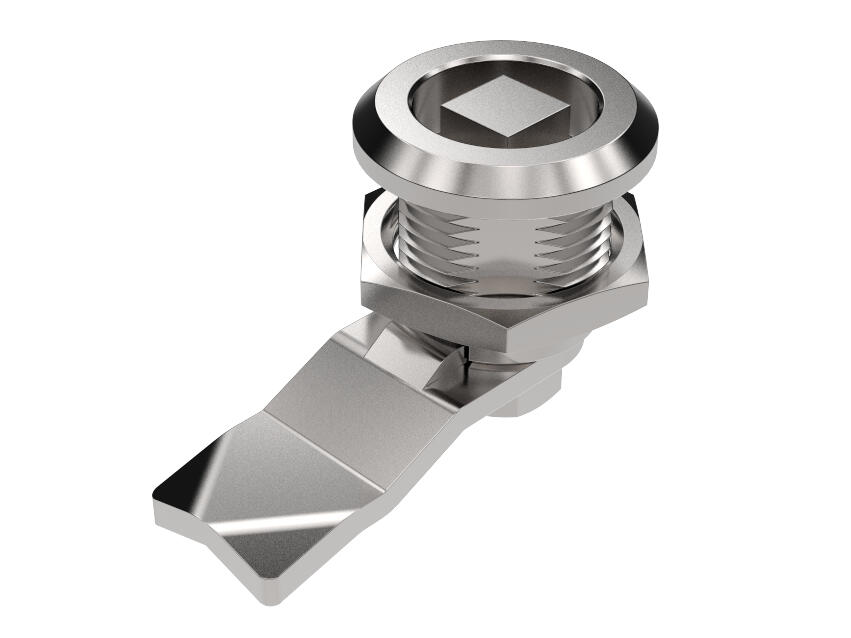

Quarter-turn 13.5mm stainless latch
Can be adapted to your own needs.
For help with putting together an article number for the finished product, it's great to contact the product manager. The product pictured is assembled with the following specifications.
Lock housing: Stainless steel
Nut: Standard
Insert: chisel groove
Insert material: stainless steel
Mounting : IP65 Mounted
Rule material: stainless steel
H/W in mm: 16.5/27

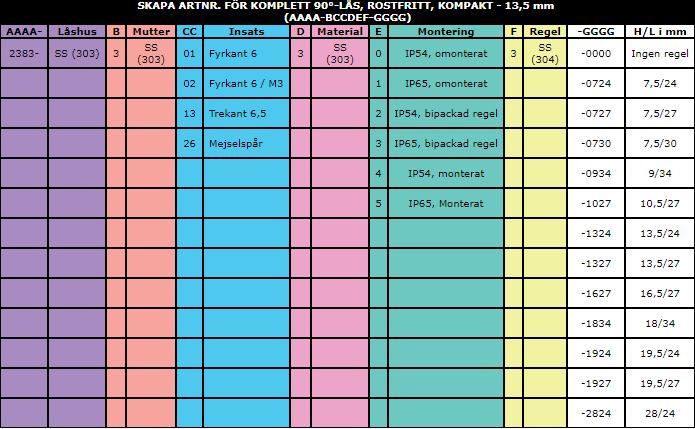

Example: Lock housing - stainless A=20, B=3, nut - stainless, insert Square 6 - stainless, IP65 mounting/NEMA4 and rule - stainless for H=16.5 gives the following article number: 2383-301353-1627.

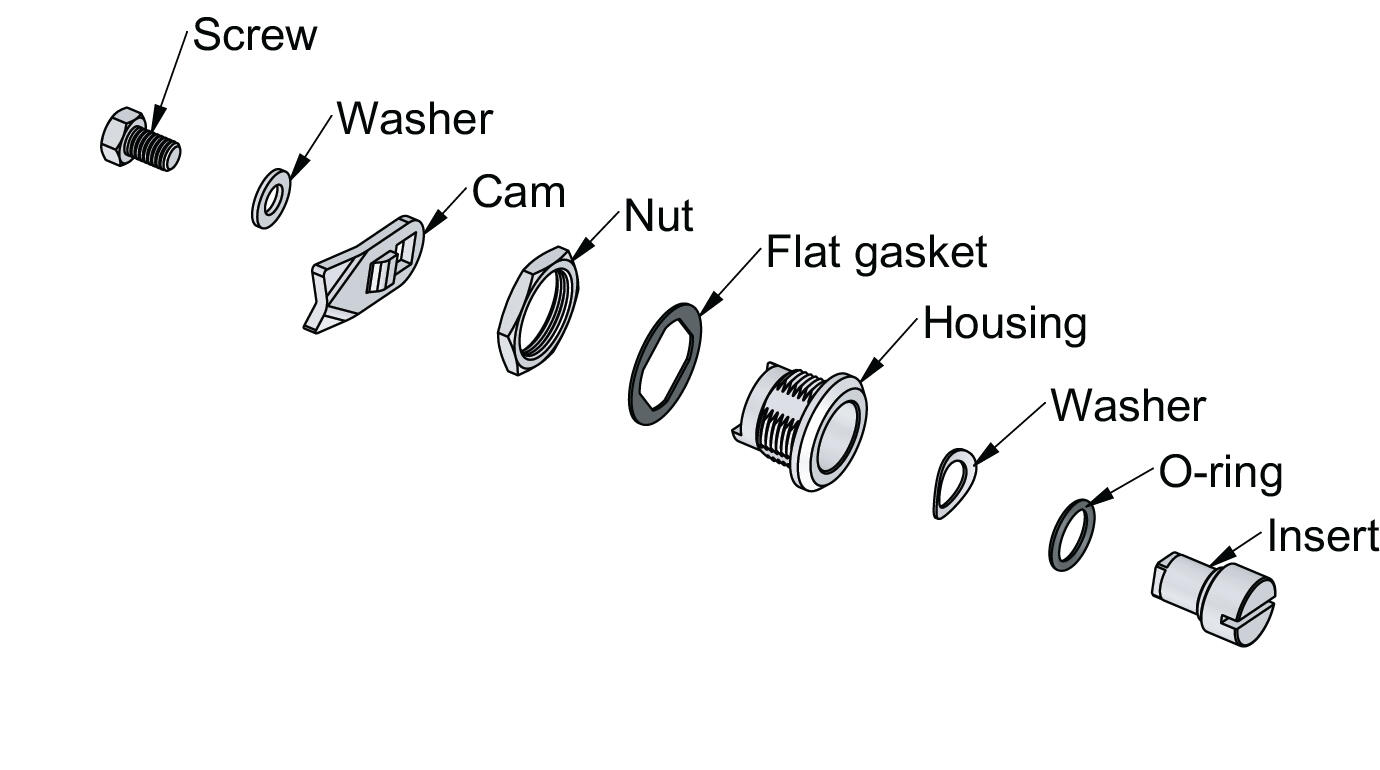

Tightness class IP65/NEMA4 is obtained by mounting an O-ring on the insert and a seal on the lock housing.
- Stainless steel
- Compact
- 13.5mm lock housing
- Configurable
Selected variant
Quarter-turn 13.5mm latch, SS 303, slotted, IP65 assembled, 16.5/27
Art:
Selected variant
Technical data
| Configurable | Yes |
|---|---|

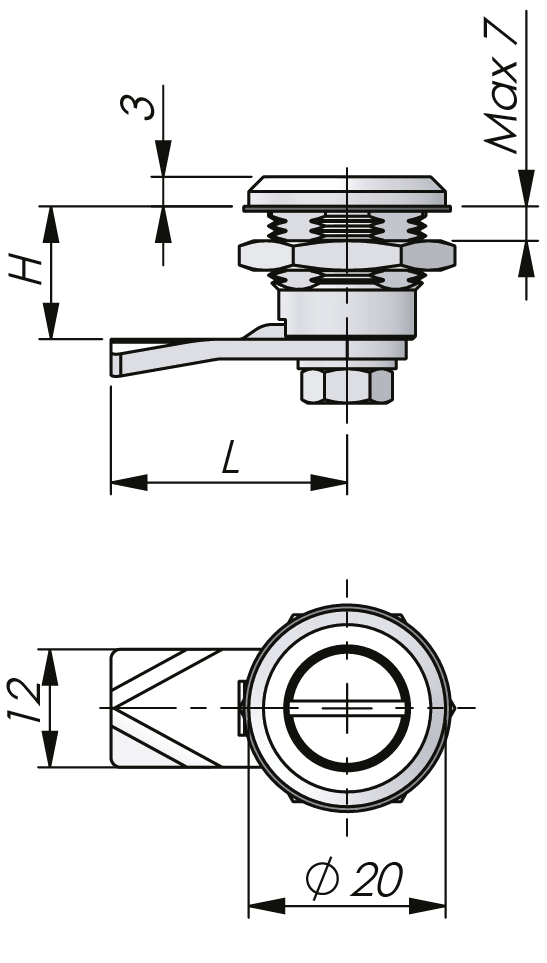

| Dimension H | 16.5 mm |
| Dimension L | 27 mm |
| Material lock housing | Stainless steel AISI 304 |
| Material rule | Stainless steel AISI 304 |
| Opening angle | 90 ° |
Product description
Can be adapted to your own needs.
For help with putting together an article number for the finished product, it's great to contact the product manager. The product pictured is assembled with the following specifications.
Lock housing: Stainless steel
Nut: Standard
Insert: chisel groove
Insert material: stainless steel
Mounting : IP65 Mounted
Rule material: stainless steel
H/W in mm: 16.5/27
Example: Lock housing - stainless A=20, B=3, nut - stainless, insert Square 6 - stainless, IP65 mounting/NEMA4 and rule - stainless for H=16.5 gives the following article number: 2383-301353-1627.
Tightness class IP65/NEMA4 is obtained by mounting an O-ring on the insert and a seal on the lock housing.
