INDUSTRILÅS
Quarter-turn 13.5mm lock

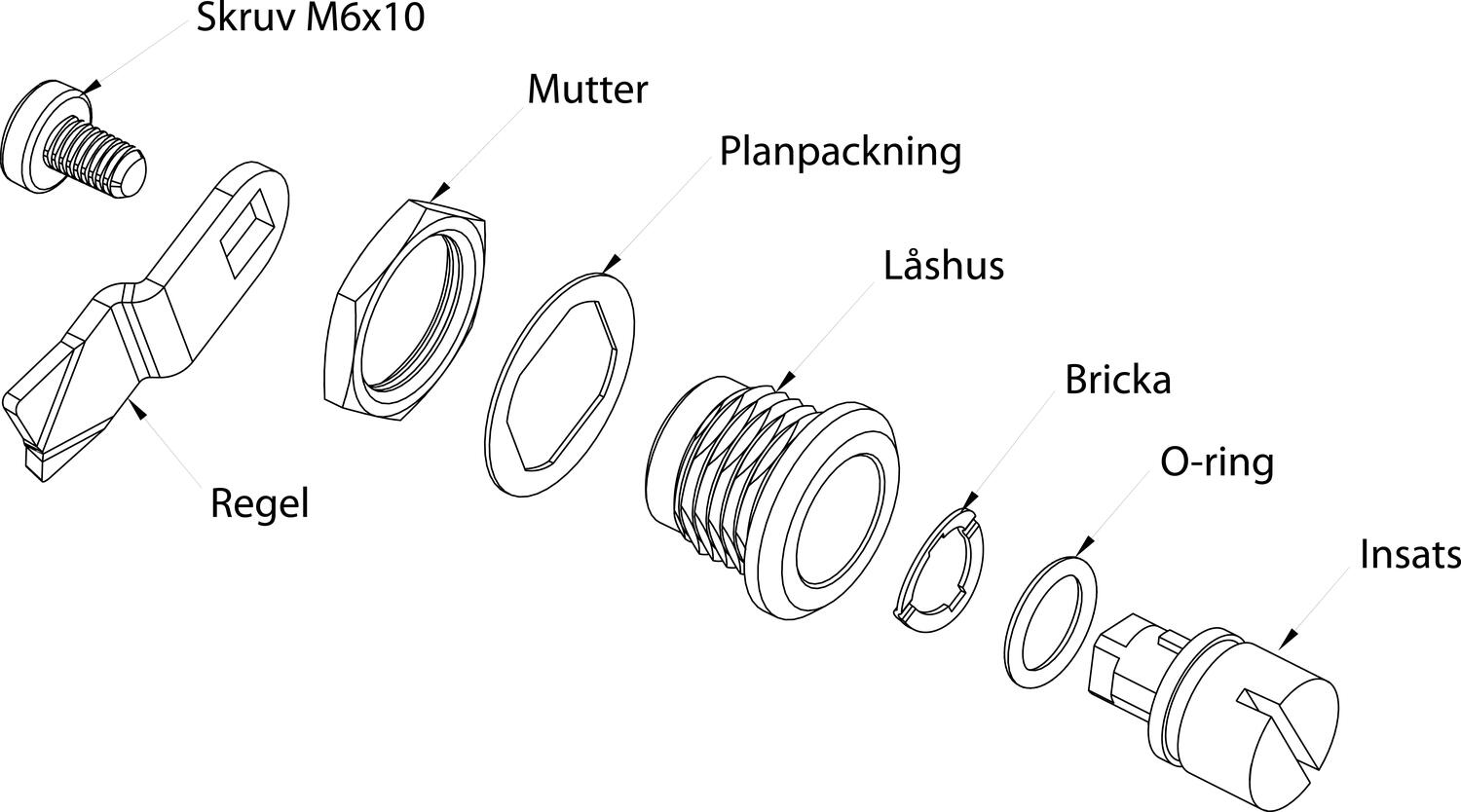

A complete lock consists of lock housing, nut, insert, washer, screw and rule. Protection class IP65 is obtained by placing an O-ring on the insert and a flat gasket on the lock housing.

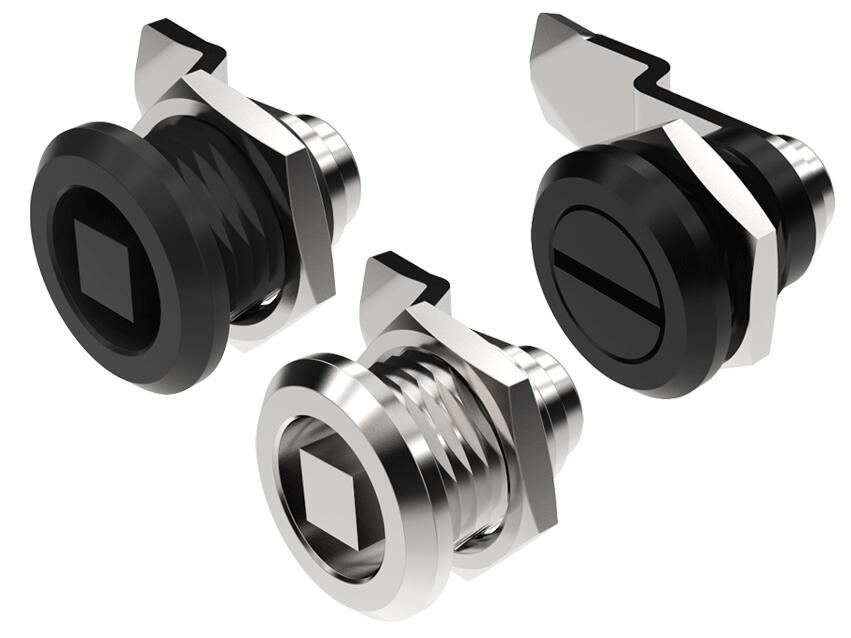

This variant that is in the picture is built with a product key, which is resolved together with the product manager.
Lock housing : Zinc, chrome-plated A=20 B=3
Nut : Standard
Lock housing insert: Insex 6
Surface coating: chrome
Mounting : IP 65 Mounted
Rule: steel

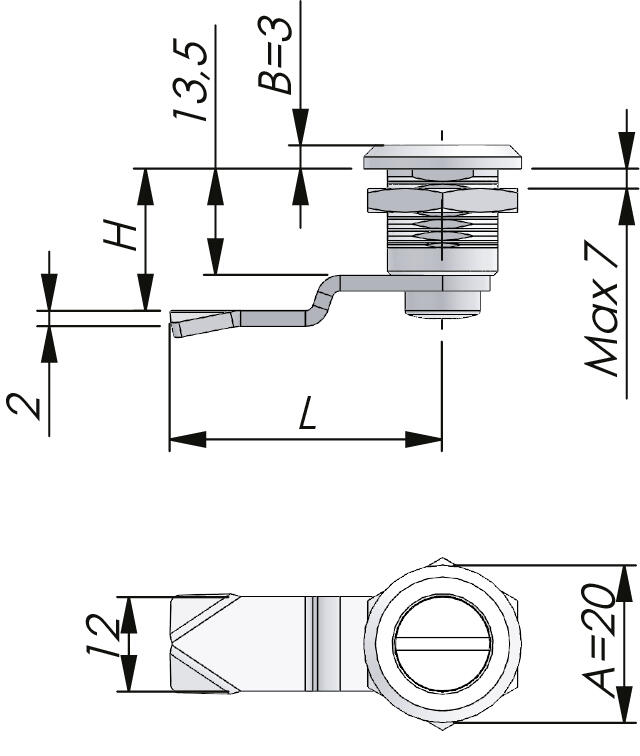

H/L measurements: 16.5/27 mm
The locks can be delivered unassembled, preassembled with enclosed rule or in complete assembled condition

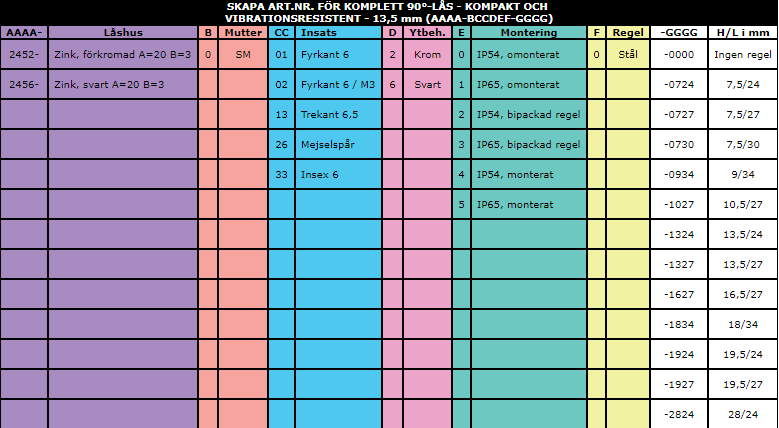

Example: Lock housing - chrome-plated A=20, B=3, brass nut, insert Square 6 - chrome-plated, IP65 mounting and rule (fzb) standard for H=16.5 mm L=27 mm gives the following article number: 2452-001250-1627 .
Protection class IP65 is obtained by placing an O-ring on the insert and a flat gasket on the lock housing.
- 13.5mm lock housing
- Compact
- 90°
- Vibration resistant
- Configurable
Selected variant
Technical data
| Configurable | Yes |
|---|---|
| Dimension H | 13.5 mm |
| Dimension L | 24 mm |
| Material lock housing | Zinc, black powder coated |
| Material rule | Zinc plated steel |
| Opening angle | 90 ° |
Product description
A complete lock consists of lock housing, nut, insert, washer, screw and rule. Protection class IP65 is obtained by placing an O-ring on the insert and a flat gasket on the lock housing.
This variant that is in the picture is built with a product key, which is resolved together with the product manager.
Lock housing : Zinc, chrome-plated A=20 B=3
Nut : Standard
Lock housing insert: Insex 6
Surface coating: chrome
Mounting : IP 65 Mounted
Rule: steel
H/L measurements: 16.5/27 mm
The locks can be delivered unassembled, preassembled with enclosed rule or in complete assembled condition
Example: Lock housing - chrome-plated A=20, B=3, brass nut, insert Square 6 - chrome-plated, IP65 mounting and rule (fzb) standard for H=16.5 mm L=27 mm gives the following article number: 2452-001250-1627 .
Protection class IP65 is obtained by placing an O-ring on the insert and a flat gasket on the lock housing.
