INDUSTRILÅS

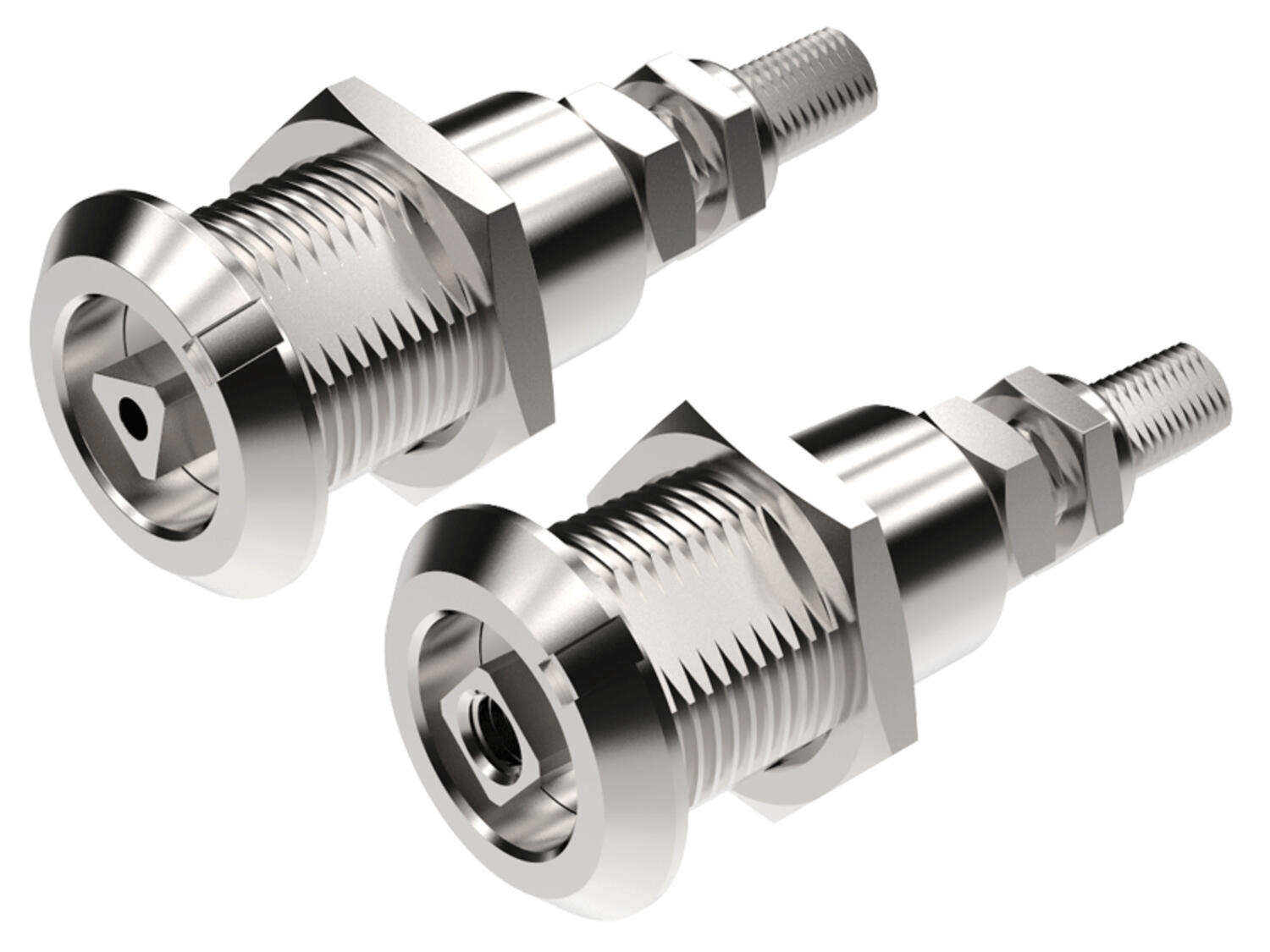

Adjustable compression latch 35mm
Adjustable compression latch 35mm. Locks and compresses through a 180° rotation. The first 90° rotation moves the cam, the second 90° rotation retracts the cam 6mm. This is illustrated using the C dimension in the drawing.
Â
The external threaded shaft makes it possible to place the cam along its entire length and thus be able to adjust the H dimension to the desired dimension. The adjustability is 20mm. Fix the cam using the associated counter nuts. The overall length of the threaded rod (L) varies between 41mm, in the open position, to 35mm  in the compressed position. The latch is delivered assembled and the cam is ordered seperately.
Â
- Vibration resistant according to DIN EN 61373
- Watertight according to NEMA 4
- IP65
- 35.5mm lock housing
- IP65
- 90°
- Adjustable compression
- 6mm compression
Selected variant
Technical data
| Configurable | No |
|---|---|
| Material | Zinc, chrome |
| Material of shaft | Zinc plated, Steel |
Product description
Adjustable compression latch 35mm. Locks and compresses through a 180° rotation. The first 90° rotation moves the cam, the second 90° rotation retracts the cam 6mm. This is illustrated using the C dimension in the drawing.
Â
The external threaded shaft makes it possible to place the cam along its entire length and thus be able to adjust the H dimension to the desired dimension. The adjustability is 20mm. Fix the cam using the associated counter nuts. The overall length of the threaded rod (L) varies between 41mm, in the open position, to 35mm  in the compressed position. The latch is delivered assembled and the cam is ordered seperately.
Â
- Vibration resistant according to DIN EN 61373
- Watertight according to NEMA 4
- IP65
