INDUSTRILÅS

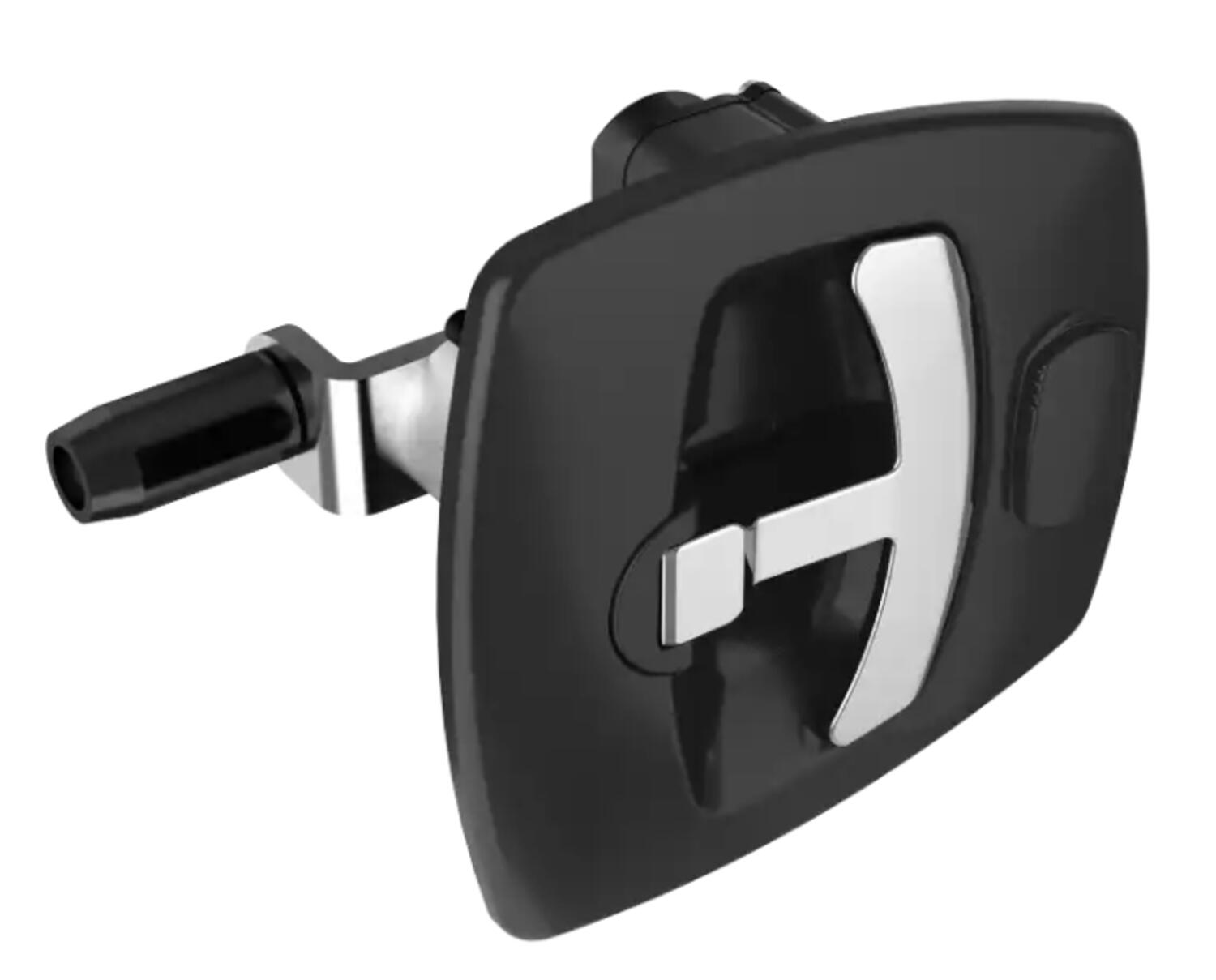

Vector T3 handle central locking

Vector 3 T-handle for central locking of vehicles. The unlocking and locking signal is sent from the vehicle's system. Available in versions with feedback if the T-bar handle is open or closed and if the handle is unlocked or locked.



The handle creates 4 mm of compression and is sealed to IP65 for water and dust. Four blind-mounted studs ensure watertight mounting. In the event of a power failure, the latch is equipped with a mechanical override cylinder.

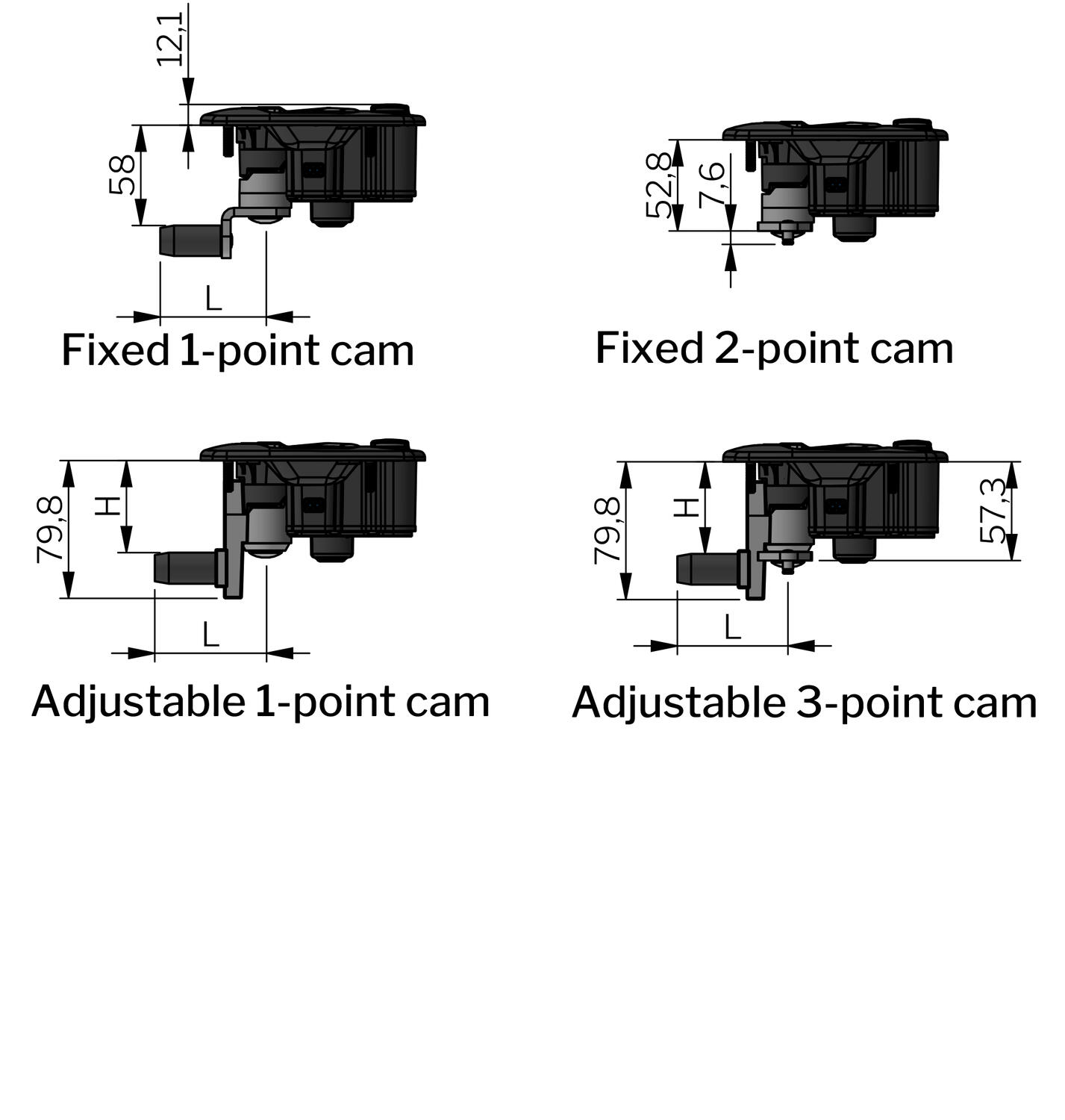

Available for 12- and 24-volt systems and with fixed or adjustable roller cams, as well as 1-, 2- and 3-point locking options.

Read more
  • 12 & 24 V
  • IP65
  • Zinc/stainless steel
  • 4mm compression
  • Adjustable

Selected variant


Vector T3 locking handle, 12V, keyed alike 751, zinc/steel, 180°

Art:

Selected variant

Technical data

Measurements and connections

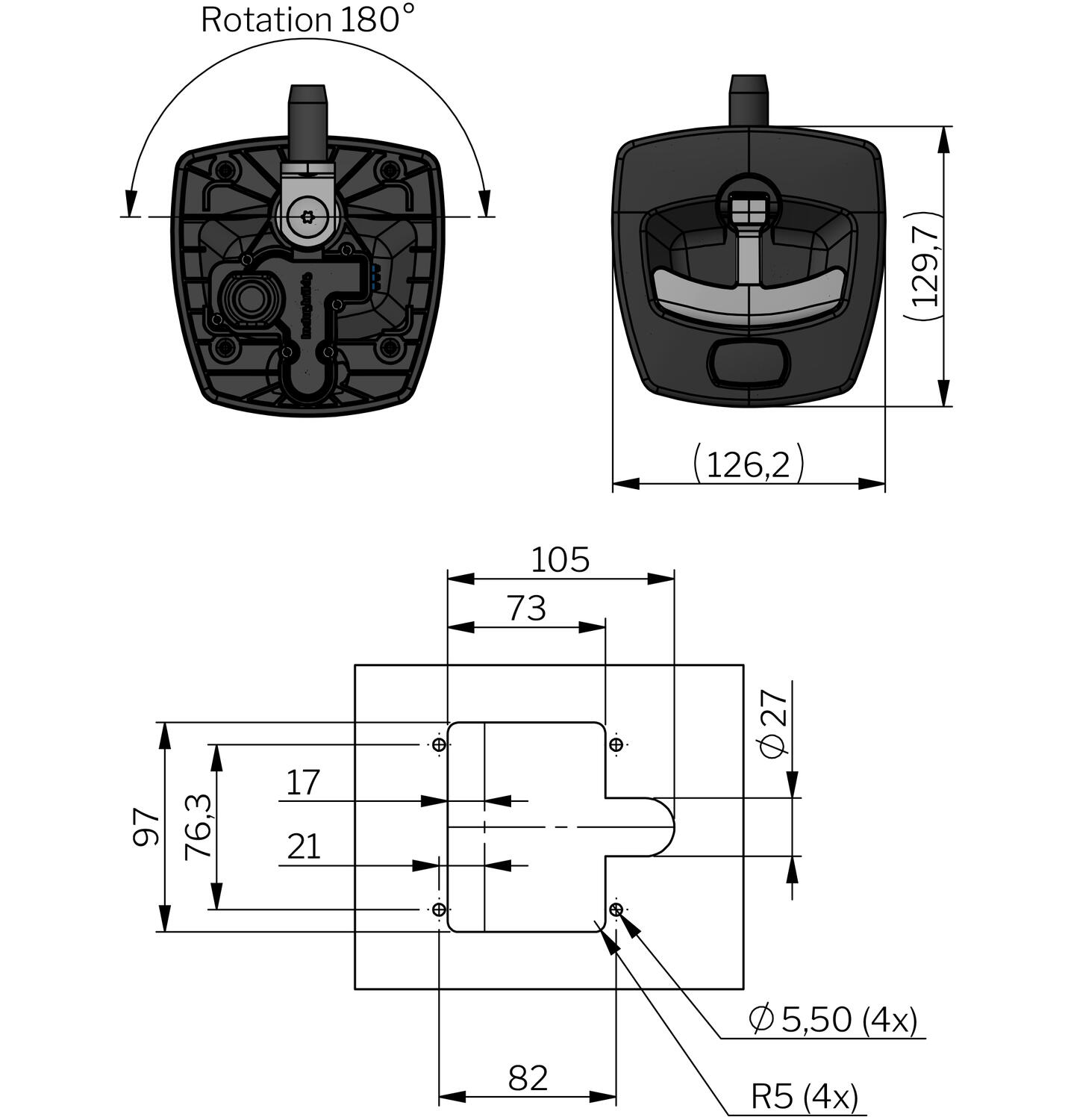

Technical illustrations

Product description

Vector 3 T-handle for central locking of vehicles. The unlocking and locking signal is sent from the vehicle's system. Available in versions with feedback if the T-bar handle is open or closed and if the handle is unlocked or locked.



The handle creates 4 mm of compression and is sealed to IP65 for water and dust. Four blind-mounted studs ensure watertight mounting. In the event of a power failure, the latch is equipped with a mechanical override cylinder.



Available for 12- and 24-volt systems and with fixed or adjustable roller cams, as well as 1-, 2- and 3-point locking options.
