INDUSTRILÅS

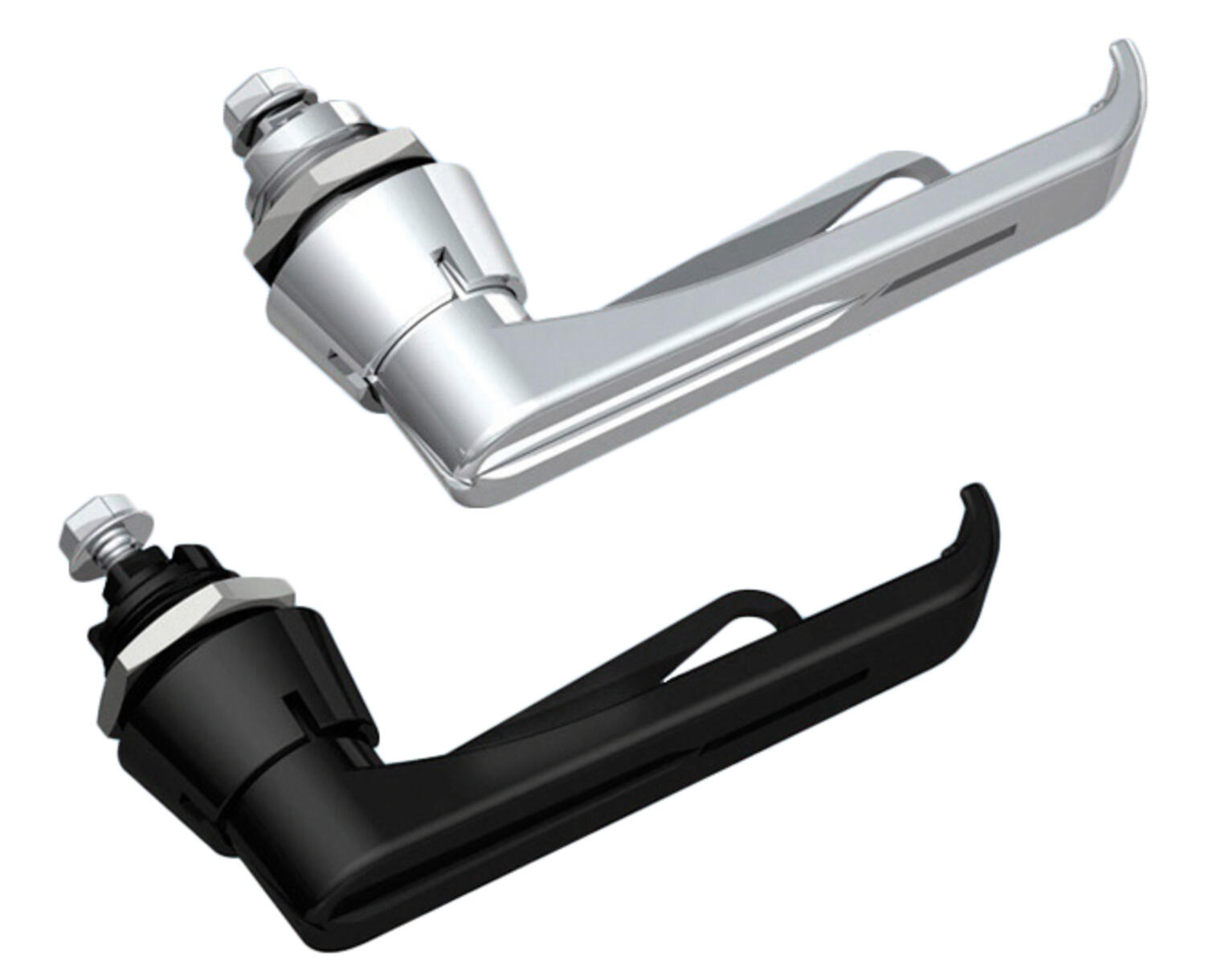

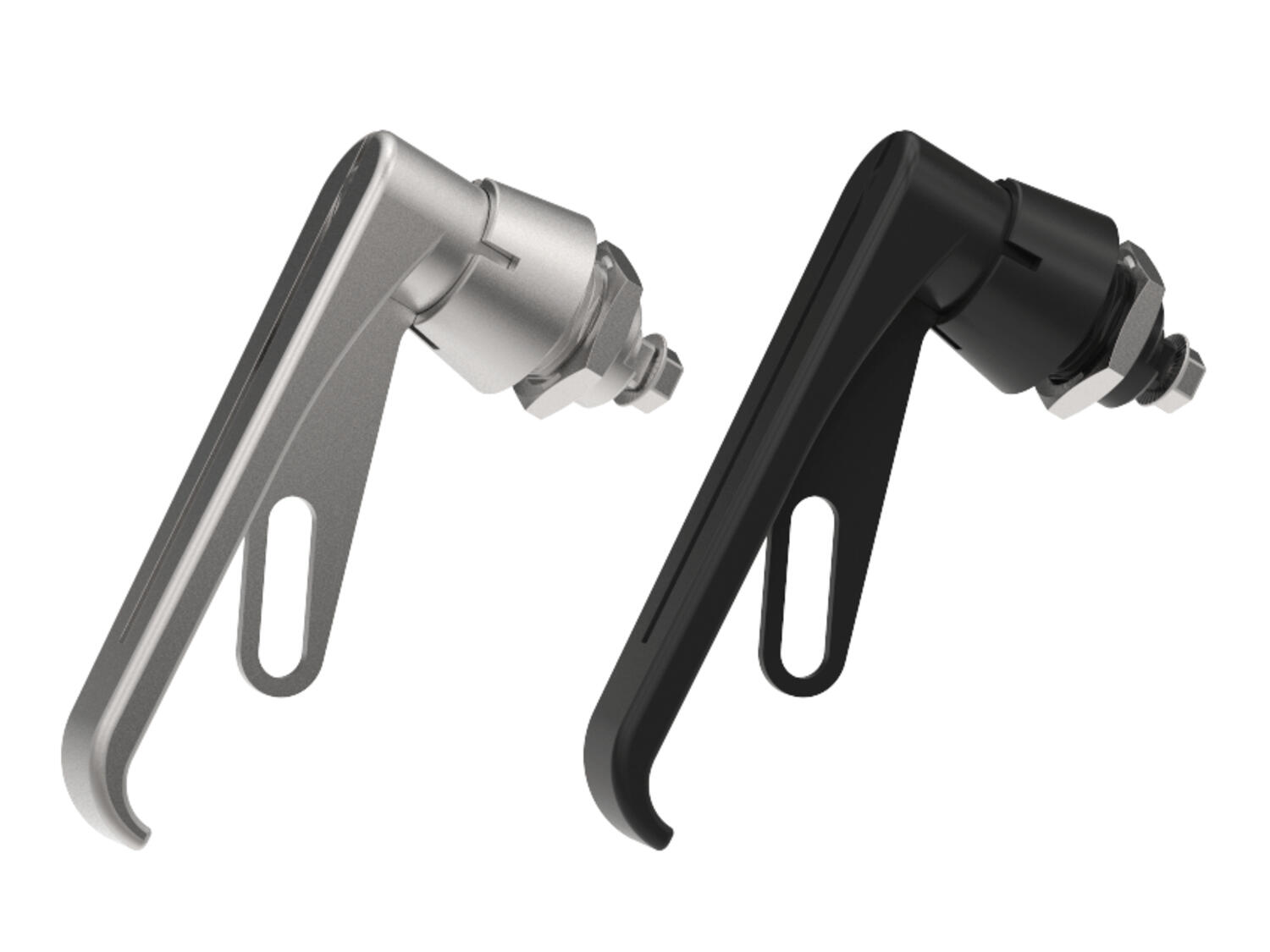

Quarter-turn L-handle padlockable
L-handle with 90° rotation for padlocks with retractable, spring-loaded padlock loop. Universal counterclockwise or clockwise rotation when opening / closing. Supplied with nut. Protection class IP65, also classified "Waterproof according to NEMA 4".
Â
Please note that rule is ordered separately. Choose rule with notches, three-point rule or hook rule.
- Spring Loaded padlock loop
- 18mm lock housing
- Waterproof according to NEMA 4
- L-handle 90° rotation
- Not configurable
Selected variant
Technical data
| Configurable | No |
|---|---|
| Material lock housing | Zinc, chrome |
| Material nut | Zinc plated, Zinc |
| Material padlock | Steel |
| Material terminal | Zinc plated, Steel |
Product description
L-handle with 90° rotation for padlocks with retractable, spring-loaded padlock loop. Universal counterclockwise or clockwise rotation when opening / closing. Supplied with nut. Protection class IP65, also classified "Waterproof according to NEMA 4".
Â
Please note that rule is ordered separately. Choose rule with notches, three-point rule or hook rule.
