INDUSTRILÅS

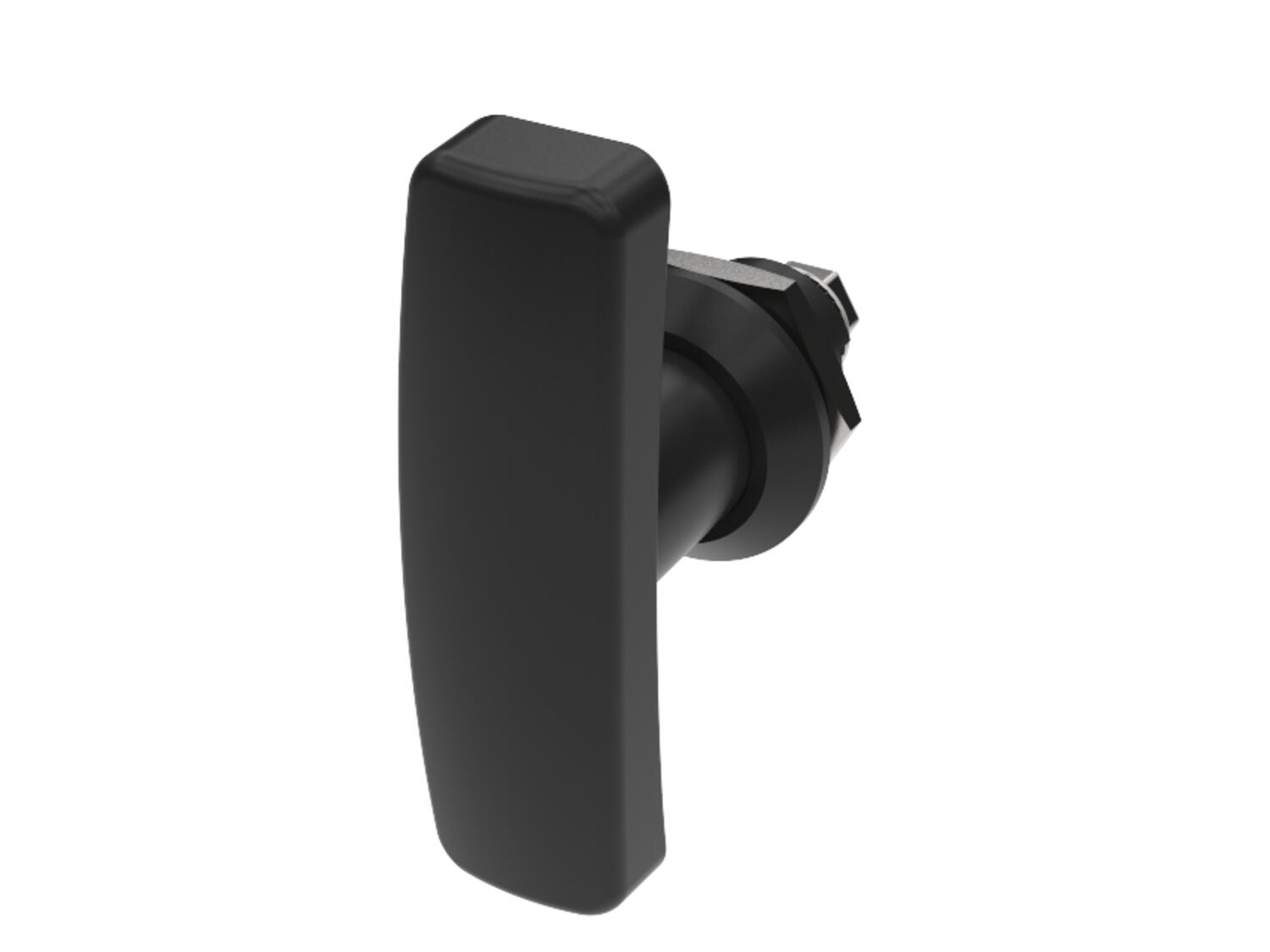

Quarter-turn 18mm T-handle
T-handle with 90° rotation in locking or non-locking version. Universal design with a hole that enables clockwise or counter-clockwise rotation when opening / locking. Supplied with nut and two keys. Protection class IP65.
Master key system on request.
- With or without lock cylinder
- 18mm lock housing
- IP65 / HNS on request
Selected variant
Quarter-turn T-handle, 18mm, non-locking, black, IP65, 18/45mm
Art:
Selected variant
Technical data
| Colour | Black |
|---|---|
| Configurable | Yes |

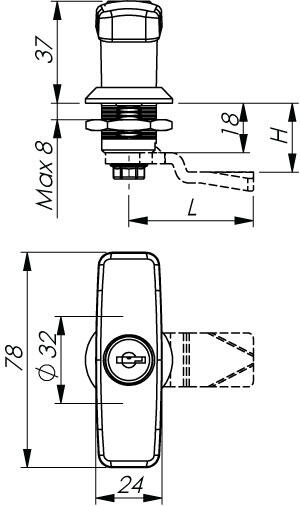

| Dimension H | 18 mm |
| Dimension L | 45 mm |
| Material | Zinc, black powder coated |
| Material rule | Zinc-plated steel |
| Opening angle | 90 ° |
Product description
T-handle with 90° rotation in locking or non-locking version. Universal design with a hole that enables clockwise or counter-clockwise rotation when opening / locking. Supplied with nut and two keys. Protection class IP65.
Master key system on request.
