INDUSTRILÅS

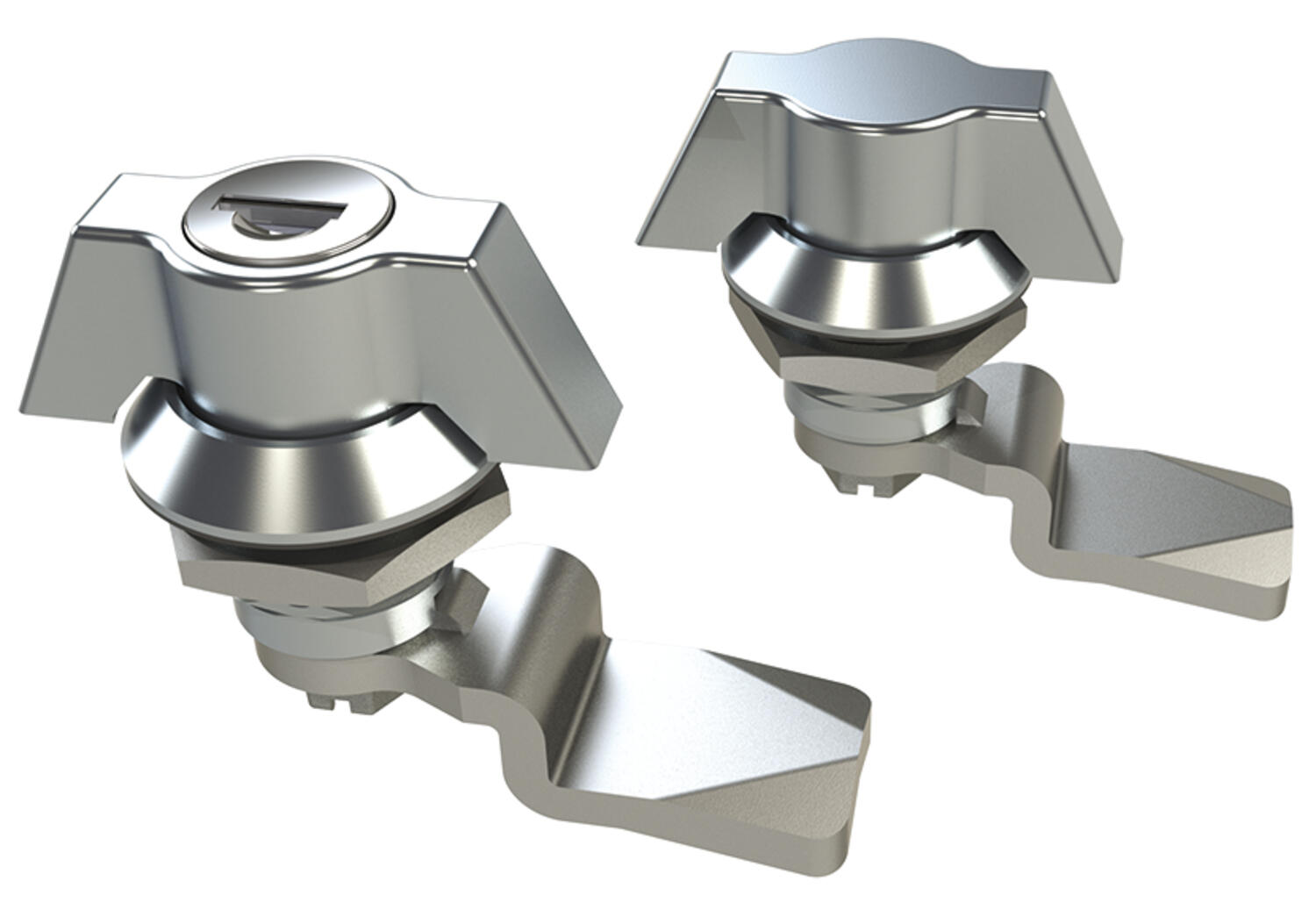

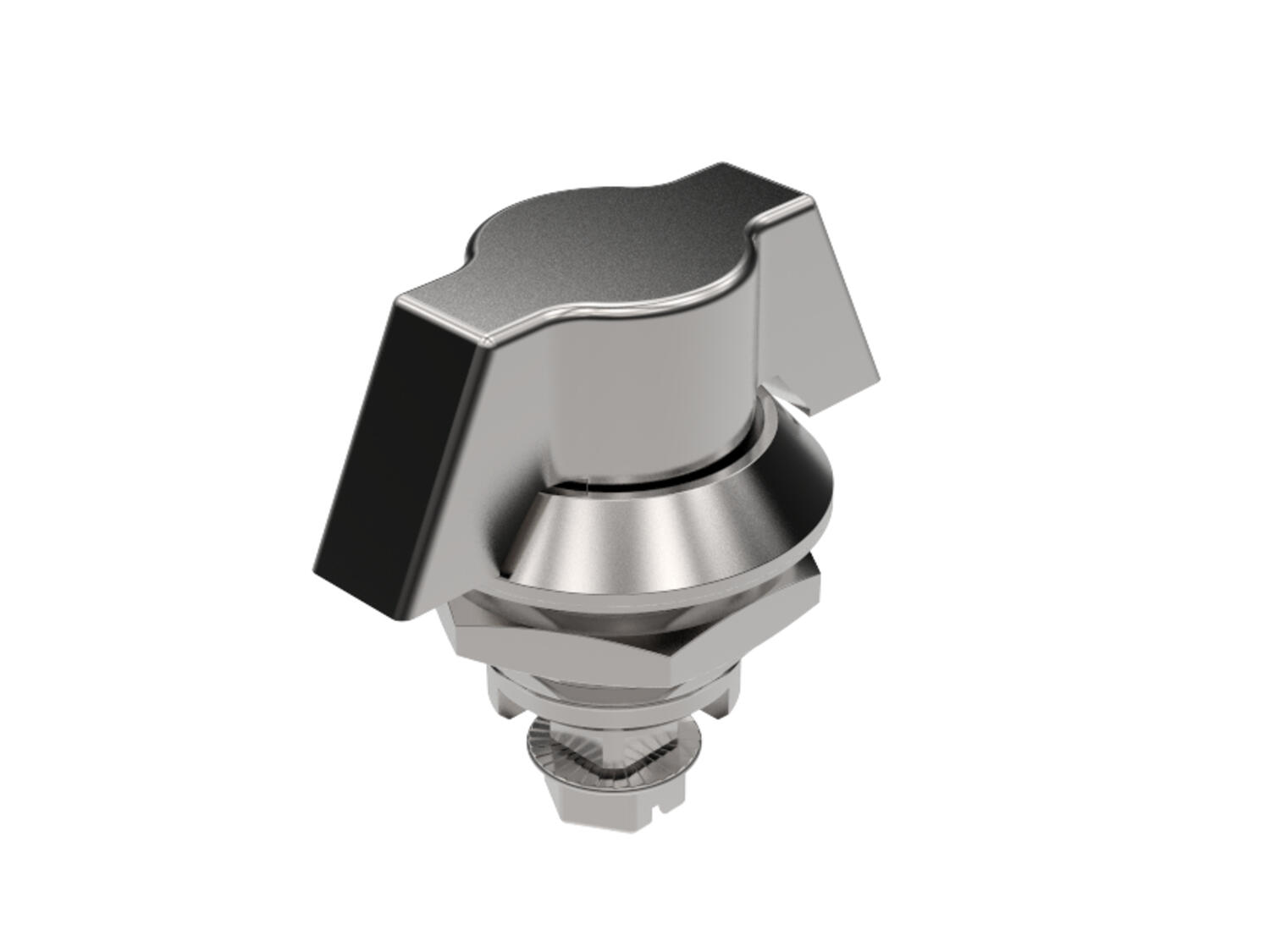

Quarter-turn 18mm stainless steel wing knob
Knob for 90° rotation, available in locking or non-locking design. Made of acid resistant 316 material. Universal design with clockwise or counter-clockwise rotation when opening / closing. Key can be removed in position: Open/Closed. Lockable version comes with nut and two keys. The "non-locking" version comes with a nut and is sealed to protection class IP65.
Please note that rule is ordered separately. Choose: rule with notches, three-point rule or hook rule
- Acid resistant
- Lockable or non-lockable model
- Universal mounting
- 18mm locking housing
- With non-locking IP65
Selected variant
Technical data
| Configurable | No |
|---|---|
| Material | Stainless Steel SIS2350 (316) |
| Material cylinder | Stainless steel AISI 304, Zinc |
Product description
Knob for 90° rotation, available in locking or non-locking design. Made of acid resistant 316 material. Universal design with clockwise or counter-clockwise rotation when opening / closing. Key can be removed in position: Open/Closed. Lockable version comes with nut and two keys. The "non-locking" version comes with a nut and is sealed to protection class IP65.
Please note that rule is ordered separately. Choose: rule with notches, three-point rule or hook rule
