INDUSTRILÅS
Finger hook and dust cover

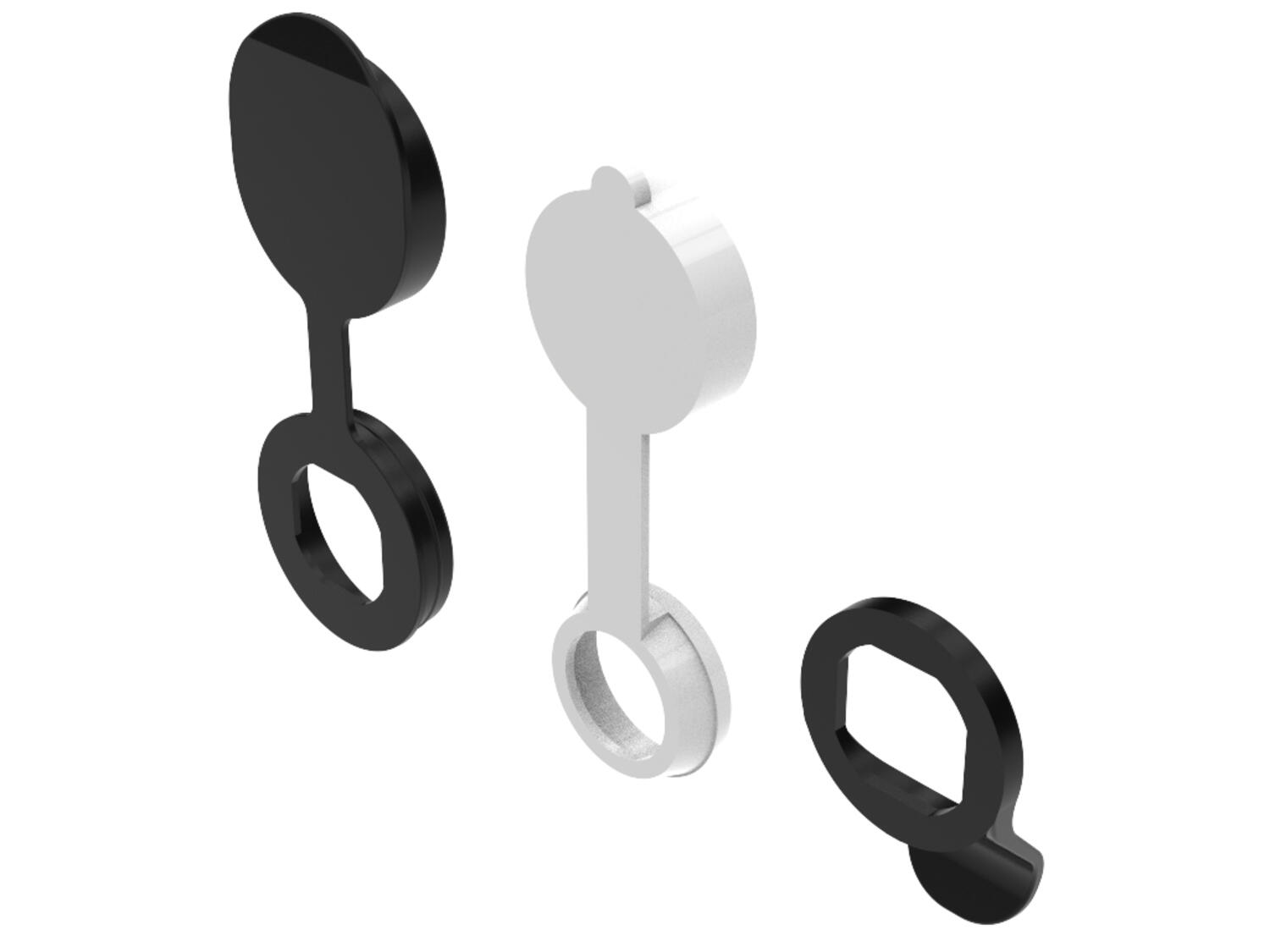

The finger hook (black) and dust cover (black) are used in combination with the standard 90° lock. Suitable for locks with Ø 28 mm or 32 mm collar.
Â
White dust cover is used for 90° lock with hole punch 19 x 16mm.

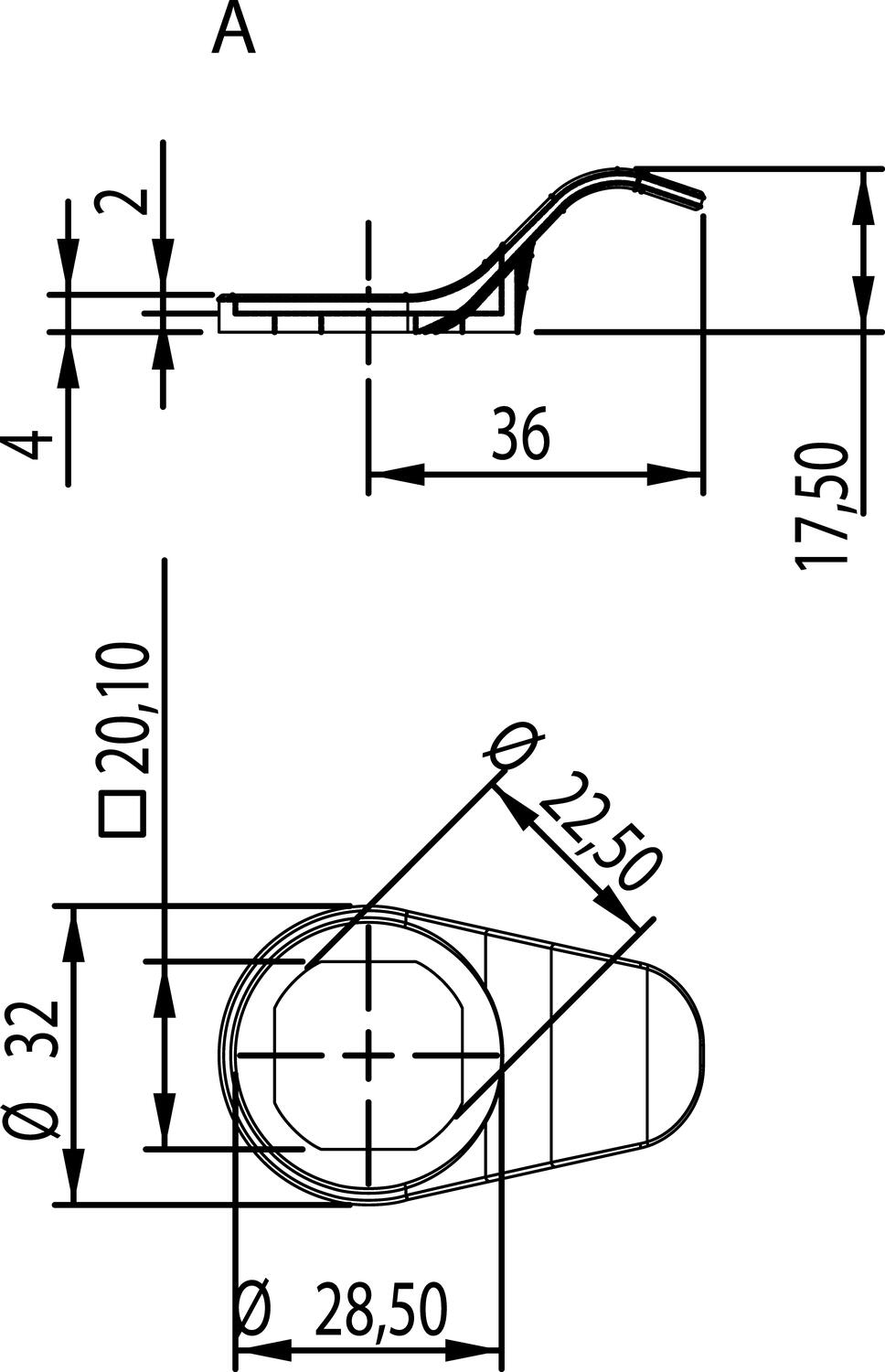

Note: Add 2mm to the H measurement to compensate for the thickness of the finger hook.
Â
If an IP65 product is used with the finger hook or dust cover, separate flat gasket (297002) must be ordered and fitted to maintain IP65 rating.
- For 90° lock
- Hole pattern 22.5 mm
- Polyamide, PA6
- IP65 requires an extra seal
- Fits lock with Ø28 / Ø32 mm collar
Selected variant
Technical data
| Colour | Black |
|---|---|
| Material | PA6 |
Downloads
Product description
The finger hook (black) and dust cover (black) are used in combination with the standard 90° lock. Suitable for locks with Ø 28 mm or 32 mm collar.
Â
White dust cover is used for 90° lock with hole punch 19 x 16mm.
Note: Add 2mm to the H measurement to compensate for the thickness of the finger hook.
Â
If an IP65 product is used with the finger hook or dust cover, separate flat gasket (297002) must be ordered and fitted to maintain IP65 rating.
