INDUSTRILÅS

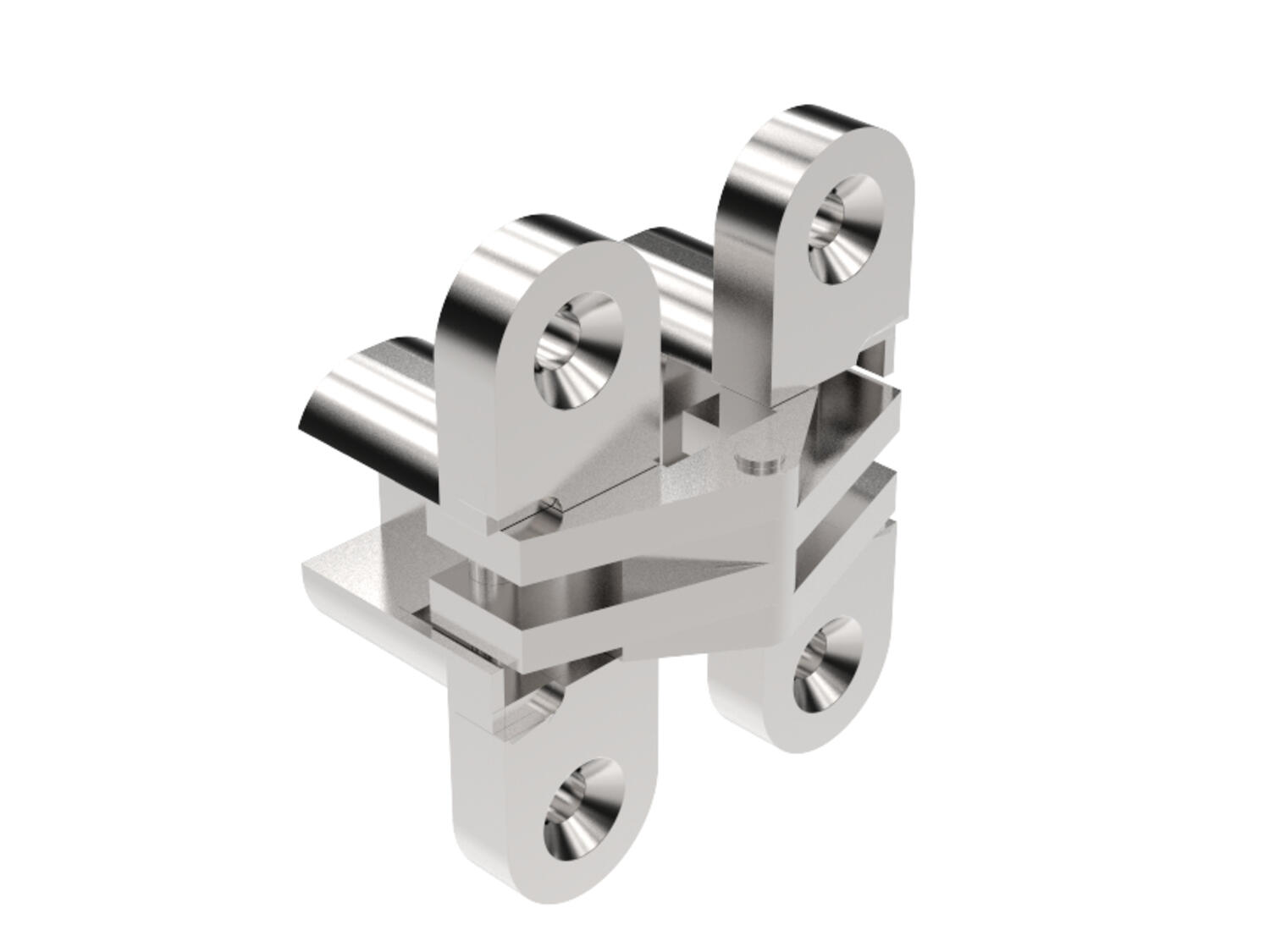

Recessed concealed hinge 180°

Concealed hinge from Industrilås for mounting inside the door.

A suitable alternative for recessed doors, folding table tops etc.

Universal left and right mounting with 180° opening angle. The chain link is delivered assembled.

The door part and the frame part are attached with screws in the recessed holes. Screws not included.

The handrail is completely hidden when the door or similar is closed.

Materials:

Door part and frame part: Zinc, fzb, förkromad.

Links: Stainless steel

Suitable for recessed doors
Left or right installation
Zinc, chrome, stainless steel
180° opening angle

Selected variant

Save page as PDF

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

Dimension A	45 mm
Dimension B	22.7 mm
Dimension C	32 mm
Dimension D	18.5 mm
Dimension E	13 mm
Dimension F	19 mm
Dimension G	5 mm
Dimension H	6 mm

Dimension S	3.5 mm
Dimension X	3 mm
Dimension Y	0.8 mm
Material door part	Zinc, chrome
Material frame part	Zinc, chrome
Material links	Stainless steel AISI 304

Downloads

3-098.pdf

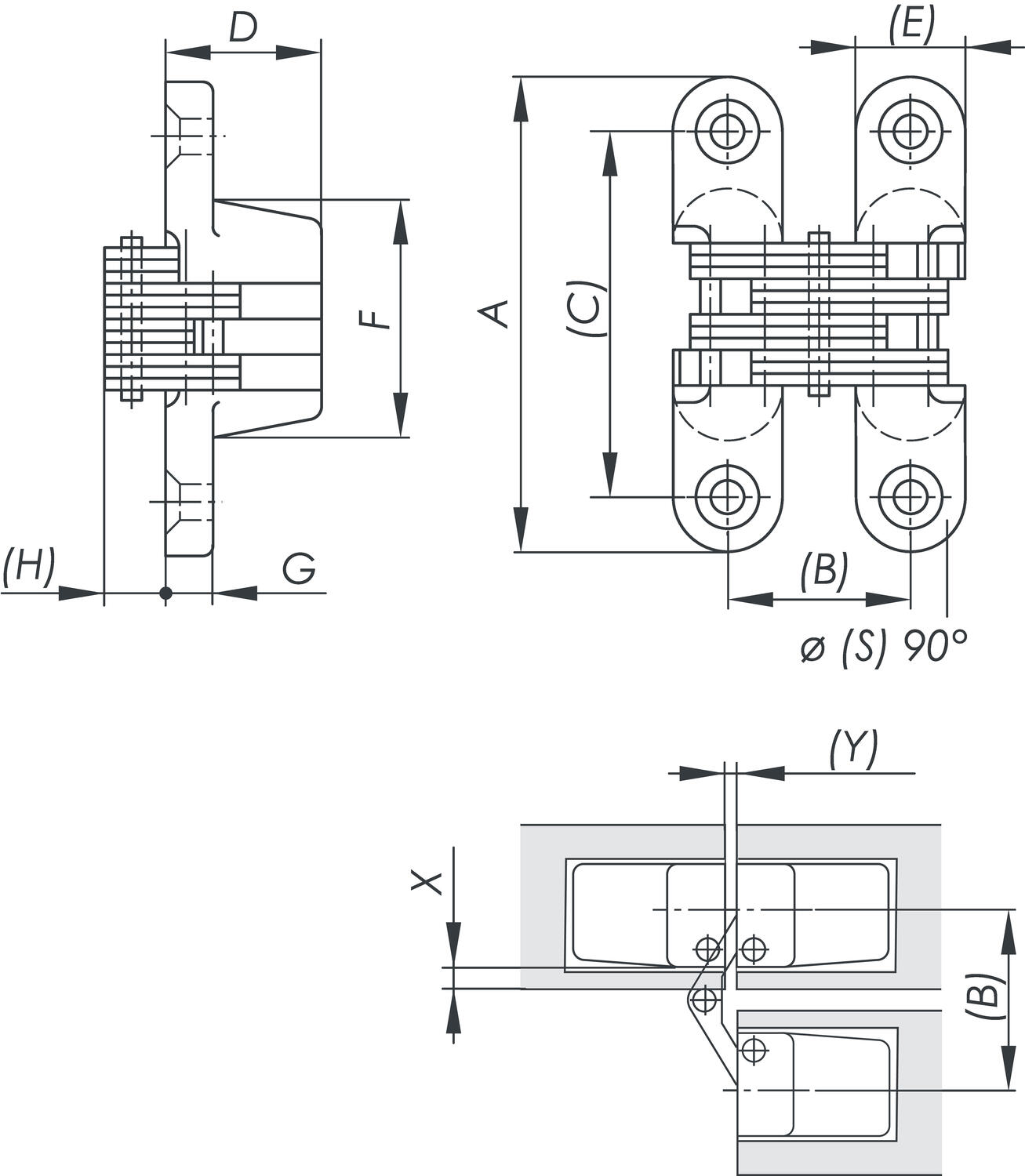

Measurements and connections

Technical illustrations

Product description

Concealed hinge from Industrilås for mounting inside the door.

A suitable alternative for recessed doors, folding table tops etc.

Universal left and right mounting with 180° opening angle. The chain link is delivered assembled.

The door part and the frame part are attached with screws in the recessed holes. Screws not included.

The handrail is completely hidden when the door or similar is closed.

Materials:

Door part and frame part: Zinc, fzb, förkromad.

Links: Stainless steel

Accessories

	Parts	Dimension A	Dimension B	Dimension C	Dimension D	Dimension E	Dimension F	Dimension G	Dimension H	Dimension S	Dimension X	Dimension Y	Price
	Recessed concealed hinge, 180°, 45mm height Art: 311322-01 Copied	45 mm	22.7 mm	32 mm	18.5 mm	13 mm	19 mm	5 mm	6 mm	3.5 mm	3 mm	0.8 mm
	Recessed concealed hinge, 180°, 60mm height Art: 311322-02 Copied	60 mm	22.2 mm	47 mm	18.5 mm	13 mm	33 mm	6.5 mm	6.5 mm	4.3 mm	3 mm	1 mm
	Recessed concealed hinge, 180°, 70mm height Art: 311322-03 Copied	70 mm	26.6 mm	53 mm	23 mm	16.1 mm	5 mm	7 mm	9 mm	4.6 mm	3.5 mm	1.2 mm
	Recessed concealed hinge, 180°, 100mm height Art: 311322-04 Copied	100 mm	33.2 mm	80 mm	27.5 mm	20 mm	52 mm	9.5 mm	9.5 mm	5.3 mm	4.8 mm	1.8 mm
