INDUSTRILÅS

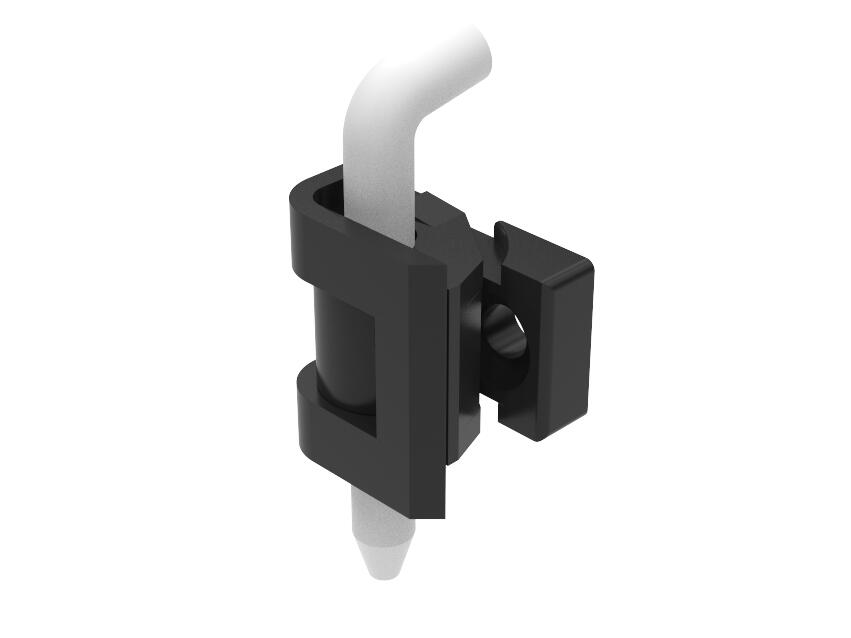

The hinge gives you a 180° opening angle.
Only the frame part needs to be assembled, which is done using a screw with a nut on the inside. The door part is automatically fixed in the door the moment the shaft is pressed into place.

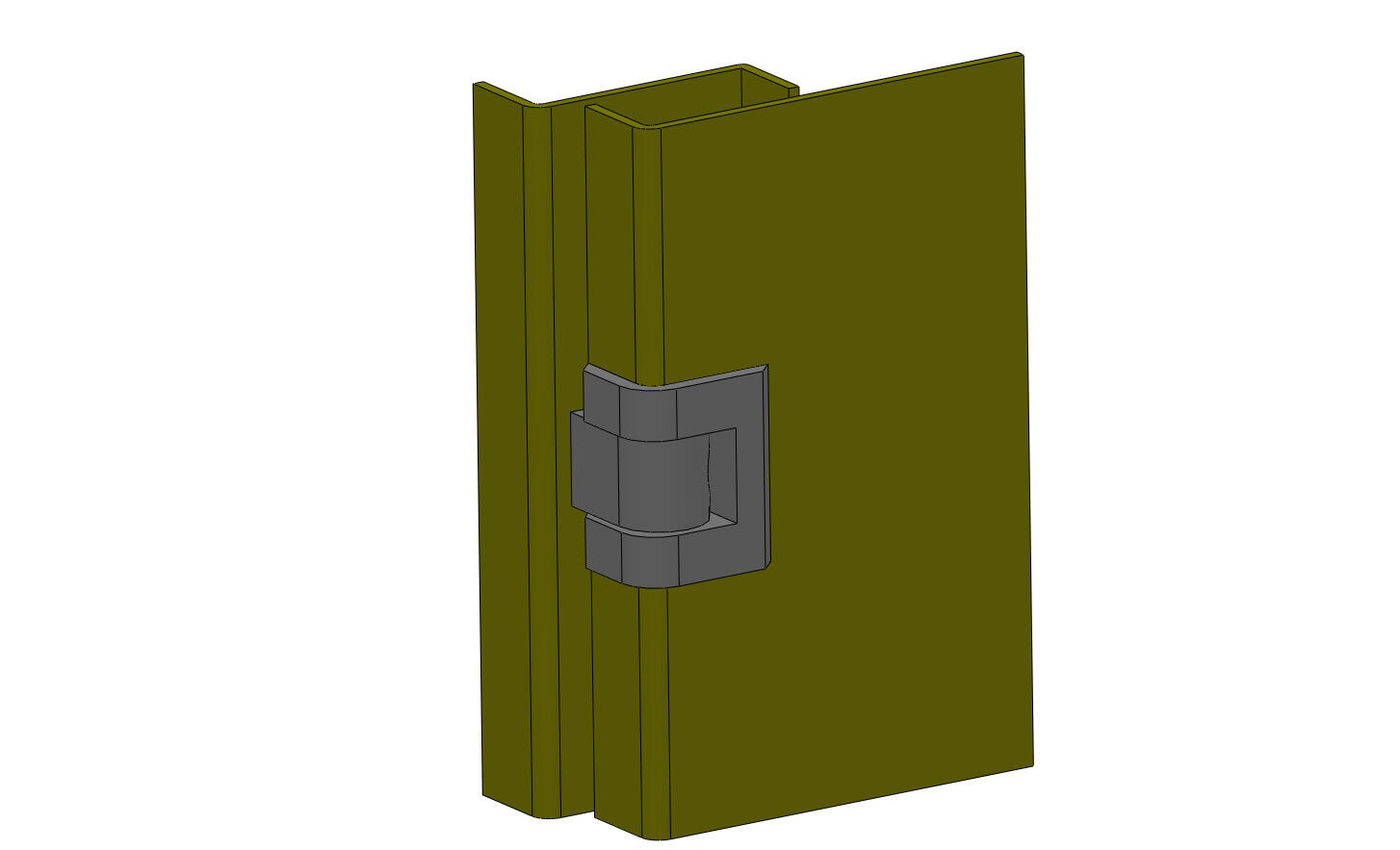

Universal right or left mounting.

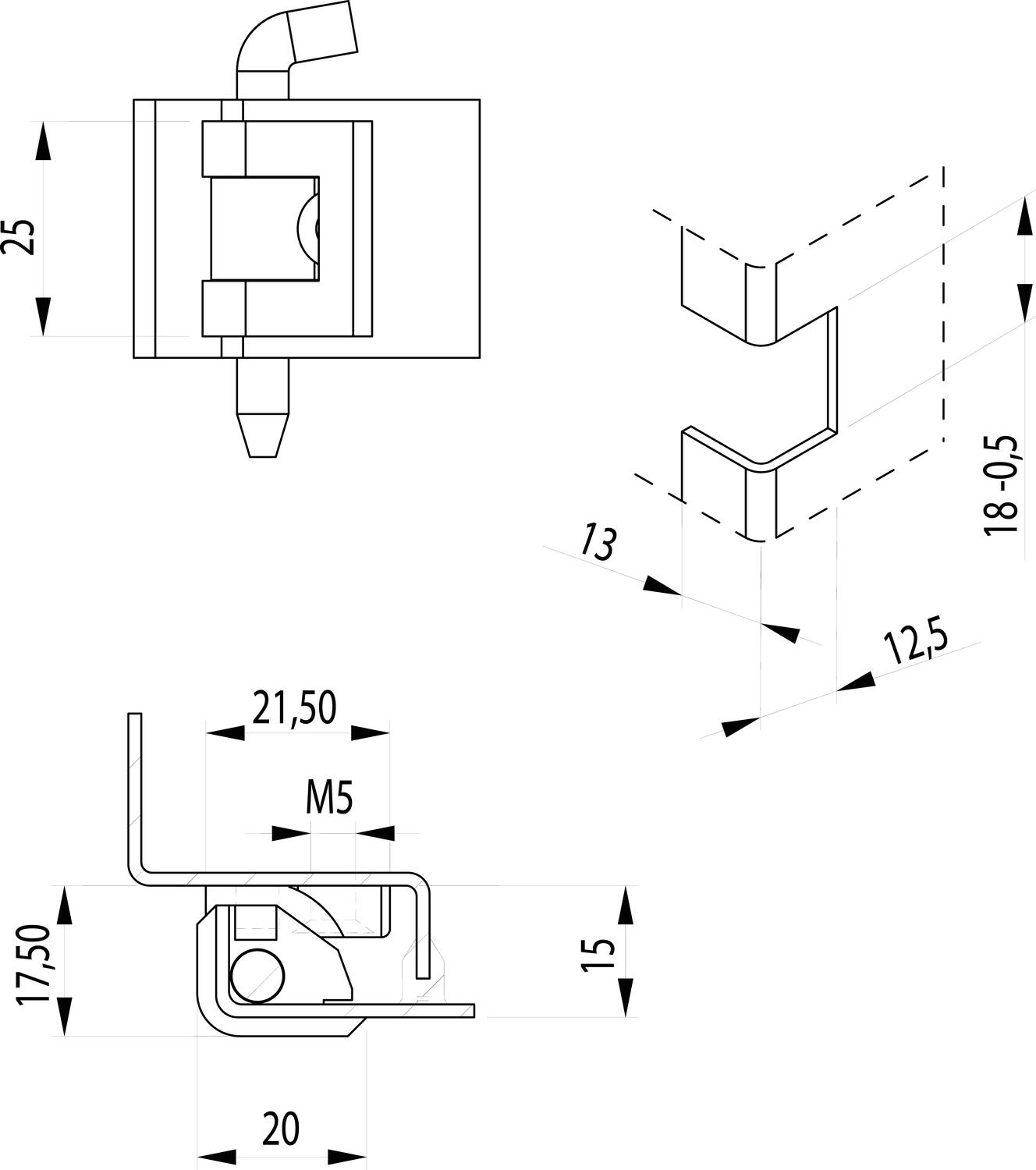

For plate thickness 1.2 - 1.5mm.
Materials:
Door part and frame part: Fiberglass-reinforced polyamide, black.
Axle: Delrin.
| Material door part | PA6 |
|---|---|
| Material frame part | PA6 |
| Material of shaft | Acetal |
| Opening angle | 180 ° |
The hinge gives you a 180° opening angle.
Only the frame part needs to be assembled, which is done using a screw with a nut on the inside. The door part is automatically fixed in the door the moment the shaft is pressed into place.
Universal right or left mounting.
For plate thickness 1.2 - 1.5mm.
Materials:
Door part and frame part: Fiberglass-reinforced polyamide, black.
Axle: Delrin.
