INDUSTRILÅS

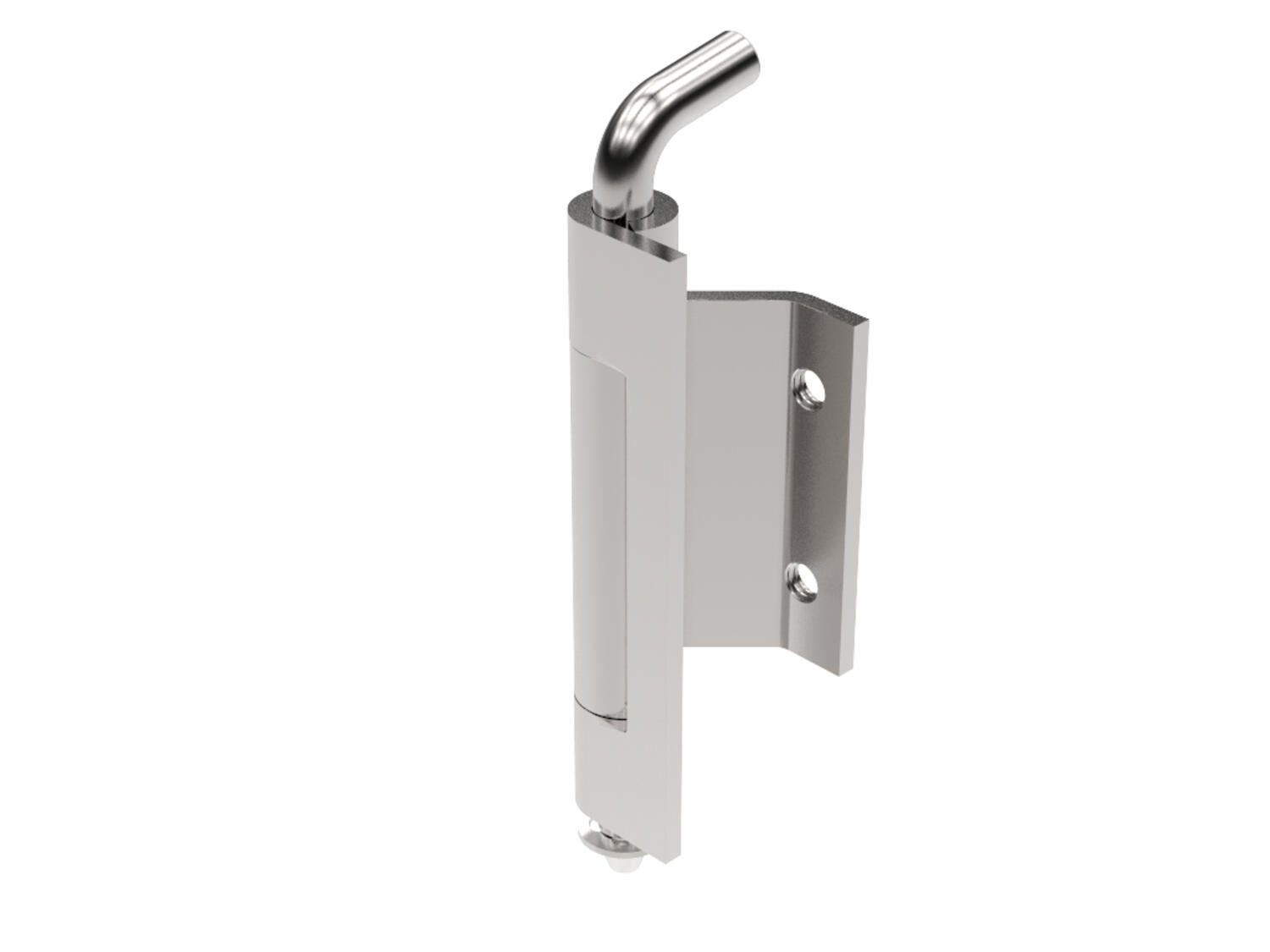

Concealed hinge 100°
The hinge has an opening angle of 100°.

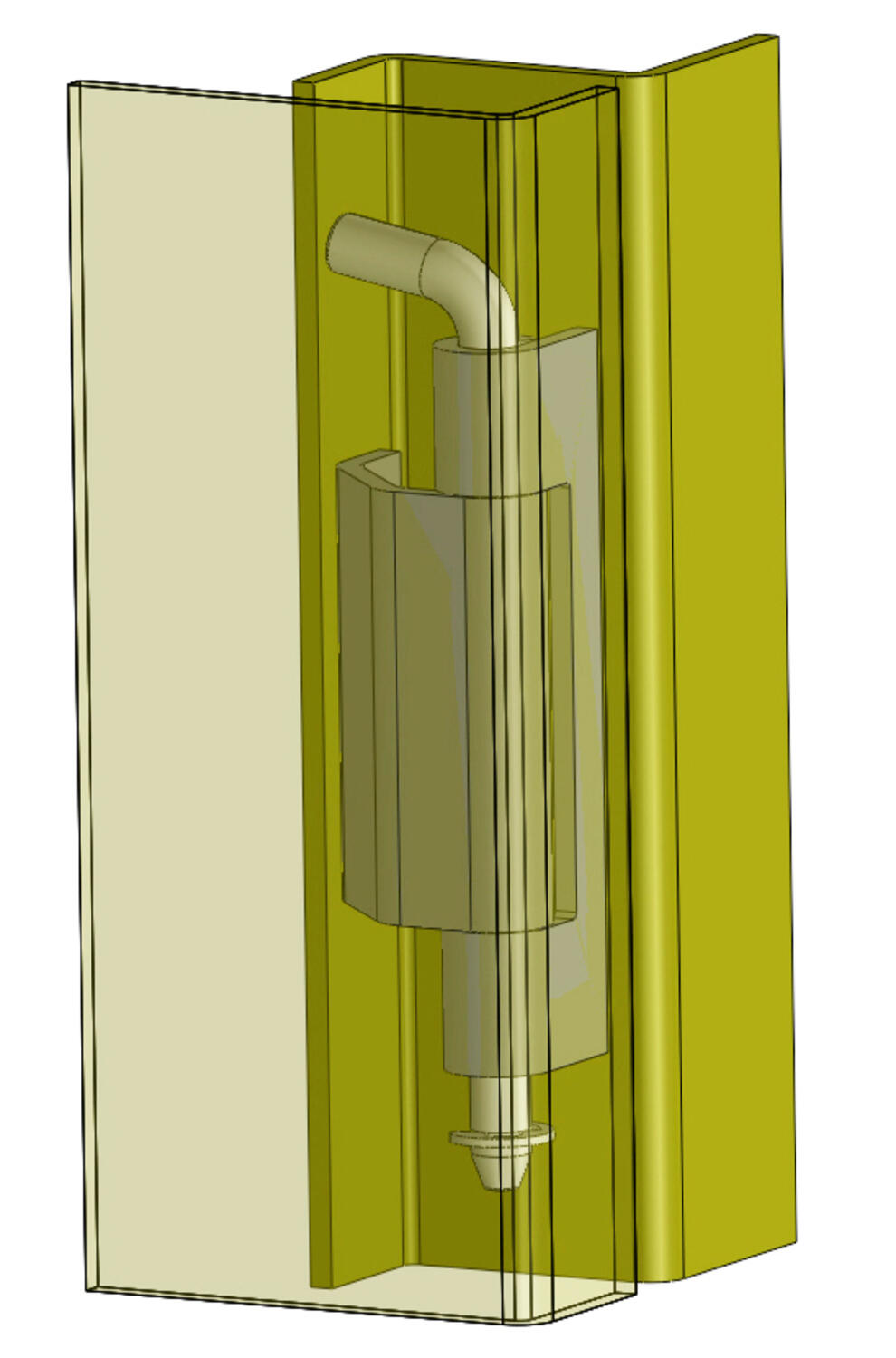

The hinge is a universal hinge and can be mounted both left and right.
Mounted by welding or welding/screwing in place.
Track rider in order to possibly fix the shaft is ordered separately.
MATERIAL:
Frame part and shoulder: Steel with fzb surface treatment
Door part: Untreated steel.
- For surface mounting on a door
- steel, stainless steel
- 100° opening angle
Selected variant
Technical data
| Material door part | Untreated |
|---|---|
| Material frame part | Zinc-plated steel |
| Material of shaft | Zinc-plated steel |
| Opening angle | 100 ° |
Product description
The hinge has an opening angle of 100°.
The hinge is a universal hinge and can be mounted both left and right.
Mounted by welding or welding/screwing in place.
Track rider in order to possibly fix the shaft is ordered separately.
MATERIAL:
Frame part and shoulder: Steel with fzb surface treatment
Door part: Untreated steel.
