INDUSTRILÅS

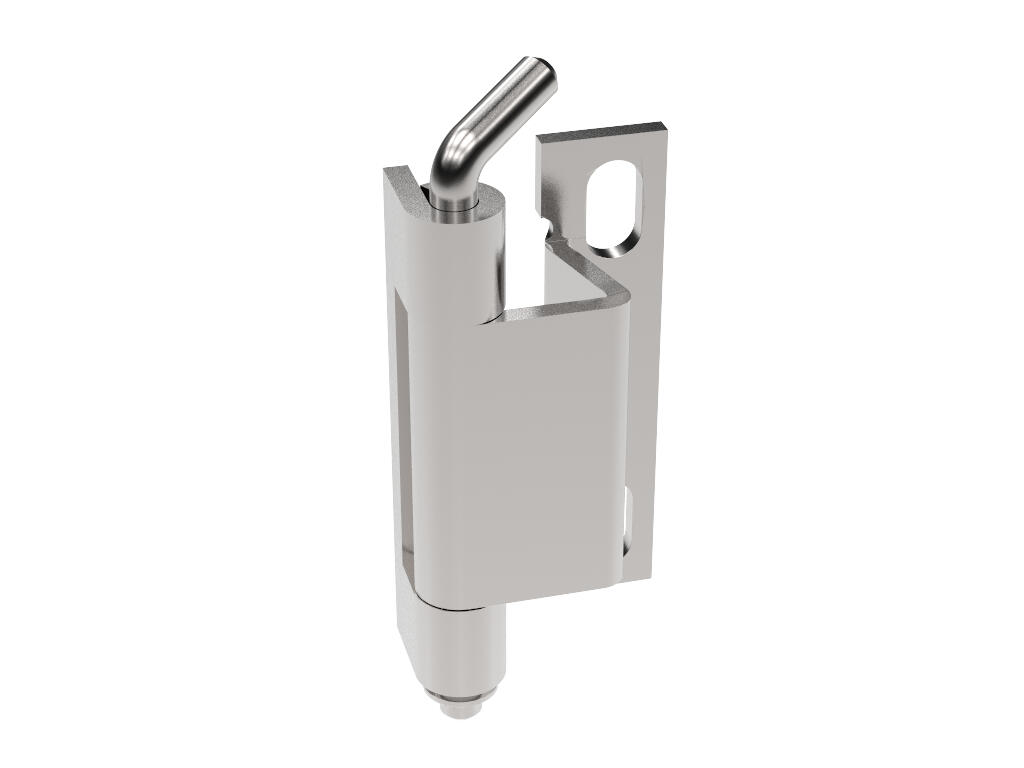

Concealed adjustable hinge 120°
The hinge can be adjusted 5.5 mm vertically.
It is possible to mount universal left or right mounting.
With this hinge, the door gets an opening angle of 120°.
Mounted by welding and screwing in place. Comes with track rider.
MATERIAL:
Frame part, axle and track rider: Steel, the surface treatment e.g.
Door part: Untreated steel.
- Vertical adjustment
- Installation by welding or screwing
- Untreated and Zinc-coated steel
- 120° opening angle
Selected variant
Concealed adjustable hinge, weld on door, screw on frame, steel
Art:
Product description
The hinge can be adjusted 5.5 mm vertically.
It is possible to mount universal left or right mounting.
With this hinge, the door gets an opening angle of 120°.
Mounted by welding and screwing in place. Comes with track rider.
MATERIAL:
Frame part, axle and track rider: Steel, the surface treatment e.g.
Door part: Untreated steel.
