INDUSTRILÅS

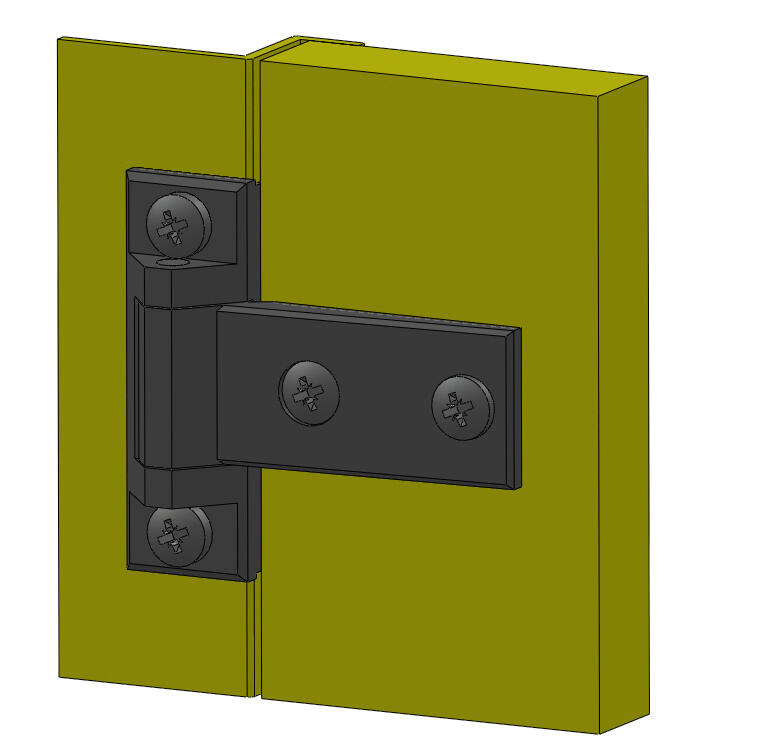

Klima-flex hinge 180° adjustable

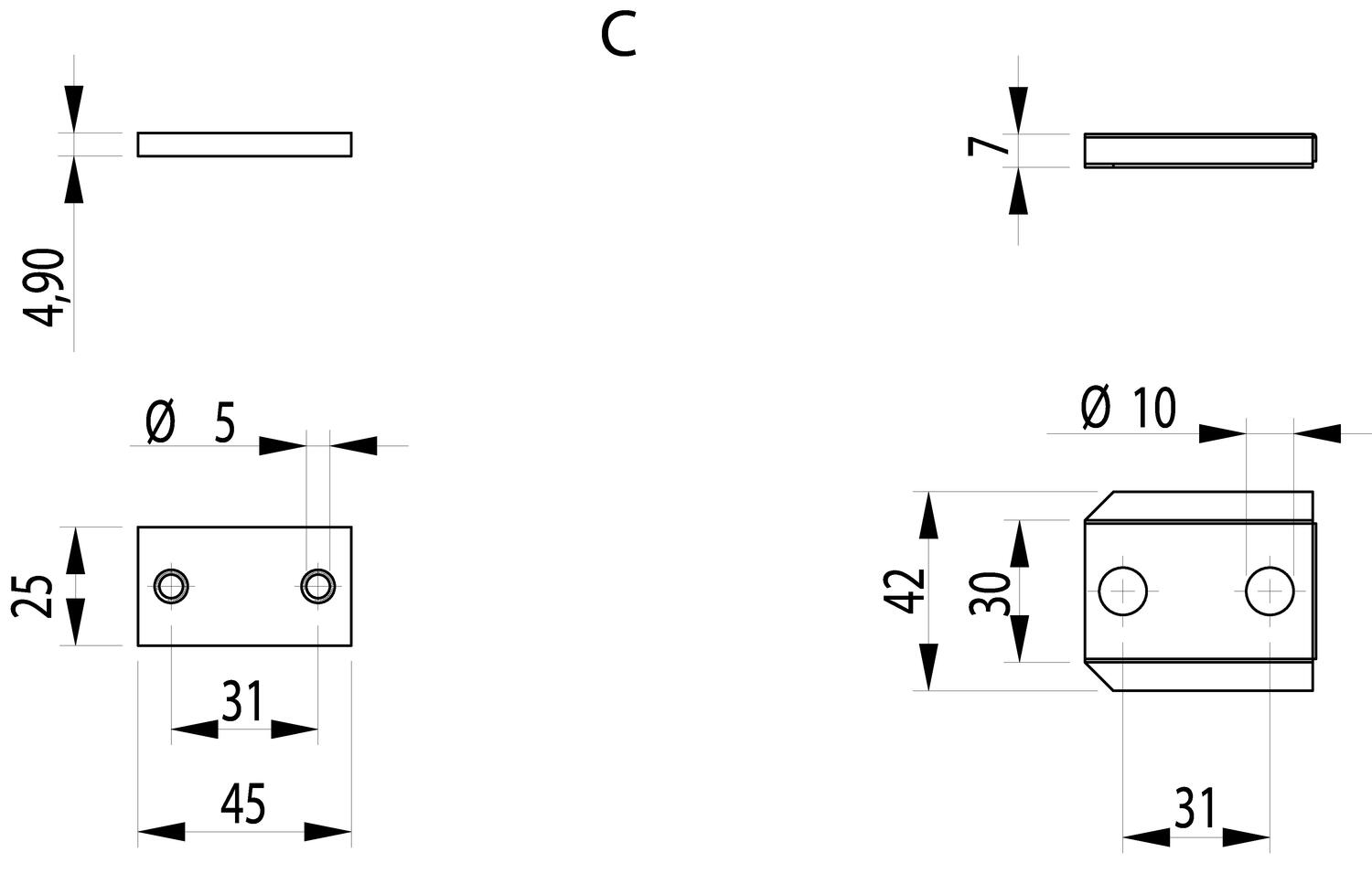

Hinge from Industrilås which is adjustable in X and Y direction if the adjustment details (C) are used - and if enlarged mounting holes are drilled in the door plate.
If the adjustment parts are used, the nut plate is mounted on the inside of the door using a basket plate that is temporarily taped to the door and secured with an M6 screw (not included).
The hinge can also be used without adjustment details and then attached with a self-tapping screw.
Â
The hinges are available in two different sizes.
Can be mounted universal right or left mounting.
This hinge gives you an opening angle of 180º.
Â
Material:

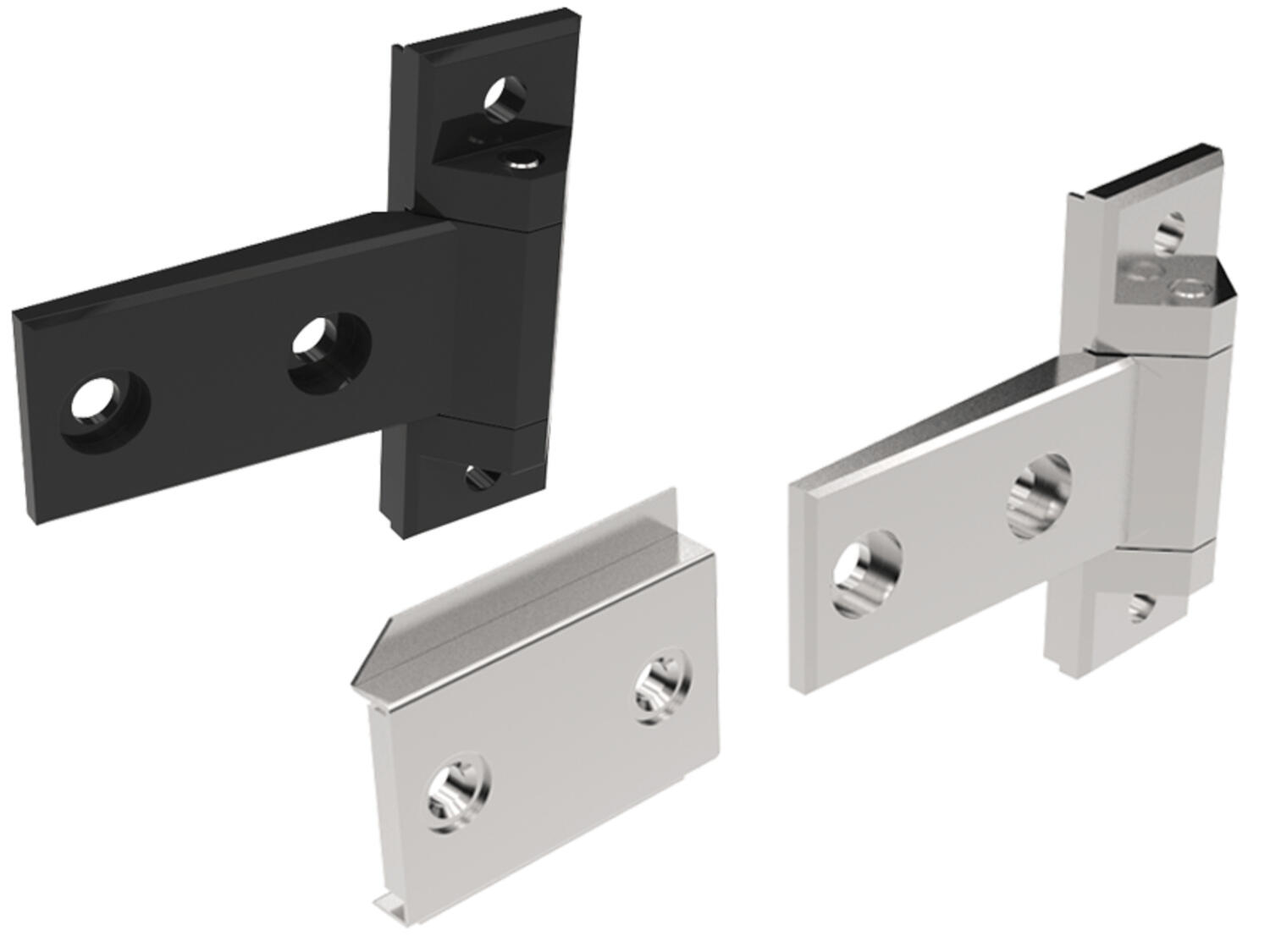

Hinges: Zinc, fzb, black textured lacquer or chrome-plated.
Nut plate: Zinc, fzb.
Basket plate: Steel, for example.
Axle: Steel, fzb.
- For insulated doors
- Zinc, Steel
- Left or right installation
- 180° opening angle
- Adjustable horizontally and vertically
Selected variant
Technical data

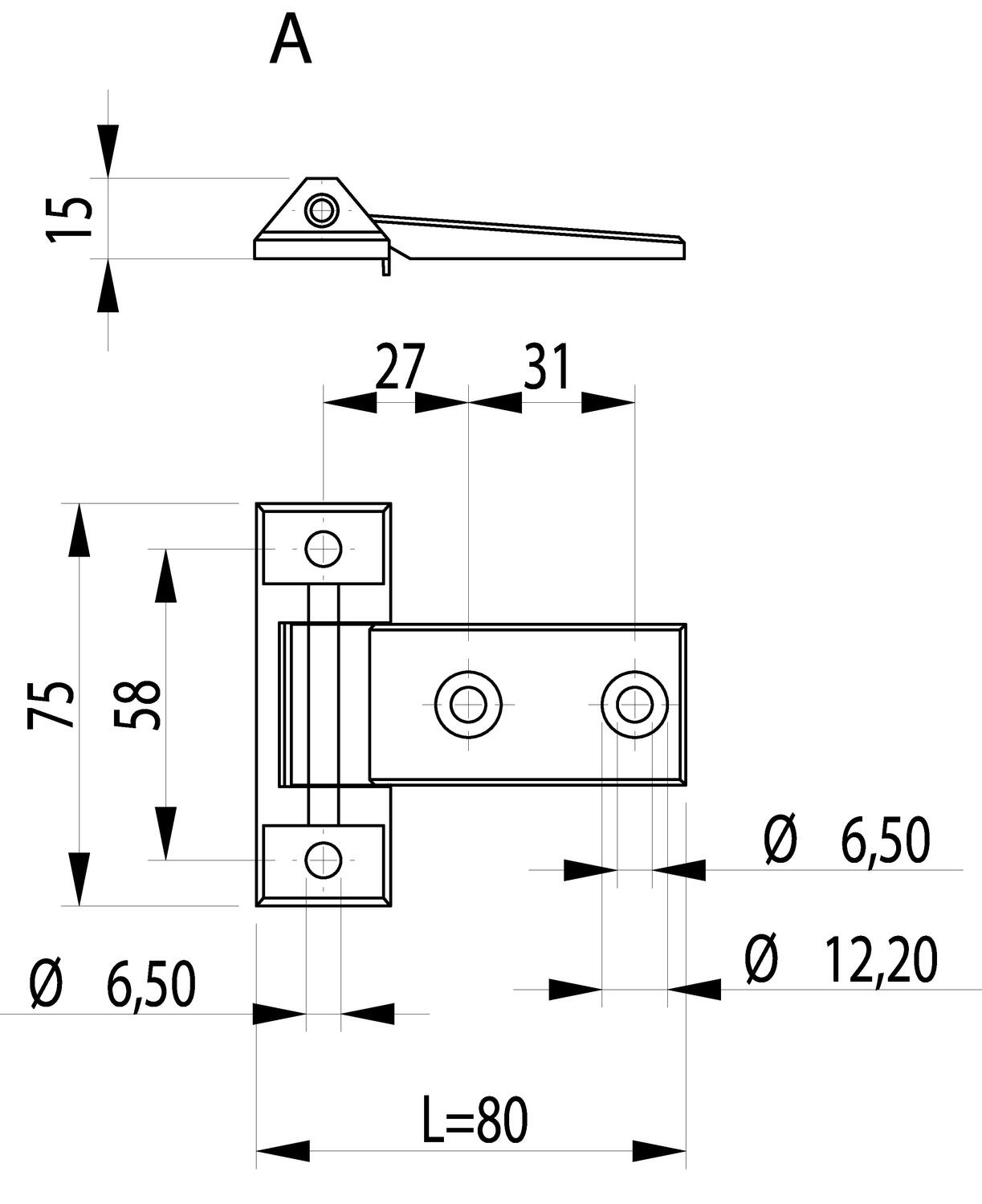

| Dimension L | 80 mm |
|---|---|
| Material hinge | Zinc |
| Material of shaft | Zinc-plated steel |
| Opening angle | 180 ° |
Product description
Hinge from Industrilås which is adjustable in X and Y direction if the adjustment details (C) are used - and if enlarged mounting holes are drilled in the door plate.
If the adjustment parts are used, the nut plate is mounted on the inside of the door using a basket plate that is temporarily taped to the door and secured with an M6 screw (not included).
The hinge can also be used without adjustment details and then attached with a self-tapping screw.
Â
The hinges are available in two different sizes.
Can be mounted universal right or left mounting.
This hinge gives you an opening angle of 180º.
Â
Material:
Hinges: Zinc, fzb, black textured lacquer or chrome-plated.
Nut plate: Zinc, fzb.
Basket plate: Steel, for example.
Axle: Steel, fzb.
