INDUSTRILÅS

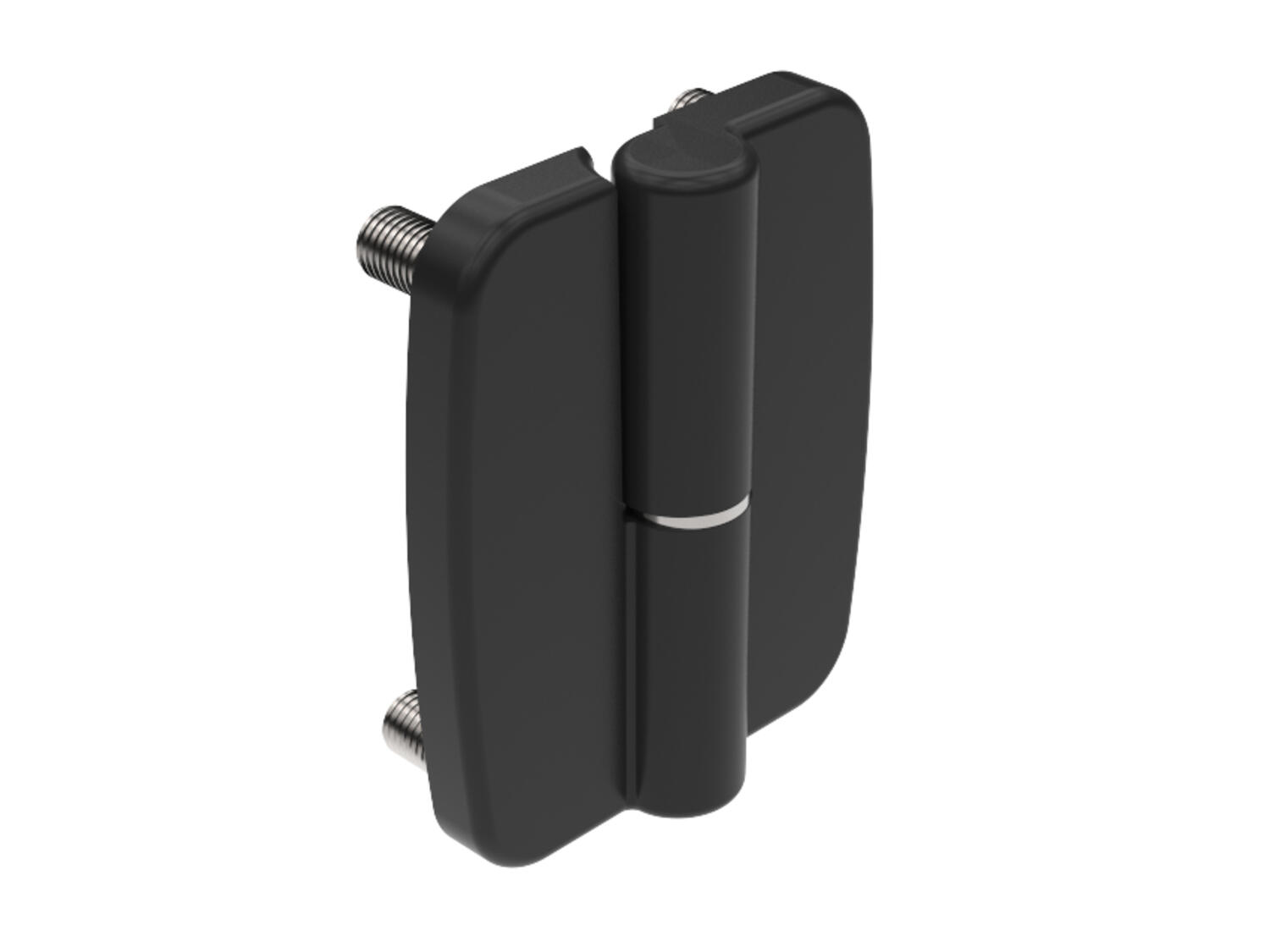

External lift-off hinge 80x65mm 180°
The hinge is mainly zinc with powder coating.
Hinge shaft & pin bolt are made of stainless steel.
External hinge that can be removed.
Cast-in M8 bolts in the hinge.
Available for both right-hung and left-hung doors.
180° opening angle.
- Surface mounted
- Detachable
- Zinc, with black powder coating
- Cast M8 bolts

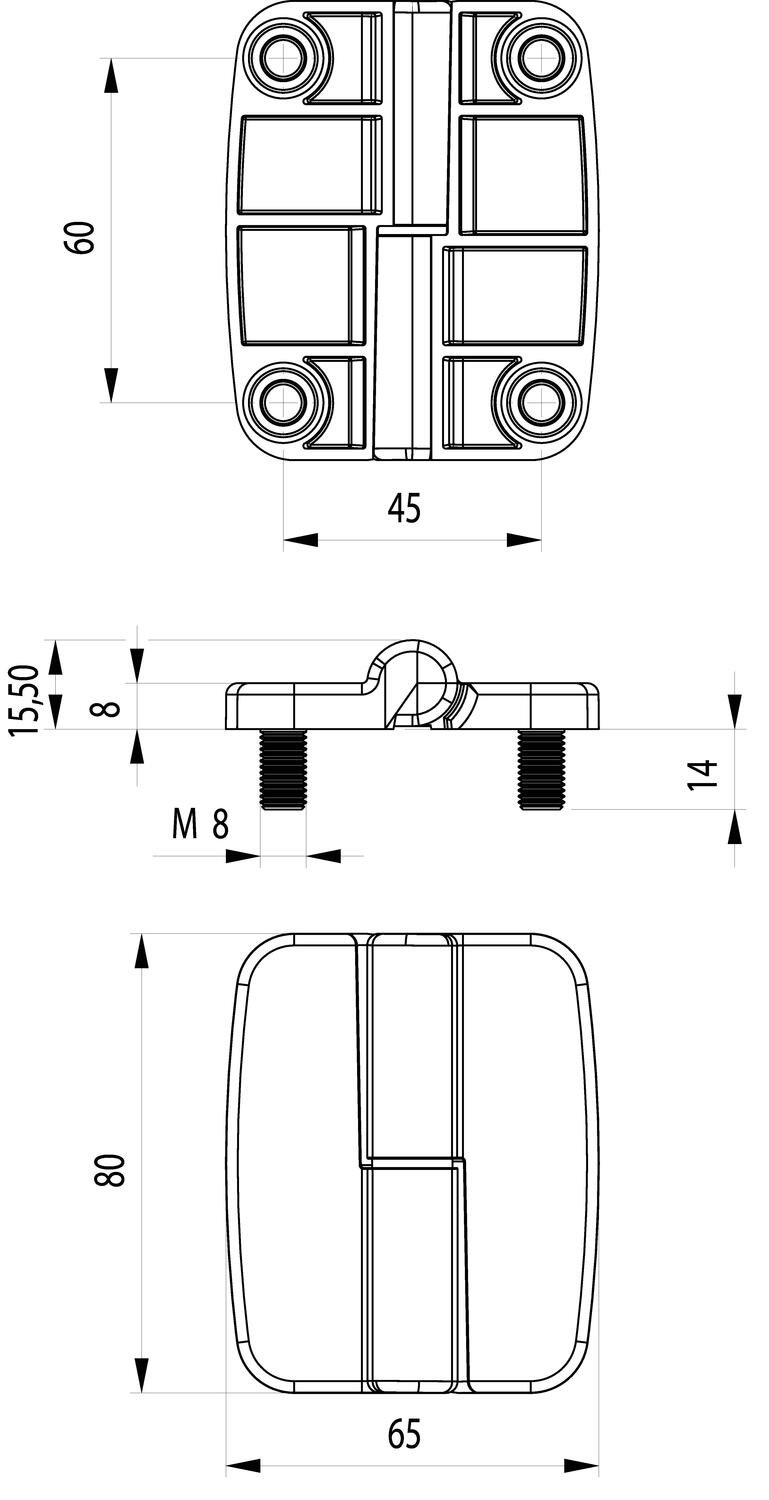

- Hole pattern: 60x45 mm
Selected variant
Technical data
| Bolt | 4 x M8 |
|---|---|
| Hole | 4 x Ø6,30 |
| Material bolt | Stainless steel 303 |
| Material hinge | Zinc, black powder coated |
| Material of shaft | Stainless steel 303 |
| Opening angle | 180 ° |
Product description
The hinge is mainly zinc with powder coating.
Hinge shaft & pin bolt are made of stainless steel.
External hinge that can be removed.
Cast-in M8 bolts in the hinge.
Available for both right-hung and left-hung doors.
180° opening angle.
