INDUSTRILÅS

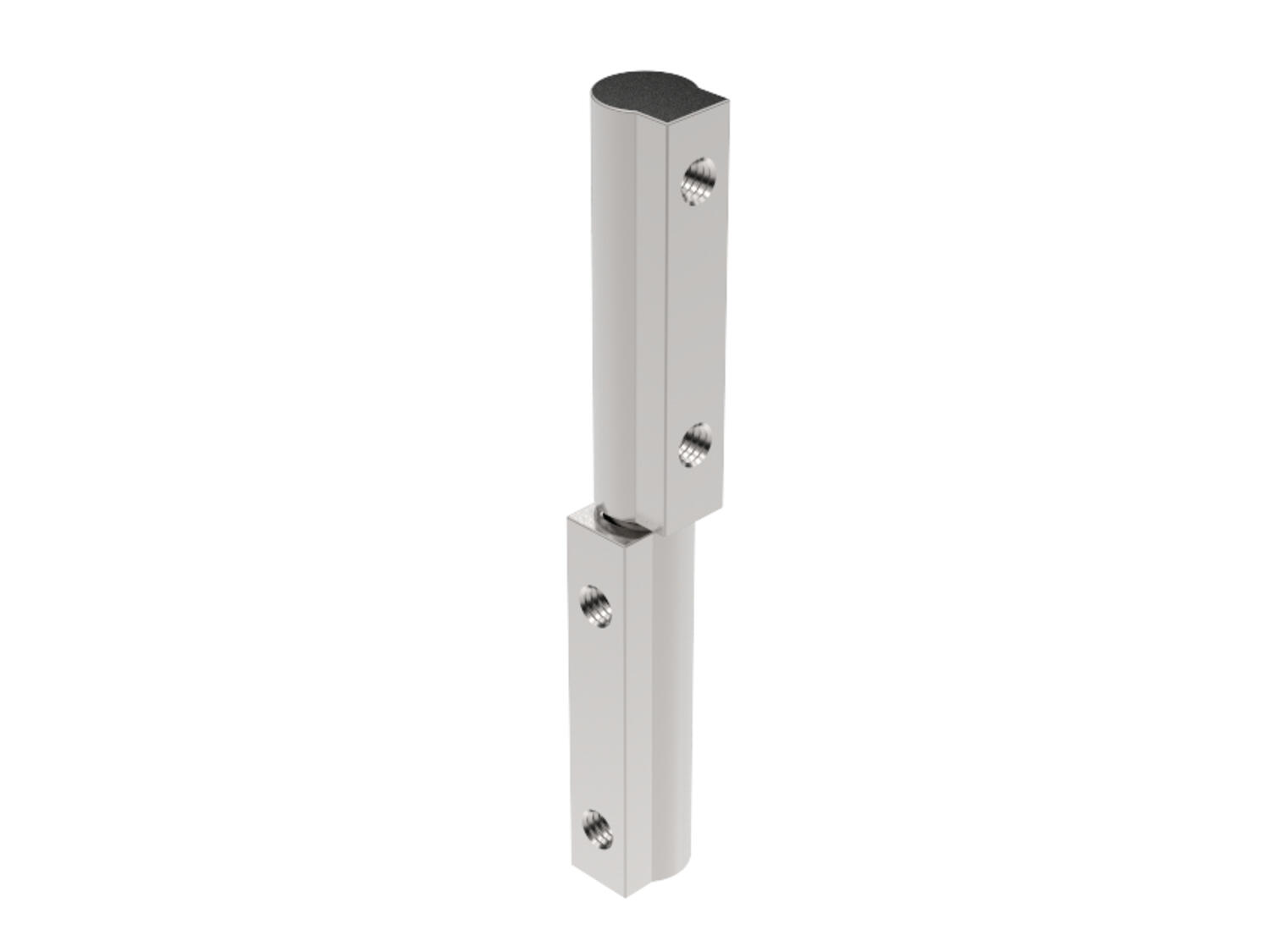

External lift-off hinge 180°
A profile hinge from Industrilås for external doors.
Can be mounted universal right or left mounting.
The hinge gives you an opening angle of 180º.
For screw or welding assembly.
The screwable hinge is delivered complete including screws, cover sleeves and washers.
The weldable hinges are fitted with guide pins to facilitate positioning.
Upon request, the hinge can be delivered in combination screw assembly and welding assembly.
Also available in stainless steel version.
Â
MATERIAL:
Hinge, shaft and screw: Steel, fzb.
Cover sleeves for screw holes: Stainless steel.
Washer: Brass, FZB
- External mounting on surface mounted doors
- Zinc, Steel, Brass
- Screw or welding attachment
Selected variant

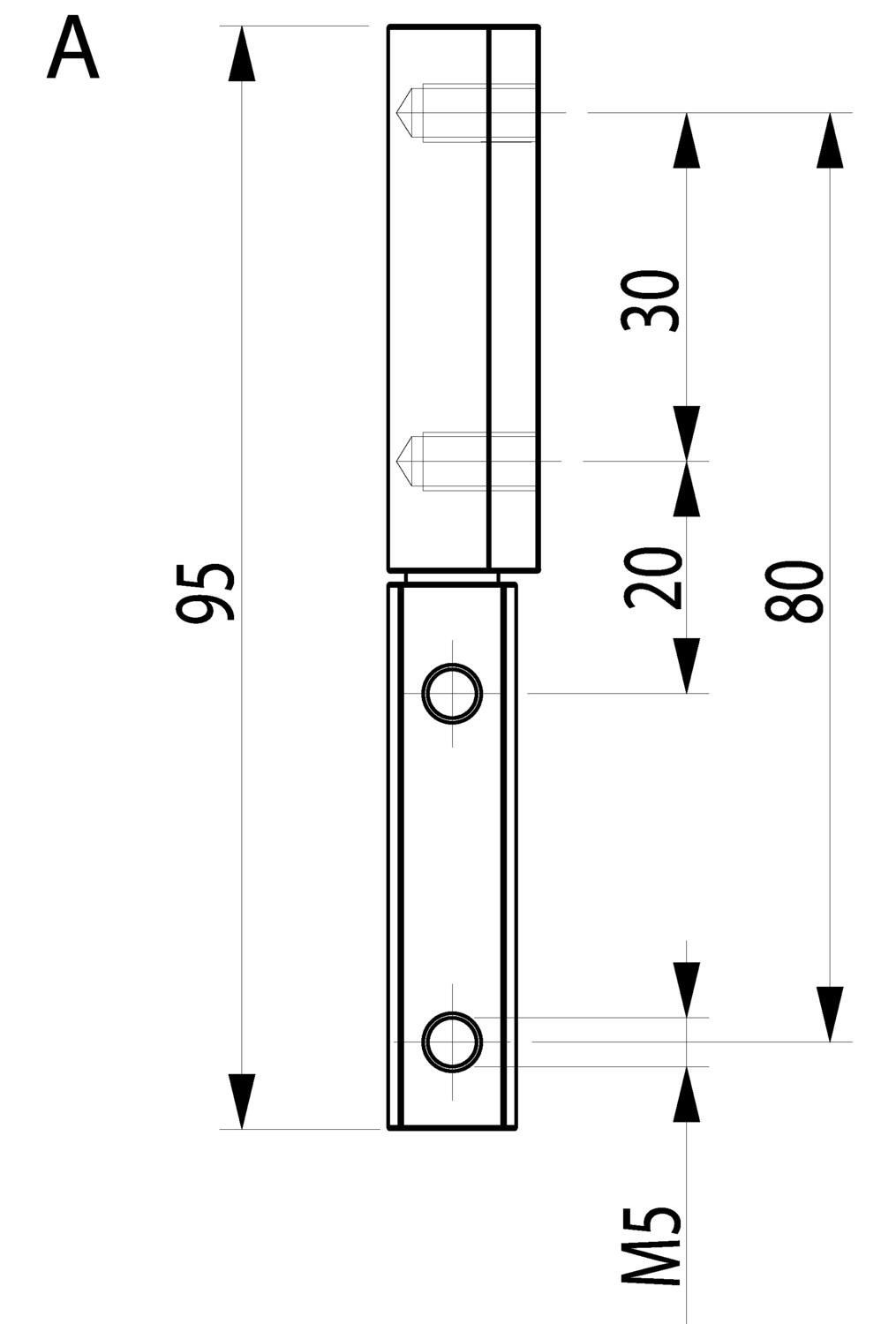

Technical data
| Height | 95 mm |
|---|---|
| Material hinge | Zinc-plated steel |
| Material of shaft | Zinc-plated steel |
| Material washer | Brass |
| Opening angle | 180 ° |
Product description
A profile hinge from Industrilås for external doors.
Can be mounted universal right or left mounting.
The hinge gives you an opening angle of 180º.
For screw or welding assembly.
The screwable hinge is delivered complete including screws, cover sleeves and washers.
The weldable hinges are fitted with guide pins to facilitate positioning.
Upon request, the hinge can be delivered in combination screw assembly and welding assembly.
Also available in stainless steel version.
Â
MATERIAL:
Hinge, shaft and screw: Steel, fzb.
Cover sleeves for screw holes: Stainless steel.
Washer: Brass, FZB
