INDUSTRILÅS

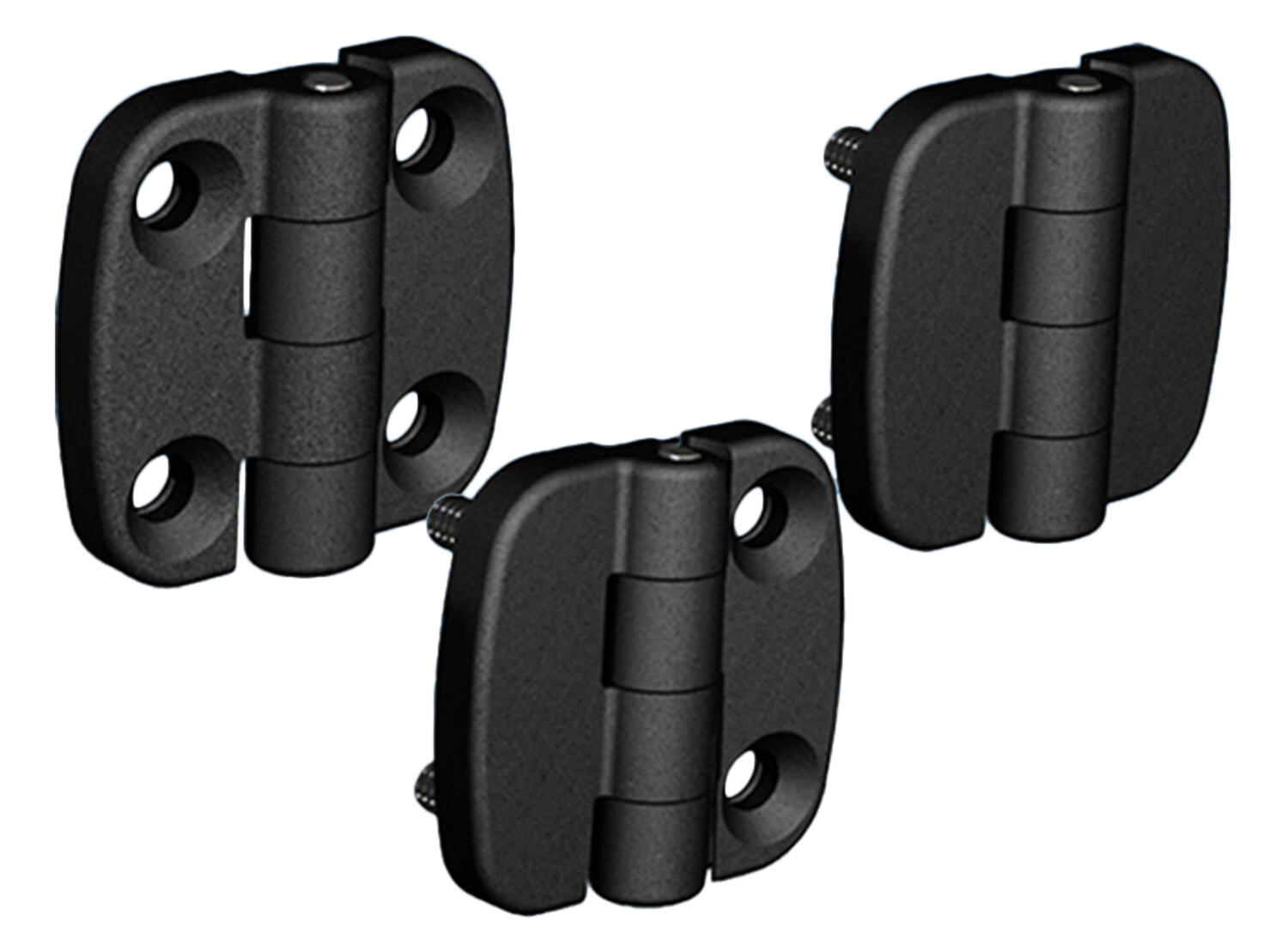

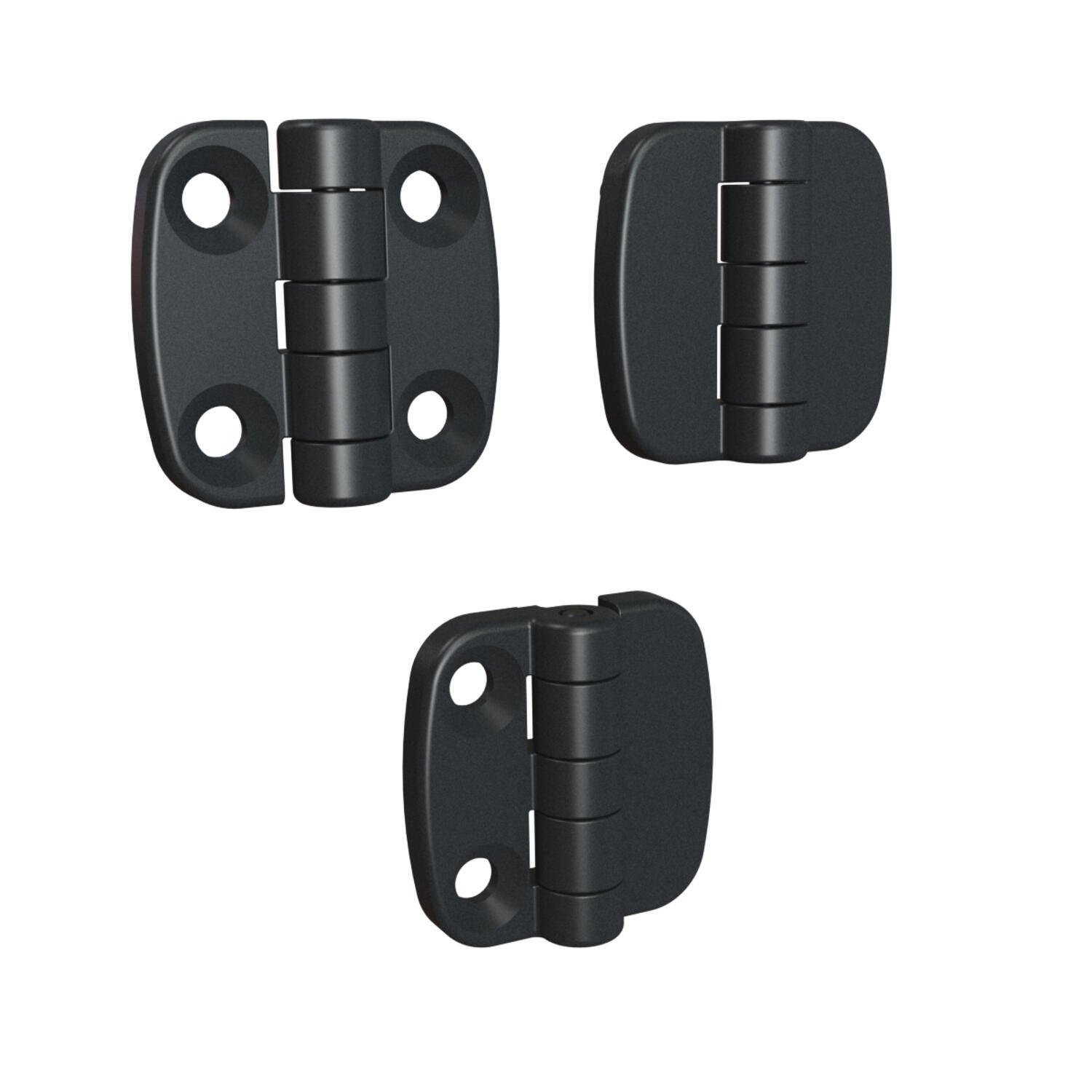

External hinge 60x60mm 180°
The hinge is mainly zinc with powder coating.
Hinge shaft & pin bolt are made of stainless steel.

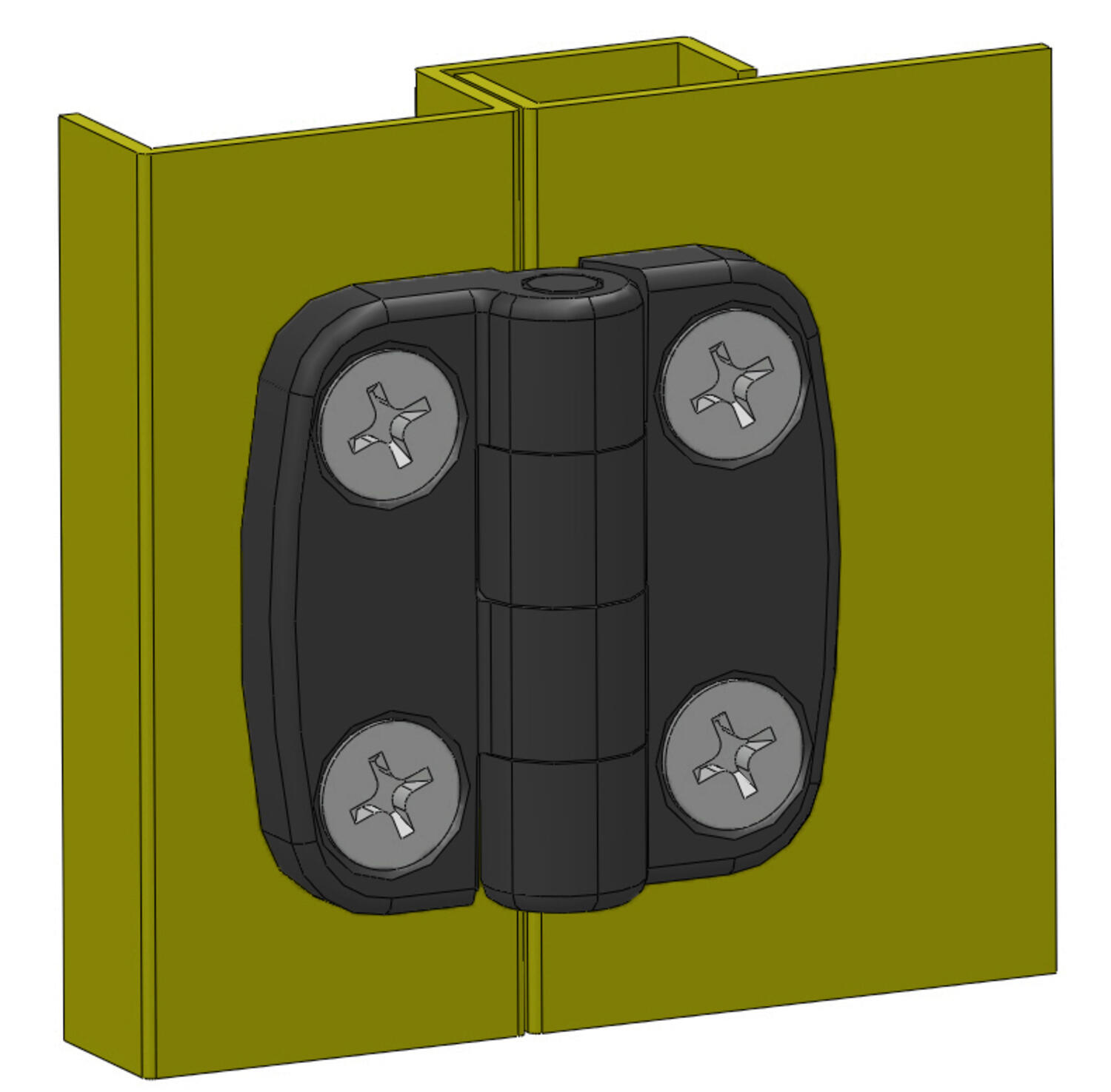

For mounting with a nut on the cast-in stainless steel studs and/or with a screw in the countersunk holes.
Universal right or left mounting. Opening angle max. 180°.
- Surface-mounted
- Countersunk holes and/or cast bolts

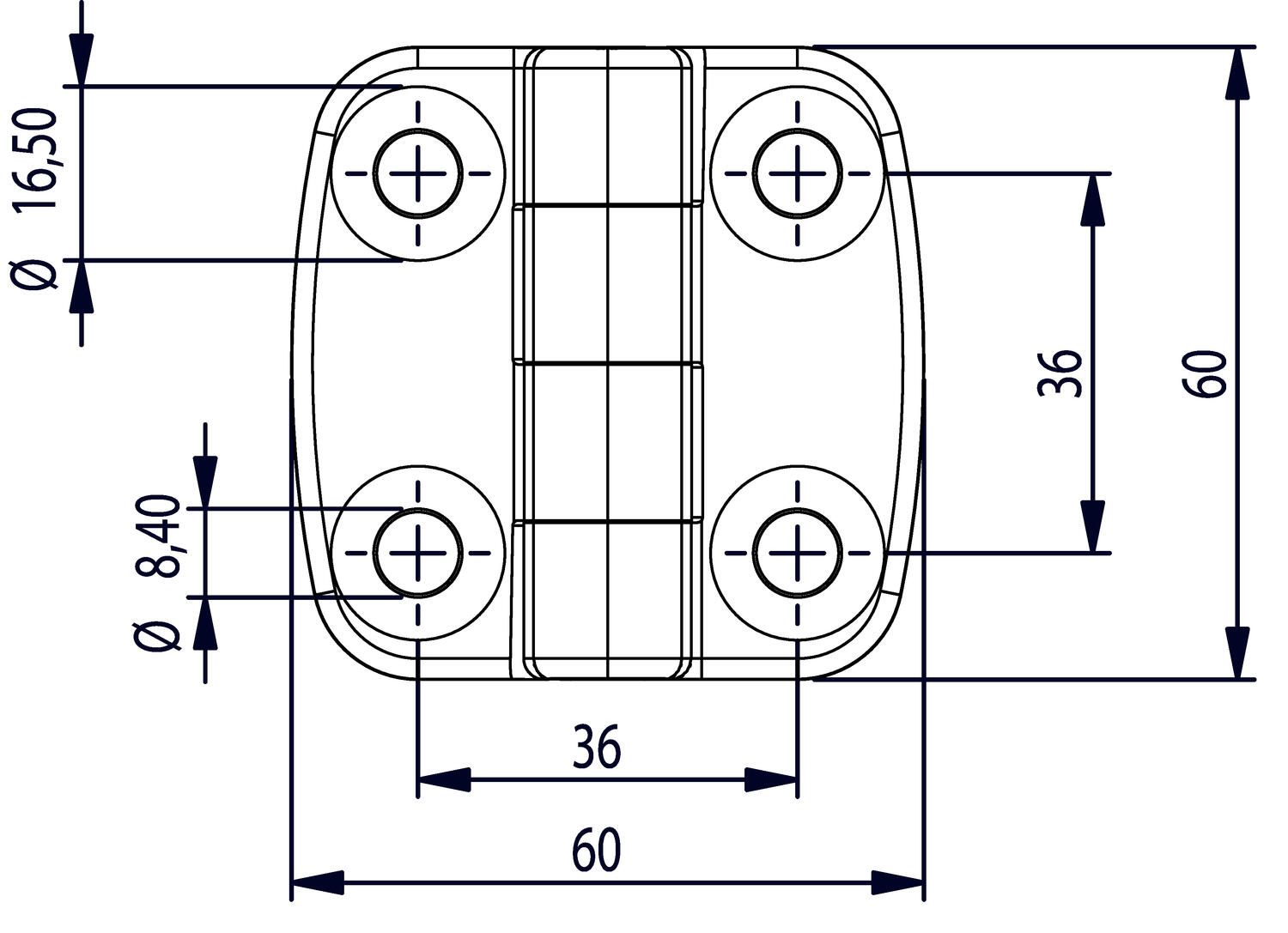

- Hole pattern: 36x36 mm
- Zinc, with black powder coating
- Stainless option
Selected variant

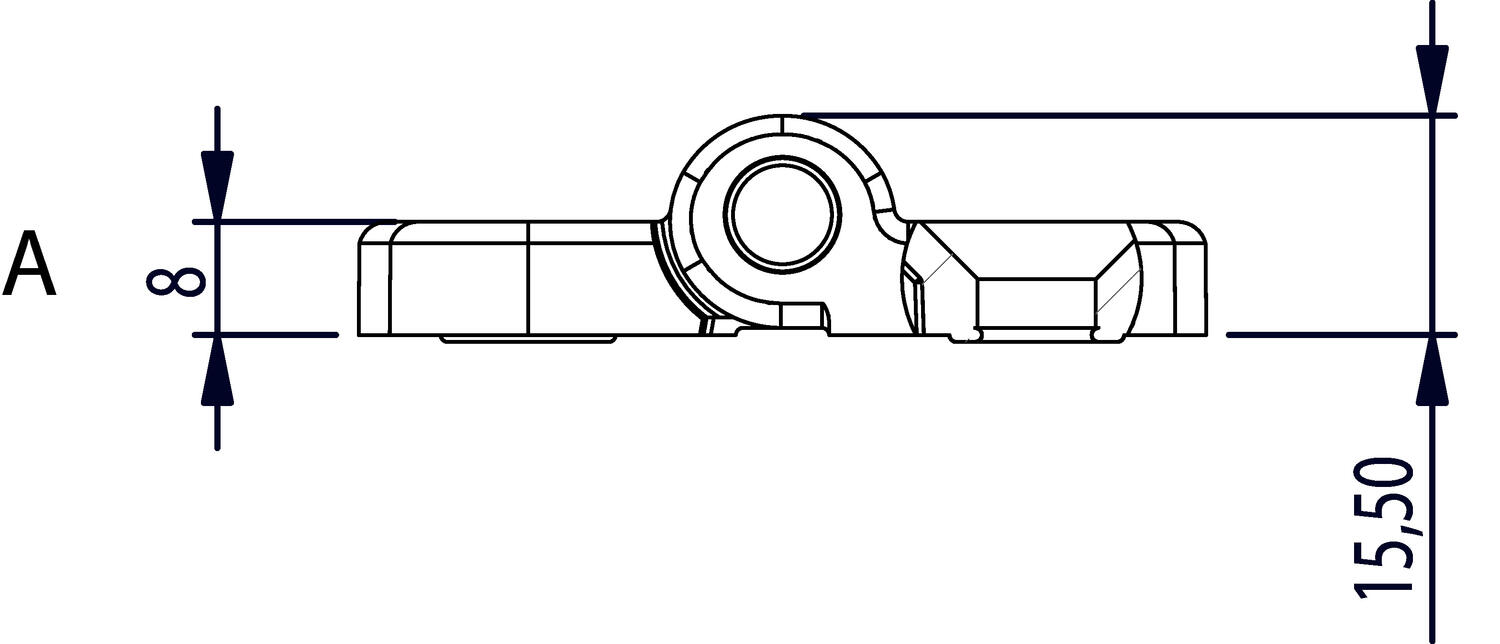

Technical data
| Hole | 4 x Ø8,4 |
|---|---|
| Material | Zinc, black powder coated |
| Material bolt | Stainless steel 303 |
| Material of shaft | Stainless steel 303 |
| Opening angle | 180 ° |
Product description
The hinge is mainly zinc with powder coating.
Hinge shaft & pin bolt are made of stainless steel.
For mounting with a nut on the cast-in stainless steel studs and/or with a screw in the countersunk holes.
Universal right or left mounting. Opening angle max. 180°.
