INDUSTRILÅS
External hinge 40x40mm 180°
The hinge is mainly zinc with powder coating.
Hinge shaft & pin bolt are made of stainless steel.
For mounting with a nut on the cast-in stainless steel studs and/or with a screw in the countersunk holes.
Universal right or left mounting. Opening angle max. 180°.
- Surface-mounted
- Countersunk holes and/or cast bolts
- Zinc, with black powder coating
- Stainless option

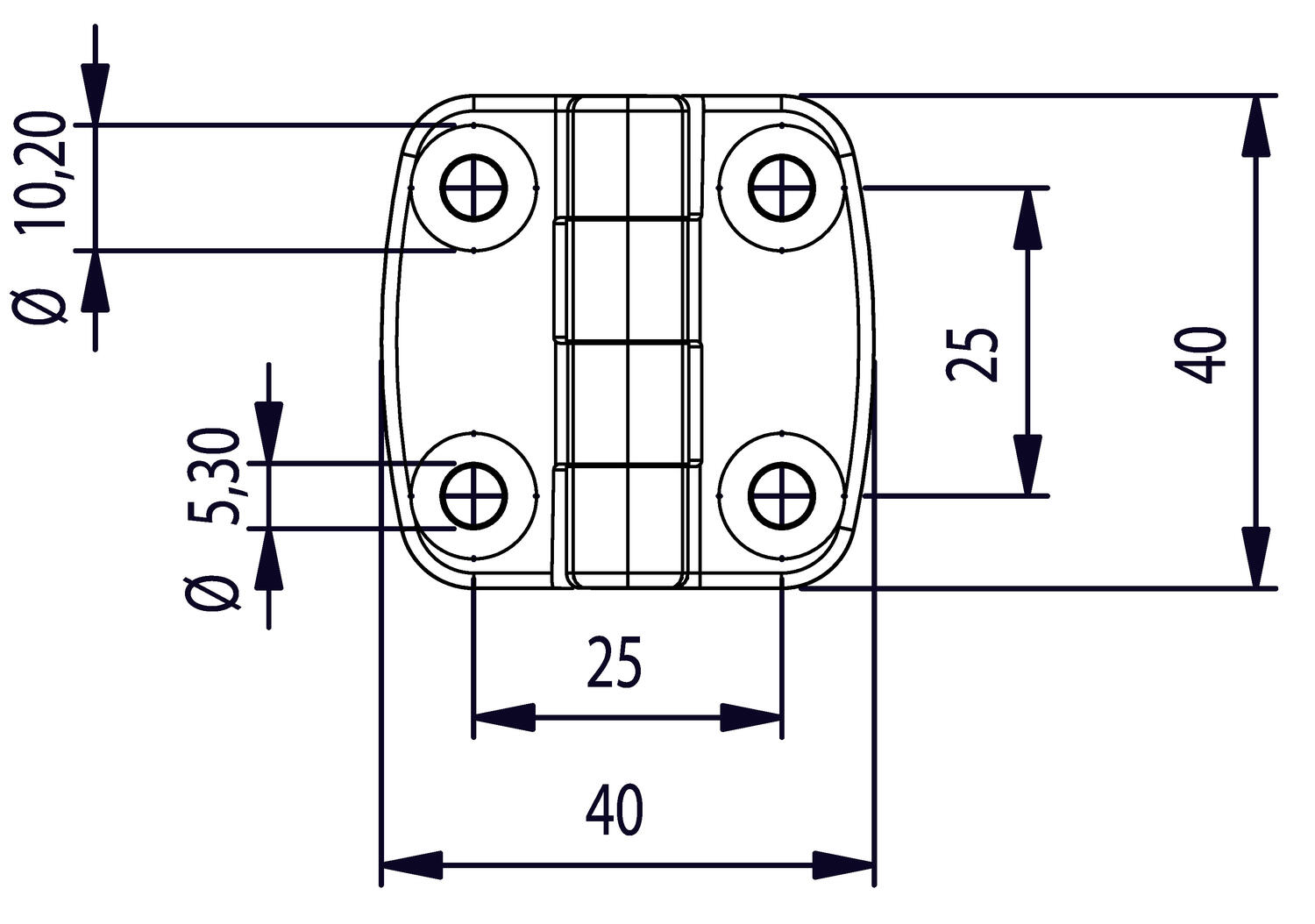

- Hole pattern: 25x25 mm
Selected variant
Technical data
| Hole | 4 x Ø5,3 |
|---|---|
| Material | Zinc, black powder coated |
| Material bolt | Stainless steel 303 |
| Material of shaft | Stainless steel 303 |
| Opening angle | 180 ° |
Product description
The hinge is mainly zinc with powder coating.
Hinge shaft & pin bolt are made of stainless steel.
For mounting with a nut on the cast-in stainless steel studs and/or with a screw in the countersunk holes.
Universal right or left mounting. Opening angle max. 180°.
