INDUSTRILÅS
The hinge is mainly zinc with powder coating.
Hinge shaft & pin bolt are made of stainless steel.

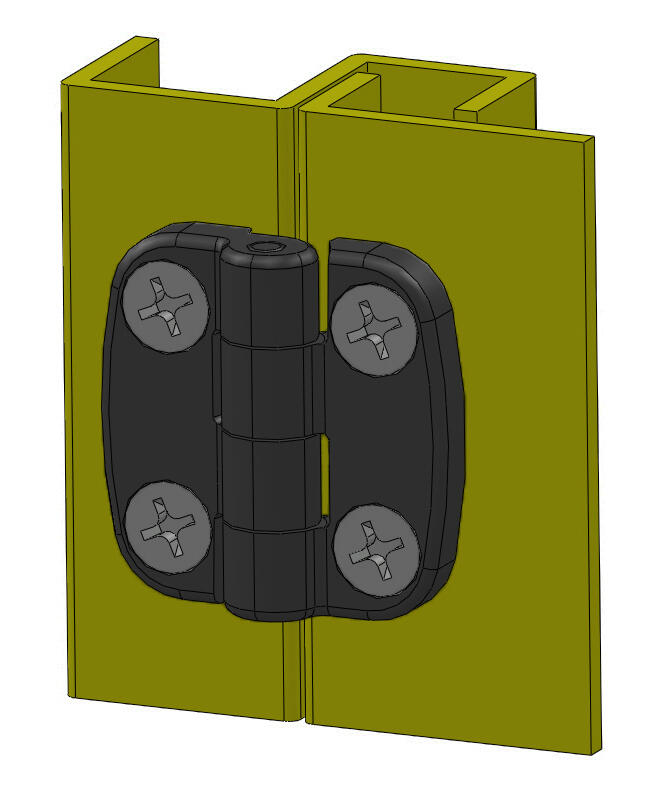

For mounting with a nut on the cast-in stainless steel studs and/or with a screw in the countersunk holes.
Universal right or left mounting. Opening angle max. 180°.

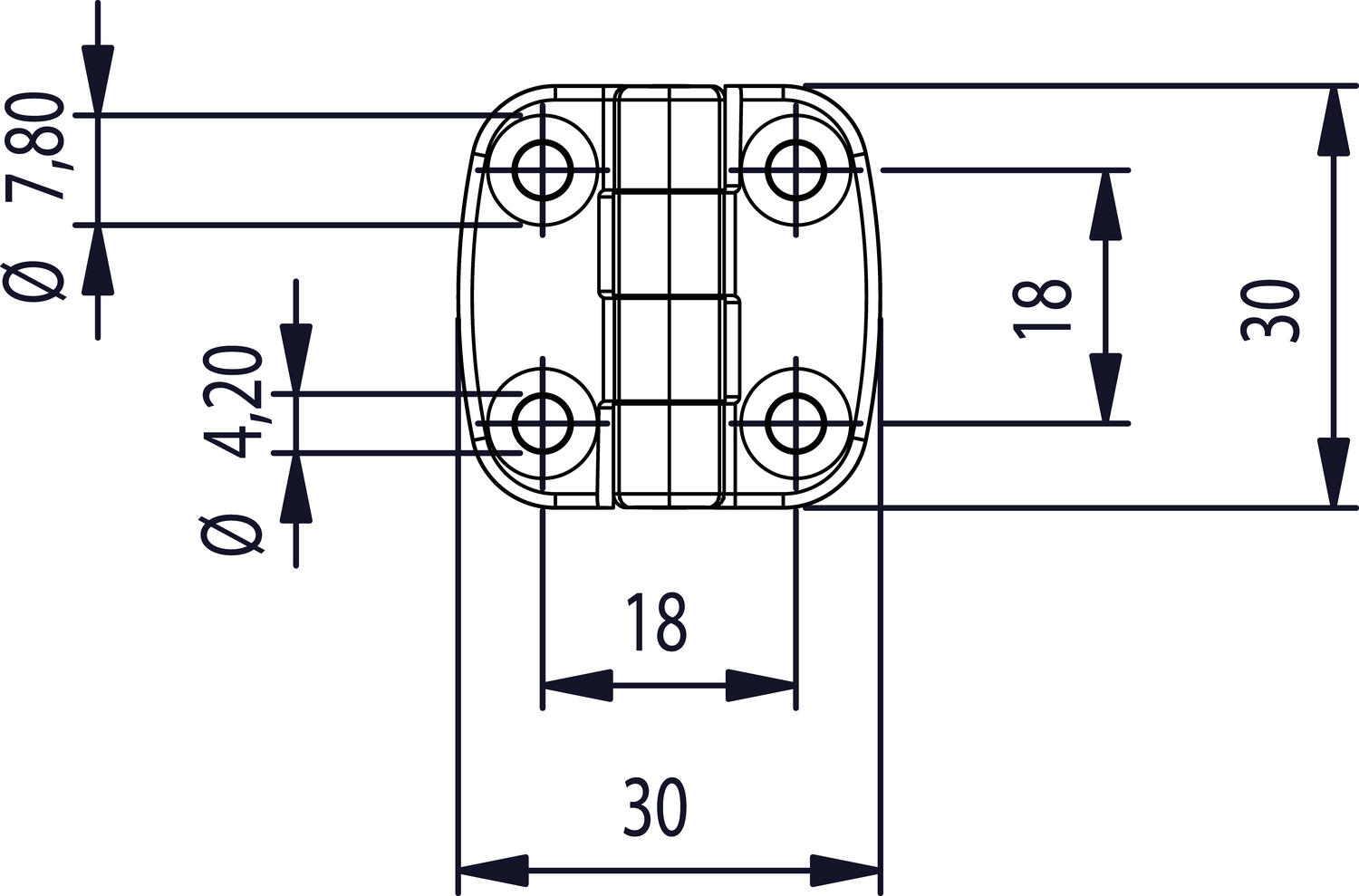

| Hole | 4 x Ø4,2 |
|---|---|
| Material | Zinc, black powder coated |
| Material bolt | Stainless steel 303 |
| Material of shaft | Stainless steel 303 |
| Opening angle | 180 ° |
The hinge is mainly zinc with powder coating.
Hinge shaft & pin bolt are made of stainless steel.
For mounting with a nut on the cast-in stainless steel studs and/or with a screw in the countersunk holes.
Universal right or left mounting. Opening angle max. 180°.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Bolt | Hole | Price | ||
|---|---|---|---|---|---|

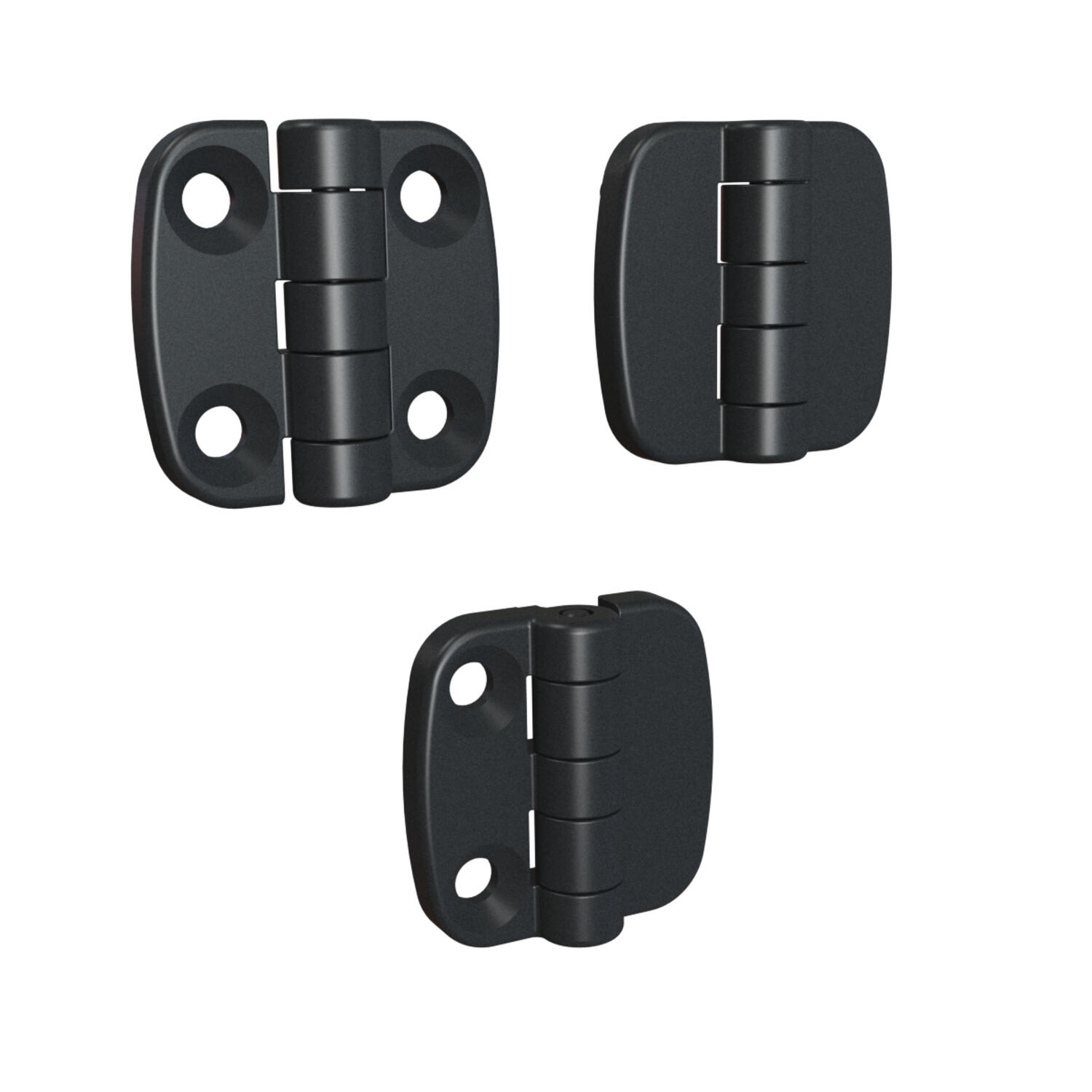

External hinge 30x30mm, 180°, 4x4.2 holes
Art:
3216-600304-30
Copied
|
|
4 x Ø4,2
|
|
||
|
External hinge 30x30mm, 180°, 4xM4 bolts
Art:
3216-610304-30
Copied
|
4 x M4
|
|
|
||
|
External hinge 30x30mm, 180°, 2xM4 bolts, 2x4.2 holes
Art:
3216-620304-30
Copied
|
2 x M4
|
2 x Ø4,2
|
|
Select a variant in the list
